SL-SW963V - CD Player PANASONIC - Free user manual and instructions

Product Type	Portable CD Player
Brand	Panasonic
Model	SL-SW963V
Dimensions (Approx.)	130 x 130 x 30 mm
Weight (Approx.)	200 g (without batteries)
Power Supply	2 x AA batteries or AC adapter (optional)
Battery Life (Approx.)	20 hours with alkaline batteries
Playback Media	CD, CD-R, CD-RW
Anti-Shock Protection	Yes (e.g., 10 seconds)
Programmable Playback	Yes (up to 20 tracks)
Repeat Modes	Track, Disc, Random
Display	LCD with track number, time, battery indicator
Audio Output	Headphone jack (3.5 mm)
Controls	Play/Pause, Stop, Skip, Volume, Hold
Maintenance	Clean lens with dry soft cloth; avoid solvents
Safety	Laser Class 1; do not open casing
Spare Parts Available	Battery cover, earphones, AC adapter
Repairability	User-replaceable batteries; other repairs by service center
Warranty	1 year (depending on region)

Frequently Asked Questions - SL-SW963V PANASONIC

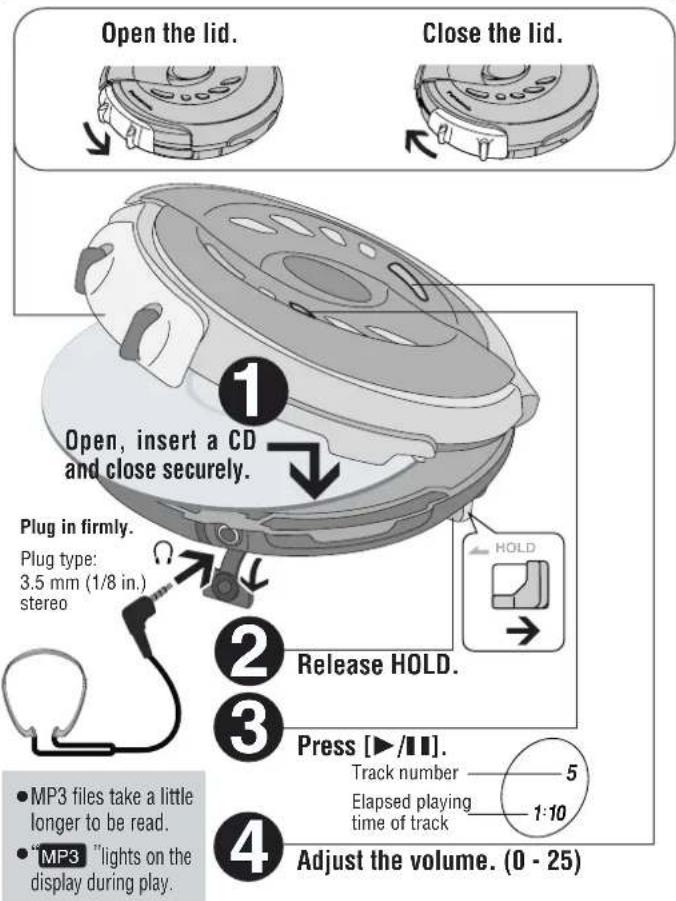

How do I play a CD on the Panasonic SL-SW963V?

Open the lid, place the CD with the label side up, close the lid, then press the Play/Pause button.

What type of batteries does the SL-SW963V use?

It uses two AA batteries (alkaline recommended). Insert them with correct polarity.

How can I improve battery life?

Use alkaline batteries, turn off the anti-shock if not needed, and avoid using the headphone volume at maximum.

Why is my CD player skipping?

Ensure the disc is clean and free of scratches. The anti-shock feature may need to be enabled. Hold the player steady during playback.

How do I program a playlist?

Press Program, then use the skip buttons to select tracks, and press Program again to confirm. Press Play to start.

Can I play MP3 CDs?

The SL-SW963V is designed for standard audio CDs (CD-DA). It may not support MP3 files unless specified in the manual.

What does the 'Hold' switch do?

The Hold switch locks all buttons to prevent accidental presses during transport. Slide it to unlock.

How do I clean the lens?

Use a dry, soft cloth or a lens cleaning disc. Do not use liquids or compressed air.

Is it safe to leave batteries inside for long periods?

Remove batteries if the player will not be used for an extended time to prevent leakage damage.

Where can I find a user manual?

Visit notice-facile.com and search for Panasonic SL-SW963V to download a free PDF manual.

USER MANUAL SL-SW963V PANASONIC

PRINTED WITH SOYINK

This manual was printed with soy based ink.

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com

Panasonic Sales Company,

Division of Matsushita Electric of Puerto Rico, Inc. ("PSC")

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Model No.

SL-SW960V

SL-SW963VJ

Portable CD player

Operating Instructions

The model number and serial number of this product can be found on either the back or the bottom of the unit.

Please note them in the space provided below and keep for future reference.

MODEL NUMBER

SERIAL NUMBER

Dear Customer

Thank you for purchasing this product. Before connecting, operating or adjusting this product, please read these instructions completely. Please save this manual for future reference.

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca

© 2003 Matsushita Electric Industrial Co., Ltd.

Printed in Japan

RQT6782-P

F0203KN0

Troubleshooting guide

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem: In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [e-mail], or the website (http://www.panasonic.com). In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre close to you.

No play.	The HOLD function is on (page 2).The disc isn't correctly set.The disc is scratched or dirty. (Tracks skipped.)The unit may not read MP3 correctly if it is shaken while it is reading the files.There is moisture on the lens. Wait for about an hour and then try again.The lens is dirty: clean it with a blower (recommended product: SZZP1038C). If the lens gets marked with fingerprints, gently wipe them off with a cotton swab.You may not be able to play MP3 if you have copied a multi-session disc that has no data between sessions.
No sound or there is a lot of noise.	Ensure the plugs are inserted firmly.Wipe the plugs clean with a clean cloth.Noise may occur when playing MP3 if recording quality is poor.The elapsed playing time disappears and sound is interrupted if bumps continue repeatedly.Separate this unit from mobile telephones.
Play doesn't resume from the track where play stopped at.	This doesn't work if you change discs.This doesn't work during random play.It may not work correctly under some conditions.
Play doesn't start from the first track.	Random play modes may be on (page 6).Play resumes from the track where you last stopped play. Use skip to return to the first track.
The unit stops working.	Disconnect then reconnect all power sources (batteries and AC adaptor).
Cannot search through tracks.	You cannot search through MP3 files.
Cannot skip albums.	cannot skip between the first and last albums during play.
The battery indicator fails to appear or is incorrect.	The indicator does not appear when the AC adaptor is connected.The indicator does not appear correctly under some conditions.

Cannot recharge.	You aren't using the special rechargeable batteries (-page 5).You must insert two batteries before you can recharge them.The unit must be off before you can recharge.
The AC adaptor becomes warm during recharging.	This is normal.
The batteries are taking a long time to recharge.	The batteries may take a maximum of 6 hours to recharge under some conditions.
Play time is very short even after recharging.	The batteries may have reached the end of their service life.Usually they can be recharged 300 times.
Play time is short after recharging.	This may occur after the first time you recharge the batteries or after you haven't used them for a long time. Play time should be restored after a few recharges.The batteries can go flat if you leave the AC adaptor connected after recharging is complete.
Radio reception is noisy.	Keep the unit away from other tuners and televisions.The AM antenna is in the unit, so noise may increase if you hold the unit.

Display

hold	is on (rt-page 2).
no disc	You haven't inserted a disc or it isn't inserted correctly.You have inserted a disc this unit cannot play.
OPEN
F	My contains 20 tracks.
J	Reading MP3 files.

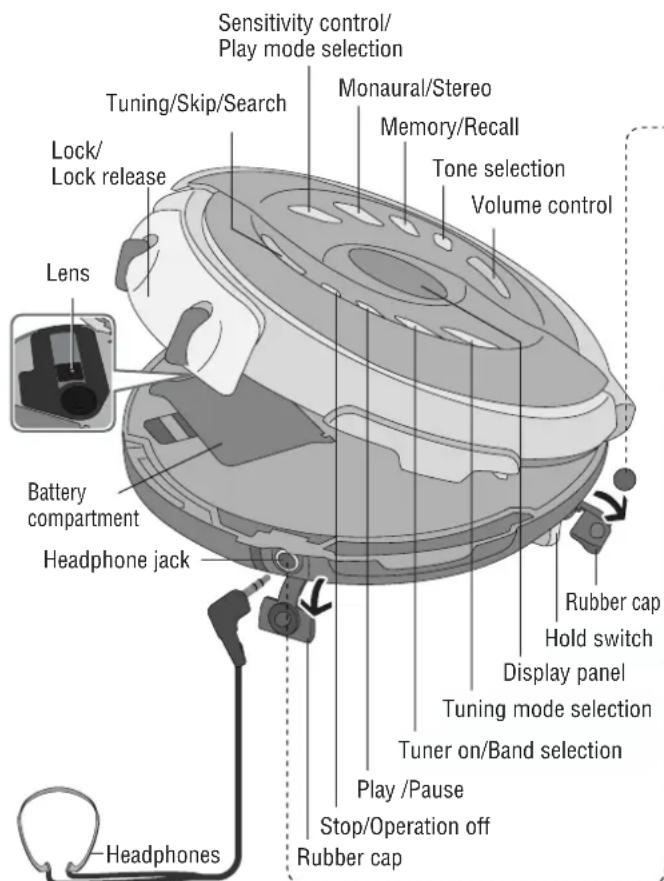

Location of controls/Connection to other equipment

Turn off this unit and the other equipment before connection.

SL-SW963VJ Actual headphones may be different from those shown in the illustration.

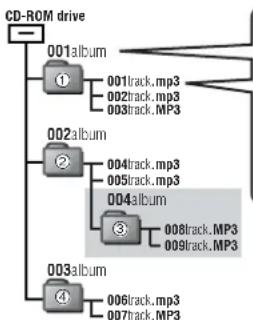

Playing MP3

This unit can play MP3 files you have recorded to discs. MPEG Layer-3 audio decoding technology licenced from Fraunhofer IIS and Thomson multimedia.

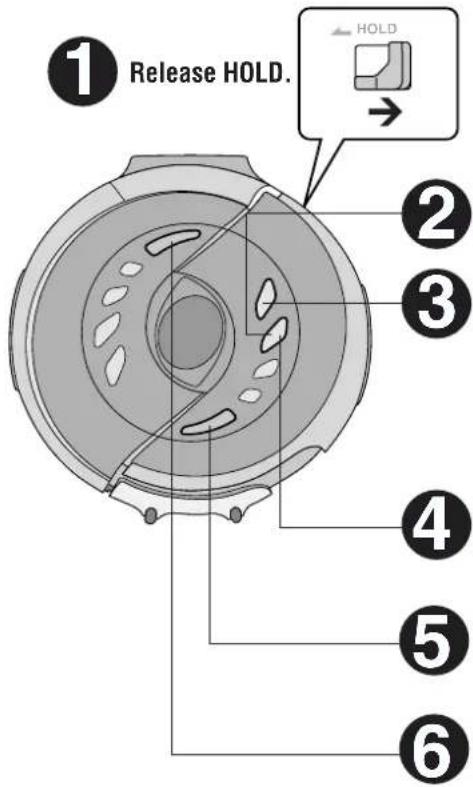

HOLD

This function causes the unit to ignore accidental button presses. Set to HOLD so the unit doesn't power on accidentally or play is interrupted.

Note on CD-R and CD-RW

This unit can play CD-R and CD-RW recorded with CD-DA or MP3. Use an audio recording disc for CD-DA and finalize* it when you finish recording. The unit may not be able to play some discs due to the condition of the recording. ※A process performed after recording that enables CD-R/CD-RW players to play audio CD-R and CD-RW.

Resume function

The unit stores the track where you stopped play. Replacing the disc cancels the function.

Auto power off function

If the unit is left in stop mode for approximately 10 minutes, the unit powers itself off automatically.

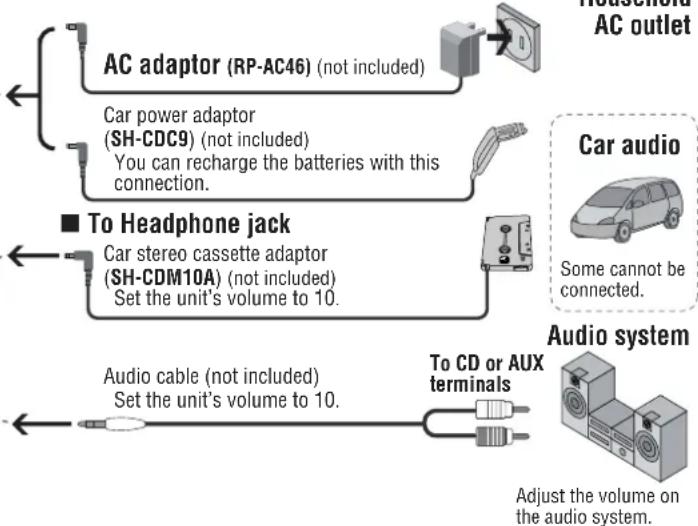

■ To DC IN jack

Supplied Accessories

Check the packing carton for these accessories.

●1 Pair of stereo headphones: LOBAD0000160

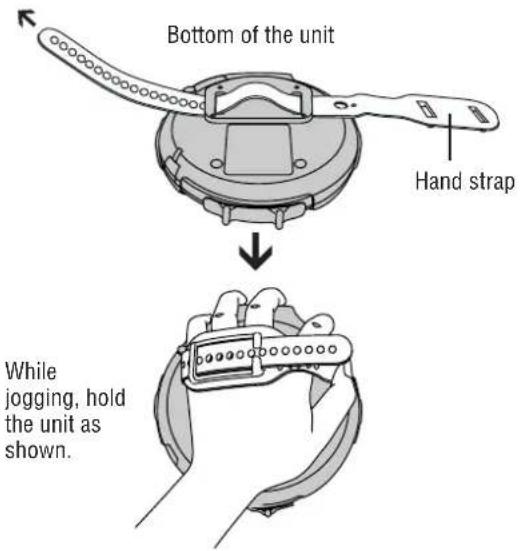

●1 Hand strap: RGQT0006-K1

SL-SW963VJ

●1 Pair of stereo headphones: RFEV041P-SY

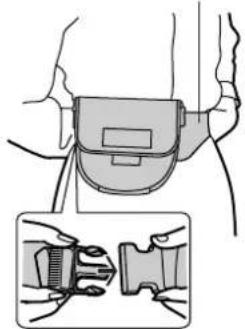

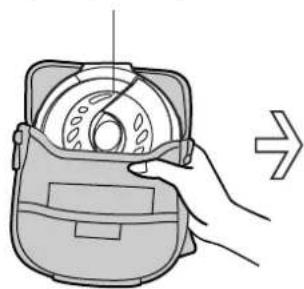

- 1 Hand strap: RGQT0006-K1 - 1 Jogger soft case: RFC0060-K

Use numbers indicated when ordering replacements or optional accessories from your Panasonic dealer. In U.S.A. contact 1-800-332-5368 or the website (http://www.panasonic.com)

Specifications

CD SECTION

CD-DA

No. of channels: 2 (left and right, stereo)

Frequency response: 20 to 20,000 Hz (-10 dB to 0 dB)

DA converter: 1 bit, MASH

Headphone output level: RMS max. 8 mW+8 mW/ 16 Ω (adjustable)

MP3

Supported bit-rates: 32 kbps to 320 kbps (128 kbps is recommended)

Supported sampling frequency: 48 kHz/44.1 kHz/32 kHz

Maximum number of items (sum of albums and tracks): 999 Maximum album levels: 100

Pickup

Light source: Semiconductor laser Wavelength: 780 nm

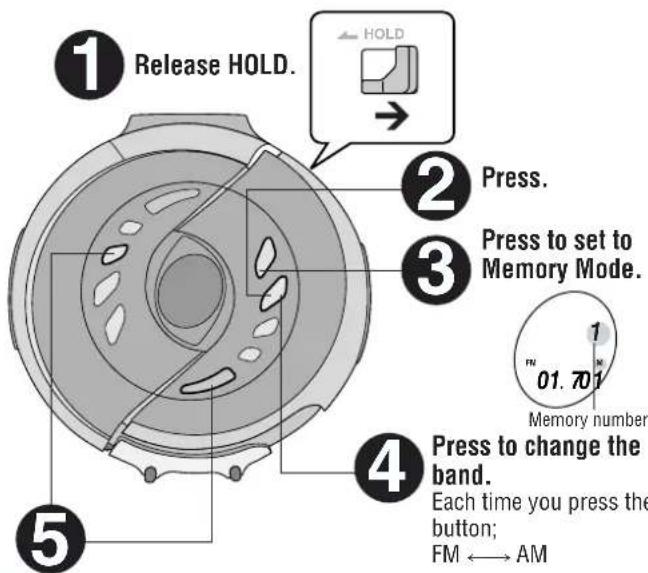

RADIO SECTION

Frequency

Radio frequency: FM; 87.90–107.90 MHz (0.2 MHz steps) 87.50–108.00 MHz (0.1 MHz/0.05 MHz steps)

AM; 520–1710 kHz (10 kHz steps) 522–1629 kHz (9 kHz steps)

GENERAL

Power supply: DC input (via optional AC adaptor): DC 4.5 V

Operational temperature range: 0 °C–40 °C (32 °F–104 °F) Rechargeable temperature range: 5 °C–40 °C (41 °F–104 °F)

Play time: [Approximate operating time in hours (playing MP3 at the recommended bitrate of 128 kbps, with HOLD on and S-XBS canceled, at 25 °C (77 °F) on a flat and stable surface)]

Batteries used	MP3 disc	CD-DA disc	RADIO (FM BAND)
2 optional alkaline batteries	35	23	75
2 optional rechargeable batteries	14	10	30

Recharging time: 4 to 5 hours ●The play time may be less depending on the operating conditions.

● Play time will be considerably reduced when playing CD-RW.

Dimensions (W×H×D): 142×29.7×142 mm (5 ^3 /16″×1 ^3 /16″×5 ^3 /16″)

Mass: 330 g (11.6 oz.) (with batteries) 290 g (10.2 oz.) (without batteries)

Note:

Specifications are subject to change without notice. Mass and dimensions are approximate.

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below. Keep these operating instructions handy for future reference.

Safety

1. Power source—Connect the unit to a power source of the type described in these instructions or as marked on the unit.
2. Polarization—The unit is equipped with a polarized power plug where one blade is wider than the other. This safety feature ensures that the plug fits into your household AC outlet only one way. If the plug doesn't fit one way, try reversing it. If the plug still doesn't fit, contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the plug.
3. Power cord protection—Route the AC power supply cord so that it will not be walked on or pinched by items placed on or against it. Never take hold of the plug or cord with wet hands. Always grasp the plug body firmly when connecting and disconnecting it.
4. Overloading—When connecting the AC power supply cord, be careful not to overload the household AC outlet, extension cord, or outlet from any other device as this can result in fire or electric shock.
5. Nonuse periods—Turn the unit off when it is not in use. Unplug the unit from the household AC outlet if it is not to be used for a long time. Unplug the unit during lightning storms. Leaving the unit connected to a household AC outlet for extended periods can cause battery fluid leakage.
6. Attachments and accessories—Use only the attachments and accessories recommended in these operating instructions.

Installation

Placement

1. Foreign material—Ensure objects and liquids do not get into the unit. Avoid exposing the unit to excessive smoke, dust, mechanical vibration, and shock.
2. Magnetism—Situate the unit away from equipment and devices that generate strong magnetic fields.
3. Stacking—Do not place anything on top of this unit.
4. Wall and ceiling mounting—Do not mount the unit on walls or ceilings unless specified in the instructions.

■Environment

1. Water and moisture—Do not use the unit near water, such as near a bathtub or swimming pool. Avoid damp basements.
2. Heat—Situate the unit away from heat sources, such as radiators. Do not leave it in an automobile exposed to direct sunlight with the doors and windows closed as this may deform the cabinet. Do not situate where temperatures fall below 5 °C (41 °F) or rise above 35 °C (95 °F).

Maintenance

Unplug the unit from the household AC outlet before cleaning. Clean with a damp cloth.

Do not use abrasive pads, scouring powders, or solvents.

Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:
   (a) The AC power supply cord or AC adaptor has been damaged; or
   (b) Objects or liquids have gotten into the unit; or
   (c) The unit has been exposed to rain; or
   (d) The unit does not operate normally or exhibits a marked change in performance; or
   (e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

Caution

■Water Resistant (Splash Proof)

This unit is splash proof, however damage will result if water gets inside the unit.

• Do not use in water or splash with salt water or a lot of water.
• Wipe off water, dust or sand from the unit before opening and closing the lid.
• Slide the lock to close the lid securely.
• Insert the rubber caps into the headphone and AC adaptor jacks when not using the unit.

■Batteries

• Do not peel off the covering on batteries and do not use if the covering has been peeled off.
• Align the poles + and - correctly when inserting the batteries.
• Do not mix different types of batteries or old and new batteries.
• Remove the batteries if you do not intend to use the unit for a long time.
• Do not throw into fire, short-circuit, disassemble, or subject to excessive heat.
• Do not attempt to recharge dry cell batteries.
• When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed together with them. Contact with metal may cause short-circuiting which can cause a fire.

■CDs

• Do not use irregularly shaped CDs.
• Do not use non-specification discs.
• Do not use CDs printed with label printers available on the market.
• Do not use CDs with labels and stickers that are coming off or with adhesive exuding from under labels and stickers.

■Listening

Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play.

If you experience a ringing in your ears, reduce volume or discontinue use.

Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.

You should use extreme caution or temporarily discontinue use in potentially hazardous situations.

Even if your headphones or earphones are the open-air type designed to let you hear outside sounds, don't turn up the volume so high that you can't hear what's around you.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

- Leave it there.

Allergies

Discontinue use if you experience discomfort with the earphones or any other parts that directly contact your skin. Continued use may cause rashes or other allergic reactions.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION:

Use only car adaptor. Model: SH-CDC9

manufactured by Matsushita Electric Industrial Co., Ltd.

Marking sign is located on bottom of the unit.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or AC adaptor has been damaged; or
(b) Objects or liquids have gotten into the unit; or
(c) The unit has been exposed to rain; or
(d) The unit does not operate normally or exhibits a marked change in performance; or
(e) The unit has been dropped or the cabinet damaged.

1. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.
2. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
3. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

Product information

For product information or assistance with product operation:

In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [e-mail], or the website (http://www.panasonic.com).

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company - Customer Servicenter

Suite B 4900 George McVay Drive

McAllen, TX 78503

In Puerto Rico contact the Panasonic Sales Company.

Tel. [phone] Fax. [phone]

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE. AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Also, the purchaser will be responsible for shipping the unit to the above address. In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 905-624-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre close to you.

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

ONLY FOR U.S.A.

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.

San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Portable Audio Products Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product or Part Name	Parts	Labor
All Portable Audio Products except item listed below	One (1) Year	One (1) Year
Rechargeable batteries(in exchange for defective item)	Ten (10) Days	Not applicable

During the "Labor" warranty period there will be no charge for labor. During the "Paris" warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty excludes both parts and labor for batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold "as Is".

Mail-In Service

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company

Customer Servicenter

Suite B

4900 George McVay Drive

McAllen, TX 78503

For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax [phone].

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

Customer Services Directory

For Product Information, Operating Assistance, Literature Request,

Dealer Locations, and all Customer Service inquiries please contact:

1-800-211-PANA (7262), Monday–Friday 9 am–9 pm;

Saturday–Sunday 9 am–7 pm, EST.

or send e-mail:

[e-mail]

For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Web Site: http://www.panasonic.com

You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".

THE WARRANTYOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory

Servicenter:

Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Phone [phone] Fax [phone]

Accessory Purchases:

1-800-332-5368 (Customer Orders Only)

For hearing or speech impaired TTY users, TTY: 1-866-605-1277

Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032

(6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST)

(Visa, MasterCard, Discover Card, American Express, Check)

Power Supply

Rechargeable batteries (not included) Recharge before initial use.

As a safety precaution this unit is constructed so it is impossible to recharge ordinary batteries. For details, check with your dealer.

Special rechargeable Ni-Cd batteries P-3GAVA/2B (set of 2)

Ordinary dry cell batteries/rechargeable batteries

Opening and closing the lid→ below Make sure the unit is off when recharging.

■The battery indicator (☐) scrolls while recharging and disappears when finished (about 4 to 5 hours).
■You can recharge the batteries before they are fully discharged.
■Fit the battery lid so it is secure and flush with the battery compartment. The disc may be damaged if the lid becomes loose or is displaced.

Dry cell batteries (not included)

After disconnecting the AC adaptor, insert two "LR6, AA, UM-3" alkaline batteries. Insert the same way as the rechargeable batteries.

The battery indicator

This indicator appears when the unit is on.

■Before playing starts the battery indicator may flash although the batteries are not drained. It appears correctly once you start play.
■The remaining time may differ when listening to a CD or the radio.

General

■Play time

Specifications, page 2
■Removing batteries

Cross-sectional diagram of a device inside a circular housing, showing internal components and a paperclip (no text or symbols)

Listening to CDs Basic Play

Playback

Pause

Press.

■Press again to restart play.

Search

Press and hold during play.

■You cannot search while playing MP3.
■You can search only within the current track during program, one track repeat, or random play modes (← page 6).

Skip

Press.

■Press [◀◀] twice to skip to the previous track during play.

Stop

Press.

■Press again to turn the unit off.

Number of tracks

Number of albums

Total play time

Number of tracks

Program Play Play modes

1

Press [- |◀◀, ▶▶| +] while stopped to select the tracks.

You can skip albums when programming MP3 tracks ( below).

Technical diagram of a mechanical component with concentric rings and internal features (no text or symbols)

2

Press [MEMORY/RECALL] to register. Track number

3

Repeat steps 1 and 2 to register up to 20 tracks.

4

Press [▶/■] to start play.

Changing the sound quality

Each time you press [S-XBS]

S-XBS ← → No display Boosts the bass (canceled)

■The effect may differ between different kinds of music.

When playing MP3

■To confirm the contents of the program

Press [MEMORY/RECALL] while the disc is playing.

■To delete the entire program

Press [■, OPR OFF].

Each time you press [MODE]

Technical illustration of a mechanical component with concentric rings and central holes (no text or symbols)

■You cannot select "RND" while playing MP3.

■You cannot skip back to other tracks during random play.

Anti-Skip System

This system reduces the skipping caused by vibration to a minimum. You can change the anti-skip memory time for CD-DA to improve sound quality.

Each time you press and hold [MODE]

Technical illustration of a mechanical component with concentric rings and a central hole (no text or symbols)

POS2 ←→ POS1 Better sound quality, 10-second anti-skip memory Normal sound quality, 45-second anti-skip memory

■You cannot change the memory time for MP3. It is a maximum of 100 seconds for data recorded at 128 kbps.

Listening to CDs

Playing MP3

Starting play from an album (Album skip)

Press and hold [- ◀◀◀, ▶▶▶ +] until the album you want appears.

Technical drawing of a mechanical component with concentric circles and a central slot (no text or symbols)

Playing only the tracks in a selected album (Album mode)

Each time you press and hold [MODE]

Mechanical component diagram showing a circular housing with internal slots and a pointer (no text or symbols)

ALBUM MODE ←→ No display (canceled)

■You cannot turn album mode on during program play.

■You can select another album with album skip.

This unit can play MP3, a method of compressing audio without overtly hurting audio quality.

■When creating MP3 files to play on this unit

●Disc formats: ISO9660 level 1 and level 2 (except for extended formats)
- It is better not to create folders (album) within folders (004album below).

Naming tracks and albums

Prefix with 3-digit numbers in the order you want to play

Up to 27 characters for tracks and 30 for albums

If you created an album such as 004album on the left, the files may not play in name order.

The albums would play in the order ①, ②, ③, ④.

■Limitations on MP3

• This unit is compatible with multi-session but if there are a lot of sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.
  ●This unit cannot play files recorded using packet write.
• If the disc includes both MP3 and normal audio data (CD-DA), the unit plays the type recorded in the inner part of the disc. If the disc includes both MP3 and other types of audio data (e.g. WMA or WAV), the unit plays only the MP3.
• Depending on how you create MP3 files, they may not play in the order you numbered them or may not play at all.

Listening to the Radio

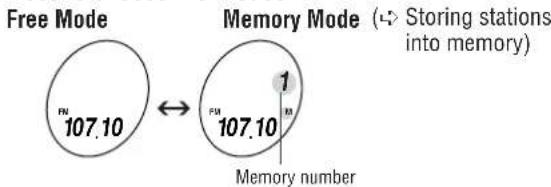

You can tune directly to a station in Free Mode by finding the station's frequency, or you can store stations in Memory Mode to make tuning simpler.

Press.

Press to choose the modes.

Press to change the band.
Each time you press the button; FM ←→ AM
- Press and hold to change rapidly. - "TUNED" appears when tuned.
■ To turn off the radio
Press [■, OPR OFF].

Press to select the station.

Adjust the volume.

Storing stations into memory

Store the frequencies of up to 30 stations; 20 FM and 10 AM.

Store stations into memory as desired.
①Press [MEMORY/RECALL].

Do each of the following within 10 seconds.
②Press [- ◀◀◀, ▶▶+] to select the frequency.
- Press and hold [-|, | +] to change rapidly.
③Press [MEMORY/RECALL].
Memory number

④Press [- ◀◀◀, ▶▶▶ +] to select the memory number.
- Press and hold [-1, 1, +] to change rapidly.
⑤Press [MEMORY/RECALL] to confirm the setting.

■ To erase unnecessary stations

Preparation: Press [TUNING MODE] to set to Memory Mode.

Press [RADIO/BAND] to select the band.

1 Press [- ◀◀◀, ▶▶▶ +] to select the memory number to be erased.

2 Press [MEMORY/RECALL].

The frequency number flashes.

Do each of the following within 10 seconds.

3 Press and hold [MEMORY/RECALL] until “- - - -” flashes.

4 Press [MEMORY/RECALL] to erase the memory number.

The next memory number appears.

To obtain good reception

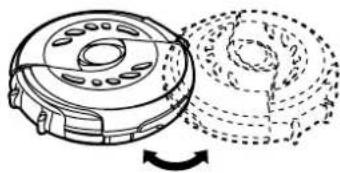

AM

Try various directions to obtain optimum reception.

Diagram of a mechanical component with rotation arrow, showing internal structure and dashed circular motion (no text or symbols)

FM

The headphone cord is also the FM antenna, so extend it instead of leaving it coiled.

To receive an FM broadcast clearly

Set to "CITY" if reception is poor or if there is interference from another station.

Each time you press and hold [FM RECEPT — CITY/NOR]

Technical illustration of a mechanical component with concentric rings and a central shaft (no text or symbols)

CITY

No display (canceled)

To select stereo or monaural FM

Set to "MONO" when there is noise during FM reception.

Sound becomes monaural, but noise is reduced.

Each time you press [FM MODE MONO/ST]

MONO

No display (stereo)

Changing the sound quality

The operation is the same as when playing CDs. (← page 6)

When using overseas

Change the frequency step according to the area.

Preparation: Press [RADIO/BAND] to switch on the power.

Press and hold [RADIO/BAND] until the step appears.

Cross-sectional diagram of a mechanical component with no visible text or symbols

Within 10 seconds

Press to select the step.

Each time you press [- ◀◀◀, ▶▶▶ +]

FM U0.2 FM-U0.1>E

FM 0.2 MHz,

AM 10 kHz

(original setting)

FM 0.1 MHz.

AM 10 kHz

FM 0.05 MHz,

AM 9 kHz

Within 10 seconds

Press and hold [MEMORY/RECALL] until the frequency appears to confirm the step.

■ To return to the previous frequency step

Repeat the above procedure.

● Changing the step erases the stations you stored in memory.

■ Attaching the hand strap

SL-SW963VJ ONLY

■ Using headphones

Side profile illustration of a person wearing an ear with a circular ear device (no text or symbols)

SL-SW963VJ ONLY

■ Using jogger soft case

away from your body.

Illustration of a hand holding a device with a circular component and an arrow indicating direction (no text or symbols)

Fasten the belt securely. Insert so bu

Illustration of a hand holding a medical device with a close-up inset showing internal components (no text or symbols)

• Before jogging with this unit, allow sufficient time for the memory buffer to fill up completely (CD-DA: 45 seconds, MP3: 100 seconds).
• This unit is designed for light jogging, but not for serious running. It may occasionally skip if used by an aggressive runner, or by someone with a heavy, jarring stride.
• Do not machine wash. Fading and loss of shape can occur.
• Do not drop the unit as the soft case cannot protect the unit and CD from damage.
