SL-SX392C - CD Player PANASONIC - Free user manual and instructions

Product Type	Portable CD Player
Brand	Panasonic
Model	SL-SX392C
Dimensions (W x H x D)	130 x 25 x 140 mm
Weight	190 g (without batteries)
Power Supply	2x AA batteries or AC adapter (DC 4.5V)
Battery Life	Up to 20 hours (playback)
Playback Formats	CD-DA, CD-R, CD-RW (MP3/WMA not supported)
Anti-Shock Protection	10-second anti-skip memory
Audio Output	Headphone jack (3.5 mm stereo)
Playback Modes	Normal, Random, Repeat (1/all), Program
Display	LCD with track number, elapsed time, battery level
Controls	Play/Pause, Stop, Skip, Volume, Hold switch
Included Accessories	Stereo earphones, carrying case, AC adapter (optional)
Maintenance	Clean lens with cotton swab; wipe exterior with dry cloth
Safety Instructions	Do not disassemble; avoid moisture; keep away from strong magnets
Spare Parts	Batteries, earphones, AC adapter (model: RP-AC30L)
Reparability	User-replaceable batteries; lens replacement by qualified technician
General Information	Compact design suitable for on-the-go listening

Frequently Asked Questions - SL-SX392C PANASONIC

What types of CDs can the SL-SX392C play?

It plays standard audio CDs (CD-DA), CD-R, and CD-RW discs. It does not support MP3 or WMA files.

How do I use the anti-skip protection?

The anti-skip protection is automatic. It uses a 10-second memory buffer to prevent skipping during movement.

How long do the batteries last?

With two fresh AA alkaline batteries, you can expect up to 20 hours of continuous playback.

How do I clean the CD lens?

Use a soft cotton swab gently to clean the lens. Do not use solvents or abrasive materials.

Can I use the CD player while charging?

Yes, you can operate the player with the AC adapter connected. The adapter also charges the batteries if they are rechargeable.

What should I do if the CD player skips?

First, check if the disc is scratched or dirty. Clean the disc with a soft cloth. Also ensure the anti-skip is enabled. If problem persists, try replacing batteries.

How do I program playback order?

While stopped, press the 'Program' button, then select tracks using skip buttons and press 'Play' to add. Up to 24 tracks can be programmed.

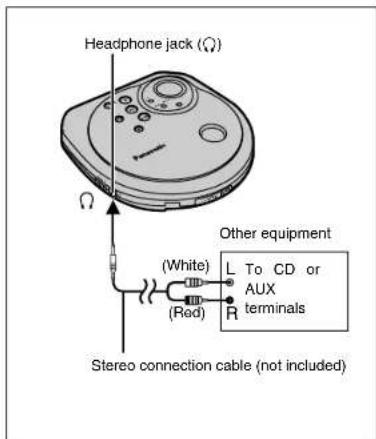

Is the SL-SX392C compatible with external speakers?

It has only a headphone output. You can connect powered speakers via the headphone jack using a 3.5mm to RCA cable.

How do I replace the batteries?

Slide the battery cover off at the back, insert two AA batteries in correct polarity, then close the cover.

What do the symbols on the display mean?

The display shows track number, elapsed time, play mode symbols (repeat, random), and battery indicator. Refer to manual for full details.

USER MANUAL SL-SX392C PANASONIC

Concerning Compact Discs

Only compact discs bearing this mark can be used with this unit.

However, continued use of irregular shaped CDs can damage the unit.

How to store the disc in its case How to

Label side up

How to hold a disc

If the surface is dirty

Wipe it with a damp cloth and then wipe dry.

Wipe from the center toward the outer circumference.

Play surface (shiny surface)

Handling precautions

• If you are taking the CD from a cold to a warm environment, moisture may form on the CD. Wipe this off with a soft, dry, lint-free cloth before using the CD.
• Do not write on the label side with a ball-point pen or other writing instrument.
• Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
• Do not attach labels or stickers to CDs. (Do not use CDs with exposed adhesive from tape or left over peeled off stickers.)

- Do not use scratch-proof protectors etc.

Storage precautions

Be sure to store CDs in their cases to protect them from dust, scratches, and warping.

Do not place or store CDs in the following places

• Locations exposed to direct sunlight
• Humid or dusty locations
• Locations directly exposed to a heat vent or heating appliance
  • In the glove compartment or on the rear deck of an automobile

Portable CD player

Dear Customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

The model number and serial number of this product can be found on either the back or the bottom of the unit.

Please note them in the space provided remove a disc from its case

MODEL NUMBER ____ SERIAL NUMBER ____

To install this product in a car, please refer to "Installation Instructions" (attached sheet).

SL-SX392C model only for U.S.A. SL-SX391C model only for Canada

Panasonic

Operating Instructions

Model No.

SL-SX392C

SL-SX391C

Supplied Accessories

Check the packing carton for these accessories.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist in the GT, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.

SL-SX391CSL-SX392C

Stereo headphones 1

Stereo earphones 1

(RFEV715P-HS)

(LOBAB0000123)

Wireless remote control....1

Car adaptor 1

(N2QABC000002)

(SH-CDC12PEY)

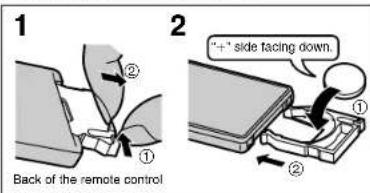

CR2025 battery for

Car stereo cassette adaptor .... 1

wireless remote control ....1

Hook and loop fastener....1

(RMF0255)

[Non-Text]

Car adaptor 1

(SH-CDC12PEY)

[Non-Text]

Car stereo cassette adaptor ..... 1

(SHCDM10B1PYK)

[Non-Text]

Use numbers indicated in parentheses when asking for replacement parts.

(Only for U.S.A.) To order accessories contact 1-800-332-5368 or web site

(http://www.panasonic.com)

Before connecting, operating or adjusting this product, please read

these instructions completely. Please keep this manual for future reference.

PPC

PY

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094 http://www.panasonic.com

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. ("PSC")

Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3 www.panasonic.ca

© 2001 Matsushita Electric Industrial Co., Ltd.

RQT6481-P F1201KNO

Printed in Japan

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below. Keep these operating instructions handy for future reference.

Safety

1. Power source—Connect the unit to a power source of the type described in these instructions or as marked on the unit.
2. Polarization—The unit is equipped with a polarized power plug where one blade is wider than the other. This safety feature ensures that the plug fits into your household AC outlet only one way. If the plug doesn't fit one way, try reversing it. If the plug still doesn't fit, contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the plug.
3. Power cord protection—Route the AC power supply cord so that it will not be walked on or pinched by items placed on or against it. Never take hold of the plug or cord with wet hands. Always grasp the plug body firmly when connecting and disconnecting it.
4. Overloading—When connecting the AC power supply cord, be careful not to overload the household AC outlet, extension cord, or outlet from any other device as this can result in fire or electric shock.
5. Nonuse periods—Tum the unit off when it is not in use. Unplug the unit from the household AC outlet if it is not to be used for a long time. Unplug the unit during lightning storms. Leaving the unit connected to a household AC outlet for extended periods can cause battery fluid leakage.
6. Attachments and accessories—Use only the attachments and accessories recommended in these operating instructions.

Installation

Placement

1. Foreign material—Ensure objects and liquids do not get into the unit. Avoid exposing the unit to excessive smoke, dust, mechanical vibration, and shock.
2. Magnetism—Situate the unit away from equipment and devices that generate strong magnetic fields.
3. Stacking—Do not place anything on top of this unit.
4. Wall and ceiling mounting—Do not mount the unit on walls or ceilings unless specified in the instructions.

Environment

1. Water and moisture—Do not use the unit near water, such as near a bathtub or swimming pool. Avoid damp basements.
2. Heat—Situate the unit away from heat sources, such as radiators. Do not leave it in an automobile exposed to direct sunlight with the doors and windows closed as this may deform the cabinet.
   Do not situate where temperatures fall below 5 °C (41 °F) or rise above 35 °C (95 °F).

Maintenance

(See page 7 for details.)
Unplug the unit from the household AC outlet before cleaning.
Clean with a damp cloth.
Do not use abrasive pads, scouring powders, or solvents.

Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:
   (a) The AC power supply cord or AC adaptor has been damaged; or
   (b) Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or
   (d) The unit does not operate normally or exhibits a marked change in performance; or
   (e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

PRINTED WITH

SOYINK

。

This manual was printed with soy based ink.

Power Supply Preparations

Refer to the specifications (page 8) for information on operating times when using dry cell batteries.

Using the car adaptor

This product come with a car adaptor. Be sure to use the adaptor specially designed for this model. (Refer to the separate installation instructions.)

Using dry cell batteries (not included)

Insert two "LR6, AA, UM-3" alkaline batteries.

If the battery lid comes loose Slide the lid back into place horizontally.

Removing batteries Push up on the battery in the direction indicated by the arrow. Then lift it out.

Note

The dry cell batteries should be changed when the unit is off.

Using the AC adaptor (not included)

Use only the recommended AC adaptor. Use of other AC adaptors can damage the unit.

For U.S.A.

To order the optional AC adaptor RP-AC46 contact 1-800-332-5368 or web site (http://www.panasonic.com). For Canada

Be sure to obtain the optional AC adaptor RP-AC46. It is available through your Panasonic dealer.

Connect the AC adaptor.

Conserving power

To save power when the unit is not to be used for a long time, unplug the AC adaptor from the household AC outlet. Reprogram tracks if necessary before use.

Note

Turn the unit off before connecting or disconnecting the AC adaptor.

If the unit malfunctions or freezes during use, disconnect the power source (the AC adaptor or batteries).

Re-connect the power source and continue operation.

Using rechargeable batteries (not included)

• If rechargeable batteries are to be used, rechargeable batteries manufactured by Panasonic are recommended.
• This unit cannot recharge batteries. The battery indicator will not function correctly when using rechargeable batteries.

Battery indicator

This indicator flashes when the batteries are almost out of power. Power is cut off completely a short while later. Replace batteries with new ones.

Note

The length of time the unit will continue to operate between when the battery indicator starts flashing and when the power is cut off differs depending on the type of batteries used.

HOLD Function

This function causes the unit to ignore short, accidental button presses. (The disc lid can still be opened and closed.)

The HOLD function prevents the following:

• The unit is powered on accidentally when not in use, causing the batteries to run down.
  ●A button is accidentally pressed during play, interrupting the operation.

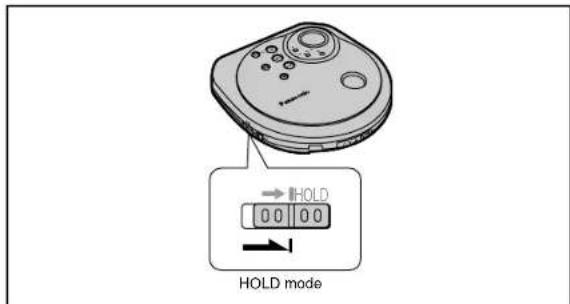

To use the HOLD function

Set [HOLD] to the HOLD position.

"hold" indication

When the unit is in HOLD mode, pressing any button causes the indication "ha / d" to appear on the display.

When the unit is powered off

The "ho I d" indication appears only when [▶/■] is pressed.

Before operating the buttons

Be sure to move [HOLD] to release the unit from the HOLD mode.

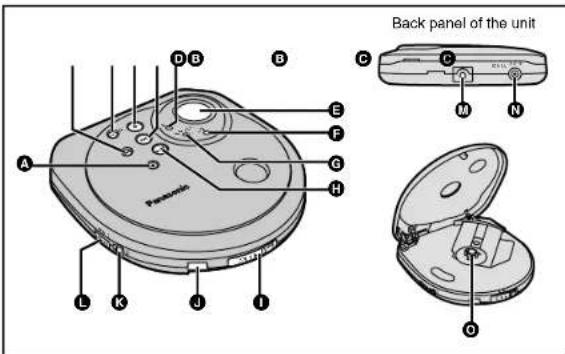

Location of Controls

A Stop/operation off button (■)
B Skip/search buttons (|◀◀, ▶▶)
● Headphone volume control buttons (−, VOL, +)
D EQ button (EQ)
E Display
F Mode button (MODE)
G Memory/recall button (MEMORY/RECALL)
Play/pause button (▶/II)
① Open switch (OPEN ▶)
J SL-SX392C ONLY

Remote sensor (SENSOR)

K Headphone jack (○)
L Hold switch (HOLD)
M Hole for car mounting base
N DC IN Jack (DC IN 4.5 V ◇-●-◇)
CD release button (PUSH)

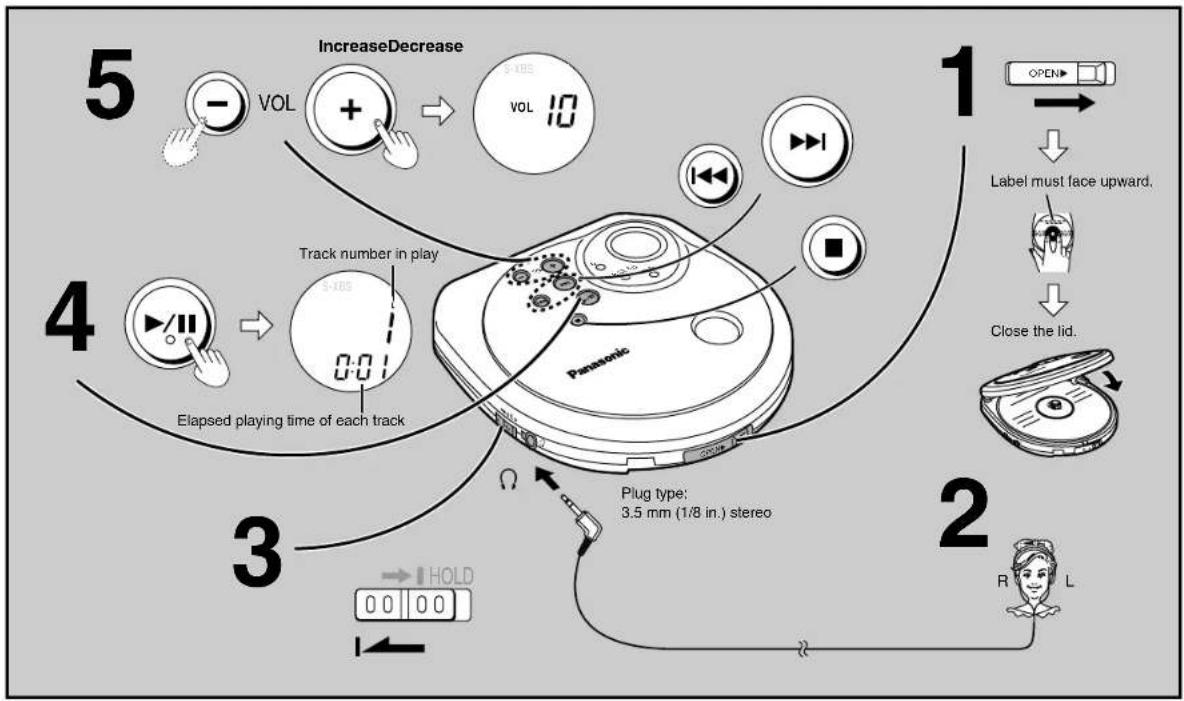

Sequential Play Basic Play

Follow steps 1–5.

In step 2: Connect the stereo headphones/earphones to the headphone jack [☐]. (Plug in firmly.)

In step 5: The volume range is 0-25. Press and hold to change the volume successively. The volume changes when pressed while the level is displayed. If any other display is shown, it changes to show the current level. (The volume returns to 10 when you disconnect the power source.)

- Play stops automatically when all the tracks have been played.

- If the unit has been connected to the car audio system, set this unit's volume to 10, then adjust the volume level on the system.

Operation	Button Display/reference
To pause play	Press during play.	Press again to restart play.
To stop play Stop mode	Press during play. Resume functionPlay starts from the beginning of the current track the next time you press [▶/II].	Total number of tracks Total playing time
To turn off the unit Off mode	Press during stop mode.	No indicator is shown.
Skip forward/ backward (skip function)	Press during play. (Press [◀◀] twice to skip to the beginning of the previous tracks.)Backward Forward Press and hold during play.	During program play (page 4), these buttons are used to skip forward or backward through the programmed sequence of tracks.You cannot skip to tracks that have been played in random or random repeat play (page 4).During program play, 1-track repeat play, random play and random repeat play (page 4), search operation is limited to the current track only.
Rapid forward/ backward (search function)

Resume function notes

• Opening the lid while in the stop mode or replacing the disc while in the off mode cancels the function. (It may remain active if you replace a disc in the off mode.)
• Play may resume from the beginning of the next track if you stopped play near the end of a track.
• The resume function works automatically and cannot be turned off.

For your reference:

This indication appears for about 30 seconds if [▶/■] is pressed when no disc is loaded in the unit or if the disc is not properly secured.

"OPEN" indication

This indication appears for about 10 minutes when the cover is opened. (However, the indication does not appear when the unit is powered off.)

Removing discs

1 Press [■] to stop play and disc rotation.

2 Slide [OPEN ▶] to open the lid.

3 Press [PUSH] to release the disc.

Do not stop the disc by hand or try to remove it before it stops rotating. This can damage CDs.

Note

Never insert foreign objects into the unit.

Auto-off function

If you leave the unit in stop mode for about 10 minutes (30 seconds if disc is not loaded), it turns off to save the batteries.

Note on CD-R and CD-RW

This unit can play CD-DA format audio CD-R and CD-RW that have been finalized ^® upon completion of recording. It may not be able to play some CD-R or CD-RW due to the condition of the recording. ^* Finalizing is a process that enables CD-R/CD-RW players to play audio CD-R and CD-RW.

Other Play Methods

The letters such as Ⓔ In the various illustrations refer to the descriptions in the “Location of Controls” section (see page 2).

Skip play

The disc plays from the specified track through to the end, then play stops automatically.

Preparation: Put unit in stop mode.

1 Select the desired track.

B

2

H

Changing the sound quality

Press during play or stop mode.

D

The setting switches in the sequence indicated below each time [EQ] is pressed.

S-XBS → TRAIN → Cancel (no indicator is shown)

S-XBS:

Select this setting to boost the low-range response.

TRAIN:

Select this setting to avoid annoying other passengers with noise from your headphones/earphones while riding on the train, or to reduce fatigue when listening for a long period of time.

Note

The setting returns to S-XBS when you disconnect the power source.

Program play

Up to 24 tracks can be entered in the programmed sequence.

Preparation: Put unit in stop mode.

1 Select the desired track.

B

2 Register in sequence.

(The indication "M" and the programmed sequence appear on the display.)

G

MEMORY/RECALL

3 Repeat steps 1 and 2 to program all the desired tracks.

4

H

■To program the same track in the sequence more than once

After step 2, press [MEMORY/RECALL] desired number of times.

■ If “F” is displayed

No more tracks can be programmed.

■To confirm the contents of the program

Press [MEMORY/RECALL] while the disc is playing. (The numbers of the programmed tracks appear on the display in sequence.)

■To delete the entire programmed sequence

Press [■].

Note

The repeat and random play modes are canceled after steps 1 and 2.

Repeat play/Random play

Press during play or stop mode.

F

The setting is switched in the sequence indicated below each time [MODE] is pressed.

Random (RANDOM)

The tracks play once each in random order and then play stops.

Cancel (no indicator is shown) ____

When pressed during program play

The setting is switched in the sequence indicated below each time [MODE] is pressed.

Cancel (M)

Note

- You can select the first track to play in random play and random repeat play by pressing [▶▶] while the disc is stopped. All the tracks are played.

- You cannot select random play or random repeat play during program play.

- The resume function does not work when random or random repeat are on.

- The mode is canceled when you disconnect the power source.

Anti-Skip System

This system deals with skipping in a variety of ways:

◆An anti-skip mechanism prevents skipping caused when play speed changes due to swinging of the unit.
- A recovery system immediately returns the laser pick-up to its original position if it is knocked off the track by a strong shock.
- An anti skip memory (max. 48seconds) fills in interruptions caused by bumps and vibrations.

The anti-skip system works automatically while the system is on and cannot be canceled.

When bumps continue repeatedly

The elapsed playing time disappears and sound is interrupted.

E

Note

• While the system is on, the disc rotates at a higher rate than usual in collecting extra audio data. This could result in a slight increase in disc rotation noise.
  ●The anti-skip memory compresses digital signals.

Using the Wireless Remote Control SL-SX392C ONLY

Preparation

Installing the lithium battery

Note

• The wireless remote control can be operated regardless of the hold mode of the unit.
• Do not place any object which will block the path of the signals between the remote control and the unit.
• Do not allow the remote sensor or transmitter to become dusty.
• Do not leave the remote control in direct sunlight or in high temperature locations in a car.
• In the interest of traffic safety, do not operate the remote control while driving.
• Take every care to prevent small children from putting the lithium battery in their mouths or swallowing it. In the event that a child has swallowed a battery, consult a physician immediately.

Operation

Preparation:

When the unit is to be operated using rechargeable batteries or dry cell batteries, first press [▶/■] on the unit and then use the remote control. (You cannot turn the unit on by remote control if it is powered by batteries.)

	Press to start play. Press to pause. (Press again to restart play.)
	Press to stop play. Press and hold to turn the unit off.
	Press to skip tracks. (Press twice to skip to the beginning of the previous track.) Press and hold to rewind or rapid forward.
	Press to change play mode. (The mode switches each time this is done to 1-track repeat, all-track repeat, random and random repeat.)
	The volume level is controlled between 0 and 25. +: Increase the volume level -: Decrease the volume level (Level 10 is recommended.)

Remote control's operating range

• Point the transmitter on the remote control at the remote sensor on the unit.
• Use the remote control within a 7-meter range of the remote sensor on the unit.
  (Depending on the angle of the remote control, the signals may not reach the sensor.)

How to use the hook and loop fastener

To prevent misplacement of the remote control, it is recommended that the hook and loop fastener be used as shown in the figure below.

Back of the remote control

• Adhere the hook and loop fastener roughly in the center of the remote control's back surface.
• Before adhering the hook and loop fastener, choose a flat and even surface and wipe off any dirt.
• Avoid a location which is exposed to direct sunlight.

CAUTION:

The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not recharge, disassemble, heat above 100°C (212°F), or incinerate. Replace battery with Panasonic part number CR2025 only. Use of another battery may present a risk of fire or explosion.

Dispose of used battery promptly. Keep away from children.

Do not disassemble and do not dispose of in fire.

Using the Unit with Optional Accessories

Using the unit with an audio system

Using stereo connection cable (not included), you can listen to CDs on your audio system.

• Turn off this unit and the other equipment before connection.
• Do not connect the cable to the PHONO jacks on the amplifier.
• Obtain the optional connecting cable if the other equipment comes with mini-phone jacks.
• Adjust the volume on the other equipment.
• Set this unit's volume to 10.

Using the unit with a car audio system

Use only the supplied car stereo cassette adaptor and car adaptor. Using other adaptors can cause overheating which can lead to fire.

This product comes with the car adaptor and the car stereo cassette adaptor. Please refer to the "Installation Instructions" (attached sheet).

Connect the car stereo cassette adaptor to [Ω] on the unit.

(When doing this, set this unit's volume to 10.)

Items to be purchased

For securing the unit:

●Car mounting kit (SH-CDF20)

Note when using the car mounting kit (SH-CDF20)

①Remove the screw from the bracket at the rear of the car mounting base.

②Replace the screw in the lower hole of the bracket.

Note

• When you switch off the car, volume and sound quality may return to the original settings and the resume function may work even if you change the disc.
• It may not be possible to use the unit with some types of car stereos owing to restrictions imposed by the construction of the car stereo cassette adaptor.

For further details, refer to the instructions of the part concerned.

ONLY FOR U.S.A.

Panasonic Consumer Electronics Company,

Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company, Division of Matsushita

Electric of Puerto Rico, Inc.

Ave. 65 de Infanteria, Km. 9.5

San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Portable Audio Limited Warranty

Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as "the Warrantor") will repair or replace this product with new or refurbished parts or equivalent product, free of charge in the U.S.A. or Puerto Rico, in the event of a defect in materials or workmanship as follows (all time periods commence from the date of original purchase):

PARTS & LABOR - ONE (1) YEAR

Non-rechargeable batteries are not warranted

Rechargeable batteries - (when applicable) exchange defective item for new one for ten (10) days.

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company - Customer Servicecenter

Suite B 4900 George McVay Drive

McAllen, TX 78503

In Puerto Rico contact the Panasonic Sales Company.

Tel. [phone] Fax. [phone]

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Also, the purchaser will be responsible for shipping the unit to the above address.

If you have a problem with this product that is not handled to your satisfaction, then write to the Consumer Affairs Department at the Company address indicated above.

This warranty is extended only to the original purchaser.

This warranty only covers failures due to defects in materials and workmanship which occur during normal use. The warranty does not cover damage which occurs in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accident, misuse, abuse, neglect, mishandling, faulty installation, misapplication, Improper Insertion of consumables, set-up adjustments, maladjustment of consumer controls, improper operation or maintenance, improper antenna, inadequate signal reception or pickup, alteration, modification, power line surge, improper voltage supply, lightning damage, commercial use or service by anyone other than a PANASONIC SERVICES COMPANY authorized repair facility, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above.

THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES OR DISCS) RESULTING FROM THE USE OF THIS PRODUCTS, OR ARISING OUT OF ANY BREACH OF THE WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service Inquiries please contact: 1-800-211-PANA(7262), Monday - Friday 9 am - 9 pm, Saturday - Sunday 9 am - 7 pm, EST.

Web Site: http://www.panasonic.com

You can purchase parts, accessories or locate your nearest

servicenter by visiting our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only)

Panasonic Services Company 20421 84 ^th Avenue South, Kent, WA 98032 (6 am to 5

pm Monday - Friday; 6 am to 10:30 am Saturday, PST)

(Visa, MasterCard, Discover Card, American Express, Check)

Product Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:
   (a) The AC power supply cord or AC adaptor has been damaged; or
   (b) Objects or liquids have gotten into the unit; or
   (c) The unit has been exposed to rain; or
   (d) The unit does not operate normally or exhibits a marked change in performance; or
   (e) The unit has been dropped or the cabinet damaged.
2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.
3. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.
4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

Product information

For product information or assistance with product operation:

In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [e-mail], or web site (http://www.panasonic.com).

For assistance in the continental U.S.A. in obtaining repairs please ship the product to:

Panasonic Services Company - Customer Servicenter

Suite B 4900 George McVay Drive

McAllen, TX 78503

In Puerto Rico contact the Panasonic Sales Company.

Tel. [phone] Fax. [phone]

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone number where you can be reached.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Also, the purchaser will be responsible for shipping the unit to the above address.

In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, web site (www.panasonic.ca.), or an authorized Servicentre close to you.

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

Maintaining the Lens

Open the lid and clean the lens as shown in the figure. Use a cotton swab to gently wipe off any finger-prints.

Recommended product: Lens cleaner kit (SZZP1038C)

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

THE FOLLOWING APPLIES ONLY IN THE U.S.A.:

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Specifications Troubleshooting G

Audio

No. of channels: 2 (left and right, stereo) Frequency response: 20 to 20,000 Hz (+0 dB to -7 dB)

DA converter: 1 bit, MASH

Headphone

output level: RMS max. 8 mW+8 mW/16 Ω(adjustable)

Pickup

Light source: Semiconductor laser Wavelength: 780 nm

General

Operational temperature range: 0 °C–40 °C

(32 °F–104 °F)

Power supply: DC 4.5 V with optional AC adaptor RP-AC

Play time:

[When used in hold mode with EQ canceled, at 25 °C (77 °F), on a flat, stable surface]

Batteries used	Play time
2 alkaline batteries	SL-SX392CAbout 32 hoursSL-SX391CAbout 40 hours

- The play time may be less depending on the operating conditions.

- Play time will be considerably reduced when playing CD-RW.

Dimensions

(W×H×D): 128×26.3×131.5 mm

(5^1/16''× 1^1/32''× 5^3/16'')

Mass: 243 g (8.6 oz.) (with batteries) 197 g (6.9 oz.) (without batteries)

Note:

Specifications are subject to change without notice.

Mass and dimensions are approximate.

le

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem:

In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [e-mail], or web site (http://www.panasonic.com).

In Canada, contact Panasonic Canada Inc. Customer Care Centre at 905-624-5505, web site (www.panasonic.ca), or an authorized Servicentre close to you.

Problem	Check this
Cannot close the cover.	Is the disc properly secured in place?
Cannot play discs.	●Is the unit in HOLD mode?●Is the disc properly secured in place?●Is there condensation on the lens?(Wait for about an hour and then try again.)●Is the disc dirty or scratched?
Tracks on disc do not play in order, starting with the first track.	●Is the random play mode on?●Did you stop play in the middle of the disc last time?
Cannot hear music—too noisy.	●Has the headphone/earphone plug inserted firmly?●Is the plug dirty? (Wipe away dirt on plug.)●Separate the unit from mobile phones.
TV picture is distorted.Radio reception is noisy.	Are you using the unit too near a TV or tuner?(Keep the unit away from the TV or tuner.)
SL-SX392C ONLYNo operation with wireless remote control	●Is the unit turned off while rechargeable batteries or dry cell batteries are being used? (Press [▶/■] on the unit and then proceed with operation.)●Has lithium battery been inserted? If it has, is its voltage low?

Cautions

Listening caution

Do not play your headphones or earphones at a high volume. Hearing experts advise against continuous extended play.

If you experience a ringing in your ears, reduce volume or discontinue use.

Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas.

You should use extreme caution or temporarily discontinue use in potentially hazardous situations.

Even if your headphones or earphones are the open-air type designed to let you hear outside sounds, don't turn up the volume so high that you can't hear what's around you.

Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

- Start your volume control at a low setting.

- Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

- Leave it there.

Discontinue use if you experience discomfort with the earphones or any other parts that directly contact your skin. Continued use may cause rashes or other allergic reactions.

Care of dry cell batteries

To prevent battery damage, electrolyte leakage and short-circuiting, heed the following points.

• Do not peel off the covering on batteries and do not use if the covering has been peeled off.
• Align the poles and correctly when inserting the batteries.
• Do not mix different types of batteries or old and new batteries.
• Remove the batteries if you do not intend to use the unit for a long time.
• Do not throw into fire, short-circuit, disassemble, or subject to excessive heat.
• Do not attempt to recharge dry cell batteries.
• Do not allow metal objects to touch the battery terminals as this may cause short-circuiting which is dangerous.
• When carrying batteries in a pocket or bag, ensure no metal objects such as necklaces are placed together with them. Contact with metal may cause short-circuiting which can cause a fire.

When driving a car

In the interest of traffic safety, do not operate the unit while driving.
