Product Type	In-ceiling speaker
Brand	Klipsch
Model	PRO-16RC
Series	Professional
Driver Size	6.5 inches (16.5 cm)
Driver Type	Polypropylene cone with rubber surround
Tweeter	1 inch (2.54 cm) pivoting silk dome
Frequency Response	55 Hz - 20 kHz (±3 dB)
Sensitivity	90 dB (2.83 V @ 1 m)
Impedance	8 ohms
Power Handling (RMS)	60 Watts
Power Handling (Peak)	120 Watts
Cutout Diameter	7.5 inches (19.1 cm)
Mounting Depth	3.5 inches (8.9 cm)
Overall Diameter	8.5 inches (21.6 cm)
Weight	3.2 lbs (1.45 kg)
Grille	Magnetic, paintable
Mounting System	Dogleg clamp for ceiling
Warranty	Limited lifetime

Frequently Asked Questions - PRO-16RC KLIPSCH

What tools are needed for installing the Klipsch PRO-16RC?

You will need a drywall saw or jigsaw for cutting the ceiling hole, a screwdriver for tightening the mounting clamps, a wire stripper for speaker wire, and optionally a stud finder.

What is the recommended ceiling thickness for installation?

The PRO-16RC is designed for ceilings with thickness up to 1.5 inches (3.8 cm). Ensure the ceiling can support the weight.

Can the speaker be used in bathrooms or outdoor covered areas?

The PRO-16RC is not rated for moisture. For damp locations, consider Klipsch's weather-resistant models or add a protective cover.

How do I connect the speaker wire?

Use the spring-loaded push terminals on the back of the speaker. Strip about 1/2 inch of insulation, press the terminal, insert wire, and release.

What is the ideal amplifier power for this speaker?

An amplifier delivering 30-120 watts per channel at 8 ohms is recommended. Avoid underpowering to prevent distortion.

Can the tweeter be aimed?

Yes, the 1-inch silk dome tweeter pivots up to 15 degrees for directing sound toward the listening area.

How do I paint the grille?

Remove the magnetic grille. Use a high-quality spray paint suitable for plastics. Apply thin, even coats, and let dry completely before reinstalling.

What is the break-in period for the speaker?

Klipsch recommends 40-50 hours of normal use for the speaker to reach optimal performance. Play varied content at moderate volume.

Does the speaker come with a template for cutting the hole?

Yes, a cutout template is included in the box. Alternatively, you can trace the speaker frame after removing the grille.

How do I clean the speaker and grille?

Use a soft, dry cloth or a vacuum with a soft brush attachment for dust. Do not use water, solvents, or compressed air near the driver.

USER MANUAL PRO-16RC KLIPSCH

6.5" In-Ceiling Speaker

TRUE REFERENCE ACOUSTICS

Using the same acoustic components and horn design as the highly acclaimed Reference box speaker line, the Professional Reference Architectural series perfectly combines the aesthetics of an architectural speaker with the pure performance and dynamic voicing of the Klipsch Reference series. With a 6.5" IMG woofer and a 1" Aluminum Dome tweeter mated to a round Tractrix® horn, the Pro-16RC brings dynamic, powerful, detailed Klipsch Reference sound to your distributed audio or home theater system.

SECUREFIT™ INSTALLATION SYSTEM

The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing, which can lead to breaking the dog leg or cracking the drywall. The speaker module is then screwed to the bezel (using machine screws instead of traditional drywall screws) for a more robust, acoustically stable installation than the competition.

CONTROLLED DISPERSION TECHNOLOGY™

CDT technology allows for the tweeter and the woofer to be aimed up to 15^ in any direction, helping to ensure on-axis frequency response at almost any listening position.

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

ROUND AND SQUARE GRILLES INCLUDED

Architectural speakers not only need to sound great, but blend in seamlessly with even the most luxurious interior designs. The Professional Series Reference Premiere in-ceiling speakers include both round and square grilles in the box, so they look great in any space right out of the box.

PVC PAINT SHIELD INCLUDED

Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

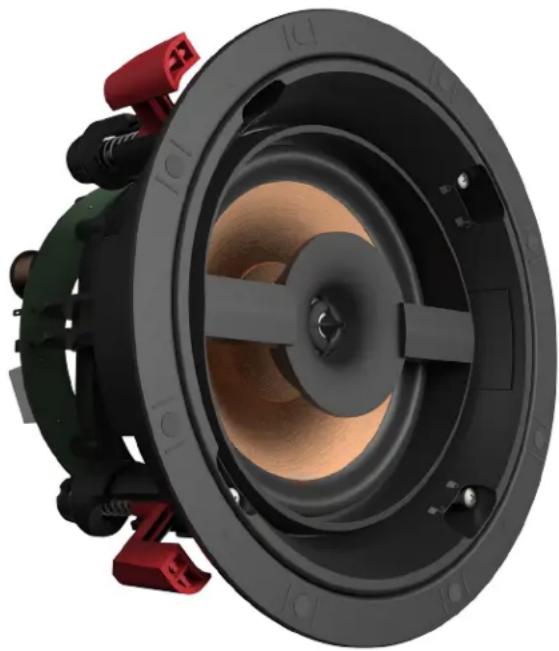

Cross-sectional view of a black speaker or audio headset with red connectors and green circuitry (no text or symbols visible)

SPECIFICATIONS

FREQUENCY RANGE	63Hz - 23kHz +/- 3dB
HIGH FREQUENCY DRIVER	1" (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix® Horn
LOW FREQUENCY DRIVER	6.5" (16.51cm) IMG Woofer
SENSITIVITY	94 dB @ 2.83V / 1m
COVERAGE ANGLE	100°
POWER HANDLING	50W RMS / 200W Peak
IMPEDANCE	8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE	ABS/Infinite Baffle
FINISH	Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS	9.2" W x 9.2" H x 4.5" D (23.3cm H x 23.3cm W x 11.3cm D)
MOUNTING DEPTH	4.34" (11.03cm)
CUTOUT DIMENSIONS	8.3" (21.1cm)
PRODUCT WEIGHT	7 lbs (3.18kg)
INCLUDED IN BOX	Round Grille, Square Grille, Paint Shield
INSTALL KIT	IK-650-C II (Sold Separately)
FIRE RATED ENCLOSURE	ME-650-C (Sold Separately)
BUILT FROM	2017
