USER MANUAL HP24FS-35 Perlick
24" SIGNATURE SERIES FREEZER
HP24FS-324" INDOOR MODEL HP24FO-324" OUTDOOR MODEL
QUALITY & INNOVATION THAT INSPIRES


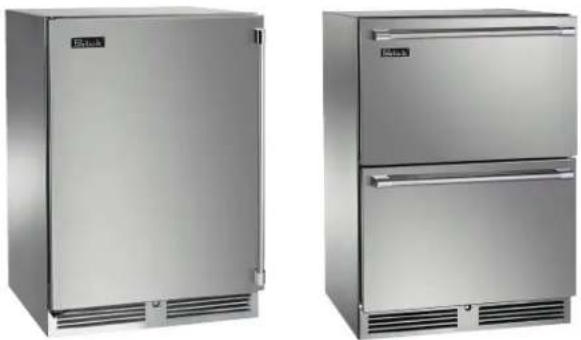

Two stainless steel refrigerators side by side, one front and one back, with no visible text or labels.Solid Door Model Drawer Model
GENERAL SIGNATURE SERIES FEATURES
- Zero-clearance hinging allows for abutment with surrounding cabinetry
• Perlick's commercial-grade, 390 Btu standard compressor - Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior and exterior - Industry Exclusive adjustable, full-extension pull-out shelves; drawer models feature self-closing slides
- Stainless-steel ball-bearing glides provide smooth movement of shelves
- Low E, UV-coated glass provides industry leading insulation and protection.
- Adjustable Crisp White and Cool Blue LED lighting
• State-of-the-art digital control module
- Optional door locks and Industry-Exclusive drawer locks (factory installed)
- Stacking kit available
- Indoor and outdoor models available
- Also available - 24" Refrigerator, Beverage Center, Wine Reserve, Beer Dispenser, and Dual-Zone Wine Reserve
• 5.2 cubic feet of capacity
- Industry Best Three Year Warranty plus additional three years on sealed system
HP24FS-3/FO-3 FEATURES
• Available with solid stainless steel door, solid wood overlay door, stainless steel drawers or wood overlay drawers
- Freezer equipped with automatic hot gas defrost for maintenance-free defrosting
- Door models include two (2) full-extension pull-out shelves
• Freezer temperature -10°- 10°F
Form No.HP24F-3 Rev. 02.09.2017
PRODUCT SPECIFICATIONS INDOOR MODELS
Overall Width 23-7/8" (60.64 cm.)
Overall Height 34-1/4" (86.96 cm.)
Overall Depth 24" (60.96 cm.)
Opening Width 24" (60.96 cm.)
Opening Height 34-3/8" (87.31 cm.)
Opening Depth 24" (60.96 cm.)
Refrigerated Volume 5.2 cu. ft.
Door Swing Clearance 25" (63.5 cm.) minimum
Electrical 115V, 60Hz, 1 Phase, 2.3 amps
Plumbing None Required
Annual Energy Usage 443 kWh/yr
Shipping Weight 191 lbs (68.04 kg.)
HP24FS-3-1L* Solid stainless steel door, hinge left
HP24FS-3-2L* Solid wood overlay door, hinge left
HP24FS-3-5 Stainless steel drawers
HP24FS-3-6 Wood overlay drawers
OUTDOOR MODELS
HP24FO-3-1L* Solid stainless steel door, hinge left
HP24FO-3-2L* Solid wood overlay door, hinge left
HP24FO-3-5 Stainless steel drawers
HP24FO-3-6 Wood overlay drawers
* Also available hinge right


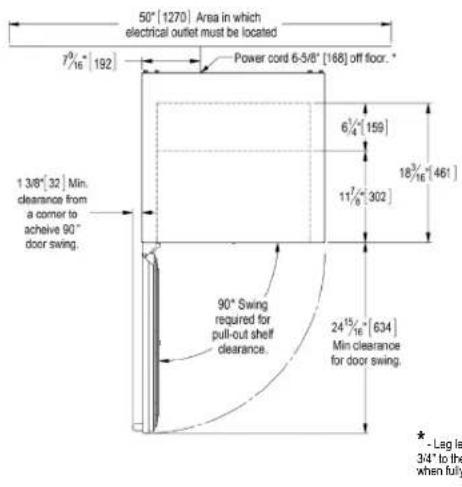

50" [1270] Area in which electrical outlet must be located 7½[192] Power cord 6-5/8" [168] off floor.* 6½[159] 18½[461] 1 3/8" [32] Min. clearance from a comer to achieve 90" door swing. 11½[302] 90° Swing required for pull-out shelf clearance. 24½[634] Min clearance for door swing. * - Lag len 3/4" to the when fullyDoor Models


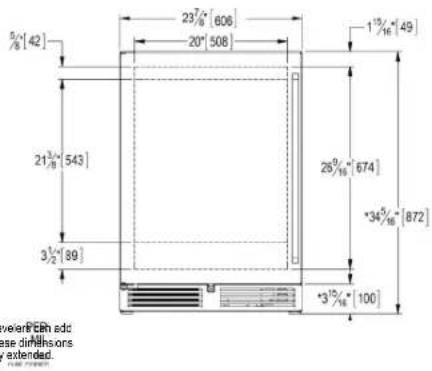

23 7/8" [606] 20" [508] 1 1/16" [49] 21 3/8" [543] 25 9/16" [674] *34 9/16" [872] 3 1/2" [89] *3 1/16" [100]


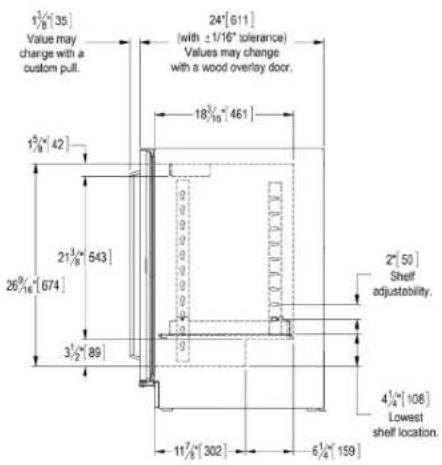

13/8 [35] Value may change with a custom pull. 24° [611] (with ±1/16" tolerance) Values may change with a wood overlay door. 18 3/10 461 1 5/8 [42] 21 3/8 543 26 9/16 [674] 3 1/2 89 2° [50] Shelf adjustability. 4 1/4 [108] Lowest shell location. 11 7/8 [302] 6 3/4 159


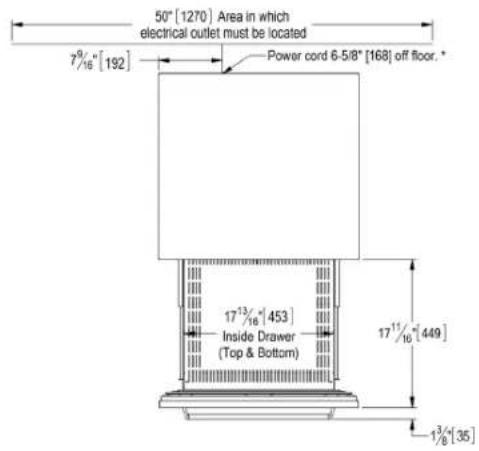

50" [1270] Area in which electrical outlet must be located 79/16" [192] Power cord 6-5/8" [168] off floor. * 173/16" [453] Inside Drawer (Top & Bottom) 171/16" [449] 13/8" [35]Drawer Models


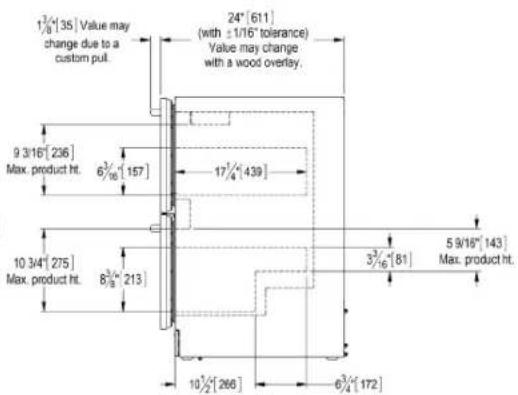

1/8 35 [Value may change due to a custom pull. 24" [611] (with ±1/16" tolerance) Value may change with a wood overlay. 9 3/16" [236] Max. product ht. 6 3/16" [157] 17 3/16" [439] 10 3/4" [275] Max. product ht. 8 3/8" [213] 3 3/16" [81] 5 9/16" [143] Max. product ht. 10 3/8" [266] 6 3/4" [172]Form No.HP24F-3 Rev. 02.09.2017
