Product Type	Freezer
Brand	Perlick
Model	HP24FS-31R
Overall Width	23-7/8" (60.64 cm)
Overall Height	34-1/4" (86.96 cm)
Overall Depth	24" (60.96 cm)
Opening Width Required	24" (60.96 cm)
Opening Height Required	34-3/8" (87.31 cm)
Opening Depth Required	24" (60.96 cm)
Refrigerated Volume	5.2 cu. ft.
Door Swing Clearance	25" (63.5 cm) minimum
Electrical Requirements	115V, 60Hz, 1 Phase, 2.3 amps
Annual Energy Usage	443 kWh/yr
Shipping Weight	191 lbs (86.6 kg)
Temperature Range	-10° to 10°F
Defrost System	Automatic hot gas defrost
Refrigeration System	RAPIDcool forced-air, 390 Btu compressor
Interior Material	Commercial-grade stainless steel
Exterior Material	Commercial-grade stainless steel
Shelves	Adjustable full-extension pull-out shelves with ball-bearing glides
Lighting	Adjustable Crisp White and Cool Blue LED
Warranty	3 years plus additional 3 years on sealed system
Optional Locks	Door/drawer locks (factory installed)

Frequently Asked Questions - HP24FS-31R Perlick

What is the temperature range of the HP24FS-31R freezer?

The temperature range is -10° to 10°F.

How do I defrost the freezer?

The freezer features automatic hot gas defrost, requiring no manual intervention.

What are the dimensions required for installation?

Overall dimensions: 23-7/8" W x 34-1/4" H x 24" D. Opening: 24" W x 34-3/8" H x 24" D. Minimum door swing clearance 25".

Is this freezer suitable for outdoor use?

Yes, there are both indoor and outdoor models. The HP24FS-31R is an indoor model; outdoor models are designated HP24FO-3.

How much storage capacity does it have?

It has 5.2 cubic feet of storage volume.

Can I install a lock on the door?

Yes, optional door and drawer locks are available and factory installed.

What type of shelves does it have?

It has two full-extension pull-out shelves with stainless steel ball-bearing glides for smooth movement.

What is the warranty?

Industry best three year warranty plus additional three years on the sealed system.

What are the electrical requirements?

115V, 60Hz, 1 Phase, 2.3 amps.

How do I clean the stainless steel exterior?

Use a soft cloth and mild detergent; avoid abrasive cleaners to prevent scratching.

USER MANUAL HP24FS-31R Perlick

24" SIGNATURE SERIES FREEZER

HP24FS-324" INDOOR MODEL HP24FO-324" OUTDOOR MODEL

QUALITY & INNOVATION THAT INSPIRES

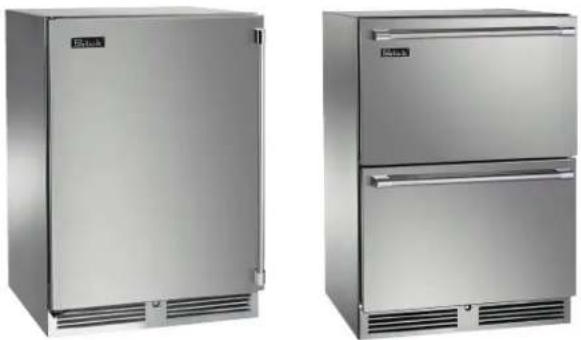

Solid Door Model Drawer Model

GENERAL SIGNATURE SERIES FEATURES

• Zero-clearance hinging allows for abutment with surrounding cabinetry
• Perlick's commercial-grade, 390 Btu standard compressor
- Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior and exterior
- Industry Exclusive adjustable, full-extension pull-out shelves; drawer models feature self-closing slides
- Stainless-steel ball-bearing glides provide smooth movement of shelves
- Low E, UV-coated glass provides industry leading insulation and protection.
- Adjustable Crisp White and Cool Blue LED lighting

• State-of-the-art digital control module
- Optional door locks and Industry-Exclusive drawer locks (factory installed)
- Stacking kit available
- Indoor and outdoor models available
- Also available - 24" Refrigerator, Beverage Center, Wine Reserve, Beer Dispenser, and Dual-Zone Wine Reserve
• 5.2 cubic feet of capacity
- Industry Best Three Year Warranty plus additional three years on sealed system

HP24FS-3/FO-3 FEATURES

• Available with solid stainless steel door, solid wood overlay door, stainless steel drawers or wood overlay drawers
- Freezer equipped with automatic hot gas defrost for maintenance-free defrosting
- Door models include two (2) full-extension pull-out shelves
• Freezer temperature -10°- 10°F

Form No.HP24F-3

Rev. 02.09.2017

PRODUCT SPECIFICATIONS INDOOR MODELS

Overall Width 23-7/8" (60.64 cm.)

Overall Height 34-1/4" (86.96 cm.)

Overall Depth 24" (60.96 cm.)

Opening Width 24" (60.96 cm.)

Opening Height 34-3/8" (87.31 cm.)

Opening Depth 24" (60.96 cm.)

Refrigerated Volume 5.2 cu. ft.

Door Swing Clearance 25" (63.5 cm.) minimum

Electrical 115V, 60Hz., 1 Phase, 2.3 amps

Plumbing None Required

Annual Energy Usage 443 kWh/yr

Shipping Weight 191 lbs (68.04 kg.)

HP24FS-3-1L* Solid stainless steel door, hinge left

HP24FS-3-2L* Solid wood overlay door, hinge left

HP24FS-3-5 Stainless steel drawers

HP24FS-3-6 Wood overlay drawers

OUTDOOR MODELS

HP24FO-3-1L* Solid stainless steel door, hinge left

HP24FO-3-2L* Solid wood overlay door, hinge left

HP24FO-3-5 Stainless steel drawers

HP24FO-3-6 Wood overlay drawers

* Also available hinge right

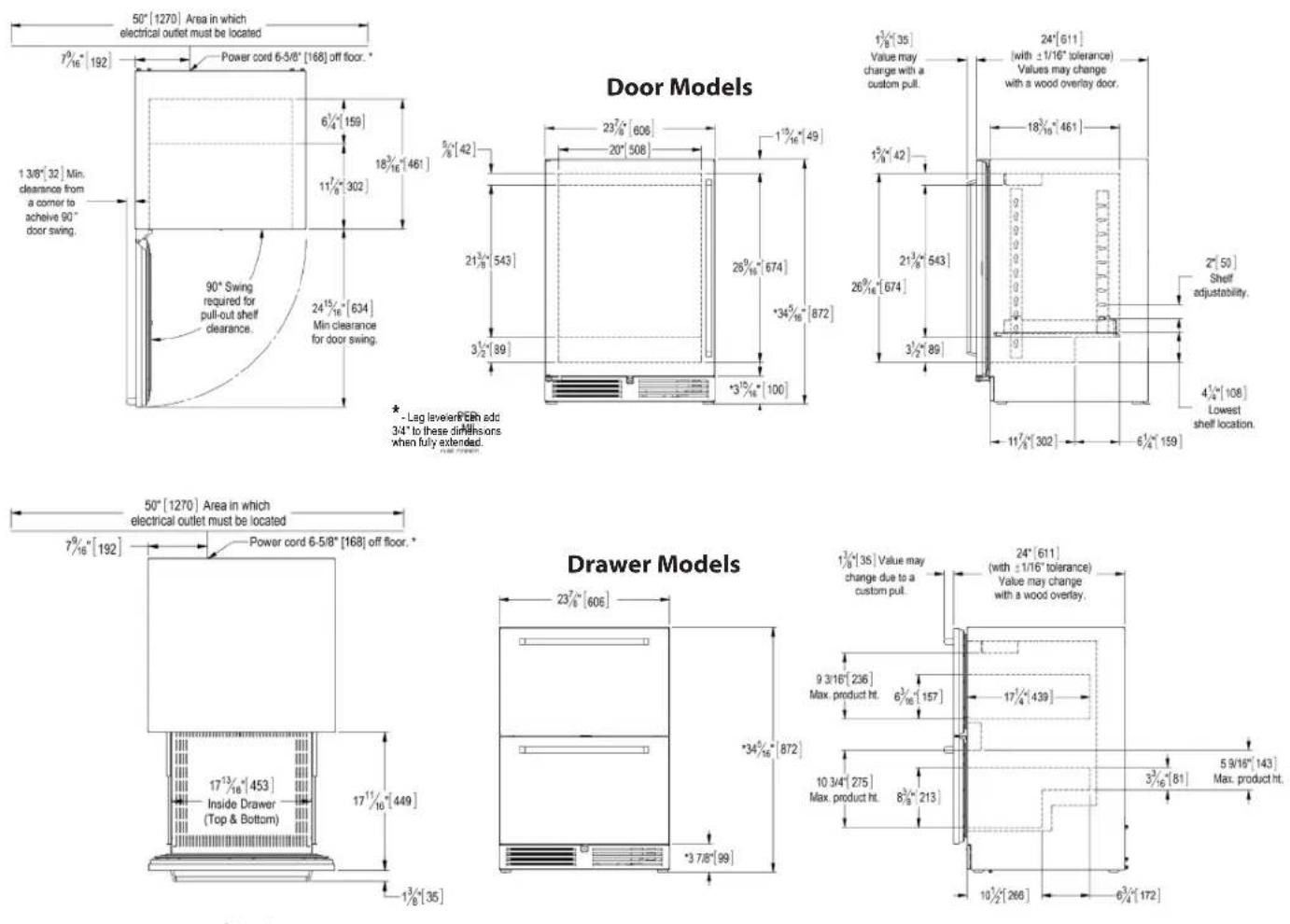

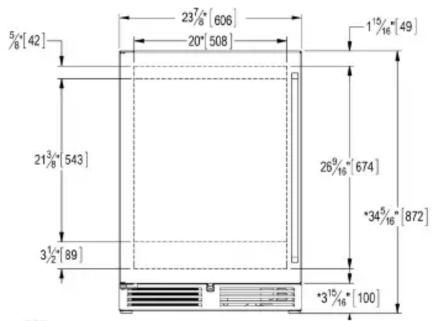

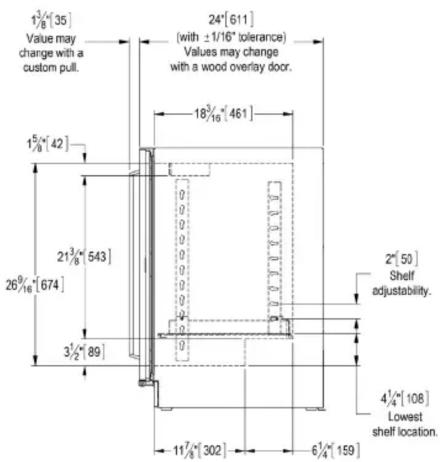

Door Models

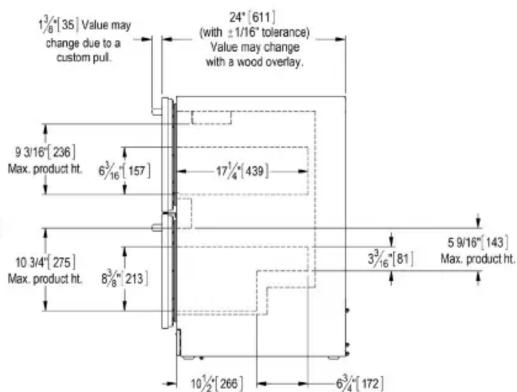

Drawer Models

Form No.HP24F-3

Rev. 02.09.2017
