USER MANUAL HC2100 BTI Aqua-Solutions

FILTRATION FAUCET INSTALLATION INSTRUCTIONS

ITEM C2100

ITEM C2200

ITEM C2400

ITEM H2100

ITEM H2200

ITEM H2400

ITEM HC2100

ITEM HC2200

ITEM HC2400

C2100 / H2100 HC2100 C2200 / H2200 HC2200 C2400 / H2400 HC2400

SHUT OFF WATER SUPPLY BEFORE INSTALLATION

TOOLS REQUIRED

ADJUSTABLE WRENCH • DRILL • PLUMBERS' TAPE

PHILLIPS HEAD SCREWDRIVER

COLD ONLY FILTRATION FAUCET W/ FILTRATION SYSTEM

ITEMS: C2100, C2200, C2400

123

Drill 3/4" to 1" in diameter hole in countertop. Maximum counter thickness is 2"

Mechanical assembly diagram showing a bolted joint with a downward arrow indicating force or direction (no text or symbols)

Center the base plate with built-in O-ring over the mounting hole on the top of the countertop. Center the faucet body on the base plate.
If desired, apply a thin bead of silicone seal under the base plate for added sealing.
DO NOT USE PLUMBERS' PUTTY

Mechanical assembly diagram showing a bolted joint with a spring and nut, no text or symbols present

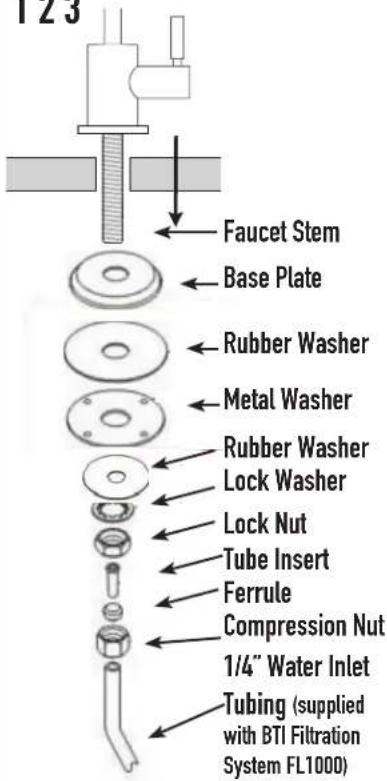

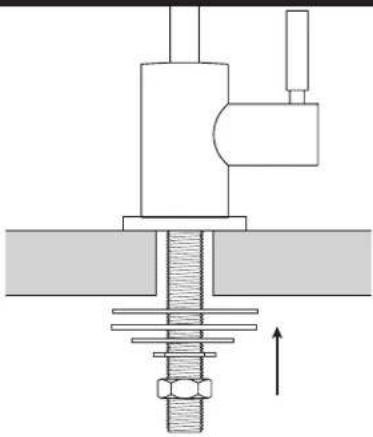

Place faucet handle in desired position. Fasten the faucet from under the countertop, sliding large rubber washer, then metal washer, then smaller rubber washer, then 5/8" diameter serrated lock washer on the faucet stem, and secure with the lock nut so the faucet does not move/spin.
DO NOT OVER TIGHTEN

FILTRATION FAUCET INSTALLATION INSTRUCTIONS, page 2 of 4

COLD ONLY FILTRATION FAUCET W/ FILTRATION SYSTEM ITEMS: C2100, C2200, C2400

4

Slide the metal 1/4" compression nut over the supply tubing (provided with the filtration system). Next, place the plastic ferrule (large end first) over the supply tubing into the compression nut.

If you are using the BTI Filtration System ITEM FL1000, you have ample tubing to connect to the faucet and still leave 4"-6" of extra tubing before the connection point.

5

Place the 1/2" long plastic insert into the end of the tubing and tighten the compression nut on the faucet stem.

TIGHTEN SECURELY WITH WRENCH.

6

* COMPLETE FILTRATION SYSTEM INSTALLATION USING INSTALLATION GUIDE INCLUDED WITH YOUR SPECIFIC BRAND OF FILTRATION SYSTEM.

Then, open the handle on the filtration faucet and turn on the water supply. Allow the water to run for 1–2 minutes to clear any debris that might be present in the water line.

7

Once a clean flow of water is achieved, check for leaks, ESPECIALLY at the water supply and connection points. If leak(s) are present, shut off the water supply, repair the leak and re-test the system as previously described.

FILTRATION SYSTEM INSTALLATION WITH BTI AQUA-SOLUTIONS HOT/COLD FILTRATION FAUCET ITEMS: HC2100, HC2200, HC2400

(A) FILTRATION FAUCET
(B) BTI FILTRATION SYSTEM-FL1000
(C) LINE/HOSE TO KITCHEN FAUCET
(D) ANGLE SHUT-OFF VALVE (supplied)
(E) COLD-WATER SUPPLY SHUT-OFF VALVE
(F) 1/4" O.D. TUBING (supplied)
(G) 3/8" / 1/4" ADAPTER (supplied w/faucet)

Install angle shut-off valve (D) supplied with BTI Filtration System.

Shut-off cold-water supply (E). Disconnect line/hose (C) to kitchen faucet from cold-water supply shut-off valve (E).

Connect angle shut-off valve (D) to cold-water supply shut-off valve (E). Connect line/hose from kitchen faucet (C) to angle shut-off valve (D).

Cut the 1/4" O.D. inlet/outlet tubing (supplied) to the correct lengths, ensuring the cut ends are square and clean.

Push one end of tubing (F) into angle shut-off valve (D). Push other end of tubing into "L-Fitting", pre-installed in the "inlet" on top of filter.

Connect 3/8" Female-Side of adapter (G) (supplied) to braided blue label cold-water in hose. Push one end of tubing (F) into 1/4" Push-Fit Side of adapter (G). Push other end of tubing (F) into "outlet" connector on top of filter.

To remove a tube, push down on the collet while pulling on the tube.

Turn on the water supply and check for leaks. Flush at least one gallon of water through the system before use.

Write the installation and filter change dates on the label for future reference.

HOT ONLY and HOT/COLD FILTRATION FAUCET W/ BTI AQUA-SOLUTIONS DIGITAL INSTANT HOT WATER DISPENSER ITEMS: H2100, H2200, H2400, HC2100, HC2200, HC2400, HT4105
1

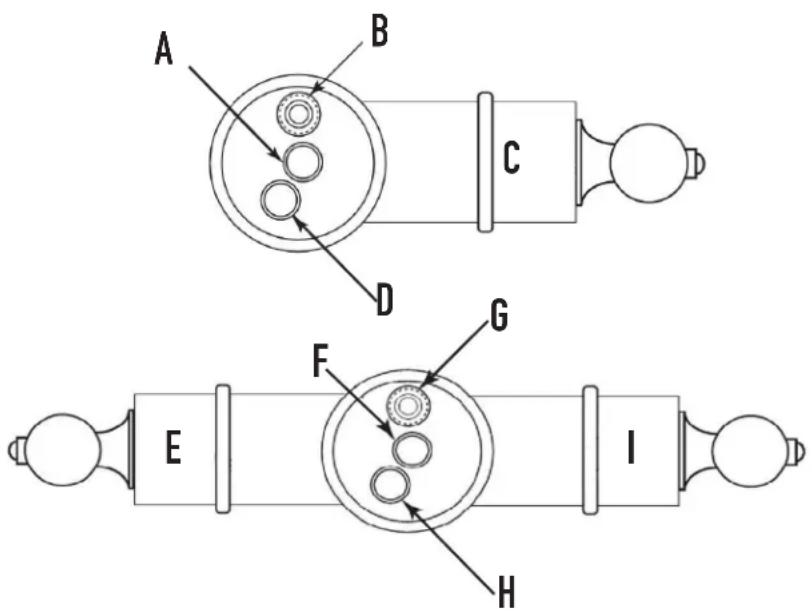

Hoses are attached to faucet body as shown in diagram.

A - Blue Label Cold Water-In Hose
B - Faucet Stem
C - Hot Only Faucet, Hot Handle
D - Black Label Pressure Tank Hose
E - Hot & Cold Faucet, Cold Handle
F - Blue Label Cold Water-In Hose
G - Faucet Stem
H - Black Label Pressure Tank Hose
I - Hot & Cold Faucet, Hot Handle

2

Drill 1-3/8" hole in countertop. (Maximum counter thickness is 2")

3

Center the base plate with built-in O-ring over the mounting hole on the top of the countertop. Center the faucet body on the base plate.

If desired, apply a thin bead of silicone seal under the base plate for added sealing.

DO NOT USE PLUMBERS' PUTTY

4

For Hot Only Faucet: Place faucet handle in desired position.

Fasten the faucet from under the countertop by first sliding the rubber washer, then the metal washer onto the faucet stem.

Make sure to place the 3 screws on the metal washer through the matching holes of the rubber washer and slide both washers up to the bottom of the countertop.

5

Thread the mounting nut to the top of the faucet stem and hand tighten. Once the faucet is secure, tighten the 3 screws against the underside of the countertop. This will prevent the faucet from moving/spinning.

6

Place a metal pinch-clamp on one end of the clear hose and attach the clear hose to faucet stem end.

Secure with pinch-clamp.

7

Attach the braided blue label cold-water-in hose to cold-water supply line.

Use plumbers' tape on the outside threads to provide a good seal.

FILTRATION FAUCET INSTALLATION INSTRUCTIONS, page 4 of 4

HOT ONLY and HOT/COLD FILTRATION FAUCET W/ BTI AQUA-SOLUTIONS DIGITAL INSTANT HOT WATER DISPENSER ITEMS: H2100, H2200, H2400, HC2100, HC2200, HC2400, HT4105

8

Attach the braided black label pressure tank hose to the blue cold-water inlet on the dispenser.

Screw the tapered adapter onto the red hot-water outlet. Use plumbers' tape on the outside threads of the outlet for a good seal.

Make sure that all lines are as straight as possible and not kinked, as this may adversely affect the performance of the dispenser.

9

Place the remaining metal pinch-clamp on the open end of the clear hose. Push the clear hose onto the tapered adapter previously installed on the red hot-water outlet. Secure with pinch-clamp.

10

Turn on the water supply and check for leak(s). ESPECIALLY at the water supply and connection points. If leak(s) are present, shut off the water supply, repair the leak and re-test the system as described.

Open the hot handle of the faucet and turn on the water supply. Water will flow from the faucet when the dispenser is full.

ENJOY YOUR BTI FILTRATION FAUCET AND DIGITAL INSTANT HOT WATER DISPENSER!

CARE INSTRUCTIONS FOR CHROME, BRUSHED NICKEL AND POLISHED NICKEL FINISHES

IMPORTANT: It is the customer's responsibility to check for any material finish defects BEFORE installation.

The best general maintenance is regular cleaning. Even though these finishes are considered durable, you CAN NEVER use any abrasive type cleaners, sponges, cloths or pads to clean the fixture. Always try to keep the finish clean and dry. Trapped moisture on the surface of the finish can lead to staining. Astringent cleaners, chlorine, bleach, along with acidic based organic cleansers are potentially harmful to these finishes.

RECOMMENDED MAINTENANCE: Do not allow water spots to dry on the fixture. Keep the surface dry and clean after use. All products should be cleaned with a damp, clean, soft cloth and mild, nonabrasive soap to remove surface spots. Be gentle in your cleaning method. NEVER use cleaners that contain bleach, abrasives or vinegar. NEVER use any type of abrasive sponge or pad.

FILTRATION FAUCET PRODUCT WARRANTY

BTI Aqua-Solutions provides warranties against functional and finish defects in material or workmanship for all Filtration Faucets, to the original purchaser, in residential applications. Filtration Faucets are warranted for FIVE YEARS for functional defects, for SEVEN YEARS for Brushed Nickel and Polished Nickel finish defects, and LIFETIME for Chrome finish defects.

To file a warranty claim for a functional or finish defect, a dated receipt of purchase of the product from an Authorized BTI Dealer must accompany the warranty request. To submit a warranty claim, contact: [e-mail]

Improper installation, the failure to perform proper maintenance, or uses for which the products were not designed are not warranted. The warranty will be void if the finish has been improperly cared for due to lack of cleaning or cleaning with improper cleaning materials which result in damage. BTI Aqua-Solutions has no liability for indirect or consequential damages to its products. The finish warranty is for normal wear and tear of the finished surface.

BTI Aqua-Solutions will repair or replace, at its option, any of the products listed above that BTI has determined to have a manufacturing defect. BTI Aqua-Solutions is not responsible for any installation or labor charges and will not pay for any repair cost performed on its products without prior written consent by a BTI Aqua-Solutions authorized representative.
