Product Type	Security Camera
Brand	ZKTeco
Model	DL-858V17C-FS
Image Sensor	1/2.7" CMOS
Resolution	1920x1080 (Full HD)
Lens	2.8mm fixed
Night Vision	IR LED, up to 30m range
Field of View	90° horizontal
Power Supply	12V DC, 1A
Power Consumption	Max 5W
Dimensions (WxHxD)	200 x 70 x 70 mm
Weight	500 g
Housing Material	Aluminum alloy
IP Rating	IP67
Main Functions	Motion detection, remote viewing, ONVIF support
Storage	NVR or microSD (optional)
Operating Temperature	-30°C to +60°C
Maintenance & Cleaning	Wipe lens with soft dry cloth; avoid harsh chemicals
Safety	Use only included power adapter; disconnect power before installation
Spare Parts & Repairability	Contact ZKTeco support; use only genuine parts
General Information	Designed for outdoor surveillance; compatible with ZKTeco NVRs

Frequently Asked Questions - DL-858V17C-FS ZKTeco

What is the resolution of the ZKTeco DL-858V17C-FS security camera?

The camera offers Full HD resolution at 1920x1080 pixels, ensuring clear and detailed images.

Does this camera support night vision?

Yes, it features IR LEDs for night vision with a range of up to 30 meters, allowing monitoring in complete darkness.

What power supply does the DL-858V17C-FS require?

It operates on 12V DC with a current of 1A. Use the included power adapter to avoid damage.

Is this camera suitable for outdoor use?

Yes, it has an IP67 weatherproof rating, making it resistant to dust and water, ideal for outdoor installation.

How do I clean the camera lens?

Gently wipe the lens with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.

Can I view the camera remotely?

Yes, with ONVIF support and compatible NVR software, you can access live footage from your smartphone or computer.

What is the field of view of this camera?

The camera has a 90° horizontal field of view, covering a wide area.

Does the camera support motion detection?

Yes, built-in motion detection triggers recording or alerts when movement is detected.

What storage options are available?

Video can be stored on an NVR (network video recorder) or a microSD card (up to 128GB) for local backup.

How do I reset the camera to factory settings?

Press and hold the reset button (located on the cable) for 10 seconds while the camera is powered on.

USER MANUAL DL-858V17C-FS ZKTeco

White circular object with black and white markings, resembling a ZKTeco camera (no readable text or symbols)

· 1/1.7" 8MP Sony Sensor
· H.265+ Dual-stream Encoding
· IR Effective Range 10\~20m
· High Quality Fish-eye Lens
· Multiple Web Browser Supported, IE/Safari/Chrome/Firefox
· P2P Cloud Function By Mobile App (AntarView Pro)
· Dewarp Supported
· Built-in PoE

System Overview

P series 4K fisheye camera is equipped with panoramic lens and on-board de-warp correction which is capable to cover the whole surrounding area with high quality picture image. It's the best ideal solution for large-scale or open space like stadiums, shopping malls or parking lots.

Functions

WDR

Powered by ZKTeco strong ISP algorithm and Starvis sensor, it could achieve excellent picture images at extreme lighting contrast background.

Starlight

To deal with extreme low light challenge, P series Vehicle PTZ which is equipped with industry leading optical workmanship and ISP adjustment could easily handle it with crystal clear color image in super low light to 0.052lux.

Smart H.265+

Delivering high quality video with up to 70% lower bandwidth. H.265+ is the optimized evolution of H.265 and traditional H.264.

Technical Parameters
Camera

Model	DL-858V17C-FS	Flash/DDR	128MB/256MB
Image Sensor	1/1.7" 8MP Sony Sensor	S/N Ratio	More than 52dB
Min. Illumination	0.1Lux/F1.4(color)0 Lux with IR on	IR Distance	10~20m
		IR LED No	4
Effective Pixels	3840(H)* 2160(V)

Lens

Focal Length	Fish-eye Lens	FOV 360"
Aperture	F1.4

Video

Compression	H.265/H.264	WDR	DWDR
Resolution	8MP(3840x2160)/1080P(1920x1080)/1.3M(1280x960)/720P(1280x720)/D1(704x576)/CIF(352x288)	Day/Night	Auto(ICR)/Color/B/W
		White Balance	Supported
Bit Rate Control	CBR/VBR	Defog	Supported
Bit Rate	32Kbps-16Mbps	Noise Reduction	3D DNR
Streaming	Dual stream	Mirror	Supported
		Flip	Supported
Frame Rate	Main stream: 3840x2160 (1-25/30fps)	BLC	Supported
	Sub stream: 704x576(1 -25/30fps)	ROI	Support 4 fixed region for main stream and sub stream separately
Digital Zoom	12x	Anti-flicker	Supported
Audio Compression	G.711u	Privacy Mask	4 Areas

Interface

Audio	1 channel audio input; 1 channel audio output	Video Detection	Motion Detection, Video Shelter
Alarm	1 channel alarm input; 1 channel alarm output	IVA	N/A
R458	Supported	TF card	Max 128GB
CVBS	Supported

Network

Ethernet	1 RJ-45 port(10/100/1000Mbps)	Web Browsers	IE/Firefox/Chrome/Safari
Protocols	TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP,DNS, DDNS, FTP, NTP, PPPoE, UPNP, SMTP, SNMP	VMS	AntarVis 2.0
		Mobile App	AntarView Pro
Onvif	Onvif Profile S	Platform	Mac OS/ Windows/IOS/Android
Max. Online Users	5	ANR	Supported
Multicast function	Supported

General

Working Temperature	-10°C~+50°C	Power Consumption	<15W
Working Humidity	10~90%	Dimensions	149.4 × 50 mm
Power Supply	PoE, IEEE802.3af, Optional	Net Weight	2KG
	DC12V±10%

Ordering Information

Type	Part Number Description
8MP Camera	DL-858V17C-FS 8MP Fisheye Network Camera

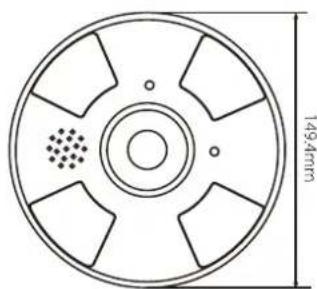

Dimensions (mm)

Technical drawing of a circular mechanical component with radial slots and central hub, dimension标注 149.4mm (no text or symbols beyond measurement)

Wire Interface

1	Audio input
2	Audio output
3	Network interface
4	Alarm input/alarm output
5	Power Supply
6	RS485
7	CVBS
