Product Type	Tablet
Brand	Proscan
Model	PLT4315-PL
Display Size	4.3 inches TFT capacitive multi-touch
Display Resolution	480 x 272 pixels
Operating System	Android 4.0.4
Internal Storage	4GB Flash Memory
RAM	512MB DDRIII
Battery Type	Built-in 3.7V Lithium rechargeable
Battery Charging	USB 5V/1.5A, approx. 2 hours for full charge
Front Camera	0.3MP (VGA)
Wi-Fi	802.11 b/g/n, up to 150Mbps
Memory Card Slot	Micro SD, up to 32GB
USB Port	USB 2.0 (high speed)
Audio Jack	3.5mm earphone jack
Speaker	Built-in 1W/8ohm
Supported Audio Formats	WMA, MP3, FLAC, AAC, WAV
Supported Video Formats	MKV, AVI, RM, RMVB, MP4, MOV, VOB, DAT, FLV, 3GP
Supported Image Formats	JPG, BMP, PNG
E-book Formats	TXT, PDF, EPUB (via third-party APK)
OSD Languages	Multiple languages including English, Spanish, French, German, etc.
Dimensions	Not specified in manual; estimated approx. 4.3 x 2.5 x 0.5 inches
Weight	Not specified; estimated approx. 270g

Frequently Asked Questions - PLT4315-PL Proscan

How do I turn on the Proscan PLT4315-PL tablet?

Press and hold the Power button for about 3 seconds. The device will boot up in approximately 1.5 minutes. If the battery is empty, charge it for at least 1 minute before trying to power on.

Why is my tablet not charging?

Ensure the USB cable is securely connected to both the tablet and the power adapter. Use only the original accessories. If the battery is completely drained, it may take a few minutes before the charging indicator appears.

How can I connect to Wi-Fi?

Go to desktop, tap the Settings icon, slide the Wi-Fi switch to ON, select your network, enter the password, and tap Connect.

Can I install apps on this tablet?

Yes, you can install APK files. From the desktop, tap Applications and use the APK Installer tool, or tap a file manager to locate and install an APK file directly. Note that some APKs may not work due to CPU limitations.

How do I rotate the screen automatically?

The tablet has an orientation sensor. To enable auto-rotation, go to Settings > Display > check Auto-rotate screen. Rotate the tablet perpendicular to the ground for best results.

Why can't I copy files from my computer?

Check that the USB cable is working and properly connected. Ensure the computer recognizes the device and that you have enough free storage on the tablet. Also, make sure the tablet is powered on and unlocked.

How do I reset the tablet if it freezes?

Press and hold the Power button for about 10 seconds until the device turns off. Then press the Power button again to restart. You can also use the Reset button on the side with a thin object.

Can I expand the storage?

Yes, insert a Micro SD card (up to 32GB, not included) into the slot on the side of the tablet. The card icon will appear in the status bar.

Why is there no sound from the earphone?

Check that the volume is not set to zero. Test with another audio file to rule out file damage. Ensure the earphone is fully inserted into the jack.

Where is the camera located?

The tablet has a front camera located at the top center of the screen. It can be used for photos, videos, and webcam applications.

USER MANUAL PLT4315-PL Proscan

Proscan is a registered trademark of TECHNICOLOR USA INC. Used under license.

Contents

Safety Notices

Getting ready to use the device

• What's inside box
  ● Product Appearance
  ● Control buttons and connections
  ● Technical Specifications

Quick Guide

● Power on / Power off
- Standby and Lock screen
- The desktop status bar and shortcut menu and the definition of the icons
- Orientation Sensor Setting
● Battery management and recharging
● WIFI network settings
- Mobile network settings
- To install an APK file
- To uninstall an APK file
- Camera
- Voice recording
- Use the device a multi media player

Music playback

Video playback

Photo browsing

• ES File Explorer
• Set OSD Language
• Set Keyboard
• Set Date and time

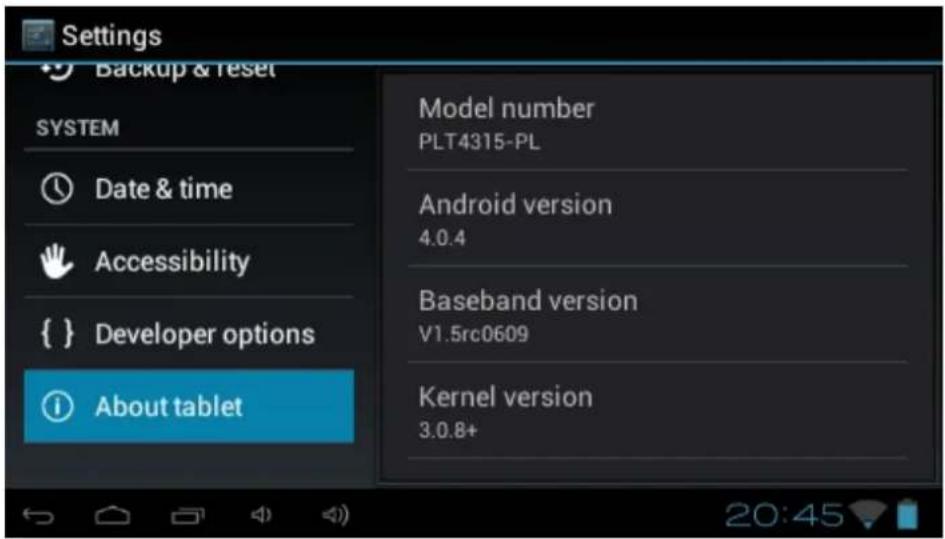

• About the Device

Safety notices

1 ) Keep this device away from strong magnetic field to avoid any damages
2) Do not rub this device with any hard objects and never clean this device with any chemicals or detergents or acids or it could cause damages on surfaces.
3) Humidity or liquid may enter this device and causes permanent damages to the hardware inside. Do not place this device in any humid environment or under the rain.
4) It is recommended that volume level of the earphones should be adjusted to an appropriate level to avoid damages to your hearings due to high volume.
5) Do not cut off the power abruptly during software update, software download, or during this device is under any kind of operation or it may cause data lost and system error.
6) Over-voltage, power cable strain, bending or squeezing by heavy objects must be avoided to prevent this device from overheating or fire disaster.
7) To eliminate the risk of electric shock, do not connect the power plug with wet hands.
8) Some movies, music and pictures are under protections of copyrights, any unauthorized usages are deemed as infringements to the laws of copyrights.
9) The performance of the WIFI reception of this device could be influenced by the wireless equipments and networks in the surrounding areas.
10) Any wireless equipment will influence the flight of an airplane, please consult the airline company if you want to use this device on the airplane.
11 ) Do not use this device anywhere near any blasting operations.
12) Only qualified maintenance personnel is allowed to dismantle this device.
13 ) Please comply with any related restrictions and rules when using this device.
14 ) Only use this device with its original accessories and battery.

15 ) Do not use any incompatible accessories on this device.
16 ) This device is not waterproof, please keep it dry all the time.
17) For the sake of data safety, please back up the important data anytime on a timely basis.
18) When connecting this device with other equipments, please follow instructions on this user's manual.
19 ) Never connect this device with any incompatible equipment.
20 ) Please consult the after-sales service in your area for any technical . problems.

Getting ready to use the device

What's inside box

Components Quantity
Tablet Pc 1
USB Cable 1
Earphone 1
User Manual 1
Warranty Card 1

View Button Function
Front	1	Front camera
	2	Volume + / -
	3	Power on/off
Side	4	Reset
	5	Micro SD Card slot
	6	USB slot
	7	Earphone jack
	8	Mic
	9	Speaker

Technical Specifications

LCD Display	Size 4.3" TFT	capacitive multi Tap panel LCD display
	Resolution 480*272
Operation System Android 4.0.4
PC interface High speed USB2.0
Built-in Flash Flash Memory: 4GB
Built-in RAM 512M DDRIII
Capacity Expansion Support Micro SD Card up to 32GB (not included)
Power Built-in 3.7V Lithium rechargeable battery Output: USB 5V/1.5A
Music Function	Format		WMA、MP3、、FLAC、AAC、WAV
	Headset max. output		(L) 5mW+(R) 5mW (32Ohm)
	Bit rate 8Kbps ~ 320Kbps
	WMA、WMV、Bit rate supported		5Kbps ~ 320 Kbps
	Frequency response		20Hz to 20KHz
	SN ratio		90dB
	Distortion		<0.05%
Video Function	Play format		MKV、AVI、RM、RMVB、MP4、MOV、VOB、DAT、FLV、3GP, etc
	Ratio		16:9 wide screen for option
Photo Browse	JPG、BMP、PNG supported
E-book Function	Format Supported		TXT、PDF、EPUB, etc (Install .APK via third party)
	Max. capacity		20M
Recording function	Format supported		AMR
WI-FI Function	Spec 802.11b/g/n
	Transmission rate		Max150Mbps
	Transmission Distance		Max100m
	Work Frequency		2.4GHz
Auto Screen Rotation	Selectable from Setting menu
Loudspeaker	Built-in 1W/8ohm
Working temperature	-10 ~ 45°C
OSD Languages	Default language: English(Canada) Other options: Catala, Cestina, Dansk, Deutsch, English, Romanian, Espanol, Francais, Hebrew, Hrvatski, Indonesian, Italiano, Latviesu, Leituviu, Magyar, Nederlands, Norsk Bokmal, Polski, Portugues, Romana, Rumantsch, Slovencina, Suomi, Svenska, Tagalog, Tieng Viet, Turkce,etc.
Operation Systems Supported	Compatible with Windows 98 se /2000/XP/Vista/ 7

Quick Guide

Power On/Off

Long press Power button for 3 seconds to power on the device. It will take about a minute and half to boot the system.

Unlock the screen by sliding to the right.

Long press Power button for 3 seconds, the screen will show the power off options: Cancel or OK. Tap “OK” to power off the unit or tap “Cancel” to exit to previous operation.

【Note】When the device is low battery, it will alert continuously and will shut down automatically when battery has completely run out. The device can not be powered on if the battery is empty, please recharge the battery at least one minute before restart the device.

Standby and Lock screen

Press button shortly to turn the device to standby mode. Under standby mode, the screen is blackout. Press button shortly again to reactivate the device. The device will then turn to Lock screen while the primary operation of the device will continue. Unlock the screen by sliding to the right to resume to status before power saving.

【Note】The primary operation of the device under standby mode will pause and the primary operation of the device under Lock screen mode will continue, only the screen is locked.

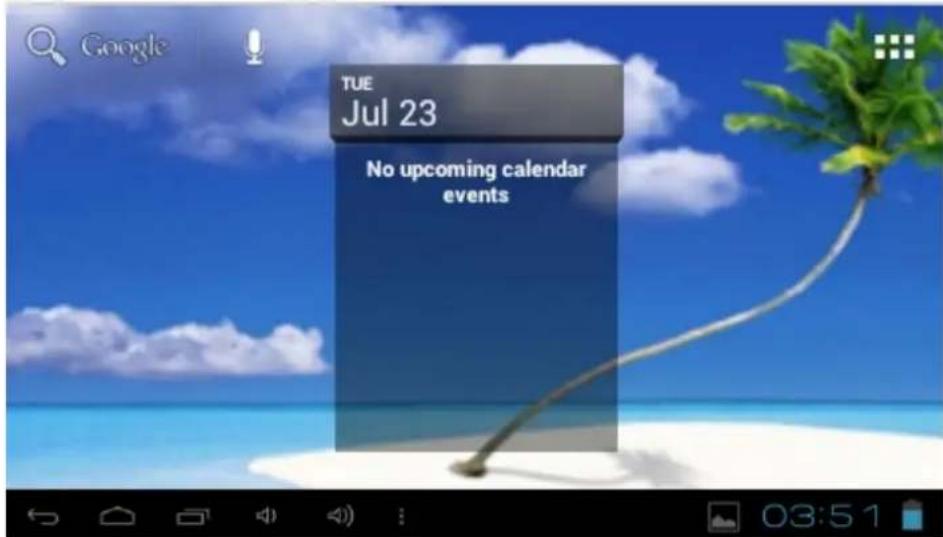

The desktop status bar and shortcut menu and the definition of the icons

Icon Function
		Home - Tap it to go to the previous screen
		Home page -Tap it to return to the desktop
[DSTX]		Tap it to check the latest files that you browsed
[OW30]		Reduce the volume
[ZZK3]		Enhance the volume
		For quickly entering to management menu

	The USB icon appears only when the device is connected to a USB device successfully.
	The Android logo appears only when the device is connected to a computer.
	Screen shot is saved
	Applications – Tap It go to Application menu
	The current system time
	The WIFI signal indicator appears only when the device is connected to a WIF network.
	The battery icon shows the remaining battery level or to indicate battery recharging status.
	The micro SD card icon appears only when a micro SD is inserted into the device.

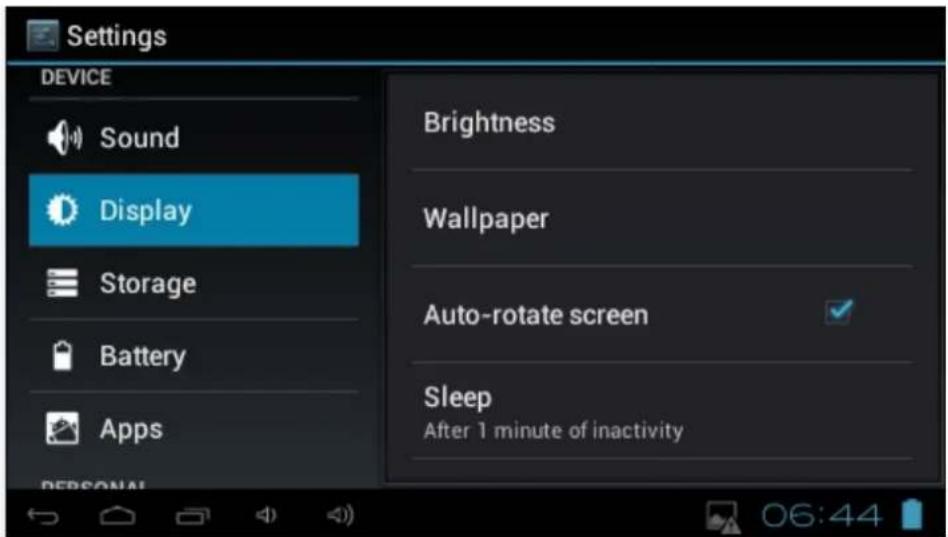

Orientation Sensor Setting

The device contains a sensor that will automatically change the orientation of screen by 90 degree as you rotate the tablet. The sensor works the best when the tablet is rotated perpendicular to the ground (i.e., when the tablet is held upright and not flat on its back). The Orientation sensor can be activated or deactivated in the Setting menu:Settings/Display/Auto-rotate screen. Tick the box if you want to activate the sensor or un-tick the box to deactivate this function.

Battery management and recharging

a. Recharge the battery about 2 hours to make sure the battery is fully charged at the first time.

b. Plug in the USB Cable provided in the accessory pack to the USB slot located on the upper right side of the device and connect the adapter to a proper power socket. Once the power is connected, the battery recharging icon will appear.

on the status b which indicating that the device is under recharging. When

the power recharging icon will turn to blue entirely when the battery is fully recharged and you can disconnect the cable from the device.

【Note】In order to keep the battery in the best condition, please pay attention to the below:

• Don't recharge the device under high temperature.
• Don't release the power of the battery, you can charge the battery when there is still power in the battery. It is not necessary to wait the battery to completely run out before recharging.
• To maintain the battery with a long life span, keep recharging the battery once every two weeks in the case if you don't use the device for a long time.

WIFI network settings

From desktop, Tap is enter setting menu and slide WI-FI function to ON and tap the desired WIFI network and enter the wireless network setting page.

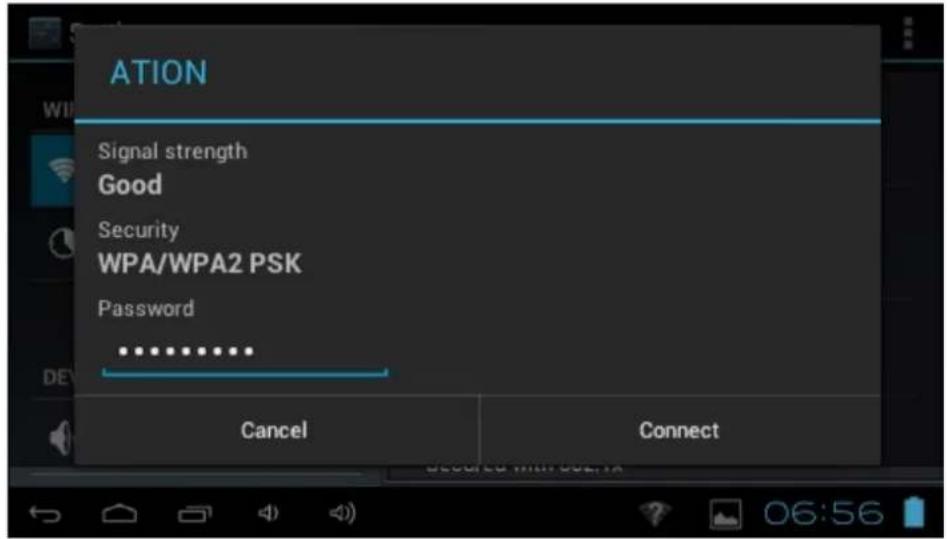

Enter the password and tap "Connect" or tap "Cancel" to exit to previous screen.

To install a APK file

This device supports third part Application Program.APK files.

From desktop, Tap to enter application menu and tap to enter APK installer tool or;
From desktop, Tap to enter application menu and tap to enter a list of file and tap on the desired APK file to install the APK directly.

Note: Some APK can't be downloaded due to the CPU limitation.

To uninstall a APK file

From desktop, Tap to enter setting menu and tap “Apps” to enter a list of installed application.

Tap the desired APK file and tap "Uninstall" to confirm.

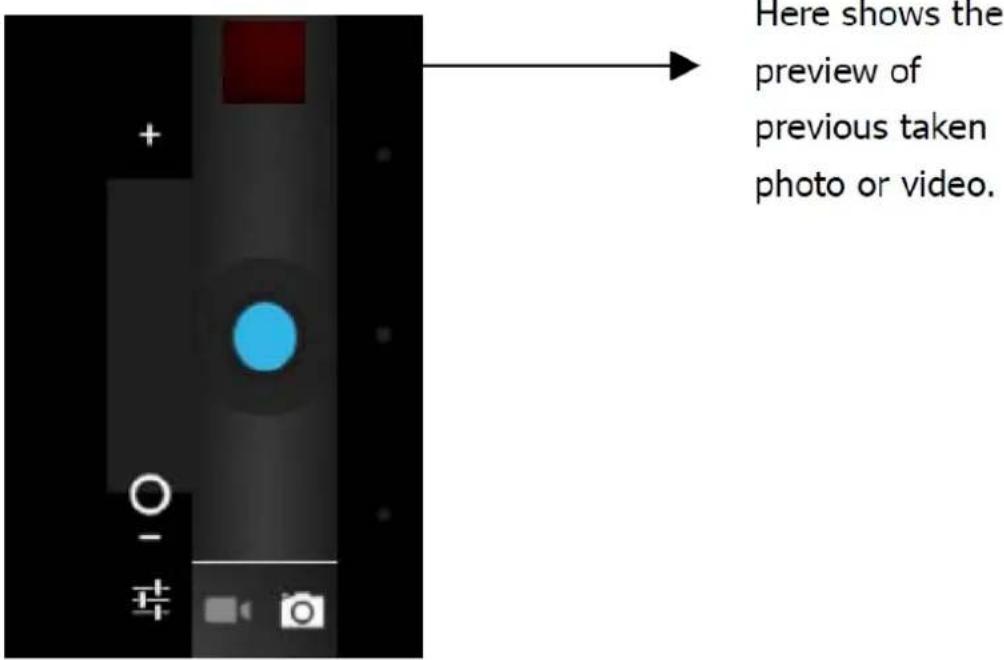

Camera

This device has a built-in 0.3MPIXEL front camera for photo, video and web cam.

From desktop, Tap to enter application menu and tap game center camera mode.

Tap to enter photo mode or tap to enter video mode.

Slide ○ between + and - to zoom in and out.

Taking a photo:

In photo mode, tap to take a photo.

Tap to enter a sub-menu.

- Camera settings: set store location, picture size, camera shutter and restore defaults You can find the photo files from Application menu/ File Manger /DCIM/Camera

Taking a video:

In video mode, tap to start the video recording and tap to stop

Tap to enter a sub-menu.

- Camera settings: Set store location and restore defaults

You can find the video files from Application menu/File Manager/DCIM/Camera

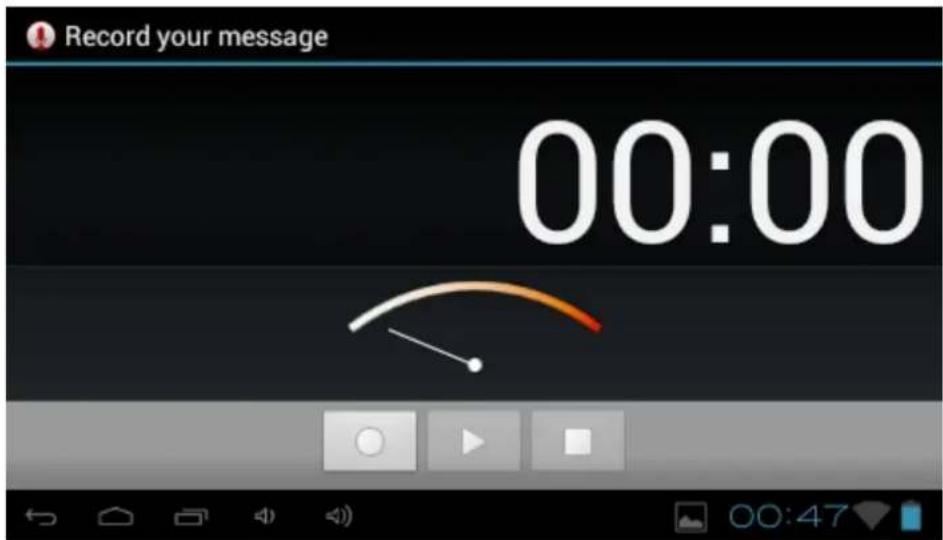

Sound Recording

This device has a built-in microphone for voice recording and web cam.

From desktop, Tap to enter application menu and tap to your voice recording mode.

Tap to start recording.

Tap to stop recording.

Tap to review the section just recorded.

To save the recording, tap "DONE" and exit to Application menu or; Tap "Discard" to erase the recording and exit to Application menu. You can find the saved file from Application menu/File Manger.

Use the device a multi media player

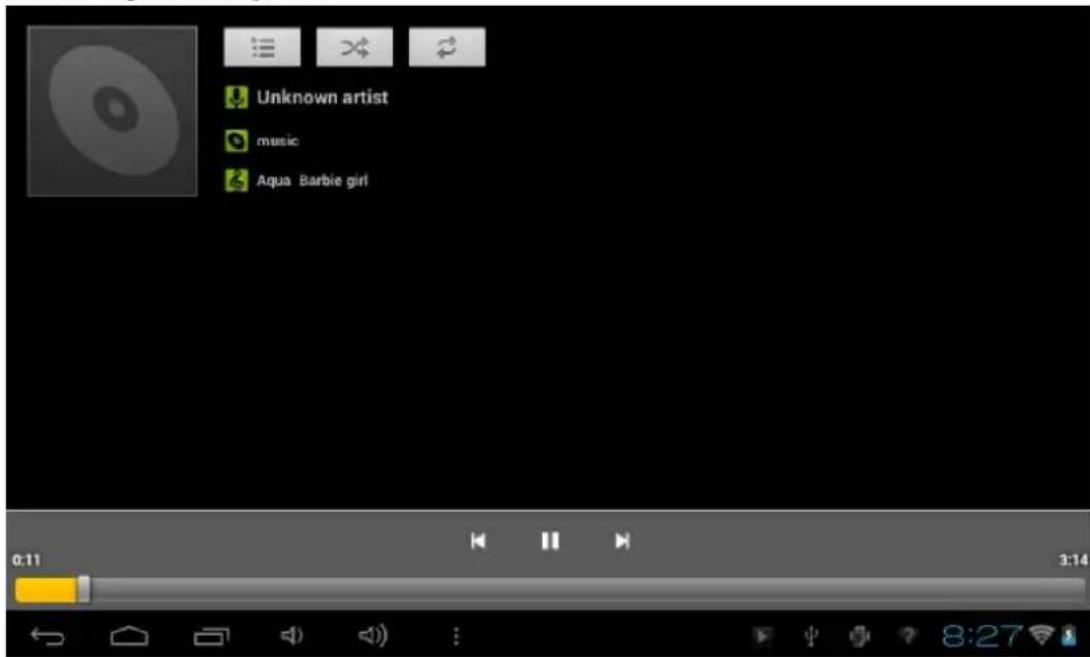

Audio playback:

From desktop, tap to enter Application menu. Tap music-ter audio playback mode.

Only music files stored in the device will be shown in the file list. You can classify the music file list by: ARTISTS, ALBUMS, SONGS, PLAYLISTS and NOW PLAYING by selecting the appropriate option.

Tap a song to start playback. On playback interface, you can tap on the function bar to adjust the playback time, backward/previous, forward/next, play, pause, shuffle, repeat setting, etc.

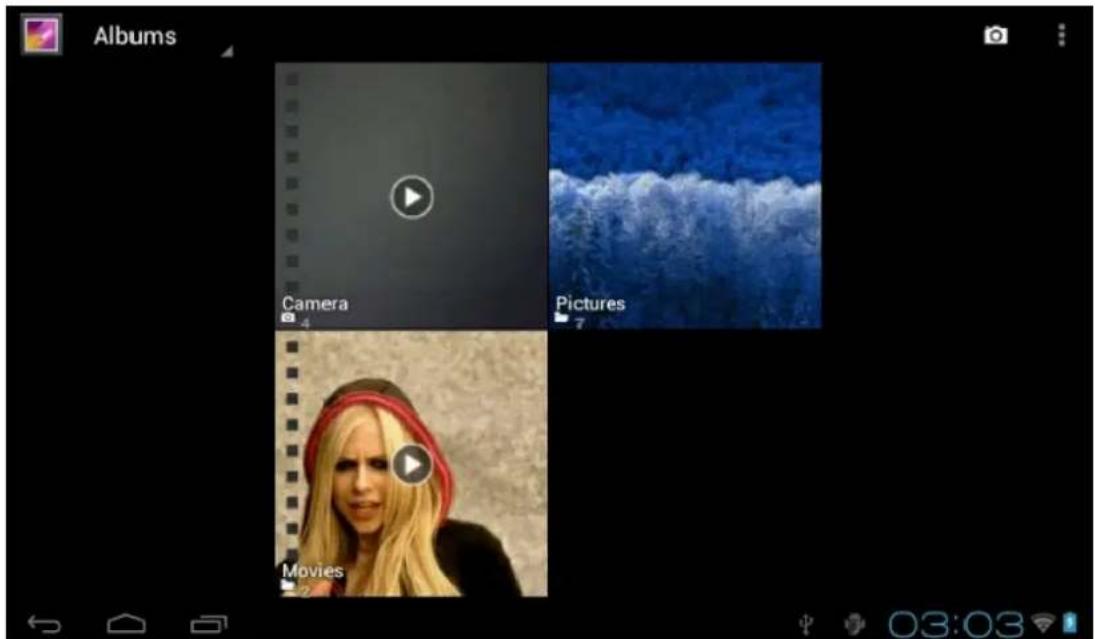

Video playback:

From desktop, tap to enter Application menu.

Tap to enter video / photo mode.

Only videos files, photo files stored in the device and videos/photos taken from the built-in camera will be shown in the file list.

Tap on “MOVIES” to enter a list of preview videos. Tap any video file to enter the playback screen and tap on the play icon to start playback.

You can adjust the playback time by sliding the time bar, or adjust the volume by tapping .

Tap to go to the previous screen.

Tap to enter the sub-menu for subtitles.

Tap to choose repeat mode. Tap to change screen brightness.

Tap to enter screen ratio settings for the videos or movies.

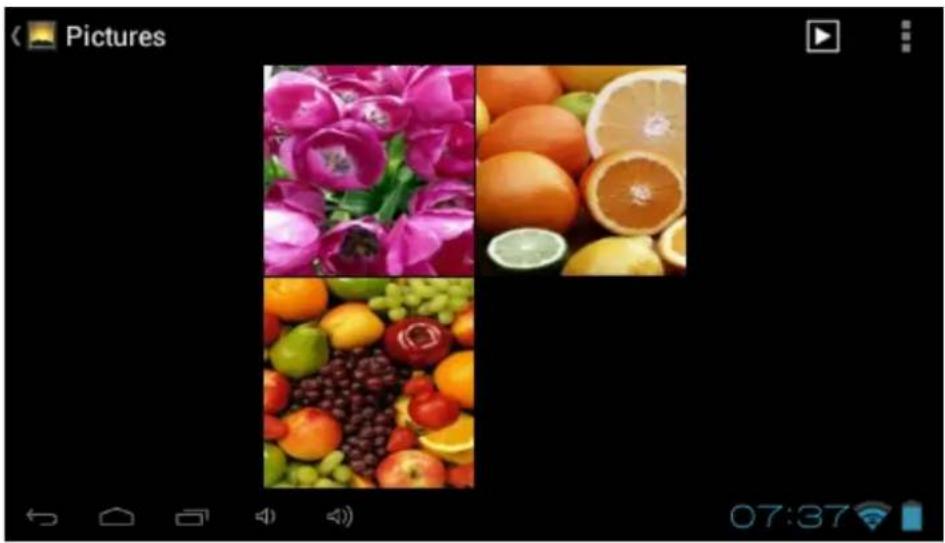

Photo browsing:

From desktop, tap to enter Application menu.

Tap to enter video / photo mode.

Only videos files, photo files stored in the device and videos/photos taken from the built-in camera will be shown in the file list.

Tap on “PICTURES” to enter a thumbnail of photos.

• Press on the thumbnail of a photo to access a full-sized version.
• Get a closer look at a photo by double tapping the screen. Two taps will magnify the image. Another two taps will return to the original view.
  ● A tap on the screen, a thumbnail of photos will appear and you can tap on any photo to move from one photo to another.
• Enlarge an image by touching the image with two fingers and spreading them toward the edges of the screen. Pinch the image back to original size by bringing your index finger and thumb together.
• See an image in widescreen perspective by turning the device on its side. The device automatically rotates a photo as you move the device and spreads the edges to comply with the view screen's orientation (this function is only valid after Auto-rotate screen is activated from Setting/Display/Auto-rotate screen).

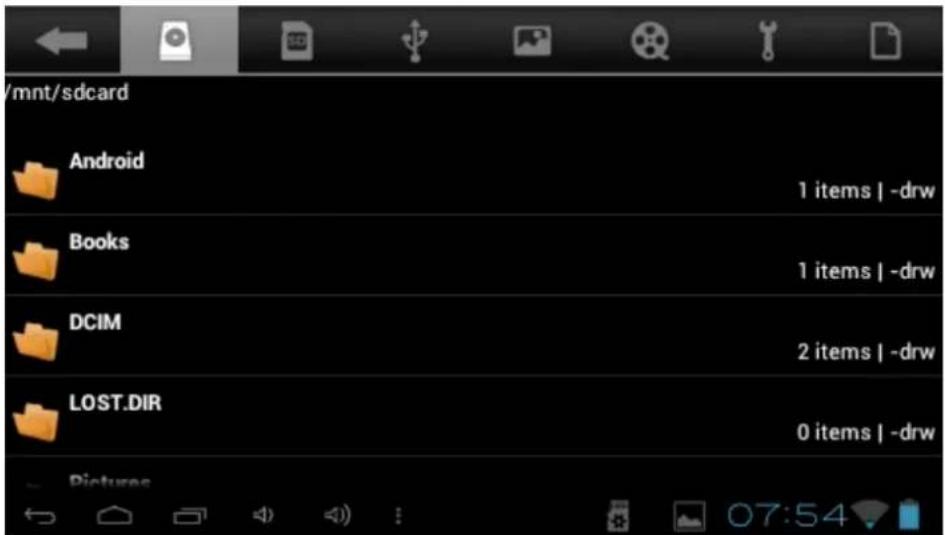

File Manager

From desktop, Tap to enter application menu and tap view a list of files in the device.

to enter main menu

turn to previous menu

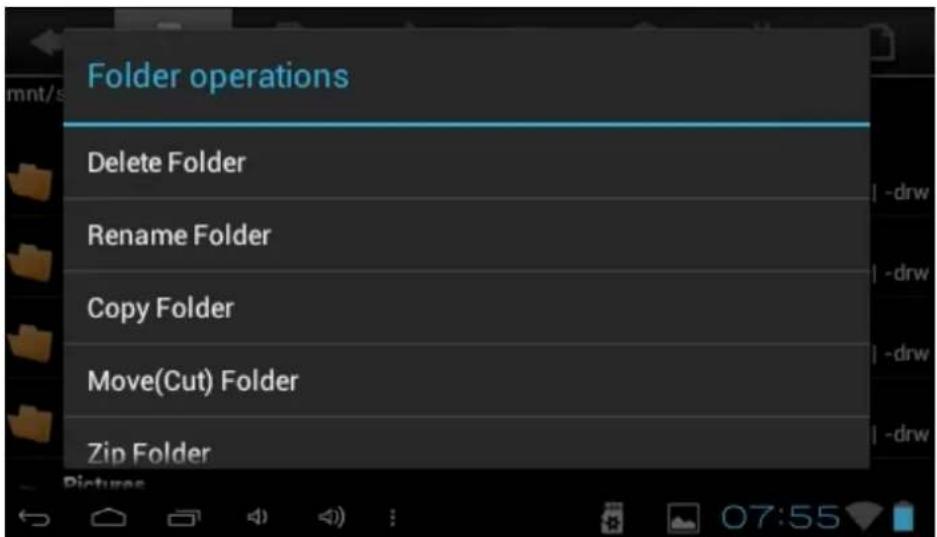

You can also delete, rename, copy, move, zip a Folder by pressing on the file for 1 second a pop up menu will appears:

Set OSD Language

You can set the display language of the device from the list of available language provided in the device.

Go to desktop/Setting/Language & Input/Language & input

Tap on “Language” to enter a list of OSD language options and tap on the desired language and it will be set instantly.

Set Keyboard

You can select a keyboard input method from Setting.

Go to desktop/Setting/Language & Input/Language & input

Select from the list of Keyboard & Input methods.

Any keyboard input method APKS installed in the device can be also find from this list of Keyboard & Input methods.

Tap on to enter Android keyboard settings menu:

From the Android keyboard settings menu, you can setup:

• Auto-capitalization
  ● Sound on key-press
  ● Show settings key
• Auto correction
  ● Show correction suggestions
• Advance settings for the above features

Set Date and Time

You can set system date and time from Setting.

Go to desktop/Setting/Date&Time

You can setup Automatic date & time, Automatic time zone, Set date, Set time, Select time zone, Use 24-hour format, and Select date format.

About the Device

You can get a quick view on the device status such as Model Number, Android version, Baseband version, Kernel version

Setting/About tablet

Troubleshooting

Can not turn on the device?

- You may not be able to turn on the device when the battery is below the critical level. Recharge the battery for a few minutes and try to turn it on again.

- Check if the power charger is connected properly and firmly.

The battery working time is too short?

- The duration of the lithium battery varies with environmental temperature changes and the service conditions. If the environment temperature is too low or too high, the duration of the battery will be affected. It is recommended to use this device at normal temperature.

● Battery consumption varies depending on if the brightness and on time of the screen, the volume level of the loudspeaker as well as the operation status of the central processor (CPU). To save battery, please refer to Power saving mode section of this menu.

No sound from earphone?

• Check if the volume setting is adjusted to 0.
• Check whether the audio file is damaged and try to play other audio files to confirm. In the case if the audio file is damaged, it may cause severe noise or staccato.

Can not copy files?

- Check if the device is connected to the computer properly.

• Check if the USB cable is working.
• Check whether the memory capacity available is enough for storage of the Copying files.

The device is dead?

- Please try to reset the device by following procedure: Long press the Power on/off button until the player power off, then you can turn on the Player again.

Proscan is a registered trademark of TECHNICOLOR USA INC. Used under license.

Specifications are subject to change without prior notice.

No part of this document may be reproduced or transmitted in any form or by any mean including photocopying and recording or translating to another languages for any purposes without the prior written consent of the manufacturer.

All brand names, logos and registered trademarks mentioned are property of their respective owners.

All rights reserved.

It is no relation with this device if the 3rd party software have problems.
