Abington TBL.15030 - Watch Timberland - Free user manual and instructions
Find the device manual for free Abington TBL.15030 Timberland in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Type of product | Watch |
| Brand | Timberland |
| Model | Abington TBL.15030 |
| Movement type | Quartz |
| Display type | Analog with date window |
| Case material | Stainless steel |
| Case diameter | 42 mm |
| Case thickness | 11 mm |
| Band material | Leather |
| Band width | 20 mm |
| Clasp type | Buckle |
| Weight | 85 g |
| Water resistance | 50 meters (5 ATM) |
| Power source | Battery (SR626SW) |
| Battery life | ~2 years |
| Main functions | Time, date, 24-hour subdial (if applicable) |
| Care instructions | Wipe with dry cloth; avoid chemicals; replace battery when depleted |
| Safety precautions | Keep away from strong magnetic fields; do not operate crown underwater |
| Spare parts and repairability | Battery replacement by professional; strap replaceable; available caliber 6S20 |
| General information | Timberland Abington collection; designed for outdoor lifestyle |
Frequently Asked Questions - Abington TBL.15030 Timberland
How do I set the time on my Timberland Abington TBL.15030?

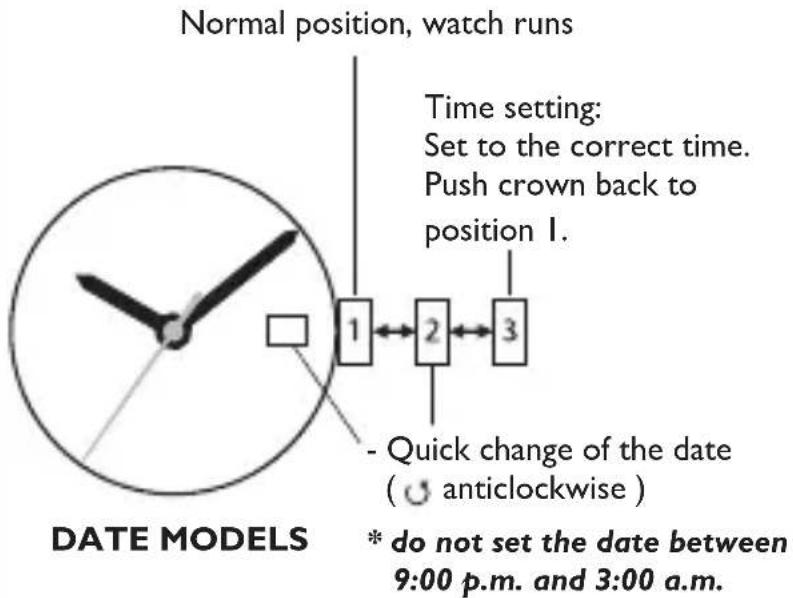

Pull the crown out to the second position (fully out). Turn the crown forward to advance the hands. Once set, push the crown back in to the closed position.
How do I set the date?
Pull the crown out to the first position (middle). Turn the crown clockwise to adjust the date. Be careful not to set the date between 9 PM and 3 AM to avoid damaging the movement.
What type of battery does this watch use?
It uses a SR626SW silver oxide battery. Replacement should be done by a professional to ensure water resistance is maintained.
Is the watch waterproof?
This watch has a water resistance rating of 50 meters (5 ATM). It is suitable for swimming and shallow diving, but not for scuba diving. Avoid operating the crown or buttons underwater.
How do I care for the leather strap?
Keep the strap dry and away from moisture. Clean with a soft, damp cloth. Apply leather conditioner occasionally. Avoid prolonged exposure to sunlight to prevent fading.
How can I replace the strap?
The strap can be removed using a spring bar tool. Press the spring bar inward to release it from the lugs. Attach the new strap by inserting the spring bar into the lugs and pressing until it clicks.
What is the crown used for?
The crown has two positions: position 1 (pulled out halfway) for date adjustment, and position 2 (fully out) for time setting. The crown is screw-down? If so, unscrew it before pulling.
Why does my watch stop after a few days?
This likely indicates a depleted battery. Replace the battery with a fresh SR626SW. If the watch still stops, it may require servicing.
Can I swim with this watch?
Yes, it is water resistant to 50 meters, so swimming and snorkeling are fine. However, avoid hot water (showers, saunas) as it can degrade seals.
Where can I find the user manual?
The user manual is available for free download on notice-facile.com in PDF format. You can also request a translated version by email.
