Type	Refrigerator with freezer compartment
Brand	Elektro Helios
Model	KF1869
Energy Efficiency Class	B
Net Refrigerator Capacity	136 L
Net Freezer Capacity	42 L
Total Net Capacity	178 L
Energy Consumption (24h)	0.98 kWh
Annual Energy Consumption	357 kWh/year
Freezing Capacity (24h)	3 kg
Rising Time (power failure)	17 hours
Dimensions (H x W x D)	1200 x 495 x 600 mm
Width with Open Door (90°)	525 mm
Depth with Open Door (90°)	1070 mm
Climate Class	SN, N, ST, T
Temperature Control	Thermostat knob (0 to max settings)
Refrigerator Shelves	Movable, adjustable
Door Shelves	Removable for cleaning
Ice Cube Trays	Yes
Interior Light	Yes, replaceable bulb
Defrosting (Refrigerator)	Automatic
Defrosting (Freezer)	Manual (use scraper)
Reversible Doors	Yes
Adjustable Feet	Yes (2 at base)
Refrigerant	Hydrocarbons (environmentally friendly)

Frequently Asked Questions - KF1869 ELEKTRO HELIOS

How do I adjust the temperature inside the refrigerator?

Turn the thermostat knob inside the refrigerator. Higher settings (towards max) make it colder, lower settings (towards 0) make it warmer. A medium setting is generally suitable. The exact setting depends on room temperature, door openings, and food quantity.

How should I clean the interior of the appliance?

Unplug the appliance first. Use lukewarm water with a little neutral soap or bicarbonate of soda. Avoid detergents, abrasive powders, or sharp tools. Rinse and dry thoroughly. For periodic cleaning, also clean the defrost water drain hole.

How do I defrost the freezer compartment?

When frost exceeds 4 mm, remove food, wrap in newspapers, and unplug the appliance. Leave the door open and place the plastic scraper in the slot at the bottom to collect water. Do not use sharp metal tools. After defrosting, dry the interior and plug back in.

Can I change the direction the doors open?

Yes, the door opening direction can be reversed. Unplug the appliance, remove the feet and hinges, slide out the doors, and refit the hinges on the opposite side. Refer to the manual for detailed steps. After completion, check the gasket adheres properly.

What should I do if the interior light doesn't come on?

First check that the bulb is screwed in properly. If it still doesn't light, replace the bulb with one of the same rating (see light cover). Unscrew the cover to access the bulb. Unplug the appliance before maintenance.

How should I store food in the refrigerator to ensure freshness?

Store food covered or wrapped, especially strong-smelling items. Place meat on the glass shelf above the vegetable drawer. Fruit and vegetables go in the special drawer. Butter and cheese in airtight containers. Milk in the door. Do not store bananas, potatoes, onions, or garlic unpacked.

What is the maximum amount of food I can freeze in 24 hours?

The maximum freezing capacity is 3 kg per 24 hours, as shown on the rating plate. For best results, freeze only fresh, high-quality food in small portions and do not add more food during the freezing process.

How do I install the appliance correctly?

Place the appliance away from heat sources and direct sunlight. Ensure ventilation openings are clear. The back should be against a wall. Level the appliance using the two adjustable feet. Wait at least 2 hours after transport before plugging in to allow oil to flow back.

What is the energy consumption of this refrigerator?

The daily energy consumption is 0.98 kWh/24h, and the annual consumption is 357 kWh/year. Energy efficiency class is B. Actual consumption may vary depending on usage and ambient conditions.

What should I do during a long power failure?

If the power has been off longer than the rising time (17 hours), the defrosted food must be consumed quickly or cooked immediately and then refrozen after cooling. Do not refreeze food that has thawed completely. Keep the door closed as much as possible to maintain temperature.

USER MANUAL KF1869 ELEKTRO HELIOS

INNENHåLLSFÖRTECKNING 3

CONTENTS

11

Elektro EH Helios

WARNINGS

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.

If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child.

This must be done before the appliance is built into These warnings are provided in the interest of safety. You must read them carefully before installing or using the appliance.

General Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
• It is dangerous to alter the specifications or modify this product in any way.
• Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
• Before any cleaning or maintenance work is carried out, be sure to switch off and unplug the appliance.
• This appliance is heavy. Care should be taken when moving it
• Ice lollies can cause frost burns if consumed straight from the appliance.

Service/Repair

• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person
• This product should be serviced by an authorized Service Centre, and only genuine spare parts should be used.
• Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunctioning. Refer to your local Service Centre, and always insist on genuine spare parts.
• This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Use

• The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
• Best performance is obtained with ambient temperature between +18°C and +43°C (class T); +18°C and +38°C (class ST); +16°C and

+32°C (class N); +10°C and +32°C (class SN). The class of your appliance is shown on its rating plate.

Warning: when the ambient temperature is not included within the range indicated for the class of this appliance, the following instructions must be observed: when the ambient temperature drops below the minimum level, the storage temperature in the freezer compartment cannot be guaranteed; therefore it is advisable to use the food stored as soon as possible.

• Frozen food must not be re-frozen once it has been thawed out.
• Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
• The inner lining of the appliance consists of channels through which the refrigerant passes. If these should be punctured this would damage the appliance beyond repair and cause food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Frost may be removed by using the scraper provided. Under no circumstances should solid ice be forced off the liner. Solid ice should be allowed to thaw when defrosting the appliance. See defrost instructions.
• Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. Never use metal objects for cleaning your appliance as it may get damaged.

Installation

- During normal operation, the condenser and compressor at the back of the appliance heat up considerably. For safety reasons, minimum ventilation must be as shown in the relevant Figure.

Attention: keep ventilation openings clear of obstruction.

• There are working parts in this product which heat up. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Parts which heat up should not be exposed. Wherever possible the back of the product should be against a wall.
• If the appliance has been transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is advisable to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. Information on your local disposal sites may be obtained from municipal authorities. The materials used on this appliance marked by the symbol 🌐 are recicable.

CONTENTS

Warnings 10

Use 12

Cleaning the interior 12

Operation 12

Temperature regulation 12

Fresh food refrigeration 12

Freezing fresh food 12

Storage of frozen food 12

Thawing 12

Ice-cube production 12

Movable shelves 13

Door shelves 13

Hints 13

hints for refrigeration 13

Hints for freezing

13

Hints for storage of frozen food 14

Maintenance 14

Periodic cleaning 14

Periods of no operation 14

Interior light 14

Defrosting 14

Customer service and spare parts 15

Technical specifications 16

Installation 16

Electrical connection 16

Location 17

Changing the opening direction of the doors 17

USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

Operation

Insert the plug into the wall socket.

Open the refrigerator door and turn the thermostat knob, clockwise, beyond the «O» (STOP) position. The appliance will start to operate.

To stop operation, simply turn the thermostat knob to position «O»

Temperature regulation

The temperature is automatically regulated and can be increased to achieve a higher temperature (warmer) by rotating the thermostat knob toward lower settings or reduced (colder) rotating the knob towards higher settings.

However, the exact setting should be chosen keeping in mind that the temperature inside the refrigerator depends on:

• room temperature;
  • how often the door is opened;
  • the quantity of food stored;
• location of appliance.

A medium setting is generally the most suitable.

Important

If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

Fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator;
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely round it.

Freezing fresh food

The 4-star compartment is suitable for long term storage of commercially frozen food and for freezing fresh food.

To freeze fresh foods it is not necessary to move the thermostat knob from the normal setting.

However, for a faster freezing operation, turn the thermostat knob to the coldest setting; but remember that, in this condition, the refrigerator compartment temperature might drop below 0° C. If this occurs reset thermostat knob to a warmer setting.

Place the food to be frozen on the shelf of the freezing compartment as this is the coldest part.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run for at least two hours on the coldest setting, then turn the thermostat knob to the normal operating position.

Important

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately and then refrozen (after cooling).

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Do not use metallic instruments to remove the trays from the freezer.

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Door shelves

The door shelves can be easily removed for cleaning.

HINTS

Hints for refrigeration

Useful hints:

Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

- the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further

food to be frozen should be added during this period;

- only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing-in date on each individual pack to enable you to keep tab of the storage time;

- on the inner door or special card (if supplied) you will find sketches of various animals and food types together with the recommended storage time (in months) from the time of freezing;

- do not put carbonated liquids (fizzy drinks, etc.) in the freezer compartment as they may burst.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

MAINTENANCE

Unplug the appliance before carrying out any maintenance operation.

Periodic cleaning

Clean the inside with warm water and bicarbonate of soda.

Rinse and dry thoroughly.

Interior light

The light bulb inside the refrigerator compartment can be reached as follows:

- unscrew the light cover securing screw.

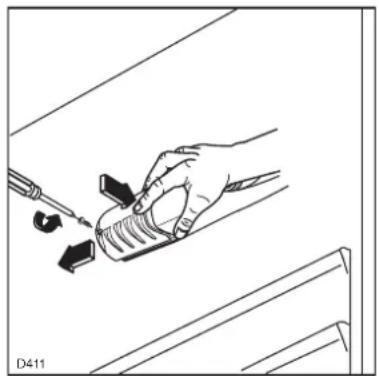

- unhook the moving part as shown in the figure.

If the light does not come on when the door is open, check that it is screwed into place properly. If it still does not light up, change the bulb.

The rating is shown on the light bulb cover.

Defrosting

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

remove the plug from the wall socket;

remove all food;

defrost and clean the interior and all accessories;

leave the door ajar to allow air to circulate to prevent unpleasant smells.

The freezer compartment, however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 4 mm. During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

1. pull out the plug from the wall socket or turn the thermostat knob to the «O» setting;
2. remove any stored food, wrap it in several layers of newspaper and put it in a cool place;
3. leave the door open, and insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water.
4. when defrosting is completed, dry the interior thoroughly; keep the scraper for future use;
5. turn the thermostat knob back to the required setting or replace the plug in the power socket.
6. After two or three hours, reload the previously removed food into the compartment.

Important:

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

CUSTOMER SERVICE AND SPARE PARTS

If the appliance is not functioning properly, check that:

• the plug is firmly in the wall socket and the mains power switch is on;
• there is an electricity supply (find out by plugging in another appliance);
• the thermostat knob is in the correct position.
• If there are water drops on the bottom of the cabinet, check that the defrost water drain opening is not obstructed (see "Defrosting" section).

- If your appliance is still not working properly after making the above checks, contact the nearest service centre.

To obtain fast service, it is essential that when you apply for it you specify the model and serial number of your appliance which can be found on the guarantee certificate or on the rating plate located inside the appliance, on the bottom left-hand side.

TECHNICAL SPECIFICATIONS

Energy efficiency class B
Net fridge capacity l	136
Net freezer capacity l	42
Energy consumption kWh/24h	0,98
Energy consumption kWh/year	357
Freezing capacity kg/24h	3
Rising time	17
Dimension (mm)
Height	1200
Width	495
Depth	600
Width with open door at 90°	525
Depth with open door at 90°	1070

The technical info are shown on the rating plate situated on the left inside the appliance

INSTALLATION

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the following E.E.C. Directives:

• 87/308 EEC of 2/6/87 relative to radio interference suppression.
• 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.

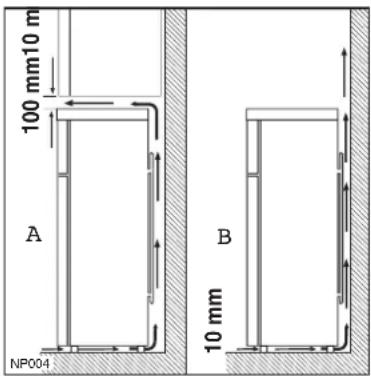

For safety reasons, minimum ventilation must be as shown in Fig.

Appliance positioned under overhanging kitchen wall units (see A).

Appliance positioned without overhanging kitchen wall units (see B).

Attention: keep ventilation openings clear of obstruction.

Two adjustable feet at the cabinet base allow accurate levelling of the appliance.

Changing the opening direction of the doors

Before carrying out the operations described below, pull out the mains plug from the wall socket.

To carry out door reversal operate as follows:

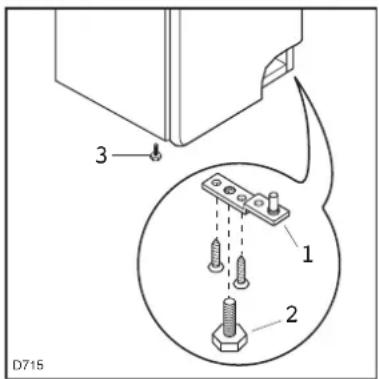

1. Remove feet (2-3).
2. Remove bottom hinge (1);
3. Slide out the lower door from middle hinge (H) and remove the latter;
4. Slide out the upper door from pin (G), unscrew the latter and then screw it down into the hinge provided on the opposite side;
5. Remove the two plugs, to reveal the holes for the hinge pivots, and remount them on the other side;
6. Refit the upper door and the middle hinge on the opposite side;
7. Refit the lower door and bottom hinge (1) on the opposite side.
8. Refit foot (2-3).

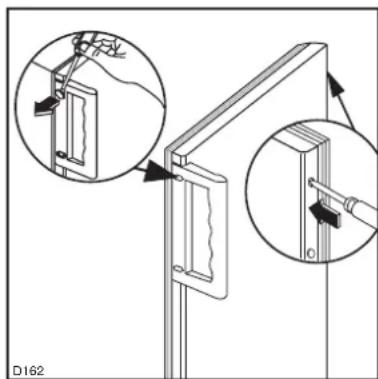

9. Unscrew the handle. Refit it on the opposite side after having pierced the plugs with a punch. Cover the holes with the plugs contained in the documentation pack..

Important

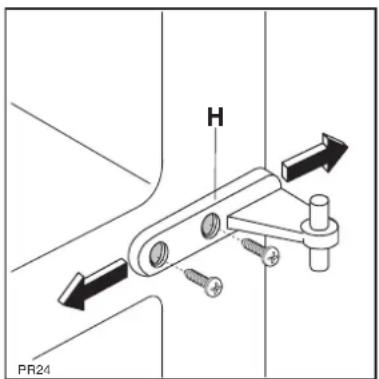

For the alignment of the doors, adjust the middle hinge horizontally, after having loosened the two screws.

Attention

After completion of the door reversibility operation, verify that the door gasket is adherent to the cabinet. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier.

Elektro EH Helios

Luxgatan 23, Lilla Essingen, 105 45 Stockholm.

Telefon [phone] . Telefax 08-738 74 80

Flintrännegatan 21. 205 25 Malmö.

Telefon 040 - 180345
