USER MANUAL FEAG-115/500D Ferm

GB Subject to change

Technical diagram of a mechanical tool with numbered parts labeled 1 through 5

Fig.A

1 2 3

Fig.B

Technical diagram of a mechanical assembly with numbered components and directional arrow indicating rotation or movement

Fig.C

The numbers in the following text refer to the drawing on page 2.

Carefully read this manual before using the machine. Make sure that you know how the machine functions and how to operate it. Maintain the machine in accordance with the instructions to make sure it functions properly. Keep this manual and the enclosed documentation with the machine.

Introduction

This machine is developed for grinding and roughing of metal and stone. With help of the correct accessories the machine can also be used for brushing and sanding.

Contents

1. Machine data
2. Safety instructions
3. Mounting accessories
4. Use
5. Service & maintenance

I. MACHINEDATA

Technical specifications

Voltage	230V
Frequency	50Hz
Power input	500W
No-load speed	11000/min
Disc diameter	115mm
Spindle dimension	M14
Weight | 2.1 kg
Lpa (sound pressure)	87.4 dB(A)
Lwa (acoustic power)	100.4 dB(A)
Vibration value	< 2.5 m/s ^2

Product information

Fig.A

1. On/off switch
2. Guard
3. Side handle
4. Grinding disc
5. Spindle lock

Contents of packing

The package contains:
1. Angle grinder
1 Side handle
1 Spanner
1. Disc
I Set carbon brushes
1 Instruction manual
1 Warranty card

Check the machine, loose parts and accessories for transport damage.

2. SAFETY INSTRUCTIONS

The following symbols are used throughout this manual:

Read instructions carefully

In accordance with essential applicable safety standards of European directives

Class II machine – Double insulation – You don't need any earthed plug.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Immediately unplug the plug from the mains electricity in the case that the cord gets damaged and during maintenance

Keep bystanders away

Risk of fire

Wear ear and eye protection

Wear protective gloves

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Safety Instructions

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions. Keep these instructions in a safe place!

I. Keep work area clear.

Cluttered areas and benches invite injuries.

1. Consider work area environment. Do not expose power tools to rain. Do not use power tools in damp or wet locations. Keep work area well lit. Do not use power tools in presence of flammable liquids or gases.

2. Guard against electric shock. Prevent body contact with grounded surfaces (e.g. pipes, radiators, refrigerators).

4. Keep visitors away.

Visitors should be kept away from the work area at all times. Do not let visitors handle the Electric Rotary Hammer Drill at any time.

5. Store unused tools

When not is use keep tools out of reach of children. Store in a dry and secure location.

6. Do not force tool.

Do not apply undue pressure as this may affect performance and may cause damage to the machine. Forcing the job also increases the potential for accidents.

7. Use right tool.

Do not force small tools or attachments to do the job of heavy duty tool. Do not use a tool for purposes not intended.

8. Dress properly.

Do not wear loose clothing or jewellery. They can be caught in moving parts. Rubber gloves and nonskid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.

9. Use safety glasses.

Also use face or dust mask when operation is dusty.

1. Connect dust extraction equipment If devices are provided for the connection of dust extraction and collection facilities ensure these are connected and properly used.

11.Do not abuse cord.

Never carry tool by cord or yank it to disconnect it from electrical socket. Keep cord from heat, oil and sharp edges.

12. Secure work.

Use clamps or a vice to hold work. It's safer than using your hand and it frees both hands to operate tool.

13.Do not overreach.

Keep proper footing and balance at all times.

14. Maintain tools with care.

Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and, if damaged, have repaired by authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean and free from oil and grease.

15.Disconnect tools.

When not in use, before servicing and when changing accessories such as blades, bits and cutters.

1. Remove adjusting keys and wrenches. Form the habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.

17. Avoid unintentional starting.

Do not carry plugged-in tools with finger on switch. Be sure switch is off when plugging in.

18. Outdoor use extension cords.

When tool is used outdoors, use only extension cords intended for use outdoors and so marked. Always use tool in conjunction with a residual circuit breaker device.

19. Stay alert.

Watch what you are doing. Use common sense. Do not operate tool when you are tired.

20. Check damaged parts.

Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless otherwise indicated elsewhere in this instructions manual. Have defective switches replaced by an authorized centre. Do not use tool if switch does not turn on and off.

21. Warning.

The use of any other accessory or attachment other than recommended in this operation instructions or the catalogue may present a risk of personal injury.

22. Have your tool repaired by an expert.

This appliance is manufactured to very high standards and meets relevant safety regulations. Repairs should only be done by a suitable qualified electrical engineer or otherwise.

23. Hearing protection should be worn.

Special safety instructions

- Check that the maximum speed indicated on the grinding disc corresponds to the maximum speed of the machine. The speed of the machine must not exceed the value on the grinding disc.

• Make sure that the dimensions of the grinding disc correspond to the specifications of the machine.

- Make sure that the grinding disc has been mounted and fastened properly. Do not use reducing rings or adapters to make the grinding disc fit properly.

• Treat and store grinding discs in conformance with the supplier's instructions.

- Do not use the machine for grinding workpieces with a maximum thickness exceeding the maximum grinding depth of the grinding disc.

- Do not use grinding discs for deburring.

- When grinding discs have to be mounted on the thread of the spindle, make sure that the spindle has sufficient thread. Make sure that the spindle is sufficiently protected and does not touch the grinding surface.

- Before use, inspect the grinding disc for any damage. Do not use grinding discs which are crack-ed, ripped or otherwise damaged.

- Before use, let the machine run idle for 30 seconds. Immediately switch off the machine in case of abnormal vibrations or occurrence of another defect. Carefully inspect the machine and grinding disc before switching the machine on again.

• Make sure that sparks do not put people into danger or that they contact highly flammable substances.

- Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away from the surface to be cut.

• Always wear safety goggles and hearing protection. If desired or required also use another kind of protection like for example an apron or helmet.

- Ensure that mounted wheels and points are fitted in accordance with the manufacturer's instructions.

- Ensure that blotters are used when they are provided with the bonded abrasive product and when they are required.

• If a guard is supplied with the tool never use the tool without such a guard.

- For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length.

- Ensure that ventilation openings are kept clear when working in dusty conditions. If it should become nessesary to clear dust, first disconnect the tool from the mains supply (use non metallic objects) and avoid damaging internal parts.

- Though poor conditions of the electrical mains, shortly voltage drops can appear when starting the equipment. This can influence other equipment (eq. blinking of a lamp). If the mains-impedance Zmax <0.348 Ohm, such disturbances are not expected. (In case of need, you may contact your local supply authority for further information.

Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

Your machine is double insulated in accordance with EN50144; therefore no earthwire is required.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm ^2 . When using a cable reel always unwind the reel completely.

3. MOUNTING ACCESSORIES

Prior to mounting an accessory always unplug the tool.

Removing and mounting the guard

Fig.B Replace the guard only with one of sheet steel or material of equal strength.

Disassembly

- Remove the flange nut and the flange from the spindle (2).

- Turn the screw (3) in the protective guard (1) counterclockwise with help of a crosshead screwdriver.

- Remove the machine's protective guard.

Assembly

- Put the protective guard (1) on the machine.

- Turn the protective guard (I) to the position indicated in the drawing.

- Turn the screw (3) in the protective guard clockwise with help of a crosshead screwdriver.

- Put the flange nut and the flange back on the spindle (2).

Mounting a grinding disc

Fig.C

Use grinding discs of the correct dimension. Use fibre reinforced grinding discs only. The grinding disc must not touch the edge of the guard.

- Press the spindle lock and turn the spindle (9) until it engages in the lock. Keep the spindle lock pressed during this procedure.

- Remove the flange nut (12) from the spindle using the spanner (11).

- Position the grinding disc (7) on the flange (5).

- Place the flange nut on the spindle an tighten it using the spanner.

- Release the spindle lock and check that the spindle is unlocked by rotating it.

Mounting the side handle

The side handle can be used for both left-hand and right-hand control.

- Fasten the side handle (Fig. A-3) for left-hand operation on the right-hand side of the machine.

- Fasten the side handle for right-hand operation on the left-hand side of the machine.

- Fasten the side handle for upright working at the top of the machine.

Make sure that the side handle is fastened properly and cannot loosen unexpectedly.

4. USE

Always observe the safety instructions and applicable regulations.

Do not place the machine on the workpiece when switching the machine on or off. The grinding disc may damage the workpiece.

- Clamp the workpiece and make sure that the workpiece cannot slide from under the machine during the cutting activities.

- Hold the machine firmly and press it under an angle of approximately 15^ against the workpiece. Move the grinding disc evenly across the workpiece.

• Regularly inspect the grinding disc. Worn grinding discs have a negative effect on the efficiency of the machine. Replace a grinding disc on time.

• Always switch off the machine first before removing the plug from the wall socket.

Switching on and off

- Slide the on/off switch forwards.

- To switch off, depress the on/off switch, this will then jump to the 'off' position.

Do not put the machine down when the motor is still running. Do not place the machine on a dusty surface. Dust particles may enter the mechanism.

Never use the spindle lock to stop the motor.

Never use the machine for grinding magnesium workpieces.

5. SERVICE & MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor.

The Ferm machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

The machine requires no additional lubrication.

Faults

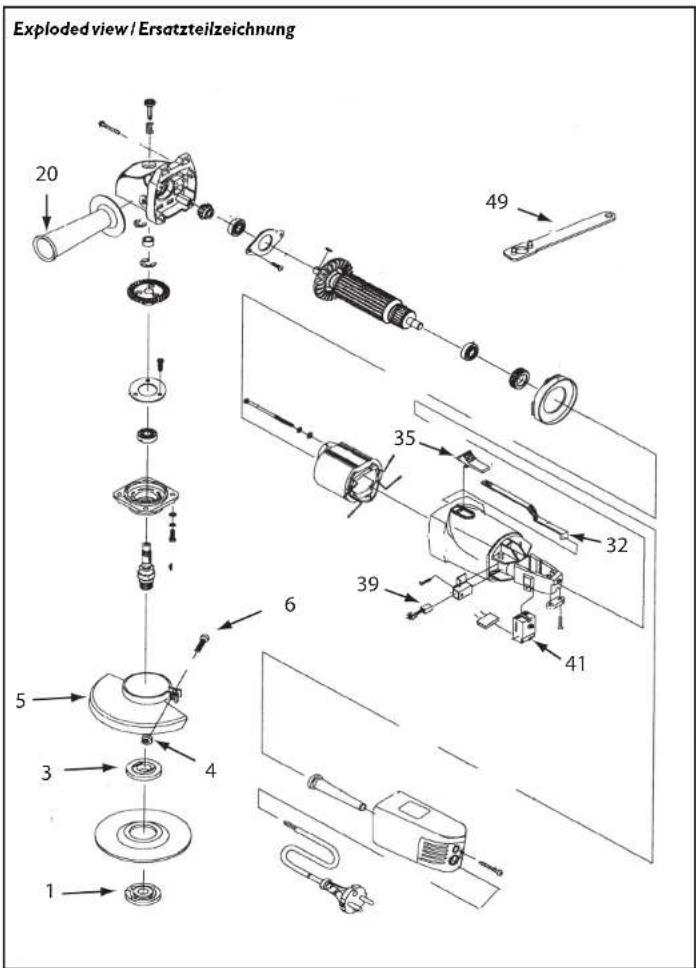

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Warranty

The warranty conditions can be found on the separately enclosed warranty card.

DECLARATION OF CONFORMITY (GB)

We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents

EN50144-1, EN50144-2-3, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3,

in accordance with the regulations:

98/37EEC, 73/23EEC, 89/336EEC

from 01-01-2005

ZWOLLENL

W. Kamphof

Quality department

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV•Lingenstraat 6•8028 PM Zwolle The Netherlands
