Model	IM-100A
Type	Self-contained cube ice maker
Ice Production (24h)	100 kg (5 mm) / 112 kg (15 mm) at ambient 10°C, water 10°C
Power Supply	1 phase 220 - 240V, 50Hz, 10A
Electric Consumption	550 W
Dimensions (WxDxH)	660 mm x 570 mm x 1200 mm
Net Weight	76 kg
Refrigerant	R404a, 400 g
Ambient Temperature Range	1°C to 40°C
Water Supply Temperature Range	5°C to 35°C
Water Supply Pressure	0.07 - 0.78 MPa (0.7 - 8 bar)
Voltage Range	Rated voltage ± 6%
Construction	Air-cooled, cube ice
Accessories Included	Instruction manual, scoop, outlet hose, 4 legs
Safety Features	Earth connection, circuit breaker, fuse 5A
Cleaning Frequency	Daily scoop sanitization; weekly bin cleaning; monthly air filter cleaning
Warranty	2 years from installation, excluding routine maintenance
Compliance	CE, RoHS (implied)

Frequently Asked Questions - IM-100A Hoshizaki

What is the daily ice production of the Hoshizaki IM-100A?

The IM-100A produces up to 100 kg of ice per day for 5 mm cubes and 112 kg for 15 mm cubes under standard conditions (ambient 10°C, water 10°C).

What are the electrical requirements for the IM-100A?

The unit requires a separate 220-240V, 50Hz, 10A supply with proper earthing. The main control box fuse is rated at 5A and should only be replaced by a qualified engineer.

How do I clean the ice maker?

Clean the exterior weekly with a damp cloth. Sanitize the scoop daily with a sodium hypochlorite solution. Clean the storage bin interior weekly with a neutral cleaner and sanitize. Clean the air filter at least twice a month.

What is the recommended water supply pressure?

The water supply pressure should be between 0.07 MPa (0.7 bar) and 0.78 MPa (8 bar). If pressure exceeds 8 bar, use a pressure reducing valve. Do not throttle the supply tap.

Can I install the ice maker outdoors?

No, this ice maker is not intended for outdoor use. It should be placed in a location with ambient temperature between 1°C and 40°C and away from heat sources.

What should I do before storing the ice maker for a long period?

Unplug the unit, close the water supply, remove all ice, clean the bin, and drain the icemaker by qualified personnel to prevent damage in freezing temperatures.

How do I level the ice maker?

Adjust the four supplied legs to level the unit both left-to-right and front-to-rear. Ensure the floor is firm and level.

What does the error code mean?

Error codes are not detailed in the manual. If the unit does not work, check power supply, water supply, and air filter cleanliness. If the issue persists, contact Hoshizaki service.

What type of water should be used?

Only potable water should be used. If scaling is a problem, install an external water filter or softener. The unit can also be set to 'full drain flush' mode.

How do I properly dispose of the ice maker?

Comply with local regulations for disposal of appliances and refrigerant. The insulation contains flammable cyclopentane gas. Remove the door before disposal to prevent child entrapment.

USER MANUAL IM-100A Hoshizaki

SELF-CONTAINED CUBER

一体式制冰机

Line drawing of a multi-tiered industrial refrigerator with ventilation grilles and control panel (no text or symbols)

IM-100A

● This booklet is an integral and essential part of the product and should be kept and preserved by the user.
- Please read carefully the guidelines and warnings contained herein as they are intended to provide the installer/user with essential information for the proper installation and the continued safe use and maintenance of the product.
- Please preserve this booklet for any further consultation that may be necessary.
● 使用手册是本产品不可分割的重要组成部分，用户须妥善保管。
● 请务必仔细阅读本手册中描述的指南和警告事项，因为这些指南和警告事项为安装人员/用户提供了正确安装、持续安全地使用和保养本产品所需的重要信息。
●请妥善保管本手册，以便必要时参考使用。

Manufacturer: Hoshizaki (Suzhou) Co., Ltd.

No. 15 Qingqiu Street, Suzhou Industrial Park,

Wu Xian, Jiangsu 215126 China

Contact : Hoshizaki Singapore Pte., Ltd.

18 Room Lay Way #07-142 Tradehub 21 Singapore 609966

TEL: [phone] FAX: [phone]

生产商：星崎电机(苏州)有限公司

江苏省苏州工业园区青丘街15号

邮编：215126

联系人：星崎冷热机械(上海)有限公司

IMPORTANT SAFETY INFORMATION....1

I. INSTALLATION INSTRUCTIONS ....2
1. CONSTRUCTION 2
2. ACCESSORIES....2
3. UNPACKING .... 3
4. LOCATION ....3
5. INSTALLATION 4
6. ELECTRICAL CONNECTIONS....4
7. WATER SUPPLY AND DRAIN CONNECTIONS....5
II. OPERATING INSTRUCTIONS 6
1. START UP 6

1. PREPARING THE ICEMAKER FOR LONG STORAGE 6

III. MAINTENANCE 7

1. CLEANING....7
2. BEFORE CALLING FOR SERVICE....8
3. DISPOSAL 8
4. WARRANTY 8
   SPECIFICATIONS....9

中文

重要安全须知....10

IMPORTANT SAFETY INFORMATION

Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit.

▲WARNING	Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
▲CAUTION	Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE	Indicates a hazardous situation which, if not avoided, could result in damage to the unit.
▲HYGIENE	Indicates important precautions for hygiene and food safety.
IMPORTANT	Indicates important information about the use and care of the unit.

⚠WARNING

This is a commercial icemaker, and should be destined only to be used for the purpose for which it has been expressly designed.Any other use should be considered improper and therefore dangerous. The manufacturer will not be held liable or responsible for any damage caused by improper, incorrect and unreasonable use.

The installation, and relocation if necessary, must be carried out by qualified personnel, in accordance with current regulations, according to the manufacturer's instructions.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

The use of any electrical appliance involves the observance of some fundamental rules. In particular:* Instances of high humidity and moisture increase the risk of electrical short circuits and potential electrical shocks. If in doubt, disconnect the icemaker.* Do not damage the power cord or pull it in order to disconnect the icemaker from the electrical supply network.* Do not touch the electrical parts or operate the switches with damp hands.* This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.* Young children should be supervised to ensure that they do not play with the appliance.* Do not attempt to modify the icemaker. Only qualified personnel may disassemble or repair the appliance.

I. INSTALLATION INSTRUCTIONS

1. CONSTRUCTION


2. ACCESSORIES

	IM-30CA IM-45CA IM-65A IM-100A			M-130A
Instruction Manual 1	1	1	1
Scoop 1	1	1	1
Outlet Hose 1	1	1	1
Leg 4	4	4	4

Instruction Manual

Scoop

Outlet Hose

Leg

3. UNPACKING

⚠WARNING

Children should not be allowed in reach of the packaging elements (plastic bags and expanded polystyrene) as they are potential sources of danger.

△CAUTION

Do not lift or manoeuvre the carton by using the shipping bands.

When moving the unit by hand, hold the unit bottom.

Always wear protective gloves when carrying the unit.

When handling the carton or the unpacked unit, work in pair to prevent injury.

NOTICE

Remove shipping carton, tape(s) and packing. If packing material is left in the icemaker, it will not work properly.

1) After removing the packaging, make sure that the icemaker is in good condition. If in doubt, please do not use the icemaker but apply to professionally qualified personnel.
2) Remove the shipping tape holding the door and front panel.
3) Remove the protective plastic film from the exterior. If the icemaker is exposed to the sun or to heat, remove the film after the icemaker cools.
4) Remove the package of accessories. Check the contents according to "2. ACCESSORIES".
5) Remove the shipping tape holding the bin control switch by opening the bin door and reaching in.

[IM-30CA]

[IM-45CA]

[IM-65A]

[IM-100A, 130A]

4. LOCATION

▲WARNING

This icemaker is not intended for outdoor use.

The icemaker should not be located next to ovens, grills or other high heat producing equipment.

This appliance is not suitable for installation in an area where a water jet could be used.

△CAUTION

The location should provide a firm and level foundation for the icemaker.

NOTICE

Do not place anything on top of the icemaker or in front of the louver.

IMPORTANT

Normal operating ambient temperature should be within 1°C to 40°C. Normal operating water temperature should be within 5°C to 35°C. Operation of the icemaker, for extended periods, outside of these normal temperature ranges may affect production capacity.

Allow the clearance specified below for proper air circulation and ease of maintenance and/or service should they be required.

5. INSTALLATION

△CAUTION

Incorrect installation can cause harm to people, animals or other items, for which the manufacturer cannot be held responsible.

* Place the icemaker in the selected permanent site.
* When attaching the adjustable legs (accessory), level the unit in both the left-to-right and front-to-rear directions.

6. ELECTRICAL CONNECTIONS

⚠WARNING

THIS APPLIANCE MUST BE EARTHEDThis icemaker requires an earth that meets the national and local electrical code requirements.

To prevent possible severe electrical shock to individuals or extensive damage to the unit, install a proper earth wire to the icemaker.

Disconnect the main power supply before any maintenance, repairs or cleaning is undertaken.

* This appliance requires a separate 220 - 240VAC, 10A supply. The electrical supply must be protected by a suitable circuit breaker.
* The main control box fuse is rated at 5A and should only be replaced by a qualified service engineer.

* Usually an electrical permit and services of a licensed electrician are required.
* If the supply cord is damaged, it must be replaced by a replacement cord available from Hoshizaki Parts/Service Centres.

7. WATER SUPPLY AND DRAIN CONNECTIONS

WARNING

Connect to potable water supply only.

* The connections to the mains water supply must be made in accordance with the countries' current requirements of the Water Supply or Water Fittings Regulations.
* Icemaking water must be potable water. Where scaling can be caused by water quality:

- Installation of an external filter or softener is recommended. Contact your local water treatment professional or Hoshizaki service agent.

- Change to the "full drain flush" mode is recommended. Contact your local Hoshizaki service agent.

* Water supply pressure should be minimum 0.07 MPa (0.7 bar) and maximum 0.78 MPa (8 bar). If the pressure exceeds 0.78 MPa (8 bar), use a proper pressure reducing valve. Do NOT throttle back the supply tap.
* A plumbing permit and services of a licensed plumber may be required in some areas.
* The icemaker drain is gravity flow, so ensure drain pipe has an adequate pitch or fall.
* Drain lines should not be piped directly to the sewer system. A vertical air gap of a minimum of 5 cm should be between the end of the drain pipes from the icemaker and the floor drain.
* To prevent a backflow into the storage bin, the outlet hose must be laid as shown.

* Be sure to use the new hose-sets supplied with the appliance. Do not reuse any old hose-sets.

1) Attach the angled end of white flexible inlet hose (accessory) to the G3/4 fitting on the rear side of the icemaker as indicated, ensuring rubber sealing washer is correctly positioned. Hand tighten sufficiently to provide leak free joint.
2) Attach the other end of inlet hose to the water tap, noting washer is correctly positioned before hand tightening as above. It is a wise precaution to have a stop valve within easy reach.
3) Hand tighten grey flexible outlet hose (accessory) onto the R3/4 fitting on the rear of the icemaker as indicated, ensuring rubber washer is correctly positioned to obtain a leak free joint. The pipe can be cut to length as necessary to suit position of main drain.

II. OPERATING INSTRUCTIONS

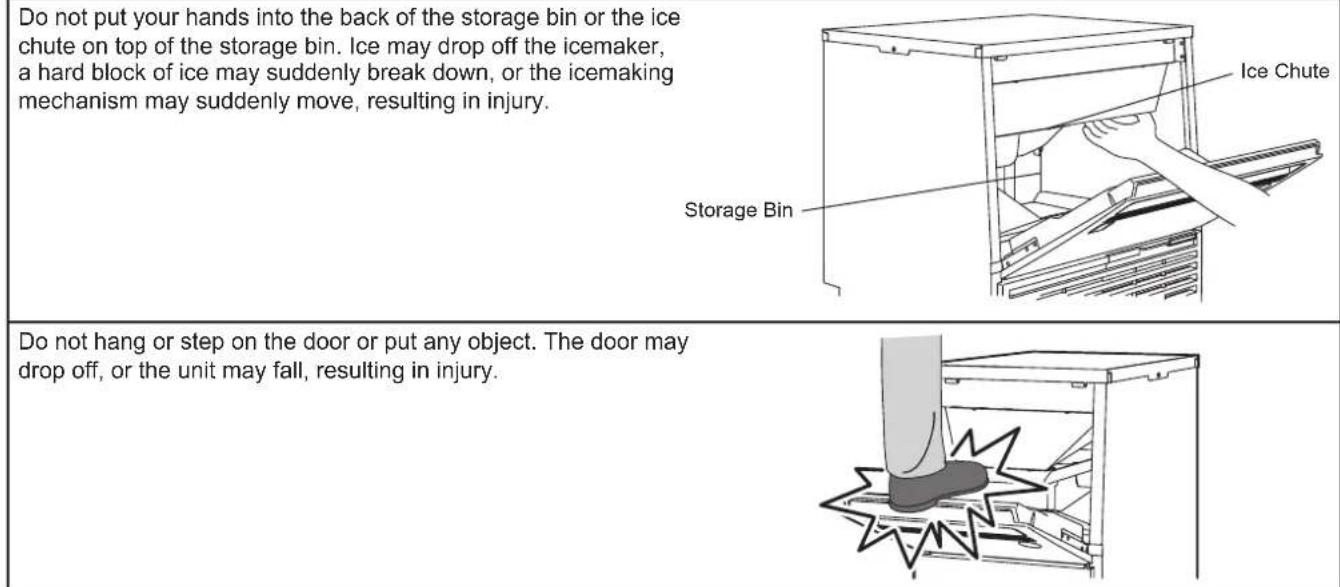

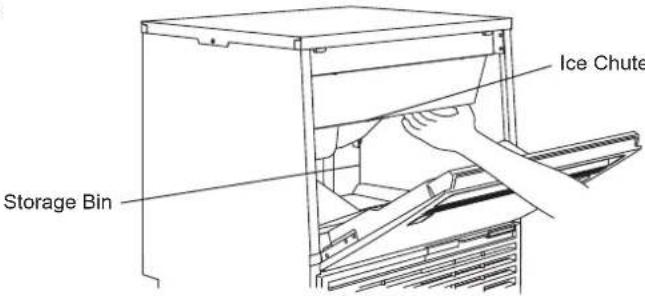

CAUTION

Line drawing of a boot emerging from a machine, with a starburst effect indicating impact (no text or symbols)

NOTICE

All parts are factory-adjusted. Improper adjustments may result in failure. If the unit is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor.

AHYGIENE

This icemaker is designed to produce edible ice. To keep the icemaker hygienic:
* Wash your hands before removing ice. Use the plastic scoop provided (accessory).
* The storage bin is for ice use only. Do not store anything else in the bin nor use other electrical appliances in the bin.
* Clean the storage bin before use (see "III. 1. CLEANING").
* Keep the scoop clean. Clean it by using a neutral cleaner and rinse thoroughly.
* Close the door after removing ice to prevent entrance of dirt, dust or insects into the storage bin.

1. START UP

The installer will normally commission the icemaker to start the automatic icemaking process. To ensure continuous operation, make sure that:

* The water supply tap is on, and
* The icemaker is connected to the power supply.

2. PREPARING THE ICEMAKER FOR LONG STORAGE

NOTICE

This icemaker will not work at subfreezing temperatures. To prevent damage to the water supply line, drain the icemaker when air temperature is below zero.

AHYGIENE

When shutting down the icemaker for two or more days, drain the icemaker to prevent contamination in the water circuit.

1) Unplug the icemaker or disconnect the power supply.
2) Close the water supply tap, and remove the inlet hose.
3) Remove all ice from the storage bin, and clean the bin.
4) Ask for draining of the icemaker by professional qualified personnel.

III. MAINTENANCE

1. CLEANING

▲WARNING

Before carrying out any cleaning or maintenance operations, unplug the icemaker from the electrical supply network.

This appliance must not be cleaned by use of a water jet.

△CAUTION

When using a neutral cleaner or sodium hypochlorite, thoroughly read and understand the instructions provided to prevent potential health problems.

NOTICE

Ask a trained service person to clean and sanitize the icemaker water system at least twice a year and to check and clean the condenser at least once a year.

To prevent possible damage, do not clean the plastic parts with water above 40°C or in a dishwasher.

[a] Machine and Bin Exterior

Wipe the exterior at least once per week with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off grease or dirt.

[b] Scoop Cleaning/Sanitisation (Daily)

1) Either mix 1 litre of water with 4 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed.
2) Soak the scoop in the solution for more than 3 minutes. Rinse thoroughly, and shake to remove surplus liquid.
Note: Using a cloth to dry may re-contaminate.

[c] Storage Bin Interior Cleaning/Sanitisation (Weekly)

1) Open the storage bin door, and remove all ice.
2) Wash the bin liner with a neutral non-abrasive cleaner. Rinse thoroughly.
3) Soak a clean cloth with the neutral cleaner, and wipe both sides of the slope and the door inner surface. Wipe off the cleaner with a clean damp cloth.
4) Either mix 5 litres of water with 18 ml of 5.25% sodium hypochlorite solution in a suitable container, or the recommended Hoshizaki sanitiser as directed.
5) Soak a clean sponge or cloth with the solution, and wipe the bin liner, bin door and slope.
6) The remaining solution can be used to sanitise utensils.

Note: Do not wipe dry or rinse after sanitising, but allow to air dry.

[d] Air Filter

Plastic mesh air filters remove dirt or dust from the air, and keep the condenser from getting clogged. If the filters get clogged, the icemaker's performance will be reduced. Remove and clean the air filter(s) at least twice per month:

1) Slide the air filter off the filter guide [IM-30CA] or the louver [IM-45CA/65A/100A/130A].
2) Clean the air filter by using a vacuum cleaner. When severely clogged, use warm water and a neutral cleaner to wash the air filter.
3) Rinse and dry the air filter thoroughly.

NOTICE

After cleaning, be sure to place the air filter back in position.

[IM-30CA]

[IM-45CA/65A/100A/130A]

2. BEFORE CALLING FOR SERVICE

WARNING

Do not damage the refrigerant circuit.

If the icemaker does not work properly or does not work at all and no error code is indicated on the display, before calling for service, check that:

* The power is supplied to the unit.
* The water is turned on.
* The air filter is clean.

For further assistance or advice, contact your local Hoshizaki service agent.

3. DISPOSAL

Comply with local regulations regarding disposal of this appliance and its refrigerant gas. Before you scrap the appliance, take off the door to prevent children trapped.

IMPORTANT

The insulation foaming agent used for the unit body contains flammable gas cyclopentane. With this in mind, dispose of the product properly.

4. WARRANTY

Hoshizaki warrants to the original owner/user that all Hoshizaki branded products shall be free of defects in material and/or workmanship for the duration of the "warranty period". The warranty shall be effective for two years from the date of installation. Hoshizaki's liability under the terms of the warranty are limited and shall exclude routine servicing, cleaning, essential maintenance and/or repairs occasioned by misuse and installations not in accordance with Hoshizaki guidelines.

Warranty repairs should be completed by an approved Hoshizaki dealer or service agency using genuine Hoshizaki components.

To obtain full details of your warranty and approved service agency, please contact your dealer/supplier, or the nearest Hoshizaki Service office:

Hoshizaki Singapore

TEL: [phone]

FAX: [phone]

Hoshizaki Suzhou

TEL: [phone]

FAX: [phone]

Hoshizaki Hong Kong

TEL: [phone]

FAX: [phone]

Hoshizaki Shanghai

TEL: [phone]

FAX: [phone]

SPECIFICATIONS

Model IM-30CA IM-45CA IM-65A
Type Air-cooled, cube ice Air-cooled, cube ice Air-cooled, cube ice
Power Supply ---
Electric Consumption ---
Ice Production per 24h ---
Dimensions ---
Refrigerant ---
Weight ---
Ambient Temp ---
Water Supply Temp ---
Water Supply Pressure ---
Voltage Range ---

Model	IM-100A	IM-130A
Type	Air-cooled, cube ice Air-cooled, cube ice
Power Supply	1 phase 220 - 240V 50Hz	1 phase 220 - 240V 50Hz
Electric Consumption	550W	630W
Ice Production per 24h	100kg (5mm) / 112kg (15mm)(ambient 10°C, water 10°C)	120kg (5mm) / 126kg (15mm)(ambient 10°C, water 10°C)
Dimensions	660mm(W) x 570mm(D) x 1200mm(H)	660mm(W) x 570mm(D) x 1200mm(H)
Refrigerant	R404a, 400g	R404a, 350g
Weight	Net: 76kg (Gross: 95kg)	Net: 79kg (Gross: 98kg)
Ambient Temp	1 - 40°C	1 - 40°C
Water Supply Temp	5 - 35°C	5 - 35°C
Water Supply Pressure	0.07 - 0.78 MPa (0.7 - 8 bar)	0.07 - 0.78 MPa (0.7 - 8 bar)
Voltage Range	Rated voltage ± 6%	Rated voltage ± 6%

Note: The above specifications are for the representative models.

重要安全须知

Diagram of a mechanical device with a foot and screw, showing internal components and a crack (no text or symbols)

注意

[IM-45CA/65A/100A/130A]

2. 联系维修机构前

警告

请勿损坏制冷剂回路。
