Product Type	Upright Freezer
Brand	Hitachi
Model	R-SF6800B
Capacity	380 Liters
Dimensions (H x W x D)	1850 x 800 x 650 mm
Weight	85 kg
Energy Efficiency Class	A++
Annual Energy Consumption	250 kWh
Power Supply	220-240 V, 50 Hz
Climate Class	SN-T
Cooling System	No Frost (Frost-Free)
Temperature Range	-24°C to -16°C
Defrost Type	Automatic
Noise Level	42 dB(A)
Refrigerant	R600a
Controls	Electronic with Digital Display
Special Features	Super Freeze function, Fast Freezing compartment, High-temperature alarm, Door open alarm
Shelves / Drawers	6 transparent drawers
Door Hinge	Right side, reversible
Lock	Yes
Warranty	2 years
Maintenance	Clean condenser coils annually, defrost automatically
Safety	Child lock, automatic alarm

Frequently Asked Questions - R-SF6800B HITACHI

How do I set the temperature on my Hitachi R-SF6800B freezer?

Use the electronic control panel to adjust the temperature. Press the Temperature button and select the desired level between -16°C and -24°C. The display will show the current setting.

Why is my freezer making a buzzing noise?

A slight buzzing is normal from the compressor and fans. If the sound is loud or irregular, ensure the freezer is level and not touching walls or furniture. Clean the condenser coils. If persists, contact support.

How do I defrost the freezer?

The No Frost system automatically defrosts. No manual defrost needed. However, if frost builds up, check the door seal and ensure it closes properly.

What is the super freeze function?

Super Freeze rapidly lowers the temperature to freeze fresh food quickly, preserving quality. Activate it by pressing the Super Freeze button. It automatically deactivates after 24 hours.

How do I clean the freezer?

Unplug the unit. Remove all food and drawers. Wipe interior with a soft cloth and mild detergent. Dry thoroughly. Clean the door gasket with warm water. Do not use abrasive cleaners.

Where is the model serial number located?

The rating plate is inside the freezer, usually on the left wall or ceiling. It contains the model number, serial number, and electrical specifications.

What should I do if the freezer stops cooling?

Check the power supply and circuit breaker. Ensure the thermostat is not set too warm. Verify the condenser coils are clean. If the interior temperature rises, call a technician.

How long does the freezer stay cold during a power outage?

A full freezer stays cold for about 8-12 hours if unopened. Do not open the door unnecessarily. Use a power outage alarm if available.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to move hinges to the other side. You may need a screwdriver and assistance.

What is the recommended freezer temperature?

For optimal food preservation, keep the freezer at -18°C or colder. Adjust using the control panel. The digital display indicates the current temperature.

USER MANUAL R-SF6800B HITACHI

HITACHI Inspire the Next

Exterior view of a modern double refrigerator with four doors and control panels (no visible text or symbols)

六門形式 Six doors

非常感謝您這次購買日立電冰箱。

Thank you very much for purchasing a Hitachi Refrigerator.

This refrigerator is designed for home use only. Do not use this refrigerator for the business use and/or any purpose other than storing food.

Please read this operation manual carefully and ensure you use the appliance correctly. In particular, be sure to read the "Safety Suggestions" section of this operation manual before use.

Please keep this operation manual along with your guarantee card.

Hand over this operation manual together with the refrigerator when the refrigerator is passed to a third party and used in a different location, or when it is sent to a recycling plant.

It may take time to cool for the first time. Pg.36, 37

It may take more than 4 \~ 24 hours to fully cool.

● Make sure that any food does not protrude beyond the storage height limit of each compartment, and allow clearance between each food in each compartment. Pg.44, 50

Otherwise, food and/or package may not be stored in each compartment properly, and as a result, the door may not be closed completely. It may cause the refrigerator not to cool sufficiently and/or not to make ice.

Intelligent Vacuum Preservation facilitates use of the Vacuum Compartment that uses vacuum power to preserve nutrition and freshness.

1. Hitachi proprietary vacuum preservation system

● Uses a vacuum pump to create a vacuum state in a compartment, thereby lowering an oxygen level.

● A difference in atmospheric pressure created by the vacuum pump is used to release antioxidant vitamin to further prevents oxidation of food and color changes.

Exterior view of a modern office building (no signage)

※ The so-called “vacuum” refers to a state in which pressure is lower than the atmospheric pressure. Since the Vacuum Compartment has pressure of about 0.8 atm, which is lower than the atmospheric pressure, we call it “vacuum”.

2. The Intelligent Vacuum Preservation uses a sensor to detect the presence or absence of vegetables and an amount of food stored.

● The Automatic Mode normally keeps a compartment at -1^ and automatically switches to +1^ upon detection of an entry of vegetable.

Detects the presence of CO _2 emitted through respiration of vegetable when the vacuum pump absorbs it, and automatically changes the temperature zone setting accordingly.

● Uses a sensor to detect an amount of food stored and the aluminum tray to accelerate cooling.

- Allows you to select Vacuum Compartment -1°C or Vacuum Compartment +1°C, depending on the food you want to store.

● Can be also used to unfreeze or prepare food for cooking.

更省能源 More Energy Saving

1. 霜循環冷卻

● Utilizes frost efficiently to cool down the inside of the refrigerator without using a compressor, thereby achieving more energy saving than the conventional method.

In the past, the frost adhered to the radiator during operation was melted by a heater and discharged as it lowers the cooling effect.

Frost Recycle Cooling utilizes the cold of frost. The compressor operation is stopped and Refrigerator Compartment /Vegetable Compartment are cooled by utilizing the cold of frost.

● Each compartment being independently cooled effectively

A flap that controls a flow of cooled air is provided in each of Refrigerator, Freezer and Vegetable Compartments to control temperature of each compartment independently.

● Water in frost prevents desiccation (in Refrigerator and Vegetable Compartments).

In addition to the cold of frost, the moisture of frost on the radiator helps the food from drying out.

2. Energy saving mode

To save energy more actively, the energy saving mode increases a temperature setting for each compartment and reduces the number of revolutions for the compressor.

※ In the energy saving mode, the cooling capacity is reduced. You may feel that cooling is not enough, for example, ice-cream becomes softer. Pg.39

目錄

使用之前

Illustration of a person performing electrical shock tests with exposed wires and a damaged face (no text or symbols)

在已受損的狀態下使用時

會引發觸電·短路·火災的危險。

Illustration of a girl holding a magnifying glass next to a smiling face on a screen (no text or symbols)

禁止

Illustration of two children playing on a playground slide (no text or symbols)

● 請注意不要讓孩子們玩耍。

禁止

● 請不要拆卸冰箱內燈的蓋子。

Cartoon illustration of a distressed refrigerator and a person holding a board with diagrams (no text or symbols)

Cartoon illustration of a person opening a book with a surprised face and megaphone, no text or symbols present

● 請勿在冰箱內部使用電器用品。

Illustration of two people cleaning a refrigerator (no text or symbols)

注意

移動・搬運時

禁止

Cartoon illustration of a distressed person standing in a boat filled with bottles, no text or symbols present

Cartoon illustration of a person peeking from behind a wall, with expressive eyes and a pointing hand (no text or symbols)

禁止

Diagram of a multi-level refrigerator with doors and control panel, showing structural details (no text or symbols)

為了防止萬一觸電，建議實施接地。

Illustration of a person pushing a large box on a platform (no text or symbols visible)

舊的布巾等

Illustration of workers installing or maintaining a large mechanical component, with magnified insets showing hand and tool handling (no text or symbols)

注意事項

Line drawing of an open refrigerator with doors open, showing internal compartments and doorways (no text or labels)

真空室

(約-1°C\~約1°C)

保存的食品請參照下列一覽

上層冷凍室

(約-20°C\~-18°C)

儲存冷凍食品，冰淇淋及乾糧。

下層冷凍室

(約-20°C\~-18°C)

儲存冷凍食品，冰淇淋及乾糧。

低温冷凍 17頁

(約 -23℃ \~ -20℃)

以比平常温度低的低温保存。

Architectural line drawing of a refrigerator interior showing doors, drawers, and storage compartments (no text or labels)

真空幫浦

Technical line drawing of a mechanical assembly with no visible text or symbols

冷凍室温度感應器

鋁盤

(位在冷凍室的盒内)

把手

從下面手握住把手開閉真空容器。

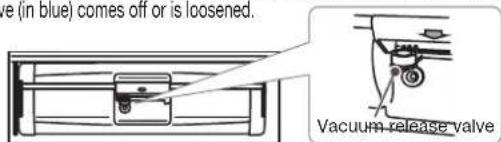

真空解除閥（藍色）

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Hand placing a component into a device with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to clean or store items on a flat surface (no text or symbols visible)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Diagram of an egg rack with multiple eggs inside, showing internal structure (no text or labels)

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

4段可調層架 可調式層架上方

●拆卸 4 段可調層架的方法

Illustration of a hand using a tool to lift a mechanical component (no text or symbols visible)

●裝置 4 段可調層架的方法

Two technical line drawings of a container with internal compartments, no text or symbols present.

開關冰箱門

■開門時 ■關門時

Two diagrams showing mechanical assembly or alignment, with no visible text, numbers, or symbols.

Line drawing of a refrigerator with doors and drawers, showing front panel and side panels (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a kitchen appliance interior with shelves, cabinets, and drawer (no text or symbols)

製冰室
操作部

製冰功能切換鍵

Cross-sectional diagram of a mechanical assembly or housing (no text or symbols visible)

通知事項

Line drawing of a hand placing eggs into a tray (no text or symbols)

快速製造冰塊（急速製冰）

Architectural cross-section diagram showing wall and floor panels (no text or labels)

Simple line drawing of a cabinet or enclosure with a handle, no text or symbols present

通知事項

Illustration of three food items: a long rod, a garlic bulb, and a spoon (no text or symbols)

● 請不要讓食品超出食品儲放量基準線。

Illustration of two hands holding a rectangular device with a downward arrow indicating force or movement (no text or symbols)

Line drawing of a mechanical device with a handle and internal compartments (no text or symbols)

固定層架

Diagram showing two steps of a mechanical or architectural component, with no visible text or symbols.

Diagram showing a hand operating a mechanical device with a magnified inset of the component (no text or symbols)

Architectural line drawing of a room interior with furniture and fixtures (no text or symbols)

都確認完了之後請操作下一個步驟。

在製冰盒底部鋪上乾淨的毛巾

Preparation before use 36

• Installing your refrigerator 36

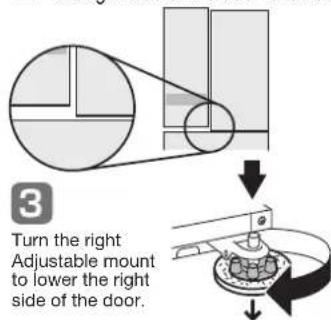

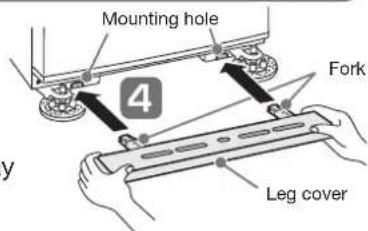

- Adjusting the refrigerator adjustable mount to keep it level 36

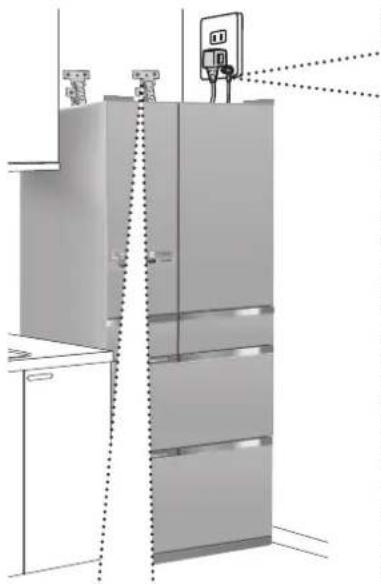

• On the Power Plug and Grounding 37
• Cooling down the inside of the refrigerator..... 37
- Transporting your refrigerator (transport for moving) 37

GENERAL FEATURES AND USE....38

• Control Panel 38

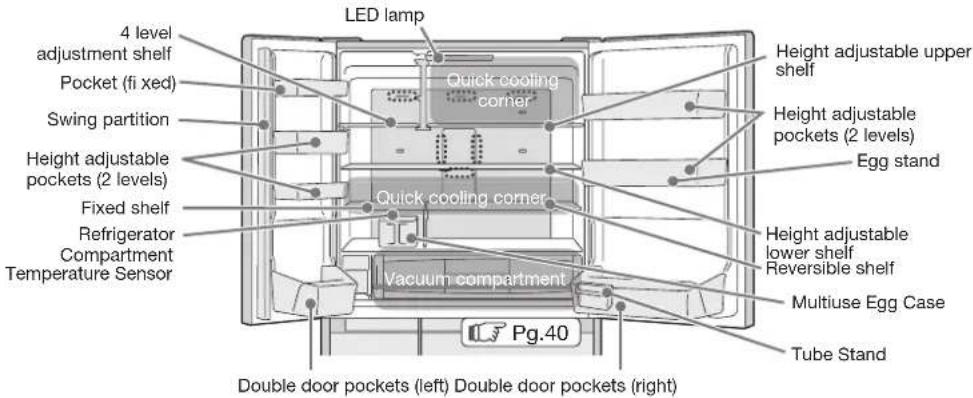

• Name of each compartment/Food stored ..... 39

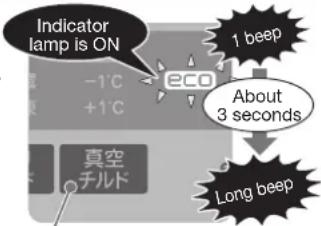

- Setting "Energy Saving" mode 39

GENERAL USE

● VACUUM COMPARTMENT 40

• Settings and food stored 40

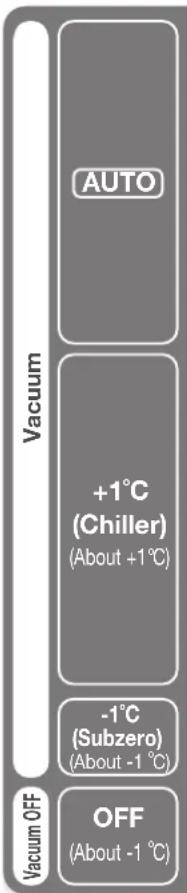

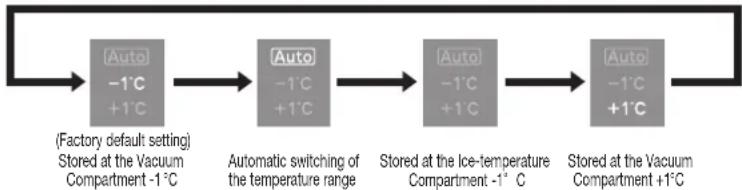

• Setting the Vacuum Compartment .... 40
• When opening/closing the door of the Vacuum Compartment....41
• Maintenance and care 41
• When vacuum packing has heavy dirt 41

● REFRIGERATOR COMPARTMENT 42

• Adjusting temperature in a refrigerator compartment......42
  • Cooling food Quickly (Quick Cooling) 42
  • Using a multiuse egg case 42
• Adjusting shelves 43
• Changing the height of a door pocket .... 43
• Opening/closing a door 43

FREEZER COMPARTMENT 44

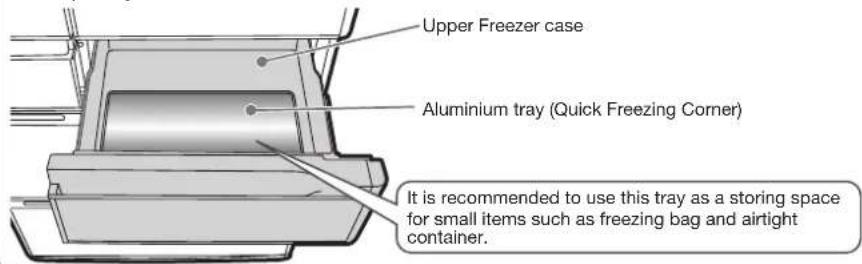

• Using the Upper Freezer 44
• Using the Lower Freezer 44
• Height of the storageable food 44
- Adjust the temperature of the freezer compartment....45
- Quickly freezing warm food (Quick Freezing) ... 45

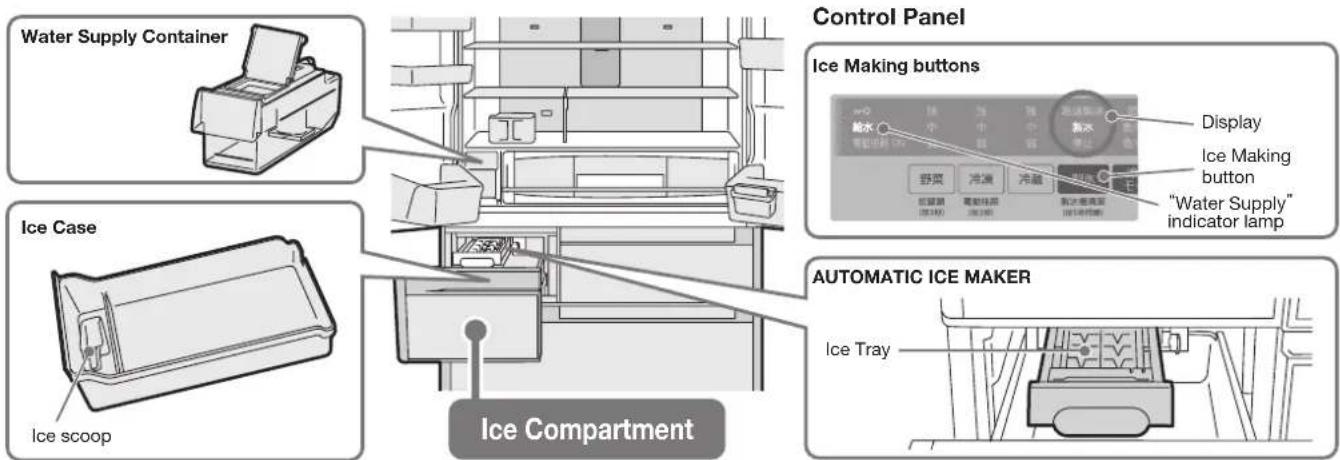

ICE COMPARTMENT (AUTOMATIC ICE MAKER) .... 46

• How to make Ice 46
• Not making ice (Stop Ice Making) 46
• How to make ice quickly (Quick Ice Making) ... 47
• "Water Supply" indicator lamp 47
• Ice-making time and an amount of ice ..... 47

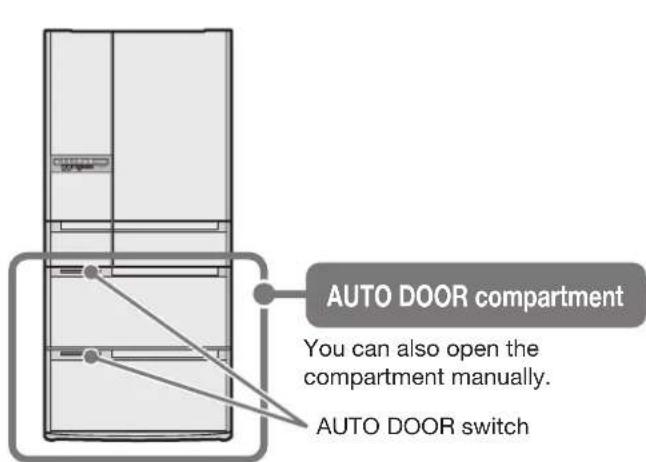

● AUTO DOOR COMPARTMENT (In lower freezer and vegetable compartment)...... 48

• How to enable/disable the Auto Door function... 48
- Opening and closing the Auto Door compartment...48
• Auto Closer Half-opened Door Prevention ..... 49
- Maintenance and Care 49

VEGETABLE COMPARTMENT 50

• Using the Lower and Spacious Upper Cases ... 50
- Adjusting the temperature of the Vegetable Compartment....50

HOW TO MAINTAIN

● MAINTENANCE/CARE OF THE INSIDE AND OUTSIDE....51
HOW TO REMOVE PARTS 52
● HOW TO MAINTAIN THE AUTOMATIC ICE MAKER.... 53

• Washing the supply channel (Ice Maker Cleaning) ... 53
• Cleaning the water supply container...... 53
• Cleaning the ice tray 53

TROUBLESHOOTING

● TROUBLESHOOTING.... 54

• FAQ when using for the first time 54
• The Control Panel does not respond ..... 54
• Automatic ice making is not properly performed.....54
- Refrigerator does not cool 54
- Frost and/or dew occur 55
• Refrigerator cools overly 55
• Door is not in a horizontal state ..... 55
• Abnormal operating sound is generated ..... 55
• The refrigerator becomes hot 55
- It smells strange 56
- There is something strange with the Vacuum Compartment....56
- “m0” display on the control panel flashes...... 56
- Others 57

● PRACTICAL ADVICE ON HOW TO USE THE REFRIGERATOR/REPLACEMENT PARTS ..... 57

[“eco” OPERATION INDICATOR LAMP]/DOOR ALARM/LOCKING THE CONTROL PANEL ..... 58
ABOUT NON-CFC REFRIGERATORS/ SPECIFICATION/STORABLE WEIGHT .... 59

SAFETY SUGGESTIONS

Ensure to follow these precautions

When using this appliance, failure to follow safety precautions may result in personal harm, harm to other people, and also damage to property.

The following pictographs categorize and explain the level of possible harm on damage that may occur from ignoring suggestions resulting in missing the appliances.

WARNING

Suggestions headed by this pictograph indicate "There is high chance of serious injury or death" if ignored.

CAUTION

Suggestions headed by this pictograph indicate "There is a high chance of injury or damage to property" if ignored.

How the suggestions should be taken are indicated and categorized by the following symbols accompanied by explanations. (The symbols below are examples)

This symbol indicates something you must not do. (Prohibited)

This symbol indicates something you must do. (Compulsory)

WARNING

Installation

Connection

● Install earth leakage circuit breaker when installing the

refrigerator in a earth connection screwEarth humid or damp environment.

Electrical leakage due to failure, etc. could result in electrical shock.

- Make sure to contact the dealer for earthing installation. 📄 Pg.37

Wetting Prohibited

- Do not install the refrigerator in damp places or where water may splash.

- This may impair electricity insulation causing electric shock or fire.

● Take measures to prevent overturning of refrigerator due to earthquake, etc.

• Overturning of the refrigerator could result in personal injury. 📄 Pg.37

trembling and 52. unstable

Handling the power and power cable

Prohibited Prohib

● Avoid usage that may cause the wall outlet or power cord components

rehibited to work beyond the specified voltage. Also do not use power sources that are not a rated voltage

If a power source is shared with other appliances, double or multipoint adapters may heat up beyond normal levels and cause fi re.

- Use a wall outlet rated above 15 ampere by itself.

- Do not do anything that may damage the power cord or plug.

The power cord or plug should not be cut, modified, touched with hot implements, bent by force, twisted, pulled, have heavy objects placed on it, squeezed by the refrigerator, or be bound or tied up.

Using a damaged power cord may cause electric shock, short circuits, or fi re.

- Please consult with a retailer about the repair of the power cord or plug.

- Connect the power plug fi rmly to a power outlet with the cord running down.

- Connection of the power plug with the cord running up could apply stress on the cord and cause electrical short or overhe could result in electrical shock

- Incomplete connection of the power plug could result in electrical shock or fire due to heat.

Wet Hands Prohibited

- Do not insert or remove the power plug with wet hands.

- This may result in electric shock.

Handling the power and power cable

● Clean the dust on the power plug frequently.

Insulation failure from moisture when dust collects on the power plug may cause fire.

- Unplug the power plug and wipe it with a dry cloth.

● Be sure to unplug the power plug before maintaining the refrigerator.

Continued use may cause electric shock or injury. Pg.51 • Always hold the plug when unplugging it.

During normal use

Wetting Prohibited

- Do not splash water on or inside the refrigerator.

- This may impair electricity insulation causing electric shock or fire.

Prohibited

- Do not put in things that may catch fi re.

- Benzine, ether, LP gas, thinner, adhesives may ignite an explosion.

Wetting Prohibited

- Do not put water containers on the refrigerator.

- Spilled water may impair insulation of electrical components causing faulty electrical currents. This may result in electric shock or fire.

Prohibited

- Do not use fl ammable sprays near the refrigerator.

• Sparks from points of electrical contact such as door switches may ignite a fire.

Illustration of a girl holding a magnifying glass next to a smiling face on a board, with a starburst background (no text or symbols)

Prohibited

● Do not put things on top of the refrigerator.

- Opening and closing doors etc. may cause things placed on top of the refrigerator to fall resulting in injury.

Prohibited

● Drugs, chemicals, research and experimental substances should not be stored in the refrigerator.

- Substances that require precise conditions for storage cannot be stored in a domestic refrigerator.

Contact Prohibited

● Do not touch the machinery components of the Automatic ice maker.

- There is a danger of injury when the ice trays are rotating.

Prohibited

- Do not hang on the doors or step on the various compartments.

- Injury may be caused by the refrigerator tipping over or hands getting caught between doors.

Illustration of two children climbing a staircase (no text or symbols)

● Children should be supervised to ensure that they do not play with the appliance.

Prohibited

● Do not remove the cover of the interior lamp.

- When the interior lamp is damaged, please contact the service centre for replacing the lamp to avoid injury.

Prohibited

- Do not hang from the Descendible Case.

Prohibited

- Do not add the impact to the grass door.

WARNING

Concerning the refrigerant (Be careful of the following related to the use of fl ammable gas.)

Prohibited

- Do not scratch or damage the main body of the refrigerator with a sharp object such as screw.

Since the refrigerant used is fl ammable, any leakage from the pipe inside the wall may cause ignition and explosion.

- Allow clearance around the refrigerator and keep ventilation openings when installing it. Pg.36

Leakage of the refrigerant may accumulate and cause ignition and explosion.

- Do not damage the refrigerant circuit. If you happen to damage the refrigerant pipe, stay away from the refrigerator and avoid using fi r appliances.

Cartoon illustration of a refrigerator and a person interacting with a wall-mounted device (no text or symbols)

Should you damage the refrigerator, open the window to ventilate and contact your dealer or our repair reception desk.

- Please consult your dealer or the Recycle Hotline [phone]) of the Recycle Centers in the Environmental Protection Administration when discarding the unit.

If the refrigerant is wet, it may cause ignition and explosion.

Prohibited Prohib

● Do not use mechanical devices or other means

to accelerate the defrosting process, other than those recommended by th

Cartoon illustration of a closed book with a surprised face and open pages, arms open, no text or symbols present.

● Do not use electrical appliances inside the refrigerator.

- If the refrigerant leaks, sparks on the contact may cause ignition and explosion.

In case of emergency

- Stop the refrigerator by unplugging it if it is not running properly or broken.

Continue may cause electric shock or injury.

• Always hold the plug when unplugging it.

- Do not disassemble, repair, or modify your refrigerator.

Injury may be caused by ignition of fire or faulty ru

- Please consult with a retailer if any repairs or disassembly are required.

- In the event of a fl ammable gas leak do not touch refrigerator and open windows to let air flow.

- Sparks from points of electrical contact such as door switches may ignite explosions causing fire or burn injuries.

When discarding the unit

● Before discarding the unit or recycle, remove the door packing to avoid the risk of an infant or children to be entrapped inside.

Illustration of a child cleaning a refrigerator while another person holds a bag (no text or symbols)

Handling the power and power cable

Prohibited

● On a floor that is easily scratched do move the refrigerator using the wheels at its base.

The wheels may scratch the floor.

- For a floor that may be easily scratched, lay a protective mat.

● Use the carrying handle when carrying it.

Your hands may slip resulting in injury if you hold the refrigerator in other places apart from at the carry handles.

• More than 2 person should carry the refrigerator for safety reasons.
- Carry it with the door facing upward; as shown in the illustration.
- Never hang the handle with a crane.

During normal use

Prohibited Prohib

- Do not put bottles in the Door Baskets if they do not sit properly on the bottom of the front section.

- Forcing in items like large bottles may result in them getting tipped over, causing injury.

Cartoon illustration of a person using a tool to interact with a surface, showing expressive eyes and motion lines (no text or symbols)

● Do not have food items protruding over the front of the shelves.

- Injury may be caused / \ from items like bottles getting knocked over.

Prohibited

- Do not put the glass bottles in the Freezer Compartment.

- Bottles may break from the contents freezing and cause injury.

- When two or more doors are being opened or another person is using the refrigerator, make sure fingers do not get caught.

- Fingers may get caught in the spaces between doors causing injury.

Prohibited

● Do not hold the top of the doors when closing them.

- If you hold the top of a door when closing it you may get your fingers caught or pinched causing injury.

Prohibited

● Food and containers inside the Freezer Compartment should not be touched with wet hands.

- This may cause frost injury. (Especially in the case of metal items)

Prohibited

- Do not have your feet too close when opening the bottom door of the refrigerator.

- When opening this door you may hit the in step or other parts of your feet resulting in injury.

Prohibited

- Do not eat food that smells strange or has changed color.

- Spoiled food may cause serious sickness.

- Do not press the auto door switch on the auto door compartment with knee, etc.

● Avoid placing anything like a bottle near the auto door compartment.

Prohibited

- Do not put your hands or feet under the base surface of the refrigerator.

When cleaning, putting your hands under the base surface of the refrigerator may result in injury by cutting them on sheet metal parts.

BEFORE USE

Preparation before use

1

Installing your refrigerator

● The floor should be sturdy and flat. Lay the board which has 1cm thickness on the floor if the refrigerator is installed on the carpet, tatami mat, flooring or PVC sheet flooring which may hollow or discolor.
● A location away from direct sunlight and heat is recommended.
● A location is not damp and has good air flow. This will reduce adverse effects to refrigerating power and keep electricity cost down. This will also prevent the refrigerator from discoloring and rusting.
● To cool effi ciently, allow enough space around the refrigerator for radiating heat.
● The actual size of the center part of the side of the refrigerator's main body is slightly larger than the nominal size. Therefore, please allow enough space around the when installing the refrigerator.
● The back of the refrigerator can be placed very close to the wall. If any vibration sound occurs and/or any discolor/dirt is found on the wall, move the refrigerator away from the wall.

2

Adjusting the refrigerator adjustable mount to keep it level

● Left side or right side of the door may be slightly lower when the surface of the installation place is not level or either of the left and right leg is sunk in the floor surface because of the soft floor material and the addition of food weight.
→ This does not affect the refrigerator function. Adjust the refrigerator adjustable mount to keep it level according to the procedure listed below if you want to correct it.

Correcting any left/right lean and lifting slightly the front side of the refrigerator, the door can close easily and completely.

The adjustable mounts, which are located in the front bottom corners of the refrigerator, can be adjusted by turning them to level the refrigerator. (Make sure to use a supplied tool and pads (2 pcs.))

1 To remove leg cover, hold both ends of it a pull it towards to you applying some force.
2 Place pads under the adjustable mounts evenly.

※ Always wipe the adjustable mounts and floor clean before placing pads. Adherents may scratch the floor if remain. Lower both adjustable mounts (left and right) by turning them to secure the refrigerator.

3 With the supplied tool, turn an adjustable mount on the side that the refrigerator is lower to make the Refrigerator Compartment door level.

The left side of the door is lower.

Diagram showing a mechanical or optical setup with two rectangular blocks connected by a pulley system, and a separate circular component with internal divisions (no text or symbols)

3

Turn the left Adjustable mount to lower the left side of the door.

The right side of the door is lower.

4 Insert the left and right pins of the leg cover into the mounting holes to attach the leg cover.

It may be approx. 5 days before the refrigerator conforms to the floor allowing the door to be leveled. Readjustment is required if the door is not leveled.

Notice

- When you stop holding a refrigerator door with your hand, the door may move, but this is normal.

Clamp the supplied tool adjusting to the shape of the adjustable mounts.

※ The height of the door can be adjusted 1mm every one turn of the adjustable mount.

3

On the Power Plug and Grounding

● It is not a problem to plug in the power cord soon after installing the refrigerator.
● Use a wall outlet exclusively when connecting the power cord. (Alternating current 110V, rated 15A or more)

Diagram of a refrigerator with doors and a control panel, showing vertical alignment lines (no text or symbols)

It is recommended to ground the refrigerator to prevent possible electrical shock.

• Contact your dealer to ground the refrigerator or install an earth leakage circuit breaker if the refrigerator is installed in especially damp and humid places.
  ● Option: "Earth wire (2.5m)" (Parts No. NW-60R6 052)

Never connect the earth wire to the following places:

● Water pipe (Danger of electrical shock)
● Gas pipe (Danger of explosion)
● Telephone line or earth of lightning rod (Danger when lightning strikes)

Preparation for an earthquake has been made properly?

• It is recommended to fix the refrigerator to a sturdy wall or pillar using two "safety belt against overturning for refrigerators".
• Option: "Safety belt against overturning for refrigerators" (Parts No. R-826CV 300: belt x 1) Contact your dealer for details.

4

Cooling down the inside of the refrigerator

• It may take more than 4 hours through 24 hours to cool well the inside of the refrigerator, depending on conditions such as the ambient temperature or the storage state of foods.
  ● Perform 製冰機清潔” (Ice Maker Cleaning) when using the automatic ice making function first. ① Pg.53
  ● A series of ice making operation will start automatically after the inside of the refrigerator is cooled well. (When using for the first time, it may take 24 hours and more to make ice.)

Transporting your refrigerator (transport for moving)

● Make sure to empty food and ice from the refrigerator. Always drain water from the water supply container and ice tray.
- Secure the door with tape.
● Lay a protective sheet or cloth to protect the floor from damage and catch remaining water spilled from the refrigerator.
● With a large piece of old cloth underneath, tilt the refrigerator backward to drain water.
- Use assistance to carry the refrigerator. Make sure to hold the handles when carrying it.
- See "Preparation before use" for installing the refrigerator in a new location. 📄 Pg.36

Caution

• Do not remove the sticker from the back of the refrigerator. This sticker is necessary to secure the performance and safety.
• Do not remove the plastic parts and label from the bottom part of the side of the refrigerator.
  ※ If you wish to install the refrigerator in a hot spring area exposed to sulfide gas, you may need to apply anti-rust treatment to the piping. Contact your dealer in advance. Failure caused by gas damage will not be covered under guarantee.

Illustration of a person pushing a large box with a tool, no text or symbols present

Such as old cloth

Illustration of workers installing or adjusting a mechanical device, with two magnified insets showing hand positioning and tool handling (no text or symbols)

GENERAL FEATURES AND USE

Control Panel

The Control Panel is a touch panel made of glass. To change a setting, just touch and switch the setting.

Providing information

☐ (Locking the Control Panel)

Pg.58

給水 (Water supply container)

Pg.47

電動抽屉 ON (Auto Door On)

Pg.50

- Allows you to prevent erroneous operation on the Control Panel.

- When the water level in the water supply container becomes low, this lamp is lit automatically.

- Allows you to enable or disable the Auto Door function.

Selecting an ice making mode

You can select a mode from “製冰 (Ice Making)”, “急速製冰 (Quick Ice Making)” and “停止 (Stop Ice Making)” Pg.47

● “製冰機清潔 (Ice Maker Cleaning) Allows you to wash the ice tray and water supply channel. Pg.53

eco operation indicator lamp

- Is lit when the refrigerator is operated with a low energy consumption, such as in Frost Recycle Cooling.

Pg.58

● You can also turn off the indicator lamp.

Pg.58

Display area

Touch area

All the indicator lamps are lit for the sake of explanation.

Adjusting temperature settings

Set temperature for each compartment.

Normally, use the 中 (MID)" setting.

Refrigerator Compartment Pg.42

Freezer Compartment Pg.44

Vegetable Compartment Pg.50

Selecting a cooling mode

Set a cooling mode for each compartment.

“急冷凍 (Quick Freezing)” Pg.45

“急冷藏 (Quick Cooling)” Pg.42

“節電 (Energy Saving)” Pg.39

Setting the Vacuum Compartment

Set the compartment to “Auto”, “-1°C (Subzero)” or “+1°C (Chiller)”, depending on the food to be stored

- When all the indicator lamps are unlit, the compartment can be used as an ice-temperature one.

Notice

■ Blinking ☐ (Locking the Control Panel) indicates that the refrigerator is in an abnormal state. 📄 Pg.56

Notice

• Approximately two minutes after the end of operation, indicator lamps, excluding “急冷凍(Quick Freezing)” 急冷藏(Quick Cooling)”, 節電 (Energy Saving)”, 急速製冰 (Quick Ice Making)”, 給水 (Water Supply)” and “eco Operation”, become unlit for energy saves.
  ● To confirm settings, open a refrigerator door or touch any button. The indicator lamps become lit again.
• When opening a refrigerator door, the displayed characters become lit. They become unlit about 15 seconds after shutting it.
  ● Response of the touch panel may change depending on the surrounding temperature, humidity, physical condition of the user or operation status of the adjoining electric product.
• Release a finger and touch the panel again if the panel does not respond after touching it. False detection may occur (it may be kept pressed) if the time interval between key touches is too short. Response of the touch panel does not improve even if strongly touching it.
• Be sure to operate the Control Panel with all the doors closed. It remains inactive when you touch the Control Panel with a refrigerator door opened or displayed characters blinking.
• When a door remains open for 30 minutes or more, Door Alarm is raised to indicate it. Pg.58
  ● The panel may not respond if it is wet or dirty.

Name of each compartment/Food stored

Refrigerator compartment

(About 2°C \~ 6°C)

Pg.42

Refrigerating food

The temperature of door pocket is slightly high.

Ice compartment

(About -20°C \~ -18°C)

Pg.46

Store the ice cube made by auto ice making function.

Vegetable compartment

(About 3°C \~ 7°C)

Pg.50

Vegetable, fruits, drink

※ The above temperatures are standard values under the condition that the refrigerator is stable with no food stored and the door closed, at ambient temperatures of 30^ C.

Vacuum compartment

(About -1°C \~ 1°C)

Pg.40

Food which are suitable for storage are as shown below.

Upper freezer

(About -20°C \~ -18°C)

Pg.44

Store frozens food, ice-cream and dried food.

Lower freezer

(About -20°C \~ -18°C)

Pg.44

Store frozens food, ice-cream and dried food.

- Low Temperature Freezer

Pg.45

(About -23°C \~ -20°C)

Food are preserved at lower temperature than usual.

Setting "Energy Saving" mode

Touch the 冷却 button to enter Energy Saving mode. “節電 (Energy Saving)” display comes on with the touch of the button.

The display switches in sequence as shown below every time the button is touched. Turn off the “節電 (Energy Saving)” display to disable Energy Saving mode

“節電 (Energy Saving)” mode allows you effective energy saving.

The mode includes:

● Automatic temperature control to lower cooling loads in each compartment.
● Turning down an LED light in the Refrigerator Compartment if the door of the Refrigerator Compartment is left open for more than 30 seconds.

Notice

● “節電 (Energy Saving)” mode becomes disabled if it is switched to “急冷凍 (Quick Freezing)” or “急冷藏 (Quick Cooling)”. Reset the mode.
- No effective energy saving is attained when temperature is set to “弱 (MIN)” which has no automatic temperature control.

Caution

● Automatic temperature control lowers cooling loads, which may cause ice cream to get soft and frost to form on frozen food. It also requires longer freezing time and ice making time.

VACUUM COMPARTMENT

Architectural line drawing of a refrigerator interior showing storage compartments and doorways (no text or labels)

Vacuum Pump

(with the pressure sensor, CO_2 sensor and storage sensor)

Vitamin Case (on the ceiling inside the Vacuum Compartment)

Antioxidant vitamin is released to inhibit oxidation. (No replacement required. Do not remove the case.)

Vacuum Container

(designed to store the vacuum case)

Vacuum Case (with the door)

Technical line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

Vacuum Compartment Temperature Sensor Aluminum Tray

(housed in the case in the compartment)

Handle

Use this handle from beneath to open or close.

Vacuum release valve (in blue)

Raise the handle to unlock it. The vacuum will be released by the vacuum release valve. Hissing sound is generated when releasing the vacuum.

Settings and food stored

Set to "Auto" before placing food in the refrigerator.

The Vacuum Compartment performs an automatic switchover to “+1°C (Chiller)” or “-1°C (Subzero)” upon detection of carbon dioxide. The compartment is automatically set to “-1°C (Subzero)” when vegetables are stored and is set to “+1°C (Chiller)” if not.

● Meat, processed meat ● Fish, seafood, boiled fish paste

Beef, pork, poultry, ham, sausages etc.

Horse mackerel, sardine, saury, fi sh roe, boiled fi sh paste etc.

● Vegetables with high C_2 evels

Fresh salad

The following foods should be stored at “+1C (Chiller)” setting. Manually set the compartment temperature at +1°C.

※ The "Auto" setting switches temperature to -1^ , which could cause the foods to freeze because of a low level of carbon dioxide.

● Precut vegetables, small amount of vegetables, fruits with low CO _2 levels

Japanese basil, oranges, kiwis etc.

Tofu, konnyaku, deep-fried tofu, string konnyaku, boiled eggs etc.

● Dairy products

Yogurt, cheese

etc.

Others

Vegetables in sealed bags or airtight containers, coffee beans, tea leaves etc.

Green beans, snow peas, tomatoes, strawberries etc.

Meat, fish and processed meat/fish should be stored at “-1°C (Subzero)” setting. This setting is also suited for thawing. Foods high in water content may freeze.

A vacuum function is disabled. This setting is recommended to store food in "sealed bags" or "sealed containers" which requires caution in storing. Foods high in water content may freeze because this is a regular ice-temperature compartment.

Food and container for which care needs to be taken during storage

● Food contained in a sealed bag

The bag may be inflated during storage, which could result in crushing of other stored food.

Vienna sausage, sliced cheese etc.

● Plastic airtight container

The lid of the container may become loose or may not stay in place during storage. Be careful when you take out the container.

Food which are not suitable for storage

● Vegetable sensitive to low temperature

The surface of the vegetable may deteriorate due to low temperature.

Okra, asparagus, ginger, and green pepper

Caution

● Foods high in water content may freeze if ambient temperature is low.
- The CQ_2 sensor may fail to detect carbon dioxide levels properly due to the freshness and amount of food, and temperature setting is automatically switched to “-1C” that could cause food to freeze.

Setting the Vacuum Compartment

■ Touch the

button to select "Auto", "-1°C (Subzero)" or "+1°C (Chiller)".

The display switches in sequence as shown below every time the button is touched.

Notice

For more information on the control panel Pg.38
- The compartment is designed to be at +1°C immediately after “Auto” mode is selected until the CO₂ sensor detects the type of food.
- Stabilization of the CO_2 sensor requires about 40 minutes when "Auto" mode is selected. The sensor does not detect carbon dioxide if food is stored during the time.

When opening/closing the door of the Vacuum Compartment

Be sure to open the left/right door of the Refrigerator Compartment.

When opening the door When closing

Hold the door handle on the bottom with your hand. Lift the handle to release the lock.

When the hissing sound stops, pull the handle towards you to open.

Diagram of a mechanical assembly with a hand operating a component, no text or symbols present

Notice

● The door can not be opened when the hissing sound can still be heard.

Caution Caution

● The Vacuum Compartment will not be opened unless the left/right door is opened. If you try to open it forcedly, the double pocket or the Vacuum Compartment may get damaged or the door of the Refrigerator Compartment will open suddenly.

e door

Push in until the end while holding the handle.

Fully press down the handle to lock the door.

Diagram of a hand inserting a component into a device (no text or symbols visible)

Illustration of a hand pressing down a mechanical component with a black arrow indicating force direction (no text or symbols)

Notice

- Hold down the handle to the end. Or the Vacuum function will not work properly.

● If the handle is heavy, use the palm to hold it down.

- Close and lock the door of the Vacuum Compartment before closing the door of the Refrigerator Compartment. If the door of the Refrigerator Compartment is closed with the door of the Vacuum Compartment opened, the double pocket, the Vacuum Compartment or food may be damaged.

Notice

The vacuum pump is activated when the door of the Refrigerator Compartment is closed, with the door of the Vacuum Compartment closed and the handle locked.
In "Auto" mode, the vacuum pump operates intermittently for CO_2 detection after the door of the Refrigerator Compartment is closed.
Vacuuming will fail if the handle is not locked properly. Abnormal "Auto" function will also be detected.
● Sound and vibrations occur upon start of the vacuum pump, which is a normal event.
The vacuum pump requires about 4 minutes to produce a vacuum after its activation. No hissing sound comes out when the door of the Vacuum Compartment is opened within 4 minutes. Always wait for 4 minutes or longer before checking vacuum state.
● Adopting indirect cooling, the Vacuum Compartment requires longer time than other compartments to cool food.
● No changes in vacuum effect are made when food is covered with plastic wrap. Carbon dioxide will be detected if food is wrapped lightly.

Maintenance and care

- Be sure to remove food contained in the Vacuum Compartment.

Pull the door, lift up the edge of the Vacuum Case (with the door) lightly and then pull it out.

Illustration of a hand using a tool to clean or store items on a closed book (no text or symbols visible)

Wipe the vacuum packing, the inside the Vacuum Case and the packing support, using a soft cloth wet by lukewarm water.

Put the Vacuum Case (with the door) back into the Vacuum Container, and then lower the lock of the handle.

Technical line drawing of a mechanical assembly with no visible text or symbols

When vacuum packing has heavy dirt

Grasp the tab of the vacuum packing on the observer's upper right and remove it by hand carefully.

Rinse dirty portion in water with a soft wash sponge, wipe off the moisture with a dry cloth, and then let it dry naturally. Remove dirt in the groove of the vacuum packing on the door. Do not use the detergents, etc.

Notch of the groove

Align the tab to the notch accurately, and then combine them together.

Caution

• If detergents and others except lukewarm water are used to clean the vacuum packing, the vacuum packing may be damaged, deformed or change in color, which may cause the vacuum state unable to keep well.
  ● Loosened vacuum packing or loose-fi tting door of the Vacuum Case may cause the vacuum state unable to keep well.

Notice

- If Auto" / -1°C (Subzero)" / +1°C (Chiller)" indicator lamps flash, the vacuum function may not be in the normal conditions. Fig.56

● The vacuum function will not work properly if some package of food is pinched in or dirt/dust is adhered to the vacuum packing or the vacuum release valve (in blue).

● The vacuum function will not work properly if the vacuum packing or the vacuum release valve (in blue) comes off or is loosened.

● Moisture in juicy food stored in the Vacuum Compartment will evaporate and cause dew condensation or frost in the Vacuum Compartment. If water drops and/or frost adheres

Dew and/or frost

Compartment or around the door of the Vacuum Compartment, wipe them off with a dry cloth.

● Make sure to wipe off spilled water or food soup soon, if any. Water will

be frozen, which may lead to a trouble of the Vacuum Case (with the door).

For troubleshooting about the Vacuum Compartment, see "Troubleshooting" 📋 Pg.56
- Replace an old vacuum packing if the vacuum state can not be kept well. 📄 Pg.57

REFRIGERATOR COMPARTMENT

Cold Air Blowout Port

Caution

- Don't place any juicy food or canned beverage here because the temperature is low and it may be froozen.

Caution

● Temperature in the Refrigerator Compartment may fall too much if warm food is stored near this sensor. Store that kind of food in the place far away from Temperature Sensor.

Adjusting temperature in a refrigerator compartment

■ Touch the button to change a temperature setting.

Each time you touch the button, the corresponding indicator lamp changes in the order shown below:

• Select 中 (MID)" in ordinary usage. The temperature may change depending on the operation states.
  For more information about the panel for operation. Pg.38
  ● If you adjust the temperature more finely. 📋 Pg.57

※ The above temperatures are standard values under the condition that the refrigerator is stable with no food stored and the door closed, at ambient temperatures of 30^ C.

Notice

● The temperatures of the Vacuum Compartment also change if selecting “強 (MAX)” or 弱 (MIN)”.
● Temperature of the door pocket is set slightly higher than the one in the left table.

Cooling food Quickly (Quick Cooling)

1 Place the foods in the Quick Cooling Corner.

Height adjustable lower shelf

2 Touch the 冷却 button to display "急冷藏(Quick Cooling)".※

※ Indicators other than “急冷藏 (Quick Cooling)” Operation will be turned off about 2 minutes after setting the “急冷藏 (Quick Cooling)” Operation.

● The food cools more quickly if it is placed on the center part near the interior wall. (the front of the Cold Air Blowout Port)
● Place any juicy food and/or canned beverage on the place far from the interior wall or move them to the Lower Shelf. Otherwise, they may freeze or explode.

Notice

The cooling effect may be weak, depending on the operation state of the refrigerator, such as a combined use of “急冷藏 (Quick Freezing)” 📋 Pg.45 and “急速製冰 (Quick Ice Making)” 📋 Pg.47.

3 “急冷藏 (Quick Cooling)” Operation ends automatically after about 45 minutes.

Touch the 冷却 button to turn off the display after turning on other displays again, when you want to stop this function.

Using a multiuse egg case

Multiuse Egg Case

Ten eggs can be stored in this case. The egg pack with eggs in it can be stored as it is.

When the egg stand is turned over, it can be used for small sized food.

Caution

● Hold the carry handle securely when handling it.
- Do not stack food, or otherwise they may drop.
- Do not put tall food in because they may fall down.
- Do not make ice with this container.

Adjusting shelves

■ Shelves are adjustable according to the size of food and drinks.

Remove stored items before adjusting a shelf.

■ 4 level adjustment shelf

The L-shaped shelf can be adjusted to 4 levels by moving it up or down or turning it over.

Technical line drawing of a mechanical assembly or housing component (no text or symbols)

● Removing the shelf

1 Slightly lift the shelf up.
2 Slide the shelf forward until it has been completely removed.

Diagram of a hand holding a tool with a black object inserted, no text or symbols present

4 level adjustment shelf Height adjustable upper shelf

● Placing the shelf

Turn the shelf over and place it on the holders marked with arrows (→←). Make sure the shelf has been placed properly by sliding it forward and back before storing food.

Level 1 Level 2

(Factory default setting)

Level 3 Level 4

■ Height adjustable upper/lower shelves

1 Remove by slightly lifting up the back of the shelf and pull forward.
2 Adjust the shelf to the desired height and slide it until it reaches to the interior wall, then slightly lift up the back of the shelf and push it in.

(Hitch the forks of the shelf to the parts on the back of the shelf)

Shelf pin

■ Reversible Shelf

1 Remove by slightly lifting up the shelf.
2 Turn over, and
3 Set at either top or bottom level.

Caution

● Always use the refrigerator with the 4 level adjustment shelf and height adjustable upper shelf placed. The other shelves will come off letting go of the stored items if disregarded.

As a normal shelf
1

2
3

Pattern 1 (Upper) Pattern 2 (Lower)

Height adjustable upper shelf

4 level adjustment shelf

Changing the height of a door pocket

Shelves and pockets position can be adjusted according to the size of food and drinks. Remove the stored items before adjusting the shelves.

Height Adjustable Pockets Tube Stand

(Right) (Left)

It can be adjusted to the desired height.

Small things can be placed vertically in a neat manner. Hang it on the edge of each pocket as you like.

Caution

- Do not hang it outside the door pocket. When closing the door, the door, the case or food may get damaged.

Two technical line drawings of a mechanical device with internal components, no text or symbols present.

Opening/closing a door

partition to open the left door while the right door is open. Or, you can no longer open the door.

- Do not close the door when the swing partition folds out. Or, the door does not shut completely.

Caution

● If you try to open right and left doors at the same time, you may have a difficulty in opening them. If that occurs, open either of the doors first, and then open the other.
- Close the door of the Refrigerator Compartment while the Vacuum Case and, the Multiuse Egg Case are in place. If the door is closed while some of them protrude, the door, the case or food may get damaged.
● Too many times of opening/closing of the door, or high humidity around the refrigerator may cause mist on the wall, etc. or frost around the Cold Air Blowout Port.
● Wipe off spilled water or food soup soon, if any.

FREEZER COMPARTMENT

Using the Upper Freezer

■ With Quick Freezing System, all the moisture, natural nutrients and good flavor in the foods are preserved in an instant. 📋 Pg.45

- It is recommended to use this compartment when freezing meat and/or fish quickly.

Line drawing of a refrigerator with doors and drawers, showing front panel and side panels (no text or symbols)

Using the Lower Freezer

■ 3-layer freezer case provides you with large storage space compartment and convenient reach of your freeze food items. It is suitable for storing the food preserved for a long time and the food that melt easily such as ice cream.

- Moving the aluminium tray in the Upper Freezer to the left side of the Slimline slide case, it can be used as the Quick Freezing Corner.

How to use the Ice Compartment (Automatic ice maker) Pg.46

Height of the storageable food

■ Store food of which height are suited for each case.

• Otherwise, the door will not be closed securely, which lead to inefficient cooling action. In addition, it may cause damage of food or each case.
• Keep the food off from the bottom of the slimeline case and/or the slide case.

• Do not store any 500ml PET bottle in the Slimline slide case. It cannot be taken out because it expands when it is frozen.
• Do not use with the Slimline slide case and/or Slide case removed.
  ● Food may be caught in and/or drop to the inner part of the case, and as a result, the door may not close completely.

• When storing tall food in the Tall Compartment, make sure that it does not contact with the Slimline Slide Case and/or the Slide Case.
  ● Store only food which can be frozen, and PET bottle which can be used in freezer.

Adjust the temperature of the freezeer compartment

■ Touch the 冷凍 button to adjust the temperature setting.

Each time you touch the button, the corresponding indicator lamp changes in the order shown below:

※ The temperatures are standard values under the specific condition (the surrounding temperature of 30^ C, no food stored, door closed and the temperature in the refrigerator is steady).

Notes: Food is stored at a lower temperature than the conventional freezing temperature. The energy consumption is approximately 20% higher than that for the conventional freezing operation.

• Select “中 (MID)” in ordinary usage. The temperature may change depending on the operation states.
• For more information about the panel for operation. 📄 Pg.38
  ● To adjust the temperature more finely. 📷 Pg.57

Notice

• Temperatures in the急冷凍 (Quick Freezing)" operation are lower than the temperatures described in the left.
• If operating the refrigerator for a long time with the “強 (MAX)” selected, ice cream etc. may become hard or it may take a longer time to thaw food.

Quickly freezing warm food (Quick Freezing)

1 Place the food wrapped with plastic fi lm on the aluminium tray in the upper Freezer.

Technical line drawing of a mechanical component with no visible text or symbols

Quick Freezing Corner

2 Touch the 冷却 button and 急冷凍 (Quick Freezing)" indicator lamp will be illuminated. ※

※ Approximately two minutes after the end of operation, indicator lamps other than 急冷凍 (Quick Freezing)" are unlit.

3 "Quick Freezing operation" will end automatically in about 120 minutes, and 急冷凍 (Quick Freezing)" indicator lamp will be turned off.

To cancel the quick freezing in the middle, touch the button to turn off the “急冷凍 (Quick Freezing)” indicator lamp.

• Freezing compartment is cooled preferentially in the 急冷凍 (Quick Freezing)" operation. For that reason, temperature of the Refrigerator Compartment may rise if opening/closing the Refrigerator Compartment door frequently.
• Warm food such as rice can be easily frozen by this function. Make sure that you never burn yourself when putting hot food in. It is recommended to put it in after it is cooled down to 50 \~ 60°C.
• Touching the “冷却” button again within 60 minutes after the end of the “急冷凍 (Quick Freezing)” operation, the lamp is illuminated, but the operation does not start. The operation will start after 60 minutes pass.
• Make sure to wrap the food with plastic film to prevent it from sticking on the aluminium tray.
• Divide food into small pieces can not only freeze them completely soon, but also make them be taken out easily.

Troubleshooting

When this happens Please check. This is the cause.

Freezer does not cool well enough, frost and/or dew occur, ice cream becomes soft

● Did you open the door frequently?
→It is recommended to open and close the door quickly and/or minimize the times of opening and closing the door.
- Does any food or package caught in the door prevent the door from closing completely?
→Check that there is not any space between the door seal and its contact surface with the door closed.
● Is food squeezed in? Or is a large amount of food put in at a time?
→ Make sure that no food protrudes beyond the storage height limit of each compartment, and do not store the amount of food that may prevent the door from opening and closing.
→ Allow clearance between each food in each compartment.
● Are Upper Freezer case and Slimline slide case installed correctly?
→ Install them correctly. 📄 Pg.52

There is a space between the door seal and its contact surface.

Caution

- If opening and closing the door frequently, temperature of food may become higher and food such as ice cream may become soft.

ICE COMPARTMENT (AUTOMATIC ICE MAKER)

How to make Ice

Setting of the Automatic ice maker

Touch the Button to turn on the 製冰 (Ice Making)" indicator lamp.

Ice Making button

Take off the Water Supply Container.

When the “Water Supply” indicator lamp is lit or the water level reaches to the “Add water line”, replenish water.

Open the lid and add water.

Water level can not exceed "Container-full line".

Container-full line

Replace the Water Supply Container.

Push it beyond the "Container set position" line.

※ Water may spill out if the water supply container is inclined. Wipe off spilled water immediately.

Perform 製冰機清潔 (Ice Maker Cleaning)" when making ice for the first time or for the first time in a week or more. Pg.53

Ice making starts automatically and ice is stored in the Ice case.

Notice

Cross-sectional diagram of a mechanical assembly or housing (no text or symbols visible)

It may take 24 hours or more to make ice for the first time. 8 ices are usually made per 2 \~ 3 hours.

Not making ice (Stop Ice Making)

Setting of the automatic ice maker

Touch the button to select “停止 (Stop)”.

The automatic ice making function becomes disabled which stops ice making.

※“給水 (Water Supply)” remains off when “停止 (Stop)” is selected for automatic ice making. 📄 Pg.47

Remove the water supply container and wash it thoroughly. Dry the container completely.

(How to maintain Pg.53)

Place the water supply container.

The container should be pushed in until it passes the "container set position" line.

Warning

- Do not place your hand in the mechanical section of the automatic ice maker. (Rotation of the ice tray may cause injury.)

Illustration of a hand placing eggs into a tray inside a storage bin (no text or symbols)

How to make ice quickly (Quick Ice Making)

Touch the button to select “急速製水 (Quick Ice Making)”. Ice making time is reduced.

※ Ice making mode is automatically reset to normal operation in about 7 hours.

"Water Supply" indicator lamp

“給水 (Water Supply)” indicator lamp automatically comes on when water in the water supply container is getting low. Replenish the container with water.

Caution

● “給水 (Water Supply)” may come on regardless of water levels if the water supply container is not placed properly. Push in the container completely if the indicator lamp comes on.

Notice

- “給水 (Water Supply)” indicator lamp turns off when the door of the Refrigerator Compartment is opened and closed while the indicator lamp is on, and it turns on again if no water is added to replenish the container. - “給水 (Water Supply)” indicator lamp remains off when “停止 (Stop)” is selected for automatic ice making.

Notice

● The indicator lamp will turn off about 2 minutes after ice making finishes to save electricity, while “急冷凍 (Quick Freezing),”“急冷藏 (Quick Cooling)”,“節電 (Energy Saving)”,“急速製水 (Quick Ice Making)”,“給水 (Water Supply)” and ["eco" operation indicator lamp] remain on. Pg.38

● Ice making mode switches in order of “製氷 (Ice Making)” → “急速製氷 (Quick Ice Making)” → “停止 (Stop)” every time the button is touched. The current mode is indicated by the display and operating sound.

● Operation sound of automatic ice making including during ice separating and water supply can be stopped upon stop making ice.

Ice-making time and an amount of ice

Operation mode	Required time for an ice making operation (12 pcs by once)
Normal operation Normal	Asbate 10 minutes ~ 140 minutes
Quick Ice Making	About 70 minutes ~ 80 minutes

Mode	Storage amount of the Ice case
	About 120 pcs
Stored ice cubes are levelled to the front part of the case	About 150 pcs

※ The above values are obtained with an ambient temperature of 25°C, the temperature in each compartment set to "中 (MID)" and no door opened/closed.

It takes a long time to make ice under the following conditions.

• When using for the first time (It may take more than 24 hours) • After opening/closing the door frequently
  • After storing a large amount of food at a time • After power failure
• When the ambient temperature is low under certain conditions (ex: using in winter)
  • After maintaining the Ice Tray

Notice

• Amount of stored ice is automatically detected by the stored ice amount detecting lever of the Automatic ice maker which cannot be seen usually. Automatic ice maker stops making ice when the amount of the stored ice reaches to the specified level and it restarts making ice when the amount is below the level.
• Limit line of stored ice amount represents the guide line of stored ice amount when the Automatic ice maker makes ice with ice leveled.

If the ice is stored partially, the detecting lever may contact the ice early. As a result, the Automatic ice maker may stop making ice before the amount of stored ice is enough.

Request

- Do not store any food such as frozen food other than ice in the ice case when making ice automatically.

(Otherwise, it may not make ice, or the door may not open or parts may damage because the food interferes with the parts of the Automatic ice maker.)

Gently open and close the door of the Ice Compartment. Ice may fall out of the ice case onto the lower freezer if disregarded.

We suggest you use boiled tap-water to make the ice after cooling.*

*: please check & verify the water quality condition with local authority.

● Change water and clean the container at least once a week for hygiene purposes.
- If the ice made of mineral water containing a lot of mineral ingredients is put into water, white powder may come out, however this is those mineral ingredients and harmless.
● Required to satisfy the appropriate water quality standard.

● Furthermore, these types of water are easily contaminated with bacteria.

Please wash the container usually once 3 days.

Mineral water (Hardness: 100mg/L or less)

Filtered water or boiled water

Well water (Required to satisfy the appropriate water quality standard)

Is any frozen food stored in the inner part of the Ice case?

Ice scoopFrozen food
Is the ice scoop in the inner part of the Ice case?

- Do not use the following ones because they may cause malfunction, deformation or sticked ice.

Juice drink Sports drink Carbonated

drink

(1)

AUTO DOOR COMPARTMENT (In lower freezer and vegetable compartment)

Warning

• Stop the auto door function if there is a chance that small children play with the auto door compartment.
• Do not hold the top, bottom or side face of the door to close it. This can cause pinching of fingers, which could result in injury.
• Do not bring your foot too near the refrigerator when you press the auto door switch of the vegetable compartment. You may knock your foot against the door and may cause injury.
  ● Operate the auto door switch with your hand.
  ● Make sure to disconnect the power plug from the power outlet before starting maintenance of the auto door compartment.

How to enable/disable the Auto Door function

■ Touch and hold the button for three seconds or more to enable or disable the Auto Door function. Each time you touch the button, the corresponding indicator lamp changes in the order shown below:

Enabling the Auto Door function. Disabling the Auto Door function.

Turn on this display. Turn off this display. Touch and hold for 3 seconds or more Touch and hold for 3 seconds or more

● The Auto Door function is enabled when shipped.

Notice

● Change the setting of the AUTO DOOR function after closing all doors.
- Open it manually with the handle when the AUTO DOOR function has been stopped.
● You cannot individually stop the function of each AUTO DOOR Compartment.
The indicator lamp will turn off about 2 minutes after auto door operation finishes to save electricity, while “急冷凍 (Quick Freezing)”, “急冷蔵 (Quick Cooling)”, “節電 (Energy Saving)”, “急速製氷 (Quick Ice Making)”, “給水 (Water Supply)” and [“eco” operation indicator lamp] remain on. Pg.38
● To confirm the setting, touch any button or open a refrigerator door. The indicator lamp is lit again. 📋 Pg.38
● For more information on the control panel. Pg.38

Opening and closing the Auto Door compartment

The compartment opens and LED lamp is illuminated by pressing the auto door switch with your hand.

Architectural line drawing of a window frame structure (no text or symbols)

Hold the handle to close the compartment.

(Closing of the compartment is not electrically operated.)

Simple line drawing of a cabinet or enclosure with a handle, no text or symbols present

Notice

● "Lower freezer" and "vegetable compartment" cannot be electrically opened at the same time. Whichever the auto door compartments switch is pressed first only opens.
- When one of the "lower freezer" and "vegetable compartment" is open, the auto door function does not work.
Press the auto door switch after closing the open compartment.
● A sound is heard when you press the auto door switch. This is not abnormal.
- Opening/closing of the auto door compartment may not be smooth in case of power failure.

Auto Closer Half-opened Door Prevention

The Lower Freezer and Vegetable Compartment are equipped with a dedicated auto closer (to prevent a half-opened door).

● The door closes automatically when the refrigerator detects that the door is not shut properly.
- If the door cannot be closed, an alarm consisting of short beeps sounds to inform the user of half-opened door.

(The alarm may not sound if the gap is very small.)

• Please check if any food is stuck between the door and refrigerator.
• Please check if any food fell out of the case.

If yes, remove the food referring to "Maintenance of electrical drawer unit" on this page.

Warning

● Make sure that your finger may not be caught in the door when closing the door with the Auto Closer.

Notice

• When the auto door function is stopped, the half-opened door prevention function is also stopped.
• If the door is left open for more than 30 seconds, the door alarm will inform you that the door is open. Pg.58

Maintenance and Care

■ Clean the auto door unit when food fall onto or is caught in the upper part of the auto door unit and when liquid is deposited on the auto door unit.

1

Unplug the power plug without fail.

2

Remove the spacious upper case, the lower case or the tall storage case. Pg.52

3

Remove all foods which dropped or are caught in.

4

Wipe off deposited liquid soup using a soft and dry cloth.

Warning

● Make sure to disconnect the power plug from the power outlet before starting maintenance to avoid injury.

Caution

● Make sure that water never splash to the AUTO DOOR unit. Otherwise, it may cause malfunction.
- Do not disassemble the AUTO DOOR unit. Otherwise, it may cause injury and/or malfunction.
- Do not peel off stickers affi xed on the auto door unit.

Troubleshooting (Refer to page 54 \~ 57 for other symptoms.)

When this happens Please check. This is the cause.

Noise is large.

There is an abnormal noise. (These are not abnormal noise)

Operation sound of the "vegetable compartment" is larger than the "lower freezer". Sound/noise type Cause of the sound/noise

- Hitting sound (thumping sound)

- This is the operating sound of the electrical drawer compartment.

- Buzzing sound (whirring, grunt)

• This is the operating sound of the door.

The compartment does not open even if the electrical drawer switch is pressed.

● Is the electric open/close light not lit? Turn on the light.
- Turn on the "Auto Door On" indicator lamp. Pg.48
- Is either one of the lower freezer or the vegetable compartment open?
- Close the open electrical drawer compartment and then press drawer switch for the compartment you want to open.

The auto door compartment does not open/close.

• Is any food or food bag caught on the compartment?
• Remove the Auto Door unit with reference to "Maintenance and Care" in this page.
• Did a power failure occur or did the compartment knock against any obstacle during electrical operation?
• The door does not open/close smoothly because the electrical drawer function is stopped before the operation completes.
• Manually push in the door hard with strength. Otherwise, unplug the power plug with the door drawn, and connect it after 10 seconds.
  ● The door may not fully open depending on the amount of the stored food and storage arrangement.

The auto door does not open much.

VEGETABLE COMPARTMENT

Using the Lower and Spacious Upper Cases

Caution

It is recommended to wrap vegetable with plastic film when the following conditions exist.
- When it is undesirable that the stored food absorb the smell of the vegetables such as scallion, leeks, and shallots
- When storing the vegetables and/or fruits which were used partially
- When the amount of the stored vegetables is small or many wrapped vegetables are stored
- When it is undesirable that dew occurs in the Vegetable Compartment

Illustration of three food items: a long rod, a garlic bulb, and a bean pod (no text or symbols)

● Make sure that any stored food does not protrude beyond the storage height limit line.
- Otherwise, the door may not close completely, and as a result, the refrigerator may not cool sufficiently.
- Food and/or each case may damage.

Adjusting the temperature of the Vegetable Compartment

■ Touch the button to adjust the temperature.

The display switches in sequence as shown below every time the button is touched.

● The Vegetable Compartment should be set to “中 (MID)” for normal use.
Temperatures may vary with usage state.
● For more information on the control panel Pg.38
● For fi ne temperature adjustment Pg.57

Notice

- Vegetables high in water content may freeze if the compartment is used in temperature set to “強 (MAX)” for a prolonged time. 📋 Pg.47

Caution

● Some kind of PET bottle may not be able to be stored. Moreover, PET bottle may not be able to be stored if its cap is not completely tightened.
- When outer temperature is low, temperature within the case may also become low.
- Dew may adhere to the spacious upper case or the ceiling in the Vegetable Compartment, depending on the volume/type of vegetables, because the humidity is high in the Vegetable Compartment. Water is no good to perishable food. Wipe off water with a dry cloth.
- Open/close the Vegetable Compartment Door slowly. Opening/closing the door mightily, the food stored in the tall storage compartment (PET bottle etc.) may overturn.

MAINTENANCE/CARE OF THE INSIDE AND OUTSIDE

Warning

Make sure to unplug the power plug when maintaining the refrigerator.

When dirt is found

● Wipe off it immediately. It is recommended to clean the hidden places once a year.
- Wipe off it using a soft cloth wet by lukewarm water. If it is hard to clean dirt, wipe off it using diluted neutral detergent for kitchen and a soft cloth wet by lukewarm water.
Some detergents cannot be used for this purpose. Therefore, refer to the Caution on this page.
● Take foods out beforehand if you remove the parts.
- Do not wipe out the movable contact surface of the rail for cases and drawers because the lubricant agent is applied to it. (The lubricant agent complies with the Food Sanitation Law.)

Caution

Power plug

- If the dust on the power plug remains not cleaned, it may cause a fire. Clean it once a year.

1 Unplug the power cord from the outlet.

Check the following matters.
- Is any damage found on the power cord?
- Does the power plug become hot?

3 Remove the dust and wipe it with a dry cloth.

4 Connect the power plug firmly to a power outlet.

Control Panel

● Wipe the Control Panel with a soft cloth.
● Make sure that water never splash to it.
Otherwise, it may cause malfunction.

Surface of door

● Wipe the surface of door using a soft cloth wet by lukewarm water.

Door gaskets

● Wipe it thoroughly because it can become easily dirty.

Liquid receivers

● Wipe off them if liquid collects and/or they becomes dirty.

Liquid receivers

The back/fl oor of the refrigerator

Pull the leg cover and remove it.

Push it in from the front when installing it.

Illustration of two hands holding a rectangular device with a downward arrow indicating compression or disassembly (no text or symbols)

Float the Adjustable mounts from the floor and draw the refrigerator straight.

Lay the protection board etc. on the floor which can be easily scratched.

Wipe off dirt on the back of the refrigerator, wall and floor.

The back of the refrigerator easily becomes dirty because fi ne dust is accumulated on it by convection of air.

Caution It may cause damage and discoloration of the door, paintwork and plastic parts.

• Do not use the following ones.
• Alkaline and alkalescence detergent for kitchen, plate powder, powder soap, oil, hot water, scrubbing brush, acid, benzine, thinner, alcohol, and bleach, etc. (check the "liquid" part of "display according to the household goods quality labeling law" for detergent.)
  ● Make sure to wipe off spilled cooking oil, citrus fruits juice and food soup.
• When using a chemical dustcloth, follow the instructions of it.

HOW TO REMOVE PARTS

Notice

● Make sure no stored items remain before removing a part.
- Do not remove parts which are not described below.

4 level adjustment shelf

● Slightly lift the shelf up and slide it forward.

Push in the shelf as far as it will go to place.

Caution

Make sure the shelf has been placed in a horizontal position.

Check the shelf to see that it does not come off when sliding it forward.

Fixed shelf

● Draw the shelf, and pull off the two pins on the lower right and remove it.

Vacuum Case with the door

● Pull the door, lift the case at the edge of it lightly, and then pull it out. For more information. 📄 Pg.41

Line drawing of a closed toolbox with handle and lid, no text or symbols present

Reversible shelf

● Slightly lift up and pull out.

Door pocket

- Lift up the door pocket while tapping the left/right of its bottom surface, and remove it.

Insert the door pocket fully to the end when installing it.

Height adjustable upper and lower shelf

1 Slightly lift up the back of the shelf and draw it.

2 Raise the shelf as shown in fi gure, and turn it and remove it.

When installing the shelf, slide it until it reaches to the interior wall, then slightly lift up the back of the shelf and push it in. (hitch the forks of the shelf to the parts on the back of the shelf)

Caution Door may damage if drawing the shelf without turning it.

Ice Compartment/ Upper Freezer

● Draw the door fully and lift up the case towards you.

Put the case bottom on the frame and set the case.

Diagram showing a hand operating a mechanical component with an inset close-up of the tool (no text or symbols present)

Lower Freezer (Slimline slide case, slide case and lower freezer case)

1 Draw the door fully, and draw the Slimline slide case and the Slide case respectively.

When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it. Moreover, hitch the pins on the left/right of the Slide case to the outside of the Lower freezer case.

2 Lift up the Lower freezer case.

Vegetable Compartment (Spacious Upper Case, Lower Case)

Diagram of a mechanical device with a handle and internal structure, no visible text or symbols

● Draw the door fully and pull up the Spacious vegetable case as shown in the figure.

● Lift up the front part of the door, and draw it further and incline it.

• Lift up the Vegetable Case.
• When installing it, insert the pins on the left/right inner sides of the Vegetable Case into the square holes on the frame, and put the edge of the Vegetable Case on the frame to install it.

How to install the slide door Ice Compartment/Upper Freezer

Vegetable Compartment/Lower Freezer

HOW TO MAINTAIN THE AUTOMATIC ICE MAKER

Washing the supply channel (Ice Maker Cleaning)

- When using for the first time - When not used for more than one week

Ice tray and water supply line can be washed.

Be sure to check the followings before starting the operation.

Water supply container

• Water is filled in it.
• The container is set properly as specified.

Architectural line drawing of a refrigerator interior (no text or symbols)

Ice case

• If there remains ice, remove it.

To prevent malfunction, lay the towel so that its thickness does not reach this line.

Go to the next step after checking them.

Lay a soft clean towel on the bottom of the ice case.

The purpose is to absorb water discharged during ice maker cleaning and prevent water spill.

Touch the 160 ton and hold it for more than 5 seconds after closing all the doors and turning on the display.

When the three indicator lamps 急速製冰 (Quick Ice Making)”，製冰 (Ice Making)” and “停(Stop)” start to blink and alarm starts to sound, stop holding the button. 製冰機清潔 (Ice Maker Cleaning)” starts.

• The indicator lamp will flash and the buzzer will sound for about 3 minutes.
• 製冰機清潔 (Ice Maker Cleaning)" can't be interrupted.
- If you open any of the refrigerator doors during Ice Maker Cleaning, the cleaning may not work properly. Do not open or close the door until cleaning is completed.
- Door alarm sounds even if alarm is disabled. 📄 Pg.58

About three minutes later, when alarm and blinking end, remove water in the ice case using the towel.

Before removing the case, wipe off the water in the case.

There is no problem with using water remaining in the water supply container, if any.

Cleaning the water supply container

● Recommended maintenance intervals

Tap water	Once a week
Mineral water, well water, water purifi ed by water purifi er, cooled boiled water, etc. (water which doesn't contain chlorine)	Once three days

Water which doesn't contain chlorine may easily cause slime and/or fur compared with tap water. Wash the Water Supply Container regularly to prevent bacteria from breeding when such water is used.
- Remove the seal from the lid and wash it with a soft wash sponge.

● How to open the lid

● How to open the lid

Insert the lid from its rear side and close it in the direction of the arrow.

Cleaning the water fi Iter

(Replace it normally every 3 \~ 4 years.) Pg.57

Turn the case and remove it from the lid.

Pull the tab of the water fi Iter with fi ngers and remove it from the case.

Do not use the detergents etc.

Wash it with a soft wash sponge etc.

Notice

• If you set ice making to "Stop" and do not intend to use the auto ice maker for some time, wash and dry the water supply container and then mount it in place.
  ● In particular, dry the water filter thoroughly.

Warning

- Do not place your hand in the mechanical section of the automatic ice maker. (Rotation of the ice tray may cause injury.)

Cleaning the ice tray

- Maintain it once a year

Touch the button to stop supplying water to the ice tray and turn on the 停止 (Stop)" indicator lamp. (Stop ice making)

※ If the indicator lamp fl ashes, perform the following operation after the "停止 (Stop)lamp is turned on in 1 minute.

Open the Ice Compartment Door.

① Push the level laterally. ② draw the frame.
③ Raise the cover (▲ part) in the direction of the arrow.
④ Remove the ice tray from the frame.

Notice

Empty the ice tray and wash it lightly in the stream.

Do not use any cleaning tool that can scratch it easily such as scrubbing brush and plate powder.

Set the ice tray and ② close the cover. Make the frame horizontal and push into the end (The level is automatically restored to its original position.)

Touch the button to light the indicator lamp. (Automatic Ice Making starts) Light ON

“製冰 (Ice Making)”

- When the frame for the ice tray cannot be pushed into the back, the motor that drives the ice-tray may have operated. Remove the ice tray and then push the frame alone into the back, and then touch the with all the doors opened to turn on “停止 (Stop)”. After a while, the ice-tray driving motor gets ready, allowing you to mount the ice-tray.

TROUBLESHOOTING

Check the following points before asking repair. Contact your dealer or our customer center if the problem still exists after checking them.

FAQ when using for the first time

Refrigerator does not cool well enough or make ice when using for the first time

● It takes time to cool in summer or when a lot of foods are stored.
→ Immediately after installation, it may take about 4 – 24 hours.
- When using for the first time, it takes time to make ice because ice making starts after cooling fully. It may take more than 24 hours to make ice according to the amount of food and the way of packing it.
→Open/close the door quickly and/or minimize the number of times of opening and closing the door.
→ Allow clearance between each food in each compartment.

When this happens Please check. This is the cause.

The Control Panel does not respond.

The Control Panel does not respond.

●Is "Button Lock" selected by using the lock function on the panel for operation? Pg.58
● Is Refrigerator Compartment Door open? Operate after closing it.
- Isn't a water drop or dirt (oil or food) attached to the Control Panel?
● Are you wearing gloves or applying a plaster? Touch directly with your finger.
● Are you touching a next button? Touch only one button at a time.

Automatic ice making is not properly performed.

Ice cannot be made at all.

● Isn't the auto ice maker set to 停止 (Stop) ? Pg.46
●Is the water supply container pushed firmly until it is beyond the “container set position” line? 📋 Pg.46
● Is anything other than ice stored in the ice case? 📄 Pg.47
●Is the ice case filled with ice over the limit line of stored ice amount? PG.47
- Do you open the door frequently or store a large amount of food at a time? Refrigerator may not cool fully.
→ Minimize the number of times of opening and closing the door until it cools fully.
→ Allow clearance as much as possible between each stored food.
● It may take more than 4 hours to make ice in winter.
- Immediately after changing from 停止(Stop)" to 裂冰(Ice Making)", it may take longer than usual to make ice.
- Does any food or package caught in the door prevent the door from closing completely?
→Check that there is not any space between the door seal and its contact surface when the door is closed.
● Is the compartment in 節電 (Energy Saving)" mode? Exit the 節電 (Energy Saving)" mode. Pg.39
- It is frozen water collected in the ice tray groove. It does not indicate any trouble.
● Ice naturally becomes small or sticks mutually if ice is stored for a long term.
- Do you open the door frequently or store a large amount of food at a time? As a result, temperature in the refrigerator rises and stored ice becomes small or sticks together.
● The door or the drawer compartment may not temporarily have been closed completely.
● Small ice may be made if only a small amount of water remains in the water supply container.
→Add water until water level reaches to the "Container-full line" of the water supply container. 📄 Pg.46
● Ice stuck together may be made if the amount of water supplied to the ice tray is not even.
Add water until water level reaches to the "Container-full line" of the water supply container. Pg.46
- If the ice tray is damaged, ice may not be easily separated from the ice tray and ice stuck together may be made. If same trouble occurs many times, consult your dealer and replace the ice tray.
● It is because the fine air bubble in water is contained in ice.
→ It does not indicate any trouble.
● Did you use mineral water to make ice?
→Mineral contained in water may freeze and become white impurity in ice. It may remain after thawing in water, but it is harmless.
● Isn't the “製冰 (Ice Making)” indicator lamp blinking?
→The ice tray cannot be drawn when the auto ice maker is operating. Set it to “停止 (Stop)”. When the 停止 (Stop)” indicator lamp is blinking, wait for one minute until “停止 (Stop)” is lit, and then draw the ice tray. Pg.53

Refrigerator does not cool

Refrigerator does not cool. Frost and/or dew occur. Ice cream becomes soft.

Check the storage state of food

• Does any food or package caught in the door prevent the door from closing completely?
  →Check that there is not any space between the door seal and its contact surface when the door is closed.
  ● Is food squeezed in? or Is a large amount of food put in at a time?
  → Follow the rules on the height of food that can be stored.
  → Allow clearance between each food in each compartment.
  ● Are Upper Freezer case and Slimline slide case installed correctly?
  → Install them correctly. 📄 Pg.52

Confirming installation

- Food cannot be cooled enough, depending on the place or surrounding situation or clearance in which or with which the refrigerator is installed. Check to see if the refrigerator is installed properly. Pg.39

Confirming settings

● Is the compartment in 節電 (Energy Saving)" mode? Exit the 節電 (Energy Saving)" mode. Pg.39
●Refrigerator may not cool fully when the temperature setting is “弱 (MIN)”. 📋 Pg.42, 45, 50
→Switch the temperature setting of the compartment where it does not fully cool to “中 (MID)” or “強 (MAX)”
● Does the temperature around the refrigerator become high due to a seasonal factor (ex: using in summer)?
→Switch the temperature setting of the compartment where it does not fully cool to “強 (MAX)”. 📋 Pg.42, 45, 50

Check the usage of the refrigerator

● Temperature in the refrigerator rises little by little while its door is open. If opening/closing the door frequently or leaving the door open for a long time, temperature cannot easily lower.
→ Reduce the number of times of opening and closing a door, or open/close the door quickly.

There is a space between the door seal and its contact surface.

When this happens Please check. This is the cause.

Frost and/or dew occur

Frost and/or dew adhereto the refrigerator interioror the frame of thedrawer compartment.	● The door or the drawer compartment may not be closed completely.→Check whether the drawer compartment or the door has been closed completely after closing them.● The door may be opened/closed frequently or door may remain open for a long time.→ Reduce frequency of opening and closing the door or open/close the door quickly.● A lower setting of the condensation prevention heater may cause dew condensation in the swing partition, door packing, or a door itself when humidity is high. [IMAGE] Pg.57
Dew adheres to the outside of therefrigerator (exterior, door seal,door and drawer compartment etc).	● Dew may adhere to the those parts when the indoor humidity is high (ex: rainy day).● Frost and/or dew may adhere to the refrigerator interior or the door frame when the warm air outside comes incontact with those parts.→ Wipe off with a dry cloth.
Dew condensationoccurs in the RefrigeratorCompartment	● Condensation may form on the wall and/or around the cold air blowout portwhen the door is opened and closed frequently or the humidity is high aroundthe refrigerator.→ Wipe the dew off with a dry cloth. [IMAGE] Dew condensation
Dew condensationoccurs in the VegetableCompartment	● The humidity in the Vegetable Compartment is higher than other compartments. (To prevent vegetables fromdrying and to make them last longer)→If it is undesirable that dew adheres to the stored vegetables, wrap them with the plastic film.● Water may drop into cases placed in the Vegetable Compartment due to dew concentration.→ Wipe off them with a dry cloth.

Refrigerator cools overly

Refrigerator cools overly Food freeze

●“強 (MAX)” is selected in the temperature setting. → Switch it to “中 (MID)”. ☐ Pg.42, 45, 50●The surrounding temperature is lower than 5°C. → When the ambient temperature is low, the inside of the refrigerator may cool overly. Switch the temperature setting to “弱 (MIN)”. ☐ Pg.42, 45, 50●Do not place any food in front of the cold air blowout port.

Door is not in a horizontal state

Door is not in a horizontal state	●The installation site may not be level. Left side or right side of the door may be slightly lower when the left or right leg is sunk in the floor surface because of the soft floor material and the addition of food weight.→This does not affect the refrigerator performance. Adjust the refrigerator adjustable mount to keep it level if you want to correct it. Pg.36→Lay the firm board which has more than 1cm thickness on the floor if the refrigerator itself inclines.
More force is required to open the door immediately after closing the door.	●It is because air entered the Refrigerator Compartment is rapidly cooled and the pressure in the Refrigerator Compartment temporarily lowers.
Another door opens after closing one door.	●Another door may open for a moment by the wind pressure because cool air path connects each compartment.

AUTO DOOR Compartment does not open/close correctly 📄 Pg.49

Abnormal operating sound is generated

Annoying sound is generated by the refrigerator.	●The refrigerator may not be installed properly.
	Possible Cause	Possible Solution
	Floor bends	Lay a fi rm board and then install the refrigerator thereon. Pg.36
	Refrigerator comes in contact with the wall or furniture, etc.	Install the refrigerator with clearance around it.
	Leg cover comes off	Install it firmly. Pg.36
	●You may feel that the operation sound is large because the compressor operates in high-speed under the following conditions: the refrigerator does not cool fully on the occasion such as using it for the first time, opening/closing the door frequently, the surrounding temperature is high.→The sound becomes small after cooling fully.The compressor operates at low speed at night, for long vacations or absences, potentially developing large vibrations.
Operation sound lasts long	●It is because the compressor operates in low-speed for conserving energy.
Operation sound sometimes becomes larger	●It is because the system changes the operating power of the refrigerator according to the temperature change.
When other sound such as shown in the right table is generated by the refrigerator	●The following sounds are generated when the refrigerator is operating normally, so they do not indicate any trouble.
	Type of sound	Source of sound
	Sound like water fl owing (trickling)Sound like collision (tapping)Sound like water boiling (bubbling up)Sound like meat roasting (sizzling)	These sounds are caused when the refrigerant flows or water flows/ evaporates to remove frost.
	Sound like squeaking (cracking) (knocking)	This sound is caused because the parts squeaks when the refrigerator temperature changes.
	Sound like something is caught (clacking)Sound like roaring (honking)Sound caused immediately after closing the door (booming)	These sounds are caused when the electric parts to control the refrigerator temperature operates.
	Sounds caused by the Automatic ice maker (zooming)(rattling)(clunking)	These sounds are made when ice is separated from the ice tray of the auto ice maker or water is supplied to the ice tray. These sounds are also heard every two or three hours when the water supply container is empty. To stop the sound, touch the button to change it to停止(Stop)". Pg.46
	Sound occurred sometimes (clacking)	This sound is caused when the refrigerator starts the operation to cool.

The refrigerator becomes hot

The side of the refrigerator becomes hot Hot air comes from the bottom of the refrigerator

● Hot air may come from the bottom of the refrigerator to exhaust the heat generated when the cooling device operates.
→The temperature may rise to 50 – 60 °C immediately after installation or during summer.
It does not pose safety or performance problems, but avoid touching it.

TROUBLESHOOTING

When this happens Please check. This is the cause.

It smells strange

Ice smells	● Do the water supply container and/or water fi lter become dirty? or Does ice become old?→ Wash them on regular basis to prevent 'slime" and/or "fur". [IMAGE] ● Chlorine may strongly smell because chlorine in tap water is condensed.
It smells in the refrigerator	● Is any food which strongly smells stored without any wrapping?→ The deodorizing function cannot completely remove all smells.Seal that kind of food with plastic fi lm etc. to store it.
It smells like plastic	● This smell occurs because a lot of plastic parts are used in the refrigerator, but the smell decreases gradually while cooling. Keep the room ventilated.

There is something strange with the Vacuum Compartment

When either “Auto”,“-1°C (Subzero)” or“+1°C (Chiller)” indicatorlamp hlinks	The vacuum function may not be operating normally. Check the followings:● Is the handle held down to the end and locked?→ The vacuum function will not work unless it is locked.● Is a food package or a hair caught in the vacuum packing and the support?→ A small piece of debris may prevent the vacuum function from operating. Remove it.● Does the vacuum packing/the support get dirty?→ Wipe off them if it is dirty. [Pg.41]● Is the vacuum release valve (in blue) in place or loosened?→ Attach it to the hole on the handle securely.
Hissing sounddoes not occurwhen opening.	● Are any food package etc. caught in the Vacuum Packing? or Are there any dirt,waste thread or scraps on it? [Pg.41]→ If a food package is caught in the Vacuum packing, remove it.→ Clean the dirty Vacuum Packing.● Are the Vacuum Packing and/or the Vacuum Releasing Valve (blue colored) locaton the bottom of the handle installed firmly? or Are they loose?● Is “Auto”, “-1°C (Subzero)” or “+1°C (Chiller)” indicator lamp lit?● Is the handle pulled up?● Hissing sound may not occur immediately after opening/closing the VacuumCompartment because the vacuum pump enters the preparation state for startingthe operation, but it does not indicate any trouble.	Vacuum Releasing Valve
It is not clear whether the VacuumCompartment has been vacuumized.	●The Vacuum Compartment has been vacuumized properly if a vacuum releasing sound (hissing sound) occurswhen opening it.
The handle cannotbe locked.	●Are any food etc. caught in the inner part of the Vacuum Compartment Case or the Vacuum Packing? [Pg.41]●Are the rotation axises in the front part of the Vacuum Compartment Case and the door installed firmly? [Pg.41]
Booming sound andvibration occur around theVacuum Compartment.	● This sound is caused when the vacuum pump operates. It does not indicate any trouble.● You can stop the vacuum pump operation when you want to stop the sound (ex: night time).●If the sound and the vibration occur frequently, something may be caught in the door or there may be a dirt onthe Vacuum Packing. [Pg.42, 43]
Drop of water or frostoccurs in the VacuumCompartment.	●The moisture from the juicy food may cause dew condensation and/or frost adhering insider the compartmentbecause the Vacuum Compartment is sealed.→ It is recommended to wrap the juicy food with plastic film, etc.→ Wipe off water and/or frost with a dry cloth.
Food in the VacuumCompartment freezes	●Is any vegetable sensitive to low temperature such as eggplant and cucumber stored? [Pg.40]●Isn’t the Vacuum Compartment set to “-1°C (Subzero)” or “OFF (Non-vacuum and -1°C)”? [Pg.40]→Set the “+1°C (Chiller)”.

Vacuum Releasing Valve

display on the control panel fl ashes

display

on the control panel fl ashes

● This flashing shows that there is a problem with the Automatic Ice Maker, the temperature control device or the frost removal device etc.
- Consult your dealer if the flashing does not stop even after checking the point listed in the following table.

Flashing pattern	Possible Cause	Check Point
	Food etc. may come in contact with the ice tray or the stored ice amount detection lever.	Empty the Ice Compartment and perform "Cleaning the Ice Making". [IMAGE]
	This flashing shows that there is a problem.	Consult your dealer.
	The vacuum function may not work properly.	Read the section “There is something strange with the Vacuum Compartment”. [IMAGE]
	It may be in the operation check mode for serviceman. (※ 1)	It will return to the normal mode after about 15 minutes. There is no problem with using.
	It may be in the operation check mode for serviceman. (※ 1)	It will return to the normal mode after about 10 minutes. There is no problem with using.
	It is in process of Ice Maker Cleaning.	Read “HOW TO MAINTAIN THE AUTOMATIC ICE MAKER”. [IMAGE]
	It will flash if you stop ice making during the ice making process.	Read “HOW TO MAINTAIN THE ICE TRAY”. [IMAGE]
	Door remains open for more than 1 minute. (ex: door is not completely closed.)	Check “Door Alarm” [IMAGE]

※ 1 Touching the button long (more than 10 seconds), the refrigerator may go into the operation check mode.

TROUBLESHOOTING/REPLACEMENT PARTS

When this happens

Please check. This is the cause.

Others

You feel electricity a little when touching the main body of the refrigerator	●The refrigerator may be charged with static electricity, but there is no problem with the safety.→It is recommended to ground if you want to remove it.Pg.37
	●It is caused by the electromagnetic radiation slightly generated from this refrigerator.→Install the refrigerator away from the television, radio and interphone.→It is recommended to connect the power plug to the power outlet separated from the antenna terminal and ground the refrigerator.Pg.37
	●Those lines are caused by the liquid resin flowing when plastic is molded.They are especially conspicuous for the transparent parts, but there is no problem with the strength and they can never lead to any cracks.
	●Slight waving and/or distortions are generated in the manufacturing process of the refrigerator.They may be conspicuous according to the position of the light source and/or the brightness etc., but there is no problem with the performance.
	●Approximately two minutes after the end of operation, indicator lamps, excluding “急冷凍 (Quick Freezing)”, 惯冷藏 (Quick Cooling)”, “節電 (Energy Saving)”, 急速製冰 (Quick Ice Making)”, 給水 (Water Supply)” and “eco Operation”, become unlit for energy saves.
	●A magnet does not adhere because the door is made of glass.
	●This hole is used to escape the air inside when fl lling the heat insulation material into the door during the production process. It is neither a flaw nor abnormal thing.Hole (inside of the door)
	●Reduce the number of times of opening and closing the door and avoid storing food additionally until the electric supply is restored.
	●Unplug the power plug and maintain the inner of the refrigerator and the Automatic Ice Maker, and leave all the door open to dry the refrigerator for 2 ~ 3 days.Pg.43, 49, 51~53
	●Any operation to remove frost is not required because this refrigerator remove frost automatically.Thawed water is collected in the evaporating tray and automatically evaporates.
	●See “Transporting your refrigerator (transport for moving)”Pg.37
	●A lower setting of the condensation prevention heater will reduce power consumption.The setting has two levels: 1 and 2. The level 2 achieves a higher reduction in power consumption. A lower setting of the condensation prevention heater may cause dew condensation in the swing partition or the partitioning iron plates when humidity is high. When dew is formed, cancel the setting.●The setting will be cancelled when the power plug is connected and disconnected or power failure recovery takes place.●Setting the swing partition1. Open the Lower Freezer Door.2. Press and hold the button on the Control Panel with the refrigerator doors closed for three seconds or more until one beep sounds. (Level 1)3. Press and hold the button on the Control Panel for three seconds or more until two beeps sound. (Level 2)4. Close the lower Freezer Door.●Setting the partition plate1. Open the door of the lower freezer2. With the door of the Refrigerator Compartment closed, touch and hold the button on the control panel for 3 seconds or longer until it beeps (Level 1).3. Touch and hold the button on the control panel for 3 seconds or longer until it beeps (Level 2).4. Close the door of the Refrigerator Compartment.To cancel the setting, perform the same operation at Level 2.Alarm is raised (two beeps sound) to cancel the setting.
	Temperature settings for Refrigerator, Freezer and Vegetable Compartments can be adjusted more fi nely than the three levels: 弱 (MIN)”, “中 (MID)” and “強 (MAX)”.1. Open the Lower Freezer Door.2. Touch and hold the button on the Control Panel for fi ve seconds or more until one beep sounds (This allows fi ner adjustment.)3. Adjust the button or button to make an adjustment. The temperature becomes higher by one level every time you touch the button. (Touching “強 (MAX)” returns to “弱 (MIN)”.)4. If you want to stop the fi ne adjustment, perform the operation of 1 and 2. Two beeps sound and You can set the temperature by normal step.

Touch this button for more than 3 seconds
MIN MID- MID MID- MAX
MIN MAX
Temperature setting

REPLACEMENT PARTS

When replacing the following parts, make sure to tell your dealer the type name and buy the special parts.

Replacing the water fi Iter

• Replace the water filter when it becomes old. (Replace it normally once 3 \~ 4 years.)
• Ordering the replacement water fi Iter Tell your dealer the parts number: RJK-30 to buy the replacement water fi Iter. (Ice making capacity is the same with the water fi Iter removed.)

Replacement of the vacuum packing

• If vacuum state can no longer be maintained due to damage, deformation or a change in color, please replace it with a new one.
  ● Part number for each refrigerator model

	Parts number
Type: R-SF8800B	R-B6700 311
R-SF6800B	R-A6200 321

[“eco” OPERATION INDICATOR LAMP]/DOOR ALARM/LOCKING THE CONTROL PANEL

Caution ● Always configure the settings with all the doors closed. 📋 Pg.38

["eco" Operation indicator lamp]

When the refrigerator is operated in a manner to reduce power consumption, such as Frost Recycle Cooling, the indicator lamp is automatically lit to indicate that the refrigerator is operating in the energy saving mode.

Notice

[ "eco" Operation indicator lamp],

• Ifeco" Operation indicator lamp] isn't illuminated, check the following things.
• Is the ["eco" Operation indicator lamp] set as Off? Perform the above-mentioned procedure for how to return.
• Immediately after installation, when a lot of food is stored at a time, or when you open or close a door frequently, the compressor operates at a high speed and this indicator lamp is not lit. Open/close the door quickly or minimize the number of opening/closing the door.
• When the refrigerator is operated with “急冷凍(Quick Freezing)”, “急冷藏(Quick Cooling)” or “急速製冰(Quick Ice Making)” enabled, → It will be illuminated after the quick cooling functions finish and the operation of the refrigerator gets stable.
• When connecting/disconnecting the power plug or after recovering from electric power failure, it will return to the setting where the ["eco" Operation indicator lamp] is illuminated.

["eco" operation indicator lamp] can be turned off when you feel uneasy at night, etc.

How to turn off the dicator lamp

Touch and hold the チルト button for three seconds with all the doors closed until the ["eco" Operation indicator lamp] blinks.

The ["eco" Operation indicator lamp] is unlit.

Touch this button and hold it for 3 seconds

How to restore the setting

Touch and hold the button for three seconds with all the doors closed until the ["eco" Operation indicator lamp] becomes lit.

The ["eco" Operation indicator lamp] is lit for three seconds. After that, the lamp is lit or unlit, depending on the operation conditions.

Touch this button and hold it for 3 seconds

Door Alarm

When a door remains open for 30 seconds or more, alarm sounds as shown below and characters on the Control Panel are blinking to indicate that the door is open with sound and light.

Duration when door is open	Alarm sound	Control Panel
30 seconds※	3 long beeps	Does not blink
1 minute	3 long beeps	Flashing
2 minutes	5 long beeps	Flashing
3 minutes	It keeps continuously sounding.	Flashing

※ From 30 seconds onwards, the Door Alarm sounds only when the energy saving mode is set.

The Refrigerator Compartment, Ice Compartment, Lower Freezer and Vegetable Compartment have the Door Alarm function (, but the Upper Freezer doesn't).

The Door Alarm can be stopped.

When you want to stop the alarm

Touch and hold the 冷脚 button for three seconds with all the doors closed until one beep sounds.

When the setting has been completed, the indicator lamp is restored to the original state.

Notice

Touch this button and hold it for 3 seconds

When you want to sound the alarm again

Touch and hold the button for three seconds with all the doors closed until two beeps sound.

When the setting has been completed, the indicator lamp is restored to the original state.

Touch this button and hold it for 3 seconds

- When the Door Alarm is disabled, characters on the Control Panel no longer blink and operation sound is no longer made, but alarm indicating cleaning of the ice-making tray does sound.

● The Door Alarm is enabled when shipped.

- When connecting/disconnecting the power plug or after recovering from electric power failure, it will return to the setting where the Door Alarm sounds.

Locking the Control Panel

When this indicator lamp m-O (Lock on the panel for operation) is illuminated, any other button will not be actuated by touching it. This can prevent erroneous operation of the Control Panel or misuse by children.

Locking

Touch and hold the 豆 button for approximately three seconds until one beep sounds.

π0 is lit to indicate that the lock has been completed.

Notice

Touch this button and hold it for 3 seconds

Unlocking

Touch and hold the 野菜 button for approximately three seconds until two beeps sound.

π0 is lit to indicate that the lock has been released.

Touch this button and hold it for 3 seconds

- Electric pulling-out operation will not be stopped even if the Lock function on the panel for operation is set as On. To disable the Auto Door function, unlock the Control Panel and then press and hold the 冷凍 button for three seconds or more until two beeps sound. Pg.48

The following table shows the weight of food that can be stored on the shelves and in the cases.

	零件名稱 Name of parts		R-SF8800B R	SF6800B
冷藏室Refrigeratorcompartment	4段可調層架可調式層架上方可調式層架下方翻轉式層架·固定層架真空室上方的層架真空室盒置蛋架軟管式容器站立架	4 level adjustment shelfHeight adjustable upper shelfHeight adjustable lower shelfReversible shelf · Fixed shelfUpper shelf of the vacuum compartmentVacuum compartment caseMultiuse Egg CaseTube Stand	7.0kg10.0kg21.0kg21.0kg11.0kg5.0kg2.0kg1.3kg	7.0kg9.0kg19.5kg19.0kg10.0kg4.5kg2.0kg1.3kg
製冰室Ice compartment	製冰盒	Ice case	請勿存放不是本自動製冰機製成的冰塊。19頁Do not store any ice cubes other than the ones made by the automatic ice maker. Pg.47
上層冷凍室Upper freezer	上層冷凍盒	Upper Freezer case	9.0kg 7.7kg
下層冷凍室Lower freezer	薄滑動盒滑動盒下層冷凍盒	Slimline slide caseSlide caseLower freezer case	5.5kg8.0kg14.5kg	5.3kg7.5kg13.5kg
蔬果保鮮室Vegetable compartment	寬廣上段置物盒下段置物盒	Spacious Upper CaseLower Case	9.5kg17.5kg	8.5kg16.0kg

日立家電技術中心一覽表
