CS 66 M XS/F - Oven FRANKE - Free user manual and instructions
Find the device manual for free CS 66 M XS/F FRANKE in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Built-in oven |
| Brand | Franke |
| Model | CS 66 M XS/F |
| Dimensions (W x H x D) | 595 x 595 x 550 mm |
| Net weight | 34 kg |
| Power supply | 220-240 V ~ 50/60 Hz |
| Total power | 3.3 kW |
| Usable capacity | 66 L |
| Number of functions | 8 |
| Main functions | Convection, natural convection, grill, pulsed heat, defrost, keep warm, bottom heat, convection + grill |
| Temperature range | 50 °C to 275 °C |
| Cleaning type | Catalytic (rear and side walls) |
| Interior lighting | Halogen lamp |
| Door | Cool door, removable double glazing |
| Child safety | Control panel lock |
| Auto shut-off | Yes, after 12 hours in standby mode |
| Supplied accessories | Grid, drip pan, rotisserie |
| Energy class | A+ |
| Repairability index | 8.2 / 10 |
Frequently Asked Questions - CS 66 M XS/F FRANKE

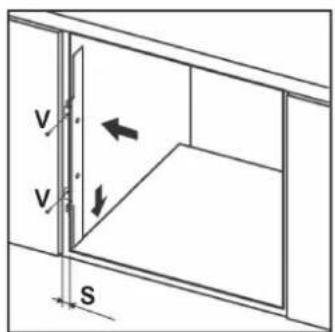

How to install the oven?
Make sure the cabinet has the indicated dimensions (595 x 595 x 550 mm). Connect the oven to a 220-240 V grounded outlet. Follow the electrical safety instructions in the manual.
How to preheat the oven?
Select the desired function and set the desired temperature. Wait for the preheating light to go out; this usually takes 10 to 15 minutes depending on the temperature.
What to do if the oven does not heat up?
First check the power supply and circuit breaker. If the problem persists, check the displayed error code and contact customer service.
How to clean the catalytic walls?
The catalytic walls absorb grease during cooking. To clean them, heat the empty oven to 250 °C for 30 minutes in fan-assisted mode, then wipe with a damp cloth.
Can I use aluminum foil in the oven?
Yes, but avoid direct contact with the heating elements. Place it on the grid or drip pan. Do not cover the bottom entirely to avoid blocking heat.
How to activate child safety?
Press the + and - keys simultaneously for 3 seconds. A lock symbol appears. To deactivate, repeat the same operation.
What accessories are supplied?
The oven comes with a grid, a drip pan, and a rotisserie. Some models may include a pizza stone (depending on version).
How to change the interior bulb?
Disconnect the power. Remove the glass cover of the light, unscrew the bulb (halogen type G9, 25 W) and replace it. Screw the cover back on and restore power.
The oven displays an error code, what to do?
Note the code and refer to the error table in the manual. Common codes: E01 (faulty probe), E02 (overheating). Contact an approved technician.
How to use the rotisserie?
Thread the meat onto the spit, secure it with the forks. Place the spit in the rotating support, then select the rotisserie function (usually combined with grill).
