| Product type | Built-in oven |
| Brand | Franke |
| Model | SG 62 M GF/F |
| Dimensions (H x W x D) | 595 x 595 x 568 mm |
| Net weight | 35 kg |
| Power supply | 220-240 V, 50/60 Hz |
| Maximum power | 3000 W |
| Oven capacity | 65 L |
| Number of functions | 9 |
| Main functions | Convection, grill, defrost, forced hot air, bottom heat, top heat, pyrolysis, light, catalytic |
| Cleaning | Pyrolysis and catalytic |
| Door type | Cool door (triple glazing) |
| Lighting | Halogen bulb, 40 W |
| Safety | Child lock, automatic shut-off |
| Energy class | A+ |
| Repairability index | 8/10 |
| Spare parts available | Yes, from Franke and authorized dealers |
| Supplied accessories | Grill, drip tray, baking sheet |
| Color | Stainless steel |
| Warranty | 2 years |
Frequently Asked Questions - SG 62 M GF/F FRANKE

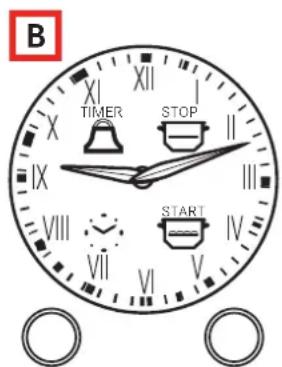

How to set the clock on my Franke SG 62 M GF/F oven?
Press the Clock button until the digits flash, then use the +/- buttons to set the time. Confirm with the OK button.
What does the pyrolysis indicator mean?
The pyrolysis indicator lights up when the pyrolysis cleaning function is activated. The oven heats to a very high temperature (about 500°C) to burn off residues. Do not open the door during the cycle.
How to replace the oven bulb?
First, unplug the appliance. Remove the protective glass by twisting, then unscrew the old bulb (type G9, 40 W). Replace it with an identical new bulb, put the glass back, and plug in again.
Why is my oven not heating?
Check that the oven is plugged in and the circuit breaker has not tripped. Make sure the door is properly closed. If the problem persists, contact customer service.
How to activate the child lock?
Press and hold the Lock button (often represented by a padlock) for 3 seconds. A symbol appears to confirm. To deactivate, repeat the operation.
What is the oven capacity?
The usable capacity is approximately 65 liters, allowing you to cook large preparations.
How to use the convection function?
Select the Convection mode using the function selector. Set the desired temperature (usually between 50°C and 250°C). The fan distributes heat evenly.
Where to find the rating plate?
The rating plate is located on the door frame or inside the oven, near the hinge. It indicates the model, serial number, and electrical specifications.
How to maintain the catalytic walls?
The catalytic walls absorb grease during cooking. To clean them, heat the empty oven for 30 minutes in catalytic mode. Do not use abrasive products.
What to do if the oven makes an abnormal noise?
A slight ventilation noise is normal. If the noise is loud or unusual, check that nothing is blocking the fan. If the problem persists, contact a technician.
