Product Type	Pedestal Fan
Brand	Khind
Model	CF611
Power Supply	220-240 V, 50 Hz
Power Consumption	55 W
Fan Speed Settings	3 (Low, Medium, High)
Oscillation	Yes, wide-angle
Height Adjustable	Yes, with extension rod
Tilt Adjustment	Manual tilt up/down
Blade Diameter	16 inches (40 cm)
Number of Blades	3
Blade Material	ABS plastic
Guard Material	Metal with powder coating
Stand Material	Steel tube
Base Diameter	35 cm
Overall Height	120-140 cm adjustable
Net Weight	4.5 kg
Noise Level	≤ 60 dB
Cleaning	Wipe with damp cloth; do not immerse in water
Safety Features	Stable base, overload protection, guard mesh
Spare Parts Available	Blades, guard, motor, base
Certification	CE, FCC

Frequently Asked Questions - CF611 Khind

How do I assemble the pedestal fan?

Attach the base to the stand with the provided screws, then connect the two stand tubes. Slide the fan head onto the top tube and secure with the plastic nut. Finally, attach the blade and guard as per the manual.

How many speed settings does the CF611 have?

The CF611 has 3 speed settings: Low, Medium, and High, controlled by a rotary switch on the back of the motor.

Can I use this fan in an air-conditioned room?

Yes, the fan can be used in air-conditioned rooms. It helps circulate cool air more effectively.

How do I clean the fan blades?

First, unplug the fan. Remove the front guard by unscrewing the retaining ring. Wipe the blades with a damp cloth. Avoid using water directly on the motor. Replace the guard and tighten.

What if the fan wobbles during operation?

Check that the blade is properly attached and not bent. Ensure the stand is fully upright and the base is stable. Tighten any loose screws. If wobbling persists, inspect the blade balance.

Does the CF611 have an oscillation feature?

Yes, the fan has an oscillation feature controlled by a push button on the motor housing. Press to start or stop horizontal oscillation.

What is the power consumption of this fan?

The fan consumes approximately 55 watts at the highest speed setting.

How do I adjust the fan height?

Loosen the clamping ring on the stand, adjust the inner tube to the desired height (from 120 to 140 cm), then tighten the ring securely.

Is the fan noisy?

The fan operates at a noise level below 60 dB, which is equivalent to normal conversation. It should not be disruptive.

Where can I find replacement parts?

Replacement parts such as blades, guard, and motor can be purchased from authorized Khind service centers or online retailers. Check the manual for part numbers.

USER MANUAL CF611 Khind

Please read this manual carefully before operating this product. Keep this manual handy for future reference. 请在使用此产品前，详读此说明书，并将之收藏以作日后参考。

This manual is also available online.

Safety precautions / 安全注意事项 / Langkah-langkah keselamatan dan pencegahan

To avoid the possibility of causing injury to users or damage to properties, please follow all the explanations written below.

(b) Ensure Pipe has been fully tightened to Motor Shaft. (Bolt tightening torque is 800\~1000 N·cm Can cause injury if ceiling fan drops.

To ensure safety, kindly check the following.

Pure electrical circuit lines without any symbols

Simple line drawing of a mechanical component with a checkmark (no text or symbols)

	Do not fix at this position,Jungan pasang pada ketudukan ini.切勿安装在该位置。
	Lock the screws tightly.Kund sknu dengan ketat.将螺丝锁紧。

Care and maintenance / 照料及保养 / Penjagaan dan penyelenggaraan

(a) Keep the fan clean. Jaga kipas supaya sentiasa bursin.
保持风扇的清洁.

(a) Connect brown and blue wires from downrock to the terminal block marked 'L' and 'N' respectively. Assemble fan blade (3 pcs) to motor with the provided screws. Install fan unit with rubber wheel to the ceiling hook and tighten with bolt & nut and cotter pin. Connect fan wires to the power supply point.

(e) Push up the top canopy to cover the ceiling hook, then tighten the canopy screw as shown.

(I) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(m) Primary suspension system length more than 300mm of non-standard down rod shall be supplied by the same manufacturer, with similar material, complete with safety wire rope, marking and installation instruction.

Measure the distance using a measuring tape.

Please adjust all the Blades to get the equal distance from ceiling to the Blade Tip, L (within 1 mm tolerance).

After installation make sure the Ceiling Fan does not wobble extremely. Can cause injury if Ceiling Fan drops.

(i) Mount the regulator base to the wall with screws.

(i) Connect the supply wire according to circuit diagram shown. Secure the regulator front cover to the base with screw

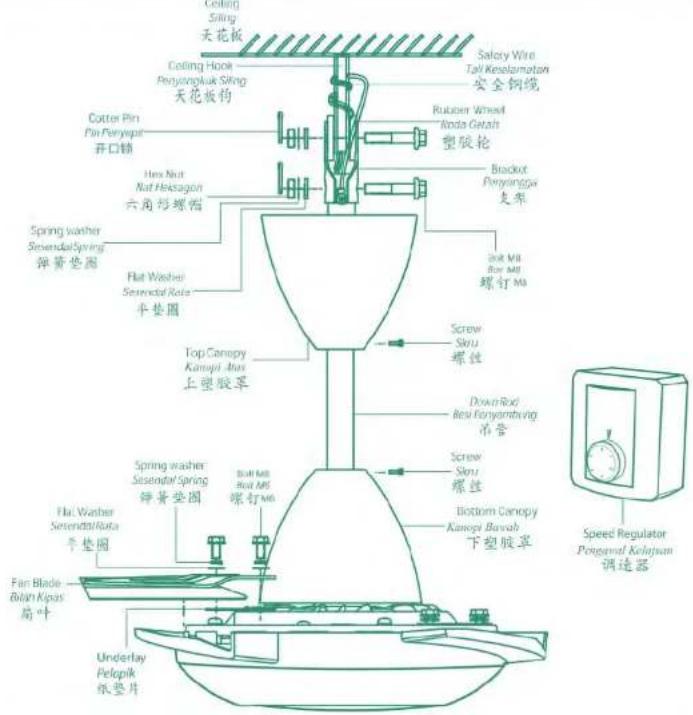

Parts identification / 零件名称 / Pengenalan bahagian

Specifications / 规格 / Spesifikasi

Model / 型号 / Model : CF 611 CF 613

Fan Size / 风扇尺寸 / Saiz Kipas : 60" 60"

Voltage / 电压 / Voltan : 220-240V\~50Hz 220-240V\~50Hz

Power / 功率 / Kuasa : 70W 70W

Max Speed (RPM) / 速度 / Kelajuan : 298 rpm 298 rpm

Net Weight / 净重量 / Berat bersih : 7 kg 7 kg

* Specifications are subject to change without prior notice. 以上规格有任何的改变，暂无另行通知。

Percubahan specifikasi boleh diakukan tanpa sebaraang notis.
