Product Type	Freestanding Dishwasher
Brand	Hanseatic
Model	WQP12-7609H
Dimensions (H x W x D)	84.5 cm x 59.8 cm x 55.0 cm
Weight	39 kg (unloaded)
Power Supply	220-240 V ~ 50 Hz, 10 A
Rated Power	1760-2100 W
Energy Efficiency Class	A++
Annual Energy Consumption	262 kWh/year
Annual Water Consumption	3080 L/year
Capacity (Place Settings)	13
Number of Programs	6 (Intensive, Normal, ECO, Glass, 90 min, Short)
Additional Options	Half Load, Delayed Start (3/6/9 h)
Noise Level	49 dB(A) re 1 pW
Water Pressure Range	0.4-10 bar
Drying Efficiency Class	A
Construction Type	Freestanding (not built-in)
Safety Features	Water-stop system on inlet hose, child lock (via door), residual current device recommended
Cleaning Maintenance	Filter cleaning weekly, spray arm cleaning as needed, use dishwasher cleaner periodically
Overload Protection	Electronic overflow prevention, fuse 10 A

Frequently Asked Questions - WQP12-7609H Hanseatic

What should I do if the dishwasher does not start?

Check that the mains plug is connected and the door is closed properly. Also ensure the water tap is fully open.

Why are there water residues or streaks on my dishes?

This may be due to incorrect rinse aid dosage or lack of dishwasher salt. Adjust the rinse aid setting or add salt as needed.

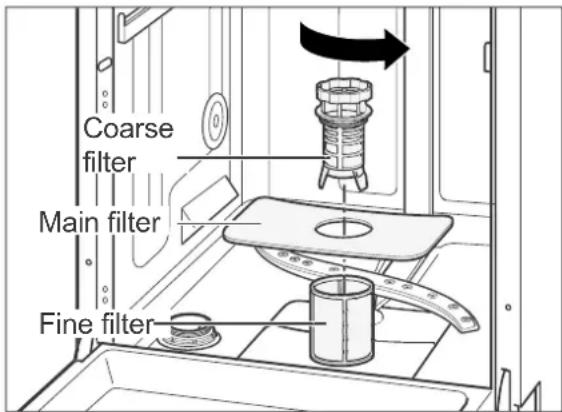

How do I clean the filters?

Remove the lower dish rack, turn the coarse filter anticlockwise, and lift out all filters. Clean them under running water and reinstall them securely.

Can I open the dishwasher during a cycle?

Yes, press Start/Pause to interrupt, wait for steam to disperse, then open carefully. Add dishes and close the door, then press Start/Pause again.

What does the 'Add dishwasher salt' indicator mean?

It means the dishwasher salt level is low. Add salt using the supplied funnel and run a cycle immediately to avoid salt damage.

How do I adjust the water hardness level?

Switch on the dishwasher, then hold Start/Pause until the salt and rinse aid indicators blink. Press Start/Pause repeatedly to select the hardness level (soft, medium, hard). The setting is saved automatically.

Why is the dishwasher not drying the dishes properly?

If using a short program without drying, dishes will remain damp. For full drying, use a program with a drying phase like ECO or Intensive, and ensure rinse aid is present.

What should I do if the error code 'Short' flashes fast?

This indicates insufficient water inflow. Check that the water tap is fully open, the inlet hose is not kinked, and the water pressure meets requirements.

Can I use multitabs in this dishwasher?

Yes, multitabs can be used. For water hardness in the 'soft' to 'medium' range, multitabs work well. For hard water, use separate detergent, salt, and rinse aid.

How do I protect the dishwasher from frost?

Disconnect the mains plug, close the tap, unscrew the inlet hose, and drain all water. Remove filters and sponge out any remaining water from the sump.

USER MANUAL WQP12-7609H Hanseatic

Line drawing of a Hanseafic kitchen appliance (no text or symbols on the device body)

Gebrauchsanleitung

Standgeschirrspüler

Inhaltsverzeichnis

Line drawing of a stainless steel kitchen appliance (no text or symbols)

(b)

(c)

Lieferumfang

Line drawing of a refrigerator interior showing compartments and storage areas (no text or symbols)

Diagram showing a shopping cart with wheels and a magnified inset of a net with wheels (no text or symbols)

Line drawing of a kitchen sink with a hand operating the drain (no text or symbols)

Diagram showing airflow or ventilation around a fan blade (no text or symbols)

Diagram of a mechanical assembly with a slide and screw base, no text or symbols present

Simple line drawing of a cabinet or support structure with two hanging arrows and label (C), no text or symbols present.

Line drawing of a Hanseafie washing machine (no text or symbols on the device body)

User manual

Freestanding dishwasher

Table of contents

Please read through the safety notices and user manual carefully before using the appliance.

This is the only way you can use all the functions reliably and reliably. Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

You will find information on „Installation, connection and commissioning“ from see EN-24.

Delivery.... EN-3

Package contents ..... EN-3

Checking package contents ..... EN-3

Controls and appliance parts ..... EN-4

Safety EN-6

Intended use..... EN-6

Explanation of terms ..... EN-6

Safety notices.... EN-6

Dishwasher detergents, rinse aids

and dishwasher salts EN-10

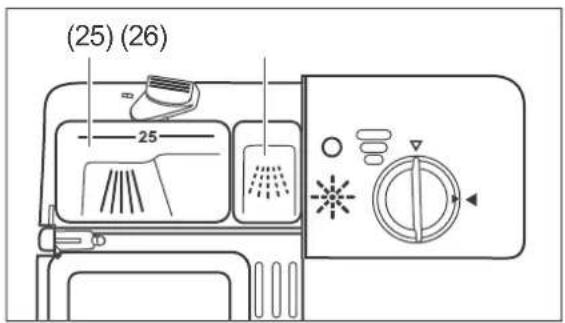

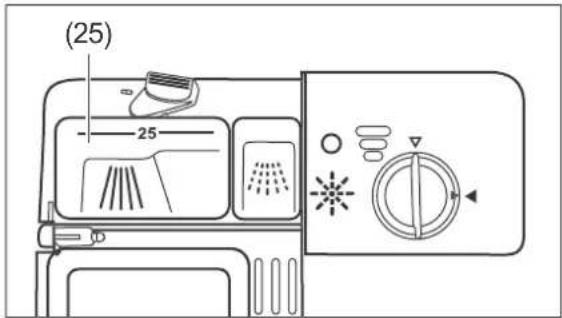

Add dishwasher detergent ..... EN-10

Use multitabs....EN-11

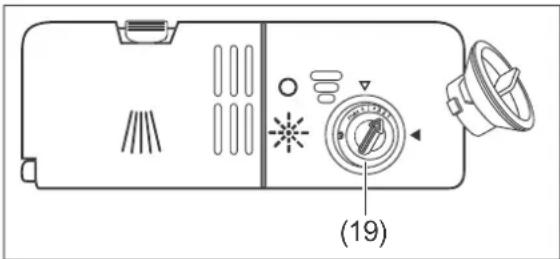

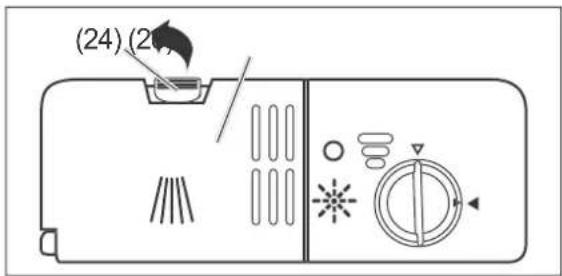

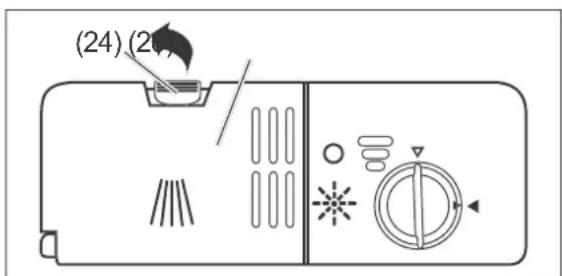

Adding rinse aid ..... EN-12

Setting the water hardness level . . EN-13

Adding dishwasher salt ..... EN-13

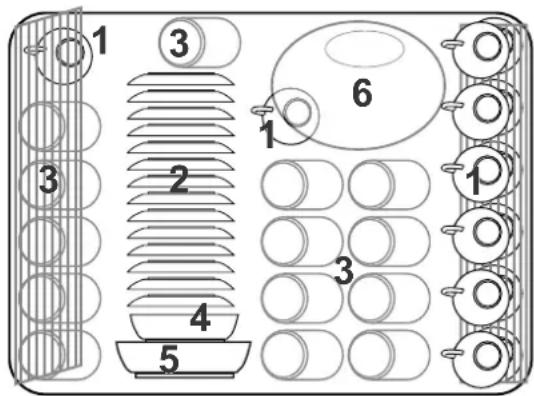

Loading the dishwasher ..... EN-15

Unsuitable dishes ..... EN-15

Upper dish rack EN-15

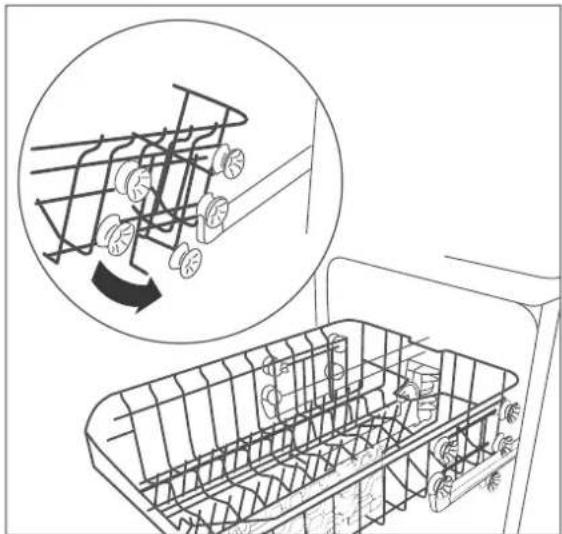

Changing the height of the upper dish rack . . . . . . . . . . . . . . EN-16

Lower dish rack EN-16

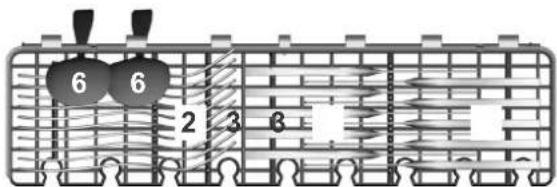

Cutlery basket EN-17

Dishwasher programme table ..... EN-18

Dishwasher operation ..... EN-19

Preparation....EN-19

Select the wash programme and start.... EN-19

Additional options ..... EN-19

Subsequently adding dishes ..... EN-20

Changing the dishwasher programme.... EN-20

Unloading the dishwasher ..... EN-20

Care and maintenance ..... EN-22

Cleaning the front of the appliance and the door seal ..... EN-22

Cleaning the filters ..... EN-22

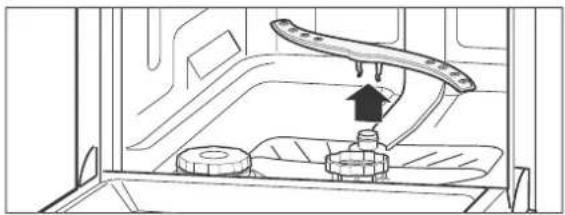

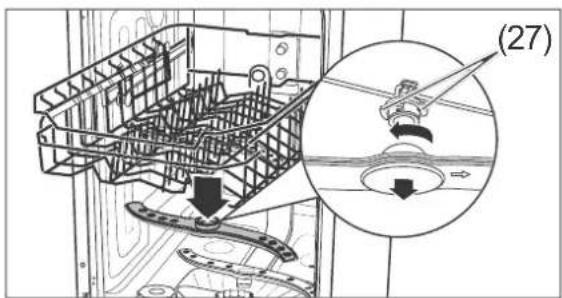

Cleaning the spraying arm ..... EN-23

Complete cleaning ..... EN-23

Protection against frost damage . . EN-23

Installation, connection and commissioning ...... EN-24

Choosing a suitable location ..... EN-24

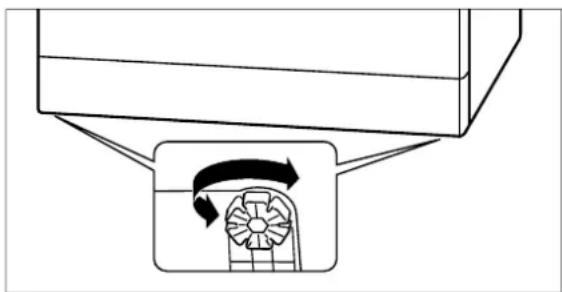

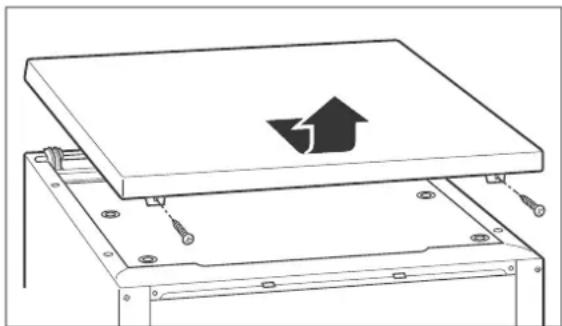

Setup EN-24

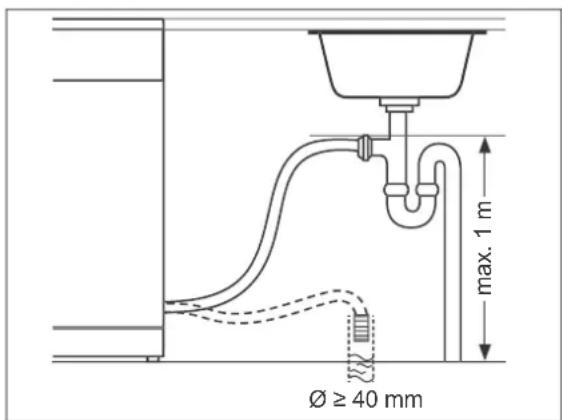

Having the outlet hose connected . EN-25

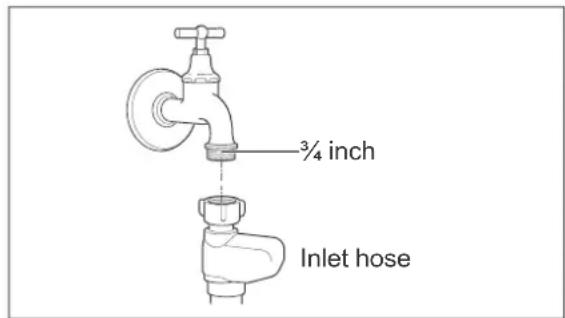

Connecting the inlet hose ..... EN-25

Connection for power supply ..... EN-26

Test run EN-26

Troubleshooting table ..... EN-27

Problems with operation ..... EN-27

The dishwashing results are not satisfactory.... EN-28

Error indicators EN-29

Service EN-30

Advice, order and complaint ..... EN-30

Repairs and spare parts ..... EN-30

Environmental protection ..... EN-31

Disposing of old electrical devices in an environmentally friendly manner.... EN-31

Packaging EN-31

Technical specifications ..... EN-31

Product fiche concerning

Regulation (EU) No 1060/20109 ... EN-32

Delivery

(a)

Line drawing of a stainless steel kitchen appliance (no text or symbols)

(b)

(c)

Package contents

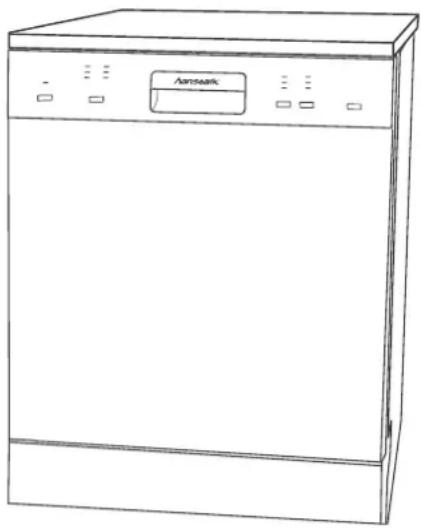

(a) Freestanding dishwasher WQP12-7609H

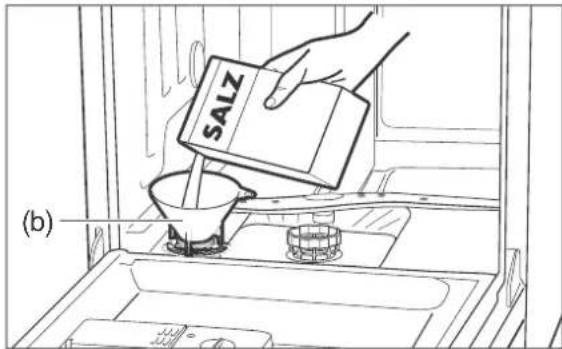

(b) Filling funnel for dishwasher salt

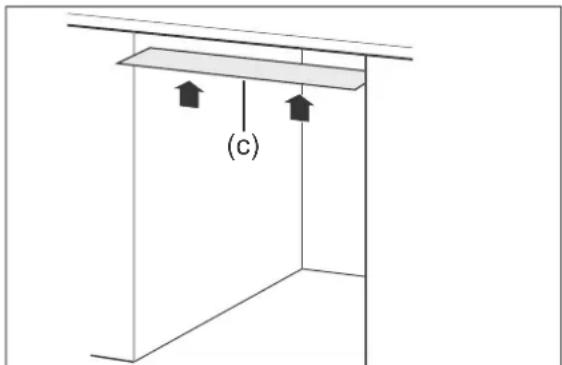

(c) Condensation-protective film Short manual

Checking package contents

1. Move the appliance to a suitable place and unpack it (see see EN-24).
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Centre (see see EN-30).

WARNING!

Risk of electric shock! Never use a damaged appliance.

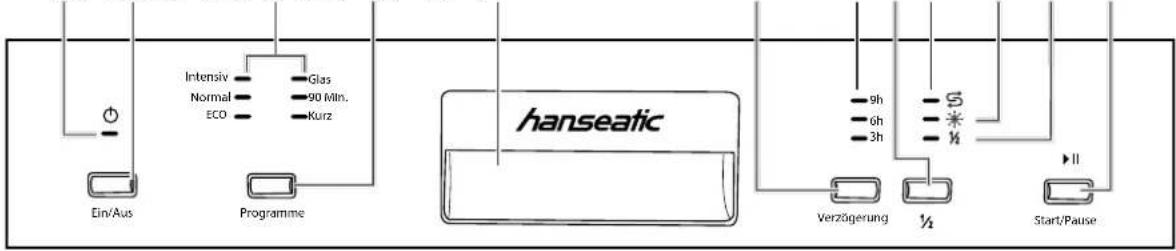

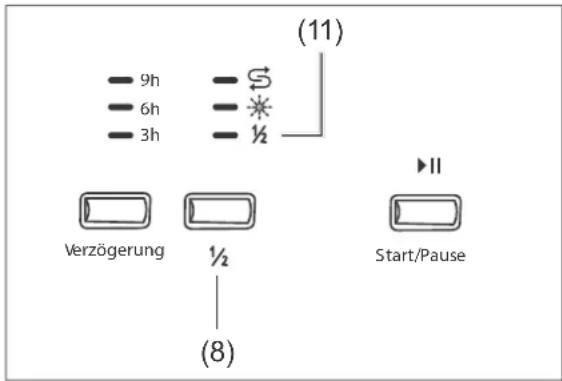

Controls and appliance parts

(1)(2)(3)(7)(4)(8)(5)(9)(6)(11)(10)(12)

(1) ⏻ "On/Off" display
(2) On/Off button
(3) Programme displays
(4) Programme selection button
(5) Door handle

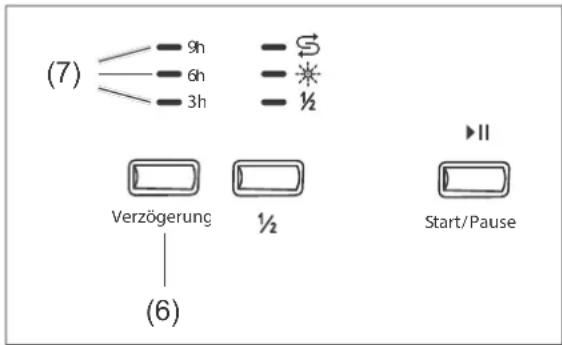

(6) Delayed start time button
(7) "Delayed start time" display
(8) "Half load" button

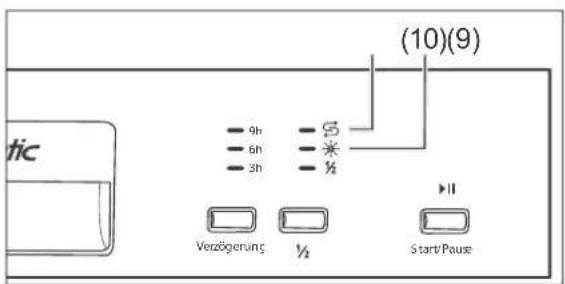

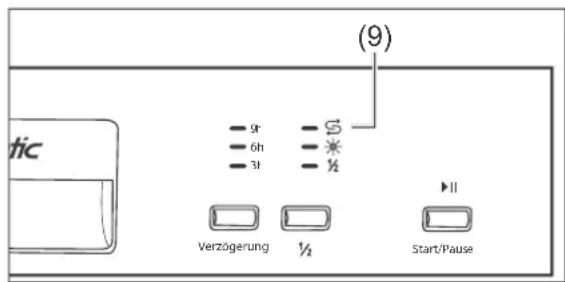

(9) Ⓧ "Add dishwasher salt" indicator

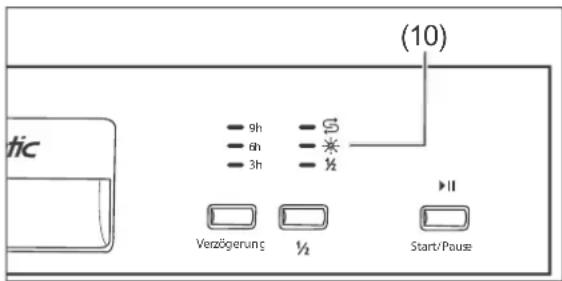

(10) * “Add rinse aid” indicator
(11) 12 “Half load” display
(12) ▶II Start/Pause button

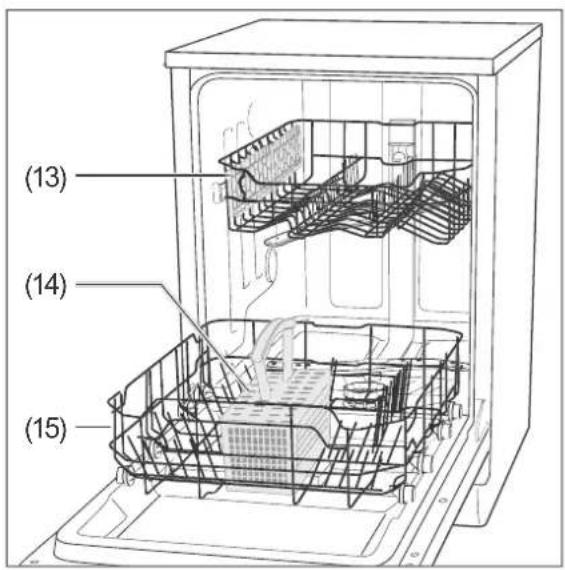

(13) Upper dish rack with cup storage tray
(14) Cutlery basket
(15) Lower dish rack

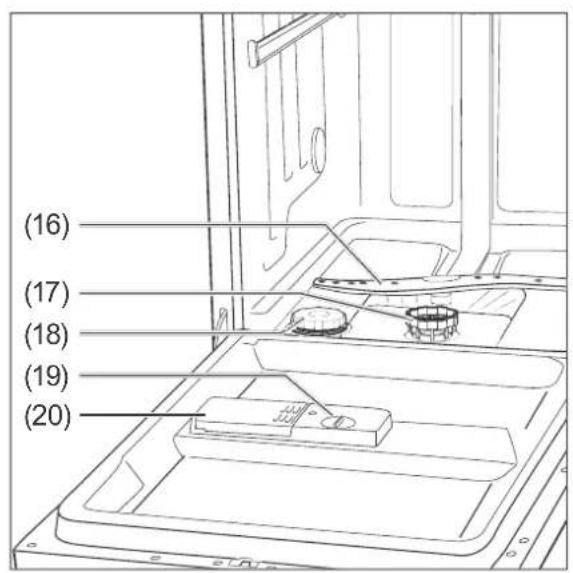

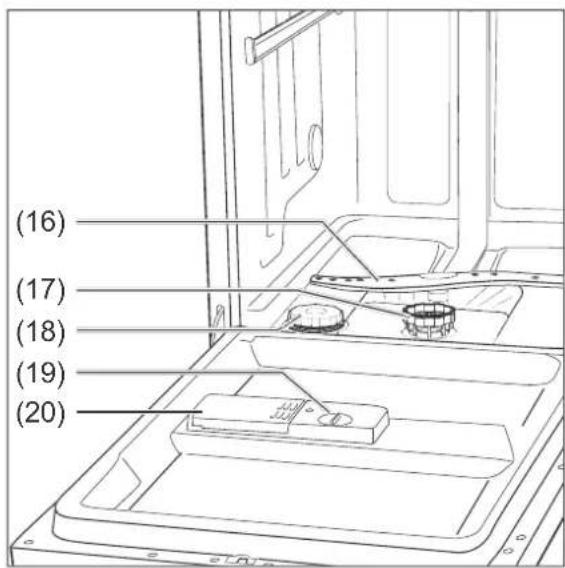

(16) Lower spraying arm
(17) Filter

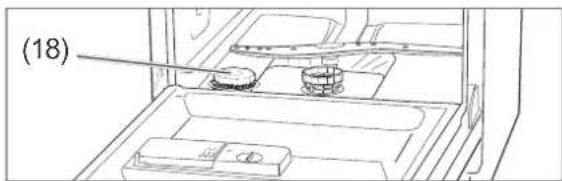

(18) Dishwasher salt dispenser
(19) Rinse aid dispenser
(20) Detergent dispenser

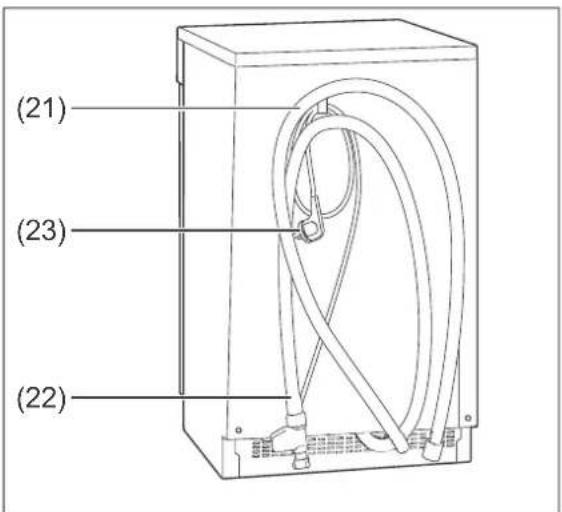

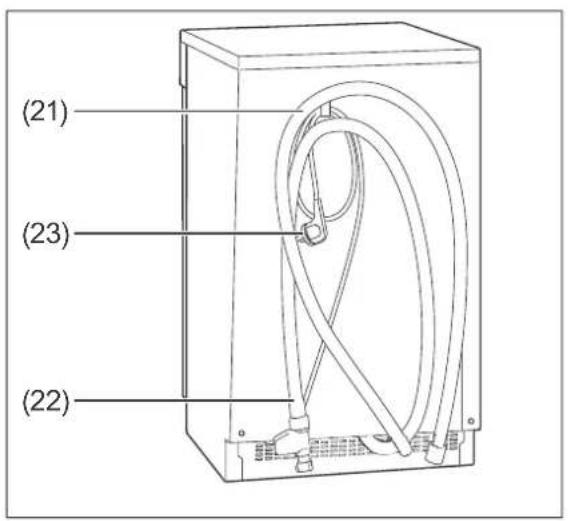

(21) Outlet hose
(22) Inlet hose with water-stop system
(23) Mains cord

Safety

Intended use

The dishwasher is exclusively intended for washing dishes in ordinary quantities for private households and is not suitable for commercial use or multiple use (e.g.: use by several families in an apartment building).

Use the dishwasher only as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING!

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION!

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful addi- l information.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also pay attention to the warnings in individual chapters on installation and operation, etc.

WARNING!

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to operate the appliance if

– it shows visible signs of damage, e.g. the power cord is defective.
- it starts smoking or there is a smell of burning.
- it makes unfamiliar noises.

In this case, you should pull the mains cord out of the socket or switch off/unscrew the fuse and have the appliance repaired (see „Service“ on page EN-30).

■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly. Ensure that the voltage is correct when connecting it. You can find more detailed information about this on the nameplate.
■ If the mains plug is no longer accessible after installation, an all-pole dis-

connecting device complying with overvoltage category III must be connected into the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and covers.

■ We recommend using a pulse-sensitive residual-current device (RCD).
■ Do not operate the appliance with an external timer or a separate remote control system.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.

■ Do not kink or pinch the mains cord or lay it over sharp edges.

■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.

■ Do not put any objects in or through the housing openings and also make sure that children cannot insert any objects through them.

■ Never pull the mains plug out of the socket by the mains cord, always hold the mains plug itself.

■ Never touch the mains plug with wet hands.

■ Never immerse the mains cord or mains plug in water or any other liquids.

■ In the event of a fault, as well as before cleaning or maintenance, pull out the mains plug/switch off or unscrew the fuse.

■ Investigations and repairs to the appliance may only be carried out by authorised specialists, such as our service department (see „Service“ on page EN-30).

Unauthorised repairs to the appli- ance can cause property damage and personal injury, and invalidate liability and warranty claims. Never try to repair a defective or suspected defective appliance yourself.

■ Only parts corresponding to the original appliance specifications may be used for repairs. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.
■ Never clean the appliance with a high-pressure cleaner or steam cleaner.
■ Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fi re.

■ Only connect the appliance to a properly installed and earthed electric socket. Do not connect to a multi-socket extension cable or a multi-socket plug.

Risks to children

Risk of suffocation!

■ Do not allow children to play with the packaging fi Im. Children could become caught in it and suffocate.

CAUTION!

Risks for certain groups of people

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged eight years and above and by persons with reduced physical, sensory or mental abilities, or who lack experience and/or knowledge, if they are supervised or have been instructed in the safe use and understand the dangers associated with its use.
■ Children must not be allowed to play with the appliance.
■ Cleaning and maintenance must not be carried out by children unless they are supervised.

Risks when dealing with dishwashers

Danger of explosion!

Solvents can create an explosive mixture.

■ Never put solvents into the appliance.

Risk of poisoning!

Dishwasher detergents, rinse aid and dishwasher salt can be damaging to the health.

• Keep these products out of the reach of children and pets.
  ■ Never use the water inside the appliance as drinking water.

Risk of injury!

The appliance is heavy and bulky. Improper handling of the appliance may result in injury.

• Seek the help of another person during transport, installation and assembly.
  ■ Remove all obstacles on the transport route and from the installation location, e.g. open doors and clear away objects lying on the floor.

Knives and other pointed or sharpedged objects can cause injuries.

■ Always place pointed and sharp-edged objects with the pointed or sharp edge pointing downwards in the cutlery basket.
■ Ensure that children do not load such objects which may cause injury into the appliance.
- Load the appliance in such a way that no objects which may cause injury fall out of the dish racks when the appliance is next opened and the dish racks are removed.

Risk of scalding!

The hot washing-up water will cause the dishes and the interior of the appliance to heat up and hot steam is emitted. Touching them can therefore cause scalding.

■ Only hold the door by the handle when opening the door. Maintain a safe distance from the appliance in order to avoid steam which may escape.
■ Do not touch the dishes, cutlery or the inside of the appliance immediately after the dishwashing programme has finished.

Trip hazard!

An open dishwasher door can quickly become a trip hazard.

■ Close the door after every use.
■ Only leave the door slightly open to cool down.

NOTICE

Damage to property

Improper handling of the appliance may result in damage.

■ Do not use the open door as a step, seat or for support. Make sure that children and pets do not stand or sit on the open door.
■ Never leave the appliance unsupervised for an extended period when the tap is on.
■ During storms or when going on holiday, always withdraw the mains plug from the socket and close the water tap.
■ If there is a risk of frost, loosen the inlet hose and allow the water to run off.
■ Only use regenerating salt which is suitable for dishwashers.
■ Only add dishwasher salt immediately before the next main dishwashing cycle, as dishwasher salt which has overflowed can damage the seals and flters of the appliance.
■ Immediately remove any spilt dishwasher salt with a damp towel, as otherwise the stainless steel surface can be damaged.
■ Ensure that the dishwashing detergent and rinse aid are suitable for the appliance.

■ Wipe away rinse aid which has overflowed immediately as otherwise it can lead to excessive foaming which can compromise the results delivered by the dishwasher.
■ Do not overload the appliance.
■ Position the upper dish rack at the highest setting if very tall dishes are in the lower dish rack, as otherwise the upper spraying arm will be blocked.

The seals of the door are sensitive to oil and grease.

■ Do not apply grease to the door seals.
■ Wipe away grease and oil which has dripped onto the edge of the open dishwasher door.

The door seals can be damaged by unsuitable cleaning agents.

■ Do not use harsh, aggressive, solvent-based or abrasive cleaners.

The appliance is designed for a water pressure of 0.4 to 10 bar (0.04 to 1.00 MPa, 40 to 100 N/cm ^2 ).

■ If the water pressure is higher than this, install a pressure reducer. If in doubt, enquire about the water pressure with the water supply company.
■ Never connect the appliance to the water tap or the mixing arm of a water heater (continuous flow heater, pressure-free boiler etc.).
■ Ensure that the inlet hose is not kinked and is carefully connected.
■ Do not cut through the inlet hose. It contains electrical components. If the inlet hose is damaged, have it repaired by a specialist.

■ Do not use old or previously installed inlet or outlet hoses.
■ The outlet hose must be of a minimum diameter of 40 mm so that the water can be pumped away unhindered.
■ Do not attach the outlet hose yourself, have it installed by a specialist plumber. Have the outlet hose checked regularly for damage or kinks.

Dishwasher detergents, rinse aids and dishwasher salts

WARNING!

Risk of poisoning!

Dishwasher detergents, rinse aid and dishwasher salt can be damaging to the health.

• Keep these products out of the reach of children and pets.
  ■ Never use the water inside the appliance as drinking water.

Add dishwasher detergent

Only use dishwasher detergent which is intended specifically for dishwashers.

1. Pull back the catch (24) on the detergent dispenser (20).

The cover will pop open.

1. The large compartment is the main wash compartment (25); the small one is the pre-wash compartment (26).
2. Add dishwasher detergent.

a) For wash programmes with a pre-wash cycle, put

• 23 into the main wash compartment (25) and

• 13 into the pre-wash compartment (26).
  b) For wash programmes without a pre-wash cycle, put the whole amount into the main wash compartment (25).

• Push the dispenser cover closed so that the catch (24) clicks into place once again.

Use multitabs

Many multitabs already contain dishwasher detergent, dishwasher salt and rinse aid, meaning that you do not need to use these three products separately. In this case, you can ignore display notifications Ⓧ (9) and ✉ (10).

If your water is in the

• “soft” to “medium” hardness range, multi-tabs will deliver good results.
• “hard” range, we would recommend that you do not use multitabs and instead use dishwasher detergent, dishwasher salt and rinse aid individually.

To determine and adjust the water hardness see see EN-13.

1. Pull back the catch (24) on the detergent dispenser (20).

The cover will pop open.

1. Place a multitab in the main wash compartment (25).
2. Push the dispenser cover closed so that the catch (24) clicks into place once again.

Adding rinse aid

NOTICE

Risk of damage!

Using an excessive amount of rinse aid can lead to increased foaming and can compromise the rinsing results.

■ Wipe away rinse aid which has over-flowed immediately.
■ Take note of the markings for the maximum fill quantities (“max”) in the rinse aid chamber.

Using unsuitable substances can cause damage to the dishwasher.

■ Only put rinse aids which are suitable for dishwashers into the rinse aid chamber.

You do not need to add rinse aid to the detergent dispenser

• if you are only using multitabs which already contain rinse aid.
• if the water hardness in your area is in the 0 - 5^ range.

Add rinse aid before first use and when the display * (10) lights up.

As rinse aid is automatically dispensed during operation, it ensures that the dishes are spot-free and accelerates the drying process.

1. Turn the cover of the rinse aid dispenser (19) a quarter turn in an anti-clockwise direction and remove it.
2. Fill the water tank to the "max" mark in the opening. The adjacent display window will then turn black.
3. Wipe away any rinse aid which has spilt immediately so that you don't compromise the rinsing results and to avoid increased foaming.
4. We would recommend that you do not change the dosage that was set by the factory initially. Correct the dosage only if you are not satisfied with the rinsing results (see below).
5. Replace the cover on the opening of the compartment and turn it in a clockwise direction.

Amending the rinse aid dosage

If the dishes are

– dull and stained, increase the dosage by turning the arrow on the rinse aid dispenser (19) to a higher value.
- sticky and smeared, decrease the dosage by turning the arrow on the rinse aid dispenser (19) to a lower value.

Setting the water hardness level

Hard water leads to calcification of the dishwasher, to extra consumption of dishwasher detergent, and to unattractive limescale marks on the cookware. The purpose of the dishwasher salt is to prevent this. You need to set the water hardness level to determine the correct dosage of dishwasher salt. Do this preferably before using the appliance for the first time.

Setting the hardness level

To determine the hardness of the water in your place of residence, you can check on the

– website of your water provider.
– telephone your water supplier.
– purchase the relevant test strip at a pharmacy.

Setting the hardness level

1. Close the dishwasher door.
2. Switch the device on with the On/Off button (2) and start setting the hardness level within one minute of switching on.
3. Hold the Start/Pause button ▶II (12) in until the displays S(9) and ⑩0) blink in sequence.
4. Press the start/pause button (12) as many times as necessary to display the required hardness level.

The relevant hardness level is displayed via the programme displays (3):

Water hardness	°dH	illuminated pro-gramme displays (3)
soft up to 8.4		“Short”
		“1 Hour”
medium 8.5 to 14		“1 hour.” and “Short”
		“Glass”
hard	more than 14	“Glass” and “Short”
		“Glass” and “1 Hour”

1. Around 5 seconds after you push it for the last time, the dishwasher will automatically revert to the normal display.

The hardness level setting is saved.

Adding dishwasher salt

You do not need to add

dishwasher salt to the dishwasher salt dispenser

• if you are only using multitabs which already contain dishwasher salt,
• if the water hardness in your area is in the 0 - 5^ range.

NOTICE

Risk of damage!

You may damage the dishwasher, its stainless steel surface, its seals and fil- ters by using dishwasher salt in an im- proper manner.

■ Only use regenerating salt which is suitable for dishwashers.
■ Always wipe away split dishwasher salt immediately with a damp cloth.
■ Immediately after adding the dishwasher salt, launch a dishwashing programme.

Add dishwasher salt before first use and when the display § (9) lights up.

Line drawing of a refrigerator interior showing compartments and storage areas (no text or symbols)

1. Remove the lower dish rack.
2. Turn the cover on the dishwasher salt dispenser (18) anticlockwise and remove it.

1. Place the supplied filling funnel (b) on the dispenser opening.

2. Fill the dishwasher salt dispenser with 1.5 kg of dishwasher salt. Water may run out during the process; this is not a problem.

3. Stir the dishwasher salt using the end of a spoon or similar.
4. Turn the cover of the dishwasher salt dispenser in a clockwise direction up to the stop point.
5. Replace the lower dish rack.
6. Launch a wash programme straight away or carry out a test run immediately upon first use.

Loading the dishwasher

NOTICE

Risk of damage!

Long objects which protrude from the dish racks may block the spraying arms or damage the seals. The dishes are not sufficiently cleaned.

■ Ensure that long objects are positioned only horizontally in the dish racks.
■ Place dishes in the dish racks in such a way that none of the objects can slip out of the dishwasher when it is next opened or slip out of the dish racks during operation.
■ Use the height adjustment function for the upper dish rack.

• Remove large and stuck-on scraps of food from the dishes so that the sieve and filter do not become blocked.
• Soak dishes with dried-on or burnt-on foods in water before placing them in the dishwasher.
• Position the dishes with the opening to the bottom so that the water can run off (e.g. for glasses).

Unsuitable dishes

The following dishes and crockery are unsuitable for cleaning using a dishwasher as this will damage them.

– Delicate glasses: may become matt and opaque.
- Decorations on dishes/glasses/cutlery: may fade.
– Silver: may tarnish.
– Anodised aluminium: may discolour.
– Tin: may turn matt.
– Wood: may warp and split.
– Horn/heat-sensitive plastic: may become deformed.

– Glued items of cutlery: may come apart.
– Handmade items: may be damaged.
– Electrical components of kitchen appliances such as mixers: may cause an electric shock.

- Observe the instructions in user manuals and data sheets.

Upper dish rack

Use the upper dish rack for small and medium-sized dishes. You can obtain more storage space by folding out the cup storage trays. The upper dish rack is also adjustable in height, so that you can place it further up when there are larger dishes in the lower dish rack.

Unloading the upper dish rack

– The following graphic shows how the upper dish rack is optimally loaded.

1: Cups 4: Small bowl
2: Saucers 5: Medium-sized bowl
3: Glasses 6: Serving bowl

Changing the height of the upper dish rack

If there are larger dishes in the lower dish rack, this can impede the upper spraying arm. Position the upper dish rack at the top in order to prevent this.

Diagram showing a mechanical assembly with a magnified inset of a gear mechanism (no text or symbols)

1. Pull the empty upper dish rack out as far as it will go.
2. Raise the dish rack up at the front and pull it off the telescopic rails.
3. Place the dish rack with the side rollers back onto the telescopic rails:

- Use the lower row of rollers to position the dish rack even higher.

- Use the upper row of rollers to position the dish rack lower.

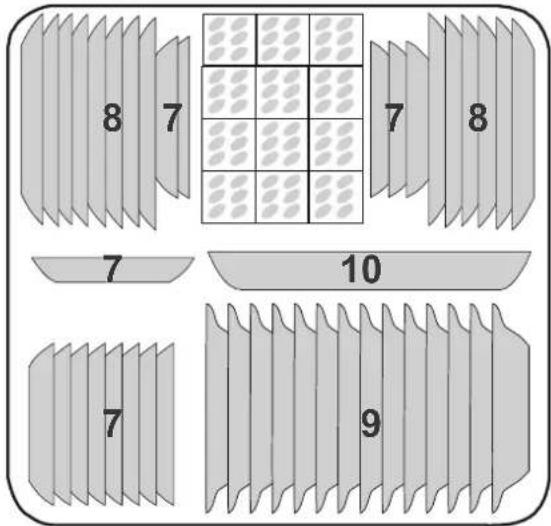

Lower dish rack

Use the lower dish rack for larger dishes such as plates, saucepans and frying pans. The following graphic shows how the lower dish rack is optimally loaded.

7: Dessert plates

9: Soup dishes

8: Flat plates

10: Serving platter

If you wish to put saucepans and frying pans in the dish rack instead of plates you can fold down the spikes at the back.

Cutlery basket

You will achieve optimal cleaning results if you place the cutlery with the handle facing downwards in the cutlery basket. Always place sharp objects with the handle facing upwards in the cutlery basket.

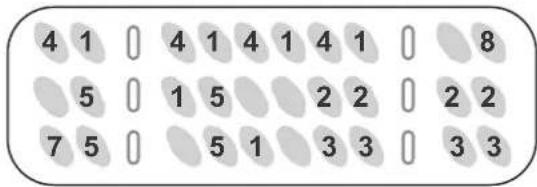

The following graphic shows an ideal way of filling the cutlery basket.

5 5 5

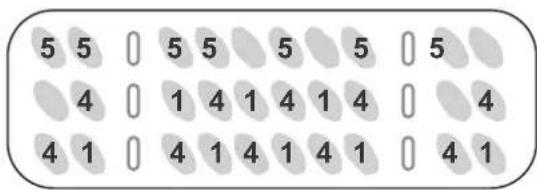

This is the best way to fill the storage rack on the left in the upper dish rack:

The storage rack must not be loaded with more than 1.5 kg.

1: Soup spoon 5: Dessert spoons
2: Forks 6: Serving spoons
3: Knives 7: Serving forks
4: Tea spoons 8: Sauce spoons

Dishwasher programme table

Select the desired dishwasher programme using this table.

Programme overview		Programme sequence 1)				Quantity of dishwasher detergent in [g] 2)	Washing/rinsing temperature in [°C]	Duration in [minutes]	Consumption 3)
Dishwasher programme	Application	Pre-rinse	Rinse	Rinse	Dry				Water [l]	Current [kWh]
Intensive	For heavily soiled dishes, and moderately soiled saucepans and frying pans.	●	●	●●●	●	5/30	60/65	160	18.5	1.50
Normal	Moderately soiled dishes, saucepans and glasses, and lightly soiled frying pans.	●	●	●●	●	5/30	55/65	180	15.0	1.25
ECO 4)	Standard programme ECO: For moderately soiled everyday dishes.	●	●	●	●	5/30	45/65	185	11.0	0.92
Glass	For lightly soiled dishes and glasses.	●	●	●●	●	5/30	40/60	120	14.5	0.85
90 min.	Fast wash for moderately soiled dishes. Notice: The dishes remain slightly damp.	●	●	●●	●	35	65/65	90	12.5	1.35
Short	For slightly soiled glasses and cups as well as dishes without dried-on food scraps. Notice: As the dish-washing programme does not have a drying cycle, the dishes will remain damp.		●	●●	—	25	45/55	30	11.5	0.75

1) • = Number of cycles.

2 Put 5 g of dishwasher detergent into the pre-wash compartment and 30g into the main wash compartment.

^3) The values apply to laboratory conditions; they may vary in day-to-day use.

^4 ECO = standard pro gramme in accordance with DIN EN 50242 with rinse setting: 6, setting for the degree of hardness: H4

Dishwasher operation

Preparation

Requirements:

• You have read chapter „Safety“ from see EN-6 and understand all the safety notices.
  – The appliance is set up and connected as described in chapter „Installation, connection and commissioning“ from see EN-24.
  – Dishwasher detergents, rinse aids and dishwasher salts and multitabs are added.

Select the wash programme and start

1. Open the tap completely.
2. Switch the dishwasher on using the On/Off button (2).
   An acoustic signal sounds and the "On/Off" display (1) lights up.
3. Select the appropriate wash programme (see „Dishwasher programme table“ on page EN-18).
4. Press the programme selection button (4) as many times as required until the desired wash programme lights up in the programme display (3).
5. Press the Start/Pause button (12)▶to start the wash programme.
   While the wash programme is running, the programme display (3) of the selected programme flashes slowly.

Additional options

You can combine the various dishwashing programmes with additional options.

Half load

If you select the option “Half load”, only the cookware in the upper dish rack (13) will be washed. In this case, do not load the lower dish rack (15). “Half load” is a good idea if you have only a few dishes to wash and want to keep water and electricity consumption to a minimum.

• Press the "Half load" button (8). The display (11) lights up, if this additional option is active.

Delayed start time

The dishwashing process normally starts as soon as you press the Start/Pause button (12)▶II. If you want the cycle to begin later, you can specify this.

1. Switch the dishwasher on using the On/Off button (2).
2. Select the desired dishwasher programme using the programme selection button (4).

1. Repeatedly press the Delayed start time button (6), until the display (7) of the desired Delayed start time (3, 6 or 9 hours) lights up.
2. Then start the dishwasher by pressing the Start/Pause button (12) ▶II.
   The Delayed start time countdown starts and the wash programme begins automatically at the set time. The display (7) of the desired Delayed start time will flash.

Subsequently adding dishes

Even if the dishwasher has already started, you can still add dishes. Only add dishes if the current programme has been running for a short time. Otherwise the dishes added will not be washed properly.

CAUTION!

Risk of scalding!

If you open the dishwasher door, hot steam will come out.

• Keep a sufficient distance from the door.
  ■ Never hold your head or upper body directly over the open door.

• Keep children and pets away from the appliance when opening the door.
  ■ Make sure that children do not open the door during operation.

• Press the Start/Pause button (12) ▶II to interrupt the dishwashing programme. The programme display (3) now lights up continuously.

• Open the dishwasher door slightly and wait until the spraying arm has come to a standstill and the steam has dispersed.
• Slowly open the door completely and add the dishes.
• Close the door.
• Press the Start/Pause button again (12) ▶II.
  The dishwasher programme will continue within 10 seconds. The programme display (3) flashes.

An acoustic signal sounds every minute during the interruption of the wash programme.

Changing the dishwasher programme

You can interrupt an active dishwasher programme at any point and start a new one. It is important to find out how long the current wash programme has been running. If the wash programme has been running for a long time, check the dishwasher detergent/multi-tabs dispenser (20) and top up if necessary.

1. Interrupt the wash programme by pressing the Start/Pause button (12) ▶II. The programme display (3) lights up continuously.
2. Press and hold the programme selection button (4) for 3 seconds. The programme displays (3) light up in sequence. You can now make a programme selection.
3. Press the programme selection button (4) as often as required until the wash programme you want lights up. You can find an overview of the wash programme in the "Wash Programme Chart" see EN-18.
4. Press the Start/Pause button (12)▶II The newly selected dishwashing programme will start.

Unloading the dishwasher

CAUTION!

Risk of scalding!

If you open the dishwasher door, hot steam will come out.

• Keep a sufficient distance to the door and do not hold your body or upper body directly above the opened door.
  ■ Make sure that children do not open the door if the programme has only finished a short time ago.
  ■ Only open the door slightly to allow the steam to escape more easily.
  ■ Allow the dishes to cool before unloading the dishwasher.

CAUTION!

Trip hazard!

An open dishwasher door can quickly become a trip hazard.

■ Close the door after every use.
■ Only leave the door slightly open to cool down.

NOTICE

Risk of damage!

■ Make sure that children and pets do not stand on the open door.

After the programme has ended, an acoustic signal will sound lasting several seconds. The programme display (3) lights up continuously.

1. Press the Start/Pause button (12) ▶II to switch off the dishwasher.
2. Close the valve.
3. Leave the door slightly ajar until the dishes have cooled down. Make sure that the dishwasher door does not open wide enough to create a hazard that other people in the household may bang themselves against or trip over.
4. Unload the dish racks (13) and (15) as well as the cutlery basket (14).

i First empty the lower dish rack and then work your way up. This will prevent water from dripping onto the lower dishes when emptying the upper dish rack.

1. Leave the dishwasher door open slightly so that the inside of the dishwasher can cool off and dry.

Care and maintenance

Cleaning the front of the appliance and the door seal

WARNING!

Risk of electric shock!

Improper use of this appliance may lead to electric shocks.

■ Prior to cleaning, switch off the appliance, pull out the mains plug and switch off the fuse.
■ Never spray the device with a water jet (high-pressure cleaner).

NOTICE

Risk of damage!

The seals of the door are sensitive to oil and grease. The door seals can be damaged by unsuitable cleaning agents.

■ Do not use harsh, aggressive, solvent-based or abrasive cleaners.
■ Do not grease the door seals.

If water gets into the lock, the lock and the electric components in the door may become damaged.

■ Use a damp cloth to clean the inner edges of the door.
■ Do not use any cleaning sprays.

1. Wipe the front of the appliance with a damp cloth and some all-purpose cleaning product and wipe it off with a dry towel.

2. Clean the door seal and the inside of the door regularly with a damp cloth.

Cleaning the filters

NOTICE

Risk of damage!

Using the appliance without the filters or with improperly fitted filters can cause the dishwashing performance to be impeded or may damage the device.

■ Prior to launching a dishwashing programme, always ensure that the filters have been correctly installed in the appliance.
■ Clean the filters at least once a week.
■ Clean the fi Iters with care; do not bend them.
■ If you replace the filters, always use genuine replacement parts.

Remove any food scraps out of the coarse filter, the main filter and the fine filter.

1. Empty the lower dish rack and remove it.
2. Turn the coarse filter in an anti-clockwise direction and remove the filters in an upward direction.
3. Clean the filters carefully under running water.
4. Replace the filters and turn the coarse filter in a clockwise direction up to the stop point.

Cleaning the spraying arm

The nozzles in the spraying arm may calcify or become dirty due to food scraps. Check the nozzles regularly and clean them if required.

1. Empty both racks and remove the lower rack.

Line drawing of a kitchen sink with a hand operating the drain (no text or symbols)

1. Pull the lower wash arm up and off.

1. The upper spraying arm is affixed using a bayonet closure. To remove the spraying arm, hold the two serrated bayonet grips (27) still and turn the spraying arm clockwise.

2. Clean the nozzles under running water.

3. Reattach the spraying arms after cleaning. The spraying arms must sit firmly and be able to turn freely.

Complete cleaning

In well-stocked supermarkets and drugstores, you will find special dishwasher cleaning products. Cleaning the appliance using these products takes place when the dishwasher is empty and is very intensive. You should clean the dishwasher in this way from time to time. When doing so, please note the manufacturer instructions on the packaging.

Protection against frost damage

Position the dishwasher in a room which is protected from frost, if possible. If this is not possible, protect the dishwasher against frost as follows. You will need a shallow dish or a pan, and a sponge.

1. Disconnect the mains plug from the socket or switch off the fuse.

2. Close the tap and unscrew the inlet hose (22).

3. Let the water from the inlet hose flow completely into the dish.

4. Remove the (17) filters.

5. Remove the water from the sump floor with the help of a sponge.

Installation, connection and commissioning

Choosing a suitable location

CAUTION!

Risk of injury!

The appliance is heavy and bulky. Improper handling of the appliance may result in injury.

• Seek the help of another person during transport, installation and assembly.
  ■ If a trolley is used to transport the appliance, the appliance must be moved as shown on the packaging.
  ■ Remove all obstacles on the transport route and from the installation location. Close doors and clear away objects lying on the floor.

The planned location must fulfil the following prerequisites:

– The location must be a dry and frost-safe room with a firm ground.
– In order to install the connection pipes, the dishwasher must be positioned near to a washing/dishwashing basin.

Setup

1. Remove cardboard, polystyrene and adhesive strips from the inside of the dishwasher, if you have not already done so.
2. Place the dishwasher in the desired position.

Diagram showing airflow or heat transfer between a fan and a container (no text or symbols)

1. To equalise unevenness in the floor and set up the dishwasher on a level horizontal base, you can screw the four adjustable feet in or out. The adjustable feet have slits around them. Insert a screwdriver and turn the adjustable foot.

Use a spirit level to set up the dishwasher.

Substructure

If you want to assemble your dishwasher under a worktop, please make sure that the worktop is continuous and that it is screwed to the cupboards next to the dishwasher.

Diagram of a mechanical assembly with a lid and base plates, showing bolted connections (no text or symbols)

1. Turn the two screws on the back of the cover plate.
2. Pull the cover plate backwards and remove it.

Simple line drawing of a suspended structure with two upward arrows and label (c), no text or symbols present.

1. Affix the enclosed condensation-protective film (c) to the bottom of the worktop. In this way, you will avoid damage to the work surface as a result of hot steam which may be emitted from the dishwasher if the dishwasher door is left open.
2. Position the dishwasher in the niche as described earlier.

Having the outlet hose connected

! NOTICE

Malfunction!

Failing to connect the appliance correctly may cause malfunctions during operation.

■ Make sure that the waste water can drain freely at any time. To that end, the outlet pipe must have a minimum diameter of 40 mm.
■ Ensure that there are no kinks or damage to the outlet hose.
■ Make sure that the end of the hose is not submerged in the pumped water.
■ Do not extend the outlet hose or replace with another drainage pipe.

You can connect the outlet of the waste water hose in two different ways:

• Connection to a floor drain.
  – Direct connection to the odour seal (siphon) of your washing/dishwashing basin.
  Specific technical measures are required for this. For this reason, only plumbing experts or members of our service team may connect the outlet hose (see see EN-30).
  The outlet hose must be a maximum of 1 m above the floor.

Connecting the inlet hose

! NOTICE

Risk of damage!

The dishwasher is designed for a water pressure of 0.4 to 10 bar (0.04 to 1.0 MPa, 40 to 100 N/cm ^2 ). Water must always be able to run freely into the dishwasher, otherwise this can damage the appliance.

■ If the water pressure is higher than this, install a pressure reducer. If in doubt, enquire about the water pressure with the water supply company.
■ Never connect the appliance to the water tap or the mixing arm of a water heater (continuous flow heater, pressure-free boiler etc.).
■ Ensure that the inlet hose is not kinked and is carefully connected.
- Do not cut through the inlet hose. It contains electrical components. If the inlet hose is damaged, have it repaired by a specialist (see „Service“ on page EN-30).
■ Do not use old or previously installed inlet or outlet hoses.

For water supply, you need a water tap with a 34 inch screw connector.

1. Screw the safety valve's lock nut to the tap hand-tight.

2. Check that the connection to the water tap is sealed. Turn on the water tap slowly and ensure that no water is escaping. Then close the valve again.

Connection for power supply

WARNING!

Risk of electric shock!

Faulty electrical installation or excessive mains voltage may result in an electric shock.

■ Prior to connecting the dishwasher, ensure that you have see EN-6 taken note of all the safety instructions and adhered to them.

Fire hazard!

- Do not use multi-socket plugs, multi-socket extension cables, travel adapters or similar.

- For the electrical connection of the dishwasher, a professional must install an earthed power socket with its own fuse of a sufficient size. (220–240 V\~, 50 Hz / 10 A). - We recommend using a pulse-sensitive residual current device (RCD).

Test run

It is recommended that you carry out a test run before the first dishwasher cycle in order to remove residues from the manufacturing process and in order to ensure that the device functions perfectly.

Carry out this test run when the dishwasher is empty and without any dishwasher detergent. For the procedure, see „Dishwasher operation“ on page EN-19.

If no water escapes during the test run and if there are no unusual noises, the appliance is ready to use.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING!

Risk of electric shock in case of improper repair!

Conducting improper repairs to the dishwasher puts the person carrying out the repairs and the user in danger.

■ Only authorised specialists may repair the dishwasher. If in doubt, contact our service team for this (see see EN-30).
■ Only carry out the actions which are described in this user manual.
- Never repair defective dishwashers – or dishwashers which you presume to be defective – yourself. You can endanger yourself and subsequent users.

NOTICE

Risk of damage!

Improper handling of the dishwasher can lead to property damage and to damage to the dishwasher.

■ If water overflows, close the water supply immediately and do this before contacting the service team (see see EN-30).
■ If the water has overflowed, remove any water standing in the dishwasher before restarting a programme.

Problems with operation

Problem Possible	cause Solution
The dishwasher cannot be switched on.	The mains plug has not been inserted into a socket.	Connect the mains plug to the socket.
	There is no voltage being supplied through the socket.	Check the fuse. Check the socket by connecting another device.
The selected dishwasher programme will not start or it stops.	The dishwasher's door is not closed properly.	Close the dishwasher door.
	The water tap is not properly on.	Turn the water tap on completely.
	The inlet hose is defective.	Contact our service team (see see EN-30).
	There is a risk of overflowing. The electrical water stop system has been activated.
The $ LED (9) is illuminated although dishwasher salt has been added.	The dishwasher salt is clumpy.	Stir the dishwasher salt using the end of a spoon or similar.
The water is not running or it is running only very slowly.	There is a kink in the inlet hose.	Arrange the inlet hose properly so that it is not kinked (see „Connecting the inlet hose“ on page EN-25).
	The water tap is not properly on.	Turn the water tap on completely.
The water is not running off or only very slowly.	The filters are blocked. Clean	the filters (see „Cleaning the filters“ on page EN-22).
	The outlet hose is kinked, has been extended or is hanging too high up/too low.	Lay out the outlet hose in the proper manner (see see EN-24).
The dishwasher is not watertight.	The door seal is defective. Have the door seals replaced (see „Service“ on page EN-30).
	The outlet hose or the inlet hose is defective.	Have the defective hose replaced (see „Service“ on page EN-30).
The dishwasher can be switched on/off, but not cannot be operated.	The dishwasher can only be operated when the door is closed.	Close the door.

The dishwashing results are not satisfactory

Problem Possible	cause Solution
There are residues or streaks on the dishes.	The rinse aid is incorrectly dosed.	Adjust the dispensed dose (see „Adding rinse aid“ on page EN-12).
	There is no dishwasher salt.	Add dishwasher salt (see „Adding dish-washer salt“ on page EN-13).
	The dishwasher salt is clumpy.	Stir the dishwasher salt using the end of a spoon or similar.
The dishes are not completely clean.	There are food scraps which are encrusted onto the dishes.	Soak dirty dishes prior to washing the dishes.
	The dishes have not been stacked optimally.	Stack the dishes in such a way that all parts can be reached by the water jets (see „Loading the dishwasher“ on page EN-15).
	You have selected the incorrect dishwashing programme.	Select the correct dishwashing programme (see „Dishwasher programme table“ on page EN-18).
	The dishwasher detergent is incorrectly dosed.	Use the correct dosage of dishwasher detergent (see „Dishwasher programme table“ on page EN-18).
	The water pressure is too low.	Turn the water tap on completely.
	The spraying arm can not rotate unhindered.	Ensure that no dishes are impeding the motion of the spraying arm.
	The nozzles on the spraying arm are blocked/calcified.	Clean the nozzles (see „Cleaning the spraying arm“ on page EN-23).

Error indicators

Code Cause Solution
○ Glass○ 90 min.● ShortProgramme display “Short” flashes very fast.	Insufficient water inflow.	Turn the water tap on completely.
		Arrange the inlet hose properly so that it is not kinked (see „Connecting the inlet hose“ on page EN-25).
		Ensure that the water pressure is correct. See „Technical specifications“ on page EN-31.
● Glass○ 90 min.○ ShortProgramme display “Glass” flashes very fast.	Water overflow Switch off	the tap. Find the gap in the seal (or have someone find it) and repair the leak (or have it repaired).

Service

In order for us to help you quickly, please tell us:

Name of appliance Colour Order number
Freestanding dishwasher hanseatic WQP12-7609H	white 278 952
	silver 280 285

Advice, order and complaint

Please contact your mail order company's customer service centre if

– the delivery is incomplete,
– the appliance is damaged during transport,
– you have questions about your appliance,
- a malfunction cannot be rectified using the troubleshooting table,
– you would like to order further accessories.

Repairs and spare parts

Customers in Germany

- Please contact our technical service: Telephone [phone] (landline 20 cents/call, mobile max 60 cents/call)

Customers in Austria

- Please contact your mail order company's customer service centre or product advice centre.

Please note:

You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period. Damage resulting from non-compliance with this manual unfortunately cannot be recognised.

Environmental protection

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Packaging

Our packaging is made from environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
Please dispose of packaging in an environmentally friendly manner.

Technical specifications

Item number 278952, 28028	5
Name of appliance	Freestanding dishwasher
Model	WQP12-7609H
Supply voltage / frequency / fuse	220 - 240 V, 50 Hz, 10 A
Rated power 17	60 - 2100 W
Device measurements (Height × Width × Depth with connections)	84,5 cm × 59,8 cm × 55,0 cm
Unloaded weight	39 kg
Depth of flow	max. 100 cm
Water pressure	0,4 - 10 bar

Product fiche concerning Regulation (EU) No 1060/20109

Trade mark	hanseatic
Model identifier 278952	/WQP12-7609H280285 / WQP12-7609H
Rated capacity, in standard place settings for the standard cleaning cycle	13
Energy efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A++
Energy consumption 262 kWh peryear, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard cleaning cycle	0,923 kWh
Power consumption in off-mode	0,45 W
Power consumption in left-on mode	0,49 W
Water consumption 3080 l per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
Drying efficiency class on a scale from G (least efficient) to A (most efficient)	A
The standard programme (ECO) is the standard cleaning cycle to which the information in the label and the fiche relates, that this programme is suitable to clean normally soiled tableware and that it is the most efficient programme in terms of combined energy and water consumption.
Programme time for the standard cleaning cycle	185 min
Duration of the left-on mode	30 min
Airborne acoustical noise emissions	49 dB(A) re 1 pW
Buiit-in appliance	nc

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 50242.
