NPDR340STE - Fridge Norpole - Free user manual and instructions

Product Type	Top-Freezer Refrigerator
Brand	Norpole
Model	NPDR340STE
Width	30 inches (76.2 cm)
Depth	30 inches (76.2 cm)
Height	66 inches (167.6 cm)
Weight	150 lbs (68 kg)
Power Supply	120 V ~ 60 Hz
Energy Consumption	450 kWh per year
Refrigerator Capacity	14.5 cu. ft.
Freezer Capacity	4.5 cu. ft.
Total Capacity	19 cu. ft.
Number of Shelves	4 adjustable glass shelves
Crisper Drawers	2 humidity-controlled crisper drawers
Freezer Shelves	1 wire shelf
Ice Maker	Optional (kit available)
Door Reversibility	Yes, reversible door hinge
Temperature Control	Mechanical thermostat dial
Defrost Type	Manual defrost freezer, auto-refrigerator
Lighting	Interior LED light
Refrigerant	R134a or R600a
Cleaning	Wipe with mild soap and water; avoid abrasive cleaners
Maintenance	Clean condenser coils annually; replace door gaskets if worn
Safety Features	Stable base; anti-tip bracket included
Spare Parts	Available through authorized service centers

Frequently Asked Questions - NPDR340STE Norpole

How do I adjust the temperature on my Norpole NPDR340STE refrigerator?

Locate the thermostat dial inside the refrigerator compartment. Turn it clockwise for colder temperatures and counterclockwise for warmer settings. The optimal setting is typically around the middle position (3-4). Allow 24 hours for temperature to stabilize.

Why is my refrigerator not cooling properly?

Check if the unit is level and has proper ventilation (at least 2 inches clearance on sides and back). Ensure the condenser coils are clean and the door seals are intact. Also verify the thermostat is set correctly. If the problem persists, contact a technician.

How do I change the door swing direction?

The door is reversible. Remove the top hinge cover, unscrew the hinge, and lift the door off. Switch the hinges to the opposite side and reattach the door. Refer to the manual for detailed steps and part numbers.

How often should I clean the condenser coils?

Clean the coils at least once every 6 months to maintain efficiency. Use a vacuum cleaner with a brush attachment or a coil cleaning brush. Ensure the refrigerator is unplugged before cleaning.

What should I do if the interior light is not working?

Replace the LED bulb if it is burned out. If the LED module is faulty, it must be replaced by a qualified technician. Check the door switch as well; if stuck, it may prevent the light from turning on.

Can I install the refrigerator in a garage or outdoors?

This model is designed for indoor use only. Operating temperatures below 50°F (10°C) or above 110°F (43°C) may cause performance issues. Avoid damp or dusty environments.

How do I defrost the freezer?

Turn off the refrigerator and remove all food. Leave the freezer door open to allow ice to melt. Place towels to absorb water. Never use a sharp object to remove ice. Once defrosted, dry the interior and restart the unit.

What type of refrigerant does the Norpole NPDR340STE use?

The refrigerator uses R600a (isobutane) or R134a refrigerant. Check the rating plate inside the refrigerator for the specific type. R600a is flammable, so ensure proper handling during repair.

How can I reduce energy consumption?

Keep the refrigerator away from heat sources and direct sunlight. Ensure door seals are tight. Set the thermostat to recommended levels (37°F fridge, 0°F freezer). Avoid frequent door openings and do not overfill.

Where can I purchase replacement parts?

Replacement parts such as shelves, door bins, and gaskets are available through authorized Norpole parts distributors or online retailers. Use the model number NPDR340STE to find compatible parts.

USER MANUAL NPDR340STE Norpole

Thank you for purchasing a Norpole® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.
2. Registering your product will allow for more efficient warranty service processing when warranty service is required.
3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Norpole product.

TABLE OF CONTENTS

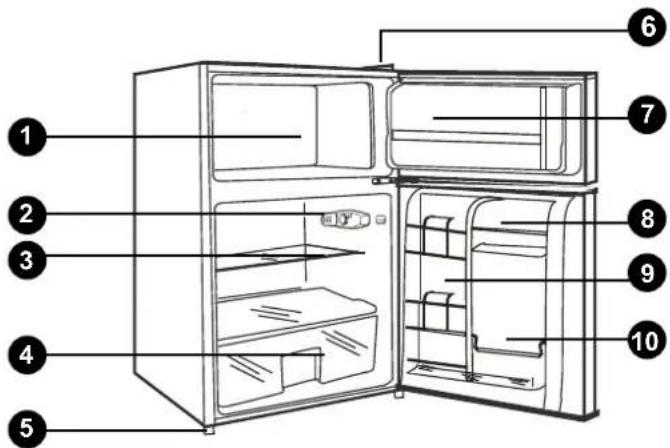

NAMES OF THE PARTS.... 3

SPECIFICATIONS.... 3

IMPORTANT SAFETY INSTRUCTIONS 4 - 5

INSTALLATION INSTRUCTIONS

(1) Freezer Compartment
(2) Temperature Control (with integrated Interior light assembly)
(3) Shelf (Total 1)
(4) Crisper with Glass Cover
(5) Leveling Leg
(6) Top Cover
(7) Freezer Door Bin
(8) Refrigerator Door Bin
(9) Beverage Can Dispenser
(10) 2-Liter Bottle Bin

WARNING: Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frost bite.

SPECIFICATIONS – Model # NPDR340STE

Product Description	Norpole 2 Door Refrigerator
Model No.	NPDR340STE
Capacity	3.4 Cu. Ft.
Unit Dimensions (inches)	Width	Height	Depth
	18.5"	33.0"	22.4"
Net Weight (lbs)	60.6( lbs )

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

Read all instructions before using the refrigerator.DANGER or WARNING: Risk of child entrapment.To avoid the possibility of child entrapment, please take the following precautions before throwing out the refrigerator.Remove all doors from the unit.Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the refrigerator.Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator. The fumes can create a fire hazard or an explosion.-Save these instructions-

WARNING

To reduce the risk of fire, electrical shock, or injury follow these basic precautions when using your refrigerator.

1) WARNING—Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
2) WARNING—Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3) WARNING—Do not damage the refrigerant tubing to increase the risk of a leak when handle, move and use of refrigerator.
4) WARNING—Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
5) WARNING—DANGER: Never allow children to play with, operate, or crawl inside the refrigerator. Risk of child entrapment. Before you throw away your old refrigerator or freezer:
• Take off the doors
- Leave the shelves in place so that children may not easily climb inside.
6) The appliance has to be unplugged before carrying out user maintenance on the appliance.
7) This appliance can be used by children age 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and maintenance should not be made by children without supervision.
8) If the component part is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
9) Please abandon the refrigerator according to local regulations as the unit contains flammable blowing gas and refrigerant.
10) Follow local regulations regarding disposal of the appliance due to flammable refrigerant and blowing gas. All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product.

11) This appliance is intended to be used in household and similar environments such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

12) Do not store or use gasoline or any inflammable liquors and liquids inside or in the vicinity of refrigerator.

13) Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician install an outlet near the appliance. Use of an extension can negatively affect the unit's performance.

Caution: risk of fire

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORIZED SERVICE PERSONNEL TO CARRY OUT SERVICES OR REPAIRS INVOLVING THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

• Remove the exterior and interior packing.
• Before connecting the refrigerator to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation.
  • Clean the interior surface with lukewarm water using a soft cloth. (Cleaning instruction on page 11)

Installing Your Refrigerator

• This appliance is designed to be free standing only, and should not be recessed or built-in.
- Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded.
- Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air ventilation. Adjust the feet to keep the refrigerator level.
- Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 50°F (10°C) or above 85°F (29.4°C) will hinder the performance of this appliance. This unit is not designed for use in a garage or any other outside installation.
- Avoid locating the refrigerator in moist areas.
- Plug the refrigerator into dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center. This unit is not designed to be installed in an RV or used with an inverter.
- After plugging the appliance into a wall outlet, turn the unit on and allow the unit to cool down for 2\~3 hours under before placing food in the refrigerator or freezer compartment.

Electrical Connection

WARNING

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.

This refrigerator requires a standard 115 Volt A.C. \~/60Hz electrical outlet with three-prong ground.

This refrigerator is not designed to be used with an inverter.

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.

If any problems with the appliance persist, please contact our Customer Service Dept. to consult with a representative at 888 775-0202 or visit our website to request warranty service at

www.mcappliance.com.

• Your refrigerator has one control for regulating the temperature. The temperature control is located on the top center of the refrigerator compartment.
• The first time you turn the unit on, adjust the temperature control knob to "COLDEST" and run for at least 2 hours before putting foods inside. This will ensure the cabinet is thoroughly chilled before food is put in.
• The range of the refrigerator temperature control is from position "COLD" the cold to "COLDEST" the coldest. Adjust the temperature control to the setting that best suits your needs. The setting of "●" should be appropriate for home or office refrigerator use.
• Turning the temperature control knob to "OFF" position stops the cooling cycle but does not shut off the power to the unit.

Simple line drawing of a mechanical component with no text or symbols

NOTE:

• If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.
  • Large amounts of food will lower the cooling efficiency of the appliance.
• Do not place the foods on the air outlet, and leave spaces for airflow.
• If you choose to change the thermostat setting, adjust thermostat control by one increment at a time. Allow several hours for temperature to stabilize between adjustments.

Ice Tray

• Recommended temperature control setting for ice making is "COLDEST".
• Fill the ice cube tray (2/3 capacity) with cold water and place the tray on the bottom of the chiller compartment to freeze properly.
• To eject the ice cubes from the tray, place over the ice bucket and twist slightly.
  • Re-set the temperature control to setting "●".

The Freezer Compartment

• This compartment is designed for the long-term storage of frozen food.
- The storage life of frozen foods varies and the recommended storage time should not be exceeded.
- Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

When To Defrost

This unit is not designed to defrost automatically. In order to prevent damage to the interior liner of the unit from excessive frost build-up, please manually defrost the unit every 3 month or when ice / frost is approximately 1/4 " thick inside the freezer compartment.

How To Defrost

Defrost the freezer compartment when the ice / frost are approximately 14 " thick or every 3 months, whichever comes first. Set the thermostat dial to "OFF" to defrost. Remove all contents from the freezer compartment. Leave the freezer door open to allow accumulated ice / frost to melt. Remove large pieces of ice as needed. Do not use hot water or other electric heating devices to melt the accumulated ice. After defrosting, remove accumulated ice / water and wipe the freezer compartment dry with a soft cloth. In the event that the ice is not visibly present in the freezer compartment, please allow the evaporator located behind the freezer wall to completely defrost for approximately 2 hours before restarting the unit. Restart the unit per starting instructions.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

Diagram of a hand holding a circular object through a window frame (no text or symbols)

How To Change The Interior Light

NOTE: All parts removed must be saved to do the reinstallation of the light bulb. Before removing the light bulb, unplug the appliance from the power supply. Failure to do so could result in electrical shock or personal injury.

1. Remove the lamp cover.
2. Unscrew the old bulb and install the new bulb.
3. Re-install the lamp cover.

CHANGING THE REVERSIBLE DOOR

CAUTION: To avoid personal injury to yourself and/or property, we recommend someone assist you during the door reversal process.

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It's better that 2 people handle the unit during assembly.

1) Start by removing the bracket from the bottom of the refrigerator. Unscrew the two screws from the bottom bracket. Remove the foot from opposite side.

Pure technical line drawing of a mechanical bracket or mounting bracket without any text, numbers, or symbols

2) Self-Tapping Screws/Bottom Bracket/Foot

Illustration of mechanical components including screw, pin, and knob (no text or symbols)

3) Slide the door down, away from the hinge pin located on the top of the door

Close-up of a mechanical component with a curved edge and a labeled section (J), no readable text or symbols present.

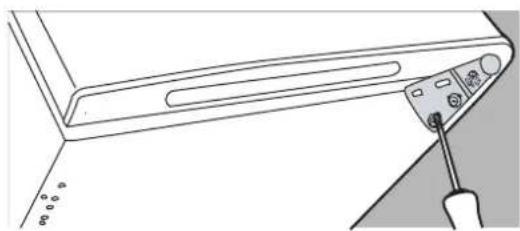

4) Remove the top cover first. Then unscrew the two screws from top bracket and replace on the other side.

5) To install the bracket on the left side of the appliance, screw the two screws through the bracket and into the top of the appliance. Slide the door back on to the top hinge. Ensure the door is face up. Replace the top cover on the top bracket by screw the two screws.

Line drawing of a computer monitor with a screwdriver inserted, showing no text or symbols

6) Screw the bottom hinge into place on the new side. Replace the footon the other side.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

7) Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Readjust the leveling feet.

Simple line drawing of a container with lid and side panel (no text or symbols)

CARE AND MAINTENANCE

Cleaning Your Refrigerator

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
• Turn off the refrigerator first and then unplug the unit from the wall outlet.
• Remove all food content.
• Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
  • The outside of the refrigerator should be cleaned with mild detergent and warm water.
  • Dry the interior and exterior with a soft cloth.

Vacation Time

• Turn off the refrigerator first and then unplug the unit from the wall outlet.
- Remove all the food.
• Clean the refrigerator.
- Leave the door open slightly to avoid possible formation of condensation, mold, or odor.
- Use extreme caution in the case of children. The unit should not be accessible to child's play.
- Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
- Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary or have the door removed.

Moving Your Refrigerator

• Turn off the refrigerator first and then unplug the unit from the wall outlet.
• Remove all the food.
• Securely tape down all loose items inside your refrigerator.
• Tape the doors shut.
• Be sure the refrigerator stays in the upright position during transportation.

Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

TROUBLESHOOTING GUIDE

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service.

PROBLEM	POSSIBLE CAUSE
Refrigerator does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.
Compressor turns on and off frequently.	The room temperature is hotter than normal.A large amount of food has been added to the refrigerator.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator does not have the correct clearances.The refrigerator has recently been disconnected for a period of time. 4 hours are required for the refrigerator to cool down completely.
Temperature inside the refrigerator is too warm.	Temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently. Warm air enters the refrigerator every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.A large amount of warm or hot food might have been stored recently. Wait until the refrigerator has had a chance to reach its selected temperature.The refrigerator has recently been disconnected for a period of time. 4 hours are required for the refrigerator to cool down completely.
Temperature inside the refrigerator is too cold.	Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize.
Temperature of external refrigerator surface is warm.	The exterior refrigerator walls can be as much as 30°F warmer than room temperature. This is normal while the compressor works to transfer heat from inside the refrigerator cabinet.
Popping or cracking sound when compressor comes on.	Metal parts undergo expansion and contraction, as in hot water pipes. This is normal. Sound will level off or disappear as refrigerator continues to run.
Bubbling or gurgling sound, like water boiling.	Refrigerant (used to cool refrigerator) is circulating throughout the system. This is normal.
Vibrations.	Check to assure that the refrigerator is on a level surface.Floor is uneven or weak. Refrigerator rocks on the floor when it is moved slightly. Be sure floor can adequately support refrigerator. Level therefrigerator by putting wood or metal shims under part of the refrigerator.The refrigerator is touching the wall. Re-level the refrigerator and move it from the wall.See “Installation Instructions”.
Moisture forms on inside refrigerator walls.	Weather is hot and humid, which increases internal rate of frost build-up. This is normal.Door is slightly open.Door is kept open too long, or is opened too frequently. Open the door less often.The door is not sealed properly.
Moisture forms on outside of refrigerator.	Door is slightly open, causing cold air from inside the refrigerator to meet warm moist air from outside.
The door will not close properly.	The refrigerator is not on a level surface.The gasket is dirty.

norpole

LIMITED WARRANTY

MC Appliance Corporation warrants each new COMPACT REFRIGERATOR to be free from defects in material and workmanship and agrees to remedy any such defect or to furnish a new part(s) (at the company's option) for any part(s) of the unit that has failed during the warranty period. Parts and labor expenses are covered on this unit for a period of one year from the date of purchase. In addition, MC Appliance Corporation warrants the compressor (parts only) to be free from defects in material and workmanship for a period of 5 years. The consumer is responsible for all labor and transportation expenses related to the diagnosis and replacement of the compressor after the initial one-year warranty expires. In the event that the unit requires replacement or refund under the terms of this warranty, the consumer is responsible for all transportation expenses to return the unit to our factory prior to receiving a replacement unit or refund. A refund or replacement will be issued at the discretion of MC Appliance Corporation. A copy of the dated sales receipt/invoice is required to receive warranty service or a refund. This warranty covers appliances in use within the contiguous United States, Alaska, Hawaii and Puerto Rico. The warranty does not cover the following:

• Damages due to shipping damage or improper installation.
  • Damages due to misuse or abuse.
• Content losses due to failure of the unit.
  • Inside components such as the filter, etc.
• Repairs performed by unauthorized service agents.
• Service calls that do not involve defects in material and workmanship, such as instructions on proper use of the product or improper installation.
• Replacement or resetting of house fuses or circuit breakers.
• Failure of this product if used for purposes other than its intended purpose.
• Disposal costs for any failed unit not returned to our factory.
  • Any delivery or installation costs incurred as the result of a unit that fails to perform as specified.
• Expenses for travel and transportation for product service if your appliance is located in a remote area where service by an authorized service technician is not available.
• The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
• Refunds for non-repairable products are limited to the price paid for the unit per the sales receipt.
• This warranty is non-transferable. This warranty applies only to the original purchaser and does not extend to any subsequent owners.

LIMITATIONS OF REMEDIES AND EXCLUSIONS

Product repair in accordance with the terms herein, is your sole and exclusive remedy under this limited warranty. Any and all implied warranties including merchantability and fitness for a particular purpose are hereby limited to one year or the shortest period allowed by law. MC Appliance Corporation is not liable for incidental or consequential damages and no representative or person is authorized to assume for us any other liability in connection with the sale of this product. Under no circumstances is the consumer permitted to return this unit to the factory without the prior written consent of MC Appliance Corporation. Some states prohibit the exclusion or limitation of incidental or consequential damages, or limitations on implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Model Parts & Labor Compressor (Part Only) Type of Service

NPDR340STE One-Year Five Years Carry In

For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com.

norpole

CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved. Norpole® logo is a registered trademark of CNA International, Inc.

www.mcappliance.com Printed in China

norpole

Line drawing of a double refrigerator with 'norpole' label on top (no other text or symbols)

Modelo NPDR340STE

Simple line drawing of a device with a handle and screen, partially overlapping a flat surface (no text or symbols)

Diagram of a hand operating a device with a circular component, no text or symbols present

Pure technical line drawing of a mechanical bracket or mounting bracket without any text, numbers, or symbols

Illustration of mechanical components including screw, pin, and knob (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a computer monitor with a screwdriver inserted, showing no text or symbols

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Simple line drawing of a container with a handle and side clip (no text or symbols)

GUIDE Y LA CONSERVACION

PARA LIMPIAR SU REFRIGERADOR
