GVW830XLS - Dishwasher Pelgrim - Free user manual and instructions
Find the device manual for free GVW830XLS Pelgrim in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Built-in Dishwasher |
| Brand | Pelgrim |
| Model | GVW830XLS |
| Width | 598 mm |
| Height | 815-875 mm (adjustable) |
| Depth | 570 mm |
| Weight | 45 kg |
| Energy Efficiency Class | A |
| Power Consumption (kWh/year) | 260 |
| Water Consumption (L/year) | 3080 |
| Noise Level | 44 dB(A) |
| Number of Place Settings | 14 |
| Wash Programs | Eco, Intensive, Normal, Quick, Glass, Rinse |
| Additional Features | Delay timer, Half load, Extra dry, Auto door open |
| Electrical Connection | 230 V, 10 A, 50 Hz |
| Safety Features | Child lock, Anti-flood system, Leak protection |
| Maintenance | Clean filter, Use rinse aid, Descaling |
| Spare Parts Availability | Online via Pelgrim or authorized dealers |
| Warranty | 2 years |
| Installation Type | Built-in under counter |
Frequently Asked Questions - GVW830XLS Pelgrim

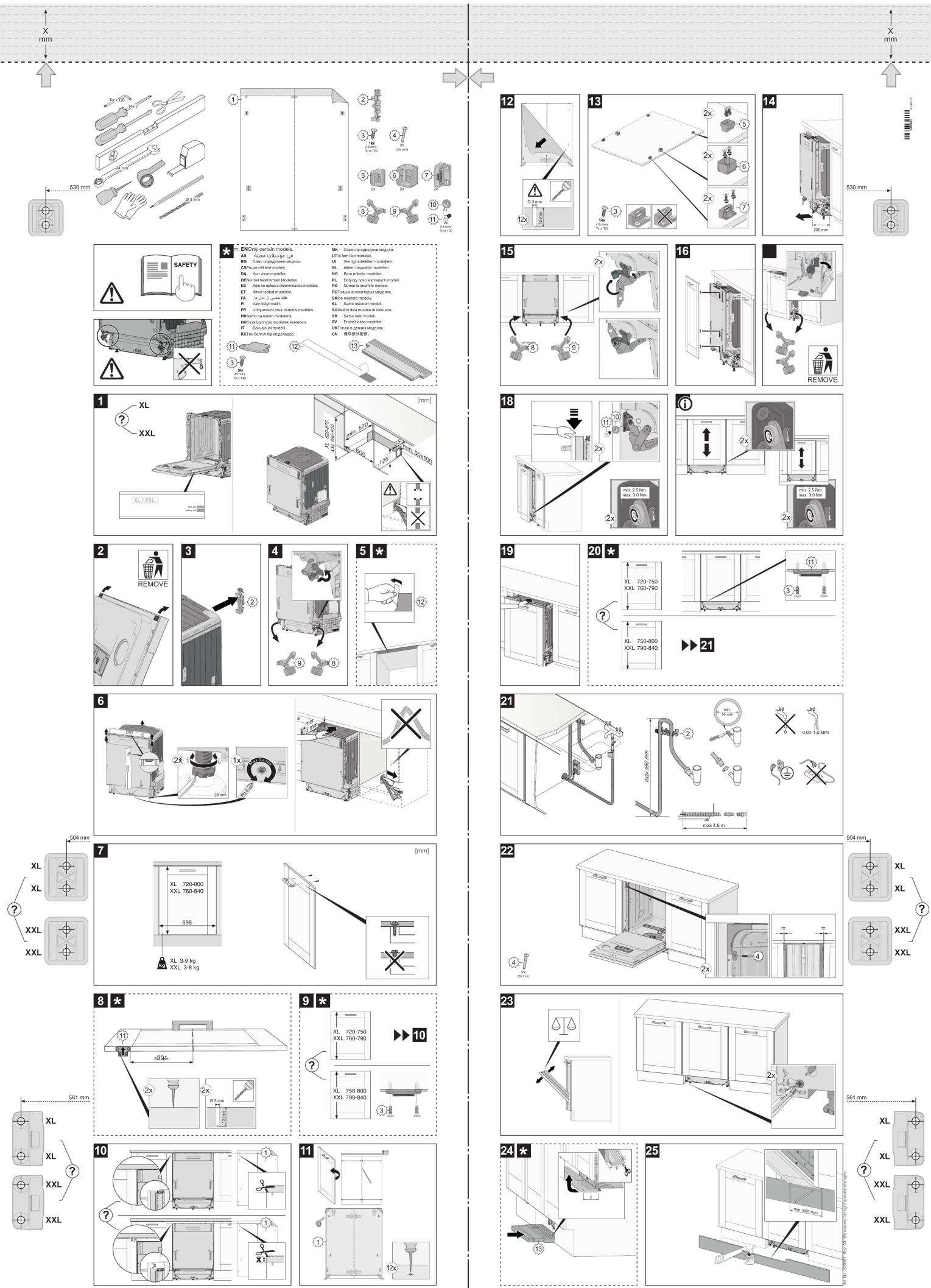

How do I install the Pelgrim GVW830XLS dishwasher?
Installation should be done by a qualified technician. Ensure the water supply and drain are properly connected, and the electrical outlet is grounded. Follow the user manual for detailed steps.
What are the available wash programs?
The GVW830XLS offers Eco, Intensive, Normal, Quick (30 min), Glass, and Rinse programs. Eco is the most energy-efficient.
How do I clean the filter?
Turn off the dishwasher, remove the lower spray arm, unscrew the filter assembly, rinse under running water, and replace securely. Clean monthly.
Why is my dishwasher not drying dishes?
Ensure rinse aid is filled and the 'Extra Dry' option is enabled. Check that the hot water temperature is at least 50°C. The auto door open feature helps drying.
How do I activate the child lock?
Press and hold the 'Hygiene' button for 3 seconds until the lock symbol appears. To deactivate, repeat the same procedure.
What does the error code E20 mean?
Error E20 indicates a drainage issue. Check the drain hose for kinks or blockages, and clean the filter. If persists, call service.
Can I use regular dish soap?
No, only use dishwasher detergent (powder, gel, or tablets). Regular dish soap will cause excessive suds and damage the machine.
How much water does it consume?
The Pelgrim GVW830XLS uses about 9 liters per cycle on the Eco program, totaling approximately 3080 liters per year.
How do I adjust the height of the upper basket?
Unlock the upper basket rails, lift or lower the basket to the desired height, and re-engage the locks. Refer to the manual for detailed steps.
Where can I find spare parts?
Spare parts are available through Pelgrim's official website or authorized dealers. Use the model number GVW830XLS to ensure compatibility.
User questions about GVW830XLS Pelgrim
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
