USER MANUAL ST-MW1171 Saturn

White Saturn microwave oven with black lid and control knobs (no visible text or symbols on main body)

MICROWAVE OVEN

Dear Buyer!

We congratulate you on having a. the oven cavity is impacted or bought the device under trade pressured. name "Saturn". We are sure that the door is not flat; the switch is our devices will become fast enough and flexible. and reliable assistance in your c. the metal insulated mesh on the housekeeping.

Avoid extreme temperature

changes. Rapid temperature change (e.g. when the unit is moved from freezing temperature to a warm room) may cause condensation inside the unit and a malfunction when it is switched on. In this case leave the unit at room temperature for at least 1.5 hours before switching it on. If the unit has been in transit, leave it indoors for at least 1.5 hours before starting operation.

Please read this booklet carefully before fixing and using, and keep it for future reference.

1. Remove the packaging and take out the distance limiter from accessory in microwave oven (some models have been installed already), unlock the power cord, according to the specific shape of distance limiter, install by following the given instruction. The purpose of the distance limiter is to make the microwave oven to keep a certain distance from the wall.

2. Take out all the packing. Carefully check whether there is damage to the microwave oven, such as:

a. the oven cavity is impacted or pressured.

t h a the door is not flat; the switch is anot辐ooth and flexible. ur c. the metal Insulated mesh on the door is bended or deformed.

d. the power cord is loose. IF IT IS FOUND ABOVE, CONTACT YOUR NEAREST SERVICE CENTER APPROVED. 3. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.

1. to ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm.

2. The position of the oven shall be far from the TV, Radio or antenna to avoid disturbance, the distance at least more than 5 m.

3. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.

4. The microwave oven shall not be placed in a cabinet.

5. The back of the oven must be placed against a wall.

UTENSILS GUIDELINE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic are suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Material of container	Micro-wave	Notes
Heat-resistant ceramic		Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic		Can not be used for long time microwave cooking
Heat-resistant glass
Plastic film		It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Metal container	No	It should not be used in microwave oven.Microwave can not penetrate through metal.
lacquer	No	Poor heat-resistant.Can not be used for High-temperature cooking
bamboo, wood and paper container	No	Poor heat-resistant.Can not be used for High-temperature cooking

FOR THE FIRST USE

Due to the possible presence of manufacturing residue or oil in the oven cavity or heating element, it usually would smell the odor, even a slight smoke; It is normal case and would not occur after several times use .keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the turntable, setting at high power and operate for several times.

IMPORTANT SAFETY INSTRUCTIONS

When using Microwave oven, the following precautions must be observed:

1. Read all instructions before using and keep it for future reference.

2. Only use utensils that are suitable for use in microwave ovens.

3. The minimum height of free space necessary should be at least 20mm above the top surface of the oven.

4. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded. As a result of strong current please uses the dedicated sockets and not shared with other normal sockets to avoid overloading and causing fire.

5. The microwave oven for home heating and cooking food and design, please do not use for industrial and commercial.

6. Do not cover the ventilation openings to avoid damage to the oven because of the over-temperature.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable explode.

8. To reduce the risk of cavity:

a. Do not heat food in sealed and do not overcook the food

b. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

c. Do not heat oil or fat for deep drying as the temperature of oil can not be controlled.

d. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire

e. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

f. Close supervision is necessary when using any one-off containers made from plastic, paper or other combustible material.

g. When cooking the food with less moisture content or not heat-resistant container, please use low power to avoid burning.

1. To reduce the risk of explosion and sudden boiling:

a. Do not place sealed containers in the oven. Baby bottles fitted with a screw cap or teat are considered to be sealed containers.

b. When boiling liquid in the oven, use the wide-mouthed container and food at the top of the container must stay away enough space from the mouth to avoid the food spilled boiling.

c. Potatoes, sausage and chestnut should be peeled or pierced before cooking.

d. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handing the container.

e. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

f. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

1. WARNING: If the door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

2. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.

3. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.

4. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face and hands.

5. To prevent the turntable from breaking:

a. Let the turntable cool down before cleaning.

b. Do not place hot foods or utensils on the cold turntable.

c. Do not place frozen foods or utensils on the hot turntable.

d. Make sure the utensils and turntable do not touch the interior walls during working.

1. Do not store food or any other things inside the oven.

2. Do not operate the oven without

any liquid or food inside the oven. Operate without anything would do damage the oven.

1. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

2. WARING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. Power rated voltage range ± 10% fluctuation, microwave oven can work in proper. However, the output power will affect the working time. Therefore, you can adjust the cooking time according to the actual situation.

4. WARNING—Microwave Radiation.

5. Any accessories not recommended by the manufacturer may cause injuries to appliances or persons.

6. After using, unplug the power cord, make sure not to put the power cord directly above the cover, or close to the fire and submerged in water.

7. Do not try to cook any food with the oven door opening.

8. Microwave oven has microwave source and high pressure, and there is no structure for user to adjust. Never remove the out cover.

9. Do not use outdoors.

10. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

11. Details for cleaning door seals, cavities and adjacent parts.

12. The oven should be cleaned regularly and any food deposits removed.

13. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

14. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation

15. WARNING: Accessible parts may become hot during use. Young children should be kept away.

16. Do not operate the microwave oven without the rotating ring and glass turntable.

17. Do not beat the control panel or it

will be unworkable. 34. Children should be supervised to ensure that they do not play with the appliance. 35. The lamp inside the product is used for lighting of the product. This lamp is not suitable for household room illumination. 37. Device Group 2 Class B This device is a Group 2 because it intentionally produced the radio frequency energy to treat the material and is intended to be used in a local home or a facility connected directly to the distribution of electricity at low voltage supplying domestic premises (Class B).

Household use only
Product description

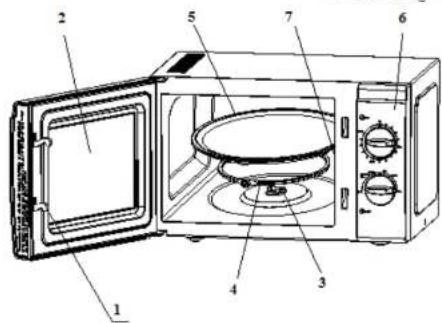

1) Door lock Microwave oven door must be properly closed in order for it to operate. 2) Viewing window Allow user to see the cooking status. 3) Rotating axis The glass turntable sits on the axis, the motor underneath it drives the turntable to rotate. 4) Rotating ring The glass turntable sits on its wheels, it supports the turntable and helps it to balance when rotating. 5) Turntable The food sits on the turntable, its rotation during operation helps to cook food evenly.

8) Never remove the waveguide cover.

• Place the rotating ring first, and then
• Fit the turntable onto the rotating axis and make sure that it is geared in properly. 6) Control panel See below in details (the control panel is subject to change without prior notice). 7) Waveguide cover It is inside the microwave oven, next to the wall of control panel, please see figure below.
• Place the rotating ring first, and then
• Fit the turntable onto the rotating axis and make sure that it is geared in properly.
  6) Control panel
  See below in details (the control panel is subject to change without prior notice).
  7) Waveguide cover
  It is inside the microwave oven, next to the wall of control panel, please see figure below.

1) Timer - The max cooking time length that can be set is 30 minutes. - Each setting is 2 minutes. - A bell ring will be heard when the timer times out and returns to Zero position. 2) Function / Power knob There are 6 power levels:

High	100% power output	(Quick cooking)
M.High	85% power output	(Normal cooking)
Med	66% power output	(Slow cooking)
M.Low	40% power output	(Brinks or soup)
Defrost	37% power output	(Defrost)
Low	17% power output	〈Keep warm〉

The following table provides a reference defrost time length for various food:

	WEIGHT RANGE	DEFROST LENGTH
Meat	0.1~1.0kg	1:30~26:00
Poultry	0.2~1.0kg 2:30~22:00
Seafood	0.1~0.9kg	1:30~14:00

OPERATION 1) Connect the cord

- Before connecting the cord, make sure the timer is set to "0" position. - Do not block the ventilation. 2) Place the food on the glass turntable and close the door.

- Food must be contained in a utensil. 3) Select the desired power level. 4) Set the timer.

If desired time is less than 10 minutes, turn the timer knob to over 10 minutes position and then turn back to the desired time setting.
5) Once the desired time is set, the cooking begins. If pausing in between is needed, just open the door at any time, and close resume operation.
6) When it times out and cooking ends, the microwave oven produces a be ring, the inside lamp will also be automatically turned off.

7) If food is removed before time out, make sure to set back the timer to "0" position, this avoids the microwave oven from operating in empty load.

DEFROST TIPS

Microwave penetrates around 4cm into most food, to maximize defrosting effect, the followings are advised: 1) For thick and chunky food, turn the food regularly during operation in order to obtain uniform heating effect 2) If food is over 0.5 Kg, it is advised to turn at least 2 times. 3) Defrosted food should be consumed as soon as possible, it is not advised to put back to fridge and freeze again.

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns. Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking. Allow standing time After cooking times out, leave the food in the oven for a adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner.

Whether the food is done Color and hardness of food help to determine if it is done, these include: Steam coming out from all parts of food, not just the edge Joints of poultry can be moved easily Pork or poultry shows no signs of blood Fish is opaque and can be sliced easily with a fork

Browning dish When using a browning dish or self-heating container, always place a heat resistant insulator such as a porcelain plate under it to prevent damage to turntable and rotating ring. Microwave safe plastic wrap When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt.

Microwave safe plastic cookware Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish Instruction manual must not be exceeded.

CLEANING & MAINTENANCE Warnings:

1. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
2. Remove the power cord from the wall outlet before cleaning.
3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that co adversely affect the life of the appliance and possibly result in a hazardous

situation.

1. The oven should be cleaned regularly and any food deposits removed.
2. Details for cleaning door seals, cavities and adjacent parts.
3. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.
4. Do not remove the waveguide cover.

TIPS for cleaning:

Exterior:

Wipe the enclosure with a dampened soft cloth.

Door:

Using a dampened soft cloth, wipe clean the door and window.
Wipe the door seals and adjacent parts to remove any spill or spatter.
Wipe the control panel with a slightly dampened soft cloth.

Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth.
Wipe clean the waveguide cover to remove any food splashed.

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water. Rinse with clean water and allow drying thoroughly.

Servicing

Please check the following before calling for services.

1. Place one cup of water (approx. 150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1

2. Does the oven lamp light?

3. Does the cooling fan work? (Put your hand over the rear ventilation openings.)

4. Does the turntable rotate? (The turntable can rotate clockwise or counterclockwise. This is quite normal.)

5. Is the water inside the oven hot? If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box.

If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

couldCaution: MICROWAVE RADIATION

WARNING: It is hazardous for

anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy.

WARNING: The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.

During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth. 1.Magnetron
2. High voltage transformer
3. High voltage capacitor
4. High voltage diode
5. High voltage fuse

The following conditions may cause undue microwave exposure during servicing. Improper fitting of magnetron; Improper matching of door interlock, door hinge and door; Improper fitting of switch support; Door, door seal or enclosure has been damaged.

IMPORTANT SAFEGUARDS

--- WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; --- WARNING: It is hazardous for anyone, other than a qualified service technician, to carry out any service for repairing operation which involves removal of any cover which gives protection against exposure to microwave energy. --- WARNING: Liquids or other foods must not be heated in sealed containers since they are liable to explode; --- WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Technical Data:

Power Consumption: 1150 W Microwave Power: 700 W Rated Voltage: 220-230 V Rated Frequency: 50 Hz Rated Current: 5.2 A Capacity: 17 L 6 Microwave Power Levels Signal Timer: 30 min.

Set

MICROWAVE OVEN 1 INSTRUCTION MANUAL WITH WARRANTY BOOK 1 PACKAGE 1

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal

center. The manufacturer reserves the right to change the specification and design of goods.

RU

МИКРОВОЛНОВАЯ ПЕЧЬ

ВНИМАНИЕ

УВАГА

INTERNATIONAL MANUFACTURER'S R A W

The Warranty is provided for the period of 2 years or more if the Law on User Right of the country where the appliance was bought provides for a greater minimum warranty period.

All terms of warranty comply with to the Law on Protection of the Consumer Rights and are governed by the legislation of the country where the product was bought.

The warranty and free of charge repair are provided in any country where the product is delivered to by Saturn Home Appliances or authorized representative thereof, and where no restriction of import or other legal provisions interfere with rendering of warranty services and free of charge repair.

Cases uncovered by the warranty and free of charge repair:

1. Guarantee coupon is filled in improperly.
2. The product has become inoperable because of the Buyer's nonobservance of the service regulations indicated in the instruction.
3. The product was used for professional, commercial or industrial purposes (except for the models, specially intended for this purpose that is indicated in the instruction).

4. The product has external mechanical damage or damage caused by penetration of the liquid inside, dust, insects and other foreign objects.

5. The product has damages caused by non-observance of the rules of power supply from batteries, mains or accumulators.

6. The product was exposed to opening, repair or modification of design by the persons, unauthorized to repair; independent cleaning of internal mechanisms etc. was made.

7. The product has natural wear of parts with limited service life, expendables etc.

8. The product has deposits of scale inside or outside of fire-bar elements, irrespective of used water quality.

9. The product has damages caused by effect of high (low) temperatures or fire on non-heat resistant parts of the product.

10. The product has damages of accessories and nozzles which are included into the complete set of product shipment (filters, grids, bags, flasks, cups, covers, knifcs, scaling rings, graters, disks, plates, tubes, hoses, brushes, and also power cords, headphone cords etc.).

On the warranty service and repair, please contact the authorized service centers of "Saturn Home Appliances".

CZ

MEZINÁRODNÍ ZÁRUKA

When purchasing the product, please require its checking before you;

BE SURE

that the goods sold to you, are functional and complete and that the warranty coupon is filled in correctly.

This warranty coupon confirms the absence of any defects in the product you purchased and provides for free of charge repair of the product failed through the fault of the manufacturer throughout the period of warranty service and free of charge repair.

Failing the presentation of this coupon, in case of its improper filling in, infringement of factory scans (if any), and also in cases indicated in the warranty obligations, the claims are not accepted, and no warranty service and free of charge repair is made! The warranty coupon is valid only in the original copy with the stamp of trading organization, signature of the seller, date of sale and signature of the buyer.

ZÁRUČNÍ LIST

Při koupi výrobku
