Product Type	Steam Iron
Brand	Sunbeam
Model	Euro Press 4045
Dimensions (L x W x H)	30 cm x 15 cm x 20 cm
Weight	1.5 kg
Power Supply	120 V, 60 Hz
Power Consumption	1400 W
Water Tank Capacity	250 ml
Soleplate Material	Stainless Steel
Cord Length	2 m
Steam Output	Continuous steam up to 30 g/min
Spray Function	Yes
Temperature Control	Adjustable thermostat
Auto Shut-Off	Yes, after 8 minutes of inactivity
Anti-Drip System	Yes
Self-Cleaning	Yes
Maintenance	Descale regularly with vinegar solution
Safety Features	Auto shut-off, heat-resistant handle, stable heel rest
Spare Parts Available	Soleplate, water tank, steam nozzle, drip tray
Repairability	User-replaceable water tank and soleplate; professional repair for electrical parts
Recommended Use	Household ironing of fabrics

Frequently Asked Questions - Euro Press 4045 SUNBEAM

How do I fill the water tank on my Sunbeam Euro Press 4045?

Unplug the iron and open the water tank cap. Fill with clean tap water or distilled water up to the MAX mark. Do not overfill.

What type of water should I use?

Use distilled or demineralized water to prevent mineral buildup. Tap water can be used but may require more frequent descaling.

How do I set the temperature?

Rotate the temperature dial to match the fabric type. Follow the label on your garment: low for synthetics, medium for wool, high for cotton/linen.

Why is my iron not producing steam?

Ensure the water tank is filled and the temperature is set to a high enough setting for steam. Wait for the iron to heat up (the light will turn off). Also check that the steam button is activated.

How do I use the spray function?

Press the spray button (located on the handle) to mist water directly onto the fabric. This is useful for setting wrinkles or dampening difficult areas.

How does the auto shut-off work?

If the iron is left upright and stationary for 8 minutes, or left on its soleplate for 30 seconds, it will automatically shut off. Lift or move the iron to reactivate.

How do I clean the soleplate?

Unplug and let cool. Use a damp cloth with mild soap to wipe the soleplate. For stubborn residue, use a non-abrasive cleaner or a soleplate cleaning stick.

How often should I descale the iron?

Descale every 1-3 months depending on water hardness. Use a mixture of equal parts white vinegar and water, fill the tank, steam until empty, then rinse with clean water.

Can I use the iron vertically?

Yes, the Sunbeam Euro Press 4045 can produce steam in a vertical position for steaming hanging garments or curtains. Ensure the temperature is on a high steam setting.

Where can I get spare parts?

Spare parts such as the soleplate, water tank, and drip tray are available from Sunbeam authorized dealers or online parts retailers. Check your user manual for part numbers.

USER MANUAL Euro Press 4045 SUNBEAM

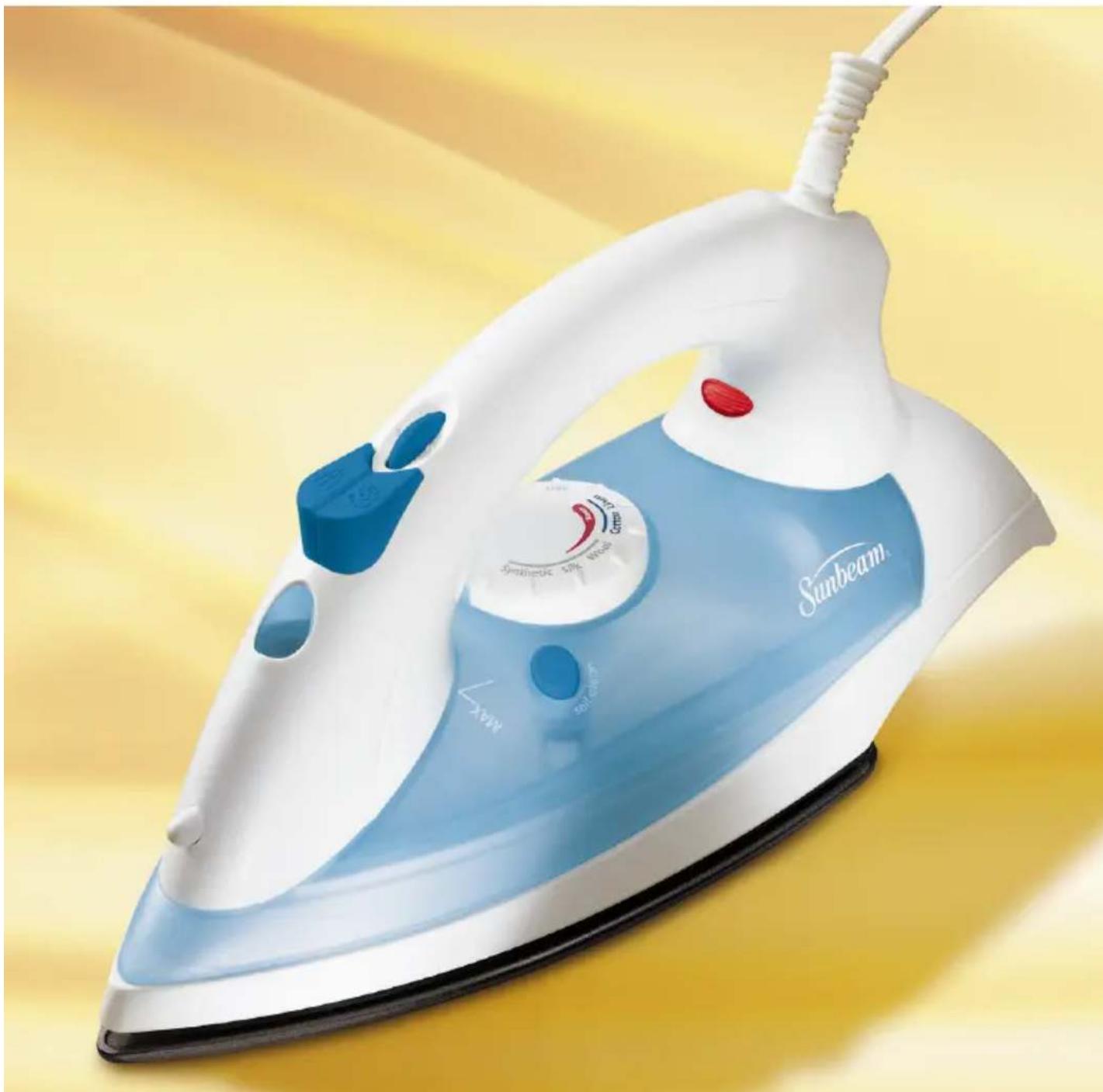

Illustration of a Sunbeam iron with blue and white casing, no text or symbols on the device itself

IMPORTANT SAFEGUARDS

When using your iron, basic safety precautions should always be followed, including the following:

- READ ALL INSTRUCTIONS BEFORE USE.

- Use iron only for its intended use.

- To protect against risk of electric shock, do not immerse the iron in water or other liquids.

- The iron should always be turned to “OFF” before plugging or unplugging from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.

- Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.

- Always disconnect iron from electrical outlet when filling with water or emptying and when not in use.

- Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to an authorized service center for examination and/or repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.

- Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.

- Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down – there may be hot water in the reservoir.

• If the iron is not operating normally, disconnect from the power supply and have the iron serviced by an authorized service center.
• Your SUNBEAM ^ iron is designed to rest on the heel rest. Do not leave the iron unattended. Do not set the iron on an unprotected surface, even if it is on its heel rest.

SPECIAL INSTRUCTIONS

• This is a 1400-Watt appliance. To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.
• If an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

For products purchased in the United States and Canada only

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

SAVE THESE INSTRUCTIONS

Table of Contents

Welcome 3

Learning About Your Iron 4

Filling the Water Reservoir 5

Ironing 6

Dry Ironing 6

Steam Ironing 6

Using the Iron's Special Features .... 7

SPRAY MIST® (select models only) ..... 7

SHOT OF STEAM ^® (select models only). 7

Vertical Steam (select models only). 8

Patented MOTION SMART® Auto-Off ..... 9

Caring for Your Iron After Use .... 10

Turning Off Your Iron 10

Storing Your Iron 10

Maintaining Your Iron....11

Cleaning the Soleplate 11

Using the Self-Cleaning Feature ..... 11

Ironing Tips and Guide .... 14

Ironing Tips 14

Ironing Guide 15

One-Year Limited Warranty 16

How to Obtain Warranty Service .... 16

Congratulations on your purchase of a SUNBEAM® Iron!

Sunbeam has designed your iron to provide the utmost in quality, ease of use and convenience. Sunbeam offers you an iron to fit your lifestyle:

This EURO PRESS™ SUNBEAM® iron offers the following features:

• SPRAY MIST ^ (select models only) – Provides a fine mist of water to dampen fabrics for creases or to remove wrinkles from heavy fabrics.
• 360° Tangle-Free Cord – Keeps the power cord off of the fabric and out of your way, whether you are right or left handed.
• Self-Cleaning – Prevents mineral build up that can reduce the life of your iron.
• Large Water Fill Hole – Allows you to fill the water reservoir faster while reducing water spills and drips.
• Accepts Tap Water – Eliminates the necessity of keeping distilled water on hand for ironing.
• Patented MOTION SMART ^ Auto-Off – Automatically turns the iron off if it is not moved after 15 minutes in the upright position or after 30 seconds in the ironing position.
• Power Indicator Light – Lights steadily to let you know the iron is plugged in; blinks to let you know that the patented MOTION SMART™ Auto-Off has activated; and is unlit when the iron is unplugged.
• Vertical Steam (select models only) – Functions like a garment steamer to remove wrinkles from hung garments or drapes.
• Longer Power Cord (select models only) – Provides 12 feet of power cord to give you added flexibility when ironing.
• SHOT OF STEAM ^ (select models only) – Offers a powerful burst of steam for removing stubborn wrinkles.

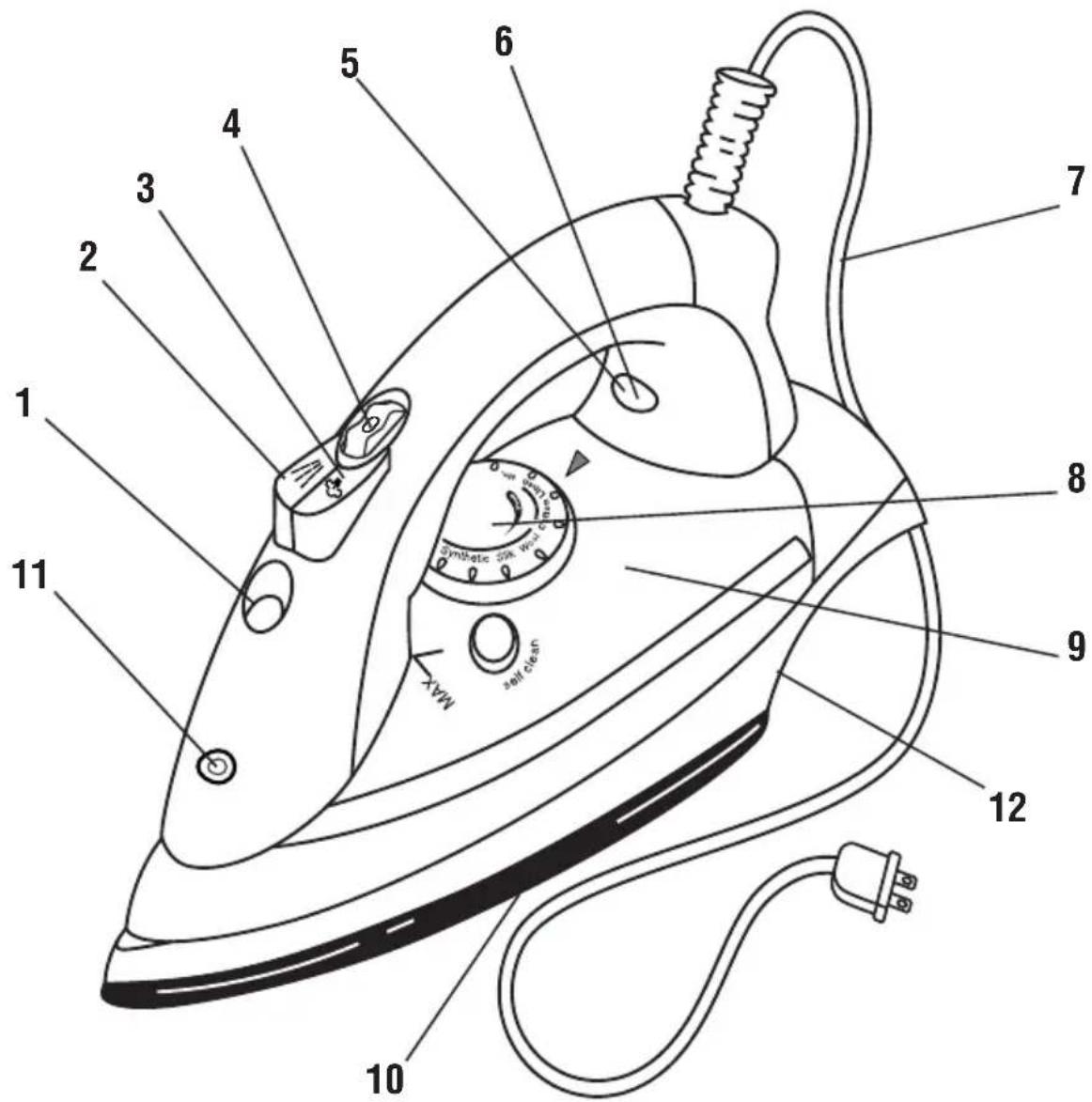

Learning About Your EURO PRESS™ Iron

1. Water Fill Hole
2. SPRAY MIST® Button (select models only)
3. SHOT OF STEAM ^® Button (select models only)
4. Steam Dial
5. Power Indicator Light
6. Patented MOTION SMART ^® Auto-Off Indicator Blinking Light
7. 360° Tangle-Free Swivel Cord
8. Fabric Select Dial
9. See-Through Water Reservoir
10. Stainless Steel Soleplate
11. SPRAY MIST® Release (select models only)
12. Cord Wrap

Filling the Water Reservoir

You must fill the water reservoir with water to use the SHOT OF STEAM® and SPRAY MIST® features and to get steam out of your iron.

Tip: SUNBEAM® tests each iron at the factory to ensure that they function correctly. The test may leave a small, harmless amount of water within the water reservoir.

Before you fill the water reservoir, please consider the following:

• While this iron was designed for use with tap water, very hard water will reduce the performance of the iron. If your water is very hard, SUNBEAM® recommends that you use tap water the first time, then consider using demineralized or distilled water for subsequent use. You should use tap water once a month, however, to maintain the iron's optimal steam performance.
• Do not use water that has passed through a home water softening system. This type of water contains minerals that will decrease the performance and shorten the life of your iron. Use demineralized or distilled water, instead.

Important: When not ironing, always set the Steam Dial to ZERO and the Fabric Select Dial to MIN.

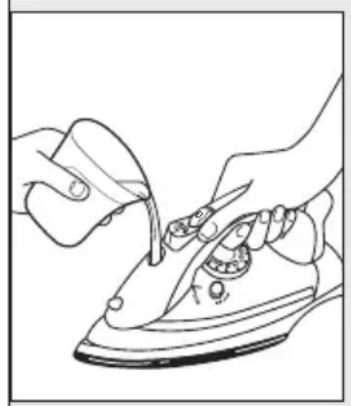

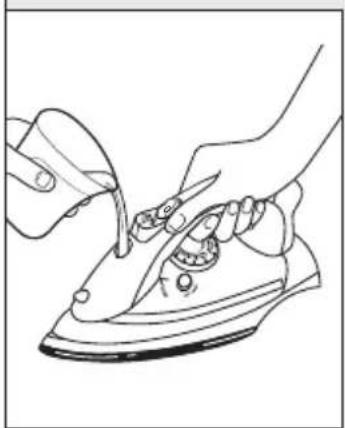

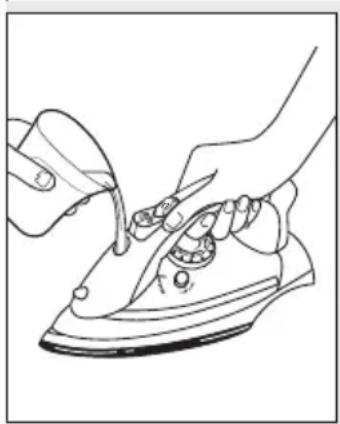

To fill the water reservoir:

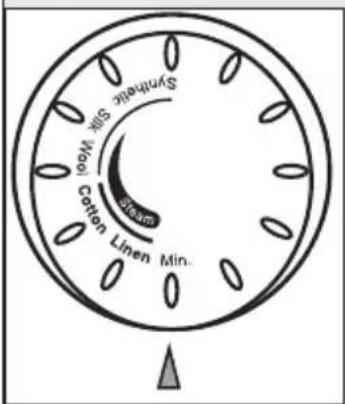

1. Make sure the iron is unplugged. Set the Steam Dial to ZERO and the Fabric Select Dial to MIN.
2. Fill water cup with water. Pour water into iron water reservoir. Do not fill water reservoir beyond maximum fill level.

WARNING: To prevent the risk of burns, be careful when filling a hot iron with water. Hot metal parts, hot water and steam can cause injuries.

Simple line drawing of a hand holding a device with a handle and label (no text or symbols)

Line drawing of hands ironing a steamer (no text or symbols)

Dry Ironing

1. Make sure that the Steam Dial is set to ZERO.

2. Plug the cord into a 120 volt AC outlet.

The Power Indicator will light.

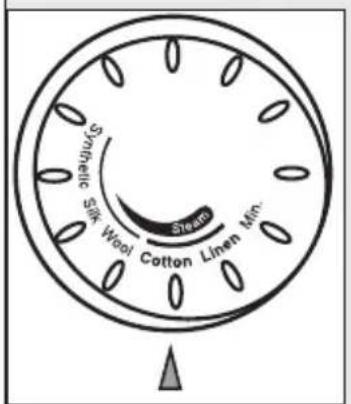

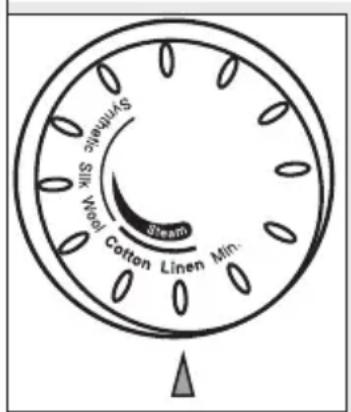

1. Turn the Fabric Select Dial to the dry ironing fabric setting you desire and allow the iron to heat for 2 minutes. While the iron is heating, make sure it is sitting on its heel rest on a stable, protected surface.

Tip: Refer to the Ironing Guide on Page 15 for the recommended setting for your fabric.

Steam Ironing

1. Follow the instructions for "Filling the Water Reservoir" on Page 5.

2. Plug the cord into a 120 volt AC outlet.

The Power Indicator will light.

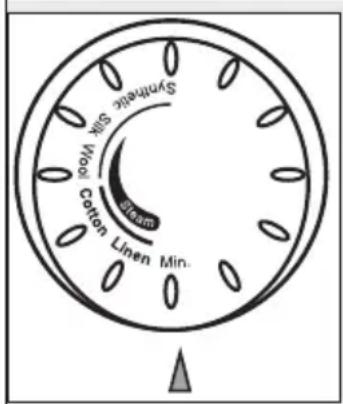

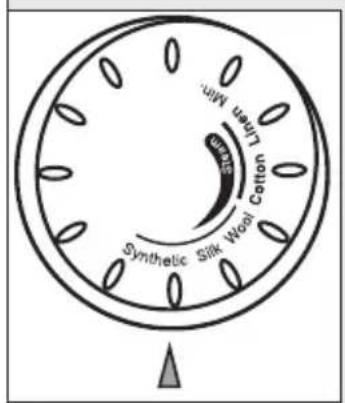

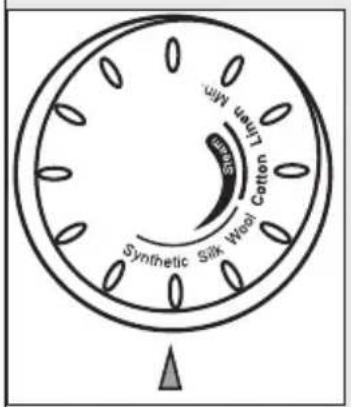

1. Turn the Fabric Select Dial to the steam ironing fabric setting you desire (Linen, Cotton, Wool or Silk) and allow the iron to heat for 2 minutes. While the iron is heating, make sure it is sitting on its heel rest on a stable, protected surface.

Tip: Refer to the Ironing Guide on Page 15 for the recommended setting for your fabric.

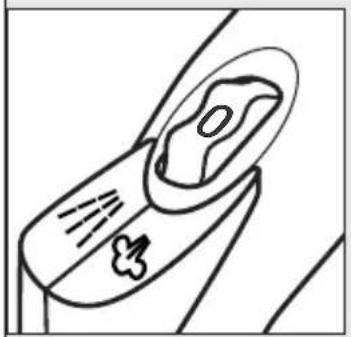

1. After the iron has heated (2 minutes), turn the Steam Dial to desired steam setting.

Simple line drawing of a medical or laboratory device with no text or symbols

Using the Ir on's Special Features

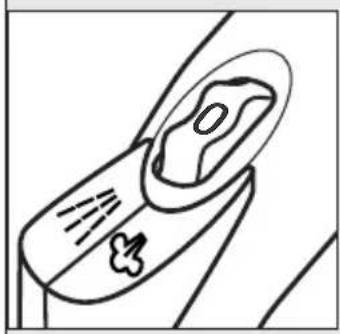

SPRAY MIST® (select models only)

The SPRAY MIST ^® feature dampens the fabric to aid in removing wrinkles from heavy fabrics and for setting creases.

To use the SPRAY MIST® feature:

Press the SPRAY MIST® button firmly.

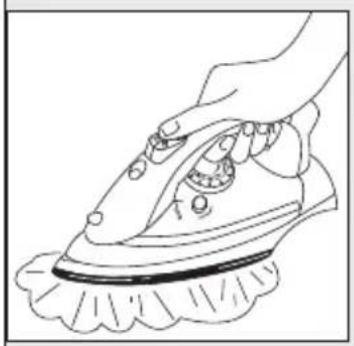

SHOT OF STEAM® (select models only)

The SHOT OF STEAM ^® feature provides an extra burst of steam for deep penetration of stubborn wrinkles. You can use this feature while Dry or Steam ironing, but the water reservoir must be at least 1/4 full of water.

To use the SHOT OF STEAM® feature:

1. Press the SHOT OF STEAM ^® button several times to prime the pump.

2. Place the iron on top of the wrinkle and press the SHOT OF STEAM® button each time you would like an extra burst of steam. The SHOT OF STEAM® feature may be used continuously with just a short pause between shots.

Line drawing of a hand using a power iron to clean or wash the surface (no text or symbols)

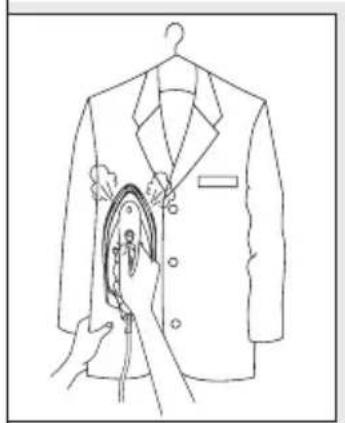

Vertical Steam (select models only)

The vertical steam feature allows your iron to function as a garment steamer.

Tip: When using the vertical steam on clothing, hang the clothing on a clothes hanger for best results. Hanging curtains and drapes may also be steamed.

To use the Vertical Steam:

1. Make sure that the iron has heated up (2 minutes).
2. Hold the iron in a vertical position, with the iron close to but not touching the fabric you want to steam.
3. With your other hand, pull the fabric tight.
4. Press the SHOT OF STEAM ^® button at approximately 3-second intervals as you move the iron across the wrinkled area.

WARNING: To prevent the risk of burns, keep your hand away from the area being steamed.

WARNING: DO NOT steam garments while wearing them; this may result in injuries.

Line drawing of a hand holding a small object through a hanger to cut the jacket (no text or symbols)

Patented MOTION SMART® Auto-Off

When the iron is plugged in, the Power Indicator will light steadily, indicating that there is power to the iron.

If you leave the iron:

• in a vertical position (on its heel rest) without moving it, the iron will automatically turn off after 15 minutes. The Power Indicator will blink to let you know that the iron has stopped heating.
• in a horizontal position without moving it, the iron will automatically stop heating after 30 seconds. The Power Indicator will blink to let you know that the iron has stopped heating.

Important: The Power Indicator will continue to blink until the iron is unplugged or reset.

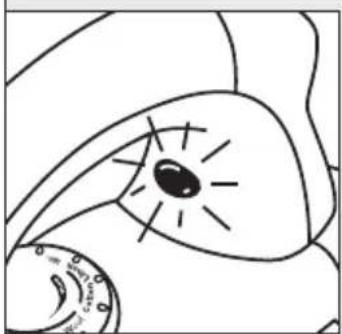

To reset the iron:

Move the iron back and forth and allow it to reheat for 2 minutes. The indicator will stop blinking and the iron will start heating again.

WARNING: The patented MOTION SMART® Auto-Off is a safety feature, not a recommended means for turning your iron off. See “Caring for Your Iron After Use” on Page 10, for information on turning off your iron and storing it safely between use.

Simple line drawing of a biological structure with no text or symbols

Turning Off Your Iron

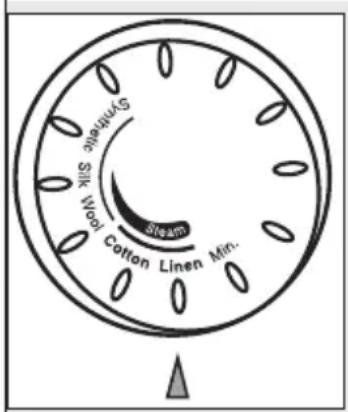

1. Turn the Steam Dial to ZERO and Fabric Select Dial to MIN.

2. Unplug the iron from the power source.

WARNING: NEVER yank the power cord when unplugging the iron, this can damage the cord.

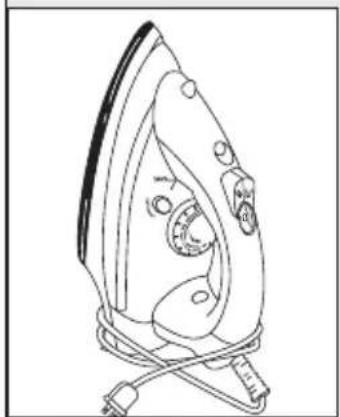

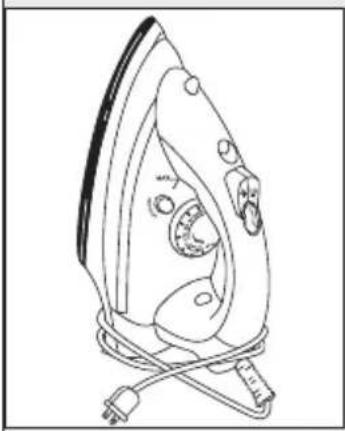

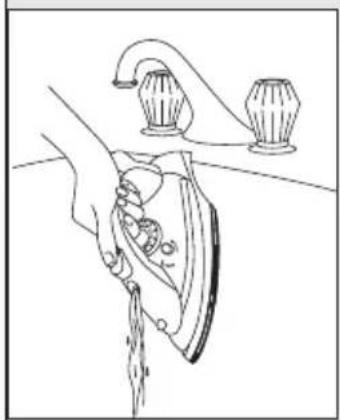

Storing Your Iron

1. Allow the iron to cool.

2. If you do not use your iron on a daily basis, empty the water reservoir after each use for a longer iron life. To do so, turn the iron upside down to allow water to flow from the fill hole. Shake the iron gently to remove trapped water drops.

3. Loosely loop the power cord around the cord wrap and store the iron on its heel rest.

Important: Wrapping the cord around the iron too tightly can damage the cord.

Tip: When not ironing, always set the Steam Dial to ZERO and the Fabric Select Dial to MIN.

Simple line drawing of a medical device with a label and motion lines (no text or symbols)

Line drawing of a hand ironing an iron on a kitchen sink, with faucet and sink in background (no text or symbols)

Line drawing of a steam iron with attached electrical connectors (no text or symbols)

Cleaning the Soleplate

Clean the soleplate if starch or other residue accumulate.

To clean the Soleplate:

1. Allow the iron to cool and then wipe it with a soft, damp cloth.

WARNING: DO NOT use abrasive cleansers, scouring pads or vinegar to clean the soleplate. This will damage the finish.

1. Run the iron over an all-cotton cloth to remove any residue.

Using the Self-Cleaning Feature

You should use the self-cleaning feature to maintain the optimal performance of your iron. The self-cleaning feature will clean the water reservoir and steam vents of accumulated minerals, dust and lint. In general, clean the iron:

• if the steam vents clog up, or
• once a month if you have hard water, or
  • once every two months if you have soft water.

To use the self-cleaning feature:

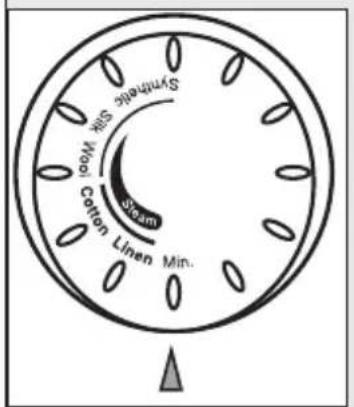

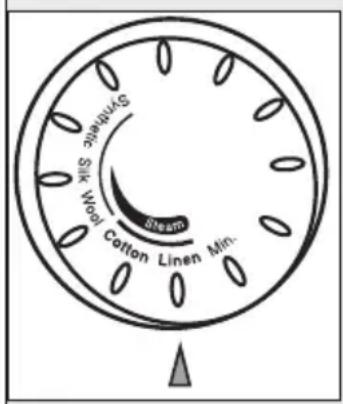

1. Set the Steam Dial to ZERO and the Fabric Select Dial to MIN.

Simple line drawing of a hand holding a device with motion lines (no text or symbols)

1. Fill the water reservoir with tap water to the MAX line.

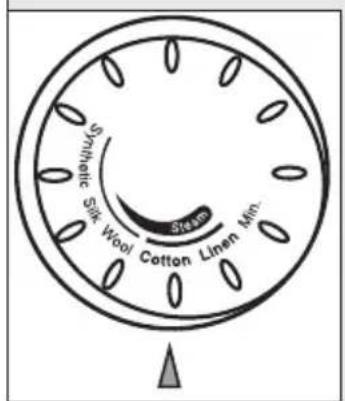

2. Set the Fabric Select Dial to LINEN.
3. Set the Fabric Select Dial to LINEN.
4. Plug the iron into a power outlet and allow the iron to heat for 2 minutes.
5. Turn the Fabric Select Dial to MIN and unplug the iron.

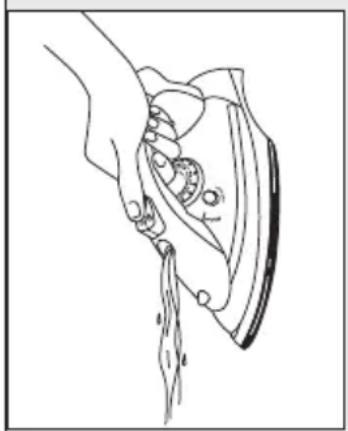

6. Hold the iron over a sink in a horizontal position.

WARNING: Be careful not to touch the iron's hot surfaces.

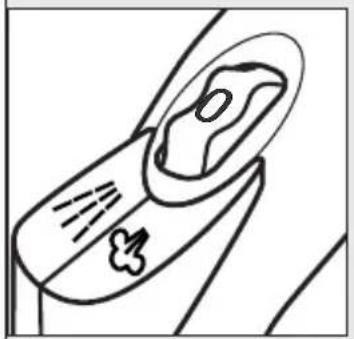

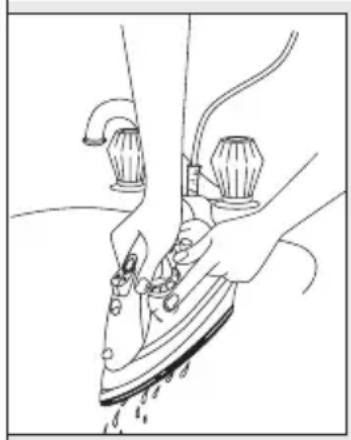

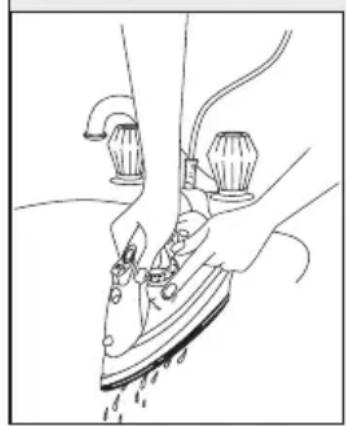

1. Press the self-clean button and hold. Water will begin dripping from the steam vents. To make sure that all of the water is removed from the tank, slowly rock the iron side to side and front to back for 30 seconds. When rocking the iron, dip the nose of the iron slightly below the rear of the iron to make certain the water circulates completely. Release self-clean button after one minute.

Line drawing of hands ironing an iron with a tool, no text or symbols present

Line drawing of hands ironing a steam iron with water droplets (no text or symbols)

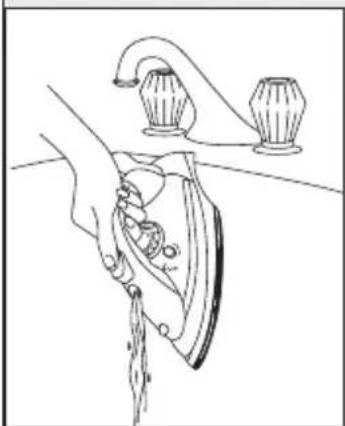

1. Turn the iron upside down and allow the remaining water to flow out of the fill hole.
2. Dry the soleplate with a towel.

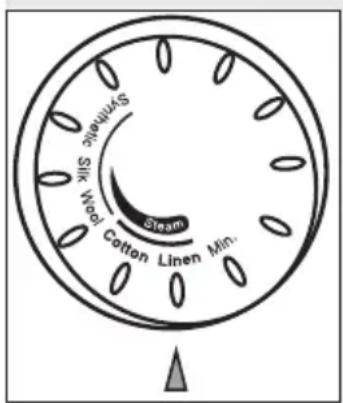

3. Plug in the iron and set the Fabric Select Dial to LINEN. Let the iron heat for 2 minutes to dry out the iron completely.
4. Set the Fabric Select Dial to MIN, unplug the iron and allow it to cool.

Line drawing of a hand using a steam iron to lift water (no text or symbols)

Ironing Tips

- Always read garment labels and follow the manufacturer's ironing instructions.

- Sort the articles to be ironed according to the type of fabric.

- You should first iron garments requiring low temperature (e.g., silks and synthetics) to avoid damaging them with an iron that is too hot.

- If you are unsure of the fabric content of the garment, test a small area, such as a seam or facing, before ironing a visible area. Start with a low temperature and gradually increase the heat to find the best setting.

- When changing the temperature from a high setting to a low setting, allow approximately 5 minutes for the lower temperature to be reached.

- When steam ironing, use long, slow passes over the fabric. This will allow the steam to penetrate the fabric while allowing the heat of the soleplate to dry out the moisture.

- To iron linens, turn garment inside out. Be careful not to use an iron that is too hot because the lining may melt or stick to the soleplate.

- To iron zippers, use an ironing cloth or make sure the zipper is closed and iron over the flap. Never iron directly over an unprotected zipper.

- Use the Ironing Guide on Page 15 to select the best setting and method for the fabric you plan to iron.

Ironing Guide

Fabric	Steam Setting	Fabric Setting	Ironing Recommendations
Acrylic	Dry 0	Synthetic	Iron garment inside out.
Acetate	Dry 0	Synthetic	Iron garment inside out while still damp.
Silk	Dry 0	Silk	Iron garment inside out. Use an ironing cloth* to prevent shine marks.
Viscose	Dry 0 or Steam 1	Silk	Mainly dry iron; steam may be used under garment manufacturer's instructions.
Nylon	Dry 0 or Steam 1	Silk	Iron garment inside out while still damp.
Polyester	Dry 0 or Steam 1	Silk	Iron garment inside out while still damp.
Rayon	Dry 0 or Steam 1	Silk	Iron garment inside out.
Wool	Steam 1 - 2	Wool	Iron garment inside out or use an ironing cloth.*
Wool Blends	Steam 1 - 2	Wool	Iron garment inside out or use an ironing cloth.*
Cotton Blends	Steam 1 - 3	Cotton	Follow garment manufacturer's instructions. Use setting for the fiber requiring the lowest setting.
Corduroy	Steam 1 - 3	Cotton	Iron garment inside out or use an ironing cloth* and then brush the garment with your hand to raise the texture of the fabric.
Cotton	Steam 1 - 3	Cotton	Iron dark fabrics inside out to prevent shine marks.
Linen	Steam 1 - 3	Linen	Iron garment inside out or use an ironing cloth* to prevent shine marks (especially on dark fabrics).
Denim	Steam 1 - 3	Linen	Use the SHOT OF STEAM® feature for deeper penetration to remove wrinkles.

*An ironing cloth is a cotton, dry-cleaned cloth that you place over the garment you are ironing to prevent the fabric from looking shiny.

Sunbeam Products, Inc. (“Sunbeam”) warrants that for a period of ONE year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during this warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an Authorized Sunbeam Service Center. Further, the warranty does not cover Acts of God or acts of nature, such as fire, flood, hurricanes and tornadoes.

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations of exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province. NOTE: For products acquired outside the United States, please see country specific warranty insert.

How to Obtain Warranty Service

Take the product to an Authorized Sunbeam Service Center. You can find the nearest Authorized Sunbeam Service Center by calling 1-800-458-8407 or visit our Website at www.sunbeam.com.

DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE

Sunbeam®

Do Not Send This Product to the Place of Purchase

For product questions:

Sunbeam Consumer Service

P.O. Box 948389

Maitland, FL 32794-8389

1.800.458.8407

www.sunbeam.com

DO NOT SEND PRODUCT TO THABOVE ADDRESS

©2002 Sunbeam Products, Inc. All rights reserved.

SUNBEAM®, SPRAY MIST®, SHOT OF STEAM® and MOTION SMART®

are registered trademarks of Sunbeam Products, Inc.

EURO PRESS ^™ is a trademark of Sunbeam Products, Inc.

Notes

Sunbeam®

Plancha Euro Press™

Modelos 4041, 4042, 4043, 4044 y 4045

Manual del Usuario

Illustration of a Sunbeam air iron with blue and white casing, no text or symbols on the device itself

Simple line drawing of a medical or surgical device with no text or symbols

Line drawing of hands ironing an iron with a handle, no text or symbols present

Planchado en Seco

Simple line drawing of a medical device with a cross symbol and a label (no text or symbols present)

Line drawing of a hand using a power iron to clean a circular object (no text or symbols)

Line drawing of a hand holding a jacket with a sewing machine, no text or symbols present

Simple line drawing of a biological structure with no text or symbols

Simple line drawing of a medical device with a cross symbol and internal components (no text or labels)

Line drawing of a hand ironing an iron on a kitchen sink, with two washers above (no text or symbols)

Line drawing of a steam iron with attached wires and buttons (no text or symbols)

Simple line drawing of a medical device with a label and motion lines (no text or symbols)

Line drawing of hands ironing a shoe with a tool, no text or symbols present

Line drawing of hands ironing a steam iron with water droplets (no text or symbols)

Line drawing of a hand using a steam iron to lift water (no text or symbols)

Sunbeam Consumer Service

P. O. Box 948389

Maitland, FL 32794-8389

1.800.458.8407

www.sunbeam.com
