Product Type	Car Speaker (Coaxial)
Brand	Axxera
Model	AXM654DVC
Speaker Size	6.5 inches
Speaker Design	2-Way Coaxial
Woofer Material	Polypropylene Cone
Tweeter Size	1 inch
Tweeter Type	Balanced Dome
Power Handling (RMS)	60 Watts
Power Handling (Peak)	200 Watts
Impedance	4 Ohms
Frequency Response	55 Hz - 22 kHz
Sensitivity	91 dB
Mounting Depth	2.5 inches (64 mm)
Mounting Cutout Diameter	5.6 inches (142 mm)
Dimensions (Each)	6.5 x 6.5 x 3 inches
Weight (Each)	1.5 lbs (0.68 kg)
Connector Type	Spring Clip Terminals
Grille Included	Yes
Protection Features	Polypropelyene Cone with Rubber Surround
Cleanability	Wipe with dry cloth; avoid liquids
Safety Warning	Disconnect battery before installation; avoid short circuits
Spare Parts Availability	Contact manufacturer for replacement parts
Repairability	Limited; professional service recommended

Frequently Asked Questions - AXM654DVC Axxera

What is the size of the Axxera AXM654DVC speaker?

The Axxera AXM654DVC is a 6.5-inch coaxial car speaker.

What is the power handling of this speaker?

The speaker handles 60 Watts RMS and 200 Watts peak power.

What is the impedance of the AXM654DVC?

The impedance is 4 Ohms, standard for most car audio systems.

Does the speaker come with a grille?

Yes, each speaker includes a protective grille.

How do I install the Axxera AXM654DVC?

Installation requires connecting the speaker wires to the spring clip terminals, mounting the speaker into the cutout, and securing with screws. Disconnect the car battery before starting.

What is the mounting depth of this speaker?

The mounting depth is 2.5 inches (64 mm), so ensure your door or panel has enough clearance.

Can I use these speakers with a factory stereo?

Yes, as long as the factory stereo provides 4-ohm output and sufficient power (20-60 Watts RMS per channel).

What is the frequency response of the AXM654DVC?

The frequency response ranges from 55 Hz to 22 kHz, covering deep bass to high treble.

How do I clean the speakers?

Wipe the speakers with a soft, dry cloth. Do not use water or cleaning chemicals, as they may damage the cone.

Are replacement parts available for this model?

Replacement parts like grilles or mounting hardware may be available by contacting Axxera customer support. However, the speaker is designed for full replacement rather than repair.

USER MANUAL AXM654DVC Axxera

AXM654

AXM654DVC

AXM804

AXM804DVC

AXM SERIES

INSTALLATION/OWNER'S MANUAL

Car Audio Speakers

axxera™

Safety Guidelines

Thank you for purchasing the AXM Series car speakers. Although we have attempted to make sure all of the information contained within this manual is accurate, please be aware that any part of it is subject to change without notice.

CAUTION

The following instructions should be used a general guideline only. If you are unsure about performing any of the procedures listed below, please consult a professional car audio installation center.

Before installation, please follow these guidelines:

1. Be sure to carefully read and understand the instructions before attempting to install this product.

2. For safety, disconnect the negative terminal from the battery prior to beginning the installation.

3. Use the highest quality connectors for a reliable installation and to minimize signal or power loss.

4. Use caution before you drill or cut! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.

5. Never run speaker wires underneath your vehicle. Running speaker wires inside the vehicle provides the best protection from exhaust heat and environmental elements.

6. Avoid running wires over, near, or through sharp edged surfaces. Use rubber grommets to protect any wires routed through metal.

7. When running the speaker cable from the amplifier, avoid running it near sources of high current (i.e. wiring harnesses, battery cables).

OPERATION

Specifications

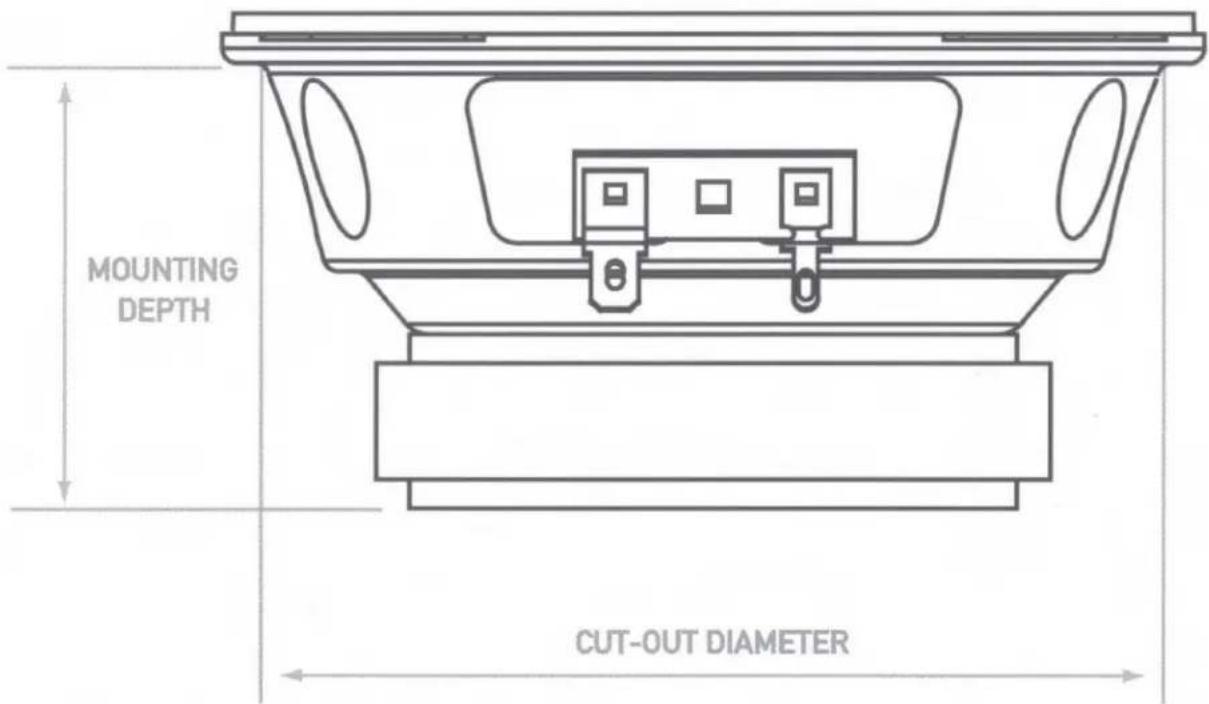

The above diagram is to be used with the specifications matrix guide below. Design and specifications subject to change without notice.

AXM804	7.2" [183mm]	3.5" [89mm]	Treated Paper	97	80Hz-6kHz	150 watts/1000 watts
AXM804 DVC	7.2" [183mm]	3.5" [89mm]	Treated Paper	97	80Hz-6kHz	300 watts/2000 watts
AXM654	5.75" [146mm]	3.11" [79mm]	Treated Paper	95	100Hz-6kHz	125 watts/875 watts
AXM654DVC	5.75" [146mm]	3.11" [79mm]	Treated Pater	95	100Hz-6kHz	250 watts/1750 watts

More technical specifications available online at www.axxeraaudio.com.

Limited One Year Warranty

This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

Dual Electronics Corp. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period.

Who is covered? This warranty is extended to the original retail purchaser for products purchased and used in the U.S.A.

What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered: installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product.

What to do?

1. Before you call for service, check the troubleshooting guide in your owner's manual. A slight adjustment of any custom controls may save you a service call.

2. If you require service during the warranty period, you must carefully pack the product (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.

3. Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.

4. For more information and for the location of the nearest authorized service center please contact us by one of the following methods:

• Call us toll-free at 1-866-382-5476
• E-mail us at [e-mail]

Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company's negligence, actual or imputed. No person or representative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.

Axxera Electronics Corporation

Toll Free: 1-866-382-5476

www.axxeraaudio.com

©2013 Dual Electronics Corp. All rights reserved.

NSA0313-V1

axxera™

Mid-Range Speaker

Haut-Parleur Médium

One Speaker with Grille

1750

Watts

6 ^1 / _2 ″

DVC

Dual Voice Coil

4

Ohm

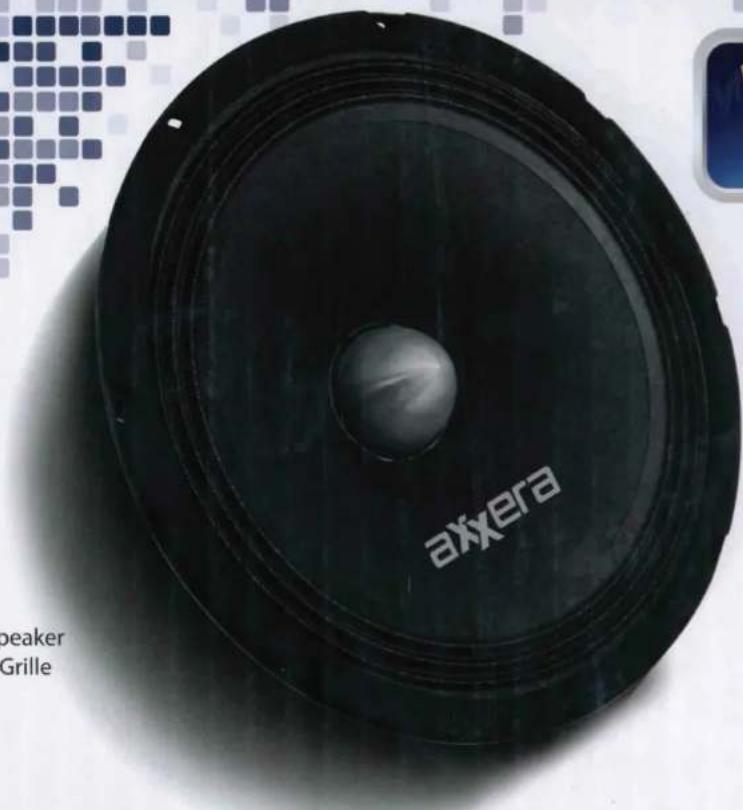

AXM654DVC

axxera

Mid-Range Speaker

Haut-Parleur Médium

Two 4-Ohm voice coils for more wiring options

Die cast aluminum zinc alloy basket for durability

Specially lacquered water resistant paper cone

Low mass pleated cloth surround for life-like reproduction

Machined aluminum/Zinc alloy phase plug shaped for optimal dispersion

High power strontium magnet for increased efficiency

Ferro-fluid cooled voice coil for increased power handling

Grille included

Specifications:

Sensitivity: 95dB

Frequency response: 100Hz-6kHz

Nominal impedance: 4 Ohm per voice coil

RMS power: 250 Watts (125 per voice coil)

Peak power: 1750 Watts (875 per voice coil)

Magnet: 27oz. (0.75kg)

Dimensions

Mounting Depth 3.11"(79mm)

Cutout 5.75"(146mm)

Design and specifications subject to change without notice.

Fonctions:

General:

Circular metallic object with a hexagonal lattice pattern, set against a blue background (no text or symbols visible)

Dimensions:

Profondeur monture: 3.11" (79mm)

This package contains one AXM654DVC speaker, instructions and grille as well as warranty information.

©2013 Dual Electronics Corporation

Heathrow, FL 32746

Made in China
