P-52B - Loudspeaker Sound Ordnance - Free user manual and instructions

Product Type	Bookshelf Speaker
Brand	Sound Ordnance
Model	P-52B
Speaker Type	2-way
Woofer Size	5.25 inches
Tweeter Size	1 inch dome
Impedance	8 ohms
Power Handling (RMS)	60 watts
Power Handling (Peak)	120 watts
Frequency Response	55 Hz - 22 kHz
Sensitivity	87 dB
Dimensions (H x W x D)	10.5 x 6.5 x 8.5 inches
Weight	8.5 lbs (3.9 kg) each
Enclosure Type	Ported (bass reflex)
Finish	Black vinyl
Input Connectors	5-way binding posts
Recommended Amplifier Power	20-100 watts per channel
Magnetic Shielding	Not shielded
Placement	Bookshelf or speaker stand
Cleaning	Wipe with a dry, soft cloth
Safety	Place on a stable surface; avoid moisture
Included in Box	User manual, 1 speaker (sold individually)

Frequently Asked Questions - P-52B Sound Ordnance

How do I connect the Sound Ordnance P-52B speaker?

Use speaker wire to connect the 5-way binding posts to your amplifier or receiver. Ensure positive and negative terminals match.

What amplifier power is recommended for the P-52B?

Recommend 20-100 watts per channel RMS. Overpowering may damage the speaker.

Can I use the P-52B in a home theater setup?

Yes, these bookshelf speakers work well as front, rear, or surround channels in a home theater system.

How should I clean the speakers?

Wipe the cabinet gently with a dry, soft cloth. Do not use cleaning solvents or water.

What is the impedance of the P-52B?

The impedance is 8 ohms, compatible with most receivers and amplifiers.

Are these speakers magnetically shielded?

No, they are not shielded. Keep them at least 1 foot away from CRT televisions or monitors.

What is the warranty coverage for Sound Ordnance P-52B?

Sound Ordnance offers a 2-year warranty against defects. Contact customer support for details.

Can I bi-wire the P-52B?

The binding posts are single-wire only; bridging is not possible without modification.

What is the optimal placement for the speakers?

Place speakers at ear level when seated, and at least 6 inches from walls for best bass response.

What is the frequency response of the P-52B?

The frequency response is 55 Hz - 22 kHz, suitable for music and movies.

USER MANUAL P-52B Sound Ordnance

Thank you for purchasing Sound Ordnance

You're now ready to win the battle for great sound.

To ensure safe operation, always follow the instructions and guidelines in this manual.

Keep this manual handy for reference.

www.soundordnace.com

All rights reserved.

TABLE OF CONTENTS

Safety Instructions 3

Dimensions 3

Installation 4

Full-range and Woofer Mounting 6

Wiring 6

Specifications 7

SAFETY INSTRUCTIONS

The product's warranty is rendered void in cases of damage resulting from failure to comply with safety and operating instructions. We do not accept any liability for consequential damages. We do not accept any liability for personal injury or damage to property caused by incorrect handling of the device or failure to observe the safety and operating instructions. In such cases the warranty is rendered void.

High volume levels can cause hearing damage or loss. Use care when setting the volume of your subwoofer. Obey any local noise laws or ordinances.

To prevent injury or damage to the speakers, please read and follow the instructions in the manual.

If you have questions about installing your speakers, call us at 1-800-955-9094.

Disconnect the cable to your car battery's negative terminal before starting the installation. For some newer cars this may require a reset of some functions. Consult with your dealer or mechanic.

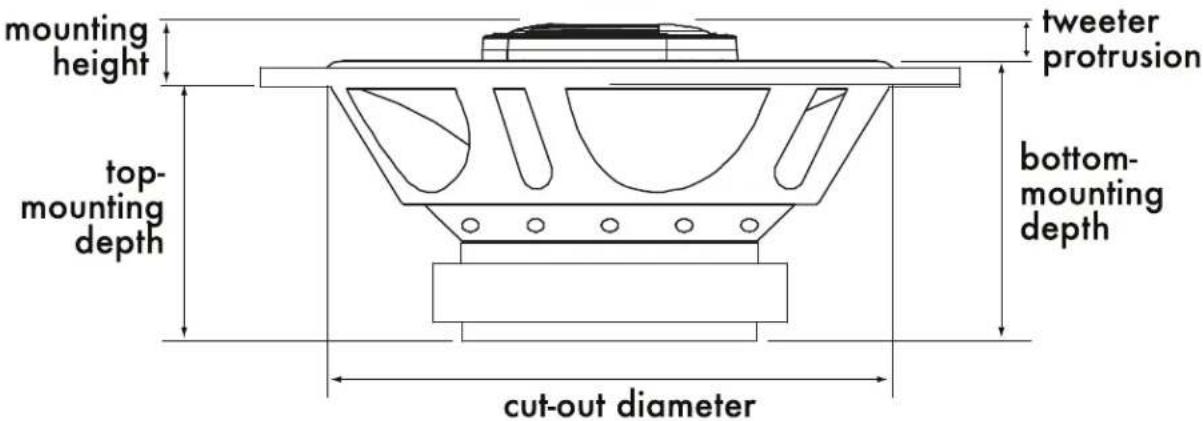

DIMENSIONS

INSTALLATION

These installation instructions do not cover all possible installation issues. If you're not confident about installing your speakers, have a qualified audio technician install them.

1. Read and understand the instructions before attempting to install these speakers.
2. Disconnect the negative terminal from the battery prior to starting the installation.
3. For easier installation run any extra speaker wire before starting the speaker installation.
4. For the best possible sound, use high-quality connectors and wiring.

5. Exercise caution before doing any drilling or cutting in your car. Be careful of fuel lines, electrical wiring, vacuum lines, or fuel tanks in your vehicle.

6. Never run speaker wires underneath your vehicle. Protect the wires by keeping them inside the vehicle.

7. Avoid running speaker wires over, near, or through sharp-edged surfaces. Use rubber grommets to protect wires running through openings in metal.
8. If running speaker wires from an amplifier, avoid placing them near sources of high current like wiring harnesses or battery cables.

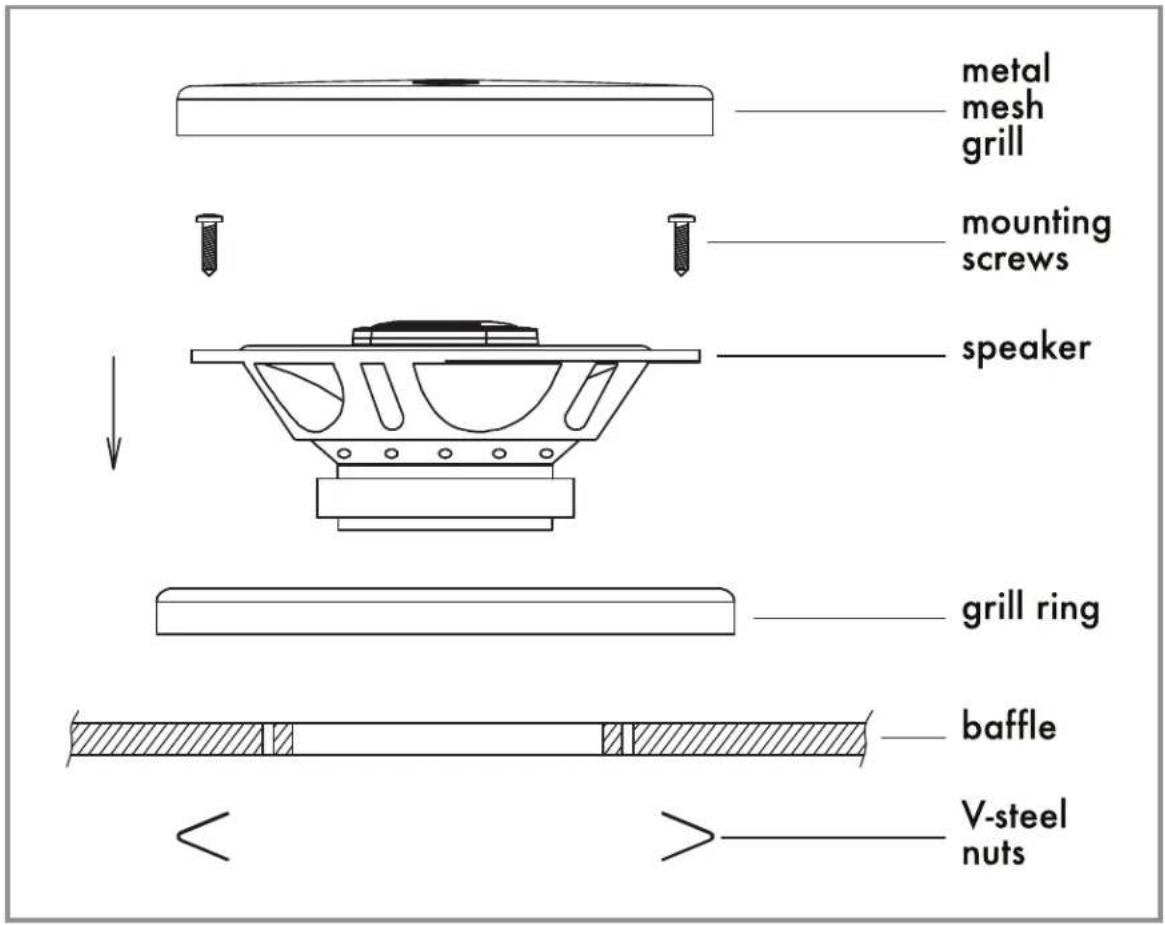

FULL-RANGE AND WOOFER MOUNTING

1. Pick a location for mounting your speakers. Make sure the area is large enough and deep enough for the speaker to fit into.
2. Refer to the specifications chart to determine the proper diameter hole to cut for your speaker model.

3. If you'll be using the grille, use it as a template to mark the locations for the mounting screws. Drill the holes with a 3/32" drill bit.

4. Be sure to observe proper polarity when connecting the speaker wires to the speaker. The speaker's positive terminal is indicated with a "+" symbol.

5. Place the speaker into the cut-out and mount it in place with the supplied screws. If the speaker grille is to be used, insert screws into the grille ring holes and then mount the speaker.

WIRING

Full-range Speakers

Component Systems

	P-35B	P-40B	P-46B	P-52B	P-57B	P-65B	P-67B	P-69B	P-52CB	P-65CB	P-67CB
RMS power handling (watts)	25	30	35	40	40	50	50	55	50	55	55
Peak power handling (watts)	50	60	70	80	80	100	100	110	100	110	110
Impedance (ohms)	4	4	4	4	4	4	4	4	4	4	4
Frequency Response (Hz)	90-20K	90-20K	80-20K	70-21K	60-21K	60-21K	60-21K	40-21K	60-22K	50-22K	50-22K
Sensitivity (dB)	84	84	86	88	88	88	88	90	86	88	88
Installation depth (in.)	1.46	1.57	1.85	1.90	2.16	2.05	2.16	2.91	1.90	2.05	2.16
Cut-out diameter (in.)	3.21	3.66	5.82 x 3.52	4.74	7.12 x 5.04	5.12	5.71	8.62 x 5.86	4.74	5.12	5.71
Grilles included?	No	No	No	Yes	No	Yes	Yes	Yes	Yes	Yes	Yes

To ensure safe operation, always follow the instructions and guidelines in this manual.

Keep this manual handy for reference.

www.soundordnace.com

All rights reserved.

Virtual Gateways LLC™ Limited Warranty (Valid Only in the U.S.A. and Canada)

Virtual Gateways LLC (“Virtual”) warrants this Product (expressly excluding any accessories) against defects in material or workmanship as follows:

Terms of warranty coverage: This warranty covers the product during the warranty period so long as the product is owned by the same individual whose name appears on the invoice received upon purchase of the product. Product must be purchased from an authorized dealer or this Warranty will not be honored. Transferring possession of the product to a subsequent owner will void this warranty. In the event service is required the product must be delivered within the warranty period, transportation prepaid by you to Virtual Gateways LLC, 1 Crutchfield Park, Charlottesville, VA 22911. Prior to returning the product you must first obtain a return authorization number from Virtual by calling 1-800-955-9094. You will need to carefully package the product using adequate packing material to prevent damage in transit and include in the package your Return Authorization Number, name, address, telephone number where you can be reached during business hours, a copy of your dated sales receipt, and a detailed description of the problem. You are responsible for removal and installation of the product. Proof of purchase in the form of a bill of sale which is evidence that the product is within the warranty period MUST be presented to obtain warranty service. Virtual will pay the cost of returning the repaired or replacement product to you within the United States of America or Canada within 8 to 12 weeks from the time of receipt of a product which is determined to be covered under this warranty by Virtual. Any removal or defacement of the unit's serial number will void this warranty.

Warranty Period: For a period of 3 years for parts and 3 years for labor from date of the original purchase from an authorized dealer, if this Product is determined by Virtual to be defective Virtual will repair or replace the Product with a new, rebuilt or refurbished unit of comparable value, at Virtual's sole option, without charge to you for parts or actual repair work. Parts and/or replacement units supplied under this warranty may be new, rebuilt or refurbished at the option of Virtual.

What's Not Covered: This warranty does not cover any product used in any trade, business, industrial or commercial application; customer instruction, installation, set up adjustments, signal reception problems, cabinet, cosmetic or appearance items, any damage to recordings, or recordings of tapes or discs, any damage to product resulting from alterations, modifications, accident, misuse, negligence or abuse, damage due to lightning or power surges; subsequent damage from leaking, damaged or inoperative batteries or the use of batteries different from those specified in the owner instructions; speakers subjected to power in excess of published power rating; damage due to improper operation or maintenance, connection to improper voltage supply; attempted repair by anyone other than Virtual; damage from improper maintenance; damage incurred in transit; damage or defects caused by the use of unauthorized parts or labor. This warranty does not cover consumables, (fuses, batteries, etc.).

This warranty does not cover the cost of parts and labor which would be otherwise provided without charge under this warranty, obtained from any source other than Virtual.

This warranty is invalid if the factory applied serial number has been modified, altered or removed from the Product.

This warranty is only valid in the United States of America and Canada.

Your Rights: REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VIRTUAL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states or provinces do not allow limitations on how long an implied warranty lasts, and some states or provinces do not allow the exclusion or limitation of incidental or consequential damages. The above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state or province.
