Product Type	Active Subwoofer
Brand	Sony
Model	SA-W55X
Dimensions (W x H x D)	Approx. 350 x 400 x 450 mm
Weight	Approx. 15 kg
Power Output	150 W RMS
Frequency Response	30 Hz – 200 Hz
Impedance	8 ohms
Driver	12-inch (30 cm) cone type
Enclosure Type	Bass reflex
Inputs	Line input (RCA), Speaker level input
Controls	Volume, Phase switch (0°/180°), Crossover frequency
Auto Standby	Yes
Power Supply	AC 120 V / 220 V, 50/60 Hz (switchable)
Power Consumption	200 W (max)
Cleaning and Maintenance	Wipe with a soft, dry cloth. Do not use solvents.
Safety Precautions	Do not expose to rain or moisture. Place on a stable surface.
Spare Parts and Repairability	Contact Sony authorized service center for replacement parts.
Included Accessories	Power cord, Audio cable (RCA), User manual
General Information	High-quality subwoofer for home theater systems.

Frequently Asked Questions - SA-W55X SONY

How do I connect the SA-W55X to my receiver?

Use an RCA cable from the subwoofer output of your receiver to the LINE INPUT on the subwoofer. Alternatively, connect speaker level wires from the receiver's speaker terminals to the SPEAKER INPUT terminals on the subwoofer.

What is the crossover frequency setting?

The crossover frequency knob adjusts the upper limit of the subwoofer's output. Set it to match your main speakers' low-frequency capability (typically 80-120 Hz for home theater).

Why does my subwoofer have no sound?

Check that the subwoofer is powered on, the volume is turned up, and the input cables are securely connected. Also verify that the receiver's subwoofer output is enabled.

What does the phase switch do?

The phase switch (0° or 180°) inverts the polarity of the subwoofer signal. Choose the setting that gives the most bass at your listening position, typically 0° for subwoofers placed near the front speakers.

Can I use the SA-W55X with a stereo system?

Yes, it can be used with any audio system that has a subwoofer output or speaker level outputs. For stereo use, connect via speaker level inputs.

What is the auto standby feature?

The subwoofer automatically enters standby mode after a period of no audio signal to save power. It reactivates when a signal is detected.

How should I position the subwoofer?

Place the subwoofer on a solid, level floor, preferably in a corner or near a wall for enhanced bass. Avoid blocking the bass reflex port on the front or rear.

Does the SA-W55X have a built-in amplifier?

Yes, it is an active subwoofer with a built-in amplifier, so no external amplifier is needed.

What is the power consumption in standby?

Standby power consumption is typically less than 0.5 W, complying with energy-saving standards.

How do I clean the subwoofer?

Unplug the subwoofer and wipe the cabinet with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.

USER MANUAL SA-W55X SONY

Operating Instructions

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Owner's Record

The model and serial numbers are located at the rear.

Record the serial number in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. SA-W55X

Serial No.

WARNING

For the customers in U.S.A.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: Use of this appliance with some systems may present a shock or fire hazard.

Do not use with any units which have the following marking located near output, "WARNING!

HAZARDOUS ENERGY!......"

NOTICE FOR THE CUSTOMERS IN THE UNITED KINGDOM

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brawn must be connected to the terminal which is marked with the letter L or coloured red. Do not connect either wire to the earth terminal in the plug which is marked by the letter E or by the safety earth symbol 12 or coloured green or green-and-yellow.

Connections

Notes on Connection

• The power cord should be connected last of all, after making sure that the POWER switch is turned off.
• The cable connectors should be fully inserted into the jacks. Loose connection may cause hum and noise.

- The + and - cords of the connection adaptor should be correctly connected to the + and - terminals of the amplifier respectively to avoid damaging to each units.

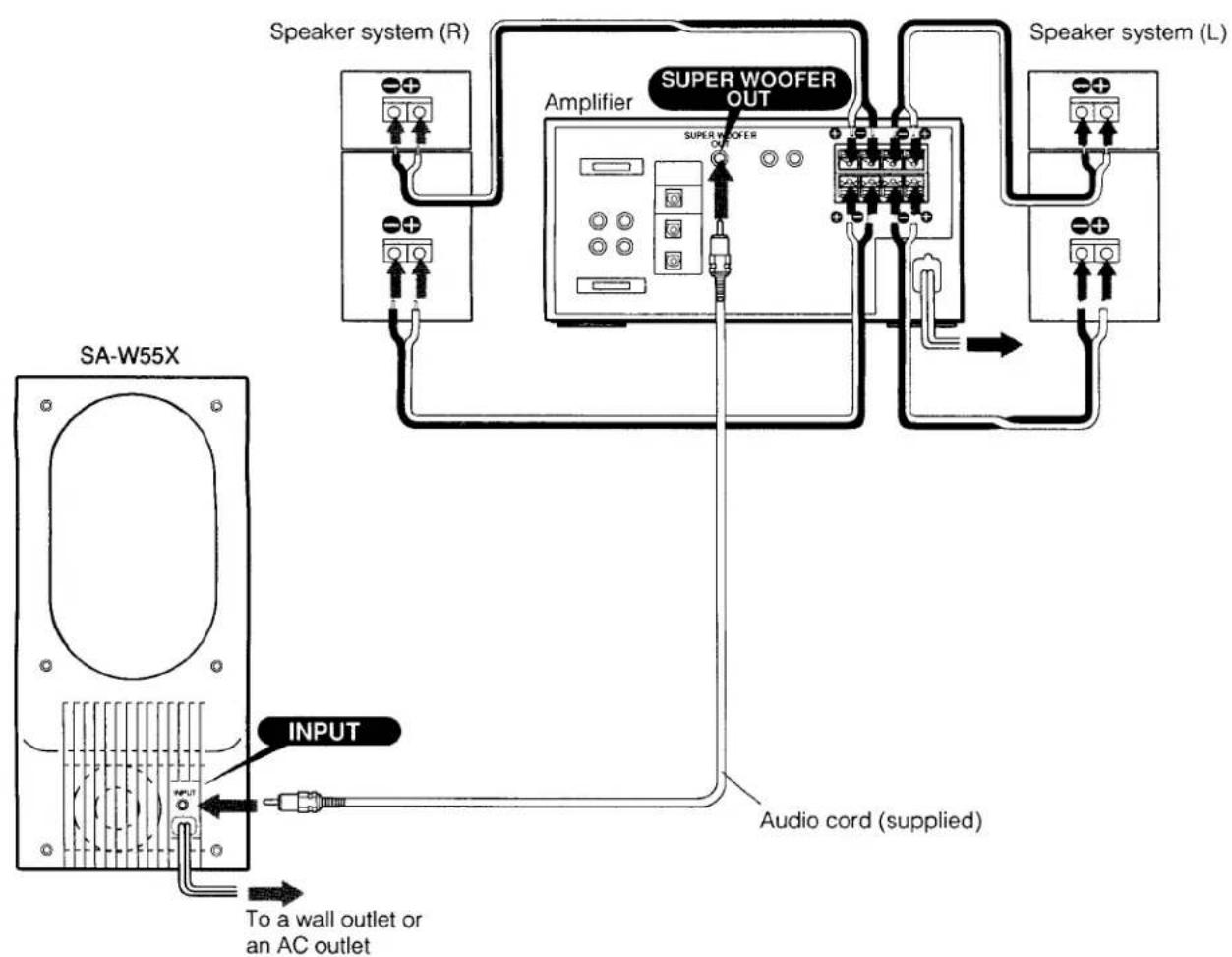

When Connecting the Amplifier Having a Super Woofer Output Terminal with the Audio Cord

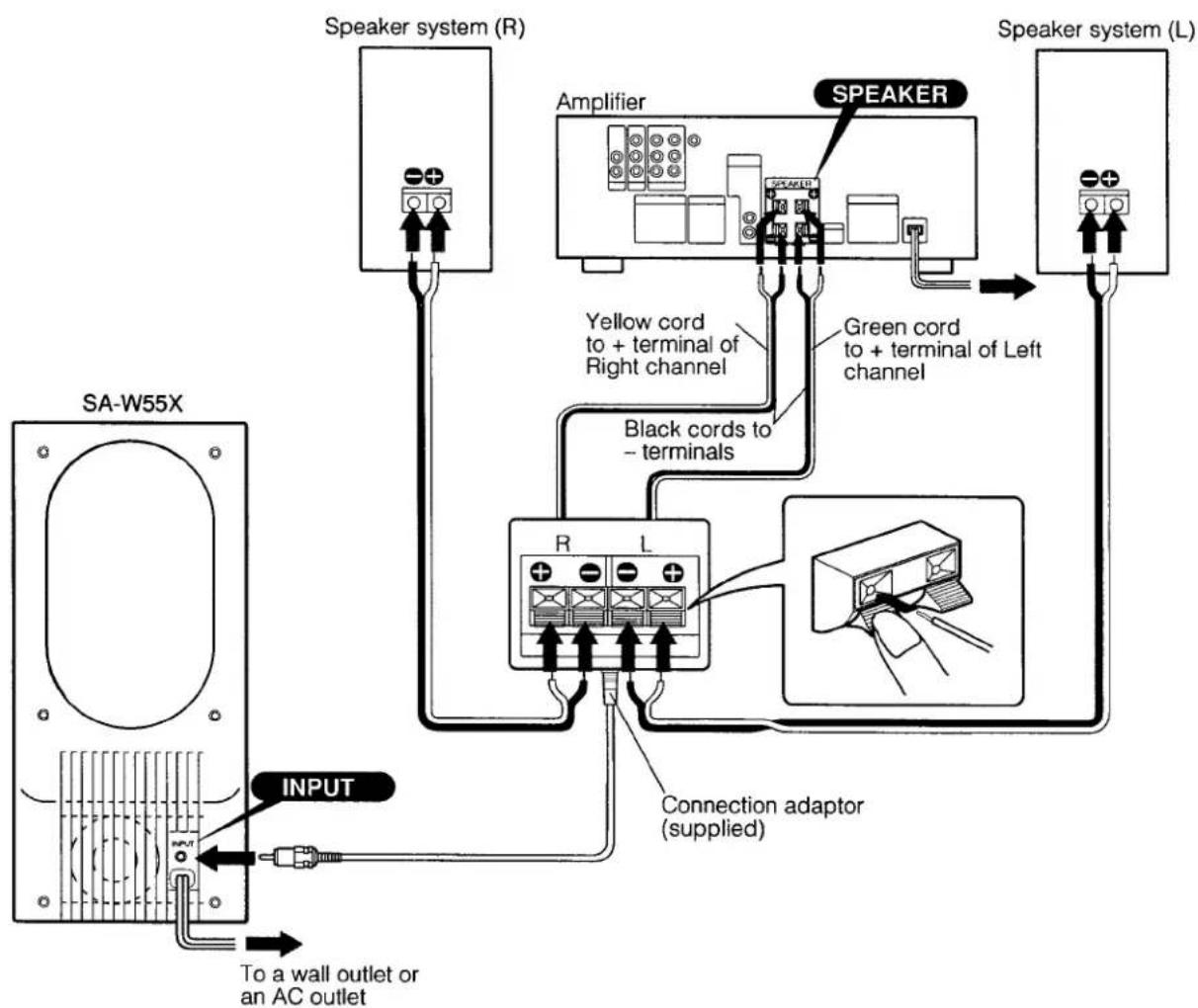

When Connecting to the Speaker Terminals of the Amplifier with the Connection Adaptor

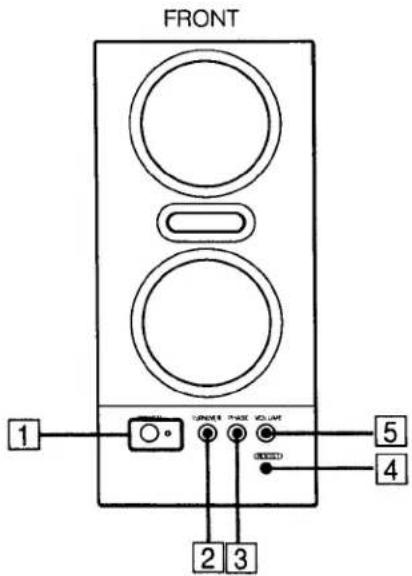

Location and Function of Controls

1 POWER button and indicator

When the button is pressed, the indicator lights up, and the unit is set in power stand-by mode – the internal power amplifier is automatically turned on when receiving any input signals. When not receiving input signal during a few minutes, the amplifier is automatically turned off. Depress the POWER button again when the unit is not used.

② TURNOVER frequency selector

Select the turnover frequency among 60 Hz, 90 Hz, and 120 Hz so that the highest frequency of the unit may smoothly contact with the lowest frequency of the front speaker system.

When the front speaker system has a large size woofer, set the selector to 60 Hz. When the front speaker system has a medium size woofer, set the selector to 90 Hz. When the front speaker system has a small size woofer, set the selector to 120 Hz.

③ PHASE selector

Set the phase to NORMAL or REVERSE according to the phase of the front speakers.

4 BOOST button

To boost the bass sound, depress the button.

5 VOLUME control

Adjust the control to balance the volume of this unit with that of the front speaker system.

To increase the volume, turn the control clockwise. To decrease the volume, turn the control counterclockwise.

When connecting to the compact audio system, MHC-6600, MHC-5600, MHC-3600, or MHC-2600, of Sony

TURNOVER	PHASE	VOLUME
90 Hz	NORMAL	Center

Notes

• Do not drive the unit with an extremely high input power to avoid damaging the speaker system.
• Before operating the power switch and the controls of the amplifier, set the VOLUME control to minimum to avoid damaging the speaker system by switching noise.
• If howling occurs, decrease the volume or keep the unit away from the turntable system.

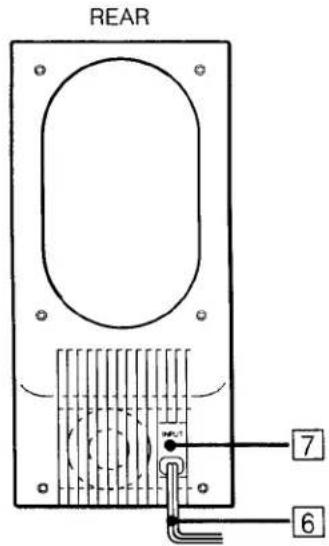

6 Power cord

7 INPUT terminal

Connect to the connection adaptor or the SUPER WOOFER (or CENTER) OUT terminal of the amplifier.

To prevent possible damage caused by the magnets

Keep personal credit cards, watches, recorded tapes away from the unit.

In case color irregularity is observed on nearby TV screen

With the anti-magnetism design of the unit, the speakers can be installed near a TV set. However, color irregularity may still be observed on the TV screen depending on the type of your TV set.

If color irregularity is observed...

Turn off the TV set once, then turn it on after 15 to 30 minutes.

If color irregularity is observed again...

Place the unit more apart from the TV set.

Precautions

Features

On safety

- Before connecting the unit to the power at the operating voltage of your unit is the same as the local power line voltage.

Where purchased	Operating voltage
U.S.A.	120 V AC, 60 Hz
United Kingdom	240 V AC, 50/60 Hz

• Unplug the unit from the wall outlet if it is not to be used for an extended period of time. To disconnect the cord, pull it out by grasping the plug. Never pull the plug out by the cord.
• Should any liquid or solid object fall into the unit, unplug the unit and have the unit checked by qualified personnel before operating it any further.
• AC power cord must be changed only at the authorized Sony Service Station.

On installation

• Do not install the unit near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.
• Good ventilation is essential to prevent internal heat build-up in the unit. Place the unit in a location with adequate air circulation. Do not place the unit on a soft surface and closely near a wall to avoid obstructing the ventilation hall of the back.

On cleaning the cabinet

Clean the cabinet, panel and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

For the customers in the USA

For detailed safety precautions, see the leaflet "IMPORTANT SAFEGUARDS"

If you have any question or problem concerning your unit that is not covered in this manual, please consult your nearest Sony dealer.

SA-W55X is an active super woofer for compensating the bass sound of the front speaker systems.

• SA-W55X has a 65-W (U.S.A. model) or 75-W (U.K. model) amplifier which can be automatically turned on and off by sensing the input signal.
• The turnover frequency can be selected among 60 Hz, 90 Hz, and 120 Hz.
• The phase can be changed in phase or opposite phase with the front speakers.
• With the anti-magnetism design of the speaker system, SA-W55X has very little affect on a TV.

Specifications

AUDIO POWER SPECIFICATIONS

(for U.S.A. model)

POWER OUTPUT AND TOTAL HARMONIC DISTORTION:

With 12 ohm load, from 20 – 120 Hz; rated 65 watts per minimum RMS power, with no more than 0.5% total harmonic distortion from 250 milliwatts to rated output.

Amplifier section

Continuous RMS power output

U.S.A. model: 65 W

U.K. model: 75 W

Harmonic distortion

U.S.A. model: Less than 0.5% at rated output

U.K. model: Less than 5% at

at 70 Hz, 12 ohms

Inputs

Input jack	Jack type	Sensitivity	Impedance
INPUT	Phono	150 mV (at 70 Hz)	10 kohms

Phase control

NORMAL, REVERSE

Turnover frequencies

60 Hz, 90 Hz, 120 Hz

Speaker section

Speaker units	10 cm (4 inches) cone type woofer (4)
Enclosure	Bass reflex

General

Power requirement	U.S.A. model: 120 V AC, 60 Hz
	U.K. model: 240 V AC, 50/60 Hz
Power consumption	U.S.A. model: 90 W
	U.K. model: 190 W
Dimensions	Approx. 160 x 365 x 315 mm(6 ^5 / _16 x 14 ^3 / _8 x 12 ^3 / _8 inches)(w/h/d)
Weight	Approx. 9 kg (19 lb. 13 oz.)
Accessories	Audio cord (1)
	Connection adaptor (1)

Design and specifications subject to change without notice.

This appliance conforms with EEC Directives 76/889 and 82/499 regarding interference suppression.

Troubleshooting Guide

Before going through the check list below, first refer back to the connection and operating procedures.

Should any problem persist after you have made these checks, consult your nearest Sony dealer.

Trouble	Remedy
No audio	Check power cord connection.Check input connections.Adjust VOLUME control.
Lack of bass sound partially	Adjust the PHASE and TURNOVER selectors.
Severe hum or noise	Keep the audio components further away from the TV.Keep the connecting cords away from transformer, motors, fluorescent lights, or computers.Fully insert connecting cord plugs.Clean any dirty plugs and jacks with a cloth lightly moistened with alcohol.
