USER MANUAL CSIE510BU Tricity Bendix
TECHNICAL DETAILS
MODEL NO. CSIE 510
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.6/11.5 kW
Height: 900mm
Width: 600mm
Depth: 598mm
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
CONTENTS
Technical Details 2
Contents 3
Preface 5
Safety 6
Before Installation 6
During Operation 6
After Use 7
General 7
Introduction 8
Rating Plate 8
Installation 8
General Notes on Using Your Cooker 9
About Condensation and Steam 9
The Cooling Fan for the Controls 9
Control Panel Indicator Neons 9
Cookware 9
Grill and Oven Furniture 10
Getting to Know your Cooker 11
The Control Panel 11
The Timer 12
The Ceramic Hob 14
Recommended Saucepans 14
Hints and Tips 14
Hot Hob Indicator 15
Deep Fat Frying 15
Preserving 15
The Dual Grill 16
Uses of the Dual Grill 16
Selecting the Dual Grill 16
Things to Note 16

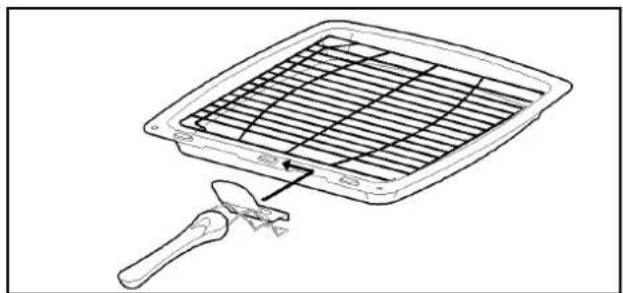

The Grill Pan and Handle 16
Hints and Tips 17
Grilling Chart 17
The Top Oven 18
Uses of the Top Oven 18
Selecting the Top Oven 18
Things to Note 18
To Fit the Top Oven Shelf 18
Hints and Tips 19
The Main Fan Oven 20
Uses of the Fan Oven 20
Selecting the Fan Oven 20
Things to Note 20
To Fit the Main Oven Shelves 20
Hints and Tips 21
Oven Cooking Chart 22
Roasting Chart 23
CONTENTS
Defrosting 24
Uses of Defrost Feature 24
Selecting Defrost 24
Things to Note 24
Hints and Tips 24
Care and Cleaning 25
Cleaning Materials 25
Cleaning the Ceramic Hob 25
Hints and Tips 26
Cleaning the Outside of the Cooker 26
Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves 26
Cleaning Inside the Oven and Grill Compartments 26
Care of Stayclean Surfaces 27
Hints and Tips 27
Cleaning the Door Glass 27
Replacing the Oven Light Bulb 28
Something Not Working? 29
Service and Spare Parts 30
Customer Service Centres 31
Guarantee Conditions 33
Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in developing and manufacturing the very best in U.K. cookers, you can be assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance requirements. They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures which may differ from your previous cooker.
It is most important that this instruction book is retained with the cooker for future reference. Should the cooker be sold, or if you move house and leave the cooker, always ensure that the book remains with the cooker. This will enable the new owner to be acquainted with the functioning of the cooker and the relevant warnings.
Please read the whole instruction book before attempting to use the cooker ensuring you follow the recommendations given.
THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT YOU UNDERSTAND THEM ALL BEFORE INSTALLING OR USING THE COOKER.
PLEASE READ CAREFULLY
This cooker is heavy and care must be taken when moving it.
Ensure that all packaging, both inside and outside the cooker has been removed before the appliance is used.
Do not try to move the cooker by pulling the door handles.
The electrical installation work must be undertaken by a qualified electrician / competent person.
It is dangerous to alter or modify the specifications of the cooker in any way.
Do not use the cooker if the ceramic glass is damaged. If a fault or crack becomes visible during cooking, disconnect the cooker immediately from the electricity supply and contact the Customer Service Centre.
Do not place silver foil or plastic containers on ceramic glass.
After installation, please dispose of the packaging with due regard to safety and the environment.
DURING OPERATION
Do not use this cooker if it is in contact with water. Never operate it with wet hands.
This cooker is designed to be operated by adults. Young children must not be allowed to tamper with the cooker or play with the controls.
Accessible parts especially around the grill area may become hot when the cooker is in use. Children should be kept away until it has cooled.
Take great care when heating fats and oils as they will ignite if they become too hot.
This cooker has been designed for cooking edible foodstuffs only, and must not be used for any other purposes.
Never place plastic or any other material which may melt in the oven or on the hob.
Ensure cooking utensils are large enough to contain foods to prevent spillages and boil overs.
The handles of saucepans which are smaller than the heated area on the hob will become hot. Ensure your hand is protected before handling the pan.
Take care to follow the recommendations given for tending the food when grilling.
Ensure that you support the grill pan when it is in the withdrawn or partially withdrawn position.
Ensure that all vents are left unobstructed to ensure ventilation of the oven.
Ensure that the anti-tilt shelves are put in place correctly. Refer to instructions on pages 18 and 20.
Never line any part of the cooker with aluminium foil.
Always stand back from the cooker when opening the oven door to allow any build up of steam or heat to release.
Do not place sealed cans or aerosols inside the oven. They may explode if they are heated.
Do not leave the hotplates switched ON for long periods when not covered by a saucepan. The controls may overheat.
AFTER USE
Ensure that all control knobs are in the OFF position when not in use.
For hygiene and safety reasons this cooker should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan.
Do not leave utensils containing foodstuffs, e.g. fat or oil in or on the cooker in case it is inadvertently switched ON.
Cookers and hobs become very hot, and retain their heat for a long period of time after use. Children should be kept well away from the cooker until it has cooled.
GENERAL
Under no circumstances should repairs be carried out by inexperienced persons as this may cause injury or serious malfunction.
This cooker should be serviced by an authorised Service Engineer and only genuine approved spare parts should be used.
Do not stand on the cooker or on the open oven door.
Do not hang towels, dishcloths or clothes from the cooker or its handle. They are a safety hazard.
Always allow the cooling fan to cool the cooker down before switching off at the wall prior to carrying out any cleaning or maintenance work.
Only clean this cooker in accordance with the instructions given in this book.
Extreme care must be taken when using a ceramic hob scraper.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the meanings of these WARNINGS contact the:
Consumer Care Department Telephone (01635) 525542
WARNING: THIS COOKER MUST BE EARTHED
RATING PLATE
Record the model, product and serial numbers on the back cover of this book from the rating plate. This is situated on the lower front frame of the cooker and can be seen upon opening the main oven door.
The cooker must be protected by a suitably rated fuse or circuit breaker. The rating of the cooker is given on the rating plate.
Do not remove the rating plate from the cooker as this may invalidate the guarantee.
INSTALLATION
If your cooker has been damaged in transit, contact your supplier immediately. DO NOT attempt to install it.
Your cooker left the factory fully packaged to protect it from damage. If it is delivered without packaging and damage has occurred the manufacturer cannot accept responsibility. Contact your supplier for advice.
Once the packaging has been removed the cooker should only be moved by hand. DO NOT use a sack barrow or any other aid to lift the cooker as damage may occur.
Connection to the electricity supply must be carried out by a qualified electrician/competent person.
The electrical connection should be made using a double pole isolating switch (cooker socket) with at least 3mm contact separation. The cable must have conductors of sufficiently high cross-sectional area to prevent overheating and deterioration.
The recommended cross-section area is six square millimetres (6.00mm ^4 ).
The cable should be routed away from potentially hot areas marked by X in the diagram below.

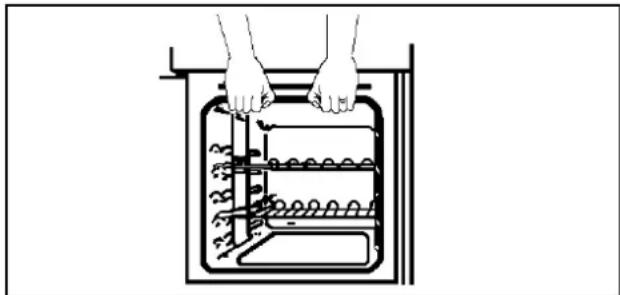

To move the cooker, open the main oven door, and lift the cooker by holding inside the top of the compartment.
Ensure that the cooker is standing level.
Side walls which are above hob level should be protected by heat resistant non-combustible material and MUST NOT be nearer than 40mm to the hob side.
A nominal air gap of 2mm all around the cooker is required to enable the cooker to be moved into position.
A spacer has been incorporated into the back of the appliance to ensure an air gap of 10mm is maintained at hotplate level. Tiles or other forms of deep wall covering should not obscure this gap.
Note: Vapours from the oven vents may in time cause discoloration of wallcoverings behind the cooker. For ease of cleaning it may be preferable to tile behind the cooker.
Overhanging surfaces or a cooker hood should be a minimum of 685mm above the hob.
It is important to ensure that the cooker is level after installation. Levelling feet are fitted to the cooker to accommodate uneven floors.
GENERAL NOTES ON USING YOUR COOKER
We suggest that you run the oven elements for 10 - 15 minutes at 220°C to burn off any residue from their surfaces.
The procedure should be repeated with the grill for approximately 5 - 10 minutes.
During this period an odour may be emitted, it is therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a boiling kettle. The ovens are vented to allow some of this steam to escape. However, always stand back from the cooker when opening the oven door to allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface on the outside of the cooker, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance.
To prevent discoloration, regularly wipe away condensation and also soilage from surfaces including the vent at the rear of the hob. See note at the top of this page.
For your safety wallcoverings at the rear of the cooker should be securely fixed to the wall.
POP IN POP OUT CONTROL KNOBS
These control knobs can remain flush with the control panel when not in use, or pushed and released to stand out from the panel for easy operation.
THE COOLING FAN FOR THE CONTROLS
The cooling fan operates immediately when the grill or top oven is switched on. It may run on after the controls are switched off until the appliance has cooled.
Note: The action of the cooling fan will depend on how long the top oven or grill have been used and at what temperature. It may not run on where the grill or top oven has been used for a short time or at low temperatures. Do not switch the cooker off at its power point until the cooling fan has cooled the cooker down.
CONTROL PANEL INDICATOR NEONS
These lights indicate whether the grill or ovens are switched on.
In the case of the ovens, the neons also indicate when the set temperature has been reached. They will turn on and off during use to show that the temperature is being maintained.
The grill indicator neon may turn on and off during use.
If the neons do not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and re-set following the instructions for the required setting.
When the main oven has been set for automatic cooking the neon will remain unlit until the cooktime begins.
COOKWARE
Baking trays, oven dishes etc., should not be placed directly against the grid covering the fan at the back of the oven.
Do not use baking trays larger than 30cm x 35cm (12" x 14") as they will restrict the circulation of heat and may affect performance.
GRILL AND OVEN FURNITURE
The following items of grill and oven furniture have been supplied with the cooker.
1 grill pan
1 grill pan grid


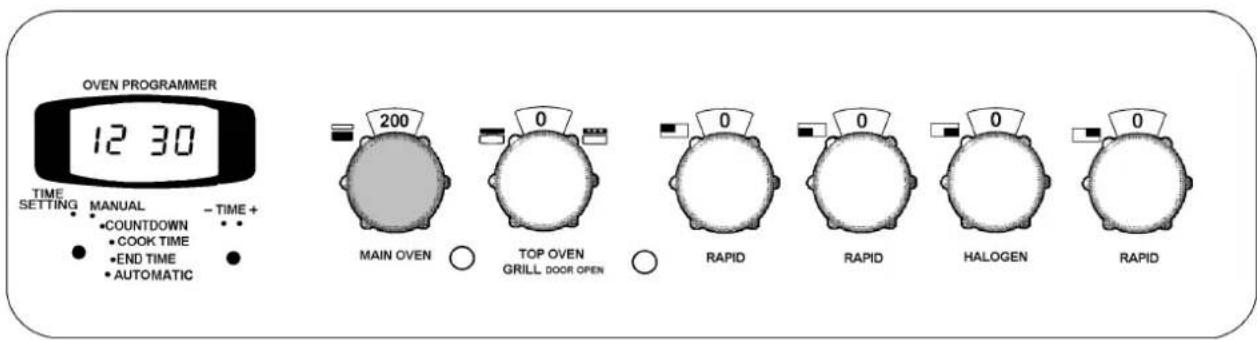

THE CONTROL PANEL
FEATURES
A - Timer
B - Main Oven Temperature Control
C - Main Oven Indicator Neon
D - Top Oven / Grill Temperature Control
E - Top Oven / Grill Indicator Neon
F - Hotplate Controls
THE TIMER
Please note that this is a 24 hour clock, for example 2.00 pm is shown as 1400.
In the following pages we explain how to set the controls. Read through them a few times until you are familiar with the procedure.
If the cooker is switched off on the wall, or there is a loss of power, the clock will stop and you will not be able to use the main oven. When you first switch the electricity supply on, the timer display will flash.
TO SET THE TIME OF DAY
Turn the selector knob to 'manual' then turn to 'Time setting'.
Set the correct time by turning and holding the setting knob clockwise. Adjust the time by turning the setting knob in either direction.
Turn the selector knob back to 'manual'.
TO USE THE MINUTE MINDER
Turn the selector knob to 'countdown'. Turn the setting knob clockwise until the display shows the time you want. The bell symbol ( 🔍 ) will be showing and this will stay lit up during the time. Our diagram shows the timer set to 5 minutes.
If you change your mind and want to cancel the time you have set, simply turn the setting knob anticlockwise. Then turn the selector to 'manual'.
When you are using the minute minder you can make the clock show the time of day by turning the selector knob to 'manual'. The bell symbol will stay on to remind you that the minute minder is set. At the end of the timed period an alarm will sound and the bell symbol will go out.
Switch off the alarm by turning the selector knob to 'Time setting'. Then turn to 'manual' and the time of day will show in the display.
Note:
You can use the minute minder when an automatic sequence has been set, as long as you remember the following point.
1 Turn the selector knob to 'Automatic' as soon as you have entered the timed period into the display.
AUTOMATIC CONTROL
You can only use the automatic control for the main oven. When you use the automatic controls for the first time it's probably best to choose a time when you are at home. That way you can check to make sure you've set everything correctly and you'll feel much more confident when you are away from home in the future.
SETTING THE CONTROLS FOR AUTOMATIC USE
This is very easy. All you have to do is work through the steps below. The clock will work out the rest for itself.
| 1 | Is the electricity supply on? | |
| 2 | Is the clock showing the correct time? | To adjust turn the selector knob to 'manual' then turn to 'Time setting'. Turn the setting knob in either direction. |
| 3 | How long will the food take to cook? | Turn the selector knob to 'cook time'. Then turn the setting knob until the length of time you want the food to cook shows in the display. The maximum cooking time is 10 hours. 'Auto' will show in the display. |
| 4 | What time do you want the food to be cooked by? | Turn the selector knob to 'End time'. Turn the setting knob until the time the oven is to switch off shows in the display. The cookpot ( ) will go out.The 'End time' must not be more than 23 hours 59 minutes from the time of day. For example if the time of day is 9.00 am the latest 'End time' will be 8.59 am the next day. |
| 5 | Set to automatic. | Turn the selector knob to 'Automatic'. |
| 6 | Turn on the oven control. | Turn the oven control to the required setting. |
The time shown on the right gives an example of setting the automatic controls when the time is 9.00 am, the food is to be cooked for 2 12 hours and the food is needed at 6.00 pm (1800 hours).
The clock will work out what time the oven will switch itself on and it will turn the oven off at the end. Once the automatic sequence is finished there will be an alarm to remind you that you need to set the oven for manual operation. To do this turn the selector knob to 'manual'. Turn off the oven control.
If you change your mind and want to cancel a programme that you have set simply turn to 'Time setting' and then to 'manual'.
THE CERAMIC HOB
CAUTION: DO NOT USE THE COOKER IF THE CERAMIC GLASS IS DAMAGED. IF A FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE COOKER IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT THE CUSTOMER SERVICE CENTRE.
USING THE HOB
- Push in and turn the control knob in either direction to vary the heat setting. The highest number represents the hottest setting and the lowest the coolest setting. Choose a setting appropriate to the quantity and type of food to be cooked. - This model has the added feature of a Halogen Power Zone which reacts more quickly than other ceramic hotplates and is easily identified by its rapid red glow.
Warning
Do not stare at the Halogen Lamp, in the same way that you would stare at other bright lights or the sun.

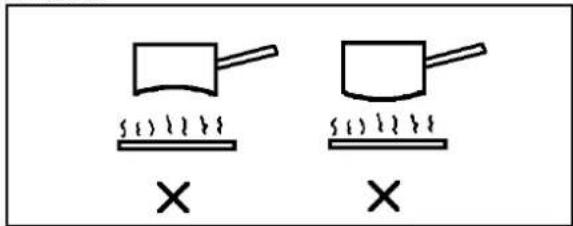

RECOMMENDED SAUCEPANS
For speed and economy only good quality saucepans with flat bases and close fitting lids are recommended. The saucepan base should be approximately the same size as the cooking area, a base diameter of up to 225mm (9") may be used on a 180mm (7") heated area.
Ensure that new saucepans are well scrubbed to remove edges and take off any deposits left from manufacture.
Pressure cookers, preserving pans etc., should comply with the recommendations given above.
Traditional round bottomed Woks must not be used even with a stand. Woks with flat-bottomed bases are available and do comply with the above recommendations.
NOTE
Occasionally the heated areas may be seen to switch ON and OFF when higher heat settings are being used. This is due to a safety device which prevents the glass from overheating. Some switching ON and OFF when cooking at high temperatures, e.g. deep fat frying is quite normal, causes no damage to the hob and little delay in cooking times.
Excessive switching may however be caused by the use of an unsuitable saucepan or a saucepan which is smaller than the heated area. If excessive switching occurs, discontinue use of the saucepan.
HINTS AND TIPS
- Lift, rather than slide saucepans on and off the heated areas. This will reduce the risk of scratches and metal marks from saucepans with aluminium bases. Metal marks can be easily cleaned off providing they are not allowed to burn on.
- Follow any guidelines provided by the saucepan manufacturer, particularly those relating to recommended heat settings.
- Avoid using thin badly dented or distorted saucepans. Those with uneven bases should not be used.
• To prolong the life of hotplates:-
- Never use utensils with a skirt, e.g. a bucket.
- Never use an asbestos mat.
- Never leave the hotplates ON when not covered with a saucepan.
- Ensure that hob and saucepans are clean and dry before the start of cooking to reduce cleaning.
- Follow the cleaning instructions very closely to keep the hob looking like new.
- If spillage occurs with sugar solutions, e.g. jams and syrups, it must be wiped from the hob before it sets and becomes hard otherwise damage to the hob will occur.
HOT HOB INDICATOR
The ceramic hob is fitted with a hot hob indicator light which illuminates when the hob is too hot to touch. The light will go OFF when the hob has cooled.
DEEP FAT FRYING
SPECIAL FRYING NOTE:
For safety purposes when deep fat frying, fill the pan one-third full of oil, DO NOT cover the pan with a lid and DO NOT leave the pan unattended. In the unfortunate event of a fire, switch the cooker OFF at the electricity supply and cover the pan with a lid or damp cloth to assist in smothering the flames.
DO NOT use water on the fire. Leave the pan to cool for at least 30 minutes before moving it.
DO NOT leave the fat or oil in the frying pan on the hob to store it in case the hob is inadvertently switched ON.
- Preparing the food
Seal the food by coating with flour, egg and breadcrumbs or batter. Do not use a basket with batter coated foods as they will stick.
- Amount of oil
For safety purposes fill the pan only one-third full of oil.
- Testing the temperature of the oil
It is advisable to use a thermometer to test the temperature of the oil. Alternatively, drop a small cube of bread into the oil which should brown in just under a minute if the oil is at the correct temperature of 190^ C/375°F.
- Cooking the food
Lower the food gently into the oil. Do not add too much food at once or the temperature of the oil will be reduced and may result in soggy, greasy food.
Turn the food if necessary; doughnuts float to the surface so will not brown on the upperside if not turned. Once cooked, drain the food on absorbent paper.
- Double frying chips
Double frying will ensure good chips. First fry the chips for a few minutes at 170^ C/340°F to seal the outside. Remove the chips from the oil. Increase the temperature of the oil to 190^ C/375°F to finish cooking and brown the chips.
Chips may be kept for several hours after the first frying before finishing off with the second frying.
- Frying temperatures
Celsius Fahrenheit
First frying of potatoes 170 340
175 350
180 360
Second frying of potatoes 190 375
Frying chicken and fish 195 380
200 390
PRESERVING
-
DO NOT use a pan that overlaps the perimeter of the hob trim.
-
To allow for a full rolling boil, the pan should be no more than one third full when all the ingredients have been added. It is better to use two pans rather than overfill one, or use half quantities.
-
Use firm fruit or vegetables and wash well before using.
-
Preserving sugar gives clear jam, however granulated sugar is cheaper and gives equally good flavour.
-
Crystallization may be caused if sugar is not completely dissolved before bringing jam to the boil. Over boiling will affect the flavour, setting properties and colour of the jam.
-
To test jam for setting:
If a jam thermometer is available, boil jam to 104^ C. Marmalade should be boiled to 106^ C.
If a thermometer is not available, remove pan from heat, place sample of jam on a cold dish and cool quickly (i.e. in a freezer or frozen food storage compartment of a refrigerator). When cold, it will crinkle and hold the mark of a finger run through it, if it is at setting point.
- The scum should be removed as soon as possible from the surface of the preserve after setting point has been reached. Marmalade should be allowed to cool before potting to prevent the peel rising.
THE GRILL
USES OF THE GRILL
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY.
SELECTING THE GRILL
- To operate the grill open the grill door, push in and turn the Top Oven/Grill control clockwise so that the required setting is displayed in the window.
- The Top Oven/Grill neon will illuminate. It may turn on and off during cooking.
- At lower settings the grill may turn on and off over time and you may prefer to use these settings for keeping food warm.
THINGS TO NOTE
- The cooling fan will operate in conjunction with the grill. For more details on the operation of the cooling fan see page 9.
NOTE
THE GRILL DOOR MUST BE LEFT OPEN DURING GRILLING. IF THE DOOR IS CLOSED THE TOP OVEN WILL OPERATE.

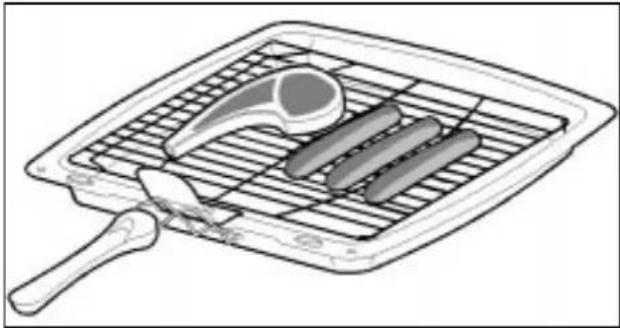

THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the cut out in the pan so that the metal plate hooks over the top of the grill pan.
Slide the handle to the left and over the central bump on the grill pan.


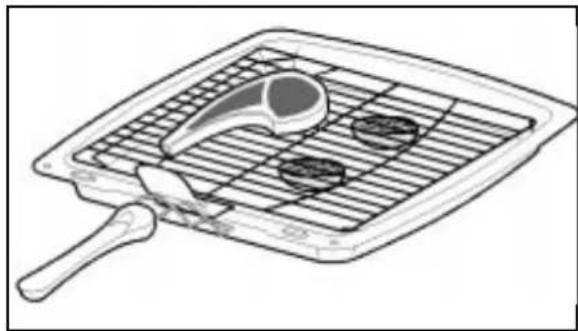

To check the progress of the food being grilled, the grill pan should be withdrawn on the shelf to attend to food during cooking.
- Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.
- Adjust the height of the grilling grid and grill pan runner position to allow for different foods.
- Accompaniments such as tomatoes and mushrooms may be placed underneath the grid when grilling meats.
- Preheat the grill on full setting for a few minutes before sealing steaks or toasting. Adjust the heat setting and the shelf as necessary during cooking.
- The food should be turned over during cooking as required.
NOTE
If you require an additional handle for your grill pan, this can be ordered from your local Tricity Bendix Service Centre by quoting part number 311479800\6.
GRILLING CHART
| FOOD SHELF | GRILL TIME | (mins in total) |
| Bacon Rashers | Adjust | 5-6 |
| Beefburgers | shelf | 10-15 |
| Chicken Joints | position | 30-40 |
| Chops - Lamb | and | 15-20 |
| Pork | 20-30 | |
| Fish - Whole | grill | |
| pan | 15-25 | |
| Trout/Mackerel | grid | 10-15 |
| Fillets - Plaice/Cod | to | 20-30 |
| Kebabs | suit | 8-12 |
| Kidneys - Lamb/Pig | different | 10-20 |
| Liver - Lamb/Pig | thicknesses | 20-30 |
| Sausages | of | 6-12 |
| Steaks - Rare | 12-16 | |
| Medium | food | 14-20 |
| Well Done | 3-4 | |
| Toasted Sandwiches |
The times quoted above are given as a guide and should be adjusted to suit personal taste.
THE TOP OVEN
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking on one level and for small quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use a temperature setting of 80^-100^ on the top oven control.
SELECTING THE TOP OVEN
- Push in and turn the top oven control to the required setting. Our diagram shows the oven set to 200°C. Close the oven door.
- The cooling fan will operate immediately with the top oven. For more details on cooling fan operation see page 9.
THINGS TO NOTE
- The top oven indicator neon will glow until the oven has reached the desired temperature and then go out. It will turn ON and OFF showing that the oven temperature is being maintained.
- Always place plates on the oven shelf to warm. Never place directly on the top oven base as it becomes very hot and damage may occur.

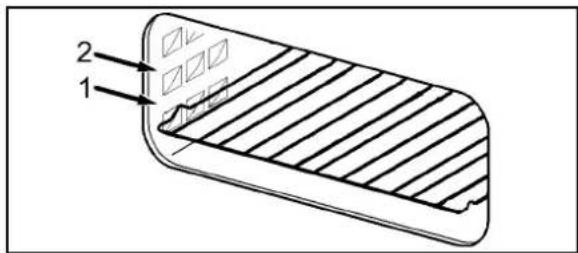

The shelf should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.
HINTS AND TIPS

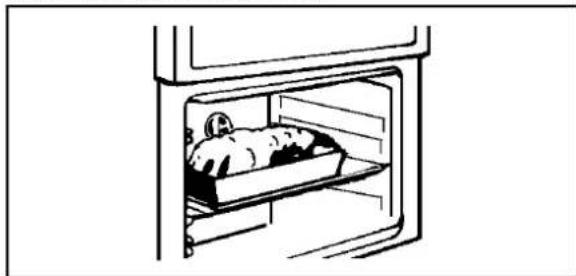

● Most cooking should be carried out using an oven shelf positioned in one of the shelf runners.
- Larger roasts and casseroles should normally be cooked in the main oven. However, they may be cooked on a flat shelf placed on the base of the top oven provided there is sufficient room for air circulation around the food.

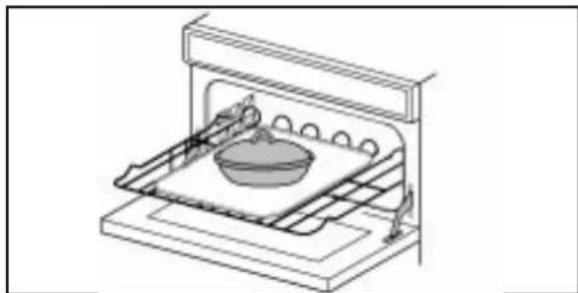

- Stand dishes on a suitably sized baking tray on the shelf to prevent spillage onto the oven base and to help reduce cleaning.


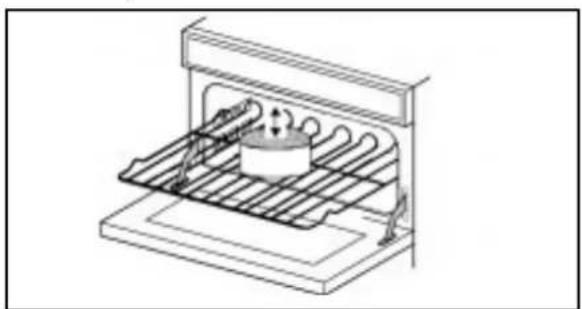

- When cooking cakes, pastry, scones, bread etc., place the tins or baking trays centrally on the shelf directly below the element.


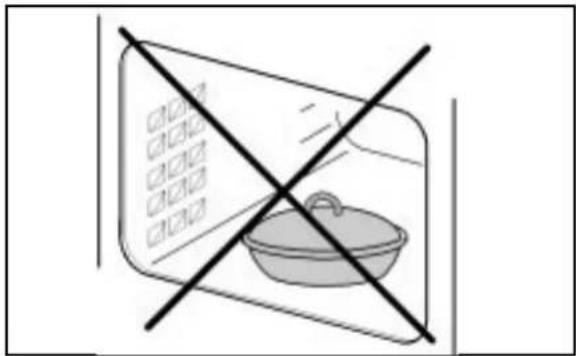

- DO NOT use the grill pan as a baking tray as this will increase base browning of the food.
- Because of the smaller cooking space, lower temperatures and shorter cooking times are sometimes required. Be guided by the recommendations on page 22.
- For economy leave the door open for the shortest possible time, particularly when placing food into a pre-heated oven.
USES OF THE FAN OVEN
The oven is heated by an element around the fan situated behind the back panel. The fan draws air from the oven and the element heats the air which circulates in the oven via the vents in the back panel. The advantages of fan oven cooking are:
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the oven is preheated first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures recommended in the chart on page 22. As a guide reduce temperatures by about 20^ - 25^ for your own recipes.
BATCH BAKING
The fan oven cooks evenly on all shelf levels, especially useful when batch baking.
SELECTING THE FAN OVEN
- Push in and turn the main oven temperature control to the required setting.
THINGS TO NOTE
- The main oven indicator neon will glow until the oven has reached the desired temperature and then go out. It will turn ON and OFF periodically during cooking showing that the temperature is being maintained.
- The interior oven light will come ON when the main oven control is turned.
TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.
HINTS AND TIPS
- Arrange the shelves in the required positions before switching the oven ON. Shelves are numbered from the bottom upwards.
- When cooking more than one dish in the fan oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results.
- When batch baking one type of food, e.g. Victoria sandwich cakes, those of similar size will be cooked in the same time.
- It is recommended that when baking larger quantities, the shelf positions should be evenly spaced to suit the load being cooked. A slight increase in cooking time may be necessary.
- DO NOT place dishes or baking trays directly on the oven base as it interferes with the oven air circulation and can lead to base burning: use the lower shelf position. However, non critical dishes may be cooked on the oven base when more space is required.
OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperature by 10^ C to suit individual preferences and requirements.
| FAN OVEN TOP OVEN | |||||
| FOOD SHELF | POSITION | COOKING TEMP °C | SHELF POSITION | COOKING TEMP °C | APPROX COOK TIME (m) |
| Biscuits | 180-190 | 1 | 170-190 | 10 - 20 | |
| Bread | 200-220 | 1* | 200-220 | 25 - 30 | |
| Bread rolls/buns | Shelf | 200-220 | 1 | 200-220 | 15 - 20 |
| Cakes: Small & Queen | 160-170 | 1 | 180-190 | 18 - 25 | |
| Sponges | 160-170 | 1 | 160-170 | 18 -20 | |
| Victoria Sandwich | positions | 160-170 | 1 | 160-170 | 18 -25 |
| Madeira | 140-150 | 1 | 140-150 | 114 - 112 h | |
| Rich Fruit | 130-140 | 1 | 130-140 | 214 - 212 h | |
| Christmas | are not | 130-140 | 1 | 130-140 | 3 - 412 h depends on size |
| Gingerbread | 140-150 | 1 | 140-150 | 114 - 112 h | |
| Meringues | critical | 80-100 | 1 | 90-100 | 212 - 3 h |
| Flapjack | 170-180 | 1 | 170-180 | 25 - 30 | |
| Shortbread | 130-140 | 1 | 140-150 | 45 - 65 | |
| Casseroles: Beef/lamb | but ensure | 140-160 | 1* | 140-160 | 212 - 3 h |
| Chicken | 180-190 | 1* | 180-190 | 114 - 112 h | |
| Convenience Foods | Follow manufacturer's instructions | ||||
| Fish | that oven | 170-190 | 1 | 170-190 | 20 -30 |
| Fish Pie (Potato Topped) | 190-200 | 1* | 190-200 | 20 - 25 | |
| Fruit Pies, Crumbles | 190-200 | 1 | 190-200 | 40 - 50 | |
| Milk Puddings | shelves are | 130-140 | 1 | 140-150 | 112 - 2 h |
| Pasta, Lasagne etc. | 190-200 | 1 | 170-180 | 40 - 45 | |
| Pastry: Choux | 190-200 | 1 | 180-190 | 30 - 35 | |
| Eclairs,Profiteroles | evenly | 170-180 | 1 | 170-180 | 20 - 30 |
| Flaky/Puff Pies | 210-220 | 1* | 210-220 | 25 - 40 | |
| Shortcrust Mince Pies | 190-200 | 1 | 190-200 | 15 - 20 | |
| Meat Pies | spaced | 190-210 | 1* | 190-210 | 25 - 35 |
| Quiche,Tarts,Flans | 180-210 | 1 | 180-200 | 25 -45 | |
| Patés and Terrines | 150-160 | 1 | 150-160 | 1 - 112 h | |
| Roasting Meat, Poultry | when more | 160-180 | 1* | 160-180 | see roastingchart |
| Scones | 210-220 | 1 | 220-230 | 8 - 10 | |
| Shepherd's Pie | 190-200 | 1* | 190-200 | 30 - 40 | |
| Soufflés | than one is | 170-180 | 1 | 170-180 | 20 - 30 |
| Vegetables: Baked Jacket Potatoes | 180-190 | 1 | 180-190 | 1 - 112 h | |
| Roast Potatoes | 180-190 | 1 | 180-190 | 1 - 112 h | |
| Stuffed Marrow | used | 180-190 | 1 | 180-190 | 30 - 35 |
| Stuffed Tomatoes | 180-190 | 1 | 180-190 | 15 - 20 | |
| Yorkshire Puddings:Large | 210-220 | 1 | 200-210 | 25 - 40 | |
| Individual | 200-210 | 1 | 200-210 | 15 - 25 | |
* = Shelf on the oven base
Note: Shelf positions are counted from the bottom of the oven.
| ROASTING CHART | ||
| INTERNAL TEMPERATURES -Rare : 50-60°C; Medium : 60-70°C; Well :70-80°C | ||
| MEAT SECON | ND/FAN OVEN | COOKING TIME |
| Beef 160-180°C | 20-35 min per 12 kg/1lb and 20-35 min over | |
| Beef, boned | 160-180°C 20-35 | min per 12 kg/1lb and 25-35 min over |
| Mutton and Lamb | 160-180°C 25-35 | min per 12 kg/1lb and 25-35 min over |
| Pork and Veal | 160-180°C 30-40 | min per 12 kg/1lb and 30-40 min over |
| Ham 160-180°C | 30-40 min per 12 kg/1lb and 30-40 min over | |
| Chicken 160-180°C | 15-20 min per 12 kg/1lb and 20 min over | |
| Turkey and Goose | 160-180°C 15-20 | min per 12 kg/1lb up to 312 kg/7lb then 10 min per 12 kg/1lb |
| Duck 160-180°C | 25-35 min per 12 kg/1lb and 25-30 min over | |
| Pheasant 160-180°C | 35-40 min per 12 kg/1lb and 35-40 min over | |
| Rabbit 160-180°C | 20 min per 12 kg/1lb and 20 min over | |
| Potatoes with meat | 160-180°C according to size | |
| Potatoes without meat | 180-190°C according to size | |
The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat. However, lower temperatures and longer cooking times are recommended for less tender cuts or larger joints.
Wrap joints in foil if preferred, for extra browning uncover for the last 30 - 60 min. cooking time.
DEFROSTING
USES OF DEFROST FEATURE

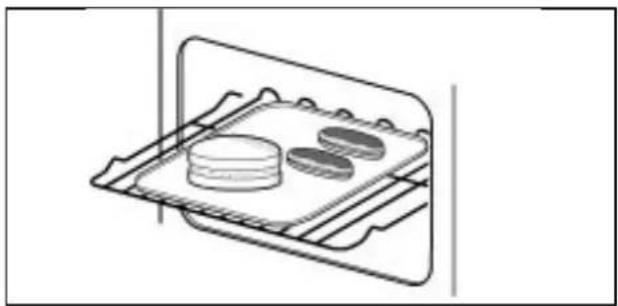

This main oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones etc.


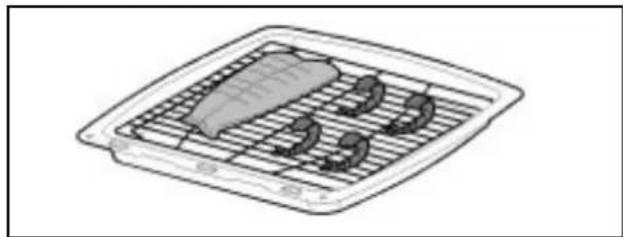

Small or thin fish fillets, frozen peeled prawns, cubed or minced meat, liver, thin chops, steaks etc., can be thawed in 1 - 2 hours.
Joints of meat up to 2kg/4½lb in weight can be thawed using the defrost function.
ALL JOINTS OF MEAT AND POULTRY MUST BE THAWED THOROUGHLY BEFORE COOKING.
ALWAYS COOK THOROUGHLY IMMEDIATELY AFTER THAWING.
SELECTING DEFROST
- Push in and turn the main oven temperature control to the defrost setting.
- When defrost is selected, the main oven indicator neon may come ON. It will stay on until the oven reaches room temperature and then go OFF.
- It may turn ON and OFF periodically during defrosting to maintain steady room temperature.
THINGS TO NOTE
Care must always be taken when handling foods in the home. Always follow the basic rules of food hygiene to prevent bacterial and microbial growth and cross contamination when defrosting, cooking, cooling and freezing foods.
HINTS AND TIPS
- Place the frozen food in a single layer where possible and turn it over half way through the defrosting process.
- DO NOT leave food at room temperature once it is defrosted. Cook raw food immediately or store cooked food in the fridge.
CARE AND CLEANING
BEFORE CLEANING THE COOKER, ALWAYS ALLOW THE COOLING FAN TO COOL THE COOKER DOWN BEFORE SWITCHING OFF THE ELECTRICITY SUPPLY.
CLEANING MATERIALS
Before using any cleaning materials on your cooker, check that they are suitable and that their use is recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as they may dull the surface finishes. Harsh abrasives should also be avoided. Multi-surface anti-bacterial cleaning products should not be used on the ceramic hob or on the surrounding trims.
CLEANING THE CERAMIC HOB
Make sure the ceramic glass is cool before cleaning. It is important to clean the ceramic hob daily to prevent soilage being burnt on.
Take care to avoid the hob trims when cleaning the ceramic glass as they may be damaged by the cleaning agents recommended.
DAILY CLEANING
Use the recommended Hob Brite Cleaner daily. If soilage is not allowed to burn on it will be much easier to clean off.

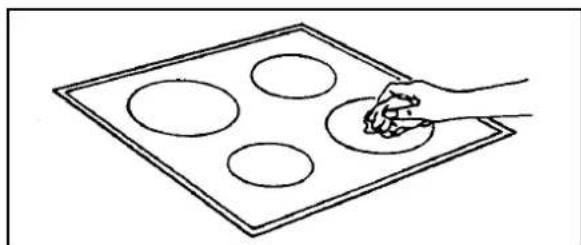

- Apply a small amount of Hob Brite in the centre of each area to be cleaned.
Dampen a clean paper towel or a plastic pad made specially for non-stick saucepans and rub vigorously until all marks are removed. This may take a few minutes.
-
Wipe off residues of cleaner with another damp paper towel and polish dry with a soft cloth.
a) Jif Cream Cleaner
b) Baking Soda
TO REMOVE MORE STUBBORN MARKS
-
Bar-Keepers Friend may be used to clean off more stubborn stains or to remove discolourations. It may be necessary to rub the marks hard for several minutes.
-
Use a plastic pad specially for non-stick saucepans with Bar-Keepers Friend for removal of more stubborn soilage.


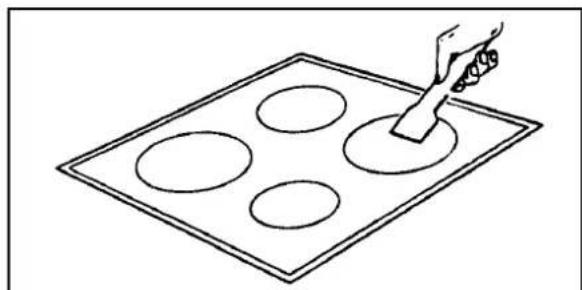

We strongly recommend the use of a Ceramic Hob Scraper (incorporating a single edge razor blade) to remove spillage on the hob, in particular sugar solutions, which if not removed can cause permanent damage.
-
Make sure the ceramic glass is cool.
-
Use a ceramic hob scraper with care at an angle of 30^ to remove as much soilage as possible.
-
Use Bar-Keepers Friend or Hob Brite to finish off as directed above.
These marks sometimes give the impression of being in or underneath the hob glass. They can almost always be removed provided they have not become excessively burnt on. Follow the instructions under 'To Remove more Stubborn Marks' above.
If this is unsuccessful, make up a paste of one part water to three parts Cream of Tartar and leave on the discoloured areas overnight. The marks should be easily removable the next day provided they have not been excessively burnt on. The paste should be thoroughly washed off afterwards.
HINTS AND TIPS
TO REDUCE HOB SOILAGE:
● Make sure the bottom of the saucepan and the cooking area are clean and dry before cooking begins.
- Ensure saucepans are large enough to accommodate food to avoid boil overs.
- If possible, wipe up spills and splatters as they occur, but take care to avoid steam burns.
- Avoid using a dishcloth or sponge to clean the hob. These may leave a layer of soiled detergent on the hob surface which will burn and discolour the next time the hob is used.
- Avoid the use of:
• Household detergents and bleaches.
- Impregnated plastic or nylon pads that are not described as suitable for non-stick saucepans.
- Brillo pads, Ajax pads, steel wool pads.
- Chemical oven cleaners, e.g. aerosols and oven pads.
• Rust stain, bath and sink stain removers.
- Any of the above products may cause damage to the hob.
- It is dangerous to mix different cleaning products. The chemicals in them may react with each other with hazardous results.
- SOILAGE FROM SUGAR SOLUTIONS MUST BE REMOVED FROM THE HOB BEFORE THE SYRUP HAS SET OTHERWISE DAMAGE TO THE HOB SURFACE WILL OCCUR.
- Avoid placing plastic items, aluminium foil or dishes on the hot surface as this will cause damage to the hob.
CLEANING THE OUTSIDE OF THE COOKER
DO NOT use abrasive cleaning materials or scourers on the outside of the cooker as some of the finishes are painted and damage may occur. Regularly wipe over the control panel, oven doors and cooker sides using a soft cloth and liquid detergent.
All removable parts, except the grill pan handle can be washed in the dishwasher.
The grill pan, and oven shelves may be cleaned using a soap impregnated steel wool pad. The grill pan grid should be cleaned using hot soapy water. Soaking first in soapy water will make cleaning easier.
CLEANING INSIDE THE OVEN AND GRILL
COMPARTMENTS
The top, sides and back of the main oven compartment are coated with a Stayclean coating.
The Stayclean surfaces inside the main oven should not be cleaned manually. See Page 27 'Care of Stayclean Surfaces'.
The vitreous enamel in the grill / top oven compartment and on the main oven base can be cleaned using normal oven cleaners or aerosol oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards.
Aerosol cleaners must not be used on Stayclean surfaces and must not come into contact with the elements or the door seal as this may cause damage.
Stayclean surfaces destroy splashes of food and fats when the oven temperature is raised to around 220°C.
It is a good idea to run the oven for an hour or two per week to ensure continued good performance from the Stayclean finish.
HINTS AND TIPS
- Manual cleaning of Stayclean is not recommended. Damage will occur if oven sprays or abrasives of any kind are used.
- Slight discolouration and polishing of the Stayclean surface may occur in time. This DOES NOT affect the Stayclean properties in any way.
- A good time to allow the oven to run on is after the weekly roast. After removing the roast, turn the oven up to 220°C and allow to run for an hour or so. It is important NOT to allow a build-up of soilage as this can prevent the Stayclean from working.
- Follow the recommendations below to keep oven soilage to a minimum.
- Cook at the recommended temperatures. Higher temperatures during roasting will increase soilage. Try cooking at lower temperatures for an increased length of time, you will save energy and often the joint is more tender.
- Use minimal, if any, extra oil or fat when roasting meat, potatoes only require brushing with fat before cooking. Extra fat in the oven during roasting will increase splashing and soilage.
- It is NOT necessary to add water to the meat tin when roasting. The water and the fat juices from the joint create excessive splattering during cooking - even at normal temperatures, as well as causing condensation.
- Covering joints during cooking will also prevent splashing onto the interior surfaces. Removing the covering for the last 20-30 minutes will allow extra browning if required. Some large joints and turkeys especially benefit by this method of cooking, allowing the joint to cook through before the outside is overbrowned.
To prevent damaging or weakening the door glass panels avoid the use of the following:
• Household detergents and bleaches
- Impregnated pads unsuitable for non-stick saucepans
- Brillo/Ajax pads or steel wool pads
• Chemical oven pads or aerosols
- Rust removers
- Bath/Sink stain removers
CLEANING BETWEEN THE OUTER AND INNER DOOR GLASS
The outer door glass is removable for cleaning.
TO REMOVE THE OUTER GLASS

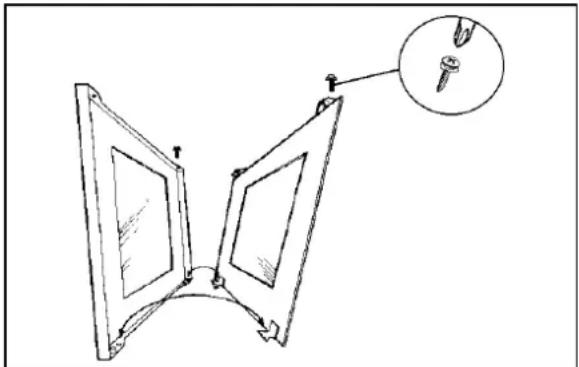

- Open the oven door slightly to gain access to the two cross head screws on the top of the oven door.
- Loosen the two screws using a Pozidrive screwdriver.
-
Hold the door glass securely in place with one hand before removing the screws completely with the other hand.
-
Using both hands, gently tilt the top of the door glass towards you, lift slightly to disengage the locators from the two bottom brackets.
TO REPLACE THE OUTER GLASS
- Holding the oven glass with both hands, gently place the locators into the holes of the brackets at the bottom of the oven door.
- Push the top of the oven glass towards the oven door, ensuring the screw location holes line up.
- Hold the glass in place with one hand and insert the cross head screws into the location holes with the other hand. Give the screws one turn to ensure the glass is secure.
- Tighten the screws positively with a Pozidrive screwdriver before closing the oven door.
Do not attempt to use the oven without the glass being in place.
If the door glass panel becomes chipped or has deep scratches the glass will be weakened and must be replaced to prevent the possibility of the panel shattering. Please contact your local Service Centre who will be pleased to advise further.
TO CLEAN THE INNER GLASS DOOR PANELS
Clean the inner door glass panels using a soft cloth and hot water to which a little washing up has been added. If the inner panel is heavily soiled, Hob Brite may be used. Do not use abrasive cleaning materials on the door glass. Ensure that all parts are well rinsed and thoroughly dried before attempting to replace the glass.
REPLACING THE OVEN LIGHT BULB
The type of bulb required is a 300C 25 watt small Edison Screw. Part number 572 491 5431-00/1. (Available through Tricity Bendix service centres).
CAUTION: Disconnect the appliance from the electricity supply before replacing the bulb.
Open door and remove the shelves to enable easy access to the oven light assembly. Insert a flat blade screwdriver between the oven side and the glass which covers the bulb.
Support the glass with your hand and prise out sufficiently to release the glass cover. Unscrew the bulb in an anticlockwise direction until it is possible to remove the bulb with ease.
Fit the new bulb by turning in a clockwise direction until it is secure. Ensuring the indent to the flange is pointing to the rear of the oven, replace the glass by pushing it firmly into the hole to cover the bulb assembly.
Replace the shelves. Restore the electricity supply and adjust the time of day and clock as necessary.
SOMETHING NOT WORKING?
We strongly recommend that you carry out the following checks on your cooker before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a service call.
If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the cooker is under guarantee.
The cooker does not work at all:
* Check that the cooker has been wired in and is switched on at the wall.
* Check that the main cooker fuse is working.
* Check that the timer is set to manual (see page 12).
The grill and hotplates work but the oven does not:
* Check that the timer is set to manual operation (see page 12).
The oven temperature is too high or low:
* Check that the recommended temperatures are being used (see page 22). Be prepared to adjust up or down by 10°C to achieve the results you want.
The hotplates and ovens work but the grill does not:
* Check that you have carefully followed the instructions for operation of the grill.
* If the cooling fan fails the grill will not operate. Please call your Customer Service Centre.
If the oven is not cooking evenly or the side opening door will not stay open:
* Check that the cooker is level.
The oven light fails to illuminate:
* Check that the cooker is not set for automatic cooking. The light will illuminate when the cook time begins.
* If you have had your cooker for several months you may need to replace the light bulb (see page 28).
The oven fan is noisy:
* Check that the oven is level.
* Check that bakeware and shelves are not vibrating in contact with the back panel in the oven.
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Tricity Bendix Service Force Centre by telephoning:
0870 5 950950
Your call will be routed to the Service Force Centre covering your post code area. The address of your local Service Force Centre is detailed in the accompanying Customer Care Book.
For Service in the Republic of Ireland contact
Tricity Bendix
Long Mile Road
Dublin 12
Telephone: 01 4090751
Before calling out an engineer, please ensure you have read the details under the heading 'If Something Doesn't Work'.
When you contact the Service Centre you will need to give the following details:
- Your name, address and post code
- Your telephone number
- Clear and concise details of the fault
- The model, product and serial number of the appliance (found on the rating plate)
- The purchase date
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Tricity Bendix appliance, or further information on Tricity Bendix products, you are invited to contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
Tricity Bendix
55 - 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 0870 5 950950
To contact your local Tricity Bendix Service Centre telephone 0870 5 950950
| CHANNEL ISLANDS | ORKNEY(M65) | Corsie Domestics7 King StreetKirkwallOrkney KW15 | NORTH EAST | ||
| GUERNSEY | Guernsey ElectricityPO Box 4Vale, GuernseyChannel Islands | PERTH | Hydro ElectricInveralmond HouseRuthervenfield RoadPerth PH1 3AQ | GATESHEAD(M39) | Unit 356aDukesway CourtDukeswayTeam ValleyGatesheadNE11 0BH |
| JERSEY | Jersey ElectricityCompanyPO Box 45Queens RoadSt HelierJerseyChannel IslandsJE4 8NY | PERTH(OWN SALES) | Graham BeggUnit 4Airport Industrial EstateWick KW1 4QS | GRIMSBY(M42) | 15 Hainton AvenueGrimsbySouth HumbersideDN32 9AS |
| SHETLAND(OWN SALES) | Tait Electronic Systems Ltd.Holmsgarth RoadLerwickShetland ZE1 0PW | HULL(M41) | Unit 1BoulevardIndustrialEstateHullHU3 4AY | ||
| SCOTLAND | SHETLAND(OWN SALES) | Bolls Shetland Ltd26 North RoadLerwickShetland ZE1 0PE | LEEDS(M37) | 64-66 Cross Gates RoadLeedsLS15 7NN | |
| ABERDEEN(M05) | 54 Claremont StreetAberdeenAB10 6RA | WHALSAY(OWN SALES) | Leask ElectricalHarlsdaleSymbister, WhalsayShetland ZE2 9AA | NEWTON AYCLIFFE(M45) | Unit 16Gurney WayAycliffe Ind EstateNewton AycliffeDL5 6UJ |
| AUCHTERMUCHY(M03) | 33A BurnsideAuchlermuchyFileKY14 7AJ | ||||
| BLANTYRE(M07) | Unit 5Block 2Auchenraith Ind EstateRosendale WayBianlyreG72 0NJ | NORTHERN IRELAND | SHEFFIELD(M38) | Pennine HouseRoman Ridge Ind.Roman Ridge RoadSheffieldS9 1GB | |
| DUMFRIES(M01) | 93 Irish StreetDumfriesScotlandDG1 2PQ | BELFAST(M27) | Owenmore HouseKilvee Business ParkUpper Dunmury LaneBelfastBT17 0HD | NORTH WEST | |
| DUNOON(M67) | Briar Hill7 Hill Street,DunoonArgyllPA23 7AL | WALES | BIRKENHEAD(M11) | 1 Kelvin ParkDock RoadBirkenheadL41 1LT | |
| GLASGOW(M04) | 20 Cunningham RoadClyde EstateRutherglen,Glasgow,G73 1PP | CARDIFF(M28) | Guardian IndustrialEstateClydesmuir RoadTremorla, CardiffCF2 2QS | CARLISLE(M10) | Unit 7 James StreetWorkshopsJames StreetCarlisleCumbriaCA2 5AH |
| INVERNESS(M06) | Unit 3BSmithton Indust. Est.SmithtonInvernessIV1 AJ | CLYWD(M14) | Unit 6-7 Coed - ParcAbergele RoadRhuddlanClwydWalesLL18 5UG | ISLE OF MAN(M64) | South Quay Ind EstateDouglasIsle of Man |
| ISLE OF ARRAN(OWN SALES) | Arran DomesticsUnit 4 The DouglasCentreBrodickIsle of ArranKA27 8AJ | DYFED(M77) | Maes Y CoedHigh MeadLlanybydderCamarthenshireSA40 9UL | LIVERPOOL(M15) | Unit 1Honeys Green PrecinctHoneys Green LaneLiverpoolL12 9JH |
| ISLE OF BARRA(OWN SALES) | J Zerfah244 BruernishIsle of BarraWestern IslandsHS9 5QY | HAVERFORDWEST(M75) | Ark AppliancesCromlech LodgeAmbleslonHaverfordwestSA62 5DS | MANCHESTER(M09) | Unit B Central IndustrialEstateS1 Marks StreetBoltonBL3 6NR |
| ISLE OF BUTE(M66) | Walker EngineeringGlenmhorUpper Serpentine RoadRothesayIsle of BulePA20 9EH | OSWESTRY(M17) | Plas FfynnonWarehouseMiddleton RoadOswestrySY11 2PP | PRESTON(M13) | Unit 250Dawson PlaceWalton SummitBamber BridgePrestonLancashirePR5 8AL |
| ISLE OF LEWIS(M69) | ND Macleod16 James StreetStomowayIsle of Lewis PA87 2QW | STOCKPORT(M16) | Unit 20 Haigh ParkHaigh AvenueStockportSK4 1QR | ||
| KELSO(M08) | 2-8 Wood MarketKelsoBorders TD5 7AX | ||||
MIDLANDS
| BIRMINGHAM (M18) | 66 Birch Road East, Wyrley Road Industrial EstateWittonBirminghamB6 7DB |
| BOURNE (M44) | Manning Road Ind EstatePinfold RoadBoumePE10 9HT |
| BRIDGNORTH (M72) | 1 Underhill StreetBridgnorthSalopWV16 4BB |
| GLOUCESTER (M23) | 101 Rycroft StreetGloucesterGL1 4NB |
| HEREFORD (M31) | Unit 3Bank BuildingsCattle MarketHerefordHE4 9HX |
| HIGHAM FERRERS (M51) | 30 High StreetHigham FerrersNorthantsNN10 8BB |
| ILKESTON (M43) | Unit 2Furnace RoadIlkestonDE7 5EP |
| LEICESTER (M22) | Unit 7Oaks Industrial EstateCoventry RoadNarboroughLeicestershireLE0 5GF |
| LINCOLN (M40) | Unit 8 Stonefield ParkClifton StreetLincolnLN5 8AA |
| NEWCASTLE UNDER LYME (M12) | 18-21 Croft RoadBrampton IndustrialEstateNewcastle under LymeStaffordshireST5 0TW |
| NUNEATON (M21) | 19 Plarmigan PlaceTownsend DriveNuneatonCV11 6RX |
| REDDITCH (M20) | 13 Thornhill RoadNorth Moons MoatRedditchWorcestershireB98 9ND |
| TAMWORTH (M19) | Unit 3Sterling ParkClaymoreTamworthB77 5DO |
| WORCESTER (M73) | Unit 1Northbrook CloseGregorys Mill Ind EstateWorcesterWR3 8BP |
LONDON & EAST ANGLIA
| BECKENHAM(M79) | 11a Gardener IndustEstateKent House LaneBeckenhamKent BR3 1QZ |
| CHELMSFORD(M47) | Hanbury RoadWidford Ind EstateChelmsfordEssexCM12 3AE |
| COLINDALE(M53) | Unit 14Capitol ParkCapitol WayColindaleLondon NW9 0EQ |
| ELTHAM(M78) | 194 Court RoadMoltinghamElthamLondon SE9 4EW |
| ENFIELD(M49) | 284 Alma RoadEnfieldLondonEN3 7BB |
| GRAVESEND(M57) | Unit B4,Imperial Business EstateGravesendKentDA11 0DL |
| HARPENDEN(M46) | Unit 4Riverside EstateColdharbour LaneHarpendenAL5 4UN |
| LETCCHWORTH(M50) | 16-17 Woodside Ind Est.Works RoadLetchworthHertsSG6 1LA |
| LONDON(M76) | 2/4 Royal LaneYiewsleyWest DraytonMiddlesexUB7 8DL |
| MAIDENHEAD(M60) | Reform RoadMaidenheadBerkshireSL6 8BY |
| MOLESEY(M61) | 10 Island Farm AvenueWest MoleseySurreyKT8 2UZ |
| NEWBURY(M24) | PO Box 5627NewburyBerkshireRG14 5GF |
| IPSWICH(M48) | Unit 2BElton Park BusinessCentreHadleigh RoadIpswichIP2 0DD |
| NORWICH(M52) | 2b Trafalgar StreetNorwichNR1 3HN |
| SUNBURY(M63) | Unit 1aThe SummitHanworth RoadHanworth Ind EstateSunbury on ThamesTW16 5D |
SOUTH EAST
| ASHFORD(M58) | Unit 2Bridge Road BusinessEstateBridge RoadAshfordKentTN2 1BB |
| FLEET(M59) | Unit 1RedfieldsIndustrialEstateChurch CrookhamFleetHampshireGU13 ORD |
| HAYWARDS HEATH(M55) | 21-25 Bridge RoadHaywards HealthSussexRH16 1UA |
| TONBRIDGE(M56) | Unit 30 Deacon TradingEstateMorley RoadTonbridgeKentTN9 1RA |
SOUTH WEST
| BARNSTAPLE(M30) | P.O. Box 12 Barnstaple North Devon EX31 2YB |
| BOURNEMOUTH(M26) | 63-65 Curzon Road Bournemouth Dorset BH1 4PW |
| BRIDGEWATER(M35) | 6 Hamp Industrial Estate Bridgewater Somerset TA6 3NT |
| BRISTOL(M25) | 11 Eldon Way Eldonwall Trading Bristol Avon BS4 3QQ |
| EMSWORTH(M33) | 266 Main Road Southbourne Emsworth PO10 8JL |
| ISLE OF WIGHT(M34) | Unit 8 Enterprise Court Ryde Business Park Ryde Isle of Wight PO33 1DB |
| NEWTON ABBOT(M29) | Unit 2 Zealley Industrial Estate Kingsleignton Newton Abbot S. Devon TQ12 3TD |
| PLYMOUTH(M32)) | 16 Faraday Mill Cattledown Plymouth PL4 0ST |
| REDRUTH(M36) | Unit 7D Pool Industrial Estate Wilson Way, Redruth, Cornwall TR15 3QW |
Standard guarantee conditions
We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
- The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
- The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
- The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.
- All service work under this guarantee must be undertaken by a Tricity Bendix service centre.
- Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
- Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
- Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
- Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
- Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European Free Trade Area.
- The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.
France Senlis +33 (0)3 44 62 28 28
Germany Nürnberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0)1753 219898
RATING PLATE REFERENCE
| MAKE AND MODEL NO. SERIAL NO. PRODUCT | NO. DATE OF PURCHASE |
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice.
This handbook is accurate at the date of printing, but will be superseded and should be disregarded if specifications or appearance are changed.
TRICITY BENDIX,55 - 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ TELEPHONE 0870 5 950950
MODEL NO. PART NO.
CSIE 510
CE
311495500
- TECHNICAL DETAILS
- MODEL NO. CSIE 510
- CONTENTS
- Technical Details 2
- Contents 3
- Preface 5
- Safety 6
- Introduction 8
- Getting to Know your Cooker 11
- The Ceramic Hob 14
- The Dual Grill 16
- The Top Oven 18
- The Main Fan Oven 20
- Oven Cooking Chart 22
- Roasting Chart 23
- Defrosting 24
- Care and Cleaning 25
- Something Not Working? 29
- Service and Spare Parts 30
- Customer Service Centres 31
- Guarantee Conditions 33
- BEFORE INSTALLATION
- DURING OPERATION
- AFTER USE
- GENERAL
- WARNING: THIS COOKER MUST BE EARTHED
- RATING PLATE
- INSTALLATION
- GENERAL NOTES ON USING YOUR COOKER
- ABOUT CONDENSATION AND STEAM
- POP IN POP OUT CONTROL KNOBS
- THE COOLING FAN FOR THE CONTROLS
- CONTROL PANEL INDICATOR NEONS
- COOKWARE
- GRILL AND OVEN FURNITURE
- FEATURES
- THE TIMER
- TO SET THE TIME OF DAY
- TO USE THE MINUTE MINDER
- Note:
- AUTOMATIC CONTROL
- SETTING THE CONTROLS FOR AUTOMATIC USE
- THE CERAMIC HOB
- USING THE HOB
- Warning
- RECOMMENDED SAUCEPANS
- NOTE
- HINTS AND TIPS
- HOT HOB INDICATOR
- DEEP FAT FRYING
- SPECIAL FRYING NOTE:
- PRESERVING
- THE GRILL
- USES OF THE GRILL
- SELECTING THE GRILL
- THINGS TO NOTE
- THE GRILL PAN AND HANDLE
- THE TOP OVEN
- USES OF THE TOP OVEN
- SELECTING THE TOP OVEN
- THE MAIN FAN OVEN
- USES OF THE FAN OVEN
- PREHEATING
- COOKING TEMPERATURES
- BATCH BAKING
- SELECTING THE FAN OVEN
- TO FIT THE MAIN OVEN SHELVES
- OVEN COOKING CHART
- DEFROSTING
- USES OF DEFROST FEATURE
- SELECTING DEFROST
- CARE AND CLEANING
- CLEANING MATERIALS
- CLEANING THE CERAMIC HOB
- DAILY CLEANING
- TO REMOVE MORE STUBBORN MARKS
- TO REMOVE BURNT ON SOILAGE
- TO REMOVE DISCOLOURATIONS OR WHITE AND SILVER MARKS
- TO REDUCE HOB SOILAGE:
- CLEANING THE OUTSIDE OF THE COOKER
- CLEANING THE GRILL PAN, GRILL PAN GRID AND OVEN SHELVES
- CLEANING INSIDE THE OVEN AND GRILL
- COMPARTMENTS
- CARE OF STAYCLEAN SURFACES
- CLEANING THE DOOR GLASS
- CLEANING BETWEEN THE OUTER AND INNER DOOR GLASS
- TO REMOVE THE OUTER GLASS
- TO REPLACE THE OUTER GLASS
- TO CLEAN THE INNER GLASS DOOR PANELS
- REPLACING THE OVEN LIGHT BULB
- SOMETHING NOT WORKING?
- The cooker does not work at all:
- The grill and hotplates work but the oven does not:
- The oven temperature is too high or low:
- The hotplates and ovens work but the grill does not:
- If the oven is not cooking evenly or the side opening door will not stay open:
- The oven light fails to illuminate:
- The oven fan is noisy:
- SERVICE AND SPARE PARTS
- 5 950950
- CUSTOMER CARE DEPARTMENT
- Standard guarantee conditions
- Exclusions
- This guarantee does not cover:
- European Guarantee
- RATING PLATE REFERENCE
- IMPORTANT NOTICE
Brand : Tricity Bendix
Model : CSIE510BU
Category : Cooker
