PFP1035 - Electric blanket BOSCH - Free user manual and instructions

Product Type	Electric Blanket
Brand	BOSCH
Model	PFP1035 (also PFP1135)
Application Areas	Arms, legs, stomach, shoulder, thigh, calf, etc.
Control	Thermostat with multiple heat settings
Automatic Switch-Off	After approx. 90 minutes of continuous operation
Indicator Light	Lights when the blanket is switched on
Parts Included	Heating pad, fabric cover, thermostat
Fabric Cover Care	Machine washable (see care symbols); remove heating pad before washing
Heating Pad Care	Do not wash or dry clean; wipe as needed
Thermostat Care	Do not get wet; never hold under water
Storage	Flattened in a dry location; do not place heavy objects on top
Safety Features	Overheat protection, no pins, do not use folded or compressed, do not cover thermostat
Usage Restrictions	Domestic use only; not for industrial, medical, or animal use
Warranty	As per local representative; bill of sale required
Disposal	Subject to WEEE Directive 2002/96/EC; recycle at designated collection points
Operating Instructions	Available in multiple languages in the manual

Frequently Asked Questions - PFP1035 BOSCH

How do I use the Bosch PFP1035 electric blanket?

Place the heating pad inside the fabric cover with the thermostat and cord outside. Close the cover with Velcro or zip. Set the desired temperature on the thermostat. The indicator light will turn on. To switch off, set to '0'.

Can I wash the entire blanket?

No, only the fabric cover is machine washable. Remove the heating pad before washing. The heating pad itself must not be washed or dry-cleaned.

How long does the automatic shut-off last?

The blanket automatically switches off after approximately 90 minutes of continuous operation. To restart, set the thermostat to '0' and then to your desired temperature.

Is it safe to use the electric blanket overnight?

The manual warns against falling asleep while using the heating pad. Although it has an auto shut-off, it is recommended to switch it off before sleeping.

Can I use the blanket on a mattress?

The blanket is designed for use on body parts and not as an under-blanket on a mattress. Avoid folding or compressing it.

What should I do if the indicator light does not turn on?

Check that the power cord is properly connected and the thermostat is set to a temperature above '0'. If the light still does not come on, the appliance may be damaged. Do not use and contact customer service.

How should I store the electric blanket?

Store the blanket flat in a dry location. Do not place heavy objects on it. The heating pad must not be folded or compressed during storage.

What is the warranty period for the Bosch PFP1035?

Warranty conditions are defined by the local representative. Contact the dealer where you purchased the appliance. Keep the bill of sale as proof.

Can I use the electric blanket for pets?

No, the manual explicitly states not to use the heating pad on animals.

How do I clean the thermostat?

The thermostat must not get wet. Do not hold it under water. Wipe it with a dry cloth if necessary. Moisture can damage the thermostat.

USER MANUAL PFP1035 BOSCH

Black-and-white photo of cosmetic products including a capsule, bottles, and a cream cone, with no visible text or symbols.

PFP1035/PFP1135

Illustration of a pen resting on lined paper with a magnified oval object (no text or symbols)

2

3

de 2

en 5

fr 8

it 11

nl 14

da 17

no 20

sv 23

fi 26

es 29

pt 33

el 36

tr 40

pl 43

hu 46

bg 49

ru 52

ar 58

Hinweiselesen!

Simple icon of an open book with a lowercase 'i' inside, no text or symbols present.

Readtheinstructions!

Donotstickpinsintothe heatingpad!

Donotusetheheatingpad whileitisfoldedorcompressed!

IMPORTANTINFORMATION!

PLEASE RETAINFOR

SUBSEQUENTUSE!

Ifsellingtheheatingpad,alwaysenclosethe operatinginstructions!

Safetyinstructions

Thisheatingpadisdesignedfordomestic andnotindustrialormedicalusein hospitalsorpractices.

Readtheoperatinginstructionsandkeep in asafeplace!

Ensure that the user does not fall asleep while using the heating pad!

Donotusetheheatingpadwhileitisfolded orcompressed.Donotwrinklethe heating pad!

Donotstickpinsintotheheatingpad! Donotuseonanimals.

⚠Riskofelectricshock!

Connectandoperatetheapplianceonlyin accordancewiththespecificationsontherating plate.

Frequentlychecktheheatingpadforwear and damage.

Donotusetheapplianceifthepowercord, thermostat,plugorheatingpadisvisibly damaged.Ifafaultoccurs,immediatelypull out themainsplug.

Topreventinjury, theappliancemaybe repaired by your customerservice only. Do NOT

—bringthepowercordintocontactwith hot parts

-pullthepowercordoversharpedges.

Useheatingpadsindryroomsonly (not in the bathroom,etc.).

Neveruseadamporwetheatingpad, wait untilithasdriedcompletely.

⚠️Riskofoverheating!

Neverleavetheheatingpadunattended while itisswitchedon;switchitoffbefore leavingtheroom.

Donotcoverthethermostat!

Toensure that the thermostat functions correctly, donotplace it on or under the heating pador cover it with other objects.

Donotwindthepowercordaroundthe thermostat.

Continuous use at a high heat setting may cause skin burns.

⚠️Riskofinjury!

Theheatingpadmustnotbeusedbypeoplein needofhelp,bypersonssensitivetoheatorby toddlers.

Donotallowpersons(alsochildren)withrestrictedphysicalsensoryperceptionormental abilitiesorwithlackofexperienceandknowledgetooperatetheapplicanceunlesstheyare supervisedorhavebeeninstructedintheuseof theapplicancebysomebodywhoisresponsiblefortheirsafety.

Keepchildrenawayfromtheapplicancetopreventthemfromplayingwiththeapplicance.

Partsandcontrols

Fig.1

1 Heatingpad
2Fabriccover
3Thermostat
4Indicatorlight

Applicationoptions

The heating pad is designed for use on the following body parts: arms, legs, stomach, shoulder, thigh, calf, etc.

Switchingonthe appliance

• Puttheheatingpad(1)inthefabriccover(2). Ensure that the powercord and thermostat (3) aresituated outsidethecover (2). Close the Velcrofastenerorzip.
• Settherequiredtemperatureonthe thermostat(3).

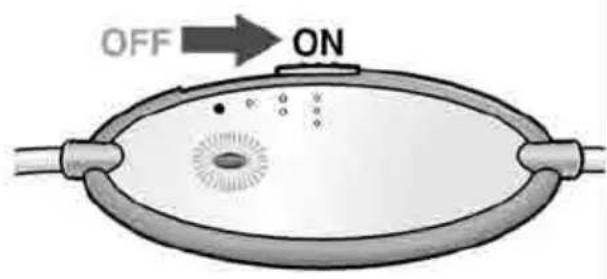

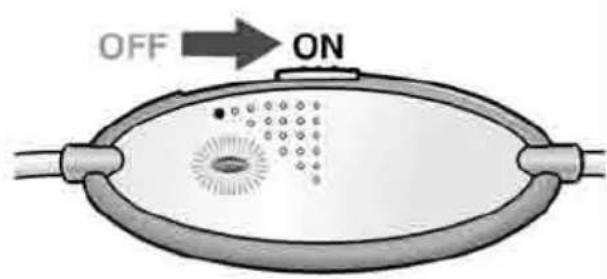

Fig.2

Whenthetemperatureissetonthethermostat (3), the heating pad switches on and the indicator light (4) comes on.

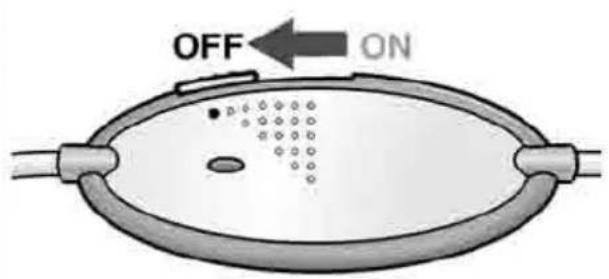

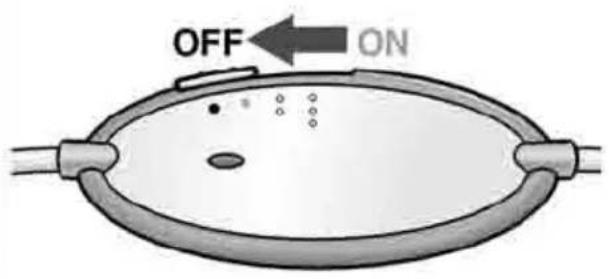

Fig.3

If the thermostat(3) is settoposition "0", the heating pad switches off and the indicator light(4) goes out.

Caution:

When using the heating pad, ensure that little aircancirculate between the heating pad and skin. Never use the heating pad without its fabric cover.

Automaticswitch-off

Topreventunsupervisedoperation,theheating padautomaticallyswitchesoffafterapprox. 90 minutescontinuousoperation.Theindicator lightcomesonagain.Toswitchontheheating padagain,firstsetthethermostatto"0"and thentotherequiredtemperature.

• Afteruse, pullout themains plug.

Cleaning, storage

Caution:

Beforecleaning,alwayspulloutthemains plug!

• Thefabriccoverismachine-washable,see theattachedcaresymbols.Beforewashing thecover,alwaysremovetheheatingpad.
• Theheatingpadmustnotbewashedinthe washingmachineordry-cleaned.
• Thethermostatmustnotbecomewet. Neverholdunderwater.Moisturedamages thethermostat.
• Donotusedetergentsorsolvents. These maydamagetheappliance.
• Storetheheatingpadflatinadrylocation. Donotplaceheavyobjectsontheheating pad.

Disposal

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (wasteelectrical and electronicequipment-WEEE). The guided determinesthe framework for the return and recycling of used appliances as applicable throughout the EU.

Pleaseaskyourdealerorinquireatyourlocal authorityaboutcurrentmeansofdisposal. Disposeofoldbatteriesatpubliccollection centresorreturntoyourdealer.

Guarantee

Theguaranteeconditionsforthisapplianceare asdefinedby ourrepresentativeinthecountry inwhichitissold.Detailsregardingthese conditionscanbeobtainedfromthedealer fromwhomtheappliancewaspurchased. Thebillofsaleorreceiptmustbeproduced whenmakinganyclaimunderthetermsofthis guarantee.

Subjecttoalterations
