PFP3031 - Electric blanket BOSCH - Free user manual and instructions

Brand	Bosch
Model	PFP3031
Product Type	Electric Blanket
Dimensions (approx.)	130 x 180 cm (51 x 71 in)
Weight (approx.)	1.5 kg (3.3 lbs)
Power Supply	220–240 V, 50–60 Hz
Power Consumption	100 W
Temperature Settings	Multiple levels via thermostat (0 = off)
Automatic Shut-off	After approx. 90 minutes
Indicator Light	Illuminates when heating pad is on
Intended Use	Domestic use on arms, legs, stomach, shoulder, thigh, calf, etc.
Fabric Cover	Machine-washable (remove heating pad before washing)
Heating Pad Care	Do not machine wash or dry-clean; wipe dry only
Safety Features	Overheating protection, automatic shut-off, no pins allowed, do not use folded/compressed
Storage	Store flat in dry location; do not place heavy objects on top
Warranty	Subject to country-specific conditions; contact dealer

Frequently Asked Questions - PFP3031 BOSCH

Can I wash the entire electric blanket?

No, only the fabric cover is machine-washable. The heating pad itself must not be washed or dry-cleaned. Always remove the heating pad before washing the cover.

Is it safe to sleep while using the blanket?

No, you should not fall asleep while the heating pad is switched on to avoid the risk of burns or overheating.

How long does the automatic shut-off take?

The heating pad automatically switches off after approximately 90 minutes of continuous operation.

Can I use the blanket on animals?

No, the heating pad is not designed for use on animals.

What should I do if the power cord is damaged?

If the power cord, thermostat, plug, or heating pad is damaged, immediately unplug the appliance. Only the manufacturer's customer service can repair it.

Can I use the blanket in a bathroom?

No, the heating pad is for dry rooms only. Do not use in bathrooms or damp areas.

How do I store the blanket properly?

Store the heating pad flat in a dry location. Do not place heavy objects on top of it.

Can I iron or dry-clean the blanket?

No, do not iron or dry-clean the heating pad. The fabric cover can be machine-washed according to care symbols.

What does the indicator light mean?

The indicator light illuminates when the heating pad is switched on and goes out when the thermostat is set to 0 (off).

Can children use this blanket?

Children may only use the heating pad under adult supervision. It must not be used by toddlers or persons sensitive to heat without assistance.

USER MANUAL PFP3031 BOSCH

Black-and-white photo of cosmetic products including vials and bottles, with no visible text or symbols.

PFP3031

Simple line drawing of a biological structure with a central oval and surrounding textured areas (no text or symbols)

2

3

Hinweiselesen!

Readtheinstructions!

Donotstickpinsinto the heatingpad!

Donotusetheheating pad whileitisfoldedor compressed!

Important information! Keeptheoperating instructions in a safeplace for subsequent use!

Ifsellingtheheatingpad,alwaysenclosethe operatinginstructions!

Safetyinstructions

Thisheatingpadisdesignedfordomestic andnotindustrialormedicalusein hospitalsorpractices.

Read the operating instructions and keep in as a safe place!

Ensure that the user does not fall asleep while using the heating pad!

Donotusetheheatingpadwhileitis foldedorcompressed.Donotwrinkle the heatingpad!

Donotstickpinsintotheheatingpad!

Donotuseonanimals.

⚠Riskofelectricshock!

Connectandoperatetheapplianceonlyin accordancewiththespecificationsonthe ratingplate.

Frequently check the heating pad for wear and damage.

Donotusetheapplianceifthepowercord, thermostat,plugorheatingpadvisibly damaged.Ifafaultoccurs,immediatelypull out themainsplug.

Topreventinjury, the appliancemaybe repaired by your customerservice only.

DoNOT

—bringthepowercordintocontactwith hot parts

-pullthepowercordoversharpedges.

Useheatingpadsindryroomsonly (not in the bathroom,etc.).

Neveruseadamporwetheatingpad, wait untilithasdriedcompletely.

⚠️Riskofoverheating!

Neverleavetheheatingpadunattended while itisswitchedon;switchitoffbefore leavingtheroom.

Donotcoverthethermostat!

Toensure that the thermostat functions correctly, donotplace it on or under the heating pador cover it with other objects.

Donotwindthepowercordaroundthe thermostat.

Continuous use at a high heat setting may cause skin burns.

⚠Riskofinjury!

Theheatingpadmustnotbeusedbypeoplein needofhelp,bypersonssensitivetoheatorby toddlers.

Childrenmayusetheheatingpadunderthe supervisionofanadultonly!

Partsandcontrols

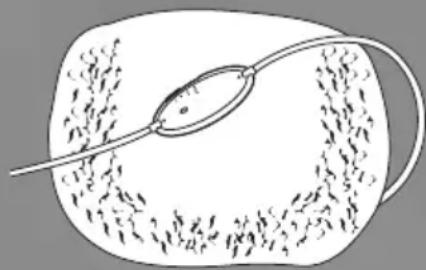

Fig.1

1 Heatingpad
2Fabriccover
3Thermostat
4Indicatorlight

Applicationoptions

The heating pad is designed for use on the following body parts: arms, legs, stomach, shoulder, thigh, calf, etc.

Switchingonthe appliance

• Puttheheatingpad(1)inthefabriccover (2).Ensurethatthepowercordand thermostat(3)aresituatedoutsidethe cover (2).ClosetheVelcrofastenerorzip.

- Settherequiredtemperatureonthe thermostat(3).

Fig.2

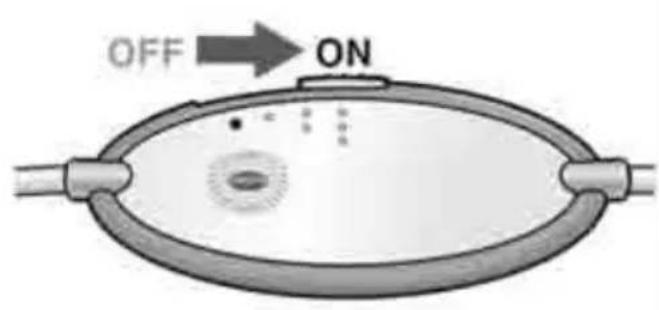

Whenthetemperatureissetonthethermostat (3), the heating pad switches on and the indicator light (4) comes on.

Fig.3

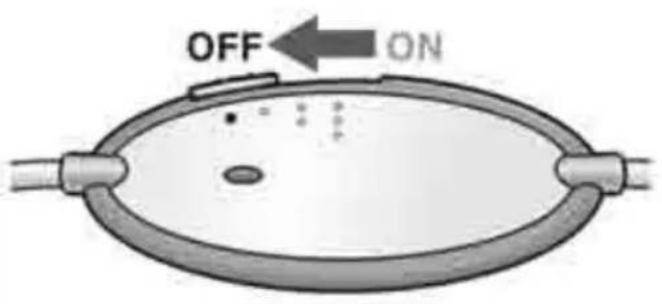

If the thermostat(3)issettoposition "0", the heating pad switches of and the indicator light(4) goes out.

Caution:

When using the heating pad, ensure that a little air can circulate between the heating pad and skin. Never use the heating pad without its fabric cover.

Automaticswitch-off

Topreventunsupervisedoperation, the heating padautomatically switchesoff after approx. 90 minutes continuous operation. The indicator light comes on again. Toswitch on the heating pad again, first set the thermostat to "0" and then to there required temperature.

•Afteruse, pulloutthemainsplug.

Cleaning, storage

Caution:

Beforecleaning, alwayspulloutthemains plug!

• Thefabriccoverismachine-washable,see theattachedcaresymbols.Beforewashing thecover,alwaysremovetheheatingpad.
• Theheatingpadmustnotbewashedinthe washingmachineordry-cleaned.
• Thethermostatmustnotbecomewet. Neverholdunderwater.Moisturedamages thethermostat.
• Donotusedetergentsorsolvents. These maydamagetheappliance.
• Storetheheatingpadflatinadrylocation. Donotplaceheavyobjectsontheheating pad.

Disposal

Please ask your dealer or inquire at your local authority about current means of disposal.

Guarantee

Theguaranteeconditionsforthisapplianceare asdefinedby ourrepresentativeinthecountry inwhichitissold.Detailsregardingthese conditionscanbeobtainedfromthedealer fromwhomtheappliancewaspurchased. Thebillofsaleorreceiptmustbeproduced whenmakinganyclaimunderthetermsofthis guarantee.

Subjecttoalterations
