GI521N - Range hood REX - Free user manual and instructions

Product Type	Range Hood
Brand	Rex
Model	GI521N
Installation Type	Built-in or Wall-mounted
Width	60 cm (standard)
Depth	50 cm
Height	Adjustable, typically 100-150 cm
Weight	Approximately 10-15 kg
Power Supply	220-240 V / 50 Hz
Motor Power	150-200 W
Number of Speeds	3
Max Suction Capacity	600 m³/h
Noise Level	50-65 dB (depending on speed)
Lighting	2 x 40 W halogen or LED (depending on version)
Control Type	Mechanical push buttons or slider
Filter Type	Aluminum grease filter (washable)
Filter Cleaning	Every 1-2 months in dishwasher or hand wash
Exhaust Duct Diameter	150 mm
Safety Features	Auto shut-off timer (optional), thermal protection
Spare Parts Available	Filters, bulbs, motor, switches
Color	Stainless steel or white

Frequently Asked Questions - GI521N REX

How do I install the Rex GI521N range hood?

Installation must be done by a qualified professional. Ensure the hood is securely mounted at least 65 cm above gas cooktops or 50 cm above electric cooktops. Use the provided template for drilling and connect the exhaust duct to an external vent.

How often should I clean the grease filter?

Clean the aluminum grease filter every 1-2 months depending on usage. You can wash it in the dishwasher or by hand with warm soapy water. Ensure it is completely dry before reinstalling.

Why is my range hood making excessive noise?

Excessive noise may be due to a clogged filter, loose parts, or improper installation. Check if the filter needs cleaning, tighten any screws, and ensure the ductwork is not obstructed.

How do I replace the light bulb?

Switch off the power. Remove the bulb cover by pressing the tab or unscrewing. Replace with the same type of bulb (e.g., 40 W halogen or compatible LED). Avoid touching the new bulb with bare hands.

Can I use the range hood without external ducting?

Yes, the GI521N can be used in recirculation mode with a charcoal filter (sold separately). The air is filtered and recirculated back into the kitchen.

What should I do if the hood stops working?

Check if the power cord is plugged in and the circuit breaker hasn't tripped. Also inspect the fuse if applicable. If the motor doesn't run, the motor or switch may be faulty; contact a technician.

How do I adjust the fan speed?

Use the control buttons or slider. Typically, setting 1 is for low noise, setting 2 for normal cooking, and setting 3 for heavy steam or odors.

What is the warranty period for the Rex GI521N?

Standard warranty is 1-2 years from date of purchase. Check your local dealer for specific terms. Keep your receipt as proof of purchase.

Can I clean the hood with abrasive cleaners?

No, avoid abrasive cleaners, scouring pads, or harsh chemicals. Use a soft cloth with mild detergent to clean the exterior. For stainless steel, use a specialized cleaner to maintain the finish.

Where can I find spare parts for the GI521N?

Spare parts such as filters, bulbs, and switches can be purchased from authorized Rex service centers or online retailers. Quote the model number GI521N for correct fit.

USER MANUAL GI521N REX

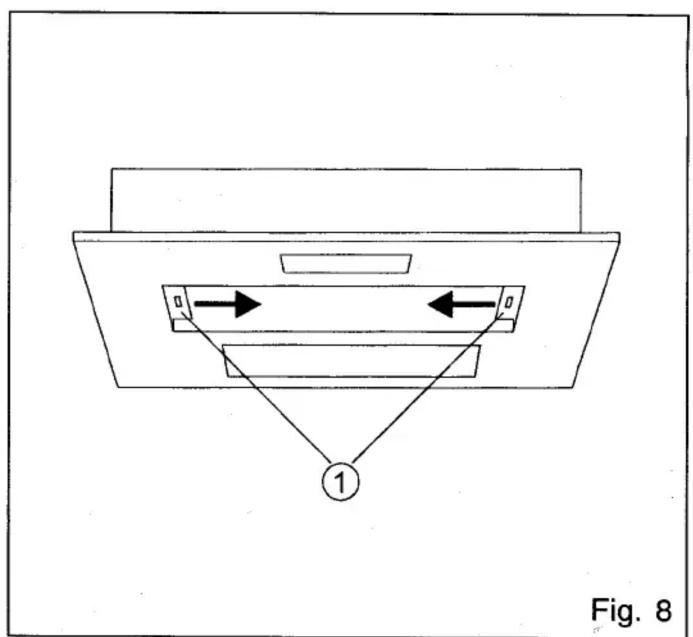

Technical line drawing of a mechanical device with labeled component (1), no readable text or symbols beyond label and figure marker
