Product Type	Freestanding Electric Cooker
Brand	Elektro Helios
Model	SN5109
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	Approx. 50 kg
Power Supply	230 V ~ 50 Hz
Total Power	Approx. 10 kW
Hob Type	Electric Radiant (4 cooking zones)
Oven Type	Conventional with Grill
Oven Volume	Approx. 65 liters
Oven Functions	Conventional heating, grill, fan-assisted (if applicable)
Energy Efficiency Class	A (estimated)
Oven Light	Yes, replaceable
Storage Drawer	Yes, below oven
Control Type	Knobs
Features	Quick start, energy-saving tips
Maintenance	Clean with mild detergent, avoid abrasive cleaners
Safety	Overheat protection, child lock (if available)
Spare Parts	Oven lamp, heating elements, knobs available
Repairability	User-replaceable lamp, professional service for major parts

Frequently Asked Questions - SN5109 ELEKTRO HELIOS

How do I clean the hob?

Allow the hob to cool completely. Wipe with a soft cloth and mild detergent. Avoid using abrasive sponges that may scratch the surface.

How do I replace the oven lamp?

Disconnect the power. Remove the glass cover by twisting or prying gently. Replace with a compatible 25W/300°C oven lamp. Reattach the cover and restore power.

Why is the oven not heating?

Check the power supply and fuse. Ensure the oven function selector is set correctly. If the problem persists, the heating element may be faulty and require replacement.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire oven bottom or touching the heating elements. Use it to line baking trays to catch drips.

What is the storage drawer for?

The drawer below the oven is for storing baking trays, pans, and other cookware. Do not place flammable items inside.

How do I set the timer?

Turn the timer knob to the desired time. The oven will automatically switch off when the time elapses. Some models may have a separate minute minder.

Why do the hob zones take long to heat up?

Ensure you are using flat-bottomed cookware that matches the zone size. The radiant elements may take a few minutes to reach full temperature.

How do I clean the oven door?

Wipe the glass with a damp cloth and a glass cleaner. For stubborn stains, use a paste of baking soda and water. Avoid scratching the glass.

Is the cooker energy efficient?

The oven is rated energy class A (estimated). Use residual heat by turning off a few minutes before end of cooking to save energy.

Where can I find spare parts?

Spare parts such as oven lamps, heating elements, and knobs are available from authorized dealers or online spare parts retailers. Provide the model number SN5109.

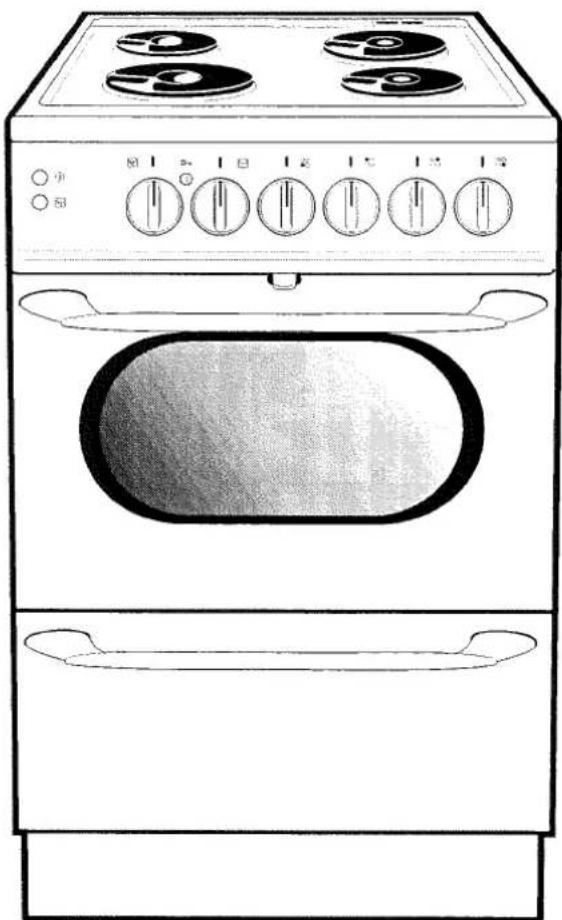

USER MANUAL SN5109 ELEKTRO HELIOS

B R U K S A N V I S N I N G

SN 5109

SISÄLTÖ 2

INNEHÅLLSFÖRTECKNING 2

Elektro EH Helios

Spar energi!

Ugnen

Snabbstart

Ugnen

Ugnsluckan

Lamporna

Byte av ugnslampa

Förvaringslådan

Service

Elektrisk anslutning

Placering i ugn

Ugnen har tre falser (se bild):

= delen av ugnen (fals 3).

Elektro EH Helios

105 45 Stockholm
