Product Type	2-Way In-Ceiling Speaker
Woofer	6.5 inch (165 mm) treated paper with ring mode decoupled cloth surround & steel basket
Tweeter	0.98 inch (25 mm) treated cloth dome, horn loaded
Frequency Response	75 Hz to 20 kHz (±3 dB)
Power Handling (Program)	60 Watts at 8 Ohms
Sensitivity	89 dB @ 1W/1m
Impedance	8 Ohms nominal
Transformer Taps	3.75W/7.5W/15W/30W (70V); 7.5W/15W/30W (100V)
Coverage Angle	95° conical
Enclosure Material	Zinc-plated steel, plenum-rated
Grille Type	Steel, magnetic frameless "zero-bezel", paintable
Mounting	Flush ceiling with 4 integral 2-step toggle clamps
Recommended Cutout Diameter	9.7 inches (245 mm)
Maximum Ceiling Thickness	2.4 inches (61 mm)
Dimensions (Diameter)	10.57 inches (269 mm)
Dimensions (Depth)	8.31 inches (211 mm)
Weight	10.0 lb (4.5 kg)
Safety	Safety tether included
Color	Black textured
Warranty	Lifetime (excluding grilles and outdoor rated speakers)

Frequently Asked Questions - SAROS ICE6T-B-T-EACH Crestron

How do I set the transformer tap on the SAROS ICE6T?

Use a screwdriver to adjust the recessed rotary switch located on the front baffle behind the grille. Select the desired tap (3.75W, 7.5W, 15W, or 30W at 70V; 7.5W, 15W, or 30W at 100V) or the 8 Ohm bypass position.

Can the speaker be painted?

Yes, the grille and baffle are paintable. Make sure to mask the driver and other components before painting to avoid affecting performance.

What is the recommended cutout size for installation?

The recommended cutout diameter is 9.7 inches (245 mm). The minimum mounting depth is 8.1 inches (206 mm).

Is the grille removable and how is it attached?

Yes, the grille is magnetically held and can be removed without tools. A safety tether prevents it from falling.

What is the warranty coverage for the SAROS ICE6T?

Crestron offers a lifetime warranty against defects in material and workmanship for this speaker, except for the grille and outdoor rated models which have a five-year warranty.

Can this speaker be used in outdoor or damp locations?

No, the SAROS ICE6T is designed for indoor use only. It is rated for installation in environmental air-handling (plenum) spaces, but not for outdoor or wet locations.

What is the difference between the SAROS ICE6T and the SAROS IC6T?

The ICE6T is the 'Express' version, offering similar performance at a lower cost with a slightly different design and no back can? Actually both have back cans. The main difference is that the ICE6T has a built-in multi-tap transformer for 70/100V systems, while the IC6T may have different options. Check specific model details.

How many speakers can I daisy-chain?

The terminal block allows parallel pass-through wiring. The number of speakers depends on the amplifier's load and the transformer tap setting. For 8 Ohm operation, ensure total impedance does not drop below 4 Ohms for most amplifiers.

Does the speaker include a tile bridge?

Yes, a tile bridge is included for installation in drop-tile ceilings. It is adjustable and can be folded for blind-mount situations.

Can I use this speaker with a standard 8 Ohm amplifier without the transformer?

Yes, set the rotary switch to the '8Ω' position to bypass the transformer. The speaker then operates at 8 Ohms with a program power handling of 60 Watts.

USER MANUAL SAROS ICE6T-B-T-EACH Crestron

2-way in-ceiling speaker
6.5" woofer with damped cloth surround
Dual front ports for enhanced low-frequency response
Wide-dispersion, horn-loaded dome tweeter
Built-in 30 Watt 70/100V multi-tap transformer
"Zero-bezel" frameless grille for a clean, contemporary appearance
Integral metal back can with top and side conduit knockouts
Two-step toggle clamps for fast, easy installation
Includes tile bridge for installation in a drop-tile ceiling
Meets the requirements for installation in an environmental air-handling space
60 Watts program power handling at 8 Ohms
75Hz-20kHz frequency response
95° nominal coverage pattern
Available in black or white
Paintable to blend with surroundings

Two gray outdoor speakers with visible speaker grille and control knobs, no text or symbols present.

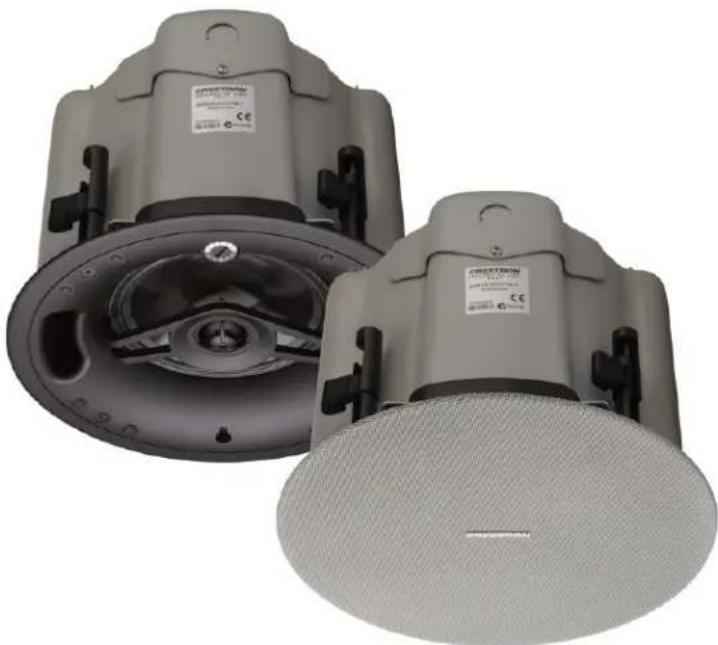

Saros® Express speakers by Crestron® deliver easy installation and excellent performance in a range of popular sizes for cost-sensitive commercial applications. Ideal for use in background music, paging, and sound reinforcement systems, Saros Express speakers are engineered to achieve full, even coverage and clear sound quality at a very affordable cost.

The Saros Express ICE6T model is a 2-way in-ceiling speaker featuring a 6-1/2 inch woofer and wide-dispersion, horn-loaded 1 inch dome tweeter. A built-in 30 Watt multi-tap transformer allows for use with 70 and 100 Volt distributed speaker systems. Power handling at 8 Ohms is 60 Watts (program), with a frequency response from 75 Hz to 20 kHz ±3 dB).

Like its more expensive sibling, the Saros IC6T, the Saros Express ICE6T is smartly designed for quick and easy installation and reliable performance. Its “zero-bezel” frameless grille achieves an unobtrusive and contemporary appearance well-suited for use in restaurants and night clubs, retail spaces, houses of worship, convention facilities, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place. A safety tether is included to prevent the grille from ever falling from the ceiling.

Unitized construction of the speaker enclosure simplifies specification and installation for use in new and existing ceilings. Mounting the speaker is facilitated using rugged, 2-step toggle clamps integrated into the enclosure. Each toggle clamp offers two positions to accommodate standard and extra thick surfaces up to 2.4 inches (61 mm). A tile bridge is included to provide proper support when installed in a typical drop-tile ceiling. The tile bridge is adjustable to enable off-center speaker positioning, and can be folded to fit through the speaker cutout in blind-mount situations. Two rigging points are also provided on the top of the speaker enclosure for securing to the building structure using the optional safety tether kit (SPKA-ST-15 ^[1] ).

An integral metal back can is employed to meet the requirements for installation in an environmental air-handling (plenum) space. The wiring connection is accessible behind a rear cover panel by removing a single screw. Top and side knockouts are provided on the cover panel to accommodate 1/2" or 3/4" flexible conduit. A cable clamp is also provided. Connecting the wiring behind the cover panel is facilitated using a detachable screw terminal block with provisions for easy parallel wiring in a multi-speaker application. Setting the 70/100V transformer tap is performed via a screwdriver-adjustable control located on the front baffle behind the grille.

Saros Express ICE6T speakers are available in white or black, and can be painted to blend with the ceiling surface. They are priced individually, but must be ordered in pairs.

SPECIFICATIONS

Features & Performance

Woofer: 6.5 inch (165 mm) treated paper w/ring mode decoupled cloth surround & steel basket

Tweeter: 0.98 inch (25 mm) treated cloth dome, horn loaded

Crossover Frequency: 2.5 kHz

Impedance: 8 Ohms nominal with transformer set to "8Ω"

Transformer Taps: 3.75W/7.5W/15W/30W at 70V;

7.5W/15W/30W at 100V

Frequency Response: 75 Hz to 20 kHz (±3 dB)

SAROS ICE6T Saros ^® Express 6.5" 2-Way In-Ceiling Speaker

Frequency Range: 60 Hz to 20 kHz (-10 dB)

Power Handling: 60 Watts program (8 Ohms)

Sensitivity: 89 dB @ 1W/1m

Coverage: 95° conical (nominal)

Connections

Input: (1) 4-pin 5mm detachable terminal block with screw-down flanges; Speaker input with parallel pass-thru; Maximum Wire Size: 12 AWG

Controls

Transformer Tap: (1) Recessed screwdriver-adjustable rotary switch on baffle; used to select 70/100V tap or 8 Ohms (bypass)

Environmental

Temperature: -2^ to 120^ F ( -19^ to 49^ C)

Humidity: 5% to 95% RH (non-condensing)

Construction

Enclosure: Zinc-plated steel, plenum-rated, 1/2" or 3/4" conduit knockout top and side, (1) cable clamp included

Baffle: ABS UL94V-0 plastic

Grille: Steel with white or black textured finish, paintable, magnetically-held "zero-bezel" frameless design, safety tether included

Mounting: Flush ceiling mount using 4 integral 2-step toggle clamps;

2.4 in (61 mm) maximum surface thickness;

8.1 in (206 mm) minimum mounting depth;

9.7 in (245 mm) diameter recommended cutout;

Tile bridge included;

(2) rigging points for safety tether (SPKA-ST-15 sold separately)

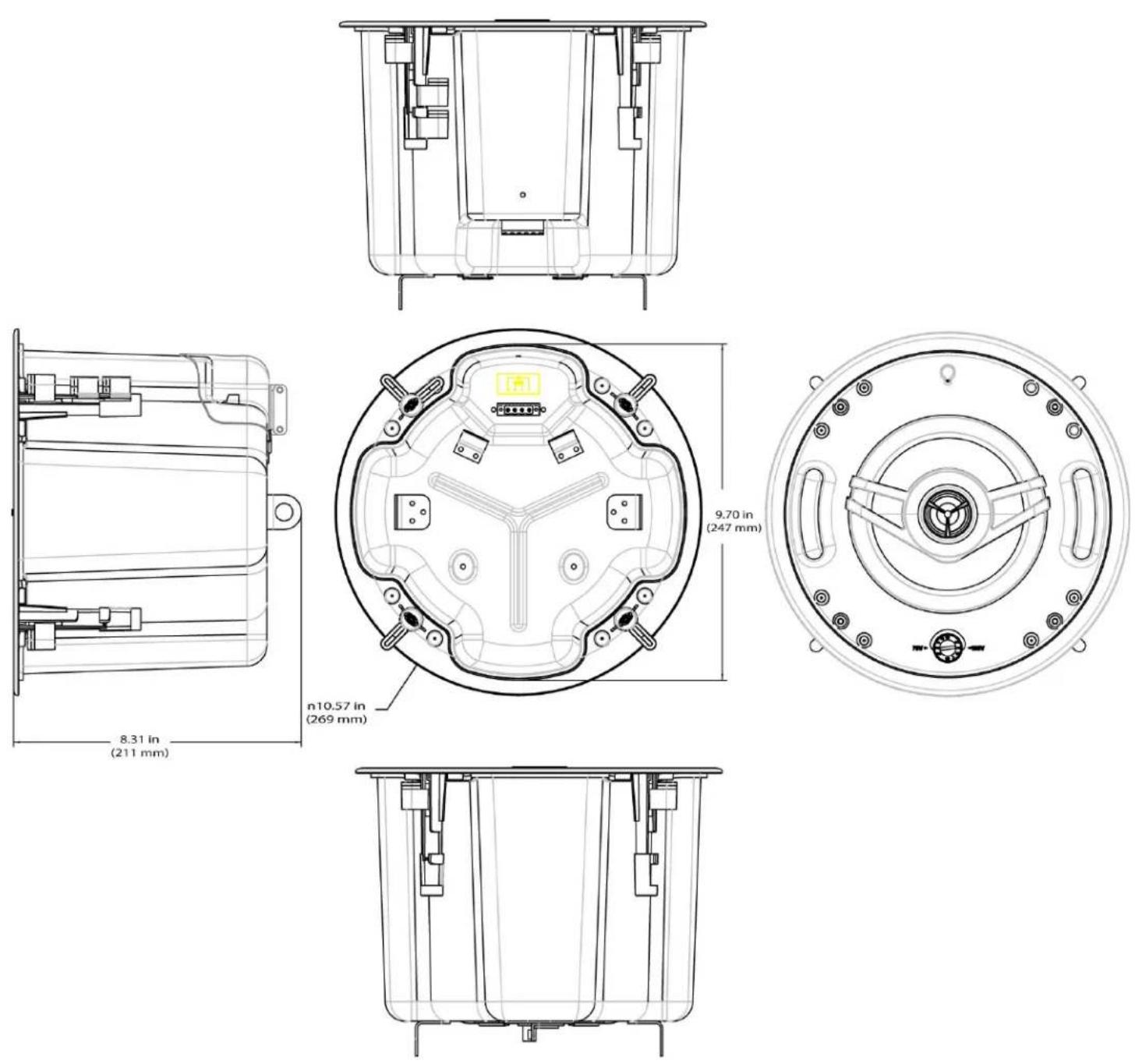

Dimensions

Diameter: 10.57 in (269 mm) not including toggles

Depth: 8.31 in (211 mm)

Weight

10.0 lb (4.5 kg)

MODELS & ACCESSORIES

Available Models

SAROS ICE6T-B-T-EACH: Saros® Express 6.5" 2-Way In-Ceiling Speaker, Black Textured, Single (must be ordered in multiples of 2) SAROS IC6ET-W-T-EACH: Saros® Express 6.5" 2-Way In-Ceiling Speaker, White Textured, Single (must be ordered in multiples of 2)

Available Accessories

SPKA-ST-15: Safety Tether/Tie Down Kits, 10 Sets

SPKA-NCTP-IC610: New-Construction Speaker Templates, Flat

SPKA-NCTP-IC611: New-Construction Speaker Templates, Collared

SPKA-GRILLE-IC610: Round Grilles (for replacement)

SAROS ICS8T: Saros® 8" In-Ceiling Subwoofer

Notes:

1. Item(s) sold separately.

Crestron warrants to the original end purchaser that this Crestron Speaker Product, when purchased directly from Crestron or an authorized Crestron Dealer, will be free from defects in material and workmanship for the life of the product except for speaker grills and outdoor rated speakers, which are warranted for five (5) years. Crestron will at its option and expense either repair the defect or replace the Speaker Product with a new or remanufactured Product or a reasonable equivalent. In cases where a new model is substituted, a modification to the mounting surface may be required. If mounting surface modification is required, Crestron assumes no responsibility or liability for such modifications.

This product may be purchased from an authorized Crestron dealer. To find a dealer, please contact the Crestron sales representative for your area. A list of sales representatives is available online at www.crestron.com/salesreps or by calling 800-237-2041.

The specific patents that cover Crestron products are listed online at: patents.crestron.com.

Crestron, the Crestron logo, and Saros are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography. Specifications are subject to change without notice. ©2015 Crestron Electronics, Inc.

SAROS ICE6T Saros® Express 6.5" 2-Way In-Ceiling Speaker
