Saros ICE8T-W-T-EACH - Loudspeaker Crestron - Free user manual and instructions

Product Type	2-Way In-Ceiling Speaker
Woofer	8.0 in (203 mm) treated paper with rubber surround and steel basket
Tweeter	0.98 in (25 mm) treated cloth dome, horn-loaded
Crossover Frequency	2.5 kHz
Frequency Response (±3 dB)	70 Hz to 20 kHz
Frequency Range (-10 dB)	55 Hz to 20 kHz
Power Handling (Program @ 8 Ω)	75 watts
Sensitivity (1W/1m)	89 dB
Coverage Angle	95° nominal
Impedance (Transformer Bypass)	8 Ω nominal
Transformer Taps (70V)	7.5, 15, 30, 60 watts
Transformer Taps (100V)	15, 30, 60 watts
Connections	(1) 4-pin 5 mm detachable terminal block; input and parallel pass-through
Controls	Rotary switch for transformer tap or 8Ω bypass
Diameter	12.97 in (267 mm) excluding toggles
Depth	9.10 in (231 mm)
Cutout Diameter	11.20 in (285 mm)
Minimum Mounting Depth	8.93 in (226 mm)
Weight	12.2 lb (5.7 kg)
Enclosure Material	Zinc-clad steel, plenum rated
Baffle Material	ABS UL94V-9 plastic
Grille	Steel with powder coat finish, paintable, magnetically attached, zero-bezel frameless, safety tether included
Mounting	Flush ceiling mount with 4 toggle clamps; max ceiling thickness 2.4 in (61 mm); tile bridge included
Safety Features	Safety tether for grille and speaker
Environmental Temperature	-2° to 120°F (-9° to 49°C)
Humidity	5% to 95% RH (non-condensing)

Frequently Asked Questions - Saros ICE8T-W-T-EACH Crestron

What is the recommended cutout diameter for the Saros ICE8T?

The recommended cutout diameter is 11.20 in (285 mm).

How do I set the transformer tap for a 70V system?

Use a flat blade screwdriver to adjust the rotary switch on the front panel. For 70V, select from 7.5, 15, 30, or 60 watts using the left side settings.

Can the speaker be used without a transformer?

Yes, set the switch to the 8Ω position to bypass the transformer. Use only with 8Ω audio systems.

How is the grille attached?

The grille is held by powerful magnets. A safety tether is included to prevent it from falling. To remove, grip the edges and pull away.

Can the grille be painted?

Yes, paint before mounting. Remove the acoustic material from the underside, dry brush or lightly spray, avoid clogging holes, then reinstall the material after drying.

What is the maximum ceiling thickness for mounting?

The toggle clamps accommodate up to 2.4 in (61 mm) thick surfaces. For extra thick tiles, reset the clamps to the upper position.

How do I connect multiple speakers in parallel?

Use the inner + and - THRU terminals on the detachable terminal block to daisy-chain to another speaker.

What should I do if there is no sound?

Check cable connections between amplifier and speaker. Verify the amplifier is receiving signal and functioning correctly.

Is a tile bridge included?

Yes, the tile bridge components provide proper support for drop tile ceilings. Attach the support ring to the rails with the included screws.

What is the warranty on this product?

Contact Crestron's True Blue Support at 1-886-CRESTRON or visit www.crestron.com for warranty information.

USER MANUAL Saros ICE8T-W-T-EACH Crestron

Saros ^1 Express speakers by Credicron ^2 deliver easy installation and excellent performance in a range of popular sizes for cost-sensitive commercial applications. Ideal for use in background music, paging, and sound reinforcement systems, Saros Express speakers are engineered to achieve full, even coverage and clear sound quality at a very affordable cost. Their zero-bezel framework grille achieves an unobtrusive and contemporary appearance. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place. A safety tether is included to prevent the grille from ever telling from the ceiling. Saros Express speakers are available in white or black and can be pointed to blend with the ceiling surface.

Installation

Prepare Mounting Hole

Before finalizing the speaker location, check to make sure there are no fixtures, pipes, air ducts, joists, or other possible obstructions. If applicable, use a good quality stud finder to locate joists. If there are no obstructions, use the supplied template to trace an outline of the mounting hole.

For drop tile ceilings, remove the ceiling tile and place on a flat surface to trace the mounting hole. For drywall or standard construction ceilings, use the template to trace the mounting hole directly on the ceiling.

Install Cable

Run the cable from the audio source to the speaker location, observing all appropriate local codes. Strip the ends of the speaker cables approximately 1/8" to 3/16" (-3 mm to -5 mm) and twist the strands.

Install Tile Bridge

The included tile bridge components provide proper support when the speaker is installed in a typical drop tile ceiling. Refer to the illustration below.

Based on the location of the mounting hole determined in "Prepare Mounting Hole" above, use the two supplied screws to attach the support ring to the rails so that when installed, the ring is aligned with the mounting hole and the rails rest on the ceiling grid frame.

1. The support ring position on the rails is adjustable to enable off-center speaker positioning. The tile bridge assembly can be folded to fill through the speaker cutout in blind-mount situations.

Install/Remove Grille

The zero-bezel frameless grille is held in place by powerful magnets. A safety tether is included to prevent any possibility of the grille falling from the ceiling. With the tether attached, place the grille in position on the speaker. To remove the grille, grip the edges and pull away from the speaker.

Paint the Speaker Grille

Speaker grille painting should be done prior to mounting.

1. Carefully remove the material on the underside of the grille and set it aside for reinstallation. It may be necessary to use a knife or other sharp instrument to free an edge of the material so it can be pressed away. Use care to avoid cutting or tearing the material.

2. Dry brush or lightly spray the surface to be painted. Use care to avoid clogging the hoes in the grille.

3. Once the paint is dry, reinstall the material to the underside.

Mount/Remove Speaker

The in-ceiling speaker includes four toggle clamps that simplify the mounting process. If the grille is mounted on the speaker, remove it before proceeding. (Refer to "InstallRemove Grille" above.)

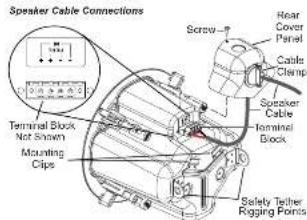

1. Referring to the illustrations to the right, remove the screw securing the rear cover panel, and lift the cover panel off to expose the supplied terminal block.

2. Route the speaker cable through the cover cable clamp and connect the wires to the terminal black, using the outer IN terminals: red to + and black to -. Use the inner + and - THRU terminals to connect a pass-through (parallel) speaker.

3. Allow some slack in the speaker cable(s) and position the cover panel on the back, making certain it engages the mounting clips. Secure the cover panel using the screw removed in step 1 and tighten the cable clamp to secure the cable(s). Do not overnight. Use a safety tether attached to the rear enclosure to prevent the speaker from accidentally falling.

4. The toggle clamps offer two positions to accommodate both standard and extra thick surfaces up to 2.4 inches (61 mm). For extra thick tiles, reset the toggle clamps to the upper position before continuing.

a. With the toggle clamps turned inward, insert the speaker into the opening.

b. Hold the speaker against the ceiling and begin tightening the four screws on the front of the speaker. The toggle clamps first rotate into clamping position (as indicated in the front view illustration to the right) and then begin holding the speaker to the ceiling.

c. Tighten the screws until the speaker is secure. Do not over lighten.

1. Speaker removal is accomplished by reversing steps 1 through 4 above.

Set the Transformer Tap Selector Switch

The speakers are equipped with a 70/100 V matching transformer for distributed audio systems. The transformer tap selector switch on the front panel is used to set the speaker power level. Use a flat blade screwdriver to adjust the switch.

1. For SAROS_ICE4T and SAROS_ICE8T 70 V systems, use the left side settings and select from 3.75, 7.5, 15, or 30 watts.

2. For SAROS_ICE4T and SAROS_ICE8T 100 V systems, use the right side settings and select from 7.5, 15, or 30 watts. The X position should not be used.

3. For SAROS_ICEBT 70 V systems, use the left side settings and select from 7.5.15, 30, or 60 walls.

4. For SAROS_ICE8T 100 V systems, use the right side settings and select from 15, 30, or 60 watts. The X position should not be used.

The switch may also be set to 8Ω operation, bypassing the transformer completely. This selling should be used only for 8 Ω audio systems.

Front View - Grille Removed

Far SAROS_ICE4T, and SAROS_ICE6T

For SAROS ICE8T

SAROS ICE4T/ICE6T/ICE8T

Saros® Express 2-Way In-Ceiling Speakers

Physical Views

Front View - Grille Removed (Typical)

Rear and Side View (Typical)

Diameter

Specifications

SAROS_ICE4T/ICE6T/ICE8T

SPECIFICATION	SAROS_ICE4T	SAROS_ICE6T	SAROS_ICE8T
Wooler	4.0 in (102 mm)trusted paper with ringmode decoupled clotharound and stool basket	6.5 in (165 mm)trusted paper with ringmode decoupled clotharound and stool basket	8.0 in (203 mm)trusted paper with ringmode decoupled clotharound and stool basket
Tweeter	0.78 in (20 mm) testedcloth dome, horn-loaded	0.98 in (25 mm) testedcloth dome, horn-loaded	0.98 in (25 mm) testedcloth dome, horn-loaded
Crossover FrequencyImportance	2.0 kHz8.0 nominal withtransformer set to 8Ω	2.5 kHz8.0 nominal withtransformer set to 8Ω	2.5 kHz8.0 nominal withtransformer set to 8Ω
Transformer Tops	3.75, 7.5, 15, 30 watts at70 V, 7.5, 15, 30 watts at100 V	3.75, 7.5, 15, 30 watts at70 V, 7.5, 15, 30 watts at100 V	7.5, 15, 30, 60 watts at70 V, 15, 30, 60 watts at100 V
Frequency Response	85 Hz to 20 kHz (≥3 dB)	75 Hz to 20 kHz (≤3 dB)	70 Hz to 20 kHz (≤3 dB)
Frequency Range	75 Hz to 20 kHz (-10 dB)	60 Hz to 20 kHz (-10 dB)	55 Hz to 20 kHz (-10 dB)
Power Handling	40 watts program, (8 Ω)	60 watts program (8 Ω)	75 watts program, (8 Ω)
Sensitivity	89 dB @ (W/m)	89 dB @ (W/m)	89 dB @ (W/m)
Coverage	95° nominal (nominal)	95° nominal (nominal)	95° nominal (nominal)
ConnectionsInput	(1) 4 pin 5 mm detachable terminal block with screw down flanges;Speaker input with parallel pass-through;Medium Wire Size: 12 AWG
Controls	Transformer Top: (1) Receased, 5-socket, screwdriver adjustable, rotary switch or buffer;Used to select 70/100 V tap settings or 8Ω (bypass)
EnvironmentalTemperatureHumidity	-2" to 120°F (-9" to 49°C)5% to 95% RH (non-condensing)
ConstructionEnclosure	Zinc-claded steel, platinum-rated, 1/2 in or 3/4 in conduit knockout lamp and side, 1 cable camera included
Delta	ABS UL94V-9 plastic
Grid	Stool with frontural finish, paintable, magnetically-hand zero-nazel transcess,safety letter
Mounting	Flush cooling mount using 4 integral 2-box toggle clamps, 2.4 in (61 mm) maximum surface thickness, the bridge included, (2) Fogging points for safety letter(SFKA-ST-15 sole separately)
DimensionsDiameterDepthRecommendedduct rod diameterMinimum mountingdepth	8.53 in (217 mm) notincluding toggles7.13 in (161 mm)7.70 in (195 mm)6.90 in (176 mm)	10.57 in (269 mm) notincluding toggles8.31 in (211 mm)9.70 in (245 mm)8.10 in (206 mm)	12.97 in (267 mm) notincluding toggles9.10 in (231 mm)11.20 in (285 mm)8.93 in (226 mm)12.2 in (5.7 kg)
Weight	7.0 lb (3.2 kg)	10.0 lb (4.5 kg)

Problem Solving

Troubleshooting

The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative.

TROUBLE	POSSIBLE CAUSE(S)	CORRECTIVE ACTION
No sound or intermittent sound is coming from the speakers.	There is a cable connection error.	Verify the cable connections between the amplifier and speakers.
	The amplifier is not receiving an input signal or there is a malfunction.	Verify that the amplifier is functioning correctly, that it is receiving an input signal, and that the correct input source is selected.
Constant noise such as buzz, hum, or hes is coming from the speakers.	There is a faulty device in the system.	Verify that all system devices are functioning properly.
	There is a system grounding fault.	Verify that system grounding is correct.
Low frequency output is poor.	There is an incorrect polarity connection at the speaker or amplifier.	Verify the speaker connection polarity (+ on amplifier to + on speaker).

Further inquiries

To locate specific information or resolve questions after reviewing this guide, contact Crestron's True Blue Support at 1-886-CRESTRON [1-886-273-7876] or for assistance within a particular geographic region, refer to the listing of Crestron worldwide offices at www.crestron.com/offices.

To post a question about Crestron products, log onto Crestron's Online Help at www.crestron.com/onlinehelp. First-time users must establish a user account to fully benefit from all available features.

Future Updates

As Creslon improves functions, adds new features and extends the capabilities of the SAROS ICE/TICE6/TICE8T, additional information may be made available as manual updates. These updates are safety electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision. Check the Creslon website periodically for manual update availability and its relevance. Updates are identified as an "Aodendum" in the Download column.

The specific patents that cover construction products are listed at patients.cresion.com.
