| Product Type | Video Projector |
| Brand | Hitachi |
| Model | CP-EX4551WN |
| Projection Technology | 3LCD (0.63" panel) |
| Brightness | 4500 ANSI Lumens |
| Native Resolution | XGA (1024 x 768) |
| Contrast Ratio | 3000:1 (typical) |
| Lamp Type | UHP 230W |
| Lamp Life (Normal/Eco) | 3000 / 5000 hours |
| Lens Shift (Vertical) | Manual, +/- 50% |
| Zoom Ratio | 1.7x manual zoom |
| Keystone Correction | Vertical: +/- 30°, Horizontal: +/- 20° |
| Inputs | RGB (D-Sub 15pin) x2, HDMI x1, Composite Video, S-Video, Audio (3.5mm) |
| Outputs | RGB (D-Sub 15pin), Audio (3.5mm), RS-232C |
| Dimensions (W x D x H) | 317 x 336 x 115 mm (without feet) |
| Weight | 3.8 kg |
| Power Consumption (Normal/Eco) | 330 W / 250 W |
| Noise Level (Normal/Eco) | 33 dB / 29 dB |
| Warranty | 3 years (parts and labor) |
| Included Accessories | Power cord, VGA cable, remote control, manual, lens cap |
Frequently Asked Questions - CP-EX4551WN HITACHI
User questions about CP-EX4551WN HITACHI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Video projector in PDF format for free! Find your manual CP-EX4551WN - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CP-EX4551WN by HITACHI.
USER MANUAL CP-EX4551WN HITACHI
To make it easy to find the right projector for you, we have put together this comprehensive, quick guide. Get ready to be inspired.
THE HITACHI PROJECTOR RANGE
UNIQUE FEATURES 01
ADDITIONAL FEATURES 03
SOFTWARE FEATURES 04
LASER 05
LED 09
PORTABLE 11
MULTI-PURPOSE 13
SHORT THROW 19
ULTRA-SHORT THROW 21
ULTRA-SHORT THROW INTERACTIVE 25
INSTALLATION
5000 Series 27
8000 Series 29
9000 Series 33
OPTIONAL LENSES 37
01
UNIQUE HITACHI FEATURES
HDCR (HIGH DYNAMIC CONTRAST RANGE)
After long-hour use
Accentualizer, HDCR OFF
Accentualizer, HDCR ON
Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increased contrast occurs. This results in clear images even in bright rooms.
ACCENTUALIZER
Accentualizer OH
Accentualizer ON
Hitachi original technology makes pictures look more real by enhancing shade, sharpness, and gloss to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings.
IMAGE OPTIMIZER
After long-hour use
Image Optimizer OFF
Image Optimizer ON
This function may not work properly when HDCR / ACCENTUALIZER is ON.
COLOUR MANAGEMENT
With this technology, for example, you can change only bluish colours, such as the sky, while maintaining the other colours by adjusting the HUE of the blue.
INTELLIGENT ECO MODE
Lamp brightness is reduced when a darker image is projected and returns to normal when a brighter images is projected, eliminating unnecessary energy consumption from the lamp.

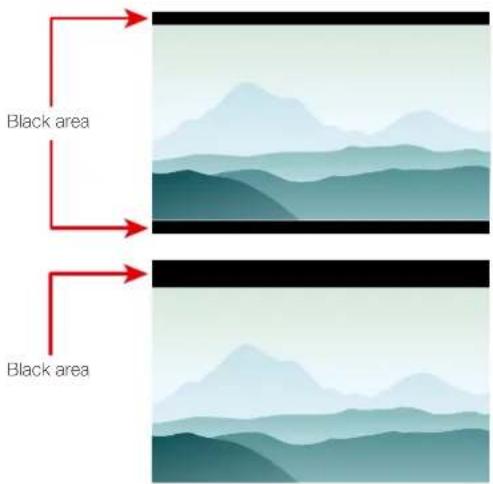

PICTURE SHIFT
Using the Picture Shift Function you can adjust the image position in conformity to the black area of the screen digitally.

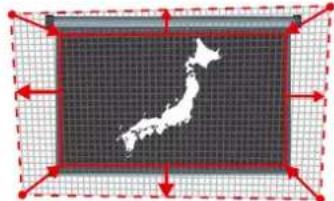

PERFECT FIT
Projector installation
With the remote controller at hand, you can adjust focus and the position of an image.
ADDITIONAL FEATURES
GEOMETRIC CORRECTION (WARPING)
Geometric correction is possible from your computer by using the specialised application. Projection is possible on spherical surfaces and surfaces with corners, as well as conventional flat screens.

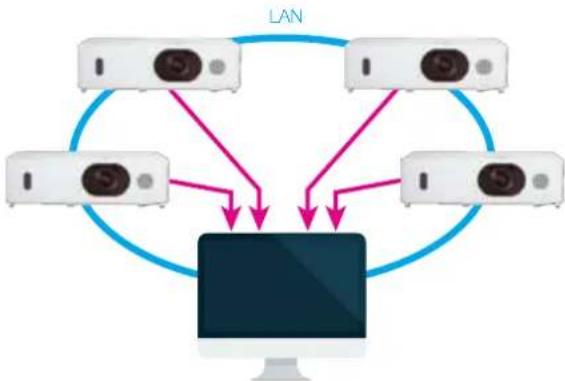

CONVENIENT NETWORKING
Administration room
Manage and control multiple projectors over your LAN with Centralized Reporting, Scheduling, E-mail alerts and My Image (Image Transfer).

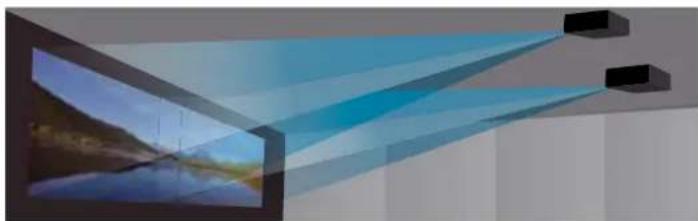

EDGE BLENDING
With this mode, the user will be able to adjust the brightness of the Blending region manually using the projector menu and adjust unlimited Blended image regions. Additional hardware is required to perform manual Blending such as NVIDIA or Matrox graphics Card supporting Edge Blending or Mosaic functions.
Camera Blending
By using a simple Logitech web camera and the supplied Hitachi Blending Software, the user is able to create a 1x2, 2x1 or 2x2 seamless image from a single video output source.

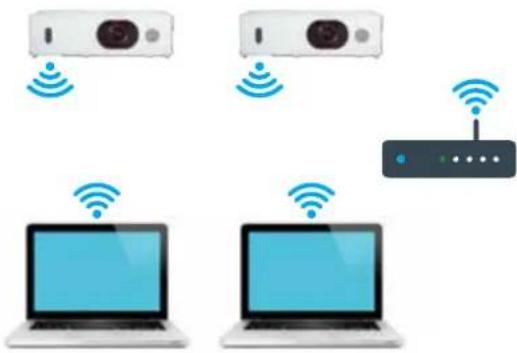

WIRELESS CAPABILITY (OPTION)


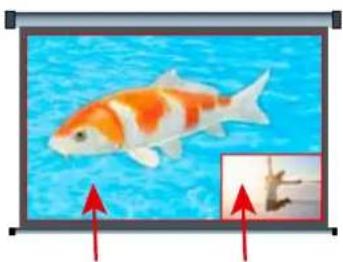

P BY P / P IN P FUNCTIONS
P by P mode P in P mode
Picture by Picture (PbyP) enables you to display two images side by side, and combine analogue and digital inputs.
Picture in Picture (PinP) enables you to display one image inside another image.
LIVE VIEWER 6
PROJECTOR MESSENGER
This is great for sending campus wide announcements and important notifications.
Hitachi's PJMessenger (Projector Messenger Tool) allows you to take control and display real-time text messages on your projector screen.
These text messages can be shown as a scrolling message (i.e., 'scrawl') across the bottom of your screen (just like the TV news), or directly in the middle of the screen for more urgent messages.
PROJECTOR MANAGER (PJMAN)
With Hitachi PJMan, an administrator can control the functions of each projector over a LAN connection.
Hitachi's PJMan provides you the ability to control, diagnose & manage an individual or group of Hitachi projectors.
PJMan's advanced e-mail, reporting and scheduling capabilities help you to make the most of your investment.
Search, sort and view projector data via specific criteria.
Group and sub-group to suit your individual needs and preferences.
PROJECTOR CONTROL (PJCtrl)
Since all of the functions for controlling the projector are on the PC, PJCtrl can help to reduce costs associated with lost remote controls, battery replacement, etc.
Hitachi's Projector Control Application:
- Can control up to five of the same Hitachi model projectors at the same time
- Can be customized to suit the user's individual preferences & needs
- Has an advanced control menu that is ideal for installation, maintenance, etc.
PROJECTOR QUICK CONNECTION
Projector Quick Connection is an application that enables you to send photo files, document files and website contents to compatible Hitachi projectors over a wireless LAN (Wi-Fi) connection using your iPad.
PROJECTOR BLENDING TOOL
The Hitachi Blending Tool is supplied with free of charge with the Hitachi installation projectors and can create the blending of projectors in a 1x4, 4x1, 2x2 configuration easily.
A region of at least 20% is needed in the overlapped area in order to create a smooth and seamless image.
PROJECTOR WARPING TOOL
Users can project images on these type of screens by transferring the WarpMap, which is created within this tool, from the PC to the projector which supports the warping function through a network connection.
LASER
Our Laser models are designed with the needs of commercial usage in mind, with long running times and easy to use edge blending and warping functionalities, our range are perfect for large venues such as museums, restaurants and bars. Choose from either Hitachi's one-chip DLP display system, or 3LCD Laser to ensure you perfect picture quality every time.
HITACHI Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
NEW
LP-EU5002
Description
OPTICAL
Panel Size
Light Source
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lens
System Life
Lens Zoom
Lens Focus
Lens Shift
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction (Degrees)
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Warranty
3LCD Laser projector, 5,000 ANSI lumens, 500,000:1 contrast ratio, WUXGA (1920 x 1200) resolution
3LCD 16mm (0.64")
Laser
WUXGA (1920 x 1200)
5,000 (Normal),
500,000:1
Built-in
20,000
Manual Zoom x 1.6
Manual Focus
Not Available
0.7 - 8.3 (Wide), 1.2 - 13.5 (Tele)
1.3-2.1
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 3 (HDCP compliant, HDMI 1 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 2 (PC less presentation or wireless adapter)
USB Type B x 1 (USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
360W
Less than 0.5W
7.6kg
506 x 136 x 424mm
34dB (Normal), 28dB (Whisper)
Power Cable (1.8m), Computer Cable (2m), Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder (x2), Cable Tie (large x1, medium x2, small x1), A4 Batteries x2
USB wireless adaptor USB-WL-5G
HL03037
20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
LP-WU6500
1-Chip DLP laser projector, 5,000 ANSI lumens, 30,000:1 contrast ratio, WUXGA (1920 x 1200) resolution
1-Chip DLP 17mm (0.67")
Laser
WUXGA (1920 x 1200)
5,000 (Normal)
30000:1
Built-in
20,000
Manual Zoom x 1.65
Manual Focus
Manual
1.5m - 5m
1.15-1.9
36.7-201.9"
5W×2
Horizontal ±25°, Vertical: ±30°
HDBaseT, HDMI x 3 (HDMI 3 is shared with MHL)
15-pin Mini-D-Sub x 1 (shared with analog component video Input)
RCA Jack x 1, 15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
No
RJ45 Jack x 1
USB Type A x 1 (for USB power supply, 5V/1.5A)
USB Type B x 1 (for service)
AC 100V - 240V (50/60 Hz)
500W
Less than 0.5W
11.4kg
360 x 149 x 442mm
36dB (Normal), 34dB (Eco)
Power Cable (1.8m) x1, Computer Cable (1.8m) x1, Remote Control Unit x1, AAA Batteries x2, 3D Sync Cable x1, EAC Document x1
None
HL03171
10,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
LP-WU6600
1-Chip DLP laser projector, 6000 ANSI lumens, 20000:1 contrast ratio, WUXGA (1920 x 1200) resolution
1-Chip DLP 17mm (0.67")
Laser
WUXGA (1920 x 1200) 16:10 aspect Ratio
6000 (Normal), 4670 (Eco)
20000:1
Interchangeable, not included
20,000
Manual Zoom x 1.25 (using SD-63)
Manual Focus
Manual
1.5 - 7m (SD-63 Lens)
1.54 (Wide), 1.93 (Tele) (using SD-63 lens)
36 - 380" (using SL-62 Short Thow lens), 36 - 211" (using Standard lens SD-63), 32 - 481" (using long throw ML-64 lens)
12W (Mono) or 6W x 2 (Mono)
Horizontal ±25.0°, Vertical ±30.0°
HDMI x 2, DVI-D x 1, HDBase-T x 1
15 pin Mini D-Sub x 1, 5BNC x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 1, RCA Jack (L/R) x 1
RCA Jack (L/R) x 1
1 x 9-pin D-Sub
No
Yes
Yes
No
AC 100V-120V/AC 220V-240V (50/60Hz)
700W
Less than 0.5W
24.5kg
470 x 220 x 521mm (Excluding lens)
35db (Normal), 33db (Eco)
Power Cable (2.5m) x1, Computer Cable (1.8m) x1, IR Remote Control Unit x1, AAA Batteries x2, Mount Cap x1, Wire Remote Cable x1, 3D Sync Cable x2, EAC Document x1, EU Recycle Shoot, WEEE Manual, Multi-lingual User Manual (CD-ROM) x1
SL-61 (Short Throw Lens), SL-62 (Semi Short Throw Lens), SS-63 (Semi Standard Lens) SD-63 (Standard Lens), ML-64 (Long Throw Lens), LL-65 (Super Long Throw Lens)
HL03171
10,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
LP-WU9100B
1-Chip DLP laser projector, 10000 ANSI lumens, 30,000:1 contrast ratio, WUXGA (1920 x 1200) resolution
1-Chip DLP 17mm (0.67")
Laser
WUXGA (1920 x 1200)
10000 (Normal)
30000:1
Interchangeable, not included
20.000
Powered Zoom x 1.5 (using SD-903)
Powered Focus
Powered Lens Shift
1.8 - 21.4m (Wide) / 2.7 - 31.9m (Tele) (using SD-903)
FL-920 Throw 0.38; USL-901A Throw 0.8 - 1.0; SL-902 Throw 1.1 - 1.7; SD-903 Throw 1.6 - 2.4; ML-904 Throw 2.4 - 3.6; LL-905 Throw 3.5 - 5.6; UL-906 Throw 5.5 - 8.8
50-600" (using SD-903)
No
Horizontal ± 60°, Vertical: ± 40°
HDMI x 2, DVI-D x 1, SDI BNC x 1, HDBase-T x 1
15 pin D-Sub shrink x 1, 5 BNC x 1
SDI BNC x 1
No
No
1 x 9-pin D-Sub
No
RJ45 connector x 1 (shared with HDBaseT)
No
No
AC 100V-130V/AC 200V-240V (50/60 Hz)
1240W
Less than 0.5W
28kg (without lens)
500 x 216 x 576mm
42dB (Normal), 39dB (Eco)
Power Cable (2.5m) x1, Remote Control Unit x1, AA Batteries x2, Wired Remote Cable x1, RS232C Cable (Cross. Male to Male) x1, Computer Cable (1.8m) x1
Ultra-short-Throw FL-920, Short-throw USL-901A, Short-throw SL-901, Standard-throw SD-903, Middle-throw ML-904, Long-throw LL-905, Ultra-Long throw UL-906
HL02806
10,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
LP-WU9750B
1-Chip DLP laser projector, 8000 ANSI lumens, 20000:1 contrast ratio, WLXGA (1920 x 1200) resolution
1-Chip DLP 17mm (0.67")
Laser
WUXGA (1920 x 1200) 16:10 aspect Ratio
8000 (Normal), 5400 (Eco)
20000:1
Interchangeable, not included
20,000
Powered Zoom x 1.5 (SD-903)
Powered Focus (SD-903)
Motorized (SD-903)
1.8m-21.4m (Wide) / 2.7m-31.9m (Tele) (SD-903)
FL-920 Throw 0.38; USL-901 Throw 0.8 - 1.0; SL-902 Throw 1.1 - 1.7; SD-903 Throw 1.6 - 2.4; ML-904 Throw 2.4 - 3.6; LL-905 Throw 3.5 - 5.6; UL-906 Throw 5.5 - 8.8
50 - 600" (using SD-903)
No
Horizontal ± 60°, Vertical ± 40°
HDMI x 2, DVI-D x 1, SDI BNC x 1, HDBaseT x1
15 pin Mini D-Sub x 1, BNC x 1
SDI BNC x 1
No
No
1 x 9-pin D-Sub
No
RJ45 connector x 1 (shared with HDBaseT)
No
No
AC 100V - 130V / AC 200V - 240V (50/60 Hz)
845W
Less than 0.5 W
28kg (without lens)
500 x 216 x 576mm
41dB (Normal), 37dB (Eco)
Power Cable (2.5m) x1, Computer Cable (1.8m) x1, IR Remote Control Unit x1, AA Batteries x2, RS232C Cable (Cross, Male to Male), EAC Document x1, Multi-lingual User Manual (CD-ROM) x1, Multi-lingual User Manual (Printed) x1
Ultra-short-Throw FL-920, Short-throw USL-901, Short-throw SL-901, Standard-throw SD-903, Middle-throw ML-904, Long-throw LL-905, Ultra-Long throw UL-906
HL03141
10,000 hours / 3 years (whichever comes first) (for extended warranties please contact your local dealer)
NEW INTERACTIVE MODEL
LP-TW3001
| Description | |
| OPTICAL | |
| Panel Size | 3 LCD Laser projector, 3,300 ANSI lumens, 500,000:1 contrast ratio, WXGA (1280 x 800) resolution |
| Light Source | 3LCD |
| Resolution | WXGA (1280 x 800) |
| Light Output (Brightness) ANSI Lumens | 3300 (Normal) |
| Contrast Ratio | 500,000:1 |
| Lens | Built-in |
| System Life | 20,000 |
| Lens Zoom | Digital Zoom x 1.35 |
| Lens Focus | Powered Focus |
| Throw Distance | 0.413m - 0.903m (centre of glass to screen) |
| Distance to Width Ratio/ Throw Ratio (:1) | 0.3 |
| Diagonal Display Size | 60 - 130" |
| FEATURES | |
| Speakers | 16W Mono |
| Digital Keystone Correction (Degrees) | Horizontal ±5°, Vertical: ±5° |
| CONNECTIONS | |
| Digital Input | HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL) |
| Analogue Input | 15-pin Mini-D-Sub x 2, RCA Jack x 1 |
| Video Output | 15 pin Mini D-Sub x 1 (shared with analog computer input) |
| Audio Input | 3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1 |
| Audio Output | 3.5mm Stereo Mini Jack x 1 |
| RS-232C Control | 1 x 9-pin D-Sub |
| Wireless LAN | USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz wireless adaptor (optional) |
| Wired LAN | RJ45 connector x 1 |
| USB Type-A | USB Type A x 3 (PC less presentation, wireless adapter or finger touch unit) |
| USB Type-B | USB Type B x 1 (USB display, USB mouse control or interactivity connection for PC) |
| POWER | |
| Power Supply | AC 100V - 120V / AC 220V - 240V (50/60Hz) |
| Operating Power Consumption | 300W |
| Standby Power Consumption | Less than 0.5W |
| PHYSICAL | |
| Weight | 7.7kg |
| Dimensions (W x H x D) (Without feet) | 512 x 424 x 155mm |
| Noise | 34dB (Normal), 28dB (Whisper) |
| ACCESSORIES | |
| Supplied Accessories | Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder (x2), Cable Tie (large x1, medium x2, small x1), AA Batteries x2, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, Starboard Interactive Software DVD x 1 |
| Optional Accessories | USB wireless adaptor USB-WL-5G, Wall mount unit: HAS-WM06 (in some buying conditions wall mount is included), Finger Touch Unit (FT-01B), Interactive Pen (I-PEN4) |
| Remote Control | HL03037 |
| Warranty | 20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer) |
NEW INTERACTIVE MODEL
LP-TW4001
3LCD Laser projector, 4,200 ANSI lumens, 500,000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
3LCD
WXGA (1280 x 800)
4200 (Normal)
500,000:1
Built-in
20,000
Digital Zoom x 1.35
Powered Focus
0.413m - 0.903m (centre of glass to screen)
0.3
60 - 130"
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G (IEEE802.11 a/b/g/r/ac: 2.4GHz/5GHz wireless adaptor (optional))
RJ45 connector x 1
USB Type A x 3 (PC less presentation, wireless adapter or finger touch unit)
USB Type B x 1 (USB display, USB mouse control or interactivity connection for PC)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
380W
Less than 0.5W
7.9kg
512 x 424 x 155mm
34dB (Normal), 28dB (Whisper)
Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder (x2), Cable Tie (large x1, medium x2, small x1), AA Batteries x2, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, Starboard Interactive Software DVD x 1
USB wireless adaptor USB-WL-5G, Wall mount unit: HAS-WMO6 (In some buying conditions wall mount is included), Finger Touch Unit (FT-01B), Interactive Pen (I-PEN4)
HL03037
20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
LP-AW4001
3LCD Laser projector, 4.200 ANSI lumens. 500,000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
3LCD
WXGA (1280 x 800)
4200 (Normal)
500,000:1
Built-in
20,000
Digital Zoom x 1.35
Powered Focus
0.488m - 0.978m (centre of glass to screen)
0.3
60 - 130"
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant, HDMI 1 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 3
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz wireless adaptor (optional))
RJ45 connector x 1
USB Type A x 2 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
350W
Less than 0.5W
7.6kg
512 x 424 x 155mm
34dB (Normal), 28dB (Whisper)
Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder x2, Cable Tie (large x1, medium x2, small x1), AA Batteries x2
USB wireless adaptor USB-WL-5G, Wall mount unit: HAS-WM06 (In some buying conditions wall mount is included)
HL03037
20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
LP-AW3001
3LCD Laser projector, 3,300 ANSI lumens, 500,000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
3LCD
WXGA (1280 x 800)
3300 (Normal)
500,000:1
Built-in
20,000
Digital Zoom x 1.35
Powered Focus
0.488m - 0.978m (centre of glass to screen)
0.3
60 - 130"
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant, HDMI 1 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 3
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz wireless adaptor (optional))
RJ45 connector x 1
USB Type A x 2 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
280W
Less than 0.5W
7.4kg
512 x 424 x 155mm
34dB (Normal), 28dB (Whisper)
Power Cable (1.8m) x1, Computer Cable (2m), Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder (x2), Cable Tie (large x1, medium x2, small x1), AA Batteries x2
USB wireless adaptor USB-WL-5G, Wall mount unit: HAS-WM06 (In some buying conditions wall mount is included)
HL03037
20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
INSTALLATION
LED
Our new LED projectors achieve new levels of brightness by utilising our innovative HLD technology, which increases the brightness of the green, which, by its very nature, is never as bright as blue or red light. You can also have the peace of mind that your projector is covered by our 20,000 hours / 5 years warranty (whichever comes first).
DLP
20,000 hours
system life
Built-in speaker
Manual zoom
360 projection
Portrait projection
Lens shift Stackable
m = 311
2 x HDMI HDBaseT
HDMI out
112
MHL capable
Picture by picture / Picture in picture
Edge blending capabilities
Warping capabilities Perfect fit
m = 311
Wireless Network LAN
m = 311
Scheduling functionSecurity functions connectivity
ctions
connectivity
High lumen density (HLD) technology
HITACHI
Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
Description
OPTICAL
Panel Size
Light Source
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lens
System Life
Lens Zoom
Lens Focus
Lens Shift
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction (Degrees)
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Warranty
LP-WX3500
LED projector, 3500 ANSI lumens, 30.000:1 contrast ratio, WXGA (1280 x 800) resolution
1-Chip DLP 15mm (0.65")
LED
WXGA (1280 x 800) 16:10 aspect ratio
3500 (Normal)
30000:1
Built-in
20,000
Manual Zoom x 1.7
Manual Focus
Manual
0.9m - 9.2m (Wide) / 1.5m - 15.8m (Tele)
1.4 (Wide), 2.4 (Tele)
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI/MHL x 1 (Supporting HDCP decoding), HDMI x 1 (Supporting HDCP decoding), HDBaseT (RJ-45) x 1
15 pin Mini D-Sub x 1, RCA Jack x 1
15 pin Mini D-Sub x 1, HDMI x 1
(Supporting HDCP decoding)
3.5mm Stereo Mini Jack x 1, RCA Jack(L/R) x 1, HDMI x 2, HDBascT x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
Used for remote control mouse
AC 100V - 120V, AC 220V - 240V
550W
Less than 0.5W
14.6kg
471 x 148 x 455mm
27dB (Mid), 34dB (High mode), 21dB (Low mode)
Power Cable (1.8m) x1, Computer Cable (2.0m) x1, Remote Control x1, AA Batteries x2, Lens Cap x1, Adaptor Cover (for USB Wireless Adaptor) x1, Security Label x1, CD User Manual, User Manual (Book), Application CD, Adaptor Cover, Terminal Cover A, Terminal Cover B, HDMI Cable Holder (x1), Cable Tie - large (x1), Cable Tie - medium (x1), Cable Tie - small (x3), HDMI Cap (x2), HDBaseT Cap (x1)
Wired Remote Control (HL03131), USB-WL-11N (wireless adaptor)
HL03037
20,000 hours / 5 years (whichever comes first)
LP-WU3500
LED projector, 3500 ANSI lumens, 30000:1 contrast ratio, WUXGA (1920 x 1200) resolution
1-Chlp DLP 16mm (0.67")
LED
WUXGA (1920 x 1200) 16:10 aspect ratio
3500 (Normal)
30000:1
Built-in
20,000
Manual Zoom x 1.7
Manual Focus
Manual
0.385 - 0.649m
1.3 (Wide), 2.3 (Tele)
30-300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI/MHL x1 (Supporting HDCP decoding), HDMI x1 (Supporting HDCP decoding), HDBaseT (RJ-45) x1
15 pin Mini D-Sub x 1, RCA Jack x 1
15 pin Mini D-Sub x 1, HDMI x 1
(Supporting HDCP decoding)
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x1, HDMI x2, HDBascT x1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
Used for remote control mouse
AC 100V - 120V, AC 220V - 240V
550W
Less than 0.5W
14.6kg
471 x 148 x 455mm
27dB (Mid), 34dB (High mode), 21dB (Low mode)
Power Cable (1.8m) x1, Computer Cable (2.0m) x1, Remote Control Unit x1, AA Batteries x2, Lens Cap, Adaptor Cover (for USB Wireless Adaptor) x1, Security Label x1, CD User Manual, User Manual (Book), Application CD, Adapter Cover, Terminal Cover A, Terminal Cover B, HDMI Cable Holder (x1), Cable Tie - large (x1), Cable Tie - medium (x1), Cable Tie - small (x3), HDMI Cap (x2), HDBascT Cap (x1)
Wired Remote Control (HL03131), USB-WL-11N (wireless adaptor)
HL03037
20,000 hours / 5 years (whichever comes first)
11 PORTABLE
Whether you are on the move or in an office, Hitachi's portable projectors are perfect for today's mobile professionals. They combine simple usability with powerful performance in a light weight and compact design enabling users to set up their presentations in seconds.
HITACHI Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)*
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
CP-EX303
3LCD Lamp projector. 3300 ANSI lumens. 20,000:1 contrast ratio, XGA (1024 x 768) resolution
3 LCD 16mm (0.63")
XGA (1024 x 768)
3,300 (Normal)
20000:1
6000(Normal), 12500(Eco)
Built-in
Manual Zoom x 1.2
Manual Focus
0.8 - 9.0m (Wide), 1.0 - 10.8m (Tele)
1.5-1.8
30 - 300"
1W Mono
Vertical ± 30°
HDMI x 1 (HDCP compliant)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
No
No
No
No
AC 100V - 120V / AC 220V - 240V (50/60Hz)
280W
Less than 0.35W
3.5kg
349 x 264 x 88mm
37dB (Normal), 28dB (Eco).
10,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16®
525l (480l), 525p (480p), 625l (576l), 1125l
(1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Security Label x1
HL03031
DT02081 (without Filter) / UX39561
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-EX302N
3LCD portable projector, 3200 ANSI lumens, 2000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16mm (0.63")
XGA (1024 x 768)
3200 (Normal), 2144 (Eco-2)
2000:1
5000 (Normal), 10000 (Eco-2)
Built-in
Manual Zoom x 1.2
Manual Focus
0.8-10.8m
1.5(Wide), 1.8 (Tele)
30 - 300"
16W Mono
Vertical ± 30°
HDMI x 1
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo MInl Jack x 2, RCA Jack (L/R) x 1
RCA Jack (L/R) x 1
1 x 9-pin D-Sub
No
Yes
No
Used for remote control mouse
AC 100V - 120V / AC 220V - 240V (50/60Hz)
300W
Less than 0.5W
2.9kg
320 x 85 x 245mm
37dB (Normal), 32dB (Eco), 29dB (Eco-2)
5,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525l (480l), 525p (480p), 625l (576l), 1125l
(1080@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, CD User Manual x1, Concise User Manual x1
HL03031
DT01481
3 years / 3 years (for education and extended warranties please contact your local dealer)
RETIRING SOONNEW RET
CP-EX402
3LCD portable projector, 4200 ANSI lumens, 2000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16mm (0.63")
XGA (1024 x 768)
4200 (Normal), 2814 (Eco-2)
2000:1
5000 (Normal), 10000 (Eco-2)
Built-in
Manual Zoom x 1.2
Manual Focus
0.9 - 10.9m
1.5 (Wide), 1.8 (Tele)
30-300"
1W Mono
Vertical ± 30°
HDMI x 1
15 pin Mini D Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
RCA Jack (L/R) x 1
RCA Jack (L/R) x 1
1 x 9-pin D-Sub
No
No
No
No
AC 100V - 120V / AC 220V - 240V (50/60Hz)
300W
Less than 0.5W
2.9kg
320 x 85 x 245mm
37dB (Normal), 32dB (Eco), 29dB (Eco-2)
5,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525l (480l), 525p (480p), 625l (576l), 1125l
(1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, CD User Manual x1, Concise User Manual x1
HL03031
DT01481/UX38841
3 years / 6 months (for education and extended warranties please contact your local dealer.)
13
MULTI- PURPOSE
Our Multi Purpose range contains the finest features for business and education. Whichever model you choose, you'll find top-of-the-range picture quality, security and networking, in a user-friendly package. Hitachi is dedicated to lowering costs and protecting the environment, so the range also features longer-life parts and energy saving settings.
3LCD
Built-in speaker
2 x HDMI MHL capable
la
Perfect fit
m = 311
Security functionsWireless Network LAN connectivity
Network LAN connectivity
PC-less
HITACHI Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
NEW NEW NEW
CP-EW3051WN
3LCD Lamp projector, 3200 ANSI lumens, 20.000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
WXGA (1280 x 800)
3200 (Normal)
20000:1
6000(Normal), 12500(Eco)
Built-in
Manual Zoom x 1.2
Manual Focus
0.9 - 9.6m (Wide), 1.1 - 11.6m (Tele)
1.5-1.8
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2 (HDCP compliant)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 1 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.35W
3.5kg
349 x 264 x 88mm
37dB (Normal), 29dB (Whisper)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16 ^®
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1
USB wireless adaptor USB-WL-5G
HL03031
DT02081 (without Filter) / UX39561
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-EW3551WN
3LCD Lamp projector, 3600 ANSI lumens, 20,000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
WXGA (1280 x 800)
3800 (Normal)
20000:1
6000(Normal), 12500(Eco)
Built-in
Manual Zoom x 1.2
Manual Focus
0.9 - 9.6m (Wide), 1.1 - 11.6m (Tele)
1.5-1.8
30 - 300
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2 (HDCP compliant)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo MInl Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 1 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.35W
3.5kg
349 x 264 x 88mm
37dB (Normal), 29dB (Whisper)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1
USB wireless adaptor USB-WL-5G
HL03031
DT02081 (without Filter) / UX39561
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-EW4051WN
3LCD Lamp projector, 4000 ANSI lumens. 20,000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
WXGA (1280 x 800)
4000 (Normal)
20000:1
6000(Normal), 12500(Eco)
Built-in
Manual Zoom x 1.2
Manual Focus
0.9 - 9.6m (Wide), 1.1 - 11.6m (Tele)
1.5-1.8
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2 (HDCP compliant)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 1 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.35W
3.5kg
349 x 264 x 88mm
37dB (Normal), 29dB (Whisper)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1
USB wireless adaptor USB-WL-5G
HL03031
DT02081 (without Filter) / UX39561
3 years / 6 months (for education and extended warranties please contact your local dealer)
NEW
CP-EX3051WN
3LCD Lamp projector, 3300 ANSI lumens, 20,000:1 contrast ratio, XGA (1024 x 768) resolution
3 LCD 16mm (0.63")
XGA (1024 x 768)
3300 (Normal)
20000:1
6000(Normal), 12500(Eco)
Built-in
Manual Zoom x 1.2
Manual Focus
0.8 - 9.0 m (Wide), 1.0 - 10.8 m (Tele)
1.5-1.8
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2 (HDCP compliant)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 1 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.35W
3.5kg
349 x 264 x 88mm
37dB (Normal), 29dB (Whisper)
10.000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.6m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1
USB wireless adaptor USB-WL-5G
HL03031
DT02081 (without Filter) / UX39561
3 years / 6 months (for education and extended warranties please contact your local dealer)
NEWNEW
CP-EX3551WN
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)\*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)\*
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
3LCD Lamp projector, 3700 ANSI lumens, 20,000:1 contrast ratio, XGA (1024 x 768) resolution
3 LCD 16mm (0.63")
XGA (1024 x 768)
3700 (Normal)
20000:1
6000(Normal), 12500(Eco)
Built-in
Manual Zoom x 1.2
Manual Focus
0.8 - 9.0 m (Wide), 1.0 - 10.8 m (Tele)
1.5-1.8
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2 (HDCP compliant)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 1 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.35W
3.5kg
349 x 264 x 88mm
37dB (Normal), 29dB (Whisper)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1
USB wireless adaptor USB-WL-5G
HL03031
DT02081 (without Filter) / UX39561
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-EX4551WN
3LCD Lamp projector, 4500 ANSI lumens, 20.000:1 contrast ratio, XGA (1024 x 768) resolution
3 LCD 16mm (0.63")
XGA (1024 x 768)
4500 (Normal)
20000:1
6000(Normal). 12500(Eco)
Built-in
Manual Zoom x 1.2
Manual Focus
0.8 - 9.0 m (Wide), 1.0 - 10.9 m (Tele)
1.5-1.8
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2 (HDCP compliant)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 1 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.35W
3.5kg
349 x 264 x 88mm
37dB (Normal), 29dB (Whisper)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16 ^TM
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1
USB wireless adaptor USB-WL-5G
HL03031
DT02081 (without Filter) / UX39561
3 years / 6 months (for education and extended warranties please contact your local dealer)
NEW
CP-X30LWN
3LCD multi-purpose projector, 3200 ANSI turners. 10000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16 mm (0.63")
XGA (1024 x 768)
3200 (Normal), 2816 (Whisper)
10000:1
10000 (Normal), 5000 (Whisper*)
Built-in
Manual Zoom x 1.2
Manual Focus
0.9 - 10.9m
1.5 (Wide), 1.8 (Tele)
30 - 300"
16W Mono
Horizontal ± 30°, Vertical: ± 30°
HDMI/MHL x 1, HDMI x 1 (Supporting HDCP decoding)
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation or wireless network. Used for optional wireless pen tablet TB-1
Used for Remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
320W
Less than 0.5W
3.3kg
325 x 95 x 245mm
37db (Normal), 32db (Whisper*)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed) MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1
USB-WL-11N (wireless adaptor). Wireless pen tablet TB-1.
HL03031
DT02051 / UX39561(Hybrid Filter)
3 years / 3 years (for education and extended warranties please contact your local dealer)
CP-X4042WN
3LCD multi-purpose projector, 4200 ANSI lumens, 10000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16mm (0.63")
XGA (1024 x 768)
4200 (Normal), 2814 (Eco-2)
10000:1
5000 (Normal), 10000 (Eco-2)
Built-in
Manual Zoom x 1.2
Manual Focus
0.9-10.9m
1.5 (Wide), 1.8 (Tele)
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI/MHL x 1, HDMI x 1 (Supporting HDCP decoding)
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.5W
3.1kg
320 x 85 x 245mm
37dB (Normal), 32dB (Eco), 29dB (Eco-2)
5,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1
USB-WL-11N (wireless adaptor). Wireless pen tablet TB-1.
HL03031
DT01481
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WX3042WN
3LCD multi-purpose projector, 3000 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
3000 (Normal), 2460 (Eco), 2100 (Eco-2)
10000:1
5000 (Normal), 10000 (Eco-2)
Built-in
Manual Zoom x 1.2
Manual Focus
0.9-11.5m
1.5 (Wide), 1.8 (Tele)
30-300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI/MHL x 1, HDMI x 1 (Supporting HDCP decoding)
15 pin Mini D Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.5W
3.1kg
320 x 85 x 245mm
37dB (Normal), 32dB (Eco), 29dB (Eco-2)
5,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1
USB-WL-11N (wireless adaptor). Wireless pen tablet TB-1.
HL03031
DT01481
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WX30LWN
3LCD multi-purpose projector, 3000 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
3000 (Normal)
10000:1
10000 (Normal), 5000 (Whisper*)
Built-in
Manual Zoom x 1.2
Manual Focus
0.9-11.6m
1.5 (Wide), 1.8 (Tele)
30 - 300"
16W Mono
Horizontal ± 30°, Vertical: ± 30°
HDMI/MHL x1, HDMI x1 (Supporting HDCP decoding)
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation or wireless network. Used for optional wireless pen tablet TB-1
Used for Remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
320W
Less than 0.5W
3.3kg
325 x 95 x 245mm
37db (Normal), 32db (Whisper*)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+ / SXGA / SXGA+ / UXGA (compressed) MAC16°
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover x1, Security Label x1, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1
USB-WL-11N (wireless adaptor). Wireless pen tablet TB-1.
HL03031
DT02051 / UX39561(Hybrid Filter)
3 years / 3 years (for education and extended warranties please contact your local dealer)
| Description | 3LCD Lamp projector, 5000 ANSI lumens, 16,000:1 contrast ratio, WXGA (1280 x 800) resolution | 3LCD Lamp projector, 5200 ANSI lumens, 16,000:1 contrast ratio, XGA (1024 x 768) resolution |
| OPTICAL | ||
| Panel Size | 3LCD 15mm (0.59") | 3LCD 16 mm (0.63") |
| Resolution | WXGA (1280 x 800) | XGA (1024 x 768) |
| Light Output (Brightness) ANSI Lumens | 5000 (Normal) 3750 (Eco) | 5200 (Normal) 3900 (Eco) |
| Contrast Ratio | 16000:1 | 16000:1 |
| Lamp Life (Hours)* | 4500 (Normal), 6000 (Eco) | 4500 (Normal), 6000 (Eco) |
| Lens | Built-in | Built-in |
| Lens Zoom | Manual Zoom x 1.6 | Manual Zoom x 1.6 |
| Lens Focus | Manual Focus | Manual Focus |
| Throw Distance | 0.9 - 9.2m (Wide), 1.4 - 14.8m (Tele) | 0.8 - 8.6m (Wide), 1.4 - 14.0m (Tele) |
| Distance to Width Ratio/ Throw Ratio (:1) | 1.4 (Wide), 2.3 (Tele) | 1.4 (Wide), 2.3 (Tele) |
| Diagonal Display Size | 30 - 300" | 30 - 300" |
| FEATURES | ||
| Speakers | 16W Mono | 16W Mono |
| Digital Keystone Correction | Horizontal ± 30°, Vertical: ± 30° | Horizontal ± 30°, Vertical: ± 30° |
| CONNECTIONS | ||
| Digital Input | HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL) | HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL) |
| Analogue Input | 15-pin Mini-D-Sub x 2, RCA Jack x 1 | 15-pin Mini-D-Sub x 2, RCA Jack x 1 |
| Video Output | 15 pin Mini-D-Sub x 1 | 15 pin Mini-D-Sub x 1 |
| Audio Input | 3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1 | 3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1 |
| Audio Output | 3.5mm Stereo Mini Jack x 1 | 3.5mm Stereo Mini Jack x 1 |
| RS-232C Control | 1 x 9-pin D-Sub | 1 x 9-pin D-Sub |
| Wireless LAN | USB-WL-11N wireless adaptor (optional) | USB-WL-11N wireless adaptor (optional) |
| Wired LAN | RJ45 connector x 1 | RJ45 connector x 1 |
| USB Type-A | USB Type A x 2 (PC loss presentation or wireless adapter) | USB Type A x 2 (PC loss presentation or wireless adapter) |
| USB Type-B | USB Type B x 1 | USB Type B x 1 |
| POWER | ||
| Power Supply | AC 100V - 120V / AC 220V - 240V (50/60Hz) | AC 100V - 120V / AC 220V - 240V (50/60Hz) |
| Operating Power Consumption | 390W | 390W |
| Standby Power Consumption | Less than 0.5W | Less than 0.5W |
| PHYSICAL | ||
| Weight | 5.3kg | 5.3kg |
| Dimensions (W x H x D) (Without feet) | 413 x 123 x 315mm | 413 x 123 x 315mm |
| Noise | 35db (Normal), 27db (Eco), | 35db (Normal), 27db (Eco), |
| Filter life (Hours)* | 10,000 | 10,000 |
| COMPATIBILITY | ||
| Computer | IBM Compatible VGA, SVGA, XGA, WXGA, SXGA / WSXGA+/HD/UXGA (compressed) | IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, WSXGA+/HD/UXGA (compressed) |
| Video | 525i(480i), 525p(480p), 625i(576i), 625p(576p)1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60) | 525i(480i), 525p(480p), 625i(576i), 625p(576p), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60) |
| ACCESSORIES | ||
| Supplied Accessories | Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover (for USB Wireless Adapter) x1, Security Label x1, CD User Manual x1, Application CD | Power Cable (1.8m) x1, Computer Cable x1, Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adapter Cover (for USB Wireless Adapter) x1, Security Label x1, CD User Manual x1, Application CD |
| Optional Accessories | USB-WL-11N (wireless adapter) | USB-WL-11N (wireless adapter) |
| Remote Control | HL03037 | HL03037 |
| Replacement Lamp / Filter | DT02061 / UX41161 | DT02061 / UX41161 |
| Projector / Lamp Warranty | 3 years / 6 months (for education and extended warranties please contact your local dealer) | 3 years / 6 months (for education and extended warranties please contact your local dealer) |
NEW
CP-EU5001WN
3LCD Lamp projector, 5000 ANSI lumens, 16,000:1 contrast ratio, WUXGA (1920 x 1200) resolution
3LCD 16mm (0.64")
WUXGA (1920 x 1200)
5000 (Normal), 3750(Eco)
16000:1
4500 (Normal), 6000 (Eco)
Built-in
Manual Zoom x 1.6
Manual Focus
0.8 - 8.4 m (Wide), 1.3 - 13.6 m (Tele)
1.3 (Wide), 2.1 (Tele)
30 - 300"
16W Mono
Horizontal ± 30°, Vertical: ± 30°
HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 2 (PC less presentation or wireless adapter)
USB Type B x 1 (USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
400W
Less than 0.35W
5.3kg
413×123×315mm
35db (Normal), 27db (Eco)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, WSXGA+, HD, UXGA, WUXGA
525i(480i), 525p(480p), 625i(576i),
625p(576p)1125l(1080l@50/60),
750p(720p@50/60), 1125p(1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m), Remote Control Unit x1, AA Batteries x2, Lens Cap x1, Adaptor Converter x1, USB Wireless Adaptor x1, Security Label x1, CD User Manual x1, Application CD.
USB wireless adaptor USB-WL-5G
HL03037
DT02061 / UX41161
3 years / 6 months (for education and extended warranties please contact your local dealer)
19
SHORT THROW
Project large, bright images in tight spaces with Hitachi's Short Throw Projectors. These lightweight and compact projectors are perfect for small and medium sized meeting rooms. They are easy to install and flexible to use with optional wireless networking, providing an affordable solution for not only business settings but education too.
HITACHI Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)\*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWE
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)\*
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
CP-CX301WN
3LCD short throw projector, 3100 ANSI lumens, 10000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16mm (0.63")
XGA (1024 x 768)
3100 (Normal), 2542 (Eco), 2077 (Eco-2)
10000:1
5000 (Normal), 8000 (Eco), 10000 (Eco-2)
Built-in
Digital Zoom x 1.35
Manual Focus
0.691-1.838m
0.6
60 - 100"
16W Mono
Vertical ± 5°
HDMI x 2
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
320W
Less than 0.35W
3.6kg
345 x 85 x 303mm
36dB (Normal), 32dB (Eco), 29dB (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16*
525i (480i), 525p (480p), 625i (576i), 1125i
(1080@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, Lens Cap x1, IR Remote Control Unit x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, USB Wireless Adapter Cover x1
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1.
HL03035
DT01511
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-CW301WN
3LCD short throw projector, 3100 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
3100 (Normal), 2542 (Eco), 2077 (Eco-2)
10000:1
5000 (Normal), 8000 (Eco), 10000 (Eco-2)
Built-in
Digital Zoom x 1.35
Manual Focus
0.691-1.838m
0.6
60-100"
16W Mono
Vertical ± 5°
HDMI x 2
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
320W
Less than 0.35W
3.6kg
345×85×303mm
37dB (Normal), 32dB (Eco), 29dB (Eco-2)
4.000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525l (480l), 525p (480p), 625l (576l), 1125l
(1080i@50/60). 750p (720p@50/60). 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, Lens Cap x1, IR Remote Control Unit x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, USB Wireless Adapter Cover x1
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1.
HL03035
DT01511
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-CW251WN
3LCD short throw projector, 2600 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
2600 (Normal), 2132 (Eco), 1742 (Eco-2)
10000:1
5000 (Normal), 8000 (Eco), 10000 (Eco-2)
Built-in
Digital Zoom x 1.35
Manual Focus
0.691 - 1.838m
0.6
60-100"
16W Mono
Vertical ± 5°
HDMI x 2
15 pin Mini D Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
320W
Less than 0.35W
3.6kg
345 x 85 x 303mm
37dB (Normal), 32dB (Eco), 29dB (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525l (480l), 525p (480p), 625l (576l), 1125l
(1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, Lens Cap x1, IR Remote Control Unit x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, USB Wireless Adapter Cover x1
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1.
HL03035
DT01511
3 years / 6 months (for education and extended warranties please contact your local dealer)
21
ULTRA-SHORT THROW
Hitachi Ultra Short Throw projectors help you get the most out of your presentations or lessons. These lightweight and compact projectors offer the highest quality images with a compelling design and low cost of ownership. You can project onto any existing whiteboard, wall or table top. They are also easy to install and flexible to use with optional wireless networking.
3LCD Powered focus to built-in speaker
全国银行
MHL capable
Perfect fit Wireless Security functions
Network LAN
connectivity
PC-espScheduling function pen touch
HITACHI Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)\*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWE
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)\*
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
3LCD ultra short throw projector, 2700 ANSI lumens, 10000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16mm (0.63")
XGA (1024 x 768)
2700 (Normal), 2214 (Eco), 1809 (Eco-2)
10000:1
5000 (Normal), 8000 (Eco), 10000 (Eco-2)
Built-in
Digital Zoom x 1.35
Powered Focus
0.385 - 0.649m
0.3
60 - 100"
16W Mono
Horizontal ± 5°, Vertical ± 5°
HDMI x 2
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.35W
4.3kg
377 x 136 x 360mm
34dB (Normal), 32dB (Eco), 28dB (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (4.5m) x1, Computer Cable (5.0m) x1, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive model) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1
USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount), TT-03 Table Top Kit, HAS-WB01 (XGA mount adaptor HAS-WB02 WXGA mount adaptor
HL03033
DT01511
3 years / 3 years (for education and extended warranties please contact your local dealer)
CP-AX3005
3LCD ultra short throw projector, 3300 ANSI lumens, 10000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16mm (0.63")
XGA (1024 x 768)
3300 (Normal), 2706 (Eco), 2244 (Eco-2)
10000:1
4000 (Normal), 5000 (Eco), 6000 (Eco-2)
Built-in
Digital Zoom x 1.35
Powered Focus
0.385 - 0.649m
0.3
60-100"
16W Mono
Horizontal ± 5°, Vertical ± 5°
HDMI x 2
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
350W
Less than 0.35W
4.3kg
377×136×360mm
36dB (Normal), 32dB (Eco), 29dB (Eco-2)
4.000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525l (480i), 525p (480p), 625l (576i), 1125l (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (4.5m) x1, Computer Cable (5.0m) x1, USB Cable (5m) x1, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1
USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount), TT-03 Table Top Kit, HAS-WB01 (XGA mount adaptor HAS-WB02 WXGA mount adaptor
HL03033
DT01411
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-AX3505
3LCD ultra short throw projector, 3600 ANSI lumens, 10000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16mm (0.63")
XGA (1024 x 768)
3600 (Normal), 2952 (Eco), 2448 (Eco-2)
10000:1
4000 (Normal), 5000 (Eco), 6000 (Eco-2)
Built-in
Digital Zoom x 1.35
Powered Focus
0.385 - 0.649m
0.3
60-100"
16W Mono
Horizontal ± 5°, Vertical ± 5°
HDMI x 2
15 pin Mini D Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
350W
Less than 0.35W
4.3kg
377×136×360mm
36dB (Normal), 32dB (Eco), 29dB (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525l (480l), 525p (480p), 625l (576l), 1125l
(1080p@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (4.5m) x1, Computer Cable (5.0m) x1, USB Cable (5m) x1, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive model) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1
USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount). TT-03 Table Top KIt, HAS-WB01 (XGA mount adaptor HAS-WB02 WXGA mount adaptor
HL03033
DT01411
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-AW2505
3LCD ultra short throw projector, 2700 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
2700 (Normal), 2214 (Eco), 1809 (Eco-2)
10000:1
5000 (Normal), 8000 (Eco), 10000 (Eco-2)
Built-in
Digital Zoom x 1.35
Powered Focus
0.409 - 0.689m
0.3
60 - 100"
16W Mono
Horizontal ± 5°, Vertical ± 5°
HDMI x 2
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
310W
Less than 0.35W
4.3kg
377 x 136 x 360mm
34dB (Normal), 32dB (Eco), 28dB (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i
(1080p@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (4.5m) x1, Computer Cable (5.0m) x1, USB Cable (5m) x1, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive) x1 CD User Manual x1, Concise User Manual x1, Adapt Cover x1
USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount), TT-03 Table Top Kit, HAS-WB01 (XGA mount adaptor HAS-WB02 WXGA mount adaptor
HL03033
DT01511 / UX37191 (Hybrid)
3 years / 3 years (for education and extended warranties please contact your local dealer)
| Description | 3LCD ultra short throw projector, 3300 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution |
| OPTICAL | |
| Panel Size | 3LCD 15mm (0.59") |
| Resolution | WXGA (1280 x 800) |
| Light Output (Brightness) ANSI Lumens | 3300 (Normal), 2706 (Eco), 2244 (Eco-2) |
| Contrast Ratio | 10000:1 |
| Lamp Life (Hours)* | 4000 (Normal), 5000 (Eco), 6000 (Eco-2) |
| Lens | Built-in |
| Lens Zoom | Digital Zoom x 1.35 |
| Lens Focus | Powered Focus |
| Throw Distance | 0.409 – 0.689m |
| Distance to Width Ratio/ Throw Ratio (:1) | 0.3 |
| Diagonal Display Size | 60 – 100" |
| FEATURES | |
| Speakers | 16W Mono |
| Digital Keystone Correction | Horizontal ± 5°, Vertical ± 5° |
| CONNECTIONS | |
| Digital Input | HDMI x 2 |
| Analogue Input | 15 pin Mini D-Sub x 2, RCA Jack x 1 |
| Video Output | 15 pin Mini D-Sub x 1 |
| Audio Input | 3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1 |
| Audio Output | 3.5mm Stereo Mini Jack x 1 |
| RS-232C Control | 1 x 9-pin D-Sub |
| Wireless LAN | USB-WL-11N wireless adaptor (optional) |
| Wired LAN | Yes |
| USB Type-A | Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1 |
| USB Type-B | Used for remote control mouse or PC screen display |
| POWER | |
| Power Supply | AC 100V – 120V / AC 220V – 240V (50/60Hz) |
| Operating Power Consumption | 350W |
| Standby Power Consumption | Less than 0.35W |
| PHYSICAL | |
| Weight | 4.3kg |
| Dimensions (W x H x D) (Without feet) | 377 x 136 x 360mm |
| Noise | 36dB (Normal), 32dB (Eco), 29dB (Eco-2) |
| Filter life (Hours)* | 4,000 |
| COMPATIBILITY | |
| Computer | IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16" |
| Video | 525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60) |
| ACCESSORIES | |
| Supplied Accessories | Power Cable (4.5m) x1, Computer Cable (5.0m) x1, USB Cable (5m) x1, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive model) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1 |
| Optional Accessories | USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount), TT-03 Table Top Kit, HAS-WB01 (XGA mount adaptor HAS-WB02 WXGA mount adaptor |
| Remote Control | HL03033 |
| Replacement Lamp / Filter | DT01411 / UX37191 (Hybrid) |
| Projector / Lamp Warranty | 3 years / 3 years (for education and extended warranties please contact your local dealer) |
3LCD Lamp projector, 3700 ANSI lumens, 16,000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
3700 (Normal)
16000:
4000 (Normal), 6000 (Eco-2)
Built-in
Digital Zoom x 1.35
Powered Focus
0.41m - 0.69m (centre of glass to screen)
0.3
60 - 100"
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 2 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
360W
Less than 0.35W
4.4kg
382 x 141 x 362mm
37db (Normal), 32db (Eco), 28db (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed)
525i(480i), 525p(480p), 625i(576i), 625p(576p)1125i(1080i@50/60), 1125p(1080p@50/60)
Power Cable (4.5m) x1, Computer Cable (5.0m) x1, USB Cable (5m) x1, Interactive Pon x2, Pon Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive model) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1
USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount), TT-03 Table Top Kit, HAS-WB01 (XGA mount adaptor HAS-WB02 WXGA mount adaptor
HL03033
DT01411 / UX37191 (Hybrid)
3 years / 3 years (for education and extended warranties please contact your local dealer)
LP-AW4001
3LCD Laser projector, 4.200 ANSI lumens, 500,000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
WXGA (1280 x 800)
4200 (Normal)
500,000:1
Built-in
Digital Zoom x 1.35
Powered Focus
0.486m - 0.978m (centre of glass to screen)
0.3
60 - 130°
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant, HDMI 1 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 3
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz wireless adaptor (optional))
RJ45 connector x 1
USB Type A x 2 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
350W
Less than 0.5W
7.6kg
512×424×155mm
34dB (Normal), 28dB (Whisper).
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed)
525i(480i), 525p(480p), 625i(576i), 625p(576p) 1125i(1080i@50/60), 1125p(1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder x2, Cable Tie (large x1, medium x2, small x1), AA Batteries x2
USB wireless adaptor USB-WL-5G, Wall mount unit: HAS-WM06 (In some buying conditions wall mount is included)
HL03037
Filter Part No: UX43251
20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
LP-AW3001
3LCD Laser projector, 3.300 ANSI lumens, 500,000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
WXGA (1280 x 800)
3300 (Normal)
500,000:1
Built-in
Digital Zoom x 1.35
Powered Focus
0.488m - 0.976m (centre of glass to screen)
0.3
60 - 130"
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant, HDMI 1 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 3
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz wireless adaptor (optional))
RJ45 connector x 1
USB Type A x 2 (PC less presentation or wireless adapter)
USB Type B x 1 (USB display or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
280W
Less than 0.5W
7.4 kg
512×424×155mm
34dB (Normal), 28dB (Whisper),
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed)
525i(480i), 525p(480p), 625i(576i), 625p(576p) 1125i(1080i@50/60), 1125p(1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m), Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder (x2), Cable Tie (large x1, medium x2, small x1), AA Batteries x2
USB wireless adaptor USB-WL-5G, Wall mount unit: HAS-WM06 (In some buying conditions wall mount is included)
HL03037
Filter Part No: UX43251
20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
ULTRA-SHORT THROW INTERACTIVE
The Interactive projectors have become an essential tool for use in boardrooms or classrooms. Hitachi is leading the way with continuous advances in interactivity, image quality, functionality, security and affordability. As you would expect, features like low noise, usability and durability are assured. They are also easy to install and flexible to use with optional wireless networking.
3LCD Powered focus/20mm-in speaker
2x HDMI MHL capable
Security functions
Scheduling function
Table top use
Perfect fit Wireless
finger touch
Pen touch
Network LAN connectivity
Bolles
HITACHI
Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
CP-TW2505
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)*
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
Interactive 3LCD ultra short throw projector, 2700 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
2700 (Normal), 2214 (Eco), 1809 (Eco-2)
10000:1
5000 (Normal), 8000 (Eco), 10000 (Eco-2)
Built-in
Digital Zoom x 1.35
Powered Focus
0.409 - 0.689m
0.3
60-100"
16W Mono
Horizontal ± 5°, Vertical ± 5°
HDMI x 2
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
330W
Less than 0.35W
4.3kg
377×136×360mm
34dB (Normal), 32dB (Eco), 28dB (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i
(1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (4.5m) x1, Computer Cable (5.0m) x1, USB Cable (5m) x1, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive model) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1
USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount), TT-03 Table Top Kit, HAS-WB01 (XGA mount adaptor HAS-WB02 WXGA mount adaptor
HL03033
DT01511 / UX37191 (Hybrid)
3 years / 3 years (for education and extended warranties please contact your local dealer)
Interactive 3LCD ultra short throw projector, 3300 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
3300 (Normal), 2706 (Eco), 2244 (Eco-2)
10000:1
4000 (Normal), 5000 (Eco), 6000 (Eco-2)
Built-in
Digital Zoom x 1.35
Powered Focus
0.409 - 0.689m
0.3
60 - 100"
16W Mono
Horizontal ± 5°, Vertical ± 5°
HDMI x 2
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
360W
Less than 0.35W
4.3kg
377 x 136 x 360mm
36dB (Normal), 32dB (Eco), 28dB (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA-/UXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (4.5m) x1, Computer Cable (5.0m) x1, USB Cable (5m) x1, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive) x1. CD User Manual x1, Concise User Manual x1, Adapter Cover x1
USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount), TT-03 Table Top Kit, HAS-WB01 (XGA mount adaptor HAS-WB02 WXGA mount adaptor
HL03033
DT01411 / UX37191 (Hybrid)
3 years / 3 years (for education and extended warranties please contact your local dealer)
CP-TW3506
Interactive 3LCD Lamp projector, 3700 ANSI lumens, 16,000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 15mm (0.59")
WXGA (1280 x 800)
3700 (Normal)
16000:1
4000 (Normal), 6000 (Eco-2)
Built-in
Digital Zoom x 1.35
Powered Focus
0.41m - 0.69m (centre of glass to screen)
0.3
60-100"
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant, HDMI 1 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 2 (PC less presentation or wireless adapter) USB type A for FT-01 x 1 (for power supply of the FT-01)
USB Type B x 1 (Interactive function, USB display, or USB mouse control)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
380W
Less than 0.35W
4.6kg
382 x 141 x 362mm
37db (Normal), 32db (Eco), 28db (Eco-2)
4,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed)
525i(480i), 525p(480p), 625i(576i),
625p(576p)1125i(1080i@50/60).
1125p(1080p@50/60)
Power Cable (4.5m) x1, Computer Cable (5.0m) x1, USB Cable (5m) x1, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, IR Remote Control Unit x1, AA Batteries x2, Cable Cover x1, Application CD (for network, etc.) x1, Application DVD (for interactive) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1
USB wireless adaptor USB-WL-11N, Wall mount unit: HAS-WM03, HAS-WM05 (Low ceiling wall mount), TT-03 Table Top Kit, HAS-WB01 (XGA mount adaptor) HAS-WB02 (WXGA mount adaptor) FT-01 B Finger Touch Unit
HL03033
DT01411 / UX37191 (Hybrid)
3 years / 3 years (for education and extended warranties please contact your local dealer)
LP-TW3001
3LCD Laser projector, 3.300 ANSI lumens, 500,000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
WXGA (1280 x 800)
3300 (Normal)
500,000:1
Built-in
Digital Zoom x 1.35
Powered Focus
0.413m - 0.903m (centre of glass to screen)
0.3
60 - 130"
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz wireless adaptor (optional)
RJ45 connector x 1
USB Type A x 3 (PC less presentation, wireless adapter or finger touch unit)
USB Type B x 1 (USB display, USB mouse control or interactivity connection for PC)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
300W
Less than 0.5W
7.7 kg
512×424×155mm
34dB (Normal), 28dB (Whisper),
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed)
525i(480i), 525p(480p), 625i(576i),
625p(576p)1125i(1080i@50/60),
1125p(1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder (x2), Cable Tie (large x1, medium x2, small x1), AA Batteries x2, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, Starboard Interactive Software DVD x 1
USB wireless adaptor USB-WL-5G, Wall mount unit HAS-WM06 (In some buying conditions wall mount is Included), Finger Touch Unit (FT-01B), Interactive Pen (I-PEN4)
HL03037
Filter Part No: UX43251
20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
LP-TW4001
3LCD Laser projector, 4,200 ANSI lumens, 500.000:1 contrast ratio, WXGA (1280 x 800) resolution
3 LCD 15mm (0.59")
WXGA (1280 x 800)
4200 (Normal)
500,000:1
Built-in
Digital Zoom x 1.35
Powered Focus
0.413m - 0.903m (centre of glass to screen)
0.3
60 - 130"
16W Mono
Horizontal ±5°, Vertical: ±5°
HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL)
15-pin Mini-D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1 (shared with analog computer input)
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pIn D-Sub
USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz wireless adaptor (optional))
RJ45 connector x 1
USB Type A x 3 (PC less presentation, wireless adapter or finger touch unit)
USB Type B x 1 (USB display, USB mouse control or Interactivity connection for PC)
AC 100V - 120V / AC 220V - 240V (50/60Hz)
380W
Less than 0.5W
7.9kg
512×424×155mm
34dB (Normal), 28dB (Whisper).
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/UXGA (compressed)
525i(480i), 525p(480p), 625i(576i),
625p(576p)1125i(1080i@50/60).
1125p(1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, Concise User Manual x1, Security Label x1, Adapter Cover x1, Hook Metal x1, Screw x1, HDMI Cable Holder (x2), Cable Tie (large x1, medium x2, small x1), AA Batteries x2, Interactive Pen x2, Pen Tip x4, AAA Batteries x4, Starboard Interactive Software DVD x 1
USB wireless adaptor USB-WL-5G, Wall mount unit: HAS-WM06 (In some buying conditions wall mount is included), Finger Touch Unit (FT-01B), Interactive Pen (I-PEN4)
HL03037
Filter Part No: UX43251
20,000 hours / 5 years (whichever comes first) (for extended warranties please contact your local dealer)
^27 INSTALLATION
5000 SERIES
Ideal for medium to large venues, our installation models deliver high performance, advanced networking capabilities and simple user functionality making them a cost effective solution for a multitude of installation requirements.
3LCD
Built-In speaker
Lens shift
2 x HDMI
HDMI out
HDBaseT™
Picture by picture / Picture in picture
Edge blending capabilities
Warping capabilities
Perfect fit
Wireless Security functions
Scheduling function
Stackable
Network LAN connectivity
HITACHI
Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
CP-X5550
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)*
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
3LCD installation projector, 5800 ANSI lumens, 10000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 16mm (0.63")
XGA (1024 x 768)
5800 (Normal), 4600 (Eco)
10000:1
4000 (Normal), 6000 (Eco)
Built-in
Manual Zoom x 1.6
Manual Focus
0.8 - 14m
1.4 (Wide), 2.3 (Tele)
30-300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1, HDMI x 1 (Supporting HDCP decoding)
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
No
AC 100V - 120V / AC 220V - 240V (50/60Hz)
420W
Less than 0.5W
6.8kg
460×138×334mm
38dB (Normal), 29dB (Eco)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525l (480l), 525p (480p), 625l (576l), 625p (576p), 1125i (1080i@50/60), 750p (720p@50/60), 1080p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (1.8m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1, Terminal Cover x1 (Only for CP—WX5505), HDMI Cable Holder x3, Cable Ties x3, Cable Tie for Power Cable x1, Hook Metal x1, Screw x1, Lens Cap x1
USB wireless adapter USB-WL-11N, Installation remote (HL02806)
HL03037
DT01931, UX41161
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WX5505/5500
| 3LCD projector installation, 5200 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution |
3LCD 15mm (0.59")
WXGA (1280 x 800)
5200 (Normal), 3640 (Eco)
10000:1
4000 (Normal), 6000 (Eco)
Built-in
Manual Zoom x 1.6
Manual Focus
0.9 - 14.8m
1.4 (Wide), 2.3 (Tele)
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2, HDBaseT x 1 (HDBaseT for model CP-WX5505 only)
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1, HDMI x 1 (Supporting HDCP decoding)
3.5mm Stereo Mini Jack x1. RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
No
AC 100V - 120V / AC 220V - 240V (50/60Hz)
420W
Less than 0.5W
6.8kg
460 x 138 x 334mm
38dB (Normal), 29dB (Eco)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525i (480i), 525p (480p), 625i (576i), 625p (576p), 1125i (1080i@50/60), 750p (720p@50/60), 1080p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (1.8m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Conscise User Manual x1, Adapter Cover x1, Terminal Cover x1 (Only for CP-WX5505), HDMI Cable Holder x3, Cable Ties x3, Cable Tie for Power Cord x1, Hook Metal x1, Screw x1, Lens Cap x1
USB wireless adapter USB-WL-11N, Installation remote (HL02806)
HL03037
DT01931, UX41161
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WX5506M
| 3LCD projector installation, wireless, 5400 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution |
3LCD 16mm (0.63")
WXGA (1280 x 800)
5400 (Normal), 3618 (Eco)
10000:1
4000 (Normal), 6000 (Eco)
Built-in
Manual Zoom x 1.6
Manual Focus
0.8m - 13.6m
1.3 (Wide), 2.1 (Tele)
30-300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2, HDBaseT x 1
15 pin Mini D-Sub x 2. RCA Jack x 1
15 pin Mini D-Sub x 1, HDMI x 1 (Supporting HDCP decoding)
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (included)
Yes
USB Type A x 2 for wireless adaptor and firmware upgrade
No
AC 100V - 120V / AC 220V - 240V (50/60Hz)
470W
Less than 0.5W
6.8kg
460 x 138 x 334mm
38dB (Normal), 29dB (Eco)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525l (480i), 525p (480p), 625l (576i), 625p (576p), 1125i (1080i@50/60), 750p (720p@50/60), 1080p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (1.8m) x1, Remote Control Unit x1 Batteries xx, USB Wireless Adapter x1, Lens Cap x1, Adapter Cover x1, Terminal Cover x1, Application CD x1, User Manual (Book, CD-ROM) x1, Security Label x1, Hook Metal x1, Screw x1, Cable Tie x1, HDMI Cable Holder
Installation remote (HL02806)
HL03037
DT01931, UX41161
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WU5506M
| 3LCD projector installation, wireless. 5200 ANSI lumens, 10000:1 contrast ratio, WUXGA (1920 x 1200) resolution |
3LCD 17mm (0.67")
WUXGA (1920 x 1200)
5200 (Normal), 3640 (Eco)
10000:1
4000 (Normal), 6000 (Eco)
Built-in
Manual Zoom x 1.7
Manual Focus
0.8 - 15.2m
1.4 (Wide), 2.3 (Tele)
30-300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2, HDBaseT x 1
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1, HDMI x 1 (Supporting HDCP decoding)
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-5G wireless adaptor (included)
Yes
USB Type A x 2 for wireless adaptor and firmware upgrade
No
AC 100V - 120V / AC 220V - 240V (50/60Hz)
450W
Less than 0.5W
7.1kg
460×138×334mm
38dB (Normal), 31dB (Eco)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525l (480l), 525p (480p), 625l (576l), 625p (576p), 1125i (1080i@50/60), 750p (720p@50/60), 1080p (1080p@50/60)
Power Cable (1.8m), Computer Cable (1.8m), Remote Control Unit x1, Batteries, USB Wireless Adapter x1, Lens Cap x1, Adapter Cover x1, Terminal Cover x1, Application CD, User Manual (Book, CD-ROM) x1, Security Label x1, Hook Metal x1, Screw x1, Cable Tie, HDMI Cable Holder
Installation remote (HL02806)
HL03037
DT01931, UX41161
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WU5505/5500
| 3LCD projector installation, 5200 ANSI lumens, 10000:1 contrast ratio, WUXGA (1920 x 1200) resolution |
3LCD 17mm (0.67")
WUXGA (1920 x 1200)
5200 (Normal), 3640 (Eco)
10000:1
4000 (Normal), 6000 (Eco)
Built-in
Manual Zoom x 1.7
Manual Focus
0.8 - 15.2m
1.4 (Wide), 2.3 (Tele)
30 - 300"
16W Mono
Horizontal ± 30°, Vertical ± 30°
HDMI x 2, HDBaseT x 1 (HDBaseT for model CP-WU5505 only)
15 pin Mini D-Sub x 2, RCA Jack x 1
15 pin Mini D-Sub x 1, HDMI x 1 (Supporting HDCP decoding)
3.5mm Stereo Mini Jack x1, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
No
AC 100V - 120V / AC 220V - 240V (50/60Hz)
420W
Less than 0.5W
6.8kg
460 x 138 x 334mm
38dB (Normal), 29dB (Eco)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525i (480i), 525p (480p), 625i (576i), 625p (576p), 1125i (1080i@50/60), 750p (720p@50/60), 1080p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (1.8m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1, Terminal Cover x1 (Only for CP-WX5505), HDMI Cable Holder x3, Cable Ties x3, Cable Tie for Power Cord x1, Hook Metal x1, Screw x1, Lens Cap x1
USB wireless adaptor USB-WL-11N, Installation remote (HL02806)
HL03037
DT01931, UX41161
3 years / 6 months (for education and extended warranties please contact your local dealer)
INSTALLATION
8000 SERIES
Ideal for medium to large venues, our installation models deliver high performance, advanced networking capabilities and simple user functionality making them a cost effective solution for a multitude of installation requirements.
3LCD Powered focus/zoom
360° projection
Portrait projection
Lens shift
Variety of Interchangeable lenses
Stackable
2 x HDMI
Picture in picture
Edge blending capabilities
Warping capabilitiesPicture by picRerfect fit
by picRerfect fit
Wireless Security functions
Scheduling function Network LAN
connectivity
PC-less
HITACHI
Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Speakers
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
Audio Input
Audio Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)*
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
CP-X8800W
3LCD installation projector, 8000 ANSI lumens, 10000:1 contrast ratio, XGA (1024 x 768) resolution
3LCD 20mm (0.79")
XGA (1024 x 768)
8000 (Normal), 6400 (Eco)
10000:1
2000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 1.7
Powered Focus
1.1 - 37.6m (ML-713)
1.7 (Wide), 2.9 (Tele) (ML-713)
30 - 600"
8W Stereo
Horizontal ±37.5°, Vertical: ±37.5° (ML-713)
HDMI x 2, HDBaseT x 1, DisplayPort x 1
15 pin Mini D-Sub x 1, RCA Jack x1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 1, RCA Jack (L/R) x 1
RCA Jack (L/R) x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
560W
Less than 0.35W
11.1kg
498 x 156 x 426mm
40dB (Normal), 33dB (Eco)
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1, Terminal Cover x1, HDMI Bracket x2, Binder x2
USB wireless adaptor USB-WL-11N. Wireless pen tablet T B-1.
HL02805
DT01881
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WX8265
3LCD installation projector, 6500 ANSI lumens, 3000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 19mm (0.75")
WXGA (1280 x 800)
6500 (Normal), 5200 (Eco)
3000:1
2000 (Normal), 2500 (Eco)
Interchangeable, Standard ML-713 included
Powered Zoom x 2.0
Powered Focus
1-39m (ML-713)
1.5 (Wide), 3.0 (Tele) (ML-713)
30-600"
No
Horizontal ± 35°, Vertical ± 35°
HDMI x 2
15 pin Mini D-Sub x 1, Mini-Din 4 pin x 1, RCA Jack x 1, S-Video RCA Jack x 3, BNC x 5
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
RCA Jack (L/R) × 2
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
480W
Less than 0.5W
8.8kg
498 x 135 x 396mm
39dB (Normal), 33dB (Eco)
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16" 525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1, Terminal Cover x1, HDMI Bracket x2, Binder x2
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1.
HL02801
DT01471
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WX8650W
3LCD installation projector, 6500 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 19mm (0.75")
WXGA (1280 x 800)
6500 (Normal), 5200 (Eco)
10000:1
3000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 1.7
Powered Focus
1.1 - 37.6m (ML-713)
1.7 (Wide), 3.0 (Tele) (ML-713)
30-600"
8W Stereo
Horizontal ±35°, Vertical: ±35° (ML-713)
HDMI x 2, HDBaseT x 1, DisplayPort x 1
15 pin Mini D-Sub x 1, RCA Jack x1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
3.5mm Stereo Mini Jack x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
500W
Less than 0.35W
11.1kg
498 x 156 x 426mm
35dB (Normal), 30dB (Eco)
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16" 525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
EU Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1, Terminal Cover x1, HDMI Bracket x2, Binder x2
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1.
HL02805
DT01871
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WX8750W
3LCD installation projector, 7500 ANSI lumens, 10000:1 contrast ratio, WXGA (1280 x 800) resolution
3LCD 19mm (0.75")
WXGA (1280 x 800)
7500 (Normal), 6000 (Eco)
10000:1
2000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 1.7
Powered Focus
1.1 - 37.6m (ML-713)
1.7 (Wide), 3.0 (Tele) (ML-713)
30 - 600"
8W Stereo
Horizontal ±35°, Vertical: ±35° (ML-713)
HDMI x 2, HDBaseT x 1, DisplayPort x 1
15 pin Mini D-Sub x 1, RCA Jack x1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
RCA Jack (L/R) x 1
1 x 9-pIn D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
560W
Less than 0.35W
11.1kg
498 x 156 x 426mm
41dB (Normal), 33dB (Eco)
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16" 525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Conclise User Manual x1, Adapter Cover x1, Terminal Cover x1, HDMI Bracket x2, Binder x2
USB wireless adaptor USB-WL-11N. Wireless pen tabiot T B-1.
HL02805
DT01881
3 years / 6 months (for education and extended warranties please contact your local dealer)
| CP-WU8461 | |
| Description | 3LCD projector installation, 6000 ANSI lumens,5000:1 contrast ratio, WUXGA (1920 x 1200)resolution |
| OPTICAL | |
| Panel Size | 3LCD 19mm (0.75") |
| Resolution | WUXGA (1920 x 1200) |
| Light Output (Brightness) ANSI Lumens | 6000 (Normal), 4800 (Eco) |
| Contrast Ratio | 5000:1 |
| Lamp Life (Hours)* | 2000 (Normal), 2500 (Eco) |
| Lens | Interchangeable, Standard ML-713 included |
| Lens Zoom | Powered Zoom x 2.0 |
| Lens Focus | Powered Focus |
| Throw Distance | 1.0 - 38.3m (ML-713) |
| Distance to Width Ratio/ Throw Ratio (:1) | 1.5 (Wide), 3.0 (Tele) (ML-713) |
| Diagonal Display Size | 30 - 600" |
| FEATURES | |
| Speakers | 8W Stereo |
| Digital Keystone Correction | Horizontal ±15°, Vortical ±35° |
| CONNECTIONS | |
| Digital Input | HDMI x 2, HDBaseT x 1 |
| Analogue Input | 15 pin Mini D-Sub x 1, Mini-Din 4 pin x 1, RCA Jackx 1, S-Video RCA Jack x 3, BNC x 5 |
| Video Output | 15 pin Mini D-Sub x 1 |
| Audio Input | 3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1 |
| Audio Output | RCA Jack (L/R) x 2 |
| RS-232C Control | 1 x 9-pin D-Sub |
| Wireless LAN | USB-WL-11N wireless adaptor (optional) |
| Wired LAN | Yes |
| USB Type-A | Used for PC-less presentation, wireless network oroptional wireless pen tablet TB-1 |
| USB Type-B | Used for remote control mouse or PC screen display |
| POWER | |
| Power Supply | AC 100V - 120V / AC 220V - 240V (50/60Hz) |
| Operating Power Consumption | 480W |
| Standby Power Consumption | Less than 0.5W |
| PHYSICAL | |
| Weight | 9.2kg |
| Dimensions (W x H x D) (Without feet) | 498 x 135 x 396mm |
| Noise | 39dB (Normal), 33dB (Eco) |
| Filter life (Hours)* | 20,000 |
| COMPATIBILITY | |
| Computer | IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA-/UXGA/WUXGA, MAC16" |
| Video | 525i (480i), 525p (480p), 625i (576i), 1125i(1080i@50/60), 750p (720p@50/60), 1125p(1080p@50/60) |
| ACCESSORIES | |
| Supplied Accessories | Power Cable (1.8m) x1, Computer Cable (2m) x1,IR Remote Control Unit x1, Security Label x1, AABatteries x2, Lens Cap x1, Application CD (fornetwork etc.) x1, CD User Manual x1, Concise UserManual x1, Adapter Cover x1 |
| Optional Accessories | USB wireless adaptor USB-WL-11N. Wireless pentablet TB-1. |
| Remote Control | HL02801 |
| Replacement Lamp / Filter | DT01291 |
| Projector / Lamp Warranty | 3 years / 6 months (for education and extendedwarranties please contact your local dealer) |
CP-WU8600W
3LCD projector installation, 6000 ANSI lumens, 10000:1 contrast ratio, WUXGA (1920 x 1200) resolution
3LCD 19mm (0.75")
WUXGA (1920 x 1200)
6000 (Normal), 4800 (Eco)
10000:1
3000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 1.7
Powered Focus
1.1 - 37.6m (ML-713)
1.7 (Wide), 3.0 (Tele) (ML-713)
30 - 600"
8W Stereo
Horizontal ±30°, Vertical ±30° (ML-713)
HDMI x 2, HDBaseT x 1, DisplayPort x 1
15 pin Mini D-Sub x 1, RCA Jack x1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
RCA Jack (L/R) x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
500W
Less than 0.35W
11.1kg
498 x 156 x 426mm
35dB (Normal), 30dB (Eco)
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1, Terminal Cover x1, HDMI Bracket x2, Binder x2
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1.
HL02805
DT01871
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WU8700W
3LCD projector installation, 7000 ANSI lumens, 10000:1 contrast ratio, WUXGA (1920 x 1200) resolution
3LCD 19mm (0.75")
WUXGA (1920 x 1200)
7000 (Normal), 5600 (Eco)
10000:1
2000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 1.7
Powered Focus
1.1 - 37.6m (ML-713)
1.7 (Wide), 3.0 (Tele) (ML-713)
30-600"
8W Stereo
Horizontal ±30°, Vertical ±30° (ML-713)
HDMI x 2, HDBaseT x 1, DisplayPort x 1, 1x SDI
15 pin Mini D-Sub x 1, RCA Jack x1
15 pin Mini D-Sub x 1
3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
RCA Jack (L/R) x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for PC-less presentation, wireless network or optional wireless pen tablet TB-1
Used for remote control mouse or PC screen display
AC 100V - 120V / AC 220V - 240V (50/60Hz)
560W
Less than 0.35W
11.1kg
498 x 156 x 426mm
40dB (Normal), 33dB (Eco)
20,000
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)
Power Cable (1.8m) x1, Computer Cable (2m) x1, IR Remote Control Unit x1, Security Label x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, Adapter Cover x1, Terminal Cover x1, HDMI Bracket x2, Binder x2
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1.
HL02805
DT01881
3 years / 6 months (for education and extended warranties please contact your local dealer)
INSTALLATION
9000 SERIES AND CP-WU13K
The 9000 series combines DLP technology and High Brightness dual Lamp system, providing the ideal solution for installation scenarios that need bright and flexible projection.
DLP
Dual lamp
24/7 lamp
alternate mode
Powered focus/zoom
360° projection
Portrait projection
Lens shift
Variety of
Interchangeable lenses
Stackable
Picture by picture /
Picture in picture
Built-in dual
colour wheel
Edge blending
capabilities
Warping capabilities
Perfect fit
Wireless Security functions
G
Scheduling function
Network LAN
connectivity
HITACHI
Inspire the Next
The above features listed may not be available on all models. Please check the specific model specification.
Description
OPTICAL
Panel Size
Resolution
Light Output (Brightness) ANSI Lumens
Contrast Ratio
Lamp Life (Hours)*
Lens
Lens Zoom
Lens Focus
Throw Distance
Distance to Width Ratio/ Throw Ratio (:1)
Diagonal Display Size
FEATURES
Digital Keystone Correction
CONNECTIONS
Digital Input
Analogue Input
Video Output
RS-232C Control
Wireless LAN
Wired LAN
USB Type-A
USB Type-B
POWER
Power Supply
Operating Power Consumption
Standby Power Consumption
PHYSICAL
Weight
Dimensions (W x H x D) (Without feet)
Noise
Filter life (Hours)*
COMPATIBILITY
Computer
Video
ACCESSORIES
Supplied Accessories
Optional Accessories
Remote Control
Replacement Lamp / Filter
Projector / Lamp Warranty
RETIRING SOON RETIRIN
CP-WX9210
DLP professional projector, 6500 ANSI lumens, 2500:1 contrast ratio, WXGA (1280 x 800) resolution
1-Chlp DLP 16mm (0.63")
WXGA (1280 x 800)
8500 (Normal), 6375 (Eco)
2500:1
2000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 1.5
Powered Focus
3 - 28m (SD-903)
1.7 (Wide), 2.6 (Tele) (SD-903)
50 - 600"
Horizontal ± 10°, Vertical ± 10°
HDMI x 2, HDBase-T x 1, DVI-D x 1
15 pin Mini D-Sub x 2, BNC x 1, BNC x 3,
15 pin Mini D-Sub x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
No
AC 110V - 120V / AC 220V - 240V (50/60Hz)
990W
Less than 0.5W
17kg
537 x 170 x 438mm
36dB (Normal), 29dB (Eco)
15,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA (compressed), MAC16"
525l (480l), 525p (480p), 625l (576l), 1125l (1080l@50/60), 1125p (1080p@50/60), 750p (720p@50/60)
Power Cable (3m) x1, Computer Cable (2m) x1, Wireless USB Cover x1, IR Remote Control Unit x1, Ferrite Core & Band x2, Cable Tie, AA Batteries x2, Security Label x1, Application CD x1, User Manual CD (Safety Guide, Quick Setup Guide, Network Quick Setup Guide, Operating Guide, Instant Stack Guide, Network Guide) x1, User Manual (Concise) x1
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1 is optional. Optional Lenses: Ultra-short-Throw FL-910, Short-throw USL-901, Short-throw SL-901, Standard-throw SD-903, Middle-throw ML-904, Long-throw LL-905, Ultra-Long throw UL-906
HL02803
DT01581, UX41161
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-HD9320/9321
DLP professional projector, 8200 ANSI lumens, 2500:1 contrast ratio, Full HD (1920 x 1080) resolution
1-Chip DLP 16mm (0.63")
Full HD (1920 x 1080)
8200 (Normal), 6150 (Eco)
2500:1
2000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 1.5
Powered Focus
2.9-27.4m (SD-903)
1.6 (Wide), 2.4 (Tele) (SD-903)
50-600"
Horizontal ± 12.5°, Vertical ± 12.5°
HDMI x 2, HDBase-T x 1, DVI-D x 1, SDI x 1
15 pin Mini D-Sub x 1, BNC x 1
15 pin Mini D-Sub x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
No
AC 110V - 120V / AC 220V - 240V (50/60Hz)
990W
Less than 0.5W
17kg
537 x 170 x 438mm
36dB (Normal), 29dB (Eco)
15,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA (compressed), MAC16"
525l (480l), 525p (480p), 625l (576l), 1125l (1080l@50/60), 1125p (1080p@50/60), 750p (720p@50/60)
Power Cable (3m) x1, Computer Cable (2m) x1, Wireless USB Cover x1, IR Remote Control Unit x1, Ferrite Core & Band x2, Cable Tie, AA Batteries x2, Security Label x1, Application CD x1, CD User Manual x1, Concise User Manual x1
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1 is optional. Optional Lenses: Ultra-short-Throw FL-910, Short-throw USL-901, Short-throw SL-901, Standard-throw SD-903, Middle-throw ML-904, Long-throw LL-905, Ultra-Long throw UL-906
HL02804
DT01731, UX41161
3 years / 6 months (for education and extended warranties please contact your local dealer)
DLP professional projector, 9500 ANSI lumens, 2500:1 contrast ratio, Full HD (1920 x 1080) resolution
1-Chip 16mm (0.63")
Full HD (1920 x 1080)
9500 (Normal), 7125 (Eco)
2500:1
2000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 2.0
Powered Focus
1.8 - 32.8m (SD-903)
1.6 (Wide), 2.4 (Tele) (SD-903)
50-600"
Horizontal ± 30.0°, Vertical ± 30.0°
HDMI x 2, HDBase-T x 1, DVI-D x 1, SDI x 1
15 pin Mini D-Sub x 2, BNC x 1
15 pin Mini D-Sub x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
No
AC 110V - 120V / AC 220V - 240V (50/60Hz)
1070W
Less than 0.5W
17kg
537×170×438mm
37dB (Normal), 32dB (Eco)
15,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA (compressed), MAC16"
525l (480l), 525p (480p), 625l (576l), 1125l (1080l@50/60), 1125p (1080p@50/60), 750p (720p@50/60)
Power Cable (3m) x1, Computer Cable (2m) x1, Wireless USB Cover x1, IR Remote Control Unit x1, Female Core & Band x2, Cable Tie, AA Batteries x2, Security Label x1, Application CD x1, CD User Manual x1, Concise User Manual x1
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1 is optional. Optional Lenses: Ultra-short-Throw FL-910, Short-throw USL-901, Short-throw SL-901, Standard-throw SD-903, Middle-throw ML-904, Long-throw LL-905, Ultra-Long throw UL-906
HL02804
DT01911, UX39551
3 years / 6 months (for education and extended warranties please contact your local dealer)
| CP-WU9410/9411 | |
| Description | DLP professional projector, 8500 ANSI lumens, 2500:1 contrast ratio, WUXGA (1920 x 1200) resolution |
| OPTICAL | |
| Panel Size | 1-Chip DLP 17mm (0.67") |
| Resolution | WUXGA (1920 x 1200) |
| Light Output (Brightness) ANSI Lumens | 8500 (Normal), 6375 (Eco) |
| Contrast Ratio | 2500:1 |
| Lamp Life (Hours)* | 2000 (Normal), 4000 (Eco) |
| Lens | Interchangeable, not included |
| Lens Zoom | Powered Zoom x 1.5 |
| Lens Focus | Powered Focus |
| Throw Distance | 1.8 - 31.9m (SD-903) |
| Distance to Width Ratio/ Throw Ratio (:1) | 1.6 (Wide), 2.4 (Tele) (SD-903) |
| Diagonal Display Size | 50 - 600" |
| FEATURES | |
| Digital Keystone Correction | Horizontal ± 10°, Vertical ± 10° |
| CONNECTIONS | |
| Digital Input | HDMI x 2, HDBase-T x 1, DVI-D x 1 |
| Analogue Input | 15 pin Mini D-Sub x 2, BNC x 1, BNC x 3 |
| Video Output | 15 pin Mini D-Sub x 1 |
| RS-232C Control | 1 x 9-pin D-Sub |
| Wireless LAN | USB WL-11N wireless adaptor (optional) |
| Wired LAN | Yes |
| USB Type-A | Used for wireless network |
| USB Type-B | No |
| POWER | |
| Power Supply | AC 110V - 120V / AC 220V - 240V (50/60Hz) |
| Operating Power Consumption | 990W |
| Standby Power Consumption | Less than 0.5W |
| PHYSICAL | |
| Weight | 17kg |
| Dimensions (W x H x D) (Without feet) | 537 x 170 x 438mm |
| Noise | 36dB (Normal), 29dB (Eco) |
| Filter life (Hours)* | 15.000 |
| COMPATIBILITY | |
| Computer | IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA (compressed), MAC16" |
| Video | 525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 1125p (1080p@50/60), 750p (720p@50/60) |
| ACCESSORIES | |
| Supplied Accessories | Power Cable (3m) x1, Computer Cable (2m) x1, Wireless USB Cover x1, IR Remote Control Unit x1, Forrito Core & Band x2, Cable Tio, AA Batteries x2, Security Label x1, Application CD x1, CD User Manual x1, Conclise User Manual x1 |
| Optional Accessories | USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1 is optional. Optional Lenses: Ultra-short-Throw FL-910, Short-throw USL-901, Short-throw SL-901, Standard-throw SD-903, Middle-throw ML-904, Long-throw LL-905, Ultra-Long-throw UL-906 |
| Remote Control | HL02803 |
| Replacement Lamp / Filter | DT01581, UX41161 |
| Projector / Lamp Warranty | 3 years / 6 months (for education and extended warranties please contact your local dealer) |
RETIRING SOON
CP-WU9100B
DLP professional projector, 10,000 ANSI lumens, 2500:1 contrast ratio, WUXGA (1920 x 1200) resolution
1-Chip DLP 17mm (0.67")
WUXGA (1920 x 1200)
10000 (Normal), 7500 (Eco)
2500:1
2000 (Normal), 4000 (Eco)
Interchangeable, not included
Powered Zoom x 1.5
Powered Focus
1.8 - 31.9m (SD-903)
1.6 (Wide), 2.4 (Tele) (SD-903)
50 - 600"
Horizontal ± 30.3°, Vertical ± 30.3°
HDMI x 2, HDBase-T x 1, DVI-D x 1, SDI x 1
15 pin Mini D-Sub x 1, BNC x 1
15 pin Mini D-Sub x 1
1 x 9-pin D-Sub
USB-WL-11N wireless adaptor (optional)
Yes
Used for wireless network
No
AC 110V - 120V / AC 220V - 240V (50/60Hz)
1070W
Less than 0.45W
17kg
537 x 170 x 438mm
37dB (Normal), 32dB (Eco)
15,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA (compressed), MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 1125p (1080p@50/60), 750p (720p@50/60)
Power Cable (3m) x1, Computer Cable (2m) x1, Wireless USB Cover x1, IR Remote Control Unit x1, Ferrite Core & Band x2, Cable Tie, AA Batteries x2, Security Label x1, Application CD x1, CD User Manual x1, Concise User Manual x1
USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1 is optional. Optional Lenses: Ultra-short-Throw FL-910, Short-throw USL-901, Short-throw SL-901, Standard-throw SD-903, Middle-throw ML-904, Long-throw LL-905, Ultra-Long throw UL-906
HL02804
DT01911, UX39551
3 years / 6 months (for education and extended warranties please contact your local dealer)
CP-WU13K
DLP professional projector, 13,000 ANSI lumens, 2000:1 contrast ratio, WUXGA (1920 x 1200) resolution
3-Chip DLP 24mm (0.96")
WUXGA (1920 x 1200)
13000 (Normal), 10060 (Eco)
2000:1
2000 (Normal), 2500 (Eco)
Interchangeable, not included
Powered Zoom
Powered Focus
4 - 24m (ML-K04)
1.87 (Wide) -2.56 (Tele) (ML-K04)
80-600
Horizontal ± 35°, Vertical ± 20°
HDMI x 2, DVI-D x 1, SDI/HDSDI/3G BNC x 1
15 pin Mini D-Sub x 1, 3 RCA Jack x 1, 5 BNC x 1
SDIVHDSDIV3G BNC x 1
1 x 9-pin D-Sub
No
Yes
No
No
AC 100V - 130V, AC 200V - 240V (50/60Hz)
1250W
Less than 3W
34kg
500 x 633 x 270mm
46dB (Normal), 42dB (Eco)
10,000
IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA, MAC16"
525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 1125p (1080p@24/25/30/50/60), 750p (720p@50/60)
Power Cable (2.5m) x1, IR Remote Control Unit x1, AA Batteries x2, RS232C Cable (Cross, Male to Male), EAC Document x1, Multi-lingual User Manual (CD-ROM) x1, Multi-lingual User Manual (Printed) x1
Optional Lenses: Ultra-short-Throw FL-K01, Short-throw FL-K02, Short-throw FL-K03, Standard-throw ML-K04, Long-throw LL-K05, Ultra-Long throw UL-K06
HL03051
DT01591, MU08321, MU08421
3 years / 6 months (for education and extended warranties please contact your local dealer)
9000 Installation Series and LP-WU9750B Series
INTERCHANGEABLE LENS OPTIONS
PROJECTION DISTANCE
for 100" screen (full screen) (projector's lens to screen)
THROW RATIO
 | FL-920 | Ultra short throw lens, Zoom Fixed (Lens shift not available) | LP-WU9750LP-WU9100B | 0.83m0.83m | 0.380.38 |
 | FL-910 | Ultra short throw lens, Zoom Fixed (Lens shift not available) | CP-HD9320CP-HD9321CP-WU9410CP-WU9411CP-WX9210CP-X9110CP-WU9100CP-HD9950 | 0.86m0.86m0.83m0.83m0.87m0.82m0.83m0.86m | 0.380.380.380.380.400.390.380.38 |
 | USL-901A | Ultra short throw lens, Zoom x 1.3 | LP-WU9100B 1.7 - 2.1m 0.8 - 1.0 | ||
 | USL-901 | Ultra short throw lens, Zoom x 1.3 | LP-WU9750CP-HD9320CP-HD9321CP-WU9410CP-WU9411CP-WX9210CP-X9110CP-WU9100CP-HD9950 | 1.7 - 2.1m1.8 - 2.2m1.8 - 2.2m1.7 - 2.1m1.7 - 2.1m1.8 - 2.2m1.7 - 2.1m1.7 - 2.1m1.8 - 2.2m | 0.8 - 1.00.8 - 1.00.8 - 1.00.8 - 1.00.8 - 1.00.8 - 1.00.8 - 1.0 |
 | SL-902 | Short throw lens, Zoom x 1.5 | CP-HD9320CP-HD9321CP-WU9410CP-WU9411CP-WX9210CP-X9110LP-WU9750CP-WU9100CP-HD9950LP-WU9100B | 2.6 - 3.9m2.6 - 3.9m2.5 - 3.8m2.7 - 4.0m2.5 - 3.7m2.5 - 3.8m2.5 - 3.8m2.6 - 3.9m2.5 - 3.8m | 1.1 - 1.71.1 - 1.71.1 - 1.71.1 - 1.71.2 - 1.81.2 - 1.81.1 - 1.71.1 - 1.71.1 - 1.7 |
 | SD-903 | Short throw lens, Zoom x 1.5 | LP-WU9750CP-HD9320CP-HD9321CP-WU9410CP-WU9411CP-WX9210CP-X9110CP-WU9100CP-HD9950LP-WU9100B | 3.5 - 5.3m3.6 - 5.5m3.6 - 5.5m3.5 - 5.3m3.5 - 5.3m3.7 - 5.6m3.5 - 5.2m3.5 - 5.3m3.6 - 5.5m3.5 - 5.3m | 1.6 - 2.41.6 - 2.41.6 - 2.41.6 - 2.41.6 - 2.41.6 - 2.41.6 - 2.41.6 - 2.41.6 - 2.4 |
 | ML-904 | Middle throw lens, Zoom x 1.5 | LP-WU9750CP-HD9320CP-HD9321CP-WU9410CP-WU9411CP-WX9210CP-X9110CP-WU9100CP-HD9950LP-WU9100B | 5.2 - 7.9m5.4 - 8.2m5.4 - 8.2m5.2 - 7.9m5.2 - 7.9m5.5 - 8.3m5.1 - 7.8m5.2 - 7.9m5.4 - 8.2m5.2 - 7.9m | 2.4 - 3.62.4 - 3.62.4 - 3.62.4 - 3.62.4 - 3.62.4 - 3.62.5 - 3.82.5 - 3.82.4 - 3.62.4 - 3.62.4 - 3.6 |
9000 Installation Series and LP-WU9750B Series
INTERCHANGEABLE LENS OPTIONS
| LENS TYPE PROJECTOR | PROJECTION DISTANCE for 100° screen (full screen) (projector's lens to screen) | THROW RATIO | |||
 | LL-905 | Long throw lens, Zoom x 1.6 | LP-WU9750 | 7.6 – 12.2m | 3.5 – 5.6 |
| CP-HD9320 | 7.8 – 12.6m | 3.5 – 5.6 | |||
| CP-HD9321 | 7.8 – 12.6m | 3.5 – 5.6 | |||
| CP-WU9410 | 7.6 – 12.2m | 3.5 – 5.6 | |||
| CP-WU9411 | 7.6 – 12.2m | 3.5 – 5.6 | |||
| CP-WX9210 | 8.0 – 12.9m | 3.7 – 5.9 | |||
| CP-X9110 | 7.4 – 12.0m | 3.6 – 5.8 | |||
| CP-WU9100 | 7.6 – 12.2m | 3.5 – 5.6 | |||
| CP-HD9950 | 7.8 – 12.6m | 3.5 – 5.6 | |||
| LP-WU9100B | 7.6 – 12.2m | 3.5 – 5.6 | |||
 | UL-906 | Ultra long throw lens, Zoom x 1.6 | LP-WU9750 | 12.0 – 19.0m | 5.5 – 8.8 |
| CP-HD9320 | 12.3 – 19.5m | 5.5 – 8.8 | |||
| CP-HD9321 | 12.3 – 19.5m | 5.5 – 8.8 | |||
| CP-WU9410 | 12.0 – 19.0m | 5.5 – 8.8 | |||
| CP-WU9411 | 12.0 – 19.0m | 5.5 – 8.8 | |||
| CP-WX9210 | 12.6 – 20.0m | 5.8 – 9.2 | |||
| CP-X9110 | 11.7 – 18.6m | 5.7 – 9.1 | |||
| CP-WU9100 | 12.0 – 19.0m | 5.5 – 8.8 | |||
| CP-HD9950 | 12.3 – 19.5m | 5.5 – 8.8 | |||
| LP-WU9100B | 12.0 – 19.0m | 5.5 – 8.8 | |||
CP-WU13K
INTERCHANGEABLE LENS OPTIONS
| LENS TYPE PROJECTOR | PROJECTION DISTANCE for 100* screen (full screen) (projector's lens to screen) | THROW RATIO | |||
 | FL-K01 | Ultra short throw lens, Fixed Zoom | CP-WU13K 1.4m 0.67 | ||
 | FL-K02 | Short throw lens, Fixed Zoom | CP-WU13K 2.4m 1.12 | ||
 | SL-K03 | Short throw lens, Zoom x 1.3 | CP-WU13K 3 - 4m 1.39 – 1.87 | ||
 | ML-K04 | Standard lens, Zoom x 1.3 | CP-WU13K 4.0 – 5.5m 1.87 – 2.56 | ||
 | LL-K05 | Long throw lens, Zoom x 1.6 | CP-WU13K 5.5 – 9.0m 2.56 – 4.16 | ||
 | UL-K06 | Ultra long throw lens, Zoom x 1.6 | CP-WU13K 9.0 – 15.0m 4.16 – 6.96 | ||
8000 Installation Series
INTERCHANGEABLE LENS OPTIONS
| LENS TYPE PROJECTOR | PROJECTION DISTANCE for 100* screen (full screen) (projector's lens to screen) | THROW RATIO | |||
 | FL-710 | Ultra short throw lens, Zoom Fixed (Lens shift not available) | CP-WU8700W | 0.69m | 0.38 |
| CP-WU8600W | 0.69m | 0.38 | |||
| CP-WX8750 | 0.84m | 0.38 | |||
| CP-WX8650 | 0.84m | 0.38 | |||
| CP-X8800 | 0.67m | 0.39 | |||
 | FL-701 | Ultra short throw lens, Zoom Fixed (Lens shift not available) | CP-WU8700W | 1.8m | 0.8 |
| CP-WU8600W | 1.8m | 0.8 | |||
| CP-WX8750 | 1.8m | 0.8 | |||
| CP-WX8650 | 1.8m | 0.8 | |||
| CP-X8800 | 1.7m | 0.8 | |||
| CP-WU8461 | 1.8m | 0.8 | |||
| CP-WX8265 | 1.8m | 0.8 | |||
 | SL-712 | Short throw lens, Zoom x 1.5 | CP-WU8700W | 2.5 - 3.8m | 1.2 - 1.8 |
| CP-WU8600W | 2.5 - 3.8m | 1.2 - 1.8 | |||
| CP-WX8750 | 2.6 - 3.9 | 1.2 - 1.8 | |||
| CP-WX8650 | 2.6 - 3.9 | 1.2 - 1.8 | |||
| CP-X8800 | 2.5 - 3.7m | 1.2 - 1.8 | |||
 | SL-702 | Short throw lens, Zoom x 1.5 | CP-WU8461 | 2.5 - 3.8m | 1.2 - 1.8 |
| CP-WX8265 | 2.6 - 3.9m | 1.2 - 1.8 | |||
 | ML-713 | Middle throw lens, Zoom x 2.0 | CP-WU8700W | 3.7 - 6.3m | 1.7 - 3.0 |
| CP-WU8600W | 3.7 - 6.3m | 1.7 - 3.0 | |||
| CP-WX8750 | 3.8 - 6.4m | 1.7 - 3.0 | |||
| CP-WX8650 | 3.8 - 6.4m | 1.7 - 3.0 | |||
| CP-X8800 | 3.6 - 6.1m | 1.7 - 3.0 | |||
 | ML-703 | Middle throw lens, Zoom x 2.0 | CP-WU8461 | 3.2 - 6.4m | 1.5 - 3.0 |
| CP-WX8265 | 3.3 - 6.5m | 1.5 - 3.0 | |||
 | LL-704 | Long throw lens, Zoom x 1.7 | CP-WU8700W | 6.1 - 10.3m | 2.8 - 4.9 |
| CP-WU8600W | 6.1 - 10.3m | 2.8 - 4.9 | |||
| CP-WX8750 | 6.2 - 10.5m | 2.8 - 4.9 | |||
| CP-WX8650 | 6.2 - 10.5m | 2.8 - 4.9 | |||
| CP-X8800 | 5.9 - 10.0m | 2.8 - 4.9 | |||
| CP-WU8461 | 6.1 - 10.3m | 2.8 - 4.9 | |||
| CP-WX8265 | 6.2 - 10.5m | 2.8 - 4.9 | |||
 | UL-705 | Ultra long throw lens, Zoom x 1.7 | CP-WU8700W | 10.3 - 17.6m | 4.9 - 8.3 |
| CP-WU8600W | 10.3 - 17.6m | 4.9 - 8.3 | |||
| CP-WX8750 | 10.5 - 17.9m | 4.9 - 8.3 | |||
| CP-WX8650 | 10.5 - 17.9m | 4.9 - 8.3 | |||
| CP-X8800 | 10.0 - 17.0m | 4.9 - 8.3 | |||
| CP-WU8461 | 10.3 - 17.6m | 4.9 - 8.3 | |||
| CP-WX8265 | 10.5 - 17.9m | 4.9 - 8.3 | |||
Laser LP-WU6600
INTERCHANGEABLE LENS OPTIONS
| LENS TYPE PROJECTOR | PROJECTION DISTANCEfor 100 ^ screen (full screen)(projector's lens to screen) | THROWRATIO | |||
 | SL-61 | Short throw lens,Zoom x 1.42 | LP-WU6600 1.66 – 2.37m 0.77 – 1.1 | ||
 | SL-62 | Short throw lens,Zoom x 1.18 | LP-WU6600 2.4 – 2.8m 1.1 – 1.3 | ||
 | SS-63 | Standard throw lens,Zoom x 1.28 | LP-WU6600 2.69 – 3.45m 1.25 – 1.6 | ||
 | SD-63 | Standard lens,Zoom x 1.25 | LP-WU6600 3.3 – 4.1m 1.54 – 1.93 | ||
 | ML-64 | Long throw lens,Zoom x 1.5 | LP-WU6600 4.1 – 6.2m 1.93 – 2.9 | ||
 | LL-65 | Ultra long throw lens,Zoom x 1.67 | LP-WU6600 6.46-10.77m 3.0-5.0 | ||
HITACHI
Inspire the Next
HITACHI DIGITAL MEDIA
Hitachi Europe Ltd, Whitebrook Park,
Lower Cookham Road, Maidenhead, Berkshire SL6 8YA
United Kingdom
Tel: +44 (0)1628 585 000 Fax: +44 (0)1628 585 163
www.hitachidigitalmedia.com
/HitachiAV
@HitachiAV
/HitachiAV/HitachiAV
*1: A free replacement lamp will be issued if the original lamp is less than 6 months old and it has only been used for less than the hours stated (in Eco Mode) on the lamp warranty from the date of first use. *2: A free replacement lamp will be issued if the original lamp is less than 3 years old and it has only been used for less than the hours stated (in Eco Mode) on the lamp warranty from the date of first use. Where a lamp fails and a replacement lamp is taken under warranty, the duration of the warranty for the replacement lamp shall be the remainder of the original warranty period only. The stated lamp and filter life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all, filters and lamps should achieve these figures. *3: Recommended focus distance is 1.5m (Tele)-6m (Wide). *4: Projectors sold individually. Design and specifications are subject to change without notice. All other trademarks are the properties of their respective owners.
