Product Type	58-inch 4K Ultra HD LED TV
Brand	Panasonic
Model	Viera TX-58DX700E
Display Resolution	3840 x 2160 (4K UHD)
Screen Size (diagonal)	58 inches (146 cm)
Display Technology	LED-backlit LCD
HDR Support	Yes (HDR10, HLG)
Smart TV Platform	Firefox OS
Tuner	DVB-T/T2/C/S/S2
Connectivity	3x HDMI, 2x USB, 1x Ethernet, Wi-Fi, Bluetooth
Audio Output	20W (2x10W) stereo speakers
Dimensions without Stand (W x H x D)	1300 x 758 x 48 mm
Dimensions with Stand (W x H x D)	1300 x 808 x 259 mm
Weight without Stand	Approx. 20.5 kg
Weight with Stand	Approx. 21.5 kg
Power Consumption (typical)	150 W
Standby Power Consumption	0.5 W
Energy Efficiency Class	A+
VESA Mount Pattern	400 x 400 mm
Remote Control	Included (with touchpad)
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners.
Safety Warning	Do not block ventilation openings. Place on a stable surface.
Spare Parts Availability	Contact Panasonic support for remote, stand, or power cord.
Repairability Index	Not rated (specific to region)

Frequently Asked Questions - Viera TX-58DX700E PANASONIC

How do I wall mount the Panasonic TX-58DX700E?

Use a VESA 400x400 mm wall mount bracket. Ensure the wall can support the weight (approx. 21 kg). Disconnect all cables before mounting.

Can I connect external speakers or a soundbar?

Yes, via HDMI ARC, optical digital audio output, or Bluetooth. For best audio, use the HDMI ARC port (labeled 'HDMI 2').

How do I reset the TV to factory settings?

Go to Menu > Settings > System > Factory Default. Confirm the reset. This will erase all personal settings and data.

Why is the TV not connecting to Wi-Fi?

Ensure the router is on and within range. Go to Network Settings, select your network, and enter the password. If issues persist, restart the TV and router.

How do I update the firmware?

Go to Menu > Settings > System > Software Update. Select 'Check for Update'. Ensure the TV is connected to the internet.

What should I do if the remote control stops working?

Replace the batteries first. If it still doesn't work, point the remote at the TV and press a button. You can also use the Panasonic TV Remote App on your smartphone.

How to clean the TV screen?

Turn off the TV and use a soft, dry microfiber cloth. Wipe gently in circular motions. Do not use any liquids, as they may damage the screen.

Can I use a universal remote?

Yes, but you need to program it. Codes for Panasonic TVs are often 1234, 4567, or search for 'Panasonic TV codes' online. Follow the remote's instructions.

Why is there no sound from the TV?

Check if mute is on. Increase volume. Ensure audio output is set to 'TV Speaker'. If using external speakers, check connections. Restart the TV if needed.

How do I enable HDR?

HDR is automatically enabled when HDR content is played (e.g., from a Blu-ray player or streaming service). Go to Picture Settings and ensure 'HDR Adjustment' is set to Auto.

USER MANUAL Viera TX-58DX700E PANASONIC

Operating Instructions LED TV

Blank rectangular frame with two small triangular markers at the bottom (no text or symbols)

VIERA

For more detailed instructions, please refer to [eHELP] (Built-in Operating Instructions).

• How to use [eHELP] → (p. 19)

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference.

Please carefully read the "Safety Precautions" of this manual before use.

The images shown in this manual are for illustrative purposes only.

Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.

TQB0E2608P4

- For information about the trademarks, refer to [eHELP] (Support > Licence).

The illustration for TX-50DX700E is used in this manual unless otherwise mentioned. Illustrations shown may be different depending on the model.

Contents

Be Sure to Read

Important Notice.... 3

Safety Precautions 4

Quick Start Guide

Accessories 7

Connections 11

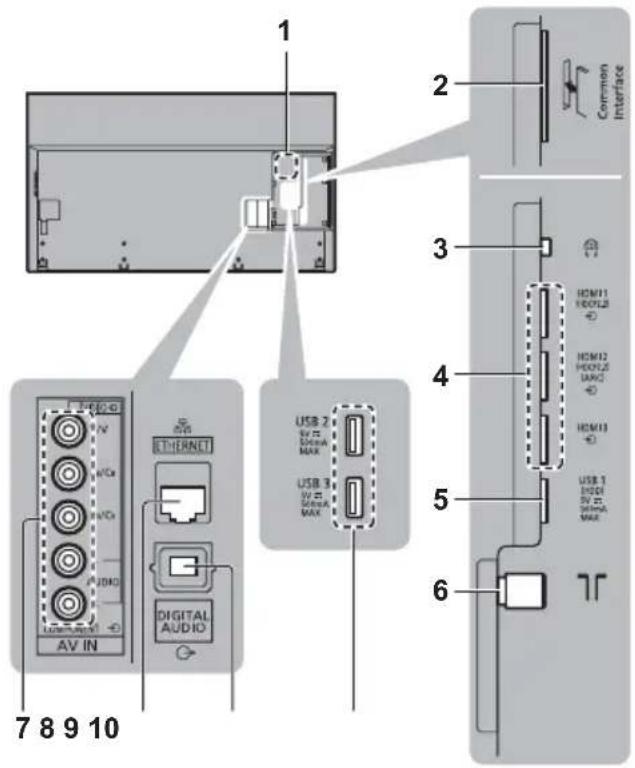

Identifying Controls 16

First time Auto Setup 18

Using your VIERA

Watching TV....19

How to Use eHELP 19

Others

FAQs 20

Maintenance 21

Specifications 21

Important Notice

Notice for DVB / Data broadcasting / IPTV functions

- This TV is designed to meet the standards (as of August, 2015) of DVB-T / T2 (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265)) digital terrestrial services, DVB-C (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265)) digital cable services.

Consult your local dealer for availability of DVB-T / T2 services in your area.

Consult your cable service provider for availability of DVB-C services with this TV.

• This TV may not work correctly with the signal which does not meet the standards of DVB-T / T2 or DVB-C.
• Not all the features are available depending on the country, area, broadcaster, service provider and network environment.
• Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
• This TV may not work correctly with CI module that is not approved by the service provider.
  • Additional fees may be charged depending on the service provider.
• Compatibility with future services is not guaranteed.

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker's peripheral devices.

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, LLC.

See http://www.mpegla.com.

Transport only in upright position.

This mark shows that the construction of the product is double-insulated.

This mark indicates the product operates under AC voltage.

Safety Precautions

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings and cautions below:

■ Mains plug and lead

Warning

If you detect anything unusual, immediately remove the mains plug.

• This TV is designed to operate on AC \~ 220-240 V, 50 / 60 Hz.
• Insert the mains plug fully into the mains socket.
• To turn Off the apparatus completely, you must pull the mains plug out of the mains socket.

Consequently, the mains plug should be easily accessible at all times.

• Disconnect the mains plug when cleaning the TV.
• Do not touch the mains plug with wet hands.

- Do not damage the mains lead.

• Do not place a heavy object on the lead.
• Do not place the lead near a high temperature object.
• Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.
• Do not move the TV with the lead plugged into a mains socket.
• Do not twist the lead, bend it excessively or stretch it.
• Do not use a damaged mains plug or mains socket.
• Ensure the TV does not crush the mains lead.

Take care

Warning

- Do not remove covers and never modify the TV yourself as live parts are accessible and risk of electric shock when they are removed. There are no user serviceable parts inside.

- Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

- Do not insert foreign objects into the TV through the air vents.

- Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.

- Do not apply any strong force or impact to the display panel.

- Ensure that children do not climb on the TV.

- Do not place the TV on sloping or unstable surfaces, and ensure that the TV does not hang over the edge of the base.

Warning

Never place a TV in an unstable location. A TV may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the TV.
- Only using furniture that can safely support the TV.
- Ensuring the TV is not overhanging the edge of the supporting furniture.
- Not placing the TV on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the TV to a suitable support.
- Not placing the TV on cloth or other materials that may be located between the TV and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the TV or its controls.

If your existing TV is being retained and relocated, the same considerations as above should be applied.

• This TV is designed for table-top use.
- Do not expose the TV to direct sunlight and other sources of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

■ Suffocation / Choking Hazard

Warning

- The packaging of this product may cause suffocation, and some of the parts are small and may present a choking hazard to young children. Keep these parts out of reach of young children.

Pedestal

Warning

- Do not disassemble or modify the pedestal.

Caution

- Do not use any pedestal other than the one provided with this TV.

- Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.

- During setup, make sure that all screws are securely tightened.

- Ensure that the TV does not suffer any impact during installation of the pedestal.

- Ensure that children do not climb onto the pedestal.

• Install or remove the TV from the pedestal with at least two people.

• Install or remove the TV according to the specified procedure.

■ Radio waves

Warning

• Do not use the TV in any medical institutions or locations with medical equipment. Radio waves may interfere with the medical equipment and may cause accidents due to malfunction.
• Do not use the TV near any automatic control equipment such as automatic doors or fire alarms. Radio waves may interfere with the automatic control equipment and may cause accidents due to malfunction.
• Keep at least 15 cm away from the TV if you have a cardiac pacemaker. Radio waves may interfere with the operation of the pacemaker.
• Do not disassemble or alter the TV in any way.

■ Built-in wireless LAN

Caution

- Do not use the built-in wireless LAN to connect to any wireless network (SSID*) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.

*SSID is a name for identifying a particular wireless network for transmission.

• Do not subject the built-in wireless LAN to high temperatures, direct sunlight or moisture.
  • Data transmitted and received over radio waves may be intercepted and monitored.
• The built-in wireless LAN uses 2.4 GHz and 5 GHz frequency bands. To avoid malfunctions or slow response caused by radio wave interference when using the built-in wireless LAN, keep the TV away from other devices that use 2.4 GHz and 5 GHz signals such as other wireless LAN devices, microwave ovens, and mobile phones.
• When problems occur due to static electricity, etc., the TV might stop operating to protect itself. In this case, turn the TV off at the Mains power On / Off switch, then turn it back on.

■ Ventilation

Caution

Allow sufficient space (at least 10 cm) around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

(cm)

• Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.
• Whether you are using a pedestal or not, always ensure the vents at the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

■ Moving the TV

Caution

Before moving the TV, disconnect all cables.

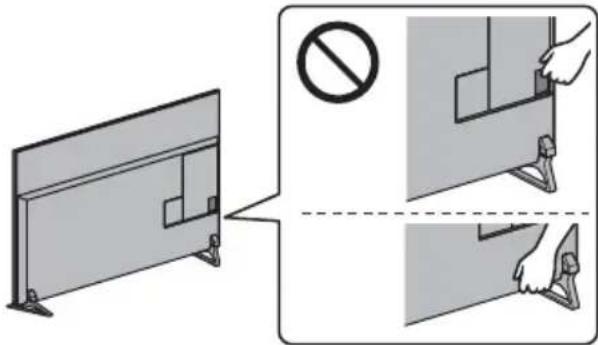

- At least two people are required to move the TV. Support the TV as shown below to prevent injury that may be caused by the tipping or falling of TV.

■ When not in use for a long time

Caution

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live mains socket.

- Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

■ Excessive volume

Caution

- Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

- If you hear a drumming noise in your ears, turn down the volume or temporarily stop using the headphones.

■ Battery for the Remote Control

Caution

- Incorrect installation may cause battery leakage, corrosion and explosion.

- Replace only with the same or equivalent type.

- Do not mix old and new batteries.

- Do not mix different battery types (such as alkaline and manganese batteries).

- Do not use rechargeable batteries (Ni-Cd, etc.).

- Do not burn or break up batteries.

- Do not expose batteries to excessive heat such as sunshine, fire or the like.

• Make sure you dispose of batteries correctly.

- Remove the battery from the unit when not using for a prolonged period of time to prevent battery leakage, corrosion and explosion.

LED TV

The CE mark may be found on the model name plate located on the rear panel (when the cable cover is removed.).

Declaration of Conformity (DoC)

"Hereby, Panasonic Corporation declares that this TV is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC."

If you want to get a copy of the original DoC of this TV, please visit the following website:

http://www.ptc.panasonic.eu/doc

Authorized Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 11, D-22525 Hamburg, Germany

This TV is intended to be used in the following countries. Albania, Andorra, Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Italy, Iceland, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, Montenegro, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Macedonia

This equipment can be operated in other non-European countries.

The wireless LAN feature of this TV shall exclusively be used inside buildings.

Accessories

Standard accessories

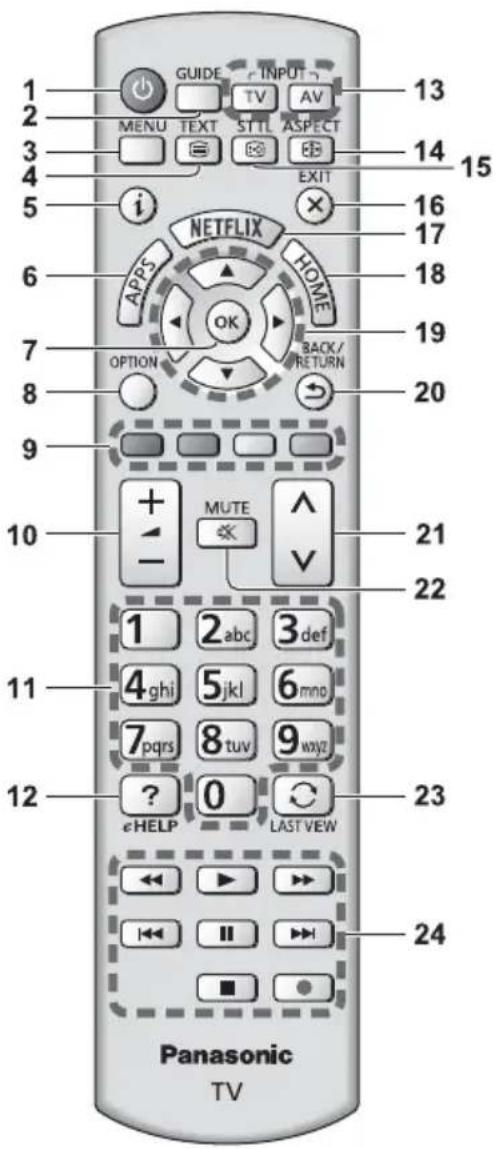

Remote Control

→ (p. 16)

N2QAYB001010

Pedestal

→ (p. 7)

Two identical metal bracket structures with mounting holes, shown from different angles (no text or symbols)

Cable tie (2)

→ (p. 15)

Batteries (2)

R6

→ (p. 17)

Operating Instructions

Pan European Guarantee Card

- Accessories may not be placed all together. Take care not to throw them away unintentionally.

Assembling / Removing the pedestal

Ⓐ Assembly screw (4)

M5 × 14

⑧ Assembly screw (4)

M4 × 12

© Bracket ①

⑭ Bracket ②

⑤ Base ①

Illustration of a mechanical bracket with a numbered label (1) and an arrow pointing to it, no text or symbols present.

⑤ Base ②

3D mechanical part diagram with a speech bubble containing number 2 (no text or symbols on the part itself)

© Cover (2)

Preparations

Take out the pedestal and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.)

• Use a flat and firm table bigger than the TV.
- Do not hold the screen panel part.
• Make sure not to scratch or break the TV.

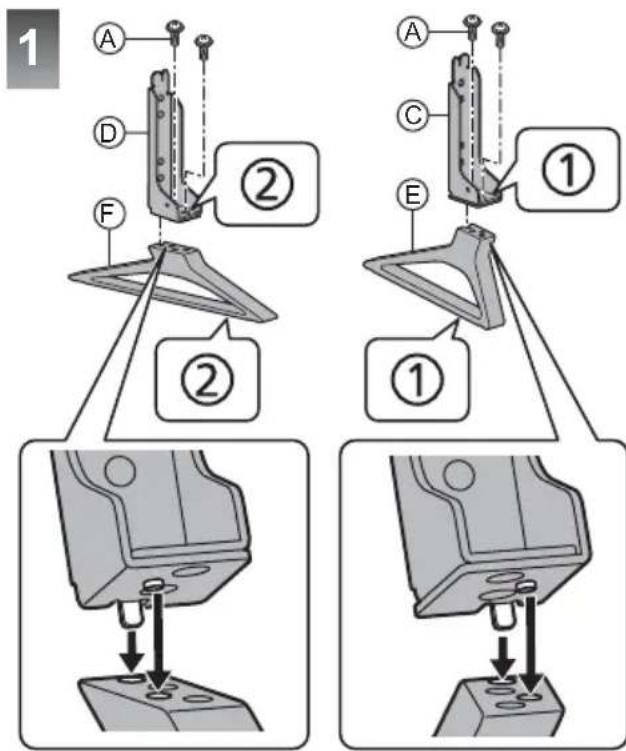

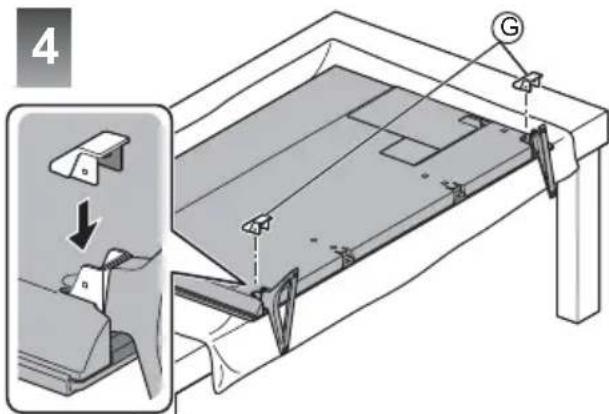

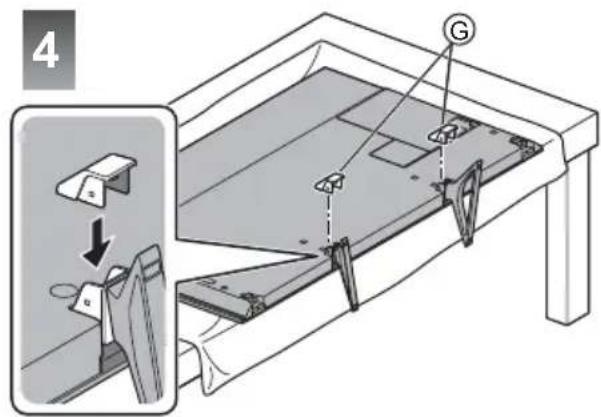

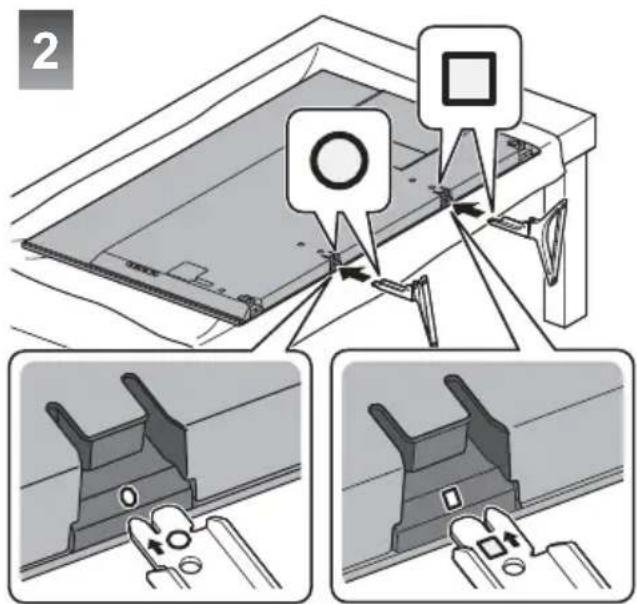

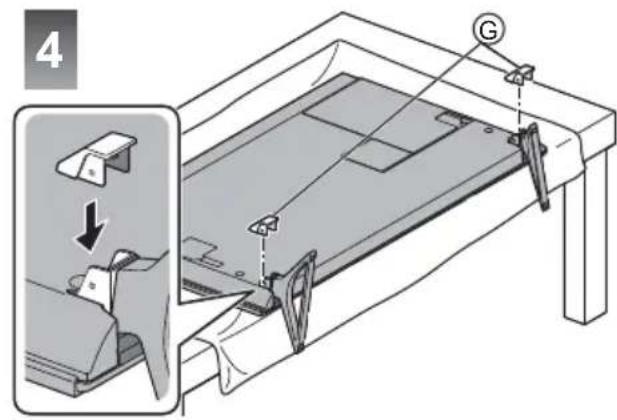

Assembling the pedestal

40-inch model

- Only 1 method can be selected to assemble the pedestal.

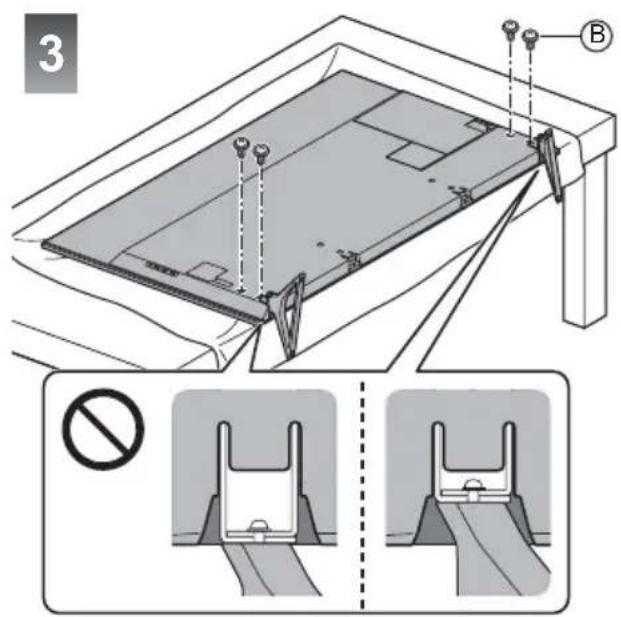

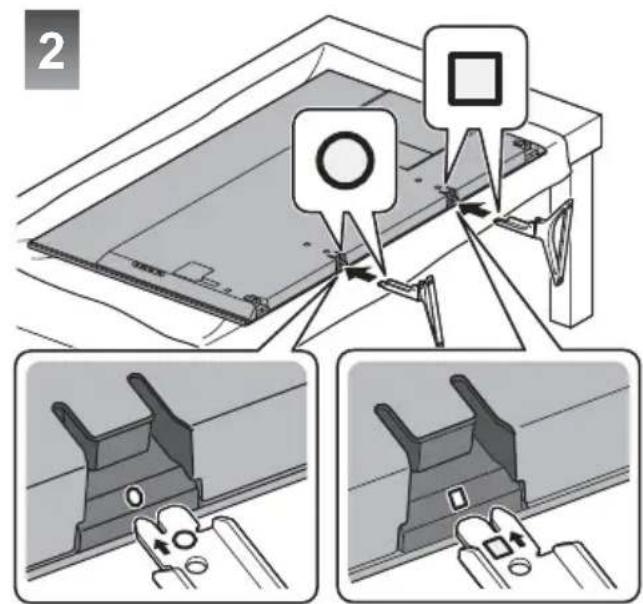

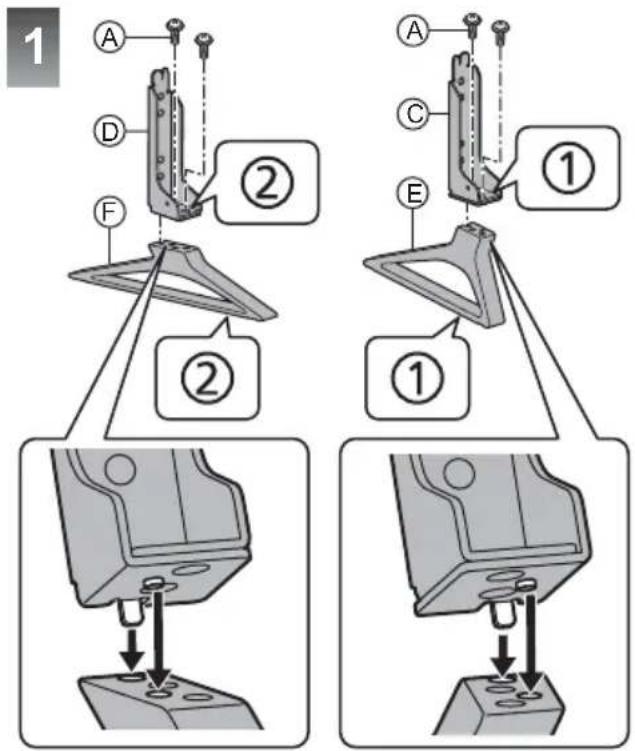

50-inch model 58-inch model

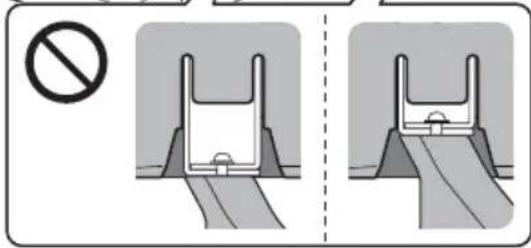

• Select a method to assemble the pedestal from the following 2 styles.
• Do not assemble the pedestal by any method other than those specified below.

50-inch model 58-inch model

Front view of a modern flat-screen TV with two legs and a blank screen (no text or symbols visible)

50-inch model 58-inch model

Front view of a modern flat-screen TV with stand (no text or symbols visible)

Removing the pedestal from the TV

Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.

1 Put the TV onto a work table with the screen panel down on the clean and soft cloth.
2 Pull out the cover.
3 Remove the assembly screws® from the TV.
4 Pull out the pedestal from the TV.
5 Remove the assembly screws® from the bracket.

Connections

• External equipment and cables shown are not supplied with this TV.
• Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
• Check the terminal type and cable plugs are correct for connection.
• Use a fully wired HDMI compliant cable.
• Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.
• Please also read the manual of the equipment being connected.

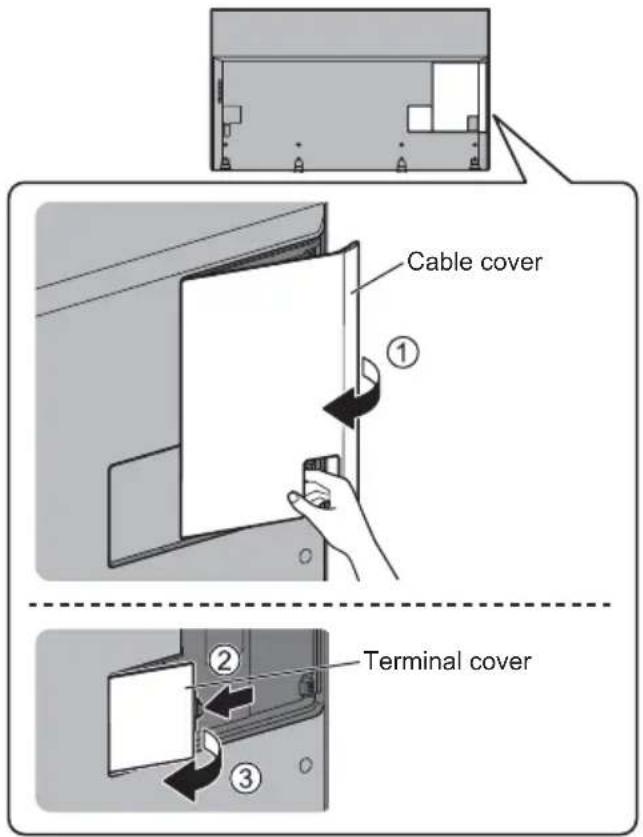

Removing the cable cover / terminal cover from the TV

• Be sure to remove the cable cover / terminal cover before connecting or disconnecting cables.
• When the connections are completed, attach the cable cover / terminal cover. (p. 15)

Terminals

1 Model name plate
2 Cl slot (p. 14)
3 Headphone jack (p. 14)
4 HDMI1 - 3 (p. 12, 13, 14)
5 USB 1 port
6 Terrestrial / cable terminal (p. 12)
7 AV (COMPONENT / VIDEO) (p. 13, 14)
8 ETHERNET terminal (p. 13)
9 DIGITAL AUDIO
10 USB 2 - 3 port

• To watch content in 4K format, use HDMI terminal. → (p. 13)

Basic connections

■ Mains lead

Aerial

① RF cable
② Terrestrial aerial

• For DVB-C, DVB-T, Analogue

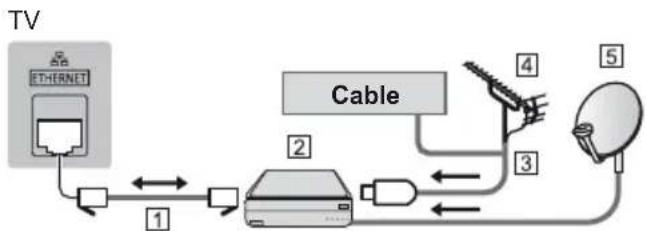

DVB-via-IP client connection

This TV has DVB-via-IP client function and can connect to DVB-via-IP server or SAT>IP compatible servers to receive broadcast streaming.

- It is recommended to connect to DVB-via-IP server with a LAN cable.

■ Wired connection

1 LAN cable (Shielded)
• Use Shielded Twist Pair (STP) LAN cable.
② DVB-via-IP server
3 RF cable
4 Terrestrial aerial
5 Satellite dish

■ Wireless connection

3
① Built-in wireless LAN
② Access point
3 DVB-via-IP server
4 RF cable
⑤ Terrestrial aerial
6 Satellite dish

- This function may not be available depending on network condition and broadcast.

- For information about the connections, read the manual of the DVB-via-IP server.

- For details, refer to [eHELP] (Functions > DVB-via-IP).

AV devices

■ DVD Recorder / VCR

① HDMI cable
② RF cable
③ DVD Recorder / VCR
4 Terrestrial aerial

■ Set top box

TV

1 HDMI cable
② Set top box
3 Satellite dish

Network

A broadband network environment is required to be able to use internet services.

• If you do not have any broadband network services, please consult your retailer for assistance.
  • Prepare the internet environment for wired connection or wireless connection.
• Setup of the network connection will start when first using the TV. (p. 18)

■ Wired connection

TV

1 LAN cable (Shielded)
• Use Shielded Twist Pair (STP) LAN cable.

■ Wireless connection

① Built-in wireless LAN
② Access point

Connections for 4K compatible equipment

TV

① HDMI cable
② 4K compatible equipment

- Connect the 4K compatible equipment to HDMI terminal using a 4K compatible cable and you can watch content in 4K format.

- The valid 4K format varies depending on the HDMI terminal. For information about the valid format, refer to [eHELP] (Watching > 4K resolution > Valid 4K format).

■ [HDMI Auto Setting] (Setup Menu)

Reproduces the image more precisely with the expanded colour gamut when connecting the 4K compatible equipment. Select the mode depending on the equipment.

[Mode1]:

For better compatibility. Set to [Mode1] when the image or sound in HDMI input is not played properly. [Mode2]:

For the 4K compatible equipment that has the function to output the image precisely with the expanded colour gamut

• To change the mode

1. Select the HDMI input mode connected to the equipment.
2. Display the menu and select [HDMI Auto Setting] (Setup Menu).

- For information about the valid format, refer to [eHELP] (Watching > 4K resolution > HDMI Auto Setting).

Other connections

■ DVD Player

COMPONENT equipment)

TV

① DVD Player

■ Camcorder / Game equipment

(VIDEO equipment)

TV

① Camcorder / Game equipment

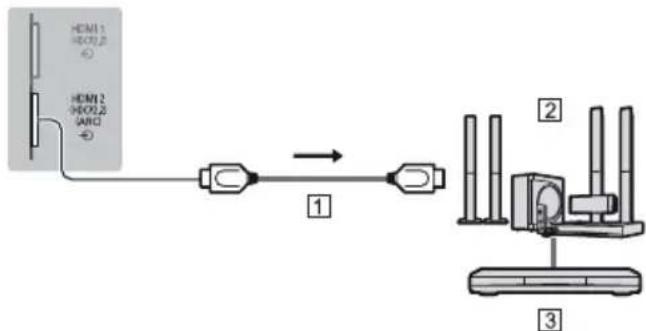

■ Amplifier (listening with external speakers)

• Use HDMI2 to connect the TV to an amplifier which has ARC (Audio Return Channel) function. If connecting to an amplifier without ARC function, use DIGITAL AUDIO.
• To enjoy multi-channel sound from external equipment (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For information about the connections, read the manuals of the equipment and amplifier.

TV

1 HDMI cable
② Amplifier with speaker system
3 External equipment (DVD Player, etc.)

■ Headphones

- For information about the volume settings, refer to [eHELP] (Settings > Sound).

TV

• Turn the TV off with Mains Power On / Off switch whenever inserting or removing the CI module.
• If a smart card and a CI module come as a set, first insert the CI module, then insert the smart card into the CI module.
• Insert or remove the CI module completely in the correct direction as shown.
• Normally encrypted channels will appear. (Viewable channels and their features depend on the CI module.)

If encrypted channels do not appear

→ [Common Interface] in the Setup Menu

• There might be some CI modules in the market with older firmware versions that do not work fully interoperable with this new CI+ v1.3 TV. In this case, please contact your content provider.
• For details, refer to [eHELP] (Functions > Common Interface), read the manual of the CI module, or check with the content provider.

TV

■ USB HDD (for recording)

• Use USB 1 port for connecting the USB HDD.
- For details, refer to [eHELP] (Recording).

■ VIERA Link

• Use HDMI1 - 3 for VIERA Link connection.
- For details, refer to [eHELP] (Functions > VIERA Link "HDAVI Control™").

Cable arrangement

Fix the cables using the cable tie, and then attach the cable cover / terminal cover to the TV.

■ Fixing the cables using the cable tie

40-inch model

Diagram of a device layout with two connectors and a central panel, no text or symbols present

50-inch model 58-inch model

Diagram showing three views of a device layout with no visible text or symbols

Attach the cable tie

Insert the cable tie in a hole

Bundle the cables

Set the tip in the hooks

Hooks

To loosen:

Keep pushing the knob

Knob

To remove from the TV:

Snaps

Keep pushing both side snaps

• Fix cables as necessary.
- When using the optional accessory, follow the option's assembly manual to fix cables.

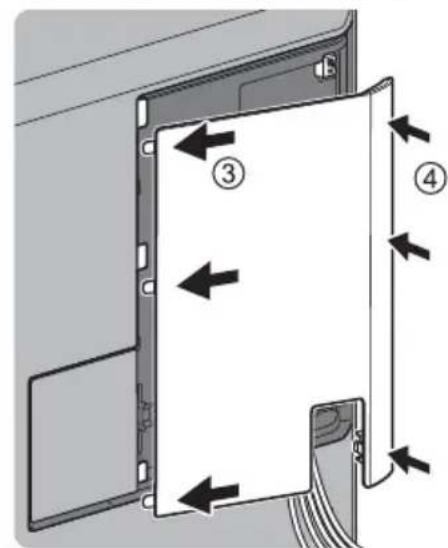

■ Attaching the cable cover / terminal cover

• Do not apply load to the cable cover / terminal cover.
• Be careful not to nip the cables between the TV and the cable cover / terminal cover.
• When using USB 2 port or USB 3 port, you cannot attach the cable cover. Keep the removed cable cover for future use.
• When using AV terminal, ETHERNET terminal or DIGITAL AUDIO, you cannot attach the terminal cover. Keep the removed terminal cover for future use.

Architectural floor plan showing room layout and structural elements (no text or labels)

Identifying Controls

Remote Control

1 [O]: Standby On / Off switch

2 TV Guide

• Displays Electronic Programme Guide.

3 [Main Menu]

- Press to access Picture, Sound, Network, Timer, Setup and Help Menus, etc.

4 Teletext button

5 Information

• Displays channel and programme information.

6 APPS

• Displays [Apps] (applications list).

7 OK

• Confirms selections and choices.

- Press after selecting channel positions to quickly change channel.

• Displays channel list.

8 [Option Menu]

- Easy optional setting for viewing, sound, etc.

9 Coloured buttons

(red-green-yellow-blue)

- Used for the selection, navigation and operation of various functions.

10 Volume Up / Down

11 Numeric buttons

• Changes channel and teletext pages.

- Sets characters.

- When in Standby mode, switches TV on.

12 [eHELP]

• Displays [eHELP] (Built-in Operating Instructions).

13 Input mode selection

- TV - switches to DVB-C / DVB-T / DVB-via-IP / Analogue.

- AV - switches to AV input mode from Input Selection list.

14 Aspect

• Changes aspect ratio.

15 Subtitles

• Displays subtitles.

16 Exit

- Returns to the normal viewing screen.

17 Netflix

- Accesses NETFLIX service directly.

- A broadband network environment is required in order to fully use this function.

- This service may be stopped or changed without notice.

18 HOME

• Displays [Home Screen].

- For details, refer to [eHELP] (Read first > Features).

19 Cursor buttons

- Makes selections and adjustments.

20 Return

- Returns to the previous menu / page.

21 Channel Up / Down

22 Sound Mute On / Off

23 Last view

- Switches to previously viewed channel or input mode.

24 Operations for contents, connected equipment, etc.

■ Installing / Removing batteries

Indicator / Control panel

- When pressing 4, 5, 6 buttons, the control panel guide appears on the right side of the screen for 3 seconds to highlight which button has been pressed.

1 Remote control signal receiver

- Do not place any objects between the TV remote control signal receiver and remote control.

2 Ambient sensor

- Senses brightness to adjust picture quality when [Ambient Sensor] in the Picture Menu is set to [On].

3 Power LED

Red: Standby

Green: On

Orange:

Standby with some functions (recording, etc.) active

- The LED blinks when the TV receives a command from the remote control.

4 Input mode selection

• Press repeatedly until you reach the desired mode. [Main Menu]
• Press and hold for about 3 seconds to display main menu.

OK (when in the menu system)

5 Channel Up / Down

- Cursor Up / Down (when in the menu system)

6 Volume Up / Down

- Cursor Left / Right (when in the menu system)

7 Mains power On / Off switch

• Use to switch the mains power.
• To turn Off the apparatus completely, you must pull the mains plug out of the mains socket.
  • [⏻/l]: Standby / On

First time Auto Setup

When the TV is turned on for the first time, it will automatically search for available TV channels and give options to set up the TV.

• These steps are not necessary if the setup has been completed by your local dealer.

- Please complete connections (p. 11 - 15) and settings (if necessary) of the connected equipment before starting Auto Setup. For information about the settings for the connected equipment, read the manual of the equipment.

1 Plug the TV into a live mains socket and turn the power on

• Takes a few seconds to be displayed.

Front view of a remote control panel with a power button and eight buttons (no text or symbols visible)

2 Select the following items

Set up each item by following the on-screen instructions.

Example:

Please select your viewing environment.

Home Shop

■ How to use the remote control

Move the cursor

Access the item / store the setting

Return to the previous item (if available)

Select the language

Select [Home]

Select [Home] for use in a home viewing environment.

• [Shop] is for shop display.
- To change the viewing environment later on, the set will need to have all settings initialised by accessing Shipping Condition.

Set up the network connection

Select your country

- Depending on the country you select, select your Region or store the Child Lock-PIN number ("0000" cannot be stored).

Tick the TV signal mode to tune, and then select [Start Auto Setup]

tune (search for the available channels)

□: skip tuning

• Auto Setup screen varies depending on the country and the signal mode you select.
  • [DVB-C Network Settings] Normally set [Frequency] and [Network ID] to [Auto]. If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with numeric buttons.

Auto Setup is now complete and the TV is ready for viewing.

If tuning has failed check the RF cable, and the network connection, and then follow the on-screen instructions.

Note

• The TV goes into Standby mode when no operation is performed for 4 hours if [Auto Standby] in the Timer Menu is set to [On].
• The TV goes into Standby mode when no signal is received and no operation is performed for 10 minutes if [No signal Power off] in the Timer Menu is set to [On].
  • To retune all channels

[Auto Setup] in [Tuning Menu] (Setup Menu)

• To add the available TV signal mode later
[Add TV Signal] in [Tuning Menu] (Setup Menu)
• To initialise all settings
→ [Shipping Condition] in [System Menu] (Setup Menu)

Watching TV

1 Turn power on

(TV)

or

(Remote Control)

- Mains power On / Off switch should be on. (p. 17)

Displays information bar on the edge of screen for several seconds.

- For information about the operation and settings, refer to [eHELP]. (Read first > Features)

2 Select the mode

TV

- Selectable modes vary depending on the channels stored.

3 Select a channel

or

• To select a channel position with 2 or more-digit, e.g. 399

How to Use eHELP

[eHELP] is the detailed operating instructions built into the TV, and gives a more detailed explanation for a better understanding of the operation of each feature.

1 Display [eHELP]

eHELP

or

[Help] [eHELP]

- If the [eHELP] has been accessed previously since the TV was turned on, the confirmation screen is displayed to select whether to go to the [First page] or to the [Last viewed page].

2 Select the category and item

• To return to the previous field

- To scroll the description (if more than 1 page) While the description is highlighted

- To display the menu related to the description (only for some descriptions)

• To check the features of this TV Read first > Features

FAQs

Before requesting service or assistance, please follow these simple guides to solve the problem.

- For details, refer to [eHELP] (Support > FAQs).

The TV does not switch on

- Check the mains lead is plugged into the TV and the mains socket.

The TV goes into Standby mode

• Auto power standby function is activated.

The remote control does not work or is intermittent

• Are the batteries installed correctly? → (p. 17)
• Has the TV been switched on?
• The batteries may be running low. Replace them with new ones.
• Point the remote control directly at the TV's remote control signal receiver (within about 7 m and a 30 degree angle of the signal receiver).
• Situate the TV away from sunshine or other sources of bright light so they do not shine on the TV's remote control signal receiver.

No image is displayed

• Check the TV is turned on.
• Check the mains lead is plugged into the TV and the mains socket.
• Check the correct input mode is selected.
• Check the setting of [AV] ([COMPONENT] / [VIDEO]) in [Input Selection] to match the signal being output by the external equipment.
• Is [Backlight], [Contrast], [Brightness] or [Colour] in the Picture Menu set to the minimum?
• Check all required cables and connections are firmly in place.

An unusual image is displayed

• This TV has a built-in Self Test. Makes a diagnosis of picture or sound problems.
  → [TV Self Test] (Help Menu)
• Turn the TV off with Mains power On / Off switch, then turn it on again.
• If the problem persists, initialise all settings.
  [Shipping Condition] in [System Menu] (Setup Menu)

The image or sound from external equipment are unusual when the equipment is connected via HDMI

- Set [HDMI Auto Setting] (Setup Menu) to [Mode1] → (p. 13)

Parts of the TV become hot

- Parts of the TV may become hot. These temperature rises do not pose any problems in terms of performance or quality.

When pushed with a finger, the display panel moves slightly and makes a noise

- There is a little gap around the panel to prevent damage to the panel. This is not a malfunction.

Maintenance

First, remove the mains plug from the mains socket.

Display panel, Cabinet, Pedestal

Regular care:

Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or fingerprints.

For stubborn dirt:

(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water).
(3) Wring out the cloth firmly. (Please note, do not let liquid enter the TV inside as it may lead to product failure.)
(4) Carefully wipe moisten and wipe away the stubborn dirt.
(5) Finally, wipe away all the moisture.

Caution

• Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.
  • Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
• The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may cause fire or electrical shock.

Specifications

TV

Model No.

40-inch model : TX-40DX700E
50-inch model : TX-50DX700E
58-inch model : TX-58DX700E

Dimensions (W × H × D)

40-inch model
895 mm × 559 mm × 203 mm (With Pedestal)
895 mm × 514 mm × 40 mm (TV only)

50-inch model

(Style1)
1 115 mm × 692 mm × 203 mm (With Pedestal)
1 115 mm × 647 mm × 40 mm (TV only)
(Style2)
1 115 mm × 707 mm × 203 mm (With Pedestal)
1 115 mm × 647 mm × 40 mm (TV only)

58-inch model

(Style1)
1 290 mm × 805 mm × 239 mm (With Pedestal)
1 290 mm × 753 mm × 41 mm (TV only)
(Style2)
1 290 mm × 820 mm × 239 mm (With Pedestal)
1 290 mm × 753 mm × 41 mm (TV only)

Mass

40-inch model

12.5 kg Net (With Pedestal)

11.5 kg Net (TV only)

50-inch model

17.0 kg Net (With Pedestal)

16.0 kg Net (TV only)

58-inch model

24.0 kg Net (With Pedestal)

23.0 kg Net (TV only)

Power source

AC 220-240 V, 50 / 60 Hz

Panel

LED LCD panel

Sound

Speaker output

20 W (10 W + 10 W)

Headphones

Connection terminals

AV input (COMPONENT / VIDEO)

VIDEO

RCA PIN Type × 1

1.0 V[p-p] (75 Ω)

AUDIO L - R

RCA PIN Type × 2

0.5 V[rms]

Y

1.0 V[p-p] (including synchronisation)

P_B/C_B, P_R/C_R

±0.35 V[p-p]

HDMI 1 / 2 / 3 input

TYPE A Connectors

HDMI1 / 3:

4K, Content Type, Deep Colour, x.v.Colour™

HDMI2:

4K, Content Type, Audio Return Channel,

Deep Colour, x.v.Colour™

- This TV supports "HDAVI Control 5" function.

Card slot

Common Interface slot (complies with CI Plus) × 1

ETHERNET

RJ45, IEEE802.3 10BASE-T / 100BASE-TX

USB 1/2/3

USB1: DC== 5 V, Max. 900 mA [SuperSpeed USB (USB 3.0)]

USB2 / 3: DC=5 V, Max. 500 mA [Hi-Speed USB (USB 2.0)]

DIGITAL AUDIO output

PCM / Dolby Digital, Fibre optic

Receiving systems / Band name

DVB-C

Digital cable services (MPEG2, MPEG4-

AVC(H.264) and MPEG HEVC(H.265))

DVB-T / T2

Digital terrestrial services (MPEG2, MPEG4-

AVC(H.264) and MPEG HEVC(H.265))

PAL B, G, H, I

SECAM B, G

SECAM L, L'

VHF E2 - E12

VHF A - H (ITALY)

CATV (S01 - S05)

CATV S11 - S20 (U1 - U10)

VHF H1 - H2 (ITALY)

UHF E21 - E69

CATV S1 - S10 (M1 - M10)

CATV S21 - S41 (Hyperband)

PAL D, K

SECAM D, K

VHF R1 - R2

VHF R3 - R5

VHF R6 - R12

UHF E21 - E69

PAL 525/60

Playback of NTSC tape from some PAL Video recorders (VCR)

M.NTSC

Playback from M.NTSC Video recorders (VCR)

NTSC (AV input only)

Playback from NTSC Video recorders (VCR)

Aerial input

VHF / UHF

Operating conditions

Temperature

0 °C - 35 °C

Humidity

20% - 80% RH (non-condensing)

Built-in wireless LAN

Standard compliance and Frequency range\*

IEEE802.11a/n

5.180 GHz - 5.320 GHz, 5.500 GHz - 5.580 GHz,

5.660 GHz - 5.700 GHz

IEEE802.11b/g/n

2.412 GHz - 2.472 GHz

Security

WPA2-PSK (TKIP/AES)

WPA-PSK (TKIP/AES)

WEP (64 bit/128 bit)

*:The frequency and channel differ depending on the country.

Note

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• For information about the power consumption, display resolution, etc., refer to Product fiche.
• For information about the open source software, refer to [eHELP] (Support > Licence).

■ When using the wall-hanging bracket

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.

• Holes for wall-hanging bracket installation

Rear of the TV

(View from the side)

Depth of screw

40-inch model

minimum: 10 mm

maximum: 17 mm

50-inch model

minimum: 10 mm

maximum: 15 mm

58-inch model

minimum: 10 mm

maximum: 17 mm

Diameter: M6

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Warning

• Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit's performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
• Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.
• Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
  • Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
  • To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Customer's Record

The model number and serial number of this product may be found on the model name plate and serial number label located on the rear panel (when the cable cover is removed.). You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic®

Nederlands

Modelnr.

TX-40DX700E

TX-50DX700E

TX-58DX700E

Gebruiksaanwijzing

Led-tv

Blank rectangular frame with no text, symbols, or markings

VIERA

Specifications....21

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 11, D-22525 Hamburg, Germany

Two identical metal bracket structures with mounting holes, shown from different angles (no text or symbols)

Kabelbinder (2)

→ (p. 15)

Batterijen (2)

R6

→ (p. 17)

Gebruiksaanwijzing

Europese Garantie

⑭ Steun ②

⑤ Steunplaat ①

Simple diagram of a mechanical component with a numbered label (1) and an arrow pointing to it, no text or symbols present.

⑤ Steunplaat ②

Simple 3D geometric shape with a speech bubble containing number 2 (no text or symbols on the shape itself)

© Paneel (2)

Voorbereidingen

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

50 inch-model 58 inch-model

■

Front view of a modern flat-screen TV with two legs and a blank screen (no text or symbols visible)

50 inch-model 58 inch-model

Front view of a modern flat-screen TV with stand (no text or symbols visible)

Simple line drawing of a room layout with no text, numbers, or symbols

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.

Indicator/Bedieningspaneel

Close-up of a remote control panel with a power button and ten buttons (no text or symbols visible)

16,0 kg netto (alleen tv)

58 inch-model

23,0 kg netto (alleen tv)

Stroomvoorziening

220-240 V wisselstroom, 50/60 Hz

Paneel

Led-lcd-paneel

Geluid

Uitgang luidspreker

20 W (10 W + 10 W)

Hoofdtelefoon

3,5-mm M3-stereoministekker × 1

Aansluitingen

AV-ingang (COMPONENT / VIDEO)

VIDEO

RCA PIN-type × 1

1,0 V[p-p] (75 Ω)

AUDIO L - R

RCA PIN-type × 2

0,5 V[rms]

Y

P_B/C_B, P_R/C_R

±0,35 V[p-p]

HDMI 1 / 2 / 3-ingang

Digitale aardse services (MPEG2, MPEG4-

WEP (64 bit/128 bit)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 11, D-22525 Hamburg, Germania

Two identical metal bracket structures with mounting holes, shown side by side (no text or symbols)

D Suport ②

E Bază ①

Simple line drawing of a mechanical bracket with a numbered label (1) and an arrow pointing to it, no text or symbols present.

F Bază ②

3D mechanical part diagram with a speech bubble containing number 2 (no text or symbols on the part itself)

© Capac (2)

Pregătiri

Front view of a modern flat-screen TV with two legs and a blank screen (no text or symbols visible)

Model de 50 inci Model de 58 inci

Front view of a modern flat-screen TV with two legs and a blank screen (no text or symbols visible)

1

Simple line drawing of a triangular structure with a pin and a speech bubble containing number 2 (no text or symbols on the diagram itself)

Mechanical assembly diagram showing a component being inserted into a base with arrows indicating direction (no text or symbols)

Mechanical component diagram showing a downward force application into a base with internal holes (no text or symbols)

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

(no text)

Diagram of a mechanical component with a curved bracket and a diagonal pipe (no text or symbols)

Simple line drawing of a mechanical device with a circular component and a handle, no text or symbols present.

Technical illustration of a mechanical assembly with no visible text or symbols

Model de 50 inci Model de 58 inci

Front view of a modern flat-screen TV with stand (no text or symbols visible)

Conexiune client DVB via IP

③ Echipament extern (DVD player etc.)

Căști

Diagram showing two devices connected to a central room with labeled compartments (no text or symbols present)

Model de 50 inci Model de 58 inci

Diagram showing three views of a device with labeled components, no text or symbols present

Architectural floor plan diagram showing room layout and structural elements (no text or labels)

Close-up of a remote control panel with a power button and ten buttons (no text or symbols visible)

① selectare categorie ② accesare

③ selectare element ④ accesare

Câmp element secundar

⑤ selectare element secundar ⑥ accesare

P_B/C_B, P_R/C_R

± 0,35 V[p-p]

Intrare HDMI 1 / 2 / 3

Conectori TIP A

HDMI1 / 3:

4K, Tip continut, Deep Colour, x.v.Colour™

HDMI2:

4K, Tip continut, Canal Revenire Audio,

Deep Colour, x.v.Colour™
