Product Type	USB Wireless Network Adapter
Brand	Mercusys
Model	MW300UH
Interface	USB 2.0
Wireless Standards	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
Antenna Type	Internal PCB antenna
Wireless Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
System Requirements	Windows XP/Vista/7/8/8.1/10, Linux, Mac OS
Dimensions (L x W x H)	Approx. 92 x 28 x 13 mm
Weight	Approx. 20 g
Power Source	Powered via USB port (5V/500mA)
Operating Temperature	0°C to 40°C
Certifications	CE, FCC, RoHS
Package Contents	1 x MW300UH adapter, 1 x Quick Installation Guide
Maintenance	Keep dry and clean; disconnect during thunderstorms
Safety	Low voltage device; no user-serviceable parts inside
Repairability	Not designed to be repaired; replace if defective

Frequently Asked Questions - MW300UH MERCUSYS

How to install the MW300UH adapter on Windows 10?

Insert the adapter into a USB port. Windows will automatically install the driver. If not, download the driver from the official Mercusys website and run the setup.

Does the MW300UH support Mac OS?

Yes, the adapter supports Mac OS. Plug it in and the system should recognize it. If needed, install the driver from the included CD or website.

What is the maximum range of the MW300UH?

The range depends on environment. Indoors, it typically reaches up to 100 meters; outdoors up to 300 meters, but obstacles like walls reduce it.

Can the MW300UH connect to a 5 GHz network?

No, the MW300UH operates on the 2.4 GHz band only. It does not support 5 GHz.

Why is my adapter not detected by the computer?

Try a different USB port. Ensure the driver is installed correctly. Check Device Manager for unknown devices. Restart your computer.

How to reset the MW300UH adapter?

There is no reset button. To reset settings, uninstall the driver and reinstall it, or use the Windows network reset feature.

Is the MW300UH compatible with Linux?

Yes, but you may need to install additional drivers. Some distributions have built-in support. Check the Mercusys website for Linux drivers.

What security protocols does the MW300UH support?

It supports WEP, WPA, WPA2, and WPA-PSK/WPA2-PSK encryption for secure wireless connections.

Does the MW300UH work with smart TVs or game consoles?

If the device has a USB port and supports USB Wi-Fi adapters, it should work. Check your device's compatibility list.

How to improve the signal strength of the MW300UH?

Position the adapter in a location with fewer obstructions. Use a USB extension cable to place it away from the computer case. Avoid interference from other electronics.

USER MANUAL MW300UH MERCUSYS

300Mbps High Gain Wireless USB Adapter

MW300UH

White wireless router with two tall antennas, one on top and one on the side (no visible text or symbols)

COPYRIGHT & TRADEMARK

Specifications are subject to change without notice.

is a registered MERCUSYS®

trademark of MERCUSYS TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from MERCUSYS TECHNOLOGIES CO., LTD. Copyright © 2019 MERCUSYS TECHNOLOGIES CO., LTD. All rights reserved.

http://www.mercusys.com

CE Mark Warning

CE

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

OPERATING FREQUENCY (the maximum transmitted power)

2400 MHz -2483.5 MHz (20 dBm)

RF Exposure Information

This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

This device has been tested and meets the ICNIRP exposure guidelines and the European Standard EN 62209-2. SAR is measured with this device at a separation of 0.5 cm to the body, while transmitting at the highest certified output power level in all frequency bands of this device. Carry this device at least 0.5 cm away from your body to ensure exposure levels remain at or below the as-tested levels.

EU Declaration of Conformity

MERCUSYS hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of conformity may be found at http://www.mercusys.com/en/ce.

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• This USB Adapter can be powered only by computers that comply with Limited Power Source(LPS).

Explanation of the symbols on the product label

Symbol	Explanation
	For indoor use only
	RECYCLINGThis product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

CONTENTS

Conventions...... I

Chapter 1. Introduction...... 1

1.1 Overview of the Product....1
1.2 Features....1

Chapter 2. Installation Guide.... 2

2.1 Hardware Connection....2
2.2 Software Installation....2

Chapter 3. Connect to a Wireless Network.... 4

3.1 Windows10/8.1/8/7 4
3.2 Windows XP 4

Chapter 4. Uninstall Software .... 5

Appendix A: Specifications 6

Conventions

The Adapter or MW300UH, or device mentioned in this User Guide stands for MW300UH 300Mbps High Gain Wireless USB Adapter without any explanations.

When using this guide, please notice that features of the adapter may vary slightly depending on the model and software version you have. All screenshots, images and descriptions documented in this guide are used for demonstration only.

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition.

Chapter 1. Introduction

1.1 Overview of the Product

The adapter is designed to provide a high-speed and unrivaled wireless performance for your notebook and PC. With a stable and faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming and so on.

With unmatched wireless performance, reception, and security protection, the adapter is the best choice for easily adding or upgrading wireless connectivity.

1.2 Features

➢ IEEE802.11b, IEEE802.11g, IEEE802.11n standards
Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption, WEP encryption
Make use of IEEE 802.11n wireless technology to provide high data rate up to 300 Mbps
➢ Interoperate with other wireless (802.11b/g/n) products
Supports automatically adjust to lower speeds due to distance or other operating limitations
- Provides Micro USB 2.0 Interface
▶ Supports Infrastructure mode
Good capability on anti-jamming
Supports roaming between access points when configured in Infrastructure mode
Supports Windows 10/8.1/8/XP (32/64 bit)

Chapter 2.

Installation Guide

2.1 Hardware Connection

Before you start using your adapter, connect the adapter to your computer via the USB extension cable provided.

Note: In Windows XP, a Found New Hardware Wizard window will appear when the adapter is detected. Please click Cancel.

2.2 Software Installation

NOTE:

The following instructions take Windows 10 as an example. The steps may vary slightly for other versions of Windows.

1. Insert the Resource CD into your CD drive and run the Autorun.exe from the pop-up Autoplay window.

Note:

a. You can also download the driver or check the new release at www.mercusys.com.

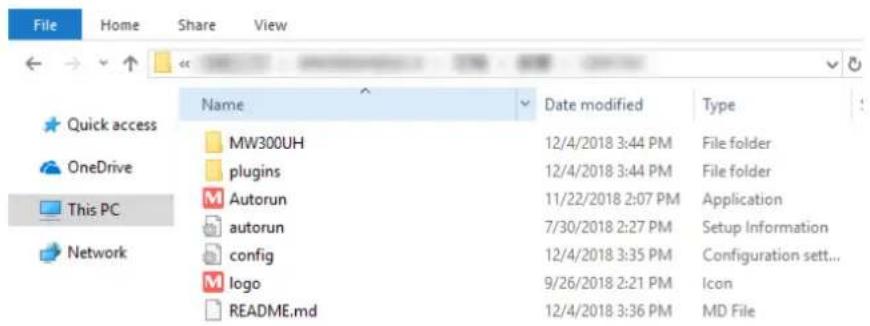

b. In some operating systems, the CD screen will pop up automatically. Otherwise, run the CD manually.

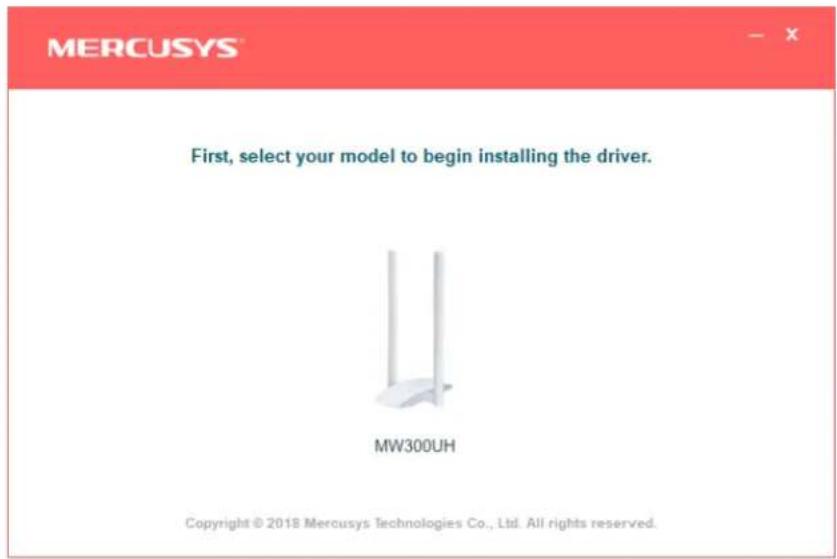

1. Select MW300UH and follow the instructions to complete installation.

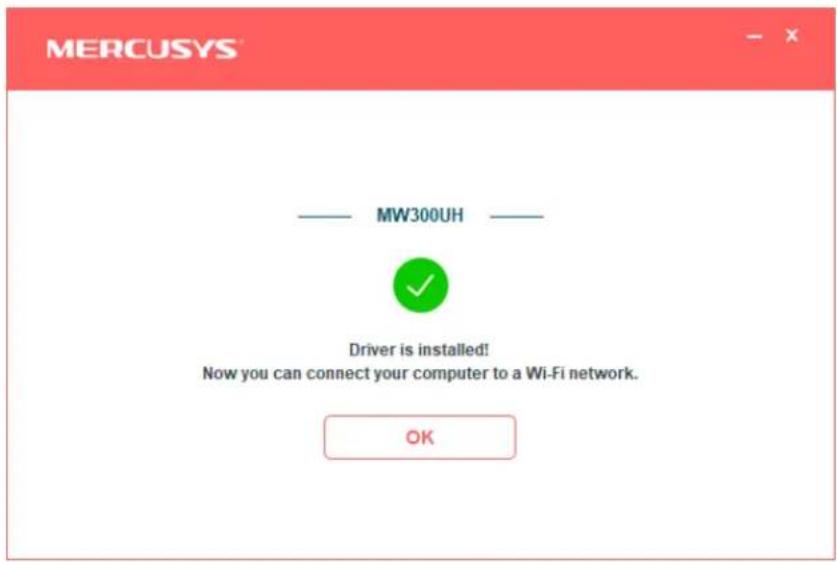

1. When the following screen appears, the driver has been installed successfully.

Note:

If you can't install the driver successfully, disable the antivirus software and firewall, then try again.

Chapter 3.

Connect to a Wireless Network

With both the hardware and software successfully installed into your computer, you can quickly connect to a wireless network via Windows wireless utility.

Follow the instructions in the appropriate section below to use your computer system's built-in wireless utility: Windows10/8.1/8/7, Windows XP.

3.1 Windows 10/8.1/8/7

1. Click the wireless icon 📄, 📅 or 📋 on the taskbar. Select the wireless network you want to join and then click Connect. Enter your Wi-Fi password when prompted.
2. When Connected displays next to the network name (SSID) on the screen, it indicates a successful network connection.

3.2 Windows XP

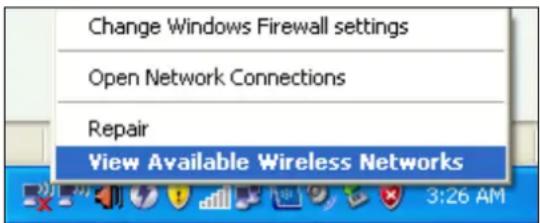

1. Right-click on the wireless computer icon in your taskbar (lower-right corner). Select View Available Wireless Networks.

1. Select the network you want to join and click Connect. Then enter your Wi-Fi password when prompted.

Chapter 4.

Uninstall Software

The software uninstallation steps vary a bit in different systems. Follow the appropriate instructions for your Windows operating system: Windows 10, Windows 8/8.1, Windows 7/XP.

- Windows 10/8.1/8

Go to Start > All apps, and find the MERCUSYS application. Click Uninstall Mercusys MW300UH Driver, then follow the on-screen instructions to complete the uninstallation.

- Windows 7/ XP

Go to Start > All Programs > MERCUSYS > Uninstall Mercusys MW300UH Driver. Follow the on-screen instructions to complete the uninstallation.

Appendix A: Specifications

Normal
Interface	Micro USB 2.0 Interface
Standards	IEEE802.11n; IEEE802.11g; IEEE802.11b
Operating System	Windows 10/8.1/8/7/XP (32/64 bit)
Signal Rate	11n: Up to 300 Mbps (Dynamic)11g: Up to 54 Mbps (Dynamic)11b: Up to 11 Mbps (Dynamic)
Data Security	TKIP/AES, WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Frequency	2.400 - 2.4835 GHz
Safety & Emissions	CE, ROHS

Environmental and Physical
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Working Humidity	10% - 90% RH, Non-condensing
Storage Humidity	5% - 90% RH, Non-condensing
