Product Type	Caster Kit for Audio Visual Racks
Model	RKW-HD
Brand	Middle Atlantic
Quantity of Casters Included	4 (2 locking, 2 non-locking)
Caster Diameter	2.5 inches (63.5 mm)
Caster Plate Size	3 x 3 inches (76.2 x 76.2 mm)
Weight Capacity per Caster	250 lbs (113 kg)
Total Weight Capacity	1000 lbs (454 kg)
Material	Steel
Hardware Included	18 wood screws
Mounting Method	Drill 3/32" pilot holes, install with screws
Setback Dimensions	Per model, refer to manual for specifics
Installation	Non-locking casters to the rear
Warranty	7 years from shipment date
Compatible Rack Types	Audio visual racks, equipment stands
Function	Provide mobility to AV racks with locking capability
Maintenance	Check screw tightness periodically; clean casters
Repairability	Individual casters replaceable
Spare Parts Available	Contact Middle Atlantic for replacement casters
Safety Note	Lock casters to prevent unintended movement

Frequently Asked Questions - RKW-HD Middle Atlantic

What is the RKW-HD caster kit used for?

The RKW-HD is a heavy-duty caster kit designed to add mobility to Middle Atlantic equipment racks and stands. It includes two locking and two non-locking casters.

How many casters are included in the RKW-HD kit?

Four casters are included: two with locking brakes and two without. Typically, the locking casters are installed on the front and non-locking on the rear.

What is the weight capacity of the RKW-HD casters?

Each caster supports up to 250 lbs, giving a total capacity of 1000 lbs when all four are used.

How do I install the RKW-HD casters?

Drill 3/32" pilot holes 1/8" deep using the casters as templates, following the setback dimensions for your specific rack model. Then attach the casters with the provided wood screws, with non-locking casters placed at the rear.

Are the casters easy to replace?

Yes, the casters are individually replaceable. Unscrew the old caster and install a new one using the same mounting holes.

What tools are needed for installation?

You need a drill with a 3/32" bit and a screwdriver (or drill with appropriate bit) to drive the wood screws.

Will the RKW-HD fit my rack?

The kit is designed for Middle Atlantic racks. Check the setback dimensions in the manual for your specific model. The caster plate is 3x3 inches, so ensure your rack has a flat mounting surface.

What is the warranty on the RKW-HD?

Middle Atlantic offers a 7-year warranty against defects in material and workmanship from the date of shipment.

Can I use the RKW-HD on a non-Middle Atlantic rack?

While designed for Middle Atlantic products, the casters can be used on any rack with a compatible mounting surface. Ensure load capacity and screw length are appropriate.

Where can I find replacement parts or additional screws?

Contact Middle Atlantic customer service via [e-mail] or call 973-839-1011 for spare parts.

USER MANUAL RKW-HD Middle Atlantic

Technical line drawing of a mechanical component with mounting flanges (no text or symbols)

Locking Casters (x2)

Non-Locking Casters (x2)

Wood Screws (x18)

Technical line drawing of a mechanical bracket with mounting holes (no text or symbols)

Locking Casters (x2)

Isometric line drawing of a cylindrical mechanical component with mounting holes (no text or symbols)

Non-Locking Casters (x2)

ASSEMBLY

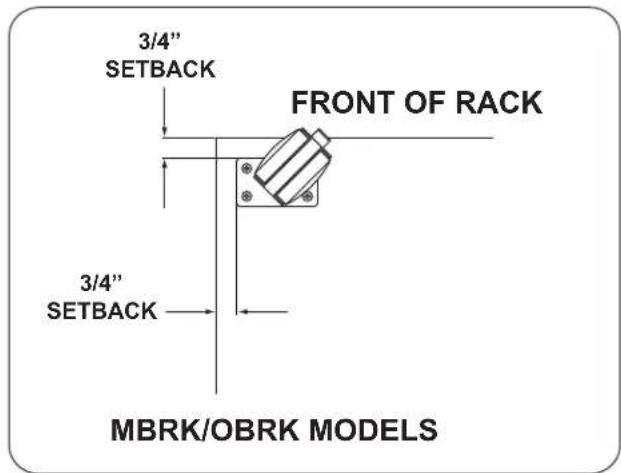

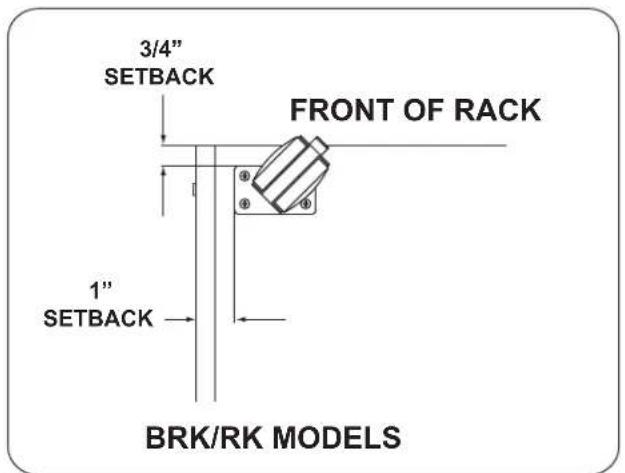

1. Drill 3/32" pilot holes 1/8" deep using casters as templates and following the setback dimensions per model as shown.

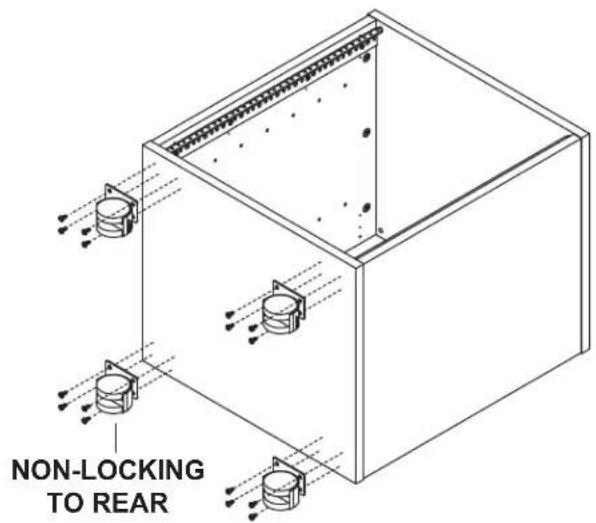

1. Install casters with the non-locking casters to the rear as shown. Do not overtighten.

WARRANTY

Middle Atlantic Products (the "Company") warrants the product to be free from defects in material or workmanship under normal use and conditions for a period of (7) seven years from date of shipment by the Company.

The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.
