| Product Type | Portable Charger / Power Bank |
| Brand | Mophie |
| Model | Powerstation Boost |
| Battery Type | Lithium-Ion (Li-Ion) |
| Battery Capacity | 5,000 mAh |
| Input (Charging) | USB-C: 5V / 2.4A |
| Output (Device Charging) | USB-C: 5V / 2.4A; USB-A: 5V / 2.4A |
| Total Output | Up to 2.4A shared |
| Charging Time (Power Bank) | Approx. 3 hours with 2.4A charger |
| Dimensions | 3.9 x 2.4 x 0.6 in (99 x 61 x 15 mm) |
| Weight | 4.2 oz (119 g) |
| LED Indicators | 4 LEDs for battery status |
| Pass-Through Charging | Yes, charge power bank and device simultaneously |
| Safety Features | Overcharge, overcurrent, short circuit protection |
| Materials | Polycarbonate, silicone finish |
| Maintenance | Clean with dry cloth; avoid liquids |
| Warranty | 2 years limited warranty |
| Compatibility | Smartphones, tablets, and other USB devices |
| Included Accessories | USB-C to USB-C cable |
| Repairability | Not user-serviceable; contact Mophie support |
Frequently Asked Questions - Powerstation boost Mophie
User questions about Powerstation boost Mophie
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Charger in PDF format for free! Find your manual Powerstation boost - Mophie and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Powerstation boost by Mophie.
USER MANUAL Powerstation boost Mophie
Product juice pack boost
Compatibility Made for Apple iPhone and iPod models
Box Contents juice pack boost, micro USB charging cable, Manual
juice pack boost
Welcome
Thank you for purchasing the mophie juice pack™ boost. You will now be able to travel great distances; be the master of your own destiny, no longer bound by the limitations of your internal battery. Let's get juiced!
Features
With a new innovative design, the juice pack boost is a pocket-sized backup battery and a convenient stand all in one!
Here's a rundown of why this juice pack is so fantastic:
-
No dock connector cable required! The 30-pin iPod/iPhone dock connector is built-in.
-
Smart battery technology automatically turns power on when the boost is connected to your device and turns off when disconnected.
-
Uses breakthrough rechargeable lithium polymer battery. (Much safer than those troublesome Lithium-Ion batteries).
-
Track battery power status at a glance with an integrated 4-light LED power indicator. Indicates charging mode and current battery life. Know before you go!
-
Rechargeable for over 500 cycles. (These are FULL cycles. Partial cycles don't count as full. So, you can charge your juice pack 10% of the way ten times before you get to a complete cycle. Don't be afraid to top it off.)
-
Built-in short circuit, over-charge and temperature protection. Safety First!
Made for Apple iPhone & iPod models
Compatibility
Though the juice pack boost uses a standard Apple 30-pin dock connector, this battery is intended solely for use with the Apple iPhone and iPod models. Please do not attempt to use the product with any other device – things could go haywire, but contact us if they do.
Charging your juice pack
The juice pack boost comes with a micro USB cable for charging. Connect the juice pack to your computer or any "Works With iPhone" wall-plug style power source with USB out, including the standard iPhone USB adaptor. (The LED power indicator will blink when charging, as the juice pack becomes more charged the LEDs will indicate how full it is, but one LED will remain blinking until completely full.)
Charging your device using the juice pack
Connect your device to the boost's pivoting dock connector and turn the juice pack into a viewing stand. Make sure that the 30-pin dock connector is securely connected to your device. When charging, a battery symbol will appear on the screen and you will hear a chirp from the device.
Checking the status of the juice pack
You can check the amount of juice your boost has by pressing the button on the side of the device. There are 4 total LEDs. When the button is pressed the LEDs will illuminate for several seconds. Four LEDs means that the juice pack is fully charged and one LED means that it's almost empty.
User Manual
To keep your juice pack operating to its fullest potential, make sure to do the following:
- Keep your juice pack dry and away from moisture and corrosive materials.
- Do not wash the juice pack with harsh chemicals, soaps or detergents. Just wipe the case with a soft, water-dampened cloth. Wipe the pins gently with a soft, dry cloth.
- Re-charge your juice pack once every three months when not in use, and remember to charge it for one hour before putting it away the first time.
Warranty
At mophie, we are dedicated to making the best quality products we can. To back this up, your juice pack is warranted for 1 full year from the date of purchase. Be sure to register your product at mophie.com to activate it and check for the latest product updates as they develop.
Customer Service
Telephone: 888.8mophie
Web Contact: www.mophie.com/cs
Service Hours: 9am to 6pm M-F ET


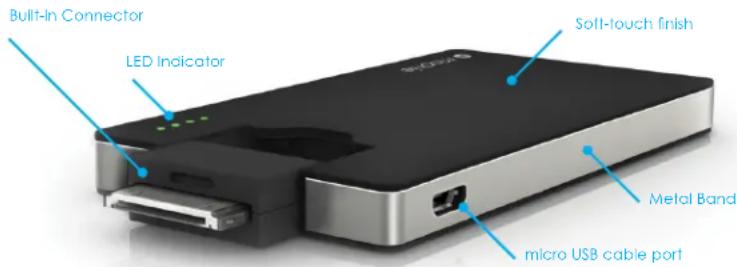

Built-In Connector LED Indicator Soft-touch finish Metal Band micro USB cable port
Will the juice pack boost charge my old iPod?
You bet. The juice pack boost is fully compatible with every iPod and iPhone.
Will the juice pack boost charge my iPad?
It will, but it won't do much. We recommend mophie's juice pack powerstation for charging an iPad.
What are the best methods for charging my juice pack boost?
Connect the mophie juice pack boost to a compatible power source using the supplied USB cable. The USB cable can be plugged in to your computer or any "works with iPhone" wall-plug style power source with USB out.
What angles can I position my device while charging with the juice pack boost?
While charging, the juice pack boost can act as a base to hold your device in portrait mode.
How many charge cycles do you get in the juice pack boost?
The juice pack boost is rechargeable for over 500 cycles (These are full cycles. Partial cycles don't count as full. So, you can charge your juice pack 10% of the way 10 times before it counts as a complete cycle.) Don't be afraid to top it off!
Can I charge my iPhone or iPod while charging the boost?
No. There is no pass through charging.
Warning
Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, for which damages you ("Purchaser"), and not mStation or mophie (collectively "Manufacturer") are responsible.
Do not store battery in high temperature environment, including intense sunlight heat. Do not place battery in fire or other excessively hot environments.
Be cautious of excessive drops, bumps, abrasions or other impacts to this battery. If there is any damage to the battery such as dents, punctures, tears, deformities or corrosion, due to any cause, discontinue use and contact manufacturer or dispose of it in an appropriate manner at your local battery recycling center.
Do not disassemble this battery or attempt to repair or modify it in any manner.
Do not expose this battery to moisture or submerge it in liquid. Keep battery dry at all times.
Do not attempt to charge battery using any method, apparatus or connection other than the device's USB connector. For questions or instructions for the various ways to charge the juice pack refer to this manual's "Charging your juice pack" and "use summary" sections.
Do not attempt to replace any part of this battery.
If this battery is intended by Purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use. Failure to do so is sole responsibility of purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.
All batteries have gone through a thorough quality assurance inspection. If you find that your battery is excessively hot, is emitting odor, is deformed, abrased, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all battery use and contact Manufacturer.
For extended storage, first charge your battery for one hour.
Never dispose of batteries in the garbage Disposal of batteries in the garbage is unlawful under state and federal environmental laws and regulations. Always take used batteries to your local battery-recycling center.
Legal
This Battery is meant for use only in conjunction with the appropriate mobile entertainment device. Please consult your device packaging to determine whether this Battery is compatible with your particular mobile entertainment device. Manufacturer is not responsible for any damages to any mobile entertainment device incurred through the use of this product.
Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this Battery in conjunction with any device or accessory other than the appropriate mobile entertainment device for which this battery is designed. Manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this Battery as outlined above. If you are responsible for battery use with an unintended mobile entertainment device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third part(ies). mophie and juice pack are registered trademarks of mophie Inc. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. All rights reserved.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de-vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecti-on against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that inter-ference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced technician for help.
CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device is comply with Class B limits. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may results in interference to radio or reception.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.
