Product Type	Canopy Range Hood
Model	BRA603CPX-F
Brand	Bellini
Width	600 mm
Power Supply	220-240 V, 50 Hz
Motor Power	190 W
Lighting	1 x 1.5 W LED
Air Outlet Diameter	150 mm
Operation Modes	Air Extraction (ducted) and Air Recirculation (with charcoal filter)
Number of Fan Speeds	3 (Low, Medium, High)
Control Type	Push buttons
Grease Filter Type	Washable mesh filter
Charcoal Filter	Required for recirculation mode, replace every 3 months
Filter Cleaning Interval	Grease filter every 4 weeks (maximum)
Maximum Chimney Extension	780 mm
Power Cord Length	1.5 m
Minimum Distance to Electric Cooktop	600 mm
Minimum Distance to Gas Cooktop	650 mm
Warranty	3 years in-home (Australia)
Installation Type	Wall-mounted

Frequently Asked Questions - BRA603CPX-F Bellini

How do I install the Bellini BRA603CPX-F range hood?

Mark a vertical center line on the wall and a horizontal line for the hood base (minimum 600 mm to electric cooktop, 650 mm to gas). Drill 8 mm holes, insert dry wall anchors, mount the hood bracket and chimney brackets. Hang the hood, connect exhaust ducting (for extraction mode) or install charcoal filter (for recirculation), and attach the decorative chimney. Ensure the hood is level and secure with anti-tilt screws.

How often should I clean the grease filters?

Grease filters should be removed and cleaned every four weeks at maximum to reduce fire risk. They can be hand washed in warm water with mild detergent or placed in a dishwasher. Ensure filters are completely dry before refitting.

How do I replace the charcoal filter?

For air recirculation mode, a charcoal filter is mandatory. To replace: remove the grease mesh filter, install the active charcoal filter onto the motor chamber as shown in the manual. Under normal use, replace the charcoal filter approximately every 3 months or more frequently with heavy usage.

How do I replace the LED light?

Switch off and unplug the hood. Remove the grease mesh filters, then remove the screw from the electrical box cover. Locate the LED light connector and unplug it. Press the spring splinter on both sides of the LED to release it, or use a flat screwdriver to prize up the edge. Install the new light by reversing the steps.

What are the dimensions of the BRA603CPX-F?

The width of the hood is 600 mm. The chimney assembly can extend up to 780 mm maximum. Refer to the manual for exact measurements.

Can I use this range hood with a gas cooktop?

Yes, but the minimum distance from the hood base to the gas cooktop must be at least 650 mm. Always cover lit gas burners with pots or pans when the hood is in use, and switch off burners before removing pots.

What is the warranty coverage?

Bellini offers a 3 year in-home warranty for domestic use. It covers manufacturing defects and performance failures. Proof of purchase is required. The warranty does not cover misuse, improper installation, commercial use, or damage from power surges.

How do I clean the stainless steel surfaces?

Clean regularly with warm soapy water and a soft cloth. Dry immediately to avoid water marks. Wipe along the grain of the stainless steel to prevent scratches. Specialized stainless steel cleaners can be used.

What safety precautions should I follow?

Never flambé under the hood. Do not discharge exhaust into a heating flue or roof cavity. Ensure the hood is switched off before maintenance. Keep packaging materials away from children. Always ventilate the room when using the hood with gas appliances.

Can the hood be installed outdoors?

No, this range hood is designed for indoor use only. It must not be installed over a solid fuel stove or connected to a chimney that is in use. Exhaust air must be vented outside or recirculated as per the mode.

USER MANUAL BRA603CPX-F Bellini

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

60cm/90cm Canopy Range hood

Model No.

BRA603CPX2

BRA603CPX2-F FINELINE: 0220602

BRA903CPX2

BRA903CPX2-F FINELINE: 5102529

V.3 Sep20

Thank you

Thank you for choosing Bellini Appliances.

Bellini prides itself on ‘affordable living’ making sure there is no compromise in your favourite room ... The Kitchen

All Bellini appliances carry a 3 year In Home warranty,

be sure to retain your installation and user manual and

receipt.

For all warranty and technical queries please contact

1300 373 199

Content

Safety instructions---- 2

Product description---- 4

Installation----6

Start using your Range hood----12

Maintenance and cleaning ----13

Warranty---- 14

Safety instructions

This manual explains the proper installation and use of your range hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. In case of failure, only the Authorised Technical Service may repair this range hood. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only.

Never to do:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Never carry out flammable cooking under the appliance
• The exhaust from the range hood must not be discharged into any heating flue, which may carry combustion products from other sources.

Illustration of a table lamp illuminating a steaming cup with a crossed-out X-shaped mark and a digital device (no text or symbols)

- Do not leave lit gas burners exposed due to the risk of fire.

Illustration of a heated stove with flames and a cross-shaped object, no text or symbols present

● This range hood is not recommended for barbecues.

Always to do:

● Packaging materials (eg; polystyrene and plastic items) must be kept out of reach of babies or young children at all times due to risk of suffocation.

● Young children should be supervised to ensure that they do not play with the appliance.

- Ensure the range hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.

- Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.

- There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

● Always cover lit gas burners with pots or pans when range hood is in use.

● Always switch off gas burners before you remove pots or pans.

- If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

- Plug must be accessible after installation.

- Packaging materials (eg; polystyrene and plastic items) must be kept out of reach of babies or young children at all times due to risk of suffocation. - Young children should be supervised to ensure that they do not play with the appliance. - Ensure the range hood is switched off before carrying out maintenance, to avoid any possibility of electric shock. - Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire. - There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels. - Always cover lit gas burners with pots or pans when range hood is in use. - Always switch off gas burners before you remove pots or pans. - If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - Plug must be accessible after installation.

Safety instructions

Never to do:

● This range hood cannot be installed for outdoor use.
- It is prohibited to fit the range hood over a solid fuel stove
- This appliance must not be connected to a chimney or vent flue which is in use.
- This appliance is not to be vented into the roof cavity, must exit into open air.
- Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
- This appliance should not be connected to ducting which ventilates rooms with fire places.

Always to do:

• Attention should be given to ensure that any applicable regulations concerning discharge of exhaust air are fulfilled.
• This appliance should be installed and maintained by a suitably qualified and competent person in accordance with the relevant safety regulations.
• Before connecting the appliance to the mains supply, ensure that the voltage and frequency details on the rating plate are consistent with the source of supply.

This product must not be disposed together with domestic waste. This product has to be disposed at an authorised place for recycling of electrical and electronic appliances.

By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an

environmental friendly and healthy way.

BRA603CPX2,BRA603CPX2-F,BRA903CPX2,BRA903CPX2-F

3D diagram of a conical structure with labeled parts (7 and 8), no text or symbols present

Accessories bag
Description	Picture	QTY
User Manual		1
Upper decorative chimney bracket		1
Lower decorative chimney bracket		1
Hood mount bracket		1
Dry wall anchors plugs		9
Screw(ST4x8mm)		6
Screw(ST4x40mm)		7
Screw (ST4x30mm)		2
Flap		2
Strap		1

Component list:

1. Upper decorative chimney bracket*
2. Upper decorative chimney(Inner)
3. Lower decorative chimney bracket
4. Flexible exhaust pipe
5. Lower decorative chimney(outer)*
6. Hood mount bracket
7. Main body
8. Grease mesh filter

*Maximum extension of upper and lower chimney is 780mm

Technical data:

Power supply: 220 - 240v, 50Hz

Light: 1x1.5w LED Light

Motor: 190W

Length of power cord: 1.5m

Air outlet diameter: 150mm

Operation Mode

Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before installation.

Air Extraction

For air extraction mode, a ducting kit is required, the air is drawn in and cleaned by the grease filters and directed outside.

Ducting must be vented to outside atmosphere.

Air Recirculation

For air recirculation mode, charcoal filter is a must to eliminate cooking smells.

The air is drawn in and cleaned first by the grease filters and then charcoal filter. The cleaned air is then re-circulated back into kitchen through grilles on the upper decorative chimney.

Installation

Dimensions:

BRA603CPX2, BRA603CPX2-F, Width=600;

BRA903CPX2, BRA903CPX2-F, Width=900

Installation:

Warning:

Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood.

When installing the range hood, make sure you adhere to the minimum and maximum distances from the range hood base to the cooktop hob surface.

Hints for exhaust duct installation

The following rules must be strictly followed to obtain optimal air extraction

• Keep exhaust duct short and straight
• Do not reduce the size or restrict exhaust duct
• When using flexible duct always install the duct pulled taut to minimize pressure loss
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the range hood

Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.

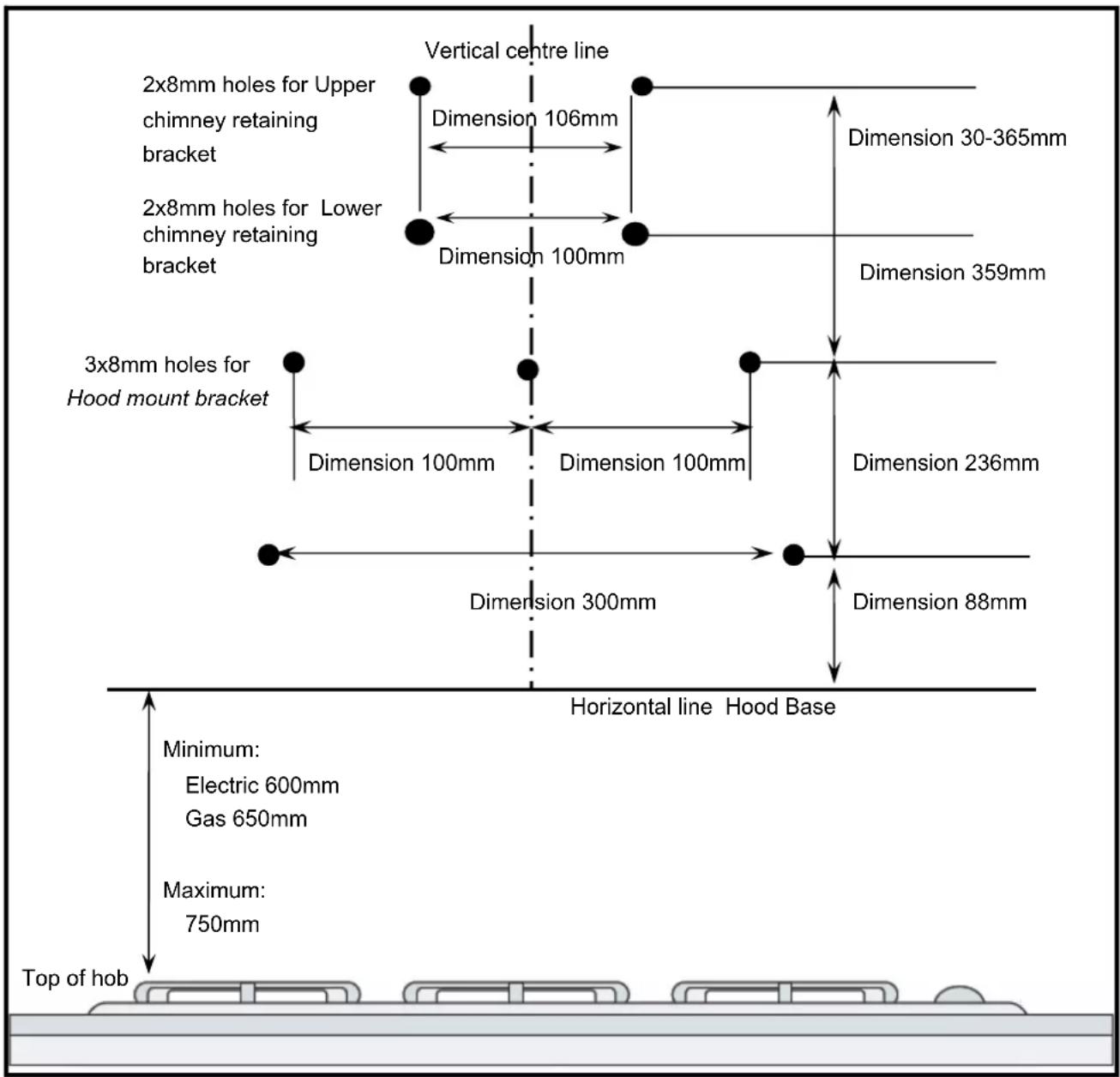

1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal line where the hood base will be.

NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm & 650mm to the gas cook top and a maximum height of 750mm (refer to table below).

*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation

1. Based on above drawing and dimension to drill holes(8mm diameter) and hammer dry wall anchor plugs into holes

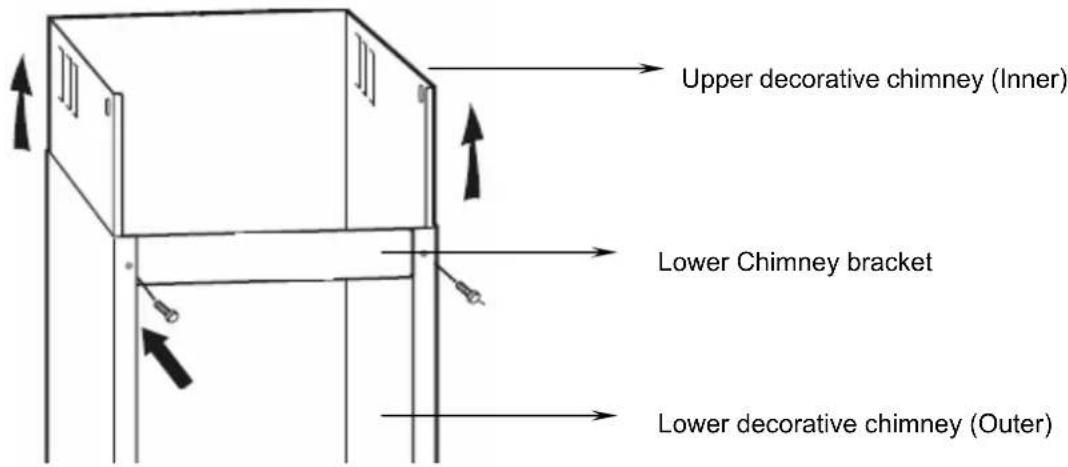

2. Use 2pcs ST4x8mm screws to attach lower and upper chimney together, do not fasten screws too much, make sure upper decorative chimney can be telescopically adjusted after assembled.

1. Fit the flexible exhaust pipe onto outlet with the 153mm end. Use a strap to tighten the pipe.

* If choose air extraction mode, please install the flexible exhaust pipe; if choose air recirculation mode, no need to install the flexible exhaust pipe, please skip this step and jump to step 5 directly

Illustration of a hand pouring liquid into a container with a probe inserted (no text or symbols)

1. Remove grease mesh filter and install active charcoal filter onto motor chamber according to below drawing.

* If choose air extraction mode, please skip this step and jump to step 6 directly. if choose air recirculation mode, we strongly recommend you have charcoal filter installed. Charcoal Filters are available at your local Bunnings

Technical line drawing of a mechanical device showing internal components and close-up view (no text or symbols)

1. Secure the hood mount bracket onto wall with 3 x ST4x40mm screws, making sure screws are securely tightened. Secure the upper chimney bracket onto wall with 2 x ST4x30mm screws.

2. Hang on the hood onto the hook of the hood mount bracket, make sure the mount slot on cooker hood completely slide into hooks.

Diagram showing a brick wall with a sensor and a cylindrical object on a base, illustrating a mechanical or electrical process (no text or symbols present)

*Above photo is just for reference only, actual product could be varies...

1. Fasten the 2pcs anti-tilt ST4x30mm screws onto wall to ensure horizontality of cooker hood. You can find out screw holes inside hood near the motor chamber.
2. Plug in the main power supply.
3. Fasten the Lower decorative chimney bracket to the lower chimney with 2 x ST4x8mm screws, put the chimney in position..

Technical line drawing of a conical tower with directional arrows indicating force or movement (no text or symbols)

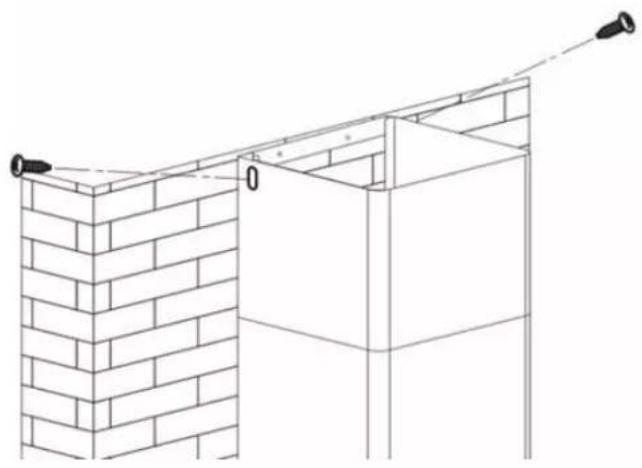

1. Secure the lower chimney bracket onto wall with 2 x ST4x40mm screws.
2. Extend the upper decorative chimney to desired height and fix it with the upper decorative chimney bracket by 2pcs ST4x8mm screws.

Line drawing of a brick wall corner with two hanging lights and a support structure (no text or symbols)

1. Remove all blue protective film on chimney and cooker hood, the installation is now finished.

Start Using Your Range Hood

BRA603CPX2, BRA603CPX2-F, BRA903CPX2, BRA903CPX2-F

Push button

①Off button

It's used for turning off the fan.

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

Turn on or off the light

Maintenance and cleaning

Caution:

- Before maintenance or cleaning is carried out, the range hood should be disconnected from the main power supply. Ensure that the range hood is switched off at the wall socket and the plug removed. - External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces

STAINLESS STEEL

The stainless steel must be clea ned regularly (e.g. weekly) to ensure long life expectancy.

Dry with a clean soft clot h. A speci alized stainless steel cleaning fluid may be used.

NOTE: Ensure that wipin g is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching pattern s from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee

CHARCOAL FILTERS

When air recirculation mode is chosen, a charcoal filter is a must. It is not washable and should be replaced when it no longer absorbs kitchen odors effectively. Under normal use, this would be approximately every 3 months or more frequently for particularly heavy usage.

GREASE MESH FILTERS

The mesh filters can be cleaned either by hand or in the dishwasher. After cleaning ensure that the filters are completely dry before refitting.

- By hand: Soak in warm water and a neutral washing up liquid. For stubborn grease stains use a soft nylon brush or sponge to help remove these stains. (Leave to dry naturally out of direct sun light) - In a dishwasher: Ensure that placement of the filters is made so as to not impede the function of the spray arm. Washing the filters in a dishwasher may cause discoloration of the aluminum inner mesh over time although it will not affect their performance.

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

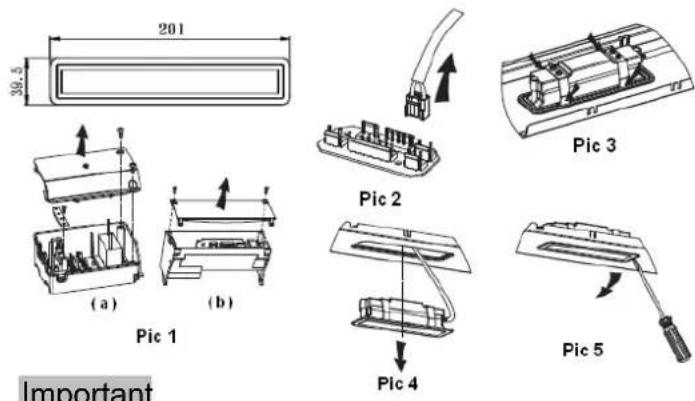

REPLACE LGF"NKI JV

Switch the unit off and unplug the appliance.

Remove two grease mesh filters, remove the screw from the cover of electrical box, see pic 1.(The electrical box has version a and b, depending on different models)

Find out the terminal on the cable where the light needs to be replaced and unplug it, see pic 2.

Way 1: Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out, see pic 3. Then slightly pull the light connecting wire out, see pic 4.

Way 2: Use straight screwdriver to prize up the LED light bottom edge, see pic 5.

Then Use the reverse steps to install the light back.

Important

When handling the light, make sure it is completely co ol down before any direct contact to hands.

WARRANTY

1.1 In this warranty:

1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
1.1.2 Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, RosePark SA 5067. Telephone [phone]. Email [e-mail];
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian ConsumerLaw;
1.1.5 You means the Consumer.

1.2 Nothing in this warranty affects any person's rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company's specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a domestic household area.

*The in Home warranty does not apply to Commercial and or industrial usage. *Please See 1.7.7 for additional information

1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of three (3) year (Warranty Period).
1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company's specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.
1.7 This warranty will not apply to any Bellini product:

1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect power supply
1.7.7 Industrial and or Commercial usage is inclusive of staff areas in office/shop environments, hotel/motel or other similar accommodation or rental type properties including Bed and Breakfast establishments.

The Australian Consumer Law requires the inclusion of the following

statement with this warranty:

Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER

MUST CALL 1300 373 199 (AUSTRALIA) OR 0800 764 912

(NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent's traveling costs to and from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and file with your purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT

Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

Serial number:

NOTE: Consistent with our continuing product development policy, improvements may have been made which render the contents of this packaging slightly different to that shown.

FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA) OR 0800 764 912 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE

Gerard Sourcing & Manufacturing

GSM RETAIL AUSTRALIA PTY LTD

The GSM Retail Australia Pty Ltd Group Companies has a policy of continual improvement throughout the product range. As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for the GSM Retail Australia Pty Ltd. Group Companies
