BRA603SW-F - Range hood Bellini - Free user manual and instructions

Product Type	Slim Line Range Hood
Brand	Bellini
Model	BRA603SW-F
Colour	White (painted)
Width	600 mm (60 cm)
Power Supply	220-240 V, 50 Hz
Motor Power	2 x 100 W
Lighting	2 x 40 W incandescent bulbs
Air Outlet Diameter	120 mm
Power Cord Length	1.5 m
Control Type	Push buttons (Off, Low, Medium, High, Light)
Fan Speeds	3 speeds
Operation Modes	Extraction (ducted) or Recirculation (with charcoal filter)
Grease Filters	2 pcs, washable (hand or dishwasher)
Charcoal Filters	Optional, replace every 3 months
Installation Options	Wall mount or under cabinet
Minimum Distance to Cooktop	600 mm (electric), 650 mm (gas)
Warranty	3 years

Frequently Asked Questions - BRA603SW-F Bellini

How do I install the range hood?

The range hood can be installed against a wall or under a cabinet. For wall installation, drill 8 mm holes, insert wall anchors, and use the provided screws. Ensure the distance from the cooktop is at least 600 mm for electric and 650 mm for gas hobs. For under-cabinet installation, drill 4 mm holes in the cabinet board and secure with screws, nuts, and washers. Always follow the safety instructions in the manual.

How do I switch between extraction and recirculation mode?

Your range hood can operate in either extraction (ducted) or recirculation mode. The mode is selected by turning a shifter inside the hood. For extraction, you need to connect a ducting pipe to the outlet and vent it outside. For recirculation, you must install charcoal filters to clean the air before it is released back into the kitchen.

How do I clean the grease filters?

Grease filters should be cleaned every 4 weeks. They can be washed by hand in warm water with mild detergent, or in a dishwasher. For stubborn grease, use a soft nylon brush. Allow filters to dry completely before refitting. Note that dishwasher cleaning may cause discoloration over time but does not affect performance.

How often should I replace the charcoal filters?

Charcoal filters are only needed when using recirculation mode. They cannot be washed and should be replaced every 3 months under normal use, or more frequently if the hood is used heavily. Replace them when they no longer absorb cooking odors effectively.

What type of light bulbs does the range hood use?

The range hood uses 2 x 40 W incandescent bulbs. To replace, remove the grease filters, twist the bulb to remove while cool, and insert a new bulb. Ensure the bulb is completely cool before handling.

What is the minimum distance required between the range hood and the cooktop?

The minimum distance from the base of the range hood to the cooktop is 600 mm for electric hobs and 650 mm for gas hobs. If the hob manufacturer specifies a greater distance, use that instead. The maximum recommended height is 750 mm.

Can I use the range hood over a gas cooktop?

Yes, but ensure the distance is at least 650 mm. Always cover lit gas burners with pots or pans when the hood is in use, and switch off burners before removing pots. Do not leave lit burners exposed to reduce fire risk.

How do I connect the ducting for extraction mode?

Fit the outlet (120 mm diameter) onto the top of the range hood. Attach a flexible exhaust pipe (not included) to the outlet and secure it with a zip tie or duct tape. The ducting must be as short and straight as possible, and must vent to the outside atmosphere. Do not reduce the duct size.

What is the warranty period and how do I claim?

The Bellini range hood comes with a 3-year warranty from the date of purchase for manufacturing defects. To claim, call 1300 373 199 (Australia) or 0508 123 108 (New Zealand) to connect to an authorized service centre. Proof of purchase is required. The warranty does not cover misuse, incorrect installation, or damage from power surges.

Why is the range hood not working?

First, check that the power cord is plugged in and the wall socket is switched on. Ensure the voltage matches the rating plate. If the hood still does not work, check if the fuse or circuit breaker has tripped. For further issues, contact a qualified technician or the manufacturer's service centre. Do not attempt to repair the unit yourself.

USER MANUAL BRA603SW-F Bellini

Slim Line Range Hood

Line drawing of a rectangular electronic component with a textured internal structure and label '00020' (no other text or symbols)

BRA603SX

BRA903SX

BRA603SX-F

BRA903SX-F

BRA603SW

BRA903SW

BRA603SW-F

BRA903SW-F

Installation and User manual

Content

Safety instructions---- 2

Product description----4

Operation mode---- 5

Installation----6

Start using the range hood---- 10

Maintenance and cleaning----11

Warranty----12

Abstract geometric shape with two symmetrical arches on a black background (no text or symbols)

Safety Instructions

This manual explains the proper installation and use of your range hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Never carry out flammable cooking under the appliance
• The exhaust from the range hood must not be discharged into any heating flue, which may carry combustion products from other sources.

Illustration of a laboratory setup with a lamp, beaker, and control panel (no text or symbols)

- Do not leave lit gas burners exposed due to the risk of fire.

Illustration of a steaming pot and burning flame with a crossed-out triangular object (no text or symbols)

- This range hood is not recommended for barbecues.

Always to do:

● Packaging materials (eg; polystyrene and plastic items) must be kept out of reach of babies or young children at all times due to risk of suffocation.
● Young children should be supervised to ensure that they do not play with the appliance.
- Ensure the range hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.
- Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.
- There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
● Always cover lit gas burners with pots or pans when range hood is in use.
● Always switch off gas burners before you remove pots or pans.
- If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
● Plug must be accessible after installation.

Safety Instructions

Never to do:

● This range hood cannot be installed for outdoor use.
- It is prohibited to fit the range hood over a solid fuel stove
- This appliance must not be connected to a chimney or vent flue which is in use.
- This appliance is not to be vented into the roof cavity, must exit into open air.
● Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
- This appliance should not be connected to ducting which ventilates rooms with fire places.

Always to do:

• Attention should be given to ensure that any applicable regulations concerning discharge of exhaust air are fulfilled.
• This appliance should be installed and maintained by a suitably qualified and competent person in accordance with the relevant safety regulations.
• Before connecting the appliance to the mains supply, ensure that the voltage and frequency details on the rating plate are consistent with the source of supply.

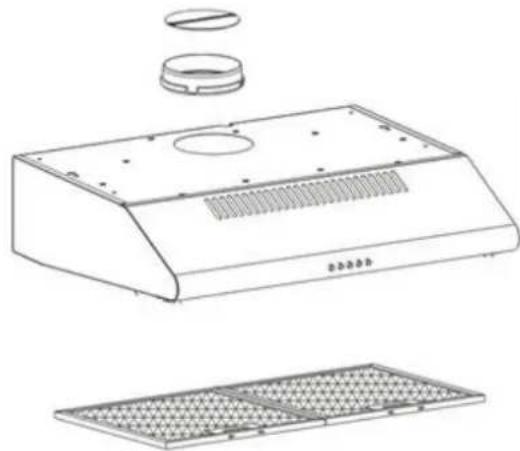

Product Description

Technical line drawing of a kitchen air conditioner unit with cooling fan, ventilation duct, and grid base (no text or symbols)

Component list:

1. Outlet(diameter 120mm)
2. Main body
3. Grease mesh filters*

*2pcs for 60cm, 3 pcs for 90cm range hood

Accessories
Description	Picture	QTY
Installation & User Manual		1
Outlet( diameter 120mm)		1
Dry wall anchors plugs		4
Screw (ST4x30mm)		4
Screw (M4*35mm)		4
Nut (M4)		4
washer		8
Outlet cover		1

Technical data:

Model	Description	Motor	Width	Others
BRA603SX	60cm slim line stainless steel range hood	2x100W	600mm	Power supply: 220 – 240v, 50HzLights: 2x40W incandescenceLength of power cord: 1.5mAir outlet diameter: 120mm
BRA603SX-F
BRA603SW	60cm slim line painted white range hood
BRA603SW-F
BRA903SX	90cm slim line stainless steel range hood	2x100W	900mm
BRA903SX-F
BRA903SW	90cm slim line painted white range hood
BRA903SW-F

Operation Mode

Your range hood can be operated in two optional modes, choose the mode suitable for your kitchen before installation.

Air ( [WUDFWLRQ		Air Recirculation
	For air extraction mode, a ducting kit is required, the air is drawn in and cleaned by the grease filters and directed outside.Ducting must be vented to outside atmosphere.Your range hood can duct from back(A) or top(B).		For air recirculation mode, charcoal filter is a must to eliminate cooking smells.The air is drawn in and cleaned first by the grease filters and then charcoal filter. The cleaned air is then re-circulated back into kitchen through holes above front panel.

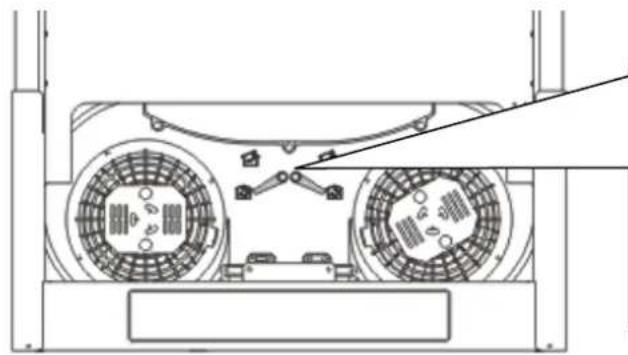

You can shift between above 2 modes by turning the shifter

Installation

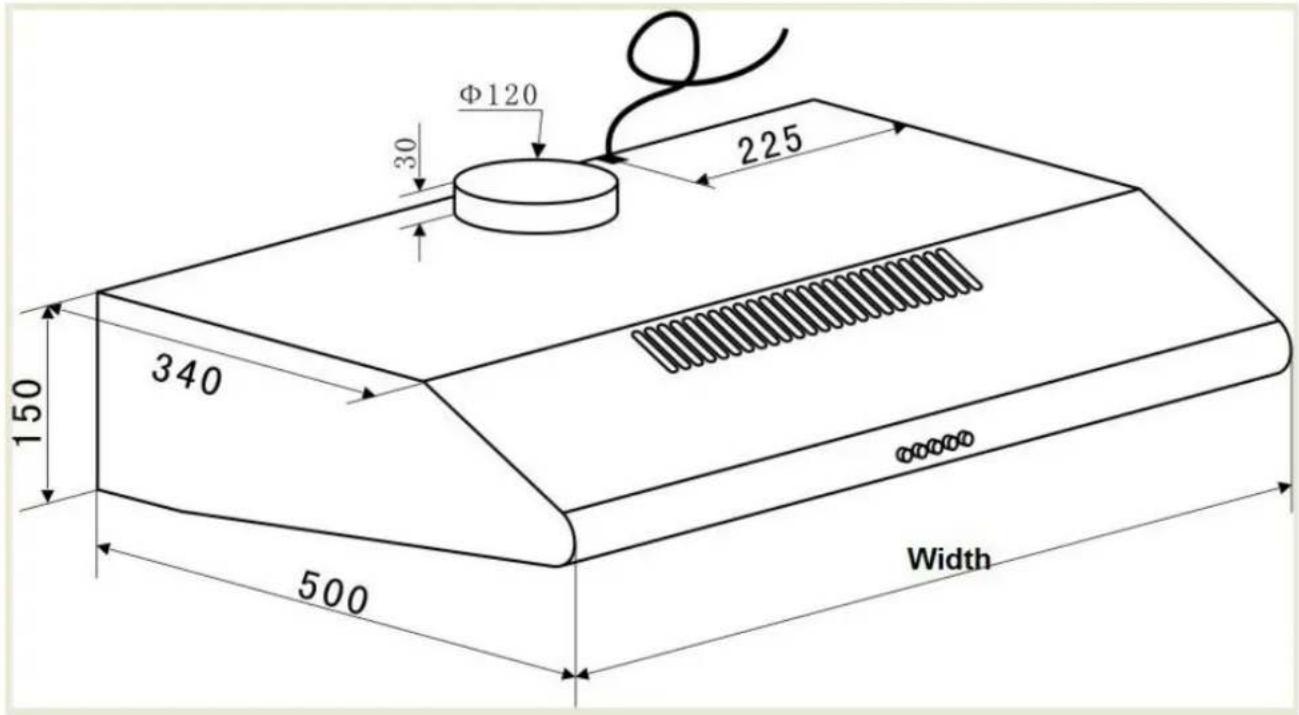

Dimensions:

*Width data please refer to page 4

Installation:

Warning:

Check that the installation complies with the standards of local building, gas and electrical authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the voltage on the appliance rating plate inside the range hood.

When installing the range hood, make sure you adhere to the minimum and maximum distances from the range hood base to the cooktop hob surface.

Hints for exhaust duct installation

The following rules must be strictly followed to obtain optimal air extraction

• Keep exhaust duct short and straight
• Do not reduce the size or restrict exhaust duct
• When using flexible duct always install the duct pulled taut to minimize pressure loss

- Failure to observe these basic instructions will reduce the performance and increase noise levels of the range hood

Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.

We provide two options to install your range hood, against wall (method A) or into cabinet (method B), choose what kind of method you want and then follow up corresponding instruction.

A: Install against wall

1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a horizontal line where the hood base will be.

NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum of 600mm & 650mm Free space to a gas cook top and a maximum height of 750mm.

*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation

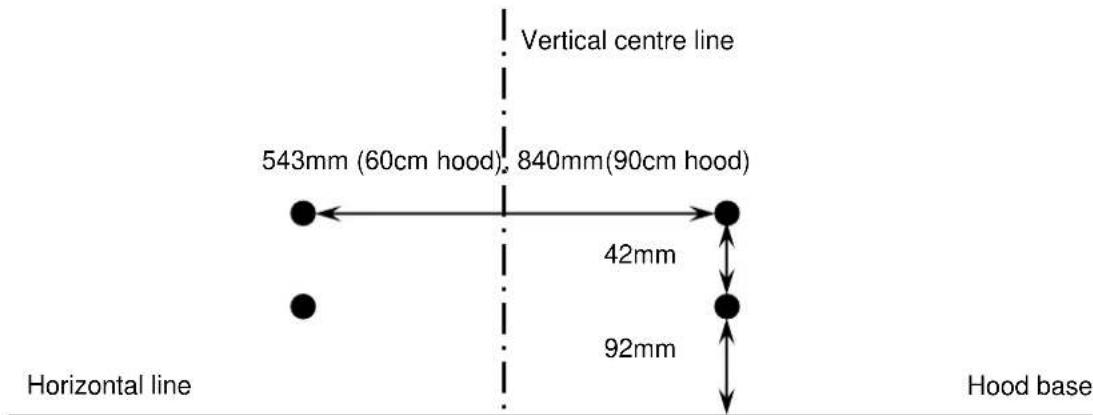

1. Drill 4 holes of 8mm diameter on the wall according to below drawing.

1. Hammer dry wall anchor plugs into holes. Insert 2pcs Screw(ST4x30mm) into the 2 holes at the top and fasten, hang the range hood onto the two screws, screw another 2pcs Screw(ST4x30mm) into the 2 holes at the bottom inside the range hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

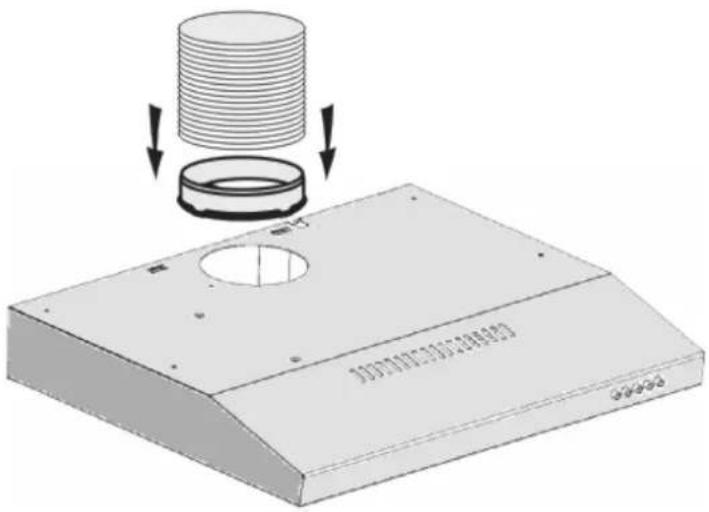

Fit the outlet and flexible exhaust pipe* on top of range hood body** Secure Flexible Exhaust Pipe to outlet with zip tie or duct tape (Not supplied)

*Flexible exhaust pipe is not included in this packaging

** if you choose air recirculation mode, no need to install the exhaust pipe

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

60cm range hood 90cm range hood

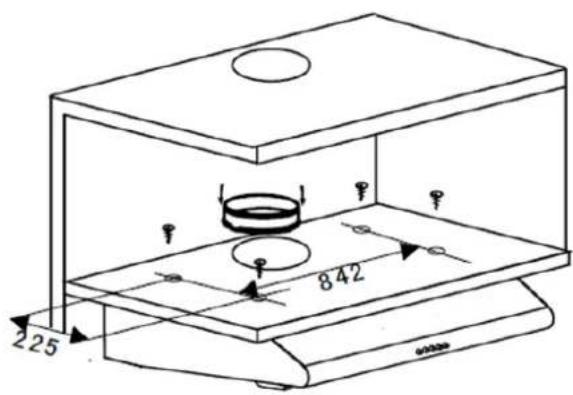

B: Install into cabinet

1. According to below drawing to determine where want to place the range hood, and drill 4 holes with 4mm diameter at the hanging board of your cabinet.

1. Fit the outlet on top of range hood body.
2. Install the range hood onto the bottom of cabinet board, insert 4pcs Screw(ST4x30mm) with the nuts and washers into the holes and fasten.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

60cm range hood 90cm range hood

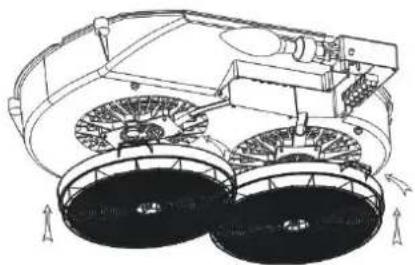

Installation of charcoal filters

When you choose front recirculation mode, charcoal filter is a must to be installed. Charcoal filter is optional accessory. To install charcoal filter, you will need to fit outlet cover firstly, remove grease mesh filters and fit charcoal filter on.

Technical line drawing of a tracked vehicle with two large wheels and control components (no text or symbols)

Close

Technical line drawing of a tracked robotic vehicle with two large circular wheels and control panels (no text or symbols)

Open

Start Using Your Range Hood

Push button

0 Off button

It's used for turning off the fan.

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

Turn on or off the light

Maintenance and cleaning

Caution:

• Before maintenance or cleaning is carried out, the range hood should be disconnected from the main power supply. Ensure that the range hood is switched off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy.

Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE: Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee

GREASE MESH FILTERS

The mesh filters can be cleaned either by hand or in the dishwasher. After cleaning ensure that the filters are completely dry before refitting.

• By hand: Soak in warm water and a neutral washing up liquid. For stubborn grease stains use a soft nylon brush or sponge to help remove these stains. (Leave to dry naturally out of direct sun light)
• In a dishwasher: Ensure that placement of the filters is made so as to not impede the function of the spray arm. Washing the filters in a dishwasher may cause discoloration of the aluminum inner mesh over time although it will not affect their performance.
  Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

CHARCOAL FILTERS

When air recirculation mode is chosen, a charcoal filter is a must. It is not washable and should be replaced when it no longer absorbs kitchen odors effectively. Under normal use, this would be approximately every 3 months or more frequently for particularly heavy usage.

REPLACE LAMP

Technical line drawing of a mechanical assembly with no visible text or symbols

Remove two grease mesh filters, twist to remove bulb, whilst cool, and replace carefully with a new bulb. The range hood takes 2x40W incandescent bulbs.

Important

When handling bulb, make sure it is completely cool down before any direct contact to hands.

WARRANTY

1.1 In this warranty:

1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
1.1.2 Company means GSM Sales Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park SA 5067. Email [e-mail]; Australia 1300 373 199 or New Zealand 0508 123 108.
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.

1.2 Nothing in this warranty affects any person's rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.

1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company's specifications.

1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a residential property.

1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of three (3) years (Warranty Period).

1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company's specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.

1.7 This warranty will not apply to any Bellini product:

1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or

1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect power supply

The Australian Consumer Law requires the inclusion of the following statement

with this warranty:

Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent's traveling costs to and from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and file with your purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT

Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

GSM Sales Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

Serial number:

NOTE: Consistent with our continuing product development policy, improvements may have been made which render the contents of this packaging slightly different to that shown.

FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE

Geraré Sourcing & Manufacturing

GSM Sales Pty Ltd.

The GSM Sales Pty Ltd. Group of Companies has a policy of continual improvement throughout the product range. As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for the GSM Sales Pty Ltd. Group of Companies

N1028
