Product Type	Top-loading washing machine
Model	XQB60-F3021ZP
Brand	TCL
Capacity	6 kg
Dimensions (W x D x H)	60 x 60 x 85 cm
Net Weight	30 kg
Power Supply	220-240 V ~ 50 Hz
Maximum Power Consumption	400 W
Water Pressure Range	0.05 - 0.8 MPa
Main Functions	Standard, Quick, Heavy, Delicate, Spin, Rinse & Spin, Soak, Child Lock, Delay Start
Water Level Selection	Automatic / Manual (5 levels)
Control Type	Electromechanical buttons + knob
Display	LED indicator and 7-segment display
Drain Pump	Built-in
Hose Connections	Inlet: 3/4 inch threaded, Drain: 1.5 m hose included
Safety Features	Child lock, overflow protection, unbalanced load detection
Energy Efficiency Class	A++ (estimated)
Noise Level (Wash/Spin)	62 dB / 76 dB
Maintenance	Clean filter regularly, descale every 3 months
Spare Parts Availability	Genuine parts available through TCL service centers
Repairability Index	6.5/10 (estimated)

Frequently Asked Questions - XQB60-F3021ZP TCL

How do I install the washing machine correctly?

Place the machine on a solid, level surface. Remove all packaging and the transportation bolts (4 bolts at the back panel). Connect the inlet hose to the water tap and the drain hose to a standpipe or sink. Ensure the drain hose is not kinked and is at a height of 60-90 cm. Plug in the power cord.

What should I do if the machine doesn't start?

Check if the door is properly closed (top lid must click). Ensure the water supply is turned on. Verify that the child lock is deactivated. If the display shows an error code, refer to the manual for specific troubleshooting.

How often should I clean the filter?

Clean the filter every 2-3 months or when you notice poor drainage. The filter is located at the bottom front. Unscrew it counterclockwise, remove lint, and rinse under water. Ensure the filter is properly reinserted before use.

Can I wash delicate fabrics like wool or silk?

Yes, use the 'Delicate' program (gentle cycle with cold water). Place delicate items in a laundry bag to prevent damage. Avoid overloading and do not use bleach.

Why is there water leaking from the bottom?

Check the inlet hose connections for tightness. Inspect the drain hose for cracks or blockages. Ensure the filter cap is tightly closed. Also verify that the machine is level; an unbalanced machine may cause leaks.

What does the 'Child Lock' feature do?

Child lock disables the buttons during a cycle to prevent accidental changes. Activate it by pressing and holding the 'Child Lock' button for 3 seconds. Deactivate similarly. It locks all buttons except the power button.

How do I descale the washing machine?

Run a hot water cycle (90°C) with a descaling agent (e.g., citric acid or commercial descaler) in the detergent compartment. Repeat every 3 months in hard water areas. Alternatively, use the 'Drum Clean' function if available.

What should I do if the machine vibrates excessively?

Ensure the machine is level: adjust the feet by turning them. Check that all transportation bolts are removed. Avoid overloading: the maximum capacity is 6 kg. Distribute laundry evenly inside the drum.

Can I use liquid detergent?

Yes, you can use liquid detergent. Pour it into the detergent drawer or directly into the drum (use a dosing ball). For pre-wash, pour into the appropriate compartment. Do not exceed the max line.

How do I obtain spare parts or service?

Contact TCL customer support via their website or local service center. Provide the model number XQB60-F3021ZP. Genuine parts such as belts, pumps, hoses, and control boards are available.

USER MANUAL XQB60-F3021ZP TCL

Operating Instructions

适用型号

XQB60-F302ZP

XQB60-F302SZP

XQB60-F302CZP

XQB60-F3021ZP

XQB70-F302ZP

XQB70-F302SZP

XQB70-F302CZP

XQB70-F3021ZP

XQB80-F302ZP

XQB80-F302TZP

Line drawing of a refrigerator with a black X mark on the front panel (no text or symbols)

Pure technical diagram of a mechanical or electronic component with no visible text, numbers, or symbols.

螺钉

九、安装使用说明

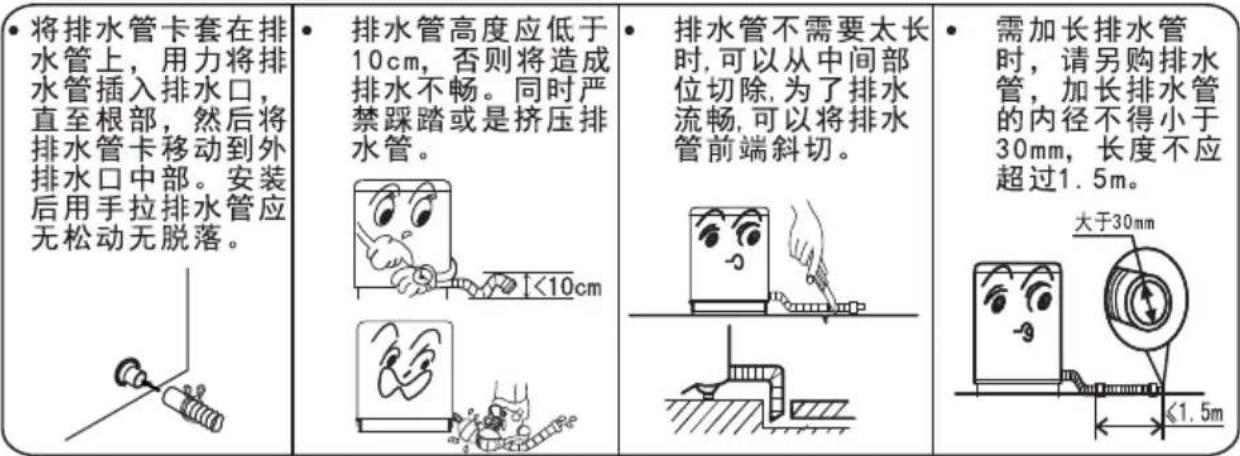

三、排水管的安装和使用

Certificate of Quality

检验员：
