Product Type	Top-loading washing machine
Brand	TCL
Model	XQB70-F3021ZP
Capacity	7 kg
Dimensions (W x D x H)	520 x 520 x 880 mm
Net Weight	31 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	400 W (wash) / 300 W (spin)
Water Pressure	0.03 - 0.8 MPa
Spin Speed	700 rpm
Wash Programs	Standard, Fast, Heavy, Gentle, Soak, Rinse+Spin
Water Levels	Automatic with 8 levels
Control Type	Electronic buttons with LED display
Noise Level (Wash/Spin)	≤ 62 dB / ≤ 72 dB
Energy Efficiency Class	A+ (equivalent)
Material (Drum)	Stainless steel
Hose Length (Inlet/Outlet)	1.2 m / 1.0 m
Child Lock	Yes
Delay Start	Up to 24 hours
Maintenance	Clean lint filter monthly; descale every 3 months
Spare Parts Availability	7 years after production end

Frequently Asked Questions - XQB70-F3021ZP TCL

What detergent should I use?

Use low-sudsing detergent suitable for top-loading washing machines. Avoid excessive foam.

How do I clean the lint filter?

Open the filter cover at the bottom front, rotate counterclockwise, remove and rinse under running water. Reinsert securely.

Why does the machine not start?

Check if the lid is closed properly, power cord is plugged in, and water supply is open. Also check the child lock setting.

What is the maximum load capacity?

The maximum load is 7 kg for dry cotton laundry. Do not overload to ensure optimal washing performance.

Can I wash wool or silk?

Yes, use the Gentle program with cold water. Place delicate items in a mesh bag.

How to install the washing machine?

Place on a level, firm surface. Connect hoses, plug in, and remove transport bolts (if any) before first use.

What does the error code E4 mean?

Error E4 indicates a water drainage issue. Clean the drain filter and check the hose for kinks.

How often should I descale?

Every 3 months in normal use. Use a descaling agent designed for washing machines.

Can I pause the wash cycle?

Yes, press Start/Pause. Wait for the drum to stop before opening the lid. To resume, press again.

What is the warranty period?

Standard manufacturer warranty is 2 years. Register your product on TCL's website for details.

USER MANUAL XQB70-F3021ZP TCL

Operating Instructions

适用型号

XQB60-F302ZP

XQB60-F302SZP

XQB60-F302CZP

XQB60-F3021ZP

XQB70-F302ZP

XQB70-F302SZP

XQB70-F302CZP

XQB70-F3021ZP

XQB80-F302ZP

XQB80-F302TZP

Line drawing of a refrigerator with a black X mark on the front panel (no text or symbols)

Pure technical diagram of a mechanical or electronic component with no visible text, numbers, or symbols.

螺钉

九、安装使用说明

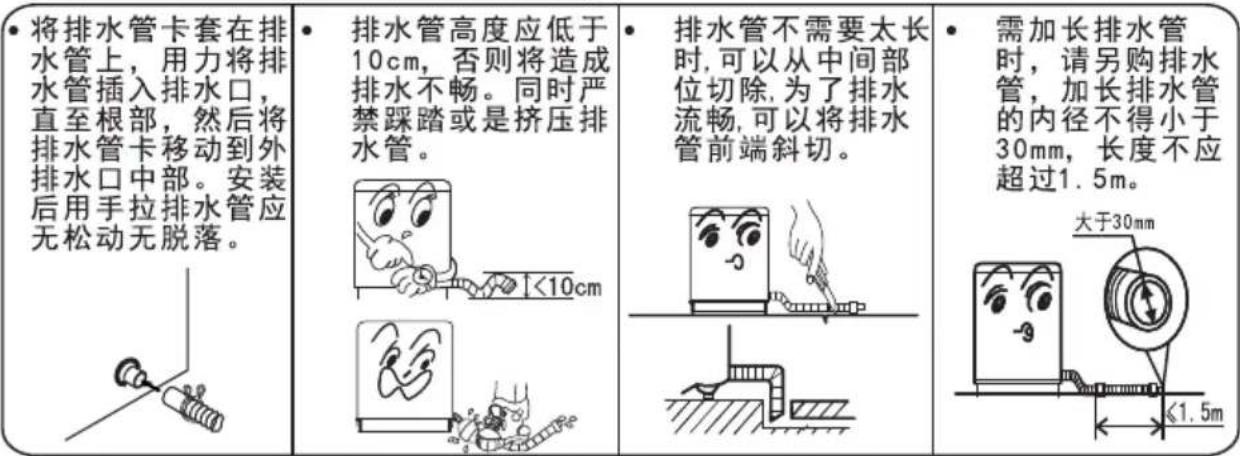

三、排水管的安装和使用

Certificate of Quality

检验员：
