CJR5E88TGBL - Câbles pour ordinateurs et périphériques Panduit - Free user manual and instructions

Product Type	Cat5e Patch Cable
Length	8 ft (2.4 m)
Color	Blue
Connector Type	RJ45 Male to Male
Wiring Standard	T568A/T568B
Cable Category	Category 5e
Max Data Rate	1000 Mbps (Gigabit Ethernet)
Frequency Range	Up to 100 MHz
Jacket Material	PVC (Polyvinyl Chloride)
Conductor Material	Solid Bare Copper
Shielding Type	UTP (Unshielded Twisted Pair)
Wire Gauge	24 AWG
Number of Pairs	4
Operating Temperature	-10°C to 60°C
Storage Temperature	-20°C to 70°C
Packaging	Polybag
Applications	Ethernet networks, LAN connections, patch panels, switches
Compliance	ISO/IEC 11801, TIA/EIA-568-C.2, UL Listed
Weight	Approx. 0.1 lb (45 g)

Frequently Asked Questions - CJR5E88TGBL Panduit

What is the length of the Panduit CJR5E88TGBL cable?

The cable is 8 feet (2.4 meters) long.

What color is this cable?

The cable is blue.

Is this cable compatible with Gigabit Ethernet?

Yes, it is a Cat5e cable supporting speeds up to 1000 Mbps (Gigabit Ethernet).

What connectors does it have?

It has RJ45 male connectors on both ends, which are standard for Ethernet connections.

Can I use this cable for PoE (Power over Ethernet)?

Yes, Cat5e cables support PoE for devices like IP cameras and VoIP phones.

Is the cable shielded?

No, it is UTP (Unshielded Twisted Pair), suitable for typical office and home networks.

What is the maximum frequency supported?

The cable supports frequencies up to 100 MHz, per Cat5e standards.

Can I use this cable for telephone connections?

Yes, but it is primarily designed for Ethernet data; for telephone only, a simpler cable may suffice.

Is this cable compliant with industry standards?

Yes, it meets ISO/IEC 11801 and TIA/EIA-568-C.2 standards.

How should I store this cable?

Store in a cool, dry place with temperatures between -20°C and 70°C, away from direct sunlight.

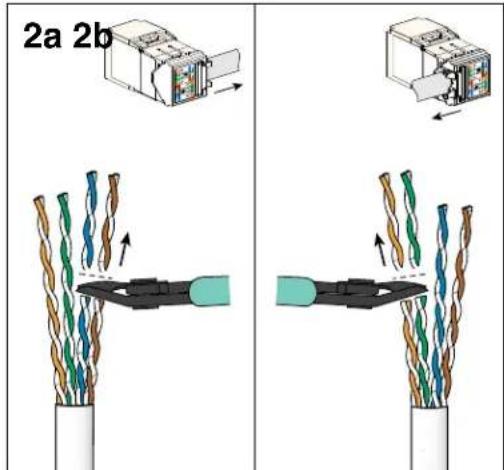

USER MANUAL CJR5E88TGBL Panduit

For Technical Support: www.panduit.com/resources/install_maintain.asp

6a
T568B Wiring

Termination side

Label side

T568A Wiring

Termination side Label side

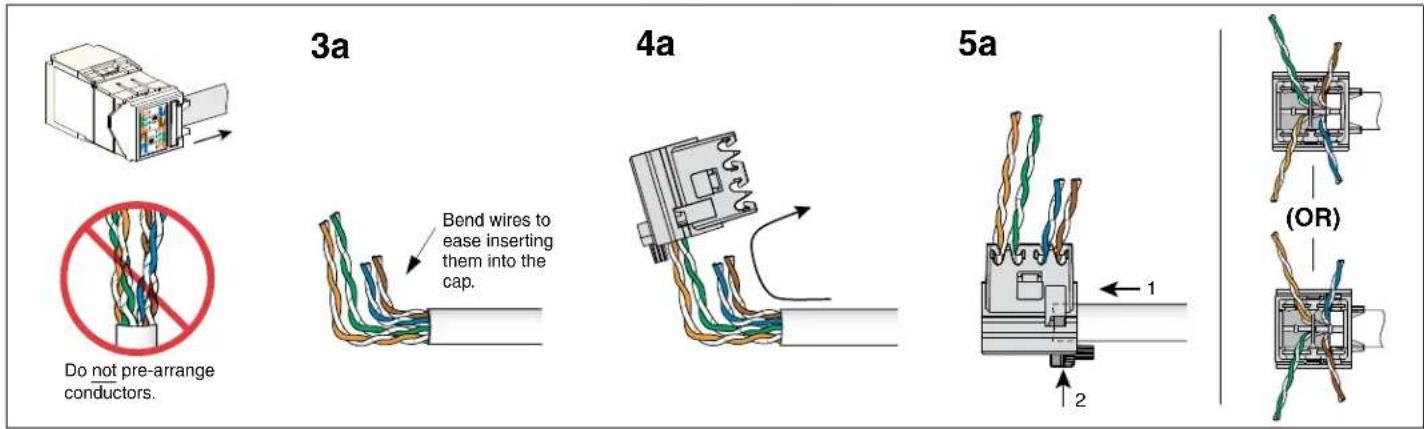

Pure electrical circuit lines without any symbols

(OR)

1.

Pure electrical circuit lines without any symbols

[Non-Text]

Pure electrical circuit lines without any symbols

(OR)

1.
   →

2.

Pure electrical circuit lines without any symbols

[Non-Text]

6b
T568B Wiring

Termination side

Label side

T568A Wiring

Termination side Label side

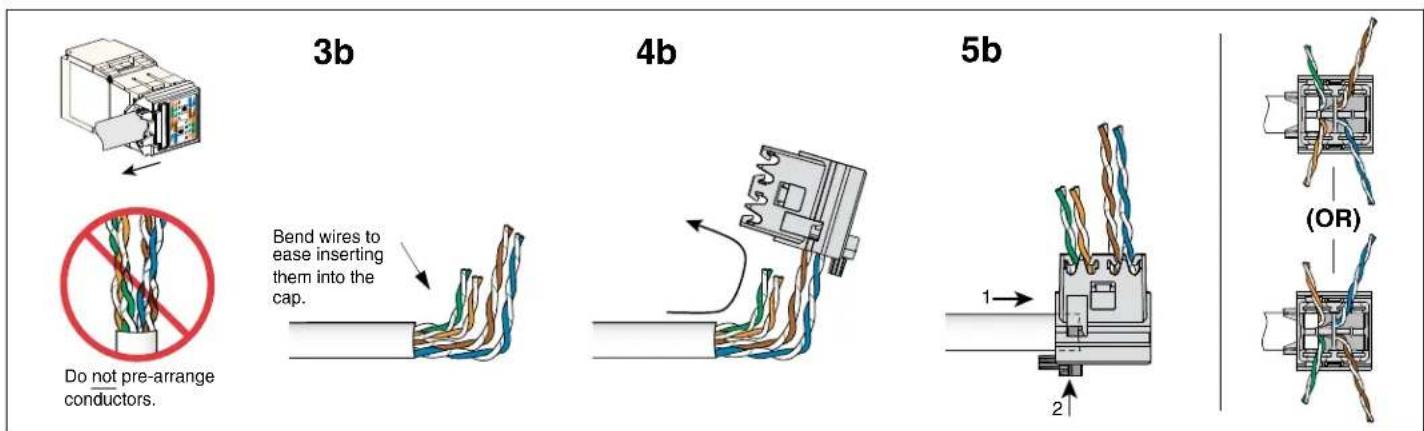

Pure electrical circuit lines without any symbols

(OR)
1.

1.2.
→

1.

2.

(OR)

1.2.

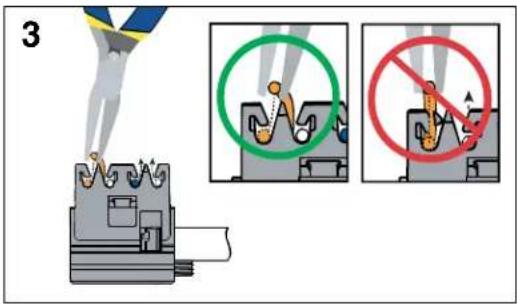

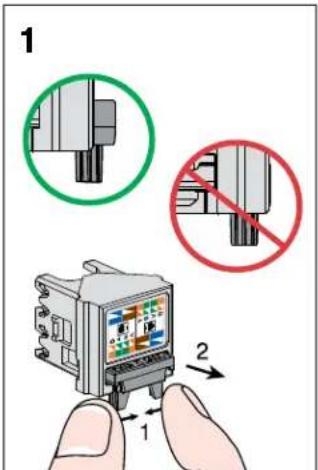

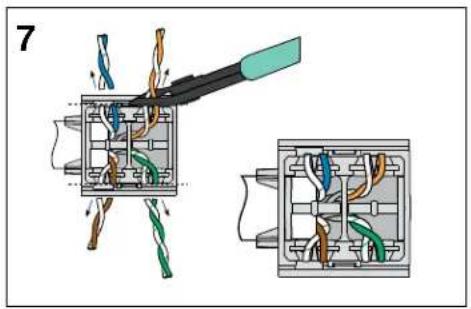

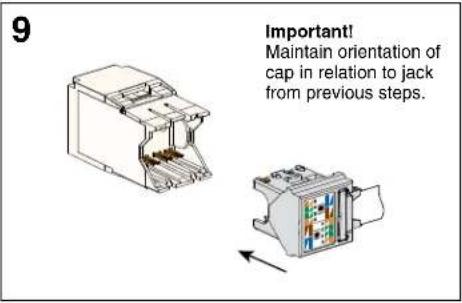

Diagram showing cable installation process with wire routing and connector (no text or symbols)

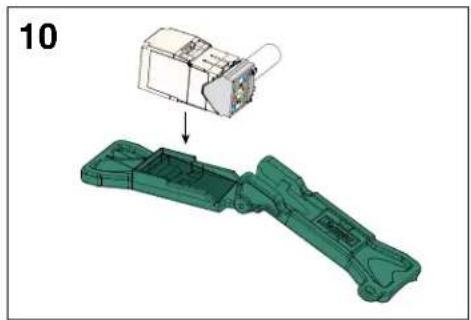

3D mechanical assembly diagram showing a component being processed into a green plastic housing (no text or symbols visible)

Green mechanical component with a white block and arrow indicating motion (no text or symbols)

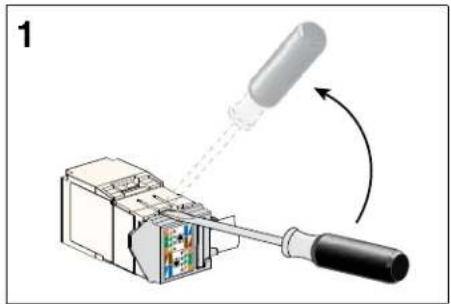

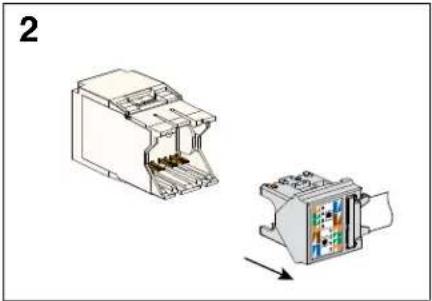

REMOVAL STEPS

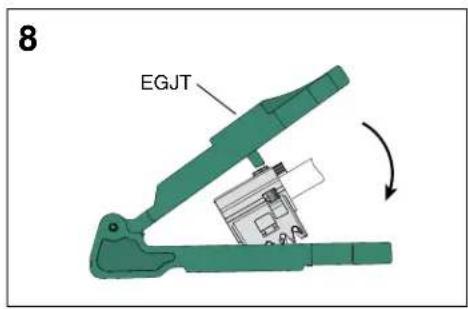

Diagram of a device being inserted into a connector with a tool, showing internal components and an arrow indicating rotation (no text or symbols present)

Diagram showing two views of a network switch component, one with internal wiring and the other with color-coded pins (no text or symbols)

Notes:

1. For specified performance, follow TIA/EIA 568-C installation guidelines.
2. Jack Modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062" (1.57mm) maximum insulated conductor outside diameter.
3. Jack Modules may be re-terminated a minimum of 20 times.
4. For technical and performance information, consult Panduit Technical Support.

As with all Wiring Accessories, the following statements apply:

1. Never install communications wiring during a lightning storm.
2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
4. Use caution when installing or modifying communication wiring.

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp

www.panduit.com

E-mail:
