Product Type	Weather Station
Brand	AcuRite
Model	02075
Display Type	LCD
Indoor Measurement	Temperature and Humidity
Outdoor Measurement	Temperature and Humidity via wireless sensor
Temperature Range	-40°F to 158°F (-40°C to 70°C)
Humidity Range	1% to 99% RH
Wireless Range	Up to 165 ft (50 m) open air
Power Source (Display)	2 x AAA batteries
Power Source (Sensor)	2 x AAA batteries
Dimensions (Display)	2.5 x 5 x 1.5 inches
Weight (Display)	0.5 lb
Sensor Type	Wireless, weatherproof
Record Functions	Min/Max temperature and humidity
Mounting Options	Tabletop or wall-mountable display
Cleaning Instructions	Wipe with a soft, damp cloth; do not immerse
Battery Life	Approximately 12 months
Safety Warnings	Keep away from children; do not mix old/new batteries
Spare Parts Availability	Replacement sensors available from AcuRite

Frequently Asked Questions - 02075 AcuRite

How do I set up the AcuRite 02075 weather station?

Insert batteries into the outdoor sensor first, then into the display unit. Place the sensor outdoors in a shaded, dry location. Allow up to 10 minutes for the display to sync.

What does the 'No Signal' icon mean?

It indicates the display is not receiving data from the outdoor sensor. Check that the sensor is within range (165 ft) and batteries are fresh. Press and hold the 'CHANNEL' button to resync.

How often should I replace the batteries?

Batteries typically last about 12 months. Replace them when the display shows low battery icons or readings become erratic. Use alkaline batteries for best performance.

Can I use the weather station indoors only?

Yes, the display works as an indoor thermometer/hygrometer. The outdoor sensor is optional but required for outdoor readings.

What is the temperature range of the sensor?

The outdoor sensor measures from -40°F to 158°F (-40°C to 70°C). The indoor range is the same for the display.

How do I reset the min/max records?

Press and hold the 'MIN/MAX' button for about 3 seconds to clear all recorded min and max values.

Can I add extra sensors?

The 02075 supports only one outdoor sensor. For multi-sensor setups, consider AcuRite models with channel support.

Why is the humidity reading inaccurate?

Ensure the sensor is not in direct sunlight or near moisture sources. Allow 30 minutes for stabilization after battery change. Accuracy is ±2-3% under normal conditions.

How do I mount the display?

Use the built-in stand for tabletop placement or remove the stand and use a screw (not included) to mount on a wall via the keyhole slot.

What is the warranty period?

AcuRite offers a 1-year limited warranty from the date of purchase. Retain your receipt for warranty claims.

USER MANUAL 02075 AcuRite

Unpacking Instructions ...... 2

Package Contents 2

Product Registration 2

Features & Benefits: Sensor.....2

Features & Benefits: Display....3

Setup 6

Sensor Setup 6

Display Setup 7

Intelli-Time® Clock 8

Set the Time, Date & Units ..... 8

Backlight Settings......8

Placement Guidelines ...... 9

Using the Weather Station.....10

Troubleshooting 11

Care & Maintenance......13

Replace Intelli-Time® Battery ..13

Specifications....14

FCC Information ....14

Customer Support......15

Warranty....15

Questions? Contact Customer Support at [phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACU RITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Unpacking Instructions

Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove.

Package Contents

1. Display unit with tabletop stand
2. Power adapter
3. Outdoor sensor
4. Instruction Manual

Features & Benefits

OUTDOOR SENSOR

1. Integrated Hanger

For easy placement.

1. Wireless Signal Indicator

Flashes when data is being sent to the display unit.

1. Battery Compartment

2. A-B-C Switch

ID code that must match display's A-B-C switch to ensure units synchronize.

1. Battery Compartment Cover

Features & Benefits

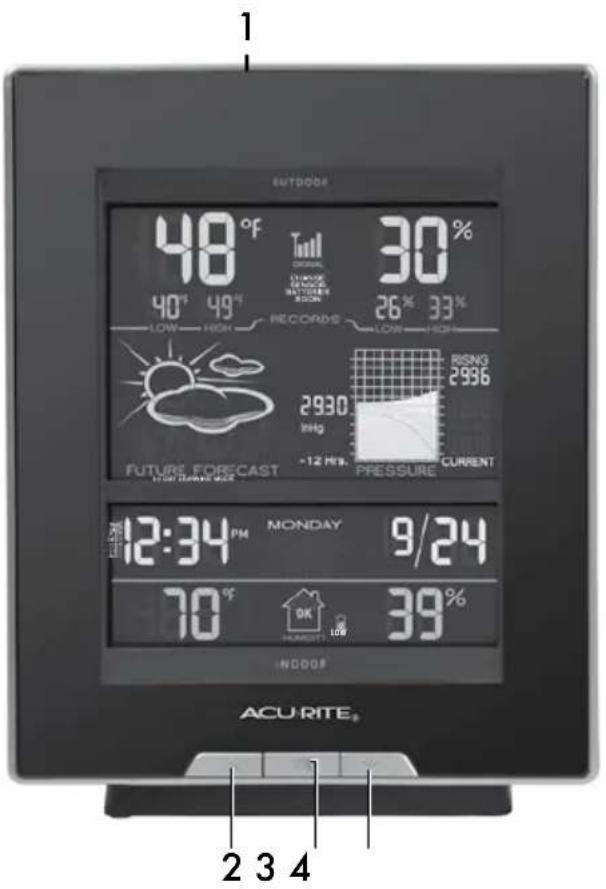

FRONT OF DISPLAY UNIT

1. Backlight Button
   (top of display unit)
2. “^” Arrow
   for setup preferences.
3. "Button
   for setup preferences.
4. "√" Arrow
   for setup preferences.

BACK OF DISPLAY UNIT

1. Integrated Hang Hole

For easy wall mounting.

1. Intelli-Time® Battery Compartment

2. Reset

Full reset to factory defaults.

8.A-B-CSwitch

ID code that must match 5-in-1 sensor's A-B-C switch to ensure units synchronize.

1. Battery Compartment

2. "LIGHT"Switch

Controls the display's backlight and brightness: Off, Low, Medium, High

1. Plugin for Power Adapter

2. Battery Compartment Cover

DISPLAY UNIT FRONT

1. Current Outdoor Temperature
2. Outdoor Low Temperature Record
   Lowest temperature recorded since midnight.
3. Outdoor High Temperature Record
   Highest temperature recorded since midnight.
4. 12 to 24 Hour Weather Forecast
   Self-Calibrating Forecasting pulls data from the outdoor sensor to generate your personal forecast.
5. Learning Mode Icon
   Disappears after weather forecast self-calibration is complete.
   6.Intelli-Time®Clock
   Automatically updates for Daylight Saving Time.
6. Time Zone
7. Current Indoor Temperature
8. Humidity Level Icon
   Indicates a high, low or ideal indoor humidity level.
9. Display Unit Low Battery Indicator
10. Current Indoor Humidity
11. Date
12. Day of the Week

13. Pressure History Chart
    Displays the past 12 hours of data for barometric pressure.

14. Current Barometric Pressure FALLING, STEADY or RISING indicates the direction pressure is trending.

15. Outdoor Low Humidity Record Lowest humidity recorded since midnight.

16. Outdoor High Humidity Record Highest humidity recorded since midnight.

17. Current Outdoor Humidity

18. Outdoor Sensor Signal Strength

19. Sensor Low Battery Indicator

Sensor Setup

1 Set the A-B-C Switch

The A-B-C switch is located inside the battery compartment. It can be set to A, B or C. However, you must select the same letter choices for both the sensor and the display unit in order for the units to synchronize.

2 Install or Replace Batteries

AcuRite recommends high quality alkaline or lithium batteries in the outdoor sensor for the best product performance. Heavy duty or rechargeable batteries are not recommended.

The sensor requires lithium

batteries in low temperature conditions. Cold temperatures can cause alkaline batteries to function improperly. Use lithium batteries in the sensor for temperatures below -4°F / -20°C.

1. Slide off the battery compartment cover. Take note of the A-B-C switch setting inside the battery compartment for display unit setup.

2. Insert 2 x AA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.

3. Replace the battery cover.

LITHIUM BATTERIES

ALKALINE BATTERIES

Display Unit Setup

① Set the A-B-C Switch

Locate the A-B-C switch inside the battery compartment. Set the A-B-C switch to A, B or C. You must select the same letter choices for both the display unit and the sensor in order for the units to synchronize.

② Plug in Power Adapter

For the best performance, plug in the power adapter as the main power source for this product.

③ Install or Replace Backup Batteries (optional)

1. Remove the battery compartment cover.
2. Insert 3 x AA alkaline batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
3. Replace the battery cover.

IMPORTANT: Batteries are a backup power source to preserve records in the event of a power outage. Power adapter is recommended as the primary power source to enjoy the full functionality of this product.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Intelli-Time® Clock

Intelli-Time products are pre-programmed with the correct time and date. All you need to do is select your Time Zone and Daylight Saving Time preferences. The clock will then automatically updates for Daylight Saving Time.

Set the Time, Date & Units

Press the "button to enter SETUP MODE. Once in setup mode, the preference you are currently setting will blink on the display.

To adjust the currently selected (flashing) item, press and release the “^” or “√” buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the "button again to adjust the next preference. The preference set order is as follows:

TIME ZONE ( PST MST CST EST AST HAST AKST)

DST* (Daylight Saving Time ON or OFF)

CLOCK HOUR

CLOCK MINUTE

CALENDAR DATE

CALENDAR MONTH

CALENDAR YEAR

TEMPERATURE SCALE (°F or °C)

BAROMETRIC PRESSURE SCALE (inHg or hPa)

*If you live in an area that observes daylight saving time, DST should be set to ON, even if it is not currently Daylight Savings Time.

You will automatically exit SETUP MODE if no buttons are pressed for 20 seconds. Enter setup mode at any time by pressing the "button."

Backlight Settings

This weather station's color display features a backlight with brightness levels including High, Medium and Low brightness settings.

Using battery power alone, the backlight is available momentarily for 7 seconds by pressing the "BACKLIGHT" button, located on top of the display.

When display is powered with the power adapter, the display's brightness can be adjusted using the "LIGHT" switch, located on the back of the display inside the battery compartment. The switch offers four different backlight settings: High (100%) brightness, Medium (60%) brightness, Low (30%) brightness and Off (0%), or no backlight.

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display unit and outdoor sensor are critical to the accuracy and performance of this product.

Two-panel image: top shows a weather monitor displaying weather data with icons, bottom shows a handheld device with a black clip (no visible text or symbols)

Display Unit Placement

Place the display unit in a dry area free of dirt and dust. Display unit stands upright for tabletop use or is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions. Sensor is water resistant and is designed for general outdoor use, however, to extend its life place the sensor in an area protected from direct weather elements.

Hang the sensor using the integrated hang holes or hanger, or by using string (not included) to hang it from a suitable location, like a well covered tree branch. The best location is 4 to 8 feet above the ground with permanent shade and plenty of fresh air to circulate around the sensor.

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct sunlight and away from any heat sources or vents.
- Display unit and outdoor sensor must be within 330 ft (100 m) of each other.
• To maximize wireless range, place units away from large metallic items, thick walls, metal surfaces, or other objects that may limit wireless communication.
• To prevent wireless interference, place both units at least 3 ft (.9 m) away from electronic devices (TV, computer, microwave, radio, etc.).

Setup is Complete

The sensor will now synchronize with the display unit. It may take a few minutes for synchronization to complete. Please refer to the troubleshooting section of this manual if anything appears to be functioning improperly.

Using the Weather Station

Learning Mode

Self-Calibrating Forecasting uses a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction.

Weather Forecast

AcuRite's patented Self-Calibrating Forecasting provides your personal forecast of weather conditions for the next 12 to 24 hours by collecting data from the sensor in your backyard. It generates a forecast with pinpoint accuracy - personalized for your exact location.

STORM WARNING(flashing=stormy)

SNOW LIKELY

LIGHT RAIN LIKELY

CLOUDY

PARTLY CLOUDY

View the complete list of icons at www.AcuRite.com/acurite-icons

Barometric Pressure

Subtle variations in barometric pressure greatly impact the weather. This weather center displays the current pressure and indicates the direction the pressure is trending (FALLING, STEADY, or RISING). The history chart lets you monitor the change in pressure over time.

Humidity Level Icon

The Humidity Level Icon easily conveys a low, high or ideal indoor humidity level for your home and health:

LOW Humidity Level

Humidity is low relative to

temperature.

Makes for a

DRY environment.

OK Humidity Level

Humidity is

OK relative to

temperature.

Makes for an

IDEAL environment.

HIGH Humidity Level

Humidity is

high relative to

temperature.

Makes for a HUMID

environment.

Learn more at http://www.acurite.com/humidity-health

Troubleshooting

Problem Possible Solution
No outdoor sensor receptionT no bars	If the wireless signal indicator shows no bars:Relocate the display unit and/or the outdoor sensor. The units must be within 330 ft (100 m) of each other.Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc).Use standard alkaline batteries (or lithium batteries in sensor when temperature is below -4°F/-20°C). Do not use heavy duty or rechargeable batteries. NOTE: It may take up to 20 minutes for display unit and sensor to synchronize after batteries are replaced.
Outdoor temperature is flashing or showing dashes	Flashing of the outdoor temperature is generally an indication of wireless interference.Bring both the sensor and display unit indoors and remove batteries from each.Make sure the A-B-C switch on both units match.Reinstall batteries in the outdoor sensor.Reinstall batteries in the display unit.Let the units sit within a couple feet of each other for about 20 minutes to gain a strong connection.Sometimes changing to a different channel can help.
Inaccurate forecast	Weather Forecast icon predicts conditions for the next 12 to 24 hours, not current conditions.Has Learning Mode icon disappeared from the display unit? Learning Mode must complete before forecast and pressure will be accurate.Allow unit to run continuously for 33 days. Battery removal or resetting the display unit will restart Learning Mode. After 14 days, forecast should be fairly accurate, however Learning Mode calibrates for a total of 33 days.
Inaccurate temperature or humidity	Make sure both the display unit and sensor are placed out of direct sunlight and away from any heat sources or vents (see page 9).Make sure both units are positioned away from moisture sources (see page 9).
Display screen not working	Check that the batteries are installed correctly. Batteries may need to be replaced.Reset the display by pressing the reset button, located on the back of the display unit. Date and time will need to be entered after a reset.
The unit lost power or batteries were changed and the time is not correct	The Intelli-Time battery needs to be replaced (see page 13). Once the new battery is installed, time and date will need to be set manually.

If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call [phone] for assistance.

Care & Maintenance

Display Unit Care

Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air.

Outdoor Sensor Care

Clean with a soft damp cloth. Do not use caustic cleaners or abrasives.

Replace Intelli-Time Clock Battery

Intelli-Time technology is powered by a pre-installed coin-cell battery that stores the time and date settings. The battery has a shelf life of several years. Time and date will need to be entered after replacing Intelli-Time battery. To replace the Intelli-Time battery:

1. Locate the coin cell battery compartment door on the back of the display unit. Unscrew and remove the compartment cover.

2. Insert 1 x CR2032 coin cell battery into the battery compartment, as shown. Install battery with "+" positive terminal facing OUT.

3. Screw in the battery cover.

WARNING: THIS PRODUCT CONTAINS A BUTTON-CELL BATTERY. IF SWALLOWED, IT COULD CAUSE SEVERE INJURY OR DEATH IN JUST 2 HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY IF INGESTED.

Specifications

TEMPERATURE RANGE	Outdoor: -40°F to 158°F; -40°C to 70°C
	Indoor: 32°F to 122°F; 0°C to 50°C
HUMIDITY RANGE	Outdoor: 1% to 99% RH
	Indoor: 1% to 99% RH
WIRELESS RANGE	330 ft / 100 m depending on home construction materials
OPERATING FREQUENCY	433 MHz
POWER	Display: 5v power adapter3 x AA alkaline batteries (optional)
	Sensor: 2 AA alkaline or lithium batteries
DATA REPORTING	Outdoor: 16 second updates
	Indoor: 60 second updates

FCC Information

TThis device complies with part 15 of FCC rules. Operation is subject to the following two conditions:

1- This device may NOT cause harmful interference, and

2- This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation of the device.

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

[phone]

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos

▶ Register your Product

▶ Instruction Manuals

▶ Support User Forum

▶ Replacement Parts

▶ Submit Feedback & Ideas

IMPORTANT

PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

Register online to receive 1 year warranty protection

www.AcuRite.com

SUPPORT

Support Forum

Archived Products

▶Register a Product

Limited One Year Warranty

At AcuRite, we proudly uphold our commitment to quality technology. Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase.

We recommend that you visit us at www.AcuRite.com for the fastest way to register your product. However, product registration does not eliminate the need to retain your original proof of purchase in order to obtain warranty benefits.

Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase. Remedy for breach of this warranty is limited to repair or replacement of the defective item(s). Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by Chaney, and at its sole option, be repaired or replaced by Chaney. Transportation costs and charges for returned goods shall be paid for by the purchaser. Chaney hereby disclaims all responsibility for such transportation costs and charges. This

warranty will not be breached, and Chaney will give no credit for products it manufactures which have received normal wear and tear, been damaged (including by acts of nature), tampered, abused, improperly installed, damaged in shipping, or repaired or altered by others than authorized representatives of Chaney. The above-described warranty is expressly in lieu of all other warranties, express or implied, and all other warranties are hereby expressly disclaimed, including without limitation the implied warranty of merchantability and the implied warranty of fitness for a particular purpose. Chaney expressly disclaims all liability for special, consequential or incidental damages, whether arising in tort or by contract from any breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Chaney further disclaims all liability from personal injury relating to its products to the extent permitted by law. By acceptance of any of Chaney's products, the purchaser assumes all liability for the consequences arising from their use or misuse. No person, firm or corporation is authorized to assume for Chaney any other liability in connection with the sale of its products. Furthermore, no person, firm or corporation is authorized to modify or waive the terms of this paragraph, and the preceding paragraph, unless done in writing and signed by a duly authorized agent of Chaney. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For in-warranty claims: Chaney Instrument Co. 965 Wells St., Lake Geneva, WI 53147

ACU RITE®

Weather Stations

Temperature & Humidity

Weather Alert Radio

Kitchen Thermometers & Timers

Clocks

It's more than accurate, it's ACU RITE.

AcuRite offers an extensive assortment of precision instruments, designed to provide you with information you can depend on to Plan your day with confidence™.

www.AcuRite.com
