STHR202 - Drill STANLEY - Free user manual and instructions

Product Type	Corded Drill
Model	STHR202
Brand	Stanley
Power Supply	AC 220-240V, 50/60 Hz
Power Consumption	600 W
No-Load Speed	0-2800 rpm (variable)
Chuck Size	13 mm (1/2 inch)
Drilling Capacity (Steel)	13 mm
Drilling Capacity (Wood)	25 mm
Impact Rate	0-44800 bpm
Dimensions (L x W x H)	260 x 65 x 180 mm
Weight	1.6 kg
Key Functions	Drilling, hammer drilling, screwdriving
Speed Control	Variable speed trigger with lock-on button
Forward/Reverse	Yes, with lock-off
Depth Stop	Adjustable depth rod
Grip Type	Soft-grip handle
Maintenance	Keep ventilation slots clean; replace carbon brushes when worn
Safety Features	Double insulation, lock-off trigger, auxiliary handle
Spare Parts Availability	Chuck key, carbon brushes, switch, bearings available via Stanley service centers
Reparability	Modular design; user-replaceable brushes and chuck
General Information	Complies with relevant EU safety standards; includes 1-year warranty

Frequently Asked Questions - STHR202 STANLEY

How do I change the drill bit?

To change the drill bit, first unplug the drill. Use the chuck key to loosen the chuck by turning it counterclockwise. Insert the new bit and tighten the chuck securely by turning clockwise.

Can I use this drill for masonry?

Yes, the STHR202 has a hammer drilling function. Set the mode selector to the hammer symbol and use masonry bits for best results.

What is the maximum drilling depth?

The drill has an adjustable depth stop. The maximum drilling depth depends on the bit length, typically up to 100 mm.

How do I clean the drill?

Unplug the drill and wipe the exterior with a damp cloth. Do not use solvents. Keep ventilation slots free of dust using a soft brush.

Why is the drill not starting?

Check if the power cord is plugged in and the outlet is working. Ensure the forward/reverse switch is not in the lock-off position. If it still doesn't start, the carbon brushes may need replacement.

How often should I replace the carbon brushes?

Carbon brushes should be inspected every 50 hours of use or when you notice reduced performance. Replace them if they are worn to less than 6 mm length.

Can I use the drill for screwdriving?

Yes, set the torque clutch to a suitable setting for screwdriving to avoid stripping screws. Use the variable speed trigger for control.

What safety precautions should I take?

Always wear safety glasses and hearing protection. Unplug the drill when changing bits. Avoid wearing loose clothing. Secure the workpiece properly.

What is the warranty period?

The STHR202 comes with a 1-year warranty against manufacturing defects. Retain your proof of purchase.

Where can I find spare parts?

Spare parts can be ordered through authorized Stanley service centers or online. Common parts include chuck key, carbon brushes, and switch.

USER MANUAL STHR202 STANLEY

Line drawing of a Stanley electric drill with handle and base mount (no text or symbols)

Diagram of a mechanical or fluidic component with concentric layers and labeled parts (no text or symbols present)

* The picture above may differ slightly to actual unit.

STHR202 Rotary hammer

Technical data

Rotary hammer	STHR202
Power input	W	620
Voltage	V	220
Frequency	Hz	50
No-load speed	/min	0-1250
Impact rate	BPM	0-3900
Impact energy J	1.34
Modes		2
Max drilling capacity	mm
- Concrete		20
- Steel		13
- Wood		25
Weight	kg	2.6

Intended use

Your Stanley SDS plus rotary hammer is intended to drill holes in concrete, bricks, wood, and steel.

Safety instructions

General Power Tool Safety Warnings

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. NOTE: The term "residual current device (RCD)" may be replaced by the term "ground fault circuit interrupter (GFCI)" or "earth leakage circuit breaker (ELCB)".

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are

connected and properly used. Use of dust collection can reduce dust-related hazards.

1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

1. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

* Note: Mains voltage: When connecting to the mains, it is imperative to verify if the voltage of the mains matches that of the power tool. If the mains voltage exceeds the voltage indicated on the power tool, the user may become severely injured in an accident, and the tool may be damaged. On the contrary, if the mains voltage is lower than the voltage required by the tool, the motor may be damaged as a result. Thus, if it is not possible to verify the voltage, it is imperative not to plug in to the power source.

Hammer safety warnings

- Wear ear protectors. Exposure to noise can cause hearing loss.

◆ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

- Never use a chisel accessory in rotary mode. The accessory will bind in the material and rotate the drill.

Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.

- Avoid touching the tip of the drill bit after drilling so as to avoid scalding.

- The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

Safety of others

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

◆ Children should be supervised to ensure that they do not play with the appliance.

Other risks

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc. In spite of the application of the relevant safety regulations and the implementation of safety devices, certain risks cannot be avoided.

These are:

- Injuries caused by touching any rotating/moving parts. - Injuries caused when changing any parts, blades or accessories. - Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.

◆ Impairment of hearing.

- Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Labels on tool

The following symbols are shown on the tool:

WARNING! To reduce the risk of injury, the user must read the instruction manual.

Position of Date Barcode (Fig. C)

The Date Code (12), which also includes the year of manufacture, is printed into the housing.

Example:

2014 XX JN

Year of manufacturing

Electrical Safety

Your tool is double insulated; therefore no earth wire is required. Be sure to check that the power supply corresponds to the voltage on the rating plate. Corresponds.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Black and Decker Service Centre in order to avoid a hazard.

Using an Extension Cable

If it is necessary to use an extension cable, please used an approved extension cable that fits the tool's power input specifications (please refer to the technical data). The minimum cross-sectional area of the conducting wire is 1.5 sq. mm. Cables should be untangled before reeling up.

Please refer to the following table.

Cable cross-sectional area (mm2)		Cable rated current (Ampere)
0.75		6
1.00		10
1.50		15
2.50		20
4.00		25
Cable length (m)
		7.5	15	25	30	45	60
Voltage	Amperes	Cable rated current (Ampere)
115	0 - 2.0	6	6	6	6	6	10
	2.1 - 3.4	6	6	6	6	15	15
	3.5 - 5.0	6	6	10	15	20	20
	5.1 - 7.0	10	10	15	20	20	25
	7.1 - 12.0	15	15	20	25	25	-
	12.1 - 20.0	20	20	25	-	-	-
230	0 - 2.0	6	6	6	6	6	6
	2.1 - 3.4	6	6	6	6	6	6
	3.5 - 5.0	6	6	6	6	10	15
	5.1 - 7.0	10	10	10	10	15	15
	7.1 - 12.0	15	15	15	15	20	20
	12.1 - 20.0	20	20	20	20	25	-

Features (Fig. E)

This tool includes some or all of the following features.

1. Variable speed switch
2. Lock-on button
3. Mode selector
4. Tool clamp
5. Side handle
6. Depth stop

Assembly

WARNING! Before assembly, make sure that the tool is switched off and unplugged.

Attaching the Side Handle (fig. E)

WARNING! When drilling holes in concrete or bricks, please use the side handle for your safety.

• Turn the grip counterclockwise until you can slide the side handle onto the front of the tool.
  ◆ Rotate the side handle into the desired position.
  ◆ Tighten the side handle by turning the grip clockwise.

WARNING! When using the tool, remember to install the side handles properly.

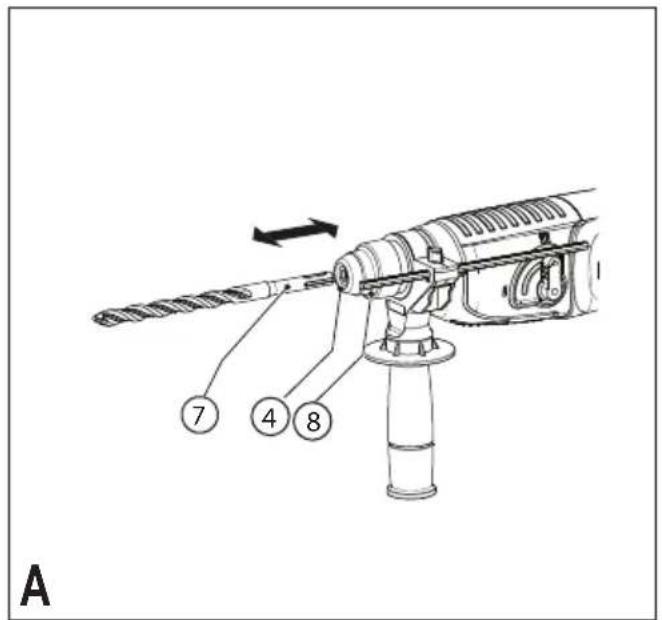

Fitting an accessory (fig.A)

◆ Clean and grease the shank (7) of the accessory.
◆ Insert the accessory bar into the tool clamp(4).
- Push the accessory down and turn it slightly until it fits into the slots.
◆ Pull on the accessory to check if it is properly locked. The hammering and drilling function requires the accessory to be able to move axially several centimetres when locked in the tool clamp.
◆ To remove the accessory, pull back the sleeve (8) and pull out the accessory from the tool clamp.

Use

WARNING! Please operate tool with normal load. Do not overload.

WARNING! Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.

Selecting the Operating Mode (fig. B)

The tool can be used in two operating modes. Based on actual work requirements, the drilling mode selector (3) can be rotated to the required position.

Hole drilling (Fig. B) (Fig. F)

For drilling in steel, wood and plastics, set the operating mode selector (3) to the ① position. At the same time, it is necessary to use a suitable drill chuck (13) (optional accessory) to clamp the attachment rod.

ENGLISH

- Insert the drill chuck (13) into the tool chuck (4) according to the instructions for installing attachments. Turn the drill chuck to loosen the clamps at the front-end of the drill-clamp, and insert the accessory bar (14) into the clamps and turn the chuck in the opposite direction. You may also use the drill chuck key to tighten the clamp.

Hammer drilling (Fig. B)

• For hammer drilling in masonry and concrete, set the operating mode selector (3) to the T1 position.
• The drill bit has to be placed accurately onto the drill hole position. After that, pull the switch for optimal effects. Make sure the tool is in the correct position to prevent the drill from deviating from the hole.
• When the drill hole is clogged with debris or fine powder, please don't exert any more pressure. Tool should be put in free-running state before removing part of the drill bit from the hole. If repeated a few times, the blockage in the hole would be cleared, and normal drilling can resume.

WARNING! When the drill bit hits cement or the steel rebar in the cement, the tool may recoil dangerously. Please hold the tool tightly in a balanced and stable position at all times to prevent it from recoiling dangerously.

Overload coupling device

If the drill bit his caught or hooked, the driving force transmitted to the drill shaft will be cut off. This would generate a strong recoil, so it would be necessary to hold the tool tightly with both hands to remain in a stable position.

Setting the drilling depth (Fig. E)

The depth stop is a convenient feature to ensure uniformity in drilling depth. Loosen the side handle to adjust the depth gauge according to the required depth. After that, tighten the side handle.

• Slacken the side handle (5) by turning the grip counterclockwise.
• Set the depth stop (6) to the required position. The maximum drilling depth is equal to the distance between the tip of the drill bit and the front end of the depth stop.
  ◆ Tighten the side handle by turning the grip clockwise.

Switching on and off

WARNING! Before plugging in to the power source, make sure the switch can be flipped freely, and can return to its original position once released.

◆ To switch the tool on, press the variable speed switch (1). The tool speed depends on how far you press the switch.
◆ As a general rule, use low speeds for large diameter drill bits and high speeds for smaller diameter drill bits.
- For continuous operation, press the lock-on button (2) and release the variable speed switch.

- To switch the tool off, release the variable speed switch. To switch the tool off when in continuous operation, press the variable speed switch once more and release it.

Accessories

The performance of your tool depends on the accessory used. Stanley accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.

Maintenance

Your Stanley corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. To ensure satisfactory operations, the tool must be maintained and cleaned regularly

WARNING! Before performing any maintenance on corded/cordless power tools:

◆ Switch off and unplug the appliance/tool.
- Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.
- Or run the battery down completely if it is integral and then switch off.
◆ Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
- Regularly clean the ventilation slots in your appliance/tool/charger using a soft brush or dry cloth.
◆ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
◆ Regularly open the chuck and tap it to remove any dust from the interior (when fitted).

Replace the carbon brush (Fig. D)

Lubrication

• Regularly replace and inspect the carbon brush. Once completely worn out by continuous wear and tear, it will have to be replaced. Must keep carbon brush clean and sliding freely within the brush holder. Both carbon brushes have to be replaced at the same time.
  ◆ Remove the fixed screws (9) on the carbon brush to remove the carbon brush (10) and brush holder.
• Remove the coil spring supporting the carbon brush (11) in the brush holder, and insert a new carbon brush that meets the specifications.
  ◆ Set up the brush holder again and return the supporting coil

spring to its original position.

Cleaning

WARNING! Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING! Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the material of the parts. Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into liquid.

Protecting The Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Stanley product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Please sort it out for separate recycling.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Some local governments may require the local or municipal waste disposal centers or retailers of new products to provide households with electronic product recycling services.
