G2003CSS - Cooker Avanti - Free user manual and instructions

Product Type	Freestanding Gas Cooker
Brand	Avanti
Model	G2003CSS
Width	20 inches (50.8 cm)
Depth	24 inches (61 cm)
Height	36 inches (91.4 cm)
Weight	120 lbs (54.4 kg)
Power Source	Natural Gas or LP Gas (with conversion kit)
Number of Burners	4 sealed gas burners
Burner BTU Output	9,500-12,000 BTU per burner
Oven Type	Gas oven with bake and broil functions
Oven Capacity	3.5 cubic feet
Oven Cleaning Method	Manual clean (non-self-cleaning)
ignition System	Electronic ignition (120V AC required)
Safety Features	Flame failure device on burners and oven
Control Panel	Front-mounted knobs for burners and oven
Oven Racks	2 standard oven racks
Burner Grates	Removable cast-iron grates
Broiler Drawer	Pull-out broiler drawer below oven
Spare Parts Availability	Available through Avanti customer service

Frequently Asked Questions - G2003CSS Avanti

How do I install the Avanti G2003CSS gas cooker?

Installation must be performed by a qualified professional. Ensure a gas supply line and a standard 120V outlet for the ignition are nearby. The unit requires proper ventilation. Consult the manual for clearance requirements and anti-tip bracket installation.

Can I convert this cooker from natural gas to LP (propane)?

Yes, the G2003CSS can be converted using an LP conversion kit (sold separately). The kit includes orifices and instructions. Conversion should be done by a licensed technician to ensure proper gas flow and safe operation.

Why won't the burners ignite?

Check that the unit is plugged in and the circuit breaker is on. Ensure the burner caps are properly seated and the igniter electrodes are clean. If the igniter clicks but no flame, the gas supply valve may be off or there is air in the line. Purge air by turning a burner on briefly.

How do I clean the oven?

The oven is not self-cleaning. For routine cleaning, wipe with a damp cloth and mild detergent. For stubborn spills, use a non-abrasive cleaner. Avoid harsh chemicals. The oven door can be removed for thorough cleaning. Always ensure the oven is cool before cleaning.

How do I adjust the oven temperature?

The oven temperature can be calibrated up to 35°F hotter or cooler. Access the calibration adjustment behind the oven thermostat knob. Turn the adjustment screw clockwise to decrease temperature or counterclockwise to increase. Use an oven thermometer to verify accuracy.

What size cookware is recommended?

Use flat-bottomed cookware that matches burner size. For best performance, pan diameter should not exceed the grate size by more than 1 inch. Avoid thin-bottomed pans that may cause excessive heat distribution issues.

The oven doesn't stay lit. What could be wrong?

This is often due to a faulty thermocouple (flame sensor) which shuts off gas if no flame is detected. Clean the thermocouple tip with fine sandpaper. If problem persists, it may need replacement. Also check the oven gas valve and ignitor.

How do I replace the oven light bulb?

Ensure the oven is cool and disconnected from power. Remove the lens cover (usually snapped or screwed). Replace with a 40-watt appliance bulb (halogen or incandescent). Do not use a standard bulb. Reattach the cover and restore power.

Is a child lock available?

This model does not have a specific child lock feature. For safety, consider using knob covers to prevent accidental activation. Always supervise children near the appliance.

Where can I find replacement parts?

Replacement parts such as burner grates, oven racks, igniters, and thermocouples can be ordered through Avanti's customer service or authorized dealers. Have your model number (G2003CSS) ready. Some parts are also available online through appliance parts retailers.

USER MANUAL G2003CSS Avanti

Line drawing of a vintage kitchen oven with four gas stove handles and front panel (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. AND SAVE FOR LOCAL GAS AND ELECTRICAL INSPECTOR'S USE.

Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Range Safety	4
Important Safeguides	5
The Anti-tip Bracket	6
Help Us Help You ...	7
Parts and Features	8 - 9
Before Using Your Gas Range	10 - 11
Important Precautions and Recommendations	12 - 14
How to use the top burners	15 - 16
How to use the Gas oven	17 - 19
Oven light	20
Care and Maintenance	22 - 25
Replacing the Oven Light	22
Leveling the Range	25
Anti-bracket installation	26
Troubleshooting Guide	27 - 28
Service for Your Appliance	28
Your Avanti Products Warranty	29
Instrucciones en Español	30 - 56
Registration Information and Registration Card	57

RANGE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol.

This symbol alerts you to potential hazards that can kill or injure you and others.

All safety messages will follow the Safety Alert Symbol and either the words

"DANGER", "WARNING" or "CAUTION". These words mean:

! DANGER !

Danger means that failure to heed this safety statement may result in severe personal injury or death.

! WARNING !

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IN THE COMMONWEALTH OF MASSACHUSETTS

• This product must be installed by a licensed plumber or gas fitter.
- When using ball-type gas shut-off valves, they shall be the T-handle type.
- A flexible gas connector, when used, must not exceed 3 feet in length.

BEFORE YOU BEGIN!

Installation of this range must conform with all local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1 / NFPA.54, latest edition.

In Canada, installation code, CAN/CGA-B149.1 or the current Propane installation code, CAN/CGA-B149.2, and with local codes where applicable.

Installation in Manufactured (Mobile) Homes:

The installation must conform with the Manufactured Home Construction and Safety standard, Title 24 CFR, Part 3280 [formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD (Part 280)} or, when such standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.

IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

DANGER

• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

• This appliance shall not be used for space heating. The surface unit should not be operated without cookware. This information is based on safety considerations.
• All openings in the wall behind the appliance and in the floor under the appliance shall be sealed.
• Keep appliance area clear and free from combustible materials, gasoline, and other flammable vapors.
• Do not obstruct the flow of ventilation air.
• Disconnect the electrical supply to the appliance before servicing.
• When removing appliance for cleaning and/or service:
• Disconnect AC power supply.
• Carefully remove the range by pulling outward.
  CAUTION: Range is heavy. Use care in handling.
• The misuse of oven door (e.g. stepping, sitting, or leaning on them) can result in potential hazards and/or injuries.
• When installing or removing the range for service, a rolling life jack should be used. Do not push against any of the edges of the range in an attempt to slide it into or out of the installation.
  Pushing or pulling a range (rather than using a lift jack) also increases the possibility of bending the leg spindles or the internal coupling connectors.
• It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.
• Never allow children to operate, play with or crawl inside the appliance.

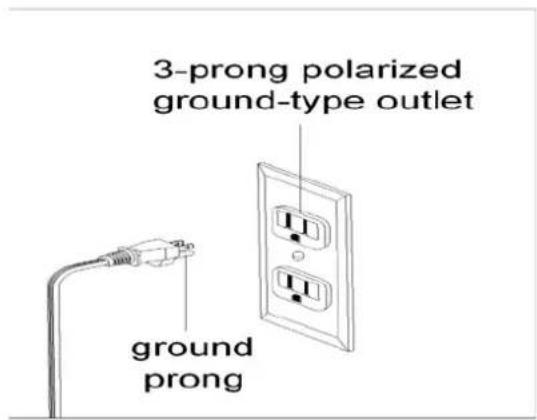

• Electrical Grounding Instructions - The appliance must be installed and grounded by a qualified technician in accordance with the National Electrical Code ANSI/NFPA No. 70 (Latest Edition) and local electrical code requirements.
• Replacement Parts – Only authorized replacement parts may be used in performing service on the range. Replacement parts are available from factory authorized parts distributors. Contact the nearest Avanti service center in your area.

THE ANTI-TIP BRACKET

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to the open door without the anti-tip bracket fastened down properly.

To reduce the risk of tipping the appliance, the appliance must be secured by properly installed anti-tip devices packed with the appliance.

	WARNING
	ALL RANGES CAN TIPINJURY TO PERSON COULD RESULTINSTALL ANTI-TIP DEVICE PACKED WITH RANGESEE INSTALLATION INSTRUCTIONS

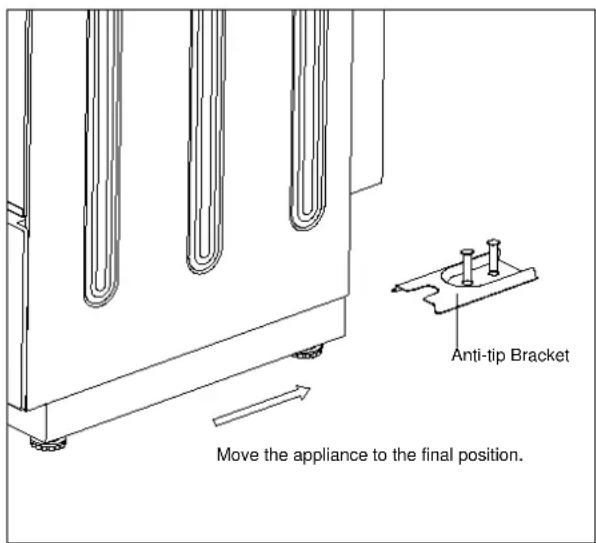

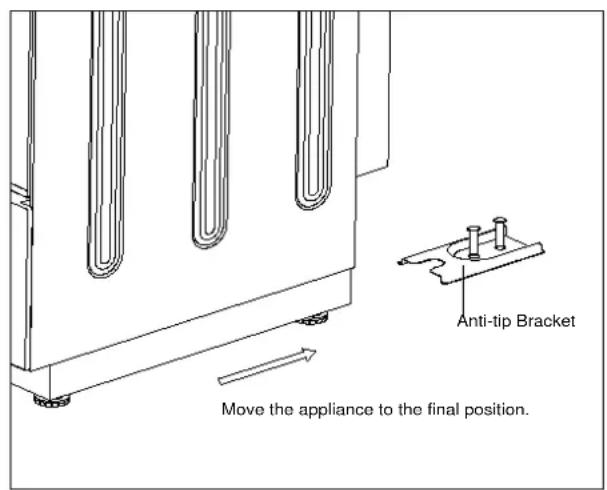

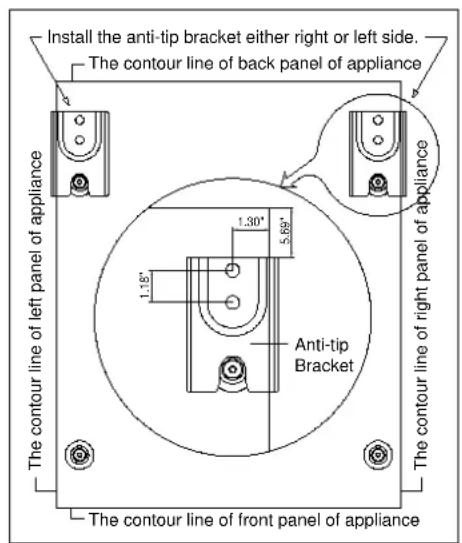

Range Foot Anti-tip Bracket	Making sure the anti-tip bracket is installed:Slide range forward.Look for the anti-tip bracket securely attached to floor.Slide range back so rear range foot is under anti-tip bracket.

WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

√ Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
√ WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

√ Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new Gas Range properly.

Keep it handy to answer your questions.

If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the front bottom wall of the Gas Range.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your Gas Range.

If you received a damaged Gas Range, immediately contact the dealer (or builder) that sold you the Electric Range.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your Gas Range. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172

PARTS & FEATURES

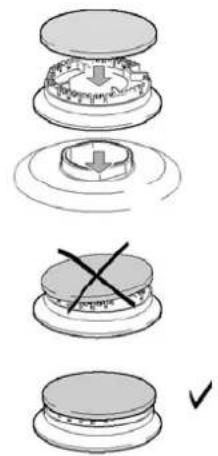

1 ^st STEP

Do not use

2nd STEP

3rd STEP

4^th STEP

Simple line drawing of a rectangular room with a central vertical structure and a suspended platform (no text or symbols)

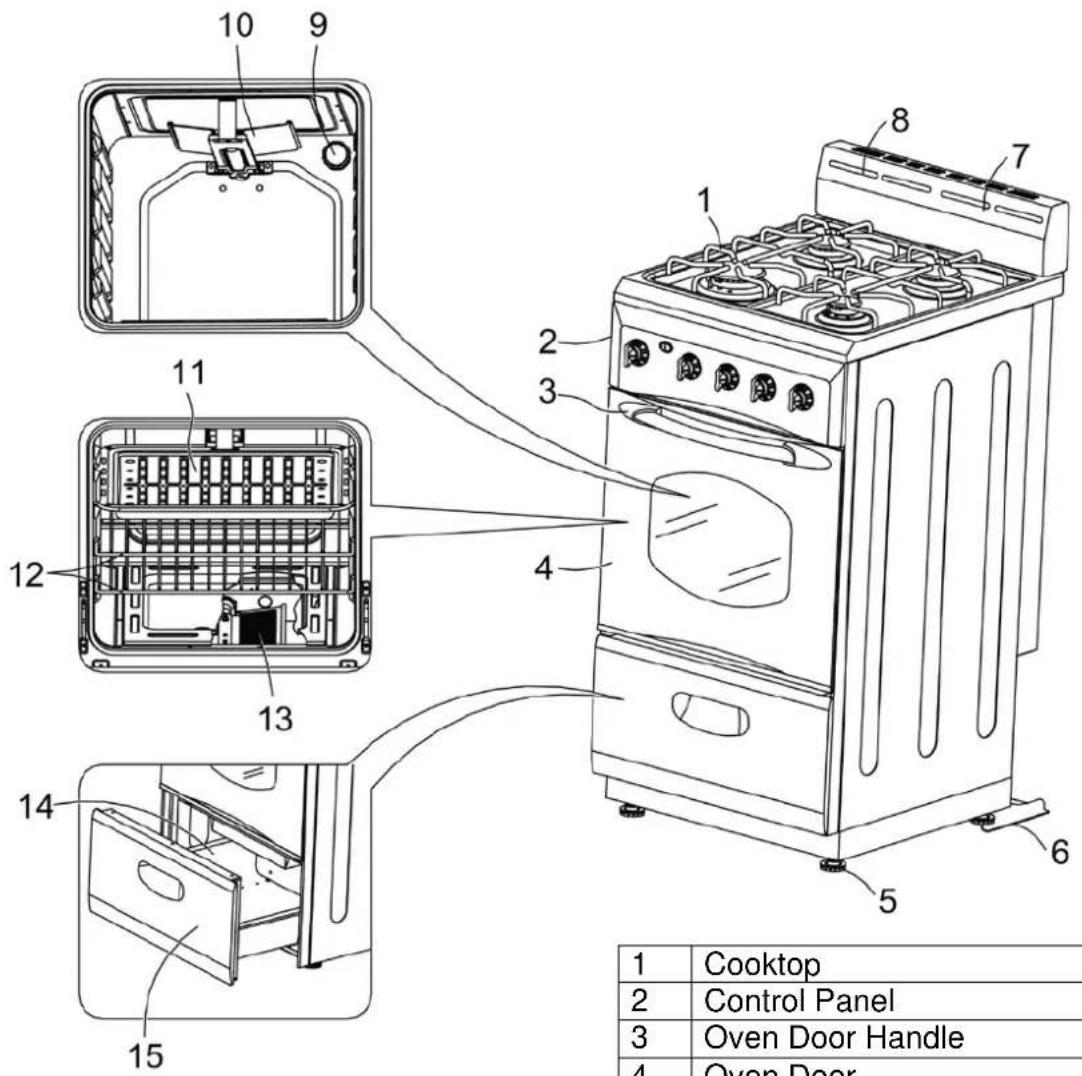

1	Cooktop
2	Control Panel
3	Oven Door Handle
4	Oven Door
5	Leveling Legs
6	Anti-tip Bracket
7	Backsplash
8	Oven Vent
9	Oven Light
10	Broiler Burner
11	Broiler Pan
12	Oven Racks (Total 2)
13	Bake Burner
14	Rating Plate Location

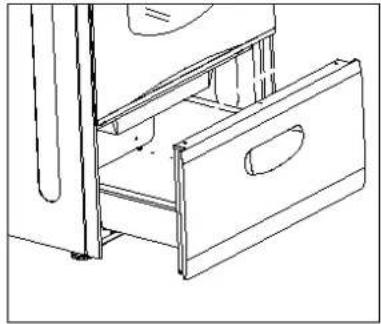

15	Removable Storage Drawer with Integrated Handle

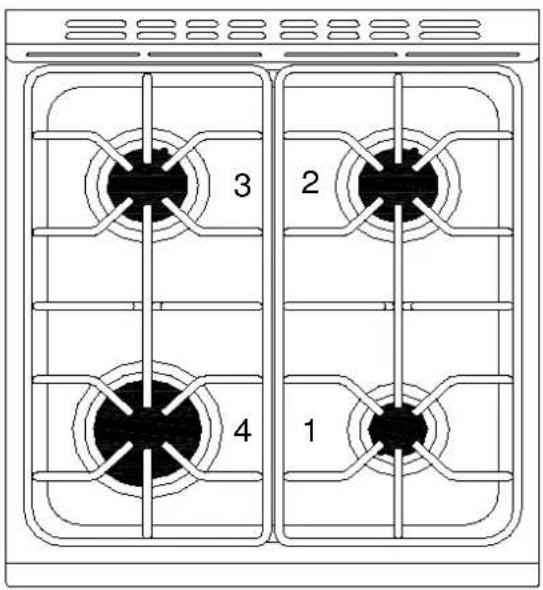

COOKTOP

1. Auxiliary burner (AUX) - 3000 BTU/hr
2. Right semi-rapid burner (SR) - 4600 BTU/hr
3. Left semi-rapid burner (SR) - 4600 BTU/hr
4. Rapid burner (R) - 8600 BTU/hr

Note:

-The electric gas-lighting device is incorporated into the knobs.

CAUTION:

If the burner is accidentally extinguished, turn the gas off at the control knob and wait at least 1 minute before attempting to relight.

CAUTION:

Gas appliances produce heat and humidity in the environment in which they are installed.

Ensure that the cooking area is well ventilated following national/local codes.

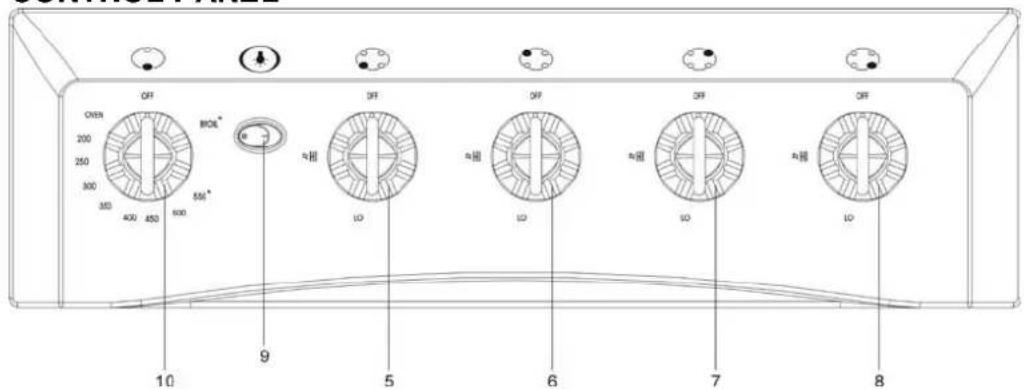

CONTROL PANEL

CONTROLS DESCRIPTION

Cooktop Controls		Oven Controls

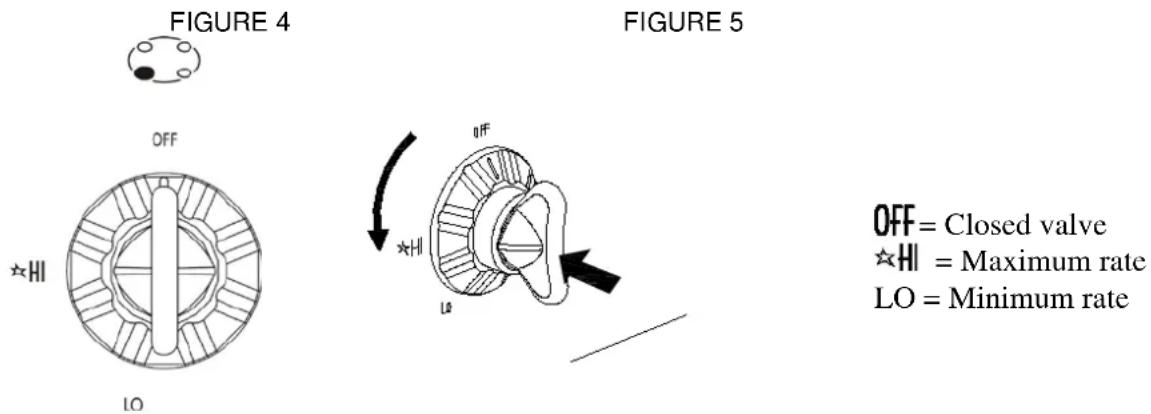

5	Front Left Burner Control Knob	9	Oven Light ON / OFF Switch

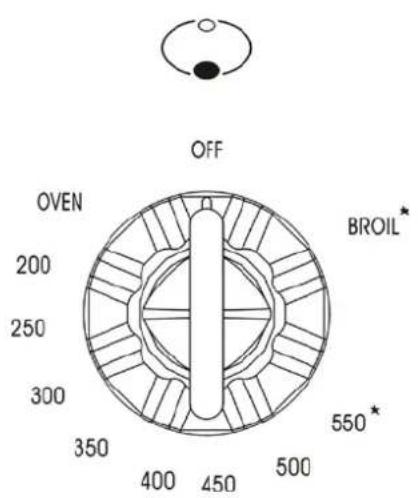

6	Rear Left Burner Control Knob	10	Oven Temperature Control Knob
7	Rear Right Burner Control Knob
8	Front Right Burner Control Knob

Improper installation, adjustment, alteration, services, or maintenance can cause injury or property damage. Consult a qualified installer, service agency, or the gas supplier.

Before Using Your Gas Range

√ Remove the exterior and interior packing.
√ Remove the protective film on steel and aluminum parts
√ Check to be sure you have all of the parts listed below

- Backsplash

● LP Gas Conversion Packet

- Anti-tip bracket

- 4 Leveling Legs

- 2 Cooking grids

- 2 Oven racks

● 4 Caps and bases in the burner assembly

- 5 Burner Knobs

- Broiler Tray

- Regulator

√ Clean the interior surface with lukewarm water using a soft cloth
√ Have the installer show you the location of the range's gas shut-off valve and how to shut it off if necessary.
√ Have your range installed and properly grounded by a qualified installer in accordance with the installation instructions.
√ Do not attempt to repair or replace any part of your range unless it is specifically recommended in this manual.
√ Be sure your range is correctly adjusted by a qualified service technician or installer for the type of gas (natural or LP) that is being used.
√ Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.
√ The installer should leave these instructions with the consumer who should retain for local inspector's use and for future reference.
√ Please observe all local and national codes and ordinances.

Important:

This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore CANNOT be used in a commercial environment.

The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. a semi commercial, commercial or communal environment.

Read the instructions carefully before installing and using the appliance.

CAUTION: this appliance must only be installed in a permanently ventilated room in compliance with the applicable regulations.

It is advised to follow these instructions:

√ Clean the interior of the oven with a clean cloth soaked in water and detergent (neutral, then dry carefully).
√ Furnish the interior of the oven by inserting the shelves and tray.
√ Turn the oven on to the maximum temperature to eliminate any possible traces of grease from the oven burner. The same operation should be followed for the broiler burner.

Assembling the Backsplash:

It is MANDATORY to install the backsplash as it also serves as the oven vent.

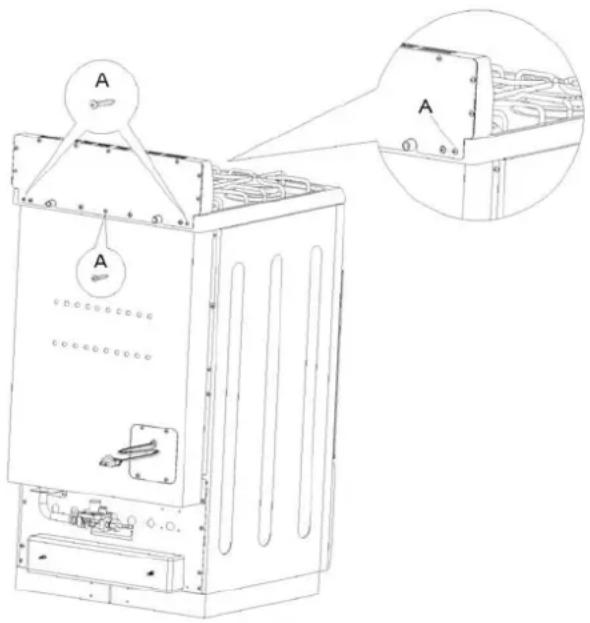

Assemble the backsplash as shown.

a) Screw the two (2) screws "A" in the appropriate holes on each side of the backsplash.
b) Screw the central screw in the middle portion of the backsplash.

PRECAUTIONS & RECOMMENDATIONS

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged and that the oven door closes correctly. In case of doubt, do not use it and consult your supplier or a professionally qualified technician.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.

The packaging material is recyclable and is marked with the recycling symbol ⚠.

√ Do not attempt to modify the technical characteristics of the appliance as this may cause danger to users.
√ Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.
√ If you should decide not to use this appliance any longer (or decide to substitute an older model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.

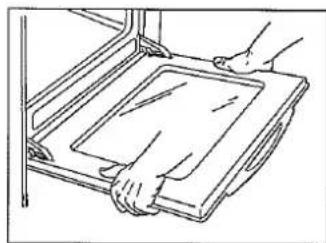

Remove the door before disposal to prevent entrapment..
After use, ensure that the knobs are in OFF position.
√ Do not allow children or other unqualified people to use the appliance without your supervision.
√ During and after use of the range, certain parts will become very hot. Do not touch hot parts.
√ Keep children away from the range when it is in use
√ Fire risk! Do not store flammable material in the oven or in the bottom drawer.
√ Make sure that electrical cables connecting other appliances in the proximity of the range cannot come into contact with the hob or become entrapped in the oven door.
√ Do not line the oven walls top and bottom with aluminium foil. Do not place shelves, pans, backing trays broil tray or other cooking utensils on the base of the oven chamber.
√ The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.
√ To avoid any possible hazard, the appliance must be installed by qualified personnel only. Any repairs by unqualified persons may result in electric shock or short circuit. In order to avoid possible injuries to your body or to the appliance, do not attempt any repairs by yourself. Such work should be carried out by qualified service personnel only.
√ Danger of burns! The oven and cooking accessories may become very hot during operation. Make sure children are kept out of reach and warn them accordingly. To avoid burns use kitchen clothes and gloves when handling hot parts or utensils.
√ Stand away from the range when opening oven door. Hot air or steam which escapes can cause burns to hands, face, and/or eyes.
√ Never clean the oven with a high-pressure steam cleaning device, as it may provoke a short circuit.
√ This appliance is intended for use in your household. Never use the appliance for any other purpose!

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR USE OF ELECTRICAL APPLIANCES

Use of any electrical appliance implies the necessity to follow a series of fundamental rules. In particular:

√ Never touch the appliance with wet hands or feet;
√ Do not operate the appliance barefooted;
√ Do not allow children or disabled people to use the appliance without your supervision.

The manufacturer cannot be held responsible for any damages caused by improper, incorrect or unreasonable use of the appliance

GENERAL INFORMATION

WARNING!!

1. This appliance shall not be used for space heating. This information is based on safety considerations.
2. All openings in the wall behind the appliance and in the floor under the appliance shall be sealed.
3. Keep appliance area clear and free from combustible materials, gasoline, and other flammable vapors.
4. Do not obstruct the flow of combustion and ventilation air.
5. Disconnect the electrical supply to the appliance before servicing.
6. When removing appliance for cleaning and/or service;

A. Shut off gas at main supply.
B. Disconnect AC power supply.
C. Disconnect gas line to the inlet pipe.
D. Carefully remove the range by pulling outward.

CAUTION: Range is heavy; use care in handling.

1. The misuse of oven door (e.g. stepping, sitting, or leaning on them) can result in potential hazards and/or injuries.
2. When installing or removing the range for service, a rolling lift jack should be used. Do not push against any of the edges of the range in an attempt to slide it into or out of the installation. Pushing or pulling a range (rather than using a lift jack) also increases the possibility of bending the leg spindles or the internal coupling connectors.

WARNING!!

ELECTRICAL GROUNDING INSTRUCTIONS

FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.

This appliance is equipped with a three-prong grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded socket. Do not cut or remove the grounding prong from the plug.

Do not under any circumstances cut or remove the third (ground) prong from the power plug. Electrical installation should comply with national and local codes.

REPLACEMENT PARTS

Only authorized replacement parts may be used in performing service on the range. Replacement parts are available from factory authorized parts distributors. Contact the nearest AVANTI parts distributor in your area.

CARBON MONOXIDE WARNING.

Carbon Monoxide is a possible danger when using any gas powered appliance.

All gas appliances MUST be installed by a licensed professional who is familiar with the Carbon Monoxide levels appropriate for each appliance.

The American Gas Association publishes CO emissions for appliances and heating equipment through the ANSI Std. Z21.1

The EPA reports that a maximum CO (Carbon Monoxide) level of 9 PPM over a 24 hour period is the residential interior ambient level standard.

( A properly ventilated home will have a normal CO level of less than 5 PPM.)

NON-VENTED GAS COOKING APPLIANCES:

In a residential application are normally used for a short period of time. The CO generated during the operation will disperse to the air in the home and be purged to the outside through the normal air exchange.

HOW TO USE THE TOP BURNERS

GAS BURNERS

Gas flow to the burners is adjusted by turning the knobs which control the valves. Turning the knob so that the indicator line points to the symbols printed on the panel achieves the following functions:

The maximum aperture position permits rapid boiling of liquids, whereas the minimum aperture position allows simmer warming of food or maintaining boiling conditions of liquids.

To reduce the gas flow to minimum, rotate the knob further counter-clockwise to point the LO position.

Other intermediate operating adjustments can be achieved by positioning the indicator between the maximum and minimum aperture positions, and never between the maximum aperture and OFF positions.

When the range is not being used, set the gas knobs to their OFF positions and also close the gas shut-off valve placed on the main gas supply line.

In order to light the burner, you must:

1 - Turn the knob in an anti-clockwise direction up to the ☆HI position (maximum rate), push in and hold the knob until the flame has been lit. The sparks produced by the lighter situated inside the relative burner will light the flame.

In the event that the local gas supply conditions makes it difficult to light the burner in HI position, try again with the knob in LO position.

2 - Adjust the gas valve to the desired position.

To re-light the burner, return the knob to the OFF position and repeat the operations for lighting.

Caution! The range becomes very hot during operation. Keep children well out of reach.

➢ CHOICE OF BURNER (Fig.6)

DIAMETERS OF PANS WHICH MAY BE USED ON THE TOP BURNERS
BURNER	MINIMUM	MAXIMUM
Auxiliary	4" 23/32 (12 cm)	5" 1/2 (14 cm)
Semirapid	6" 19/64 (16 cm)	9" 7/16 (24 cm)
Rapid	9" 7/16 (24 cm)	10" 15/64 (26 cm)
Do not use pans with concave or convex bases

The symbols printed on the panel above the gas knobs indicate the correspondence between the knob and the burner.

The most suitable burner is to be chosen according to the diameter and volume capacity of the container to be warmed.

It is important that the diameter of the pots or pans suitably match the heating potential of the burners in order not to jeopardize the efficiency of the burners, bringing about a waste of gas fuel.

A small diameter pot or pan placed on a large burner does not necessarily mean that boiling conditions are reached quicker.

Make sure that the handles of cookware do not stick out over the edge of the range, to avoid them being knocked over by accident. This also makes it more difficult for children to reach the cooking vessels.

Illustration of a child reaching for a window with a cross mark (no text or symbols)

High – Altitude effects on burners:

The surface burners used on this unit range from 3,000 BTU to 8,600 BTU on natural gas installation under 2,000 feet above sea level. Burner strength is de-rated by 4% per 1000 feet.

The gas oven is provided with two burners:

a) Oven burner, mounted on the lower part of the oven:

G2002CW/G2003CSS: 8800 BTU/hr

G2404CW/G2003CSS: 9500 BTU/hr

c) Broil burner, mounted on the upper part of the oven:

G2002CW/G2003CSS: 7200 BTU/hr

G2404CW/G2003CSS: 8000 BTU/hr

> USING THE OVEN FOR THE FIRST TIME

It is advised to follow these instructions

- Insert shelves and tray

• Turn the oven on to the maximum temperature (position 550) to eliminate possible traces of grease from the oven burner. The same operation should be followed for the broiler burner(knob on position BROIL)
• Switch off the electrical supply, let the oven cool down, then clean the interior of the oven with cloth soaked in water and detergent (neutral) then dry carefully.

OVEN BURNER

It carries out normal "oven cooking".

The gas flow to the burner is regulated by a thermostat which allow to maintain the oven temperature constant.

The control of the temperature is assured by a thermostatic probe positioned inside the oven.

The probe must be always kept in its housing, in a clean condition, as an incorrect position or encrustment may cause an alteration in the control of the temperature.

FIGURE 8

GAS OVEN SETTING
Number printed on the knob Temperature in °F	Corresponding temperature in °C
200	93
250	121
300	149
350	177
400	204
450	232
500	260
550	280

▶ OVEN THERMOSTAT

The numbers printed on the control panel (fig. 8) indicate the increasing oven temperature value (°F). To regulate the temperature, set the chosen number onto the control knob indicator. The position BROIL serves only to turn on the broil burner.

N.B. When the range is not being used, set the gas knobs to their OFF positions and also close the gas shut-off valve placed on the main gas supply line.

VERY IMPORTANT The oven/broil shall be used always with the door closed.

IGNITION OF THE OVEN BURNER

The thermostat allows the automatic control of the temperature.

The gas delivery to the oven burner is controlled by a two way thermostatic tap (oven and broil burners) with flame-failure device.

To light the oven burner operate as follows:

1) Open the oven door to its full extent.

WARNING: Risk of explosion! The oven door must be open during this operation.

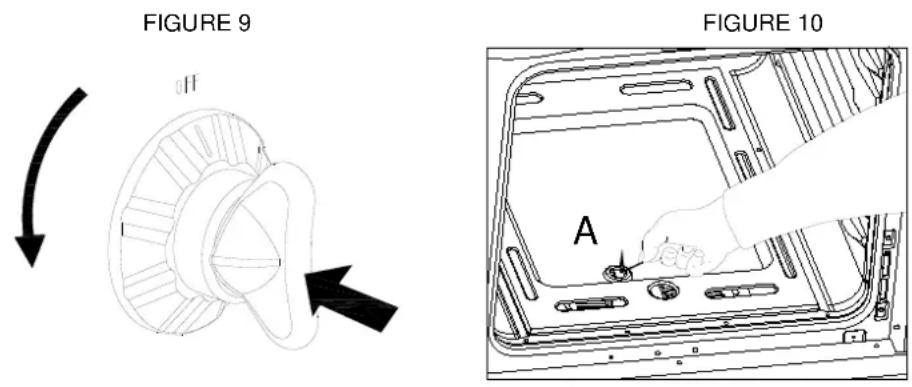

2) Lightly press and turn the thermostat knob anti-clockwise (fig. 9) to max position or 550°F

3) Press the knob right down to prime the electric ignition and the "Bi, Bi" sound will be heard and keep the knob pressed until the ovenl burner is lit.

In case of power cut, press the knob and immediately approach a lighted match to the opening “A” (fig. 10).

Never continue this operation for more than 15 seconds. If the burner has still not ignited, wait for about 1 minute prior to repeating the ignition.

4) For the first time to use or after long-time not used, wait about 10/15 seconds after the burner lighting before releasing the knob (time of priming of the valve).

Pus the Gas oven / gas broil burner control knob, the broil burner of the bake burner can be ignited automatically.

5) Close the oven door slowly and adjust the burner according to the power required. If the flame extinguishes for any reason, the safety valve will automatically shut off the gas supply to the burner.

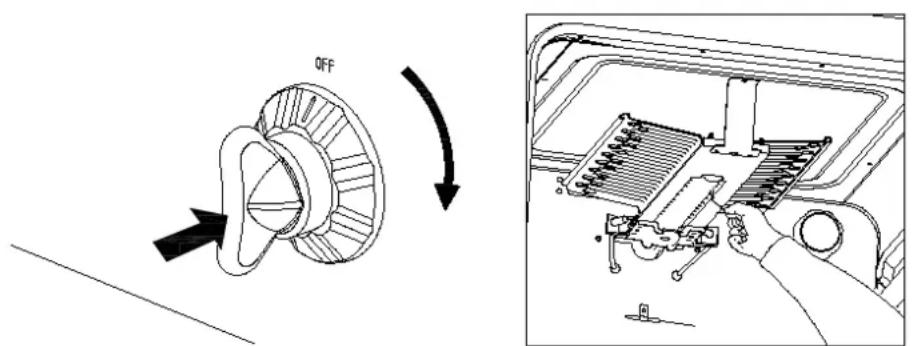

To re-light the burner, first turn the oven control knob to position OFF, wait for at least 1 minute and then repeat the lighting procedure.

Attention: the oven door becomes very hot during operation. Keep children away.

▶ OVEN COOKING

Before introducing the food, preheat the oven to the desired temperature

For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it together with the food, when the oven has reached the desired temperature.

Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

IGNITION OF THE BROIL BURNER

The broil burner generates the infra-red rays for broiling. To light the broil burner operate as follow:

1) Open the oven door to the full extent.

WARNING: Risk of explosion! The oven door must be open during this operation

2) Lightly press and turn the thermostat knob clockwise to the (fig. 11).

(FIGURE 11)
(FIGURE 12)

3) Press the knob right down to prime the electric ignition and the "Bi, Bi" sound will be heard and keep the knob pressed until the broil burner is lit.

In case of power cut, press the knob and put a lighted match to the right and left side of the burner (fig. 12).

Never continue this operation for more than 15 seconds. If the burner has still not ignited, wait for about 1 minute prior to repeating the ignition.

4) For the first time to use or after long-time not used, wait about 15 seconds after the burner lighting before releasing the knob (time of priming of the valve).

5) Close the oven door slowly.

If the flame extinguishes for any reason, the safety valve will automatically shut off the gas supply to the burner.

To re-light the burner, first turn the oven control knob to position OFF, wait for at least 1 minute and then repeat the lighting procedure.

Do always broil with oven door closed. Attention: the oven door becomes very hot during operation. Keep children away.

OVEN LIGHT

The range is equipped with a light that illuminates the oven to enable visually controlling the food that is cooking.

This light is controlled by a push button on the control panel (Fig. 13).

FIGURE 13

FIGURE 14

Technical line drawing of an aircraft cabin frame structure (no text or symbols)

1 ^st STEP Do not use

2nd STEP Broiling level

3 ^rd STEP Oven cooking level

4^th STEP Oven cooking level

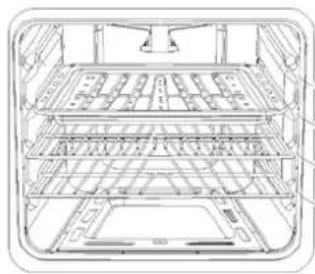

BROILING

Very important: the broil burner must always be used with the oven door closed.

Position the shelf on the second level from the top (fig. 14).

-Turn on the broil burner, as explained in the preceding paragraphs and let the broil burner preheat for about 5 minutes with the door closed.

-Place the food to be cooked above the broiling pan.

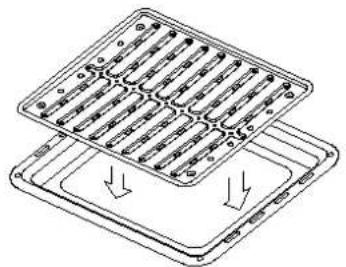

-Introduce the broiling pan in the oven (fig. 15). The broiling pan should be placed above the shelf and it should be centered with the broil burner (fig.14)

FIGURE 15

Isometric diagram of two stacked electronic components with internal parallel lines and downward arrows indicating flow or movement (no text or symbols)

Figure 16

Figure 17

WARNING!!

WARNING-VERY IMPORTANT NOTICE

Never obstruct the oven vent slots on the backsplash.

Do not broil without using the broiling pan.

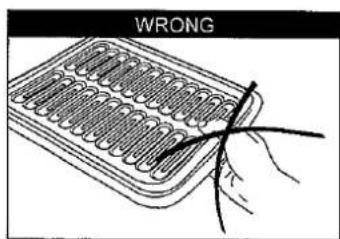

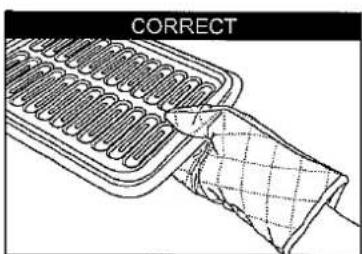

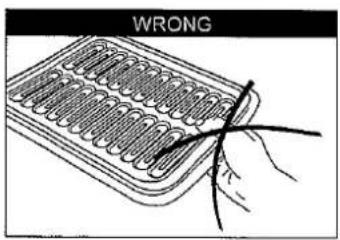

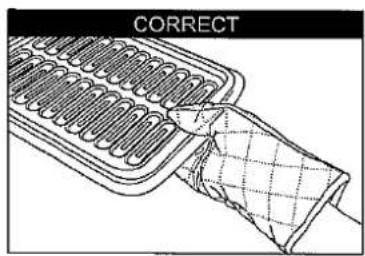

Important: Use always suitable protective gloves when inserting / removing the broiling pan, shelves, pans on other cooking utensils from the oven.

Attention: the range becomes very hot during operation.

Attention: the oven door becomes very hot during operation.

Keep children away.

WARNING: The door is hot, use the handle.

CARE & MAINTENANCE

GENERAL RECOMMENDATION

Figure 18

Figure 19

Important: Before any operation of cleaning and maintenance disconnect the appliance from the electrical supply.

It is advisable to clean when the appliance is cold and especially for cleaning the enameled parts. Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.

Avoid using cleaning products with a chlorine or acidic base.

The oven must always be cleaned after every use, using suitable products and keeping in mind that its operation for 30 minutes on the highest temperature eliminates most grime reducing it to ashes.

ENAMELED PARTS

All the enameled parts must be cleaned with a sponge and soapy water only or other non-abrasive products.

Dry preferably with a chamois leather.

If acid substances such as lemon juice, tomato conserve, vinegar etc. are left on the enamel for a long time they will etch it, making it opaque.

STAINLESS STEEL ELEMENTS

Stainless steel parts must be rinsed with water and dried with a soft and clean cloth or with a chamois leather.

For difficult dirt, use a specific non-abrasive product available commercially or a little hot vinegar.

Note: regular use could cause discoloring around the burners, because of the high flame temperature.

INSIDE OF OVEN

This must be cleaned regularly. With the oven warm, wipe the inside walls with a cloth soaked in very hot soapy water or another suitable product.

GAS VALVES

In the event of operating faults in the gas valves, call the Service Department.

NOTE: Oven bulb replacement is not covered by your guarantee.

Do not use steam jet cleaners because the humidity could infiltrate into the appliance making it dangerous.

BURNERS AND GRIDS

√ These parts can be removed and cleaned with appropriate products.
√ After cleaning, the burners and their flame distributors must be well dried and correctly replaced.
√ It is very important to check that the burner flame distributor and the cap has been correctly positioned - failure to do so can cause serious problems.
√ In appliances with electric ignition keep the electrode clean so that the sparks always strike.
√ Note: To avoid damage to the electric ignition do not use it when the burners are not in place.

CORRECT REPLACEMENT OF THE BURNERS

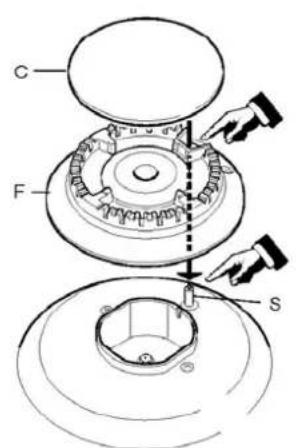

It is very important to check that the burner flame spreader "F" and the cap "C" have been correctly positioned (see figs. 20 and 21). Failure to do so can cause serious problems.

Figure 20

Figure 21

In appliances with electric ignition, check that the electrode "S" (fig. 20) is always clean to ensure trouble-free sparking.

The ignition plug must be very carefully cleaned.

➢ OVEN SHELF INSTALLATION AND REMOVAL

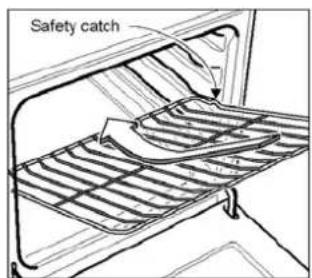

The oven shelves are provided with a security block to prevent accidental extraction. They must be inserted operating as per figure 22.

To pull them out remove shelf in the inverse order.

Keep attention to insert the shelves correctly (see side figure).

Figure 22

OVEN DOOR

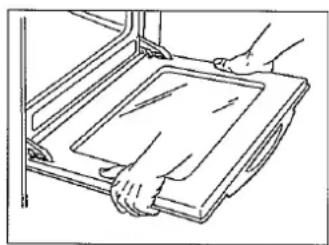

The internal glass of the oven door can be easily removed for cleaning by unscrewing the two lateral fixing screws (fig. 23).

Figure 23

Technical line drawing of a mechanical component or bracket (no text or symbols)

figure 24

Line drawing of a cabinet or drawer mechanism with handle and drawer (no text or symbols)

REMOVABLE STORAGE DRAWER

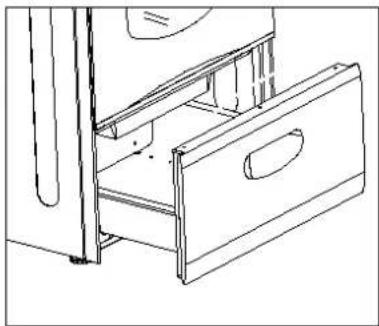

The drawer (fig. 24) comes out like a normal drawer. To remove the drawer open and lift it.

Do not store flammable material in the oven or in the bottom drawer.

REMOVING THE OVEN DOOR

To facilitate oven cleaning, it is possible to remove the door. Please follow the instructions carefully:

REMOVING THE OVEN DOOR

• The oven door can easily be removed as follows:
• Open the door to the full extent (fig. 25).
  – Attach the retaining rings to the hooks on the left and right hinges (Fig. 25a)
• Hold the door as shown in Fig. 25d.
  — Gently close the door and withdraw the lower hinge pins from their location (Fig.25b)
  – Withdraw the upper hinge pins from their location (Fig. 25c).
• Reset the door on a soft surface.
• To replace the door, repeat the above steps in reverse order.

Figure 25

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Figure 25a

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 25b

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Figure 25c

Technical line drawing of a mechanical bracket or bracket with no visible text or symbols

Figure 25d

Line drawing of hands placing a rectangular object on a tray (no text or symbols)

REMOVABLE STORAGE DRAWER

For cleaning, you can remove the drawer by pulling it out until the stop point and lifting it up. Never store any flammable material in the drawer.

Line drawing of a refrigerator drawer with handle and drawer (no text or symbols)

REPLACING THE OVEN LIGHT

Before any maintenance is started involving electrical parts of the appliance, it must be disconnected from the power supply.

• Let the oven cavity and broil burner cool down.
• Switch off the electric supply.
• Remove the protective cover.
• Unscrew and replace the bulb with a new one suitable for high temperature (200°F \~ 550°C) having the same specifications: 120V 60Hz, 15W, E14.
• Replace the protective cover.

NOTE: Oven bulb replacement is not covered by your guarantee.

LEVELING THE RANGE

The range must be level to obtain proper operating. The four screws type leveling legs located on the corners at the bottom of range should be adjusted by turning them clockwise to make the range higher or counter-clockwise to lower the range until the range is level. Use a level on surface units to check the leveling of the range (Please see Fig.26).

Figure 26

Simple line drawing of a vehicle on a ramp with a curved arrow indicating motion (no text or symbols)

ANTI-TIP BRACKET INSTALLATION

To reduce the risk of tipping the range by abnormal usage or improper door loading, the range must be secured by properly installing the anti-tip device packed with the appliance.

• Place the anti-tip bracket on the floor as shown figure. Anti-tip bracket can be installed on either right or left side.
  • Make the locations of 2 holes of ant-tip bracket on the floor.
• Use a 5/16" masonry drill bit and insert plastic anchor.
• Secure bracket to floor using screws supplied.
• Slide appliance into position.

NOTE: If range is relocated, the bracket must be removed and installed in new location.

PROBLEMS WITH YOUR GAS RANGE?

You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

FIND YOUR PROBLEM HERE	POSSIBLE CAUSE	HOW TO FIX IT
Surface burners do not light.	Surface control has not been completely turned to the ON position.	Push in and turn control to the ON position until burner ignites, then turn control to desired flame setting.
	Burner ports are clogged.	Use a small gauge wire or needle to open ports.
	Burners not positioned properly.	Verify that the burners are positioned properly on the orifice hoods and the burners are sitting flat on the burner support with tabs engaged in slots.
	Range not set for appropriate gas input.	See range conversion section of installation manual.
	Pilot lights won't light due to power failure.	Light pilots manually.
	Range power cord is disconnected from the outlet.	Be sure power cord is plugged into grounded outlet.
Flame burns halfway round.	Burner ports are clogged.	Use a small gauge wire or needle to open ports.
	Moisture is present after cleaning.	Lightly fan the flame and allow burner to operate until flame is full. OR dry burners thoroughly following instructions in range “Cleaning” section.
	Range is not set for appropriate gas input.	See range conversion section of installation manual.
Flame is orange.	Dust particles in main line.	Allow burner to operate for a few minutes until flame turns blue.
	Range is not set for appropriate gas input.	See range conversion section of installation manual.
Oven light does not work.	Burned out or loose bulb	Tighten or replace oven light bulb.
Oven or broiler does not heat.	Range is not set for appropriate gas input.	See range conversion section of installation manual.
	Temperature control not set properly.	Make sure temperature control is set at desired temperature.
	Pilot light will not light due to power failure.	Light pilots manually.
	House fuse has blown or circuit breaker has tripped.	Check/reset circuit breaker and/or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
	Range cord is disconnected from outlet.	Be sure the power cord is plugged into a grounded outlet.
Oven temperature is inaccurate.	Oven capillary bulb not positioned properly.	Verify that capillary bulb is snapped in clips straight and not touching sides or coated with oven cleaner or food.
	Temperature control not set properly.	Make sure the temperature control knob is set at the desired temperature.
	Improper use of foil.	Keep foil clear of holes in oven bottom and off of oven sides.
	Vent blocked.	Keep vent on backguard clear.
	Range not set for appropriate gas input.	See range conversion section of installation manual.
Smoke or odor on initial oven operation.	This is normal.
Range is not level.	Poor installation.	Place oven rack in center of oven. Place a level on the rack. Adjust leveling legs.
	Weak or unstable floor.	Be sure floor is level and can adequately support range. Contact carpenter to correct sagging or sloping floor.
	Kitchen cabinet misalignment may make range appear to be unleveled.	Be sure cabinets are square and have sufficient room for range clearance. Contact cabinet maker to correct problem
Oven smokes excessively.	Meat too close to broiler burner.	Reposition the broiler pan to provide more clearance between the meat and the broiler burner
	Meat not prepared properly.	Remove excess fat from meat.

SERVICE FOR YOUR GAS RANGE

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

YOUR AVANTI WARRANTY

LENGTH OF WARRANTY	WE WILL PAY FOR
FULL ONE YEAR WARRANTY FROM DATE OF PURCHASE ON ALL PARTS EXCEPT GLASS PARTS.IN RENTAL OR COMMERCIAL USE, THE WARRANTY PERIOD IS 90 DAYS.	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIALS OR WORKMANSHIP.SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.
FULL 30-DAY WARRANTY FROM DATE OF PURCHASE ON GLASS PARTS AND FINISH OF PORCELAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS	REPLACEMENT PARTS AND REPAIR LABOR TO CORRECT DEFECTS IN MATERIAL OR WORKMANSHIP.SERVICE MUST BE PROVIDED BY AN AUTHORIZED SERVICE COMPANY.
WE WILL NOY PAY FOR
A. Service calls to:1. Correct the installation of your range.2. Instruct you how to use your range.3. Replace house fuses or correct house wiring.4. Replace owner-accessible light bulbs.B. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for serviced calls to remote areas, including the state of Alaska.C. Pick up and delivery. Your range is designed to be repaired in the home.D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not mentioned in this manual.E. Repairs to parts or systems caused as a result of unauthorized modifications made to the appliance.F. Shipping and handling costs associated with the replacement of the unit.G. Repairs when your range is used in other than normal, single-family household use.

AVANTI PRODUCTS SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

This warranty is not valid outside the Continental United States.

Illustration of a child cleaning a large oven with a fire extinguisher (no text or symbols)

Isometric diagram of a layered electronic component with internal grid structure and downward arrows indicating assembly or movement (no text or symbols)

Figura 16

Figura 17

ADVERTENCIA!!

ADVERTENCIA-NOTA MUY IMPORTANTE

Figura 19

Before any operation of maintenance disconnect the appliance from the electrical mains supply.

Illustration of a macron with internal components and a cross mark, showing motion and assembly (no text or symbols)

PUERTA DEL HORNO

Technical line drawing of a mechanical assembly with mounting holes and a central component (no text or symbols)

figura 24

Line drawing of a refrigerator drawer with handle and door (no text or symbols)

GAVETA DE ALMACENAJE REMOVIBLE

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Figura 25a

Technical line drawing of a mechanical bracket assembly with no visible text or symbols

Figura 25b

Technical line drawing of a mechanical bracket or bracket assembly (no text or symbols)

Figura 25c

Technical line drawing of a mechanical component with no visible text or symbols

Figura 25d

Line drawing of a hand pressing down on a rectangular object with a lightning bolt symbol (no text or labels)

GAVETA DE ALMACENAJE REMOVIBLE

Line drawing of a refrigerator drawer with handle and door (no text or symbols)

REEMPLAZANDO LA LUZ DEL HORNO

Simple line drawing of a vehicle on a ramp with a curved arrow indicating motion (no text or symbols)

INSTALACION DEL ELEMENTO ANTI-VOLQUEO

Thank you for purchasing this fine Avanti products. Please fill out this form and return it within 100 days of purchase and receive these important benefits to the following address:

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152 USA

Protect your product:

We will keep the model number and date of purchase of your new Avanti Products product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

-(detach here)-

Avanti Registration Form

Name			Model #	Serial #
Address			Date Purchased	Store/Dealer Name
City	State	Zip	Occupation
			As Your Primary Residence, Do You:
Area Code	Phone Number		□Own □Rent

Did You Purchase An Additional Warranty: Your Age:

□Extended □Food Loss □None □under 18 □18-25 □26-30

Reason For Choosing This Avanti Product:

Please indicate the most important factors that influenced your decision to purchase this product.

□Price

□Product Features

□Avanti Products Reputation

□Product Quality

□Salesperson Recommendation

□Friend/Relative Recommendation

□Warranty

□Other

Marital Status:

□Married □Single

Is This Product Used In The:

□Home □Business

How Did You Learn About This Product:

□Advertising

□In Store Demo □Personal Demo

□Other_

Comments

PRINTED IN CHINA
