Product Type	LED Television
Screen Size	32 inches (80 cm)
Display Resolution	1366 x 768 (HD Ready)
Refresh Rate	60 Hz
Smart TV	No (Standard TV)
Wi-Fi	Not included
USB Ports	1 x USB 2.0
HDMI Inputs	2 x HDMI
Composite Video Input	1 x shared (AV)
VGA Input	1 x VGA (D-Sub)
Audio Output	Digital optical audio out, headphone jack
Tuner	ATSC (digital) / NTSC (analog)
Power Consumption	50 W (typical), 0.5 W standby
Power Supply	AC 120 V, 60 Hz
Dimensions (Without Stand)	28.9 x 17.2 x 3.1 in (73.4 x 43.7 x 7.9 cm)
Dimensions (With Stand)	28.9 x 18.9 x 6.3 in (73.4 x 48.0 x 16.0 cm)
Weight (Without Stand)	9.9 lb (4.5 kg)
Weight (With Stand)	10.8 lb (4.9 kg)
VESA Mount Pattern	100 x 100 mm
Remote Control	IR remote included (requires 2 x AAA batteries)
Wall Mount Compatibility	Yes (VESA 100x100)
Energy Star Certified	Yes

Frequently Asked Questions - NS-32DD220NA16 INSIGNIA

How do I connect my cable box to the TV?

Connect the cable box to the TV using an HDMI cable (recommended) or composite AV cables. Use the HDMI 1 or 2 port on the back of the TV, then press INPUT on the remote to select the correct source.

Why is there no sound from the TV?

First, check the volume level and make sure the TV is not muted. If using external speakers, verify connections. Also, ensure the audio output setting is correct (e.g., TV speakers or external). Try a different source to isolate the issue.

How can I mount the TV on the wall?

The TV supports a VESA 100x100 mm mount. Use a compatible wall mount kit. Remove the stand, attach the mounting brackets to the TV, then secure to the wall. Ensure the wall can support the weight (about 10 lb).

What is the native resolution of the TV?

The native resolution is 1366 x 768 pixels (HD Ready). This is the optimal resolution for displaying content. Higher resolution signals will be downscaled.

Can I use a USB flash drive to play media?

Yes, insert a USB drive into the USB port. Use the remote to select USB source. The TV supports playback of photo (JPEG), music (MP3), and video files (AVI, MP4, etc.). Check the manual for supported formats.

How do I perform a factory reset?

Press MENU on the remote, navigate to Settings > System > Reset & Admin > Factory Reset. Confirm to reset all settings to default. This will erase all custom settings.

What should I do if the screen is black but I hear sound?

Check if the Backlight setting is too low. Press MENU, go to Picture settings, and increase Backlight. Also, ensure the input source is correct. If issue persists, try a different HDMI cable or device.

Does this TV support 4K or HDR?

No, this is an HD Ready TV with a 1366x768 resolution. It does not support 4K or HDR content. It will accept 1080p signals but display them at its native resolution.

How do I set up parental controls?

Press MENU, go to Settings > Parental Controls. You may need to enter a PIN (default is usually 0000). From there you can block channels or set rating limits.

Why is the remote not working?

First, check the batteries (2 x AAA) or replace them. Ensure there is a clear line of sight between the remote and the TV sensor. Try pressing the Power button on the TV itself to test if the TV works. If only the remote fails, it may need replacement.

USER MANUAL NS-32DD220NA16 INSIGNIA

Important Safety Instructions 2

WARNING 2

CAUTION 3

Introduction 5

INlink 5

Game mode 5

Installing the stands or wall-mount bracket 6

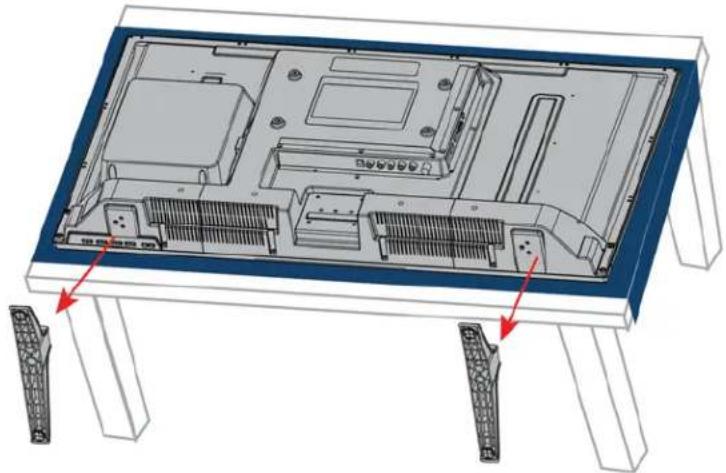

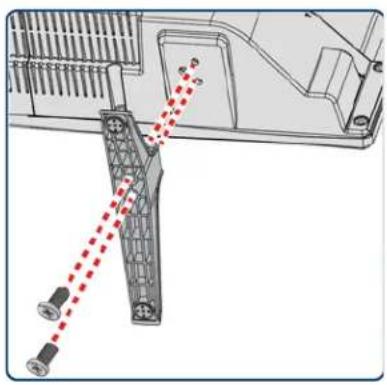

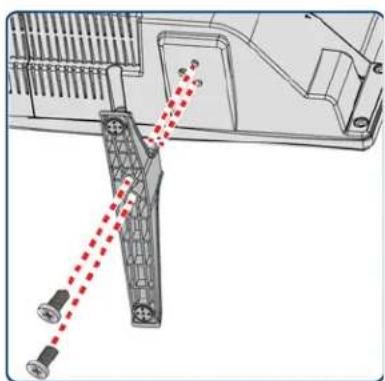

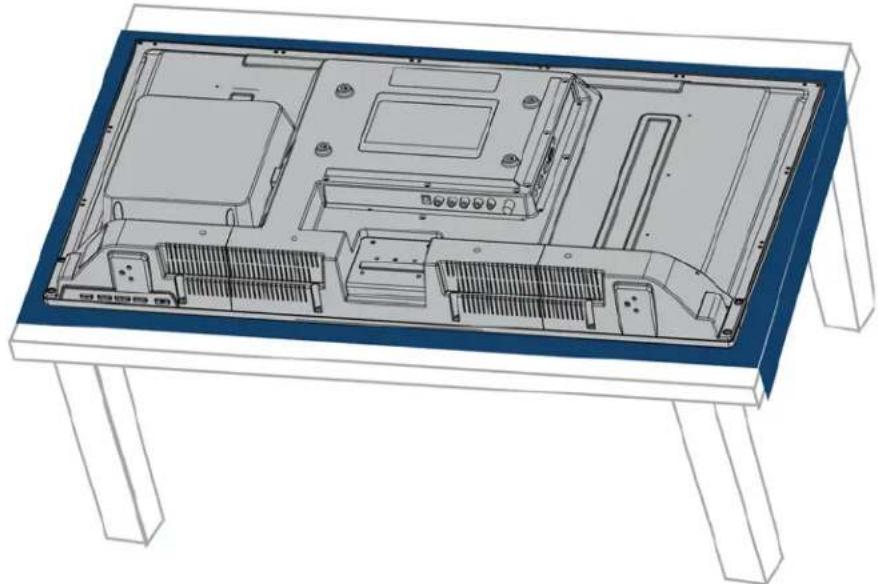

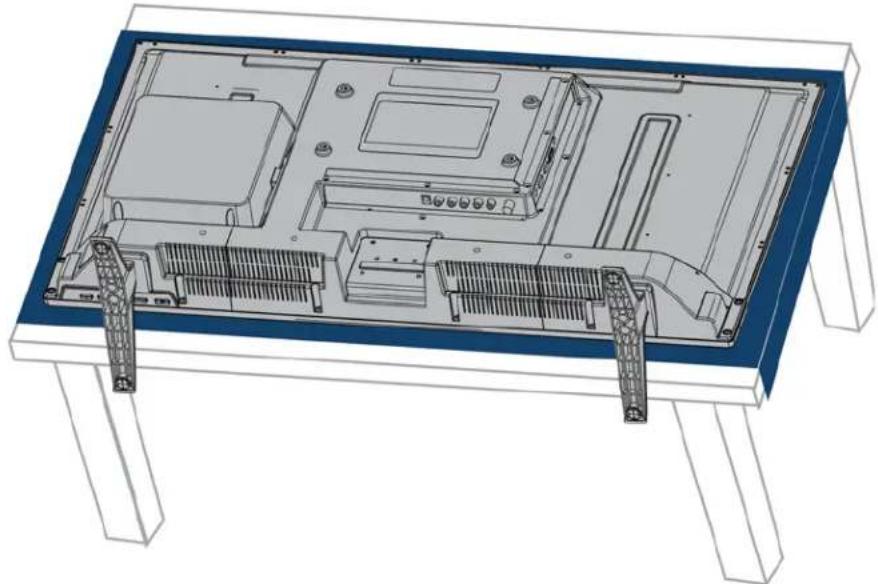

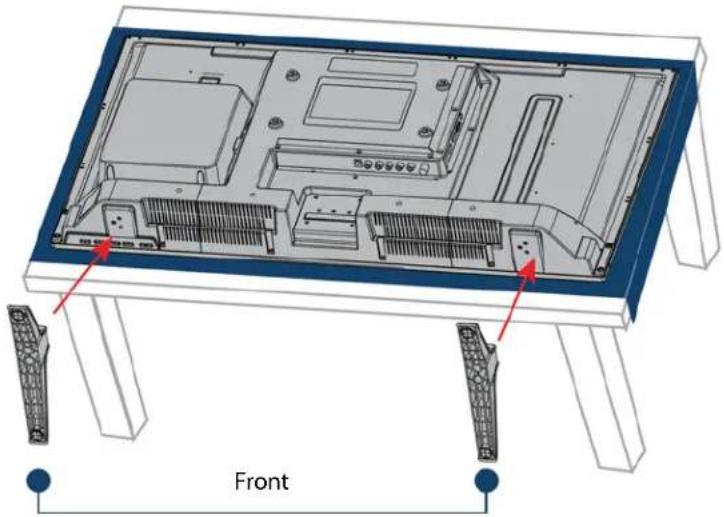

Installing the stands 6

Installing a wall-mount bracket 8

TV components 10

Package contents 10

Front features 10

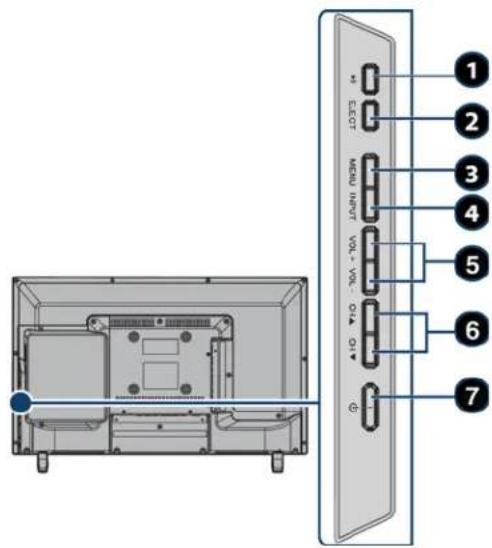

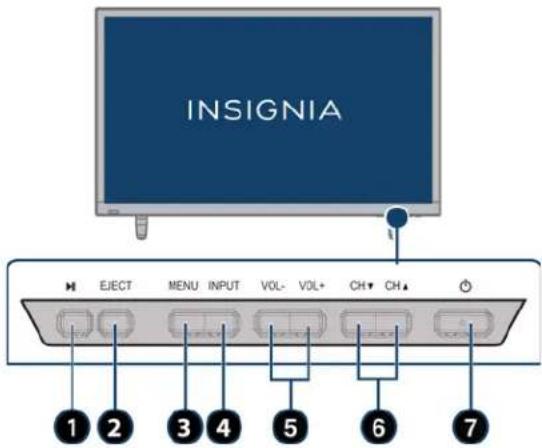

TV buttons 11

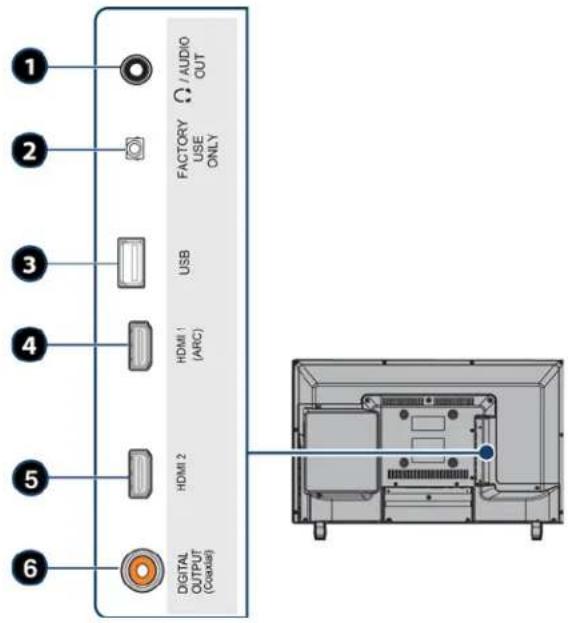

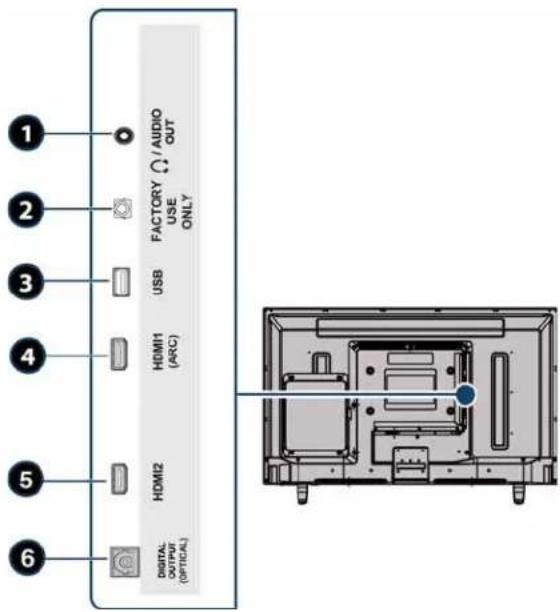

Left side jacks 12

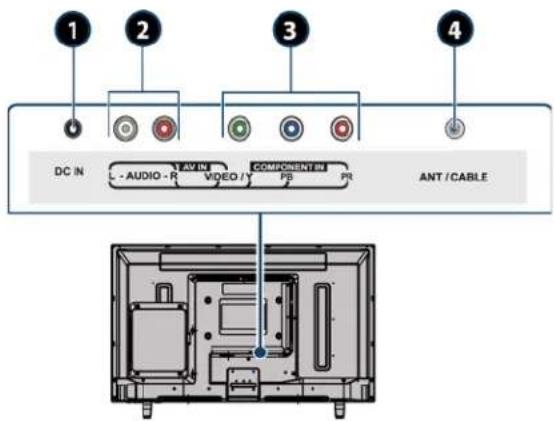

Back jacks 13

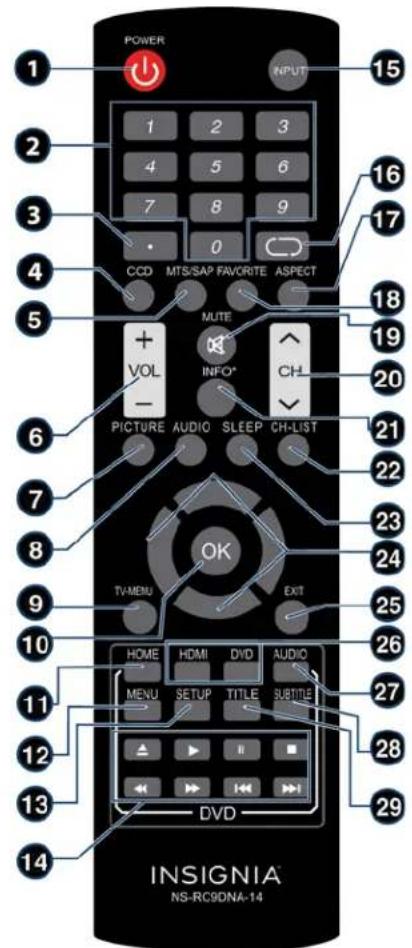

Remote control 14

What connection should I use? 15

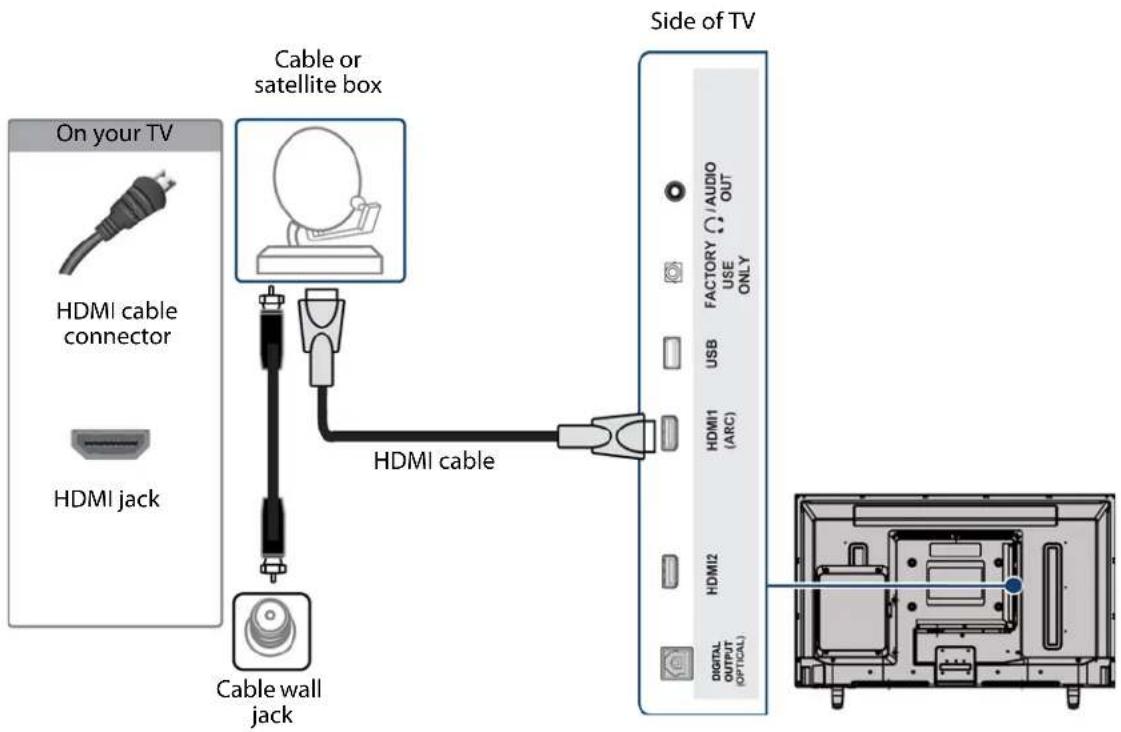

Connecting a cable or satellite box 16

HDMI (best) 16

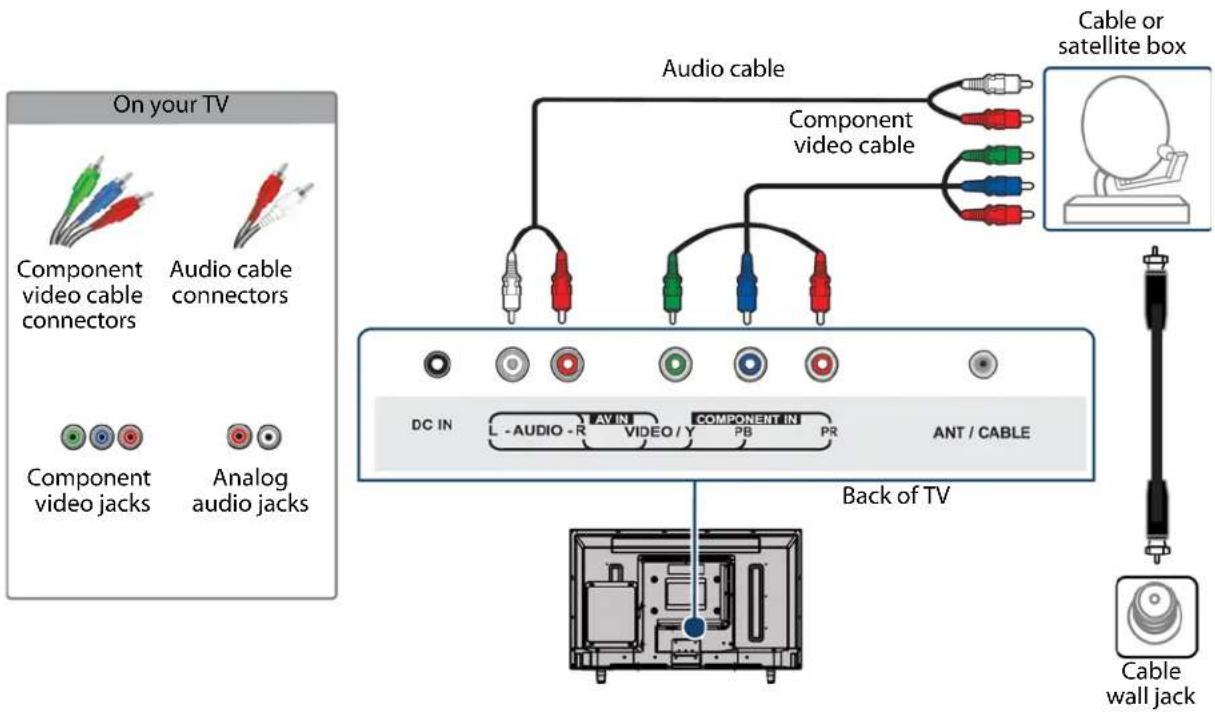

Component video (better) 17

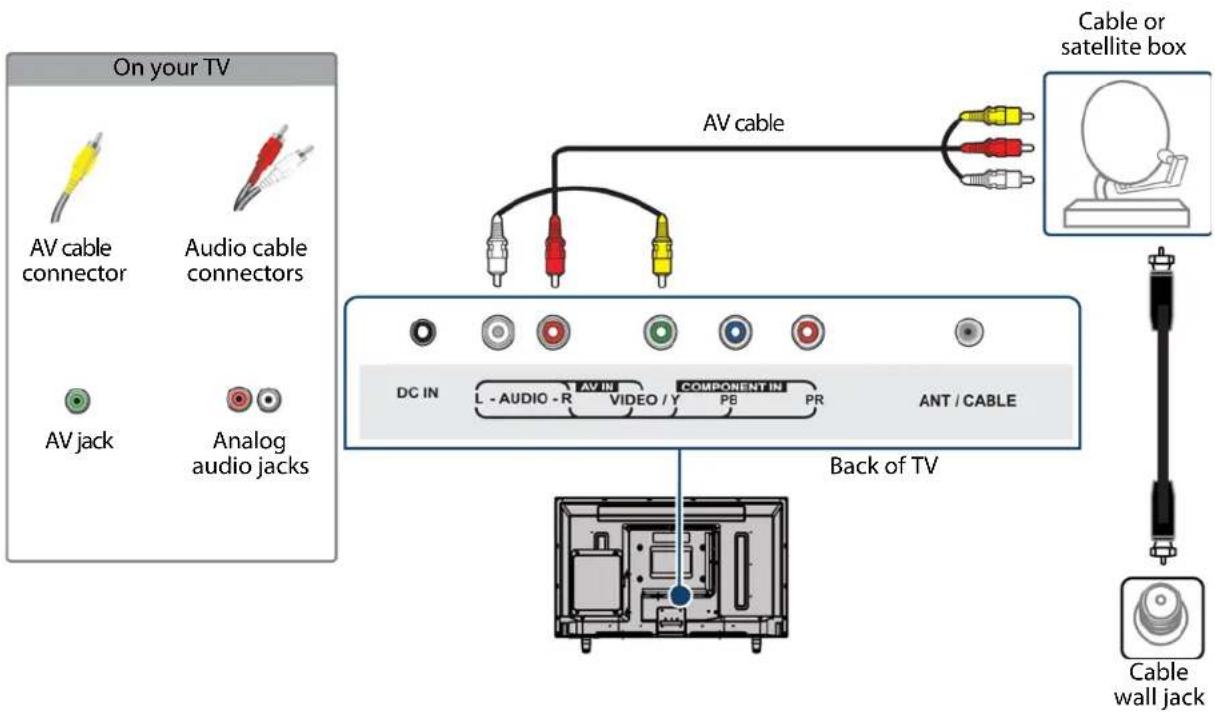

AV (composite video) (good).... 18

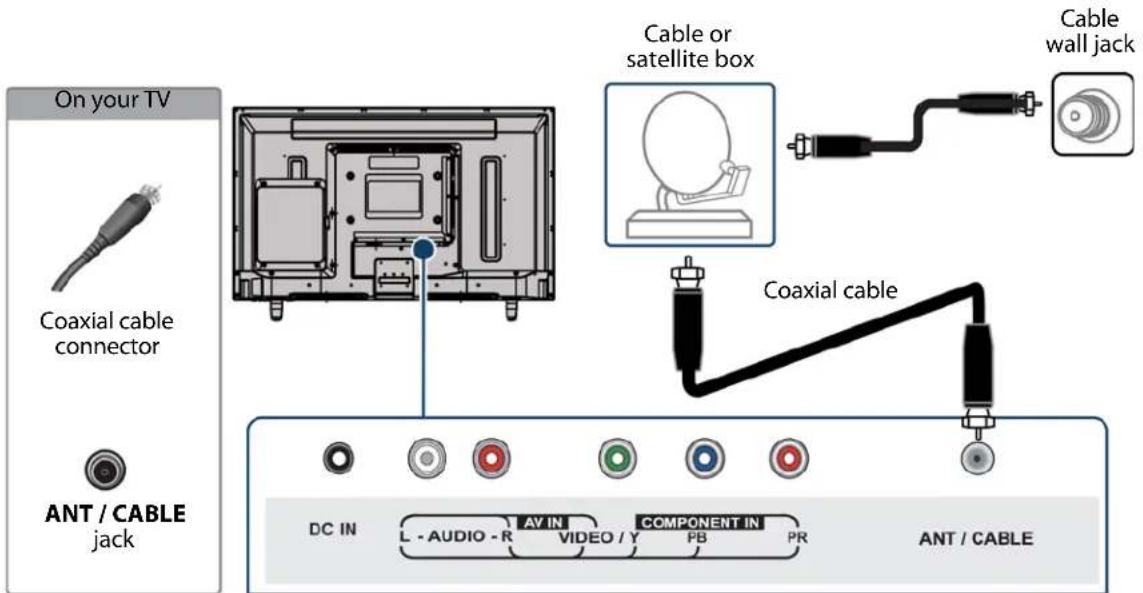

Coaxial (good).... 19

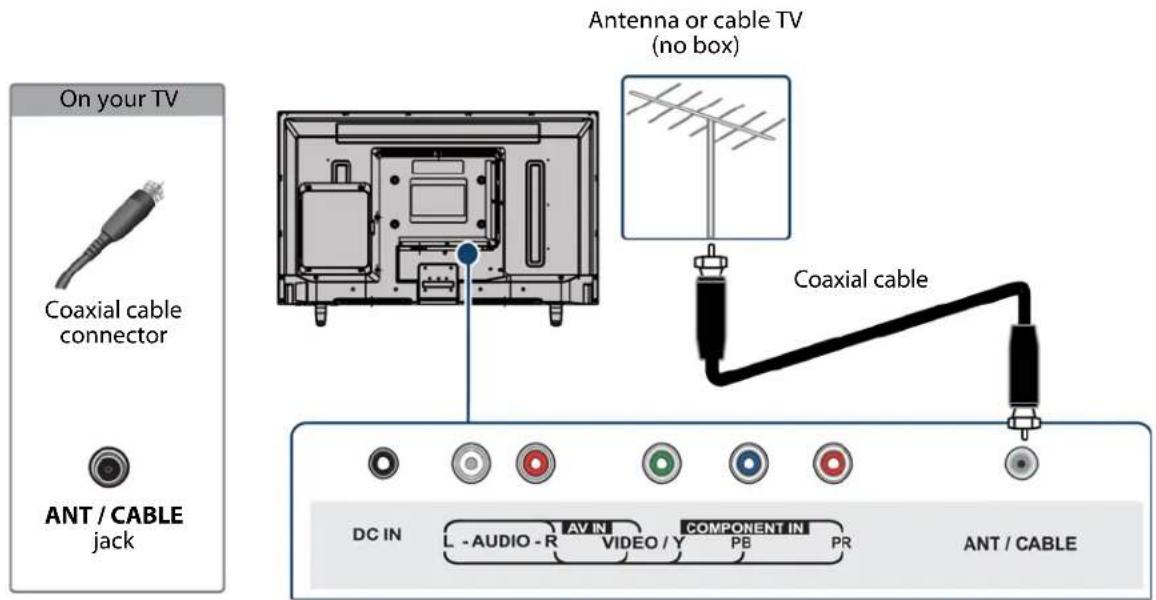

Connecting an antenna or cable TV (no box) 20

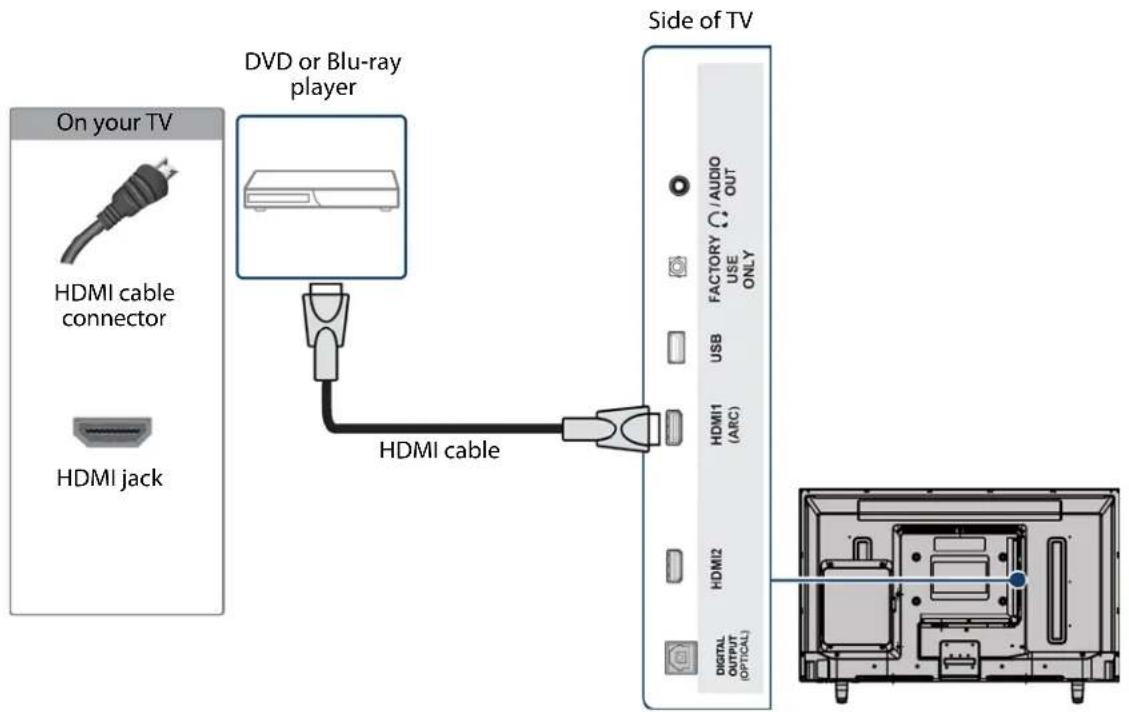

Connecting a DVD or Blu-ray player 21

HDMI (best) 21

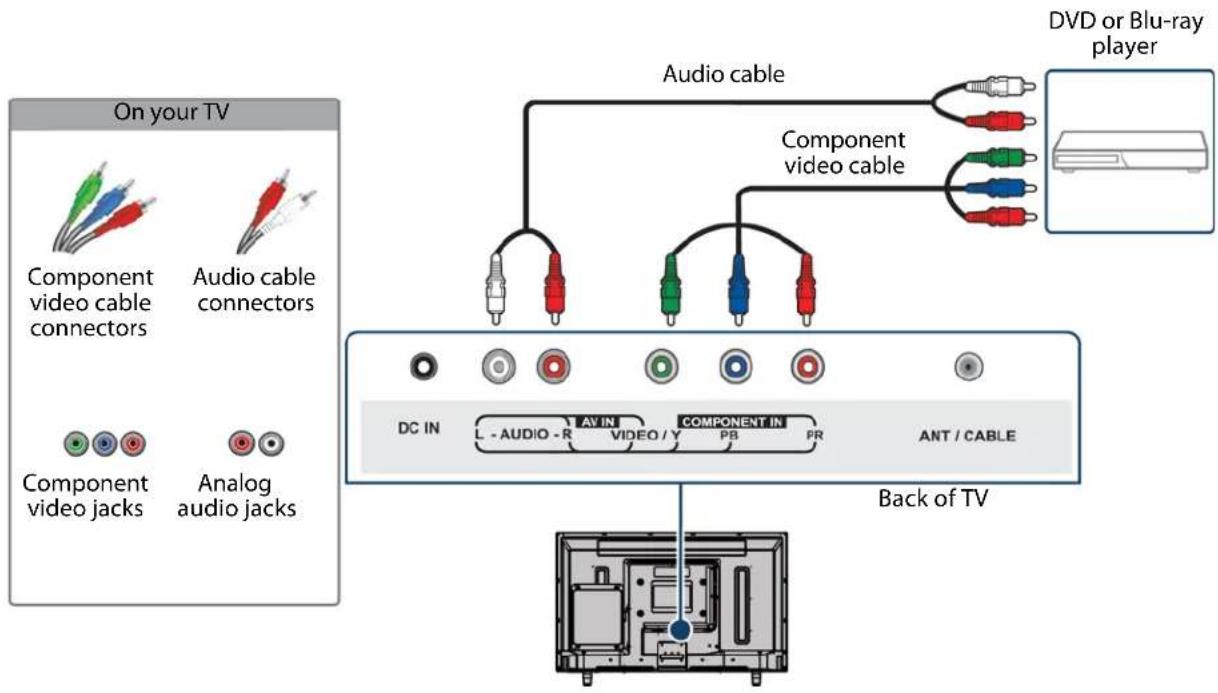

Component video (better) 22

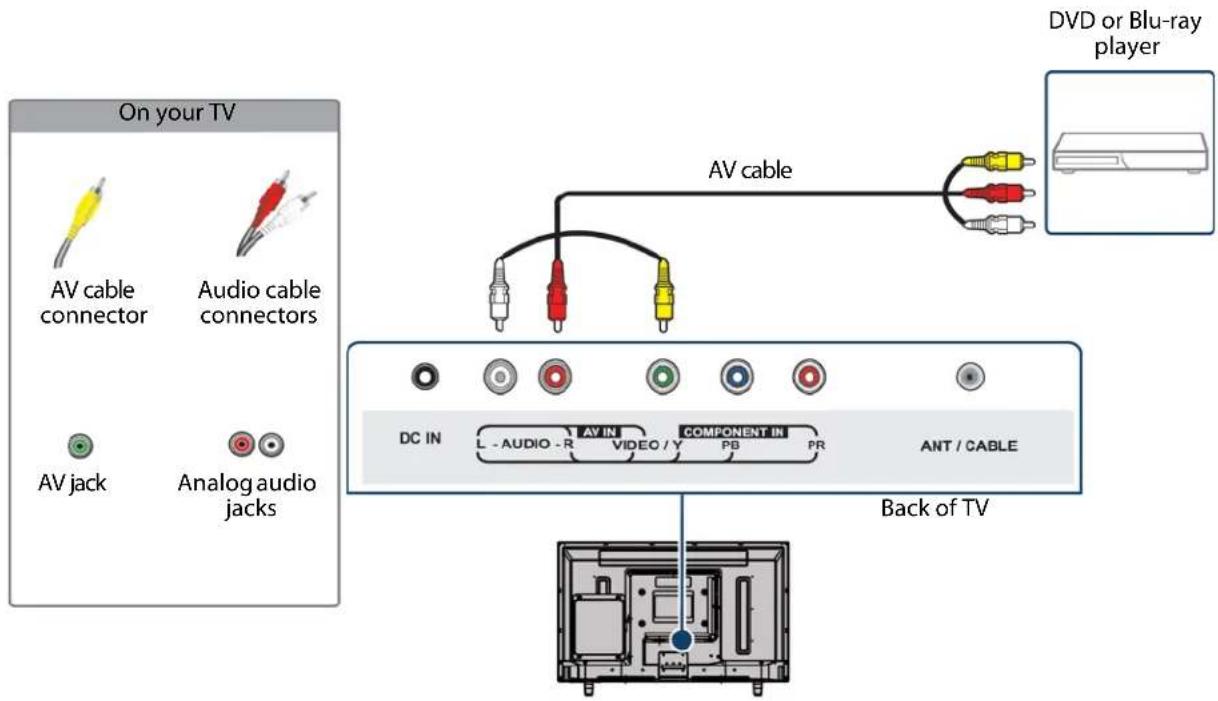

AV (composite video) (good) 23

Connecting a game console 24

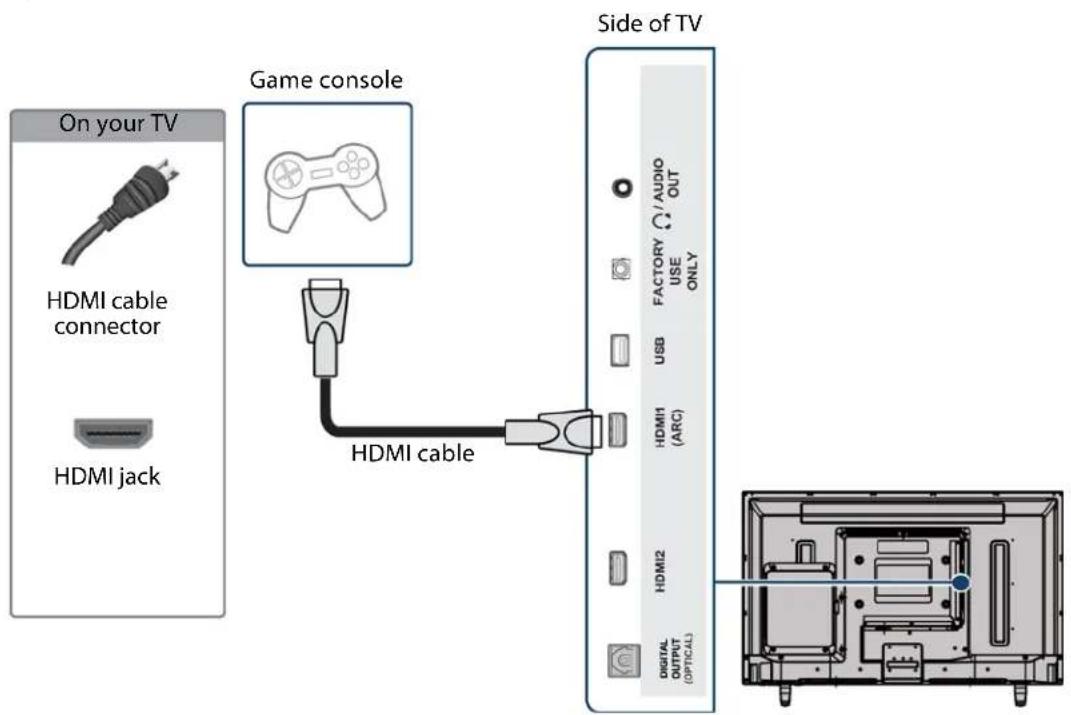

HDMI (best) 24

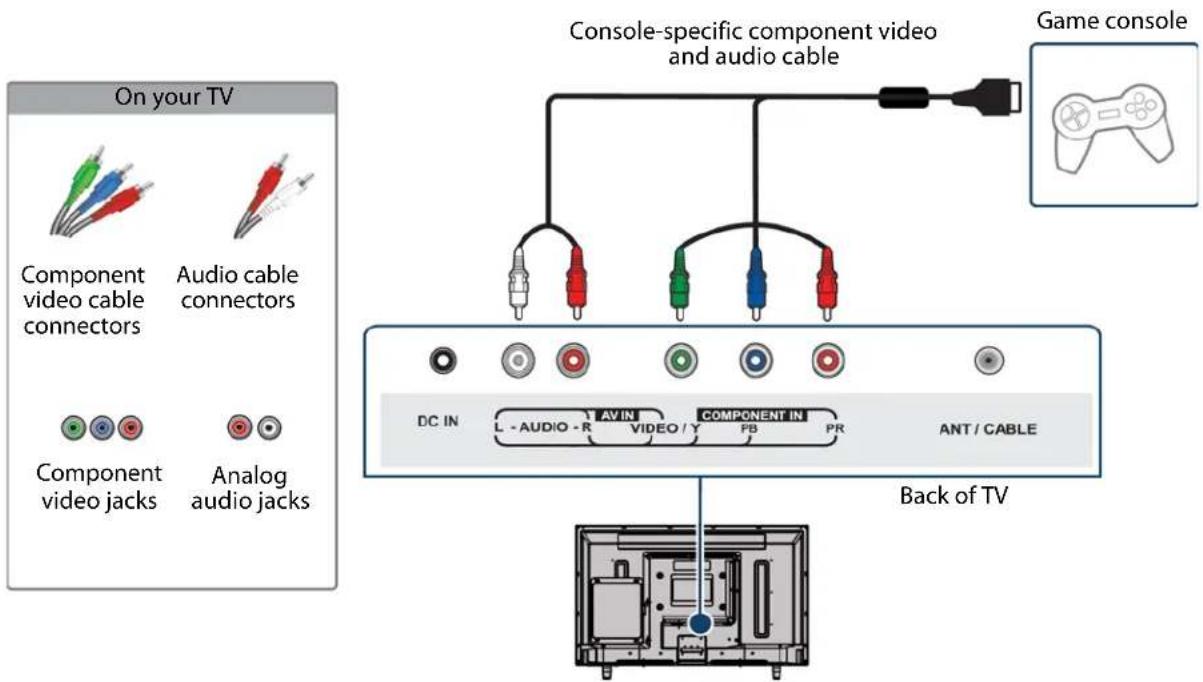

Component video (better) 25

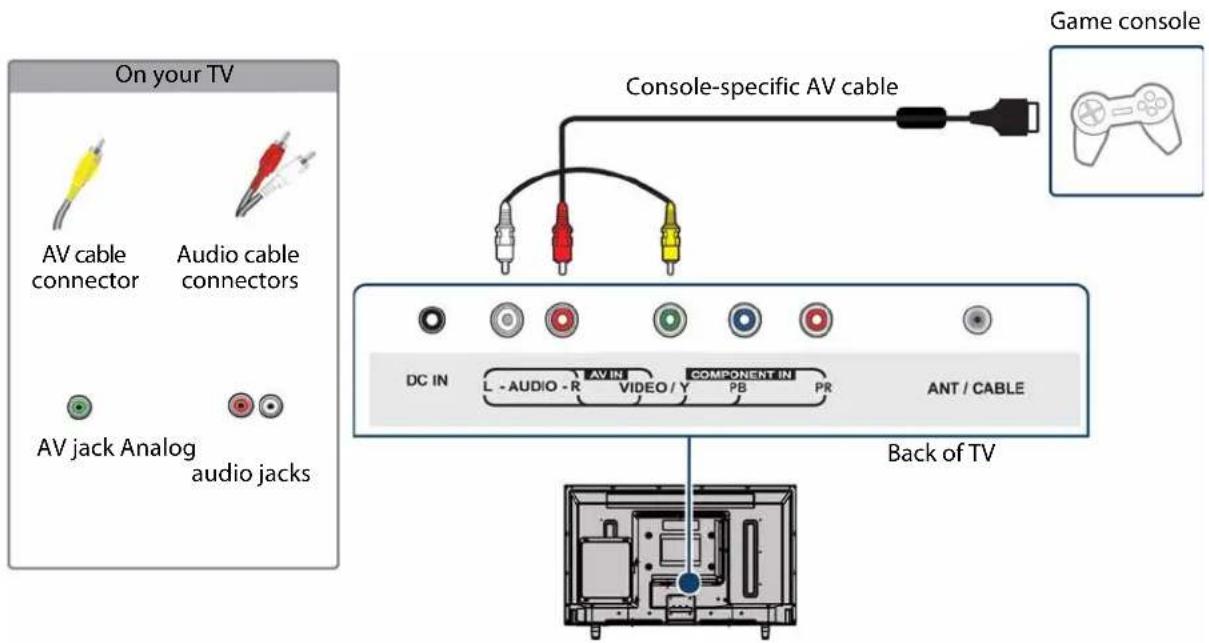

AV (composite video) (good) 26

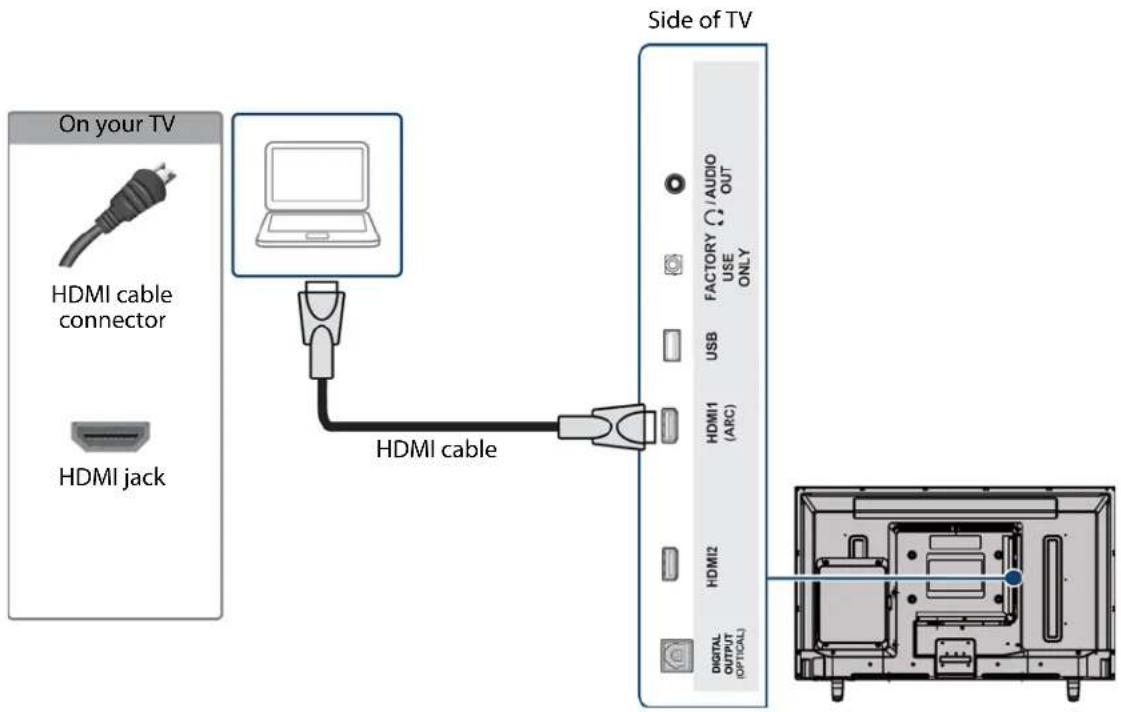

Connecting a computer 27

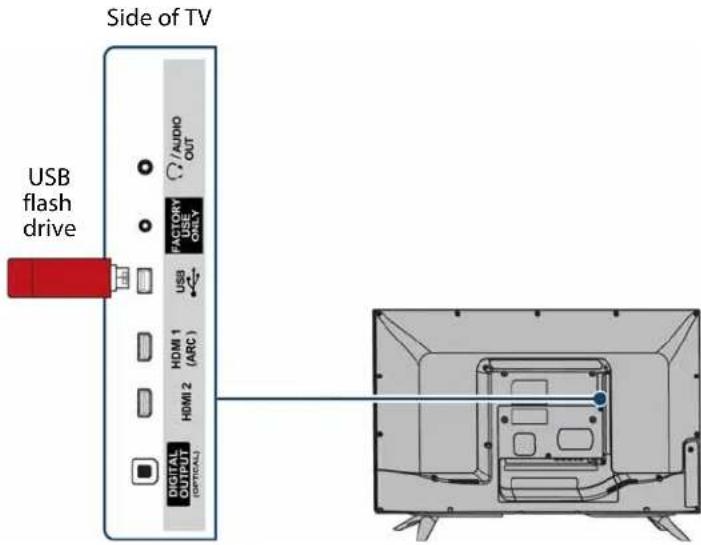

Connecting a USB flash drive 28

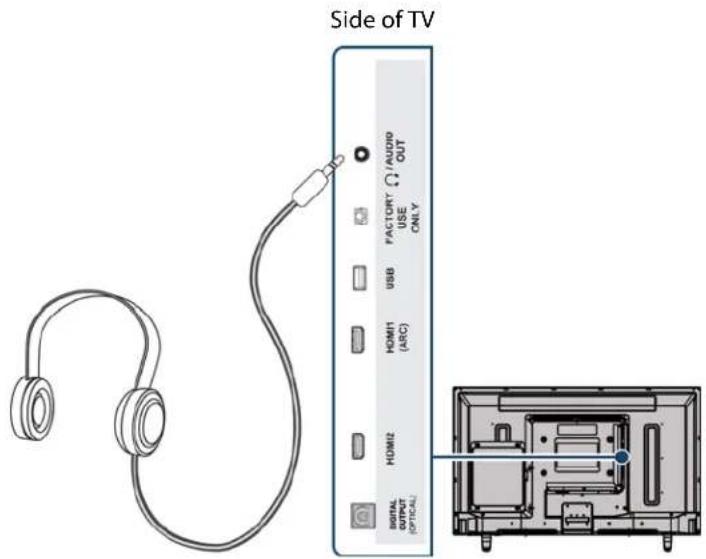

Connecting headphones....29

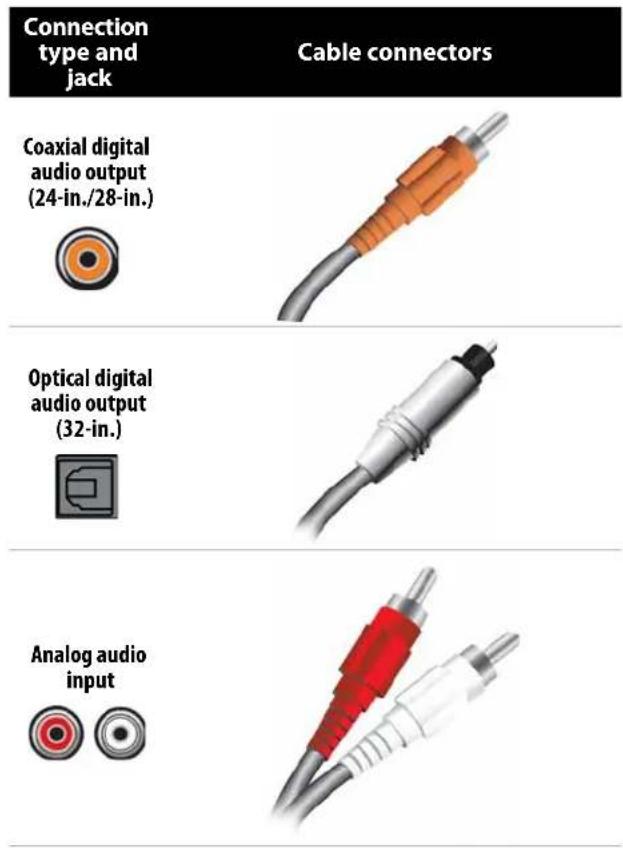

Connecting external speakers or a sound bar 30

Digital audio (24-inch and 28-inch).... 30

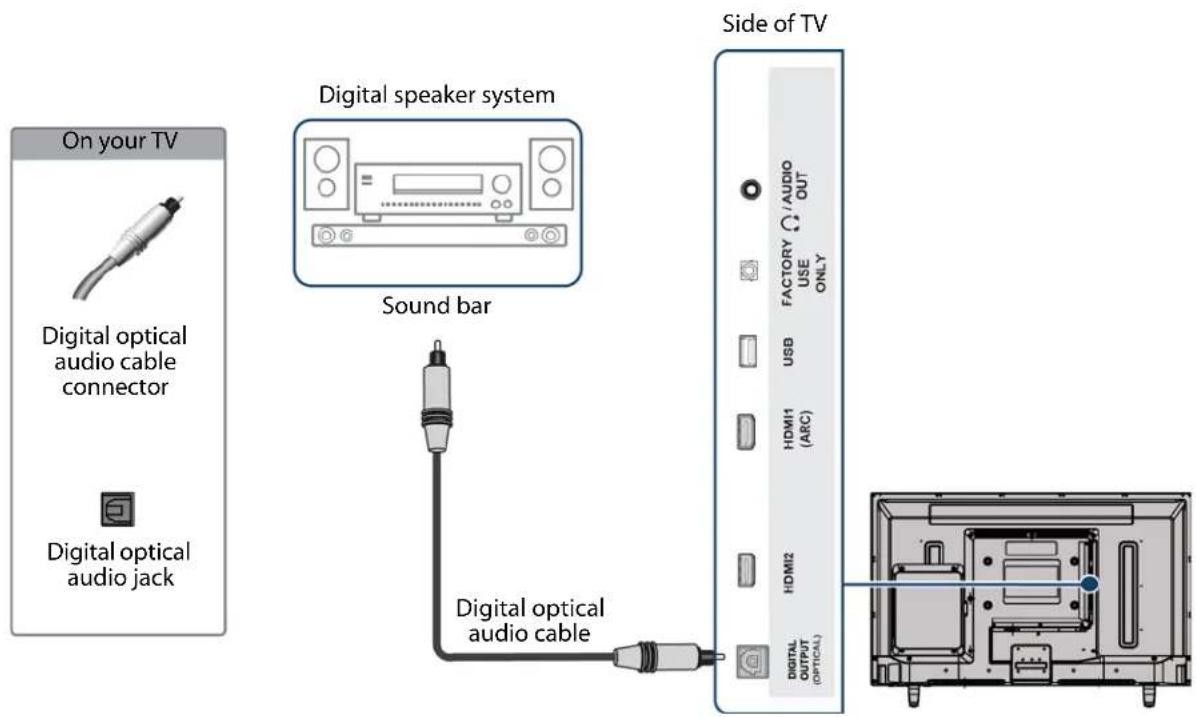

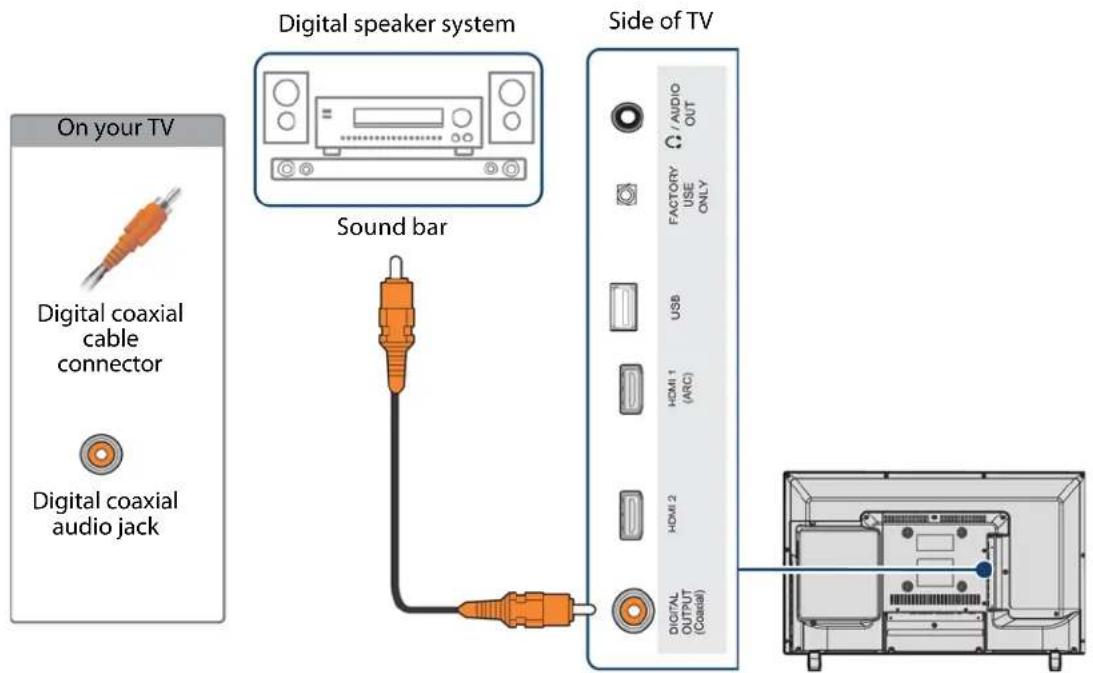

Digital audio (32-inch) 31

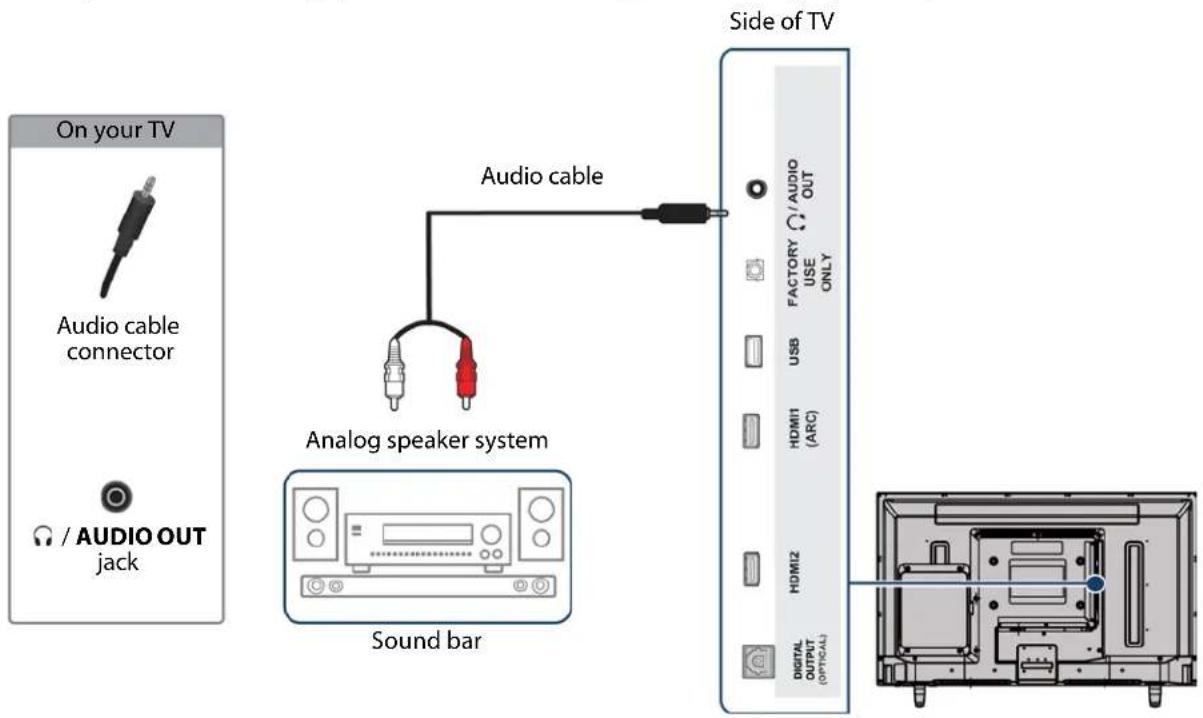

Analog audio.... 32

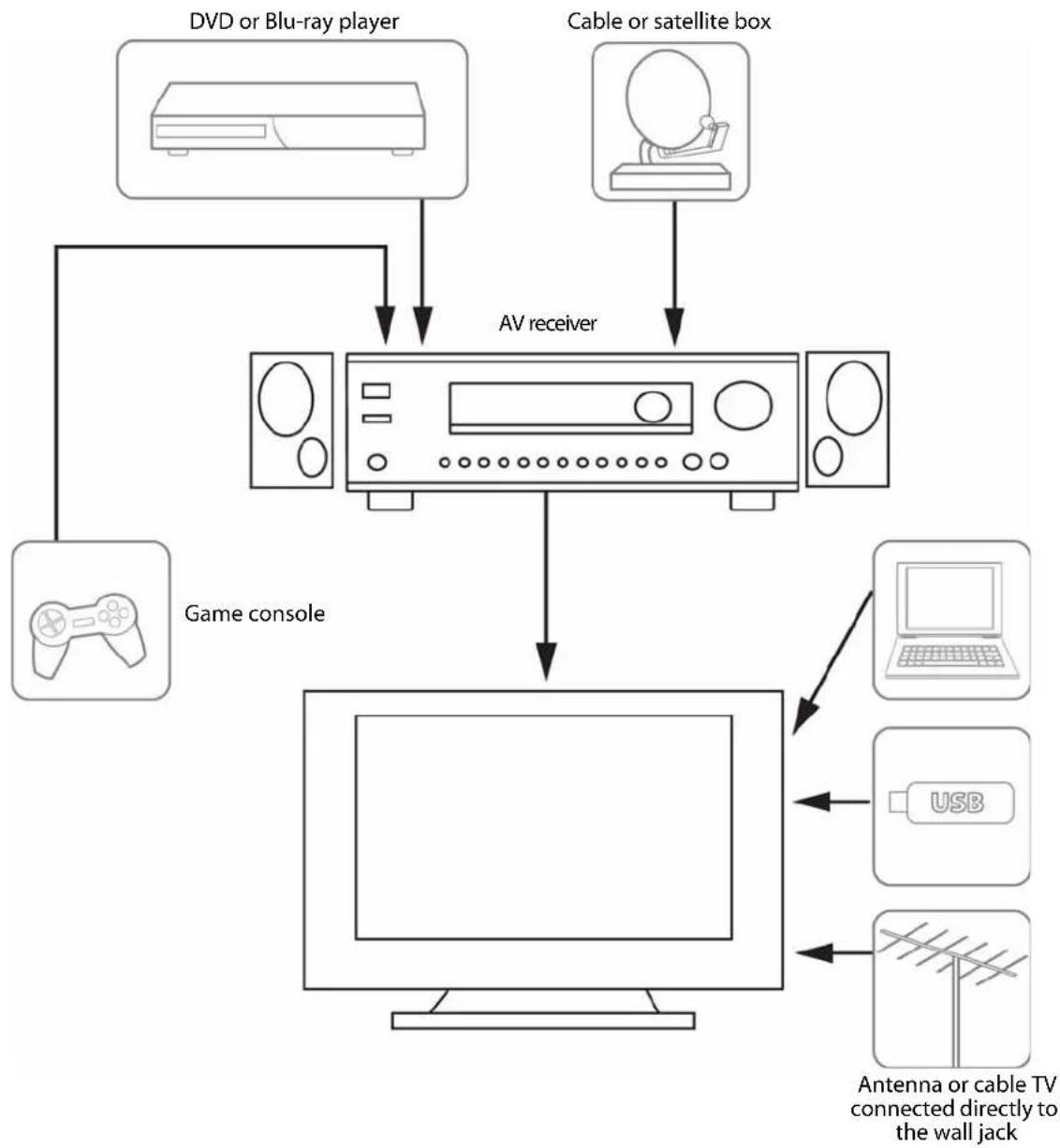

Connecting a home theater system with multiple devices 33

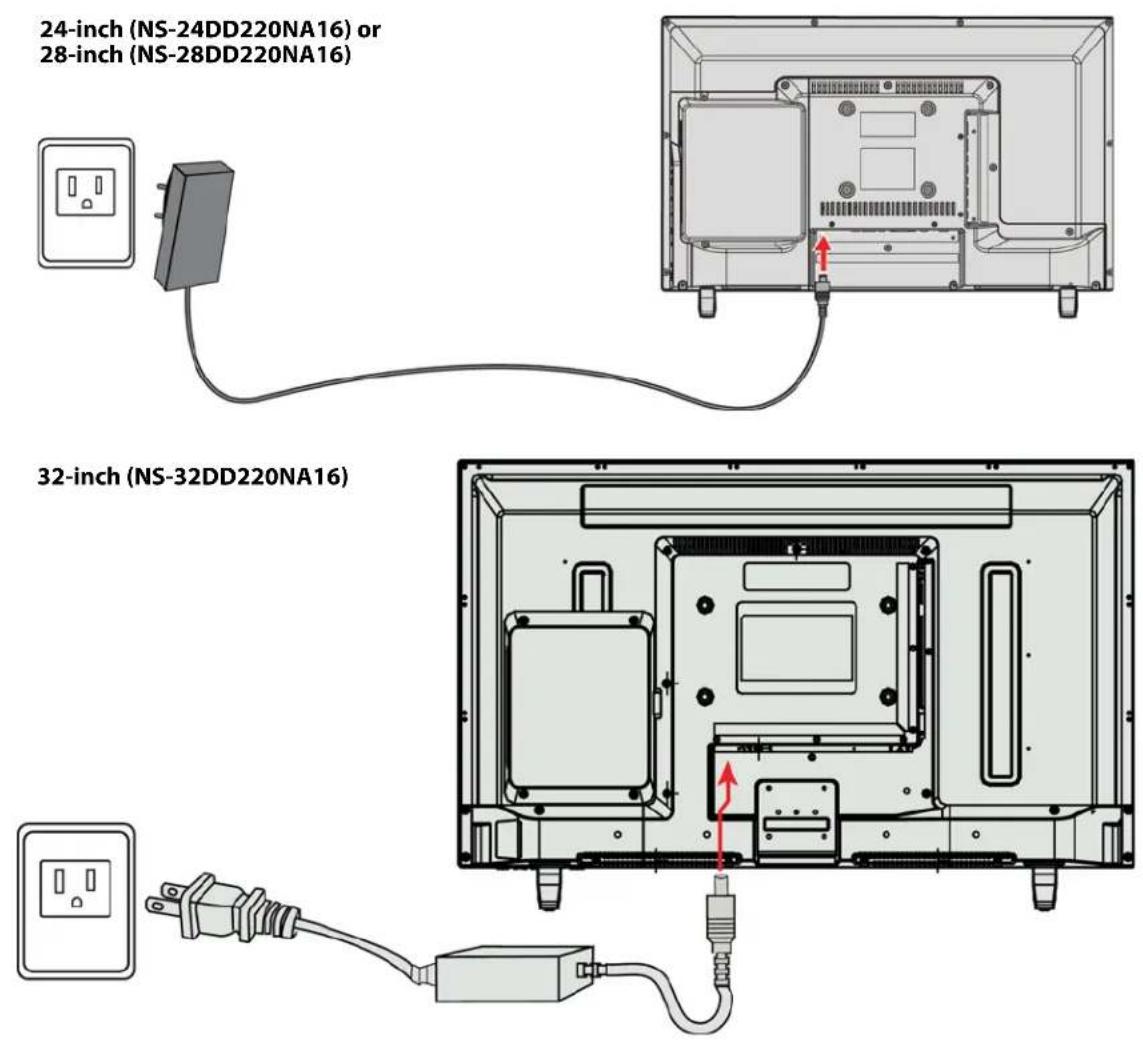

Connecting power 34

Using the remote control 35

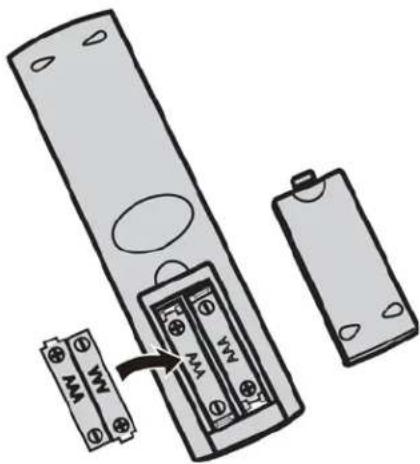

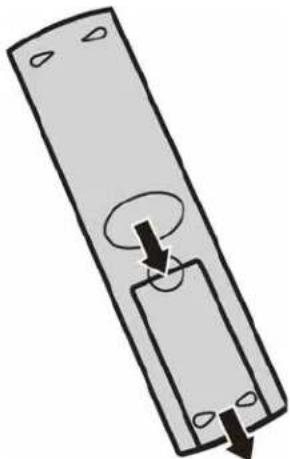

Installing remote control batteries 35

Aiming the remote control 35

Programming universal remote controls 36

Viewing universal remote control codes 36

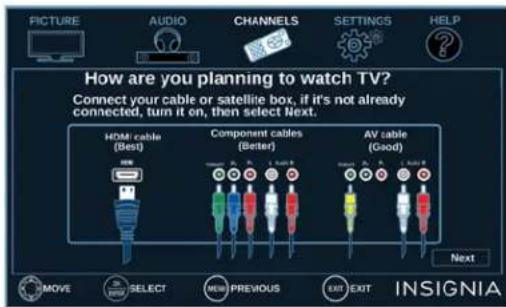

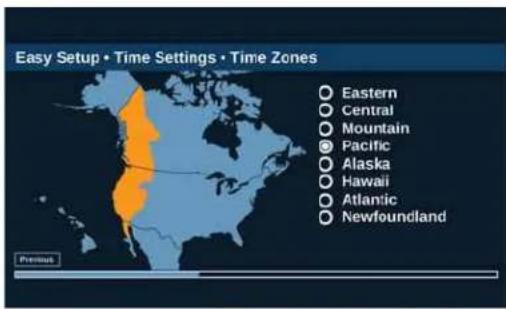

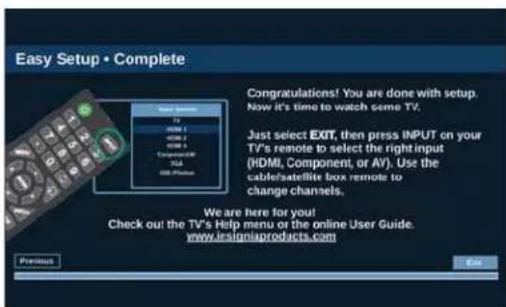

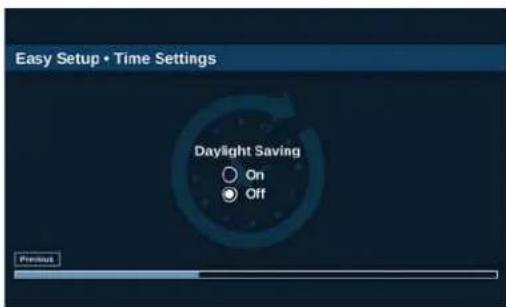

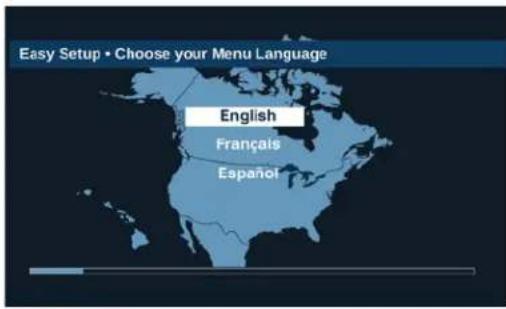

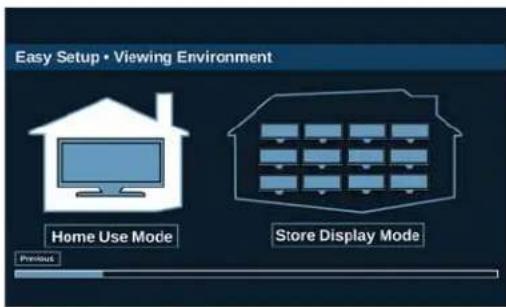

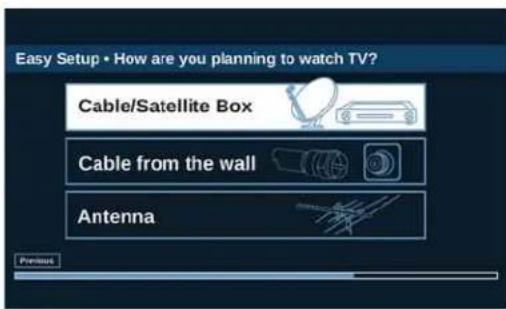

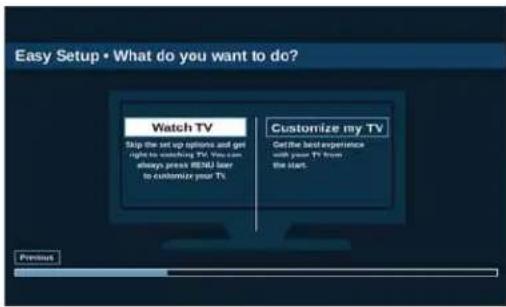

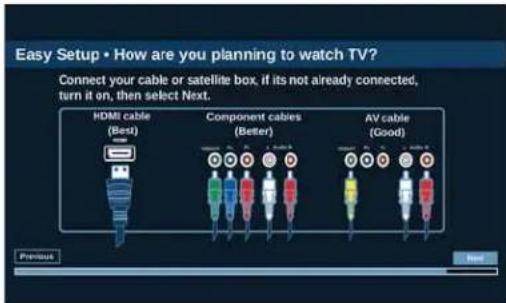

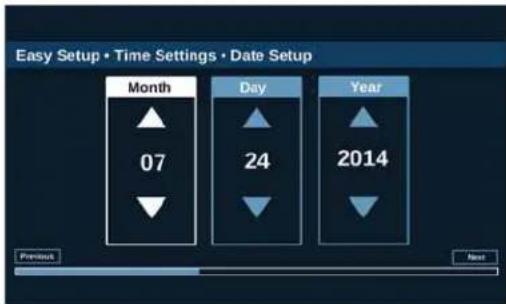

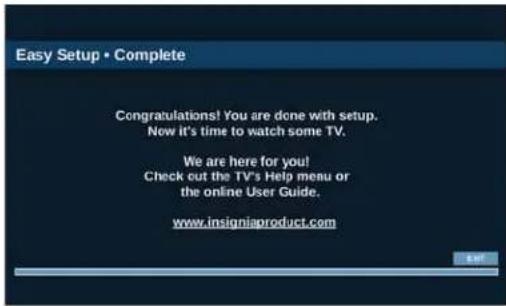

Turning on your TV for the first time 37

Understanding the basics 39

Turning your TV on or off 39

Selecting the video input source 39

On-screen menu overview 40

Navigating the menus 41

Selecting a channel 41

Adjusting the volume 41

Viewing channel information 41

Using the DVD player 42

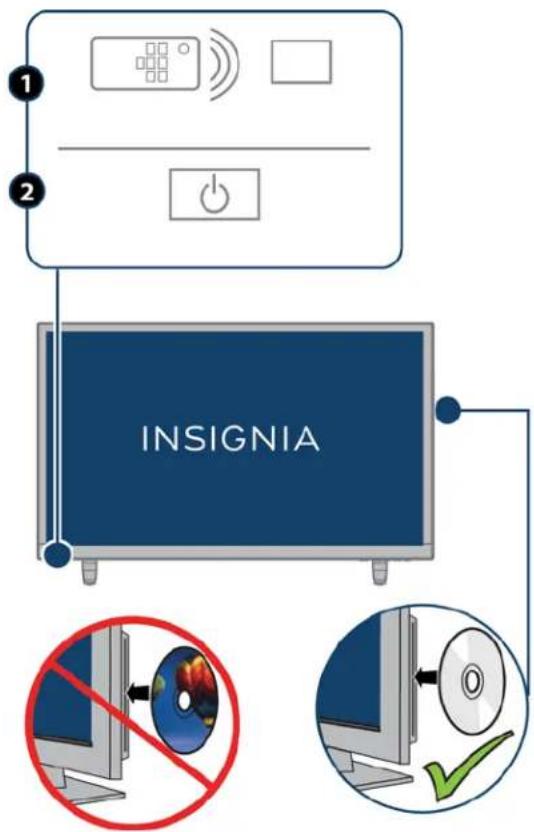

Playing a disc 42

Controlling disc playback 42

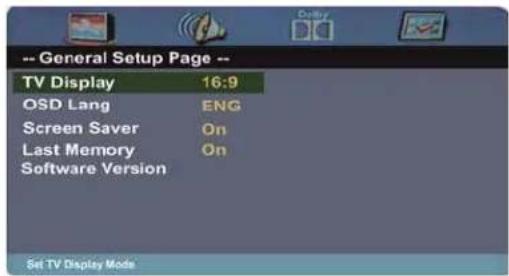

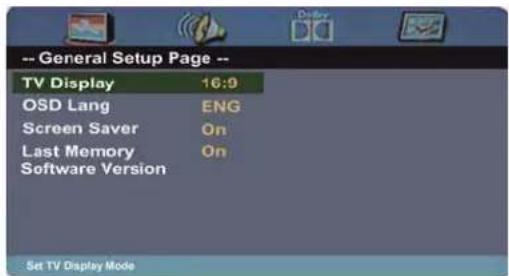

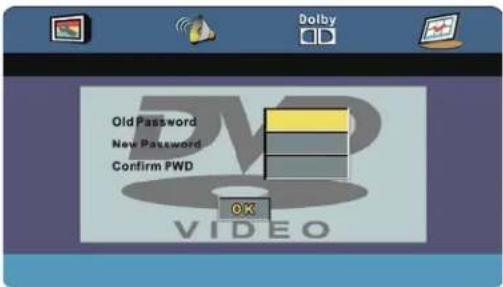

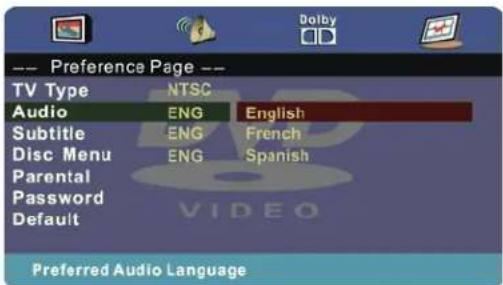

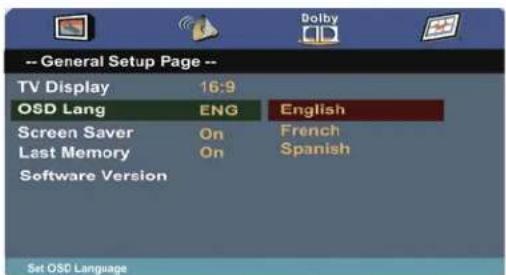

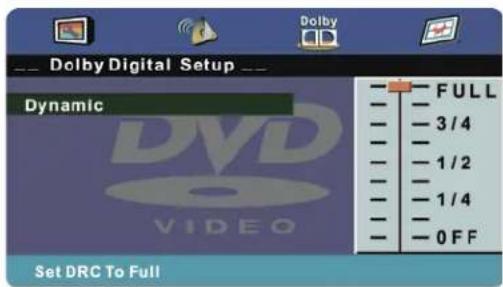

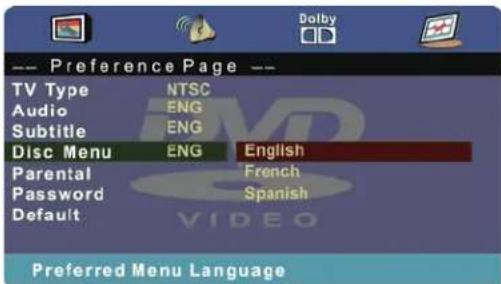

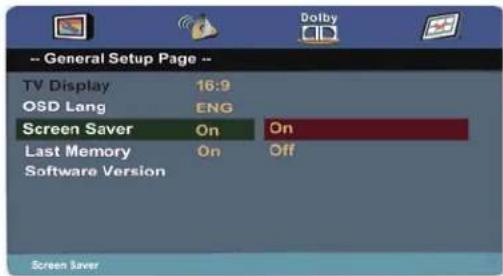

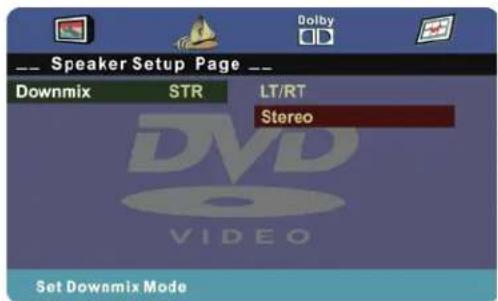

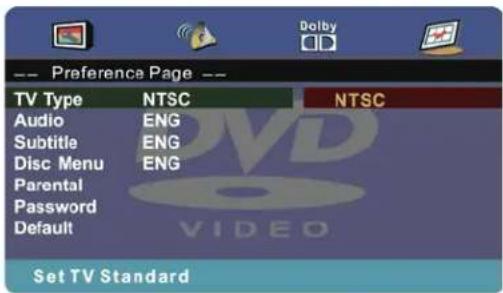

Adjusting DVD player settings 42

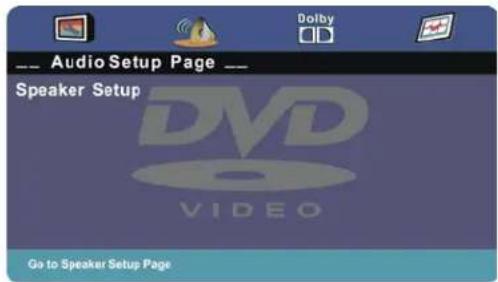

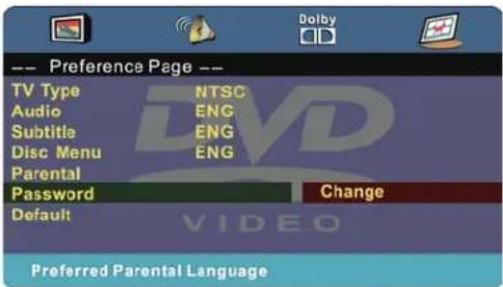

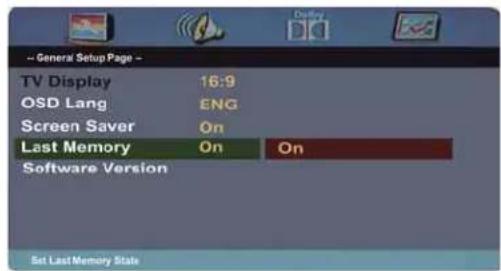

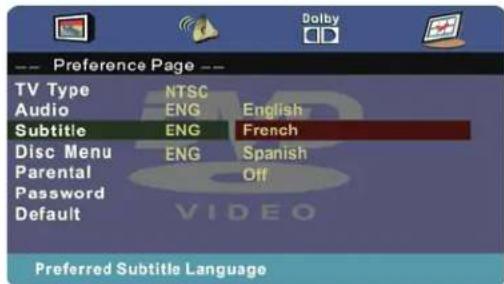

DVD on-screen menus 43

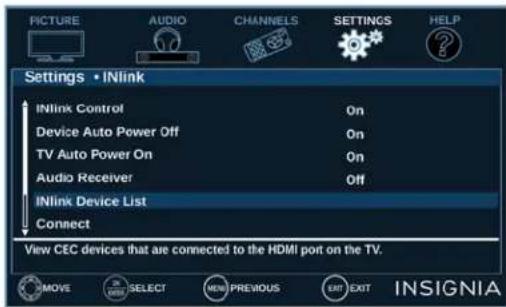

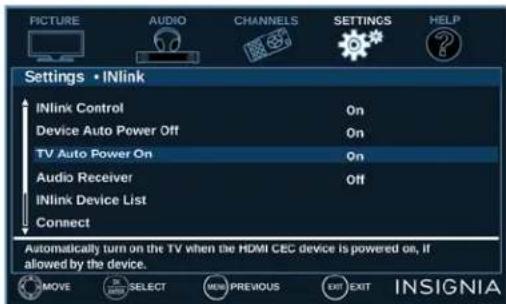

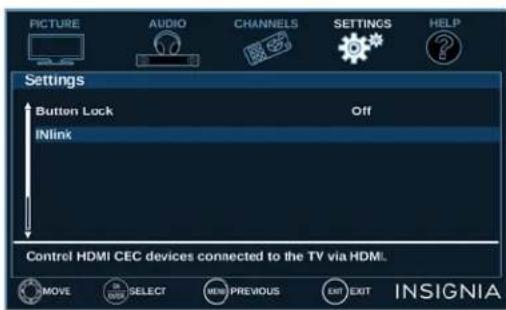

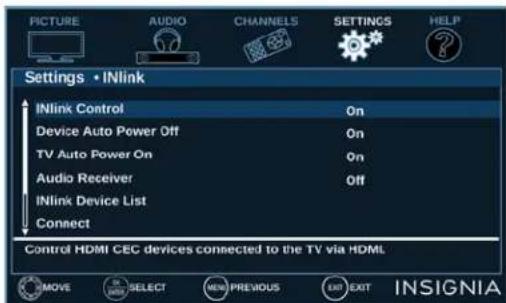

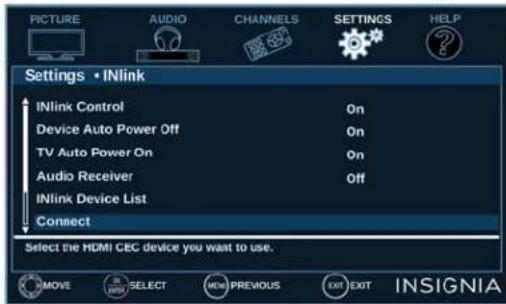

Using INlink 45

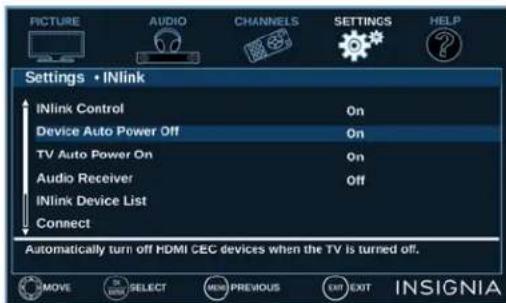

Turning INlink on or off 45

Turning Device Auto Power Off on or off 46

Turning TV Auto Power On on or off 46

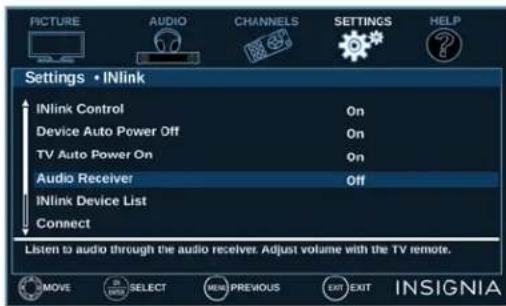

Turning Audio Receiver on or off 47

Displaying a list of INlink-compatible devices 47

Selecting an INlink-compatible device 48

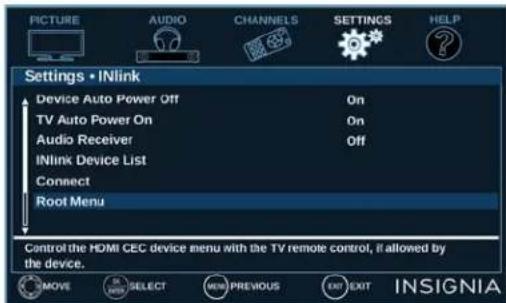

Opening an INlink-compatible device's root menu 48

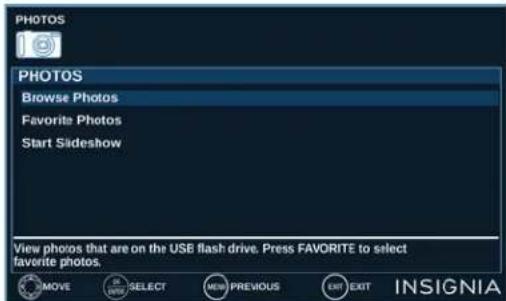

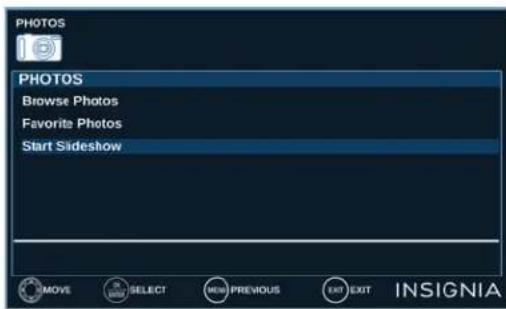

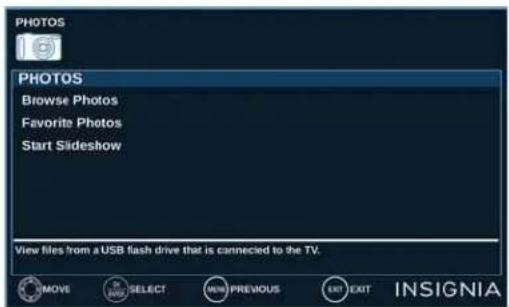

Using a USB flash drive 49

Switching to USB mode 49

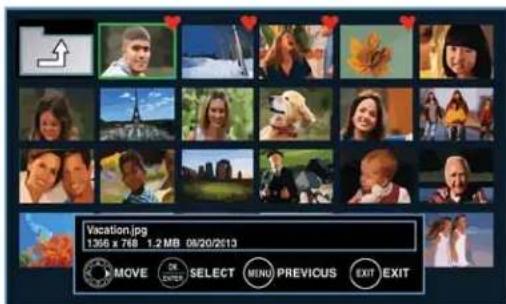

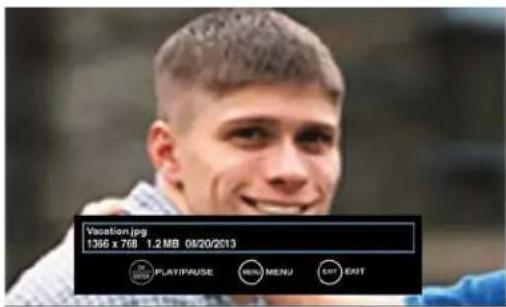

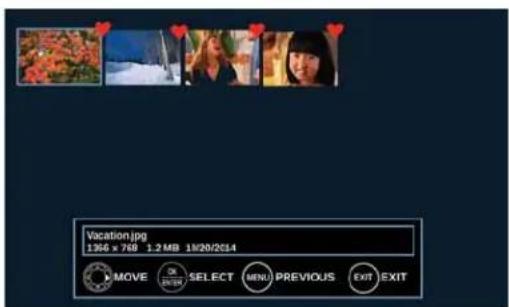

Browsing photos 49

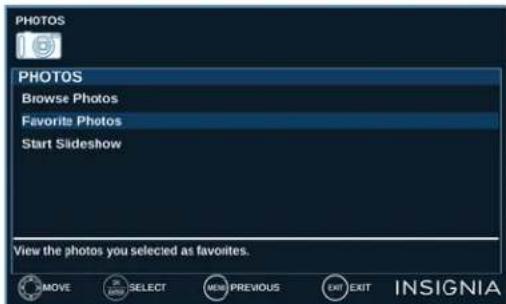

Viewing favorite photos 50

Viewing photos in a slideshow 51

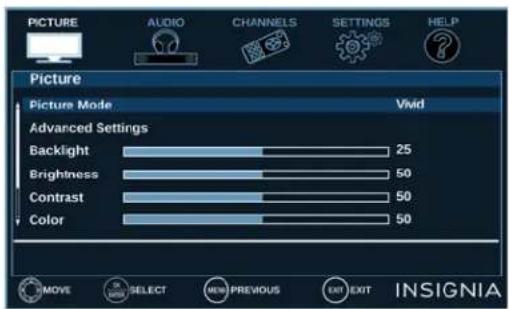

Adjusting the picture 52

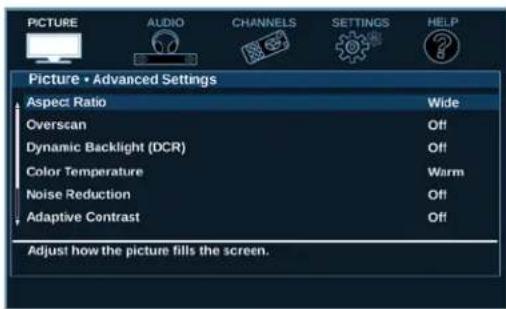

Adjusting the TV picture 52

Automatically adjusting the aspect ratio 53

Setting the power on picture mode 54

Adjusting the sound 54

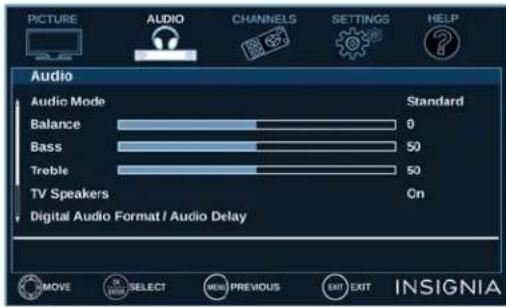

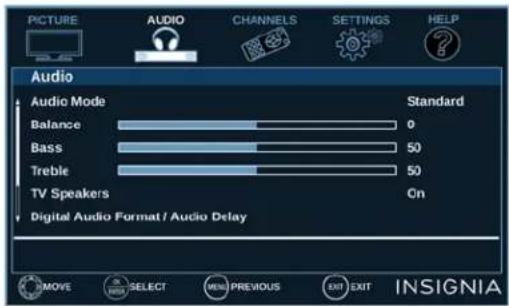

Adjusting sound settings 54

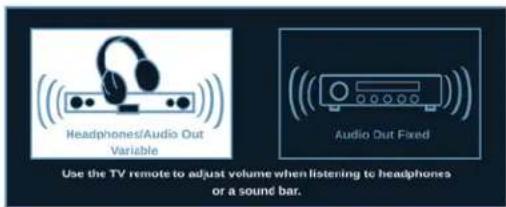

Selecting the audio out mode 55

Playing TV audio only 56

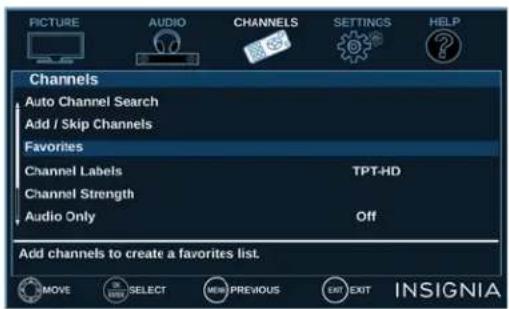

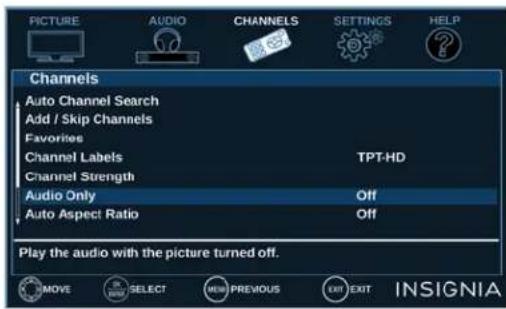

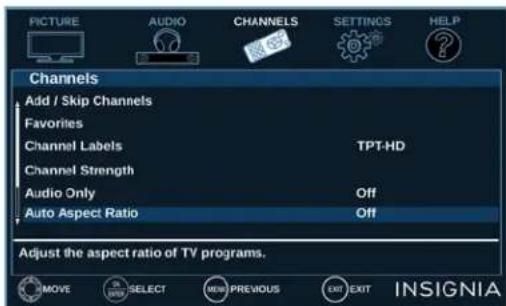

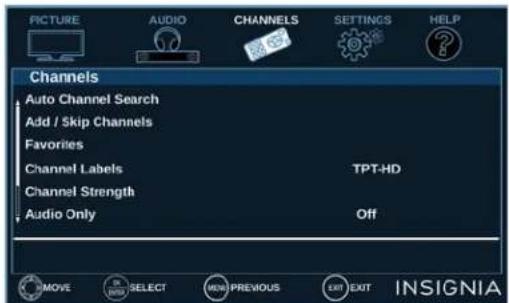

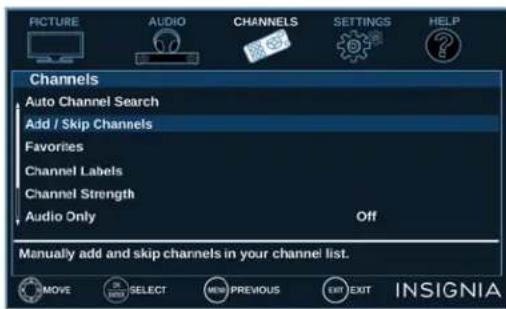

Changing channel settings 56

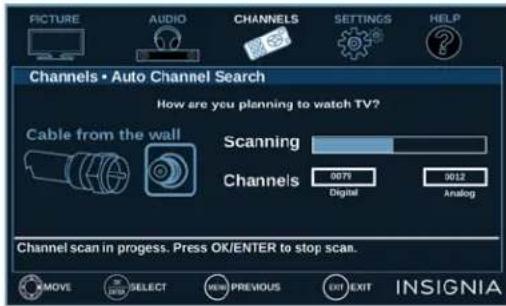

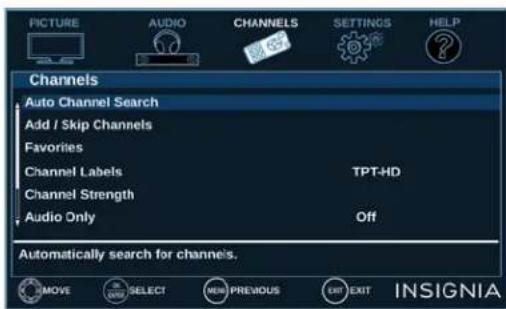

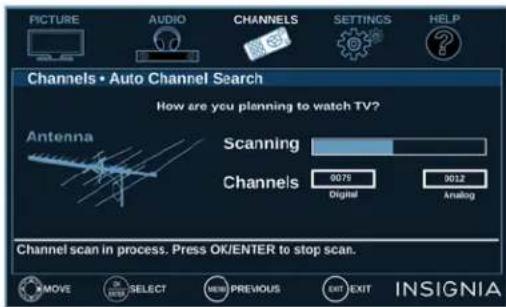

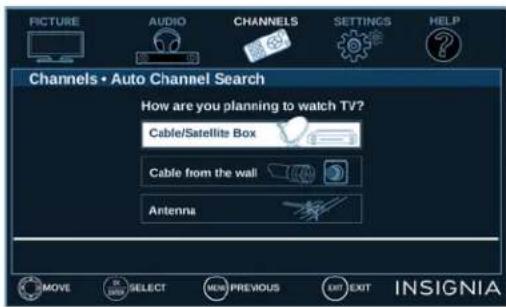

Automatically scanning for channels 56

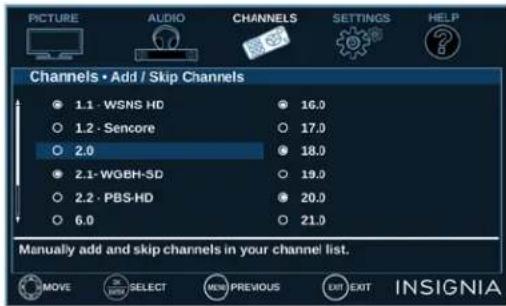

Hiding channels 58

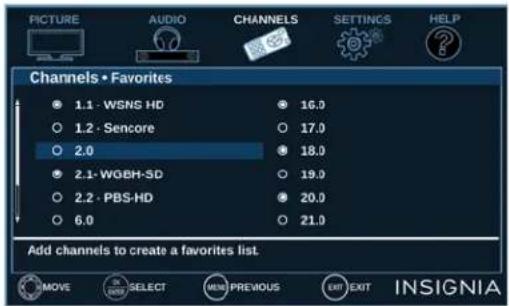

Setting up a favorite channel list 58

Viewing a favorite channel 58

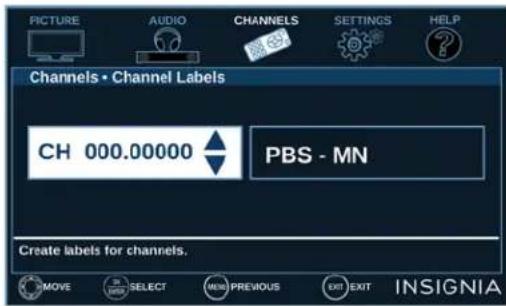

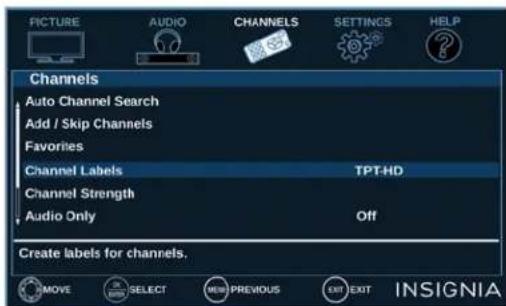

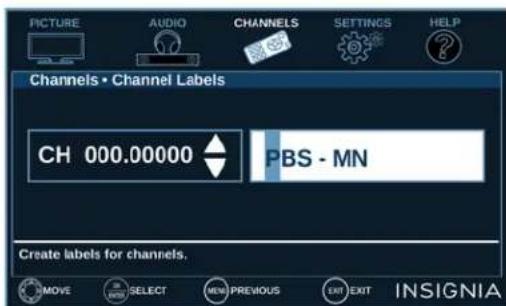

Adding or changing a channel label 59

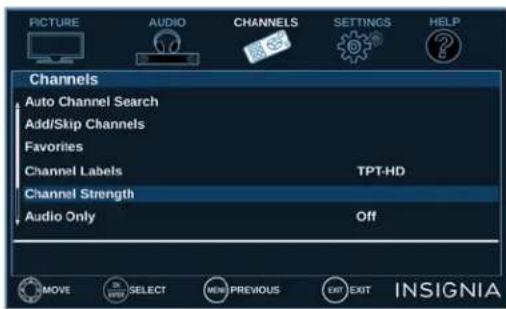

Checking the digital signal strength 59

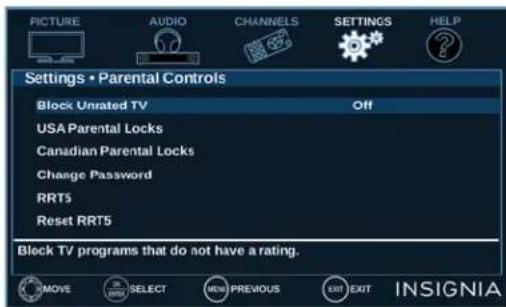

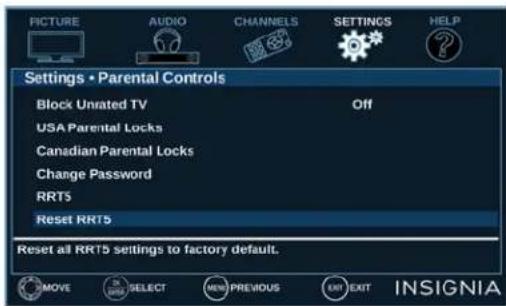

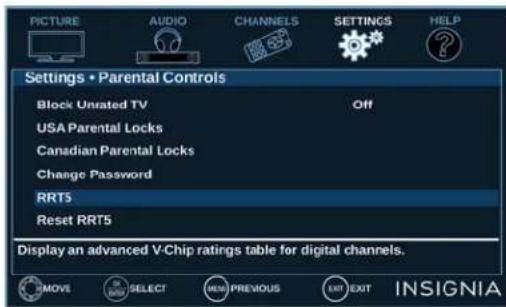

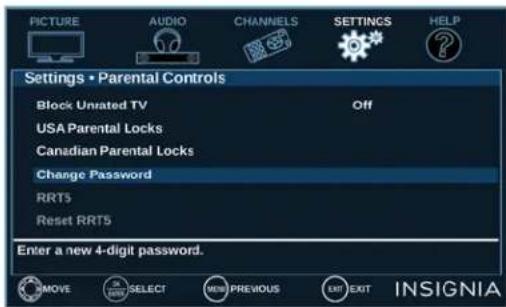

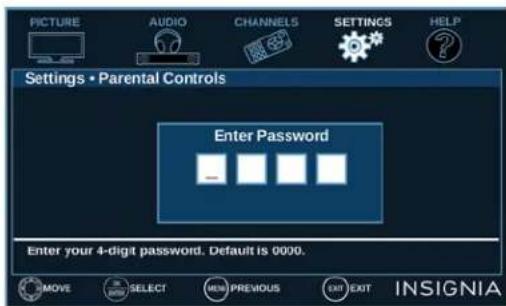

Setting TV parental controls 60

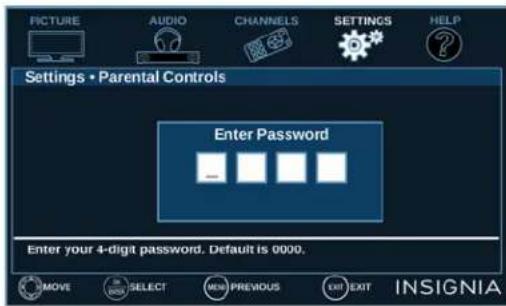

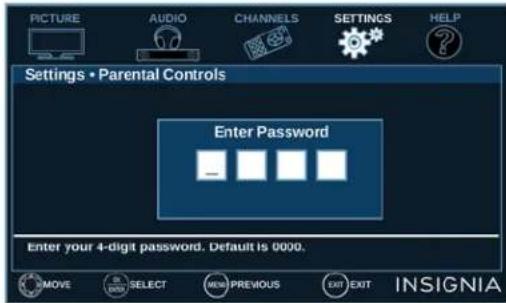

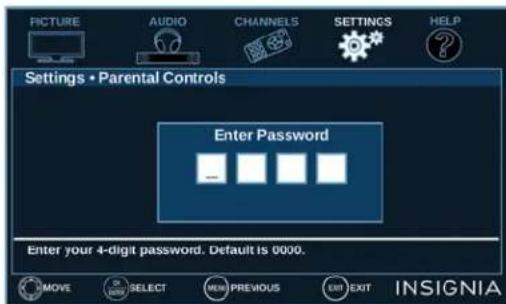

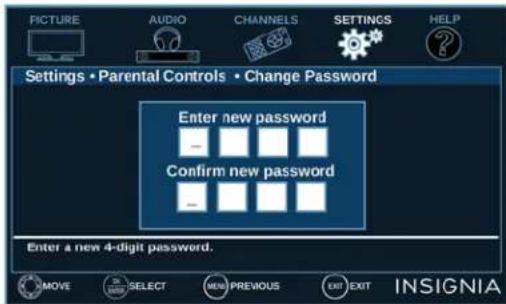

Setting or changing the password 60

Blocking unrated TV 61

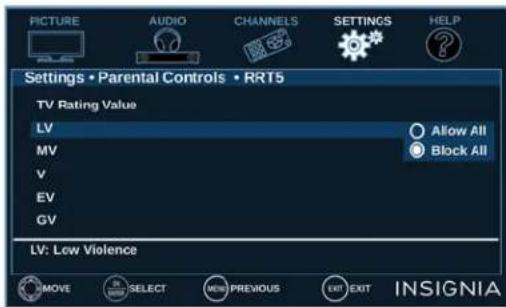

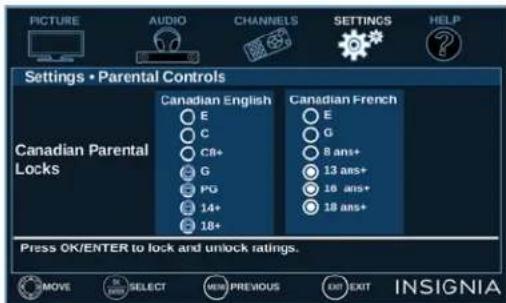

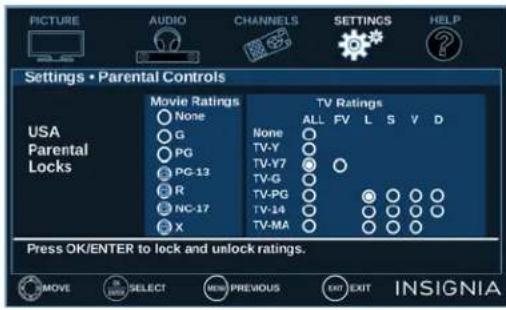

Setting parental control levels 61

Downloading rating information 63

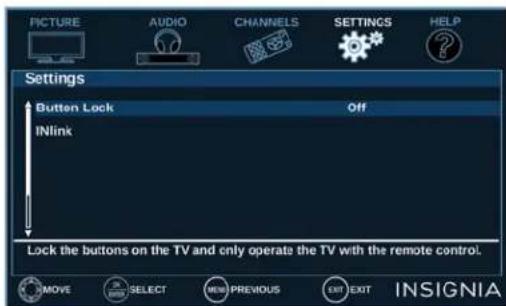

Locking control buttons 64

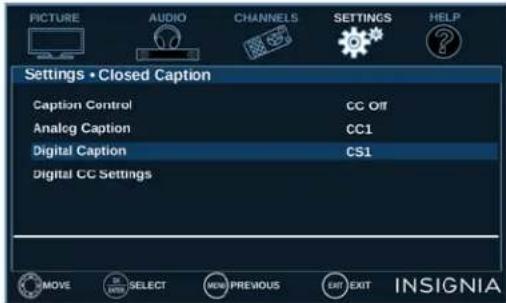

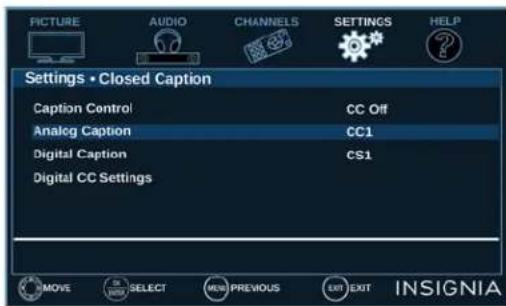

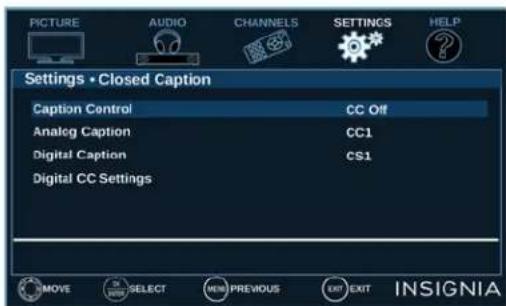

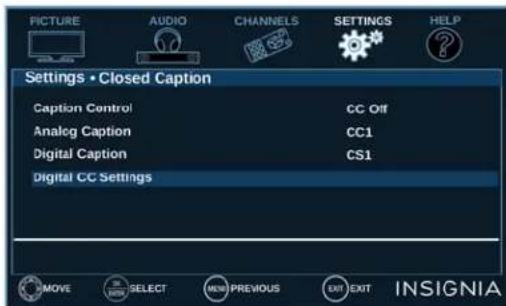

Using closed captioning 64

Turning closed captioning on or off 64

Selecting the analog closed captioning mode 65

Selecting the digital closed captioning mode 65

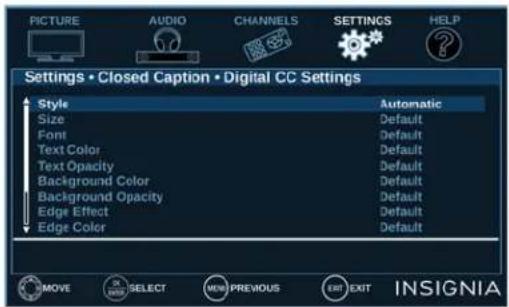

Customizing digital closed captioning settings 66

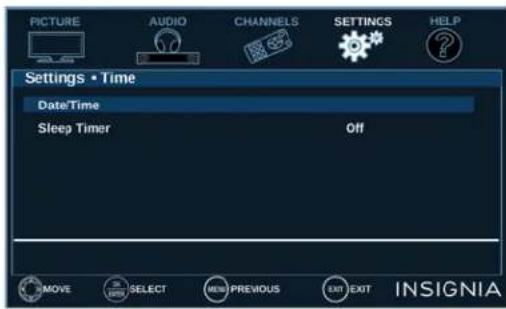

Adjusting time settings 67

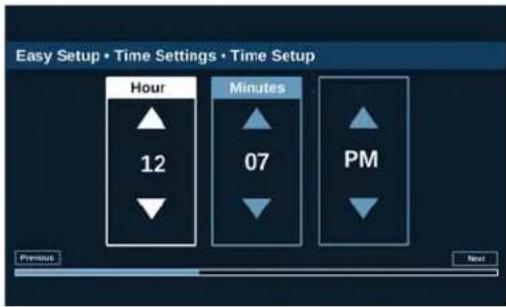

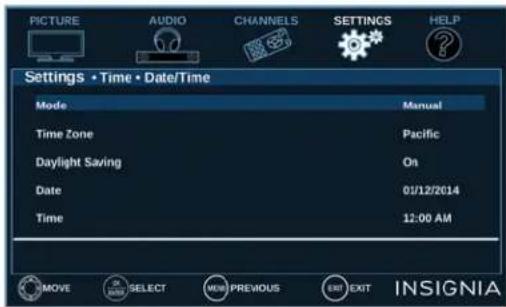

Setting the clock 67

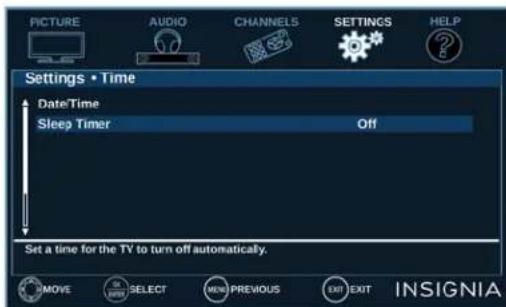

Setting the sleep timer 68

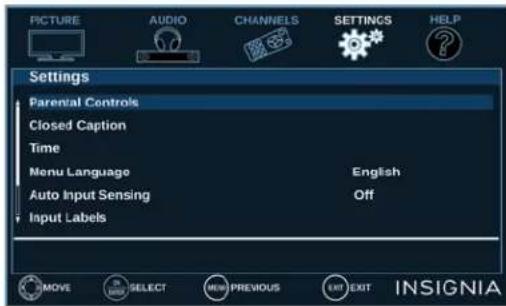

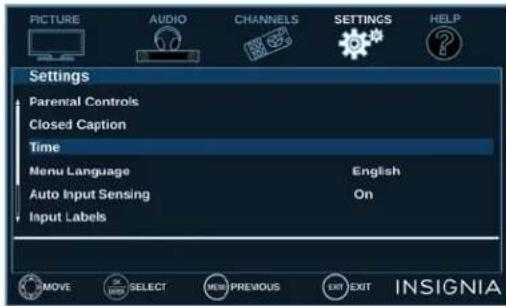

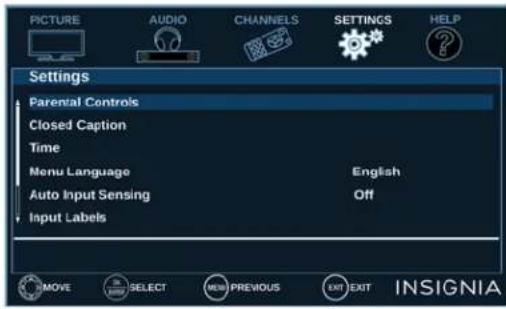

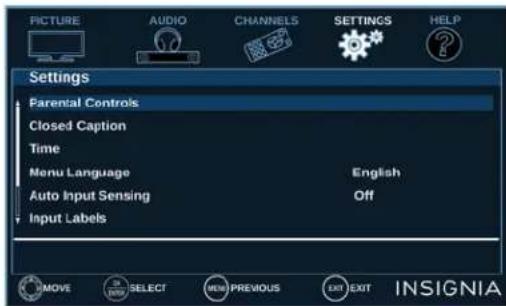

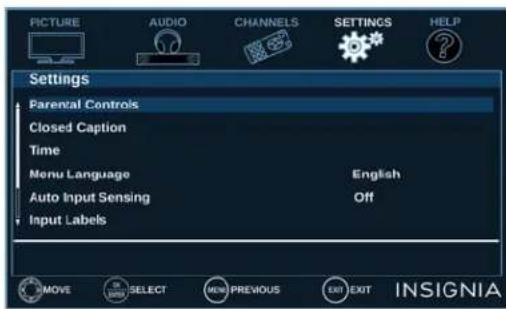

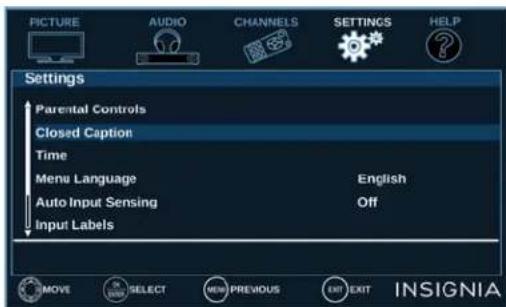

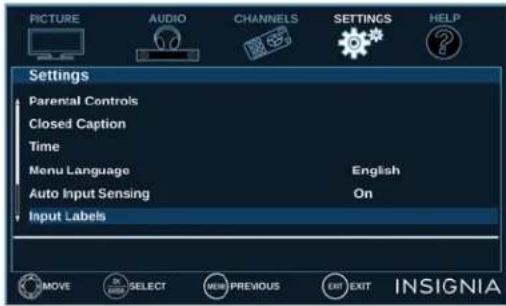

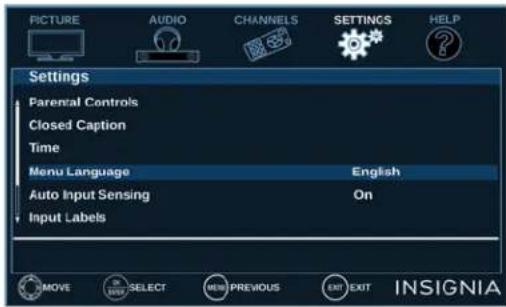

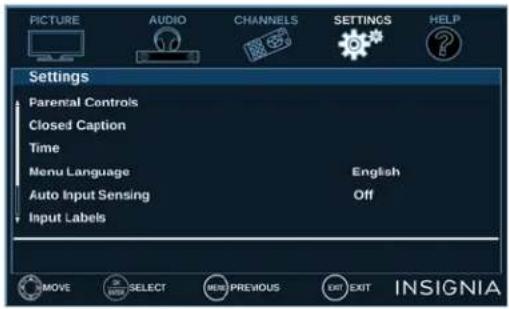

Adjusting menu settings 68

Selecting the menu language 68

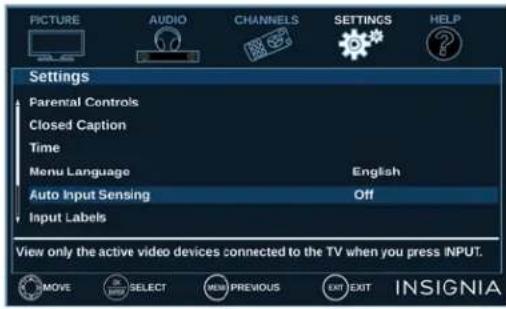

Turning Input Sensor on or off 69

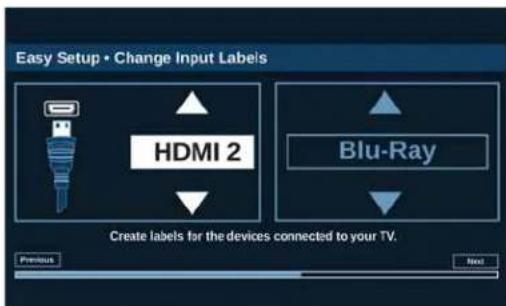

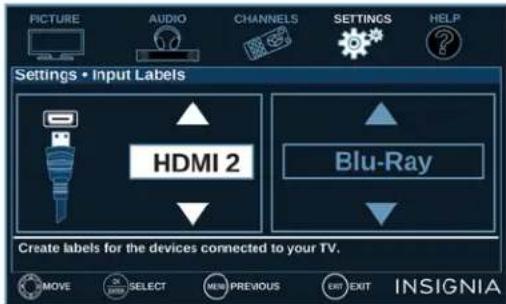

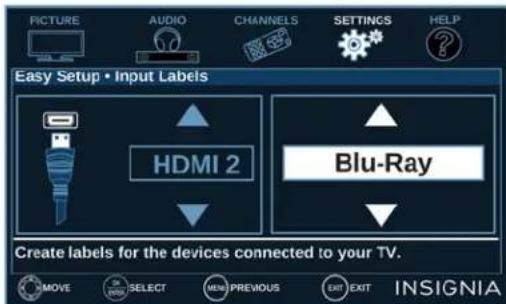

Labeling an input source 69

Maintaining 70

Cleaning the TV cabinet 70

Cleaning the TV screen 70

Care and handling of discs 70

Troubleshooting 70

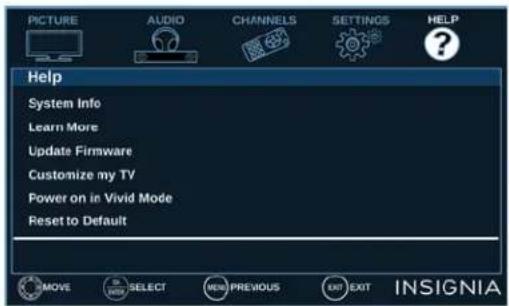

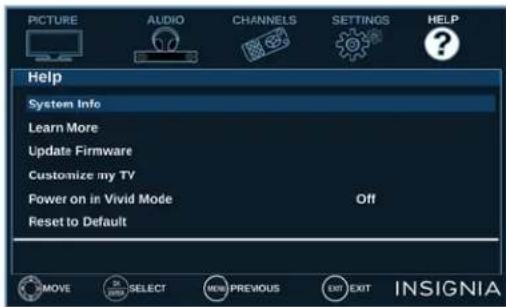

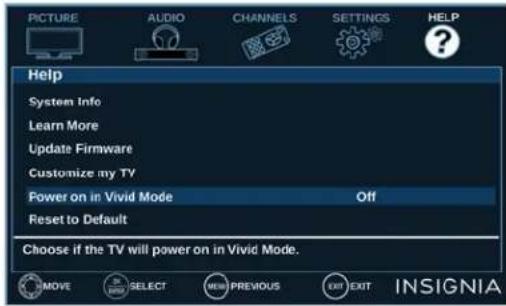

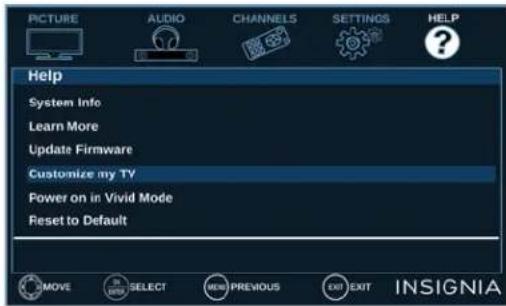

Viewing system information 70

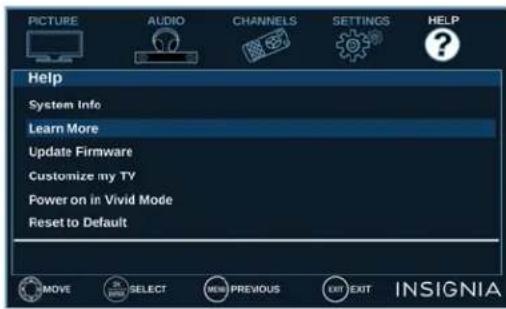

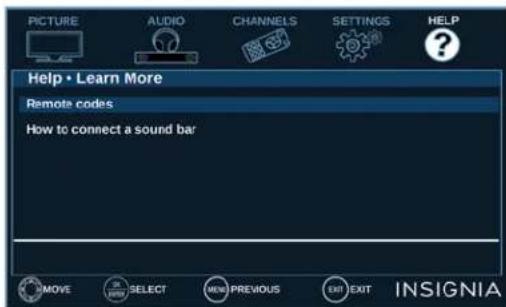

Learning more 71

Updating the TV firmware 71

Customizing TV settings 72

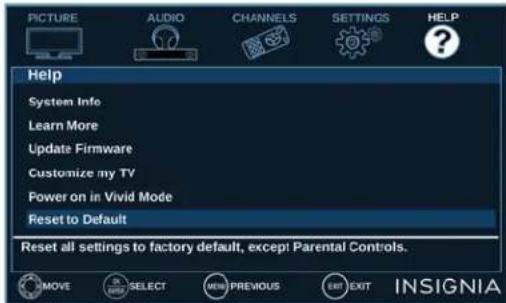

Restoring settings to the defaults 72

Video and audio 73

Remote control 75

General 76

Disc playback 77

INlink (CEC-compatible) device 77

Specifications 80

24-inch (NS-24DD220NA16) 80

28-inch (NS-28DD220NA16) 81

32-inch (NS-32DD220NA16) 82

DVD player 83

Legal notices 83

One-year limited warranty - Insignia Televisions 85

CHILD SAFETY

PROPER TELEVISION PLACEMENT MATTERS

Three people interacting near a touchscreen kiosk in an indoor setting (no visible text or symbols)

Family of three watching TV (no visible text or symbols)

Two people holding a large flat-screen TV, standing indoors (no visible text or symbols)

Child smiling while sitting at a desk with a vintage telephone and TV (no visible text or symbols)

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.
- As you enjoy your television, please note that all televisions - new and old- must be supported on proper stands or installed according to the manufacturer's recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

• ALWAYS follow the manufacturer's recommendations for the safe installation of your television.
  • ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of drawers.
  • ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

• ALWAYS contact your retailer about professional installation if you have any doubts about your ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a safety certification by an independent laboratory (such as UL, CSA, ETL).
  • ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate. Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be made in the placement of older CRT televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.

Important Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

Warning

Your player employs a laser system.

Use of controls, adjustments, or the performance of procedures other than those specified may result in hazardous radiation exposure.

Visible laser radiation is present when open and interlocks defeated. Do not stare into the beam.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 The wall plug is the disconnecting device. The plug must remain readily operable.

16 Remote control batteries should not be exposed to excessive heat such as sunshine, fire, or the like.

17 The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, should be placed on the apparatus.

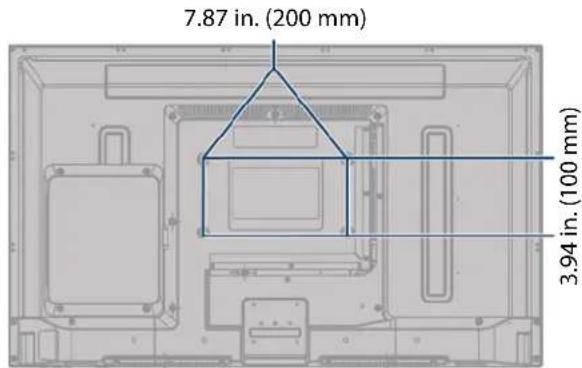

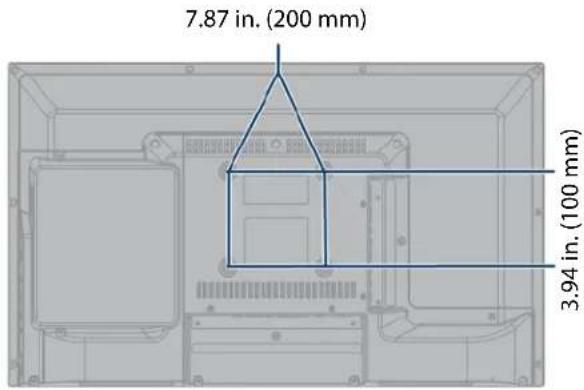

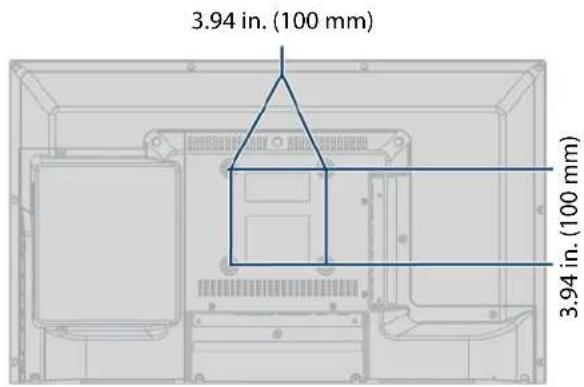

18 Your TV has four VESA mounting holes on the back. If you attach a wall-mount bracket or TV stand to the back of your TV, the bracket or stand must be securely attached using all four holes. If you do not use all four mounting holes, your TV may fall and cause property damage or personal injury. See the documentation that came with your wall mount or TV stand for complete mounting instructions.

WARNING

Electric shock hazard

To reduce the risk of fire or electric shock, do not remove any cover or expose the device to rain or moisture. No user-serviceable parts are inside. Refer servicing to qualified service technicians.

Lightning

For added protection for your device receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and personal injury from lightning and power line surges.

Power lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, take extreme care to keep from touching such power lines or circuits as contact with them might be fatal.

Handling the LCD panel

- Your TV's screen is made of glass. Do not drop your TV or hit, jolt, or press hard against the LCD panel. If the screen breaks, be careful of broken glass.

- If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.

- If the liquid gets in your mouth, immediately gargle, rinse, and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Safety check

After completing any service or repair to this device, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.

Power source

Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult an electrician or your local power company.

Servicing

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

CAUTION

Damage requiring service

Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

- When the power supply cord or plug is damaged or frayed.

- If liquid has been spilled or objects have fallen into your TV.

- If your TV has been exposed to rain or water.

- If your TV does not operate normally by following the operating instructions. Adjust only those controls covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.

- If your TV has been dropped or damaged in any way.

- When your TV exhibits a distinct change in performance.

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

1 Antenna lead-in wire

2 Grounding clamp

Antenna discharge

3 unit

4 Grounding conductors

5 Ground clamps

Power service

6 grounding electrode system

7 Electric service equipment

Note to CATV system installer

Article 820 of the National Electrical Code, ANSI/NFPA No. 40 provides guidance for correct grounding. Specifically, it states that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Condensation

Moisture will form on the TV if the TV is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, the TV's performance may be impaired. To prevent this, let the TV stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

Condensation may also form during the summer if the TV is exposed to the breeze from an air conditioner. In such cases, change the location of the TV.

Mobile telephone warning

To avoid interference with your TV picture and sound, operating problems, or even damage, keep your cordless and cellular telephones away from the TV.

End of life directives

Your TV may contain materials that are regulated for environmental reasons. Your TV also contains materials that can be recycled and reused. To help protect the environment, contact your local authorities for information about disposal or recycling and about finding a recycler in your area before you dispose of your TV.

Non-active pixels

The LCD panel contains almost 3 million thin film transistors, which provide exceptionally sharp video quality. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.

24"/28"/32" 720p 60Hz, LED DVD combo TV

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your NS-24DD220NA16, NS-28DD220NA16, or NS-32DD220NA16 represents the state of the art in LED TV and DVD player design and is designed for reliable and trouble-free performance.

INlink

Enjoy the benefit of having HDMI CEC compatible products plug and play! No setup is needed! CEC technology lets different devices discover and communicate with each other. (See page 45 for instructions on how to use INlink.)

Game mode

Video games generally require adjustments to the TV picture settings to get the maximum experience. (See the Game option in "Adjusting the TV picture" on page 52 for instruction on how to select Game mode.) It couldn't be easier.

Installing the stands or wall-mount bracket

• If you want to place your TV on a table or in an entertainment center, go to "Installing the stands."
• If you want to mount your TV on a wall, go to "Installing a wall-mount bracket."

Notes

• If you plan to wall-mount your TV, do not install the stands.
• Store the stands and stand screws in case you decide to use the stands in the future.

Installing the stands

1 Carefully place your TV face-down on a cushioned, clean surface to protect the screen.

3D technical illustration of an open computer chassis with visible internal components and mounting holes (no text or symbols)

2 Secure the TV stands to the TV with the four provided screws.

Model Screw type Screw length # of screws

24-inch B4 22 mm 4

28-inch M4 14 mm 4

32-inch M4 14 mm 4

3D diagram of a computer monitor chassis showing internal components and front panel (no text or symbols)

Technical diagram of a mechanical assembly with red dotted lines indicating alignment or connection points (no text or symbols present)

Installing a wall-mount bracket

Warnings

• Your TV has four VESA mounting holes on the back. If you attach a wall-mount bracket to the back of your TV, the bracket must be securely attached, using all four holes. If you do not use all four mounting holes, your TV may fall and cause property damage or personal injury. See the documentation that came with your wall mount for complete mounting instructions.
• This TV is intended to be supported by a UL Listed wall mount bracket with suitable weight/load. (See "Miscellaneous" on page 80, 81, or 82.)

1 Carefully place your TV face-down on a cushioned, clean surface to protect the screen.

Technical line drawing of a computer chassis with internal components and mounting feet (no text or symbols)

2 If the TV stands are installed, remove the four screws that secure the stands to your TV.

3D technical diagram of an internal computer chassis with labeled ports and connectors (no text or symbols present)

Technical diagram of a mechanical assembly with two screws and a dotted line indicating alignment (no text or symbols)

3 Attach the wall-mount bracket to your TV using the mounting holes on the back of your TV. See the instructions that came with the wall-mount bracket for information about how to correctly hang your TV.

Notes

- The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.

• The mounting holes for your TV are as follows:

• 24-inch (NS-24DD220NA16 - M4 screws.
• 28-inch (NS-28DD220NA16 - M4 screws.
• 32-inch (NS-32DD220NA16 - M6 screws.

24-inch (NS-24DD220NA16) 28-inch (NS-28DD220NA16)

32-inch (NS-32DD220NA16)

TV components

Your TV has built-in controls for adjusting basics settings and several sets of jacks for connecting devices to your TV.

This section contains information about:

• Package contents
- Front features
• TV buttons
• Left side jacks
- Back jacks
- Remote control

Package contents

• 24-inch, 28-inch, or 32-inch LED TV
- Remote control and batteries (2 AAA)
- AC power adapter
• TV stand and screws (4)

• B4 22 mm—24-in. (NS-24DD220NA16)

• M4 14 mm—28-in. (NS-28DD220NA16)
• M4 14 mm—32-in. (NS-32DD220NA16)

- Quick Setup Guide

• Important Information Safety sheet

Front features

# Item Description
1	Remote control sensor	Receives signals from the remote control. Do not block.
2	Power indicator	Turns off when your TV is on. Lights red when your TV is off (standby mode).

TV buttons
24-inch (NS-24DD220NA16)

28-in. (NS-28DD220NA16)

32-in. (NS-32DD220NA16)

Item Press to...

1 (play/pause) Start or pause disc playback.
2 EJECT Eject a disc from the disc slot.
3 MENU	Press to open the on-screen menu. For more information, see "Navigating the menus" on page 41.
4 INPUT	Press to open the Input Source list, press CH▲ or CH▼ to select the video input source your want, then press this button again or wait a few seconds. Your TV switches to the source you selected. For more information, see "Selecting the video input source" on page 39.In menu mode, press to confirm selections.
5 VOL+/VOL-	Press to increase or decrease the volume.ORPress to go to the next or previous menu in the on-screen menus.
6 CH▲/CH▼	Press to go to the next or previous channel in the channel list. For more information, see "Selecting a channel" on page 41.ORPress to select an option in an on-screen menu.
7 (power)	Press to turn your TV on or off (standby mode).Warning:When your TV is off, power still flows through it. To completely disconnect power, unplug the power adapter.

Left side jacks
24-in. (NS-24DD220NA16) 28-in. (NS-28DD220NA16)

32-in. (NS-32DD220NA16)

Item Description

1/AUDIO OUT		Connect headphones, a sound bar, analog speaker system, or a home theater system to this jack to listen to TV audio through external speakers. For more information, see “Connecting headphones” on page 29 or “Analog audio” on page 32.
2	FACTORY USE ONLY	Do not connect a device to this jack.
3	USB	Connect a USB flash drive to this jack to view compatible JPEG picture files. For more information, see “Connecting a USB flash drive” on page 28 and “Using a USB flash drive” on page 49.
4	HDMI1 (ARC)	Connect an HDMI device to this jack. For more information, see “HDMI (best)” on pages 16, 21, or 24 or Connecting a computer on page 27.ORConnect an ARC-enabled home theater receiver to this jack.
5	HDMI2	Connect an HDMI device to this jack. For more information, see “HDMI (best)” on pages 16, 21, or 24 or Connecting a computer on page 27.
6	24 in./28 in.DIGITAL OUTPUT(Coaxial)	Connect a sound bar, digital speaker system, or home theater system to this jack to listen to TV audio through external speakers. For more information, see “Digital audio (24-inch and 28-inch)” on page 30.
6	32 in.DIGITAL OUTPUT(OPTICAL)	Connect a sound bar, digital speaker system, or home theater system to this jack to listen to TV audio through external speakers. For more information, see “Digital audio (32-inch)” on page 31.

Back jacks

# Item Description
1 DC IN		Plug the AC power adapter into this connector.
2 L and R AUDIO		Connect the audio for a component video device to these jacks. For more information, see "Component video (better)" on page 17, 22, or 25.ORConnect the audio for an AV device to these jacks. For more information, see "AV (composite video) (good)" on page 18, 23, or 26.
3 ORVIDEO / Y		Connect the video for a component video device to the VIDEO / Y, PB, and PR jacks. For more information, see "Component video (better)" on page 17, 22, or 25.ORConnect the video for an AV device to the VIDEO / Y jack. For more information, see "AV (composite video) (good)" on page 18, 23, or 26.Important:The component video and AV jacks are shared. You can connect only one component video or AV device at a time.
4 ANT / CABLE		Connect an antenna or cable TV to this jack. For more information, see "Coaxial (good)" on page 19 or "Connecting an antenna or cable TV (no box)" on page 20.

Remote control

Button Press to...

1	POWER	Turn your TV on or off (standby mode).Warning:When your TV is off, power still flows through it. To disconnect power, unplug the AC power adapter.
2	Numbers Enter channel numbers and the parental control password.
3	●(sub-channel)	Enter a digital sub-channel number. See "Selecting a channel" on page 41.
4	CCD	Turn closed captioning on or off. You can select CC Off, CC On, or CC On when mute. See "Turning closed captioning on or off" on page 64.
5	MTS/SAP	Select the audio mode for an analog program. You can select:Mono—Select this option if there is noise or static on weak stereo broadcasts.Stereo—Select this option for programs broadcast in stereo.SAP—Select this option to listen to a secondary audio program, if available.ORSelect the audio language for a digital program, if alternate languages are available.
6	VOL+/- Increase or decrease the volume.

Button Press to...

7	PICTURE	Select the picture mode. You can select Vivid, Standard, Energy Savings, Movie, Game, or Custom. See the Picture Mode option in "Adjusting the TV picture" on page 52.
8	AUDIO	Select the sound mode. You can select Standard, Theater, Music, News, or Custom. See the Sound Mode option in "Adjusting sound settings" on page 54.
9	TV-MENU Open the TV on-screen menu.
10	OK Confirm selections or changes or to open sub-menus.
11	HOME Open the TV on-screen menu.
12	MENU Open the DVD menu.
13	SETUP Open the DVD system setup menu.
14	Media controls	Control disc playback. See "Controlling disc playback" on page 42.ORControl a connected INlink (CEC-compatible) device. See "Using INlink" on page 45.ORControl a photo slideshow.
15	INPUT	Open the INPUT SOURCE list, press ▲ or ▼ on the remote control to select the video input source, then press OK. See "Selecting the video input source" on page 39.
16	(return) TV—Return to the previous channel.
17	ASPECT	Change how the picture looks on the screen (aspect ratio). See the Aspect Ratio option in "Adjusting the TV picture" on page 52.
18	FAVORITE	Open the Favorite channel list. See "Setting up a favorite channel list" on page 58 and "Viewing a favorite channel" on page 58.
19	MUTE Mute or un-mute the sound.
20	CH ∧/CH √	Change TV channels. See "Selecting a channel" on page 41.
21	INFO*	Display TV status information, such as the channel number, channel name (if available), or signal source. See "Viewing channel information" on page 41.
22	CH-LIST	Open the list of memorized channels. See "Selecting a channel" on page 41.
23	SLEEP	Set the sleep timer. You can select Off, 5, 10, 15, 30, 60, 90, 120, 180, or 240 minutes. See "Setting the sleep timer" on page 68.
24	▲▼◀▶	Navigate in on-screen menus and to adjust settings.
25	EXIT	Close the TV menus.
26	Quick launch inputs	HDMI—Select a connected HDMI device as the video input source.DVD—Select the built-in DVD player as the video input source.
27	AUDIO	Select the DVD audio language if multiple languages are available.
28	SUBTITLE	Select the DVD subtitle language if subtitles are available.
29	TITLE	Open a DVD title menu if the DVD has one.

What connection should I use?

Your TV has several connection types for connecting devices to your TV.

For the best video quality, you should connect a device to the best available connection.

Use the following tables to identify cables:

Video quality	Connection type and jack	Cable connector
Best (use this if your devices have HDMI)	HDMI video/audio
Better than composite or coaxial	Component video (requires an audio connection)
Better than coaxial	AV (composite video) (requires an audio connection)
Good	Coaxial video/audio

Cautions

• Check the jacks for position and type before making any connections.
• Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
  • The external audio/video devices shown may be different from your devices. If you have questions, refer to the documentation that came with your devices.
  • Always unplug the power adapter when connecting external devices.

Connecting a cable or satellite box

Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best connection type available. For more information, see "What connection should I use?" on page 15.

You can connect your cable or satellite box using:

• HDMI (best)
- Component video (better)
• AV (composite video) (good)
• Coaxial (good)

HDMI (best)

1 Make sure that your TV's power adapter is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an HDMI cable (not provided) to an HDMI jack on the side of your TV and to the HDMI OUT jack on the cable or satellite box.
4 Plug your TV's power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight HDMI1 or HDMI2, then press OK.

Note

An HDMI cable carries both audio and video. You do not need to use any audio cables.

Component video (better)

Note

Cables are often color-coded to match color-coded jacks.

1 Make sure that your TV's power adapter is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect a component video cable (not provided) to the VIDEO / Y, PB, and PR jacks on the back of your TV and the component video out jacks on the cable or satellite box.
4 Connect an audio cable (not provided) to the L and R AUDIO jacks on the back of your TV and to the audio out jacks on the cable or satellite TV box.

Important

• The VIDEO / Y, PB, and PR video jacks (used to connect a component device) share the L and R AUDIO jacks with the VIDEO / Y jack (used to connect an AV device). You can only connect one component video or AV device at a time. We suggest upgrading to HDMI if your cable or satellite box supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

5 Plug your TV's power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
6 Press INPUT to open the INPUT SOURCE list.
7 Press ▲ or ▼ to highlight Component/AV, then press OK.

AV (composite video) (good)

Notes

• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green VIDEO / Y jack.

1 Make sure that your TV's power adapter is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the green VIDEO / Y jack and L and R AUDIO jacks on the back of your TV and to the AV and audio out jacks on the cable or satellite box.

Important

• The VIDEO / Y, PB, and PR video jacks (used to connect a component device) share the L and R AUDIO jacks with the VIDEO / Y jack (used to connect an AV device). You can only connect one component video or AV device at a time. We suggest upgrading to HDMI if your cable or satellite box supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

4 Plug your TV's power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight Component/AV, then press OK.

Coaxial (good)

Back of TV

1 Make sure that your TV's power adapter is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect a coaxial cable (not provided) to the ANT / CABLE jack on the back of your TV and to the coaxial out jack on the cable or satellite box.
4 Plug your TV's power adapter into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to highlight TV, then press OK.
7 If you cannot tune to channels you know exist, scan for channels. See "Automatically scanning for channels" on page 56.

Notes

• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the power adapter or other cables.

Connecting an antenna or cable TV (no box)

Back of TV

1 Make sure that your TV's power adapter is unplugged and all connected devices are turned off.
2 Connect a coaxial cable (not provided) to the ANT / CABLE jack on the back of your TV and to the antenna or cable TV wall jack.
3 Plug your TV's power adapter into a power outlet, then turn on your TV.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight TV, then press OK.
6 If you cannot tune to channels you know exist, scan for channels. See "Automatically scanning for channels" on page 56.

Notes

• Use a coaxial cable to eliminate interference and noise from radio waves.
• Do not bundle the coaxial cable with the power adapter or other cables.
• If the antenna is not installed correctly, contact qualified service personnel to correct the problem.
• If the signal level for a channel is weak, the picture may be distorted. Adjust the antenna or use a highly directional outdoor or set-top antenna with a built-in amplifier.
• If the picture quality is good on some channels and poor on others, the problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.
• If you connect to cable TV without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable TV provider about upgrading to a set-top box.
• Many high-definition (HD) channels upscale standard-definition (SD) content. The picture displayed on your TV is still displayed as SD, thus the picture quality will not be as clear or crisp as it would be if the content was originally recorded in HD.

Connecting a DVD or Blu-ray player

Many DVD or Blu-ray players have more than one connection type. To get the best video, you should use the best connection type available. For more information, see "What connection should I use?" on page 15.

You can connect a DVD or Blu-ray player using:

• HDMI (best)
- Component video (better)
• AV (composite video) (good)

HDMI (best)

1 Make sure that your TV's power adapter is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an HDMI cable (not provided) to an HDMI jack on the side of your TV and to the HDMI OUT jack on the DVD or Blu-ray player.
3 Plug your TV's power adapter into a power outlet, then turn on your TV and DVD or Blu-ray player.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight HDMI1 or HDMI2, then press OK.

Note

An HDMI cable carries both audio and video. You do not need to use any audio cables.

Component video (better)

Note

Cables are often color-coded to match color-coded jacks.

1 Make sure that your TV's power adapter is unplugged and the DVD or Blu-ray player is turned off.
2 Connect a component video cable (not provided) to the VIDEO / Y, PB, and PR jacks on the back of your TV and to the COMPONENT OUT jacks on the DVD or Blu-ray player.
3 Connect an audio cable (not provided) to the L and R AUDIO jacks on the back of your TV and to the L and R AUDIO OUT jacks on the DVD or Blu-ray player.

Important

• The VIDEO / Y, PB, and PR video jacks (used to connect a component device) share the L and R AUDIO jacks with the VIDEO / Y jack (used to connect an AV device). You can only connect one component video or AV device at a time. We suggest upgrading to HDMI if your DVD or Blu-ray player supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

4 Plug your TV's power adapter into a power outlet, then turn on your TV and DVD or Blu-ray player.
5 Press INPUT to open the INPUT SOURCE list.
6 Press ▲ or ▼ to select Component/AV, then press OK.

AV (composite video) (good)

Notes

• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green VIDEO / Y jack.

1 Make sure that your TV's power adapter is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an AV cable (not provided) to the green VIDEO/Y jack and L and R AUDIO jacks on the back of your TV and to the AV OUT jacks on the DVD or Blu-ray player.

Important

• The VIDEO / Y, PB, and PR video jacks (used to connect a component device) share the L and R AUDIO jacks with the VIDEO / Y jack (used to connect an AV device). You can only connect one component video or AV device at a time. We suggest upgrading to HDMI if your DVD or Blu-ray player supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

3 Plug your TV's power adapter into a power outlet, then turn on your TV and DVD or Blu-ray player.

4 Press INPUT to open the INPUT SOURCE list.

5 Press ▲ or ▼ to select Component/AV, then press OK.

Connecting a game console

Many game consoles have more than one connection type. To get the best video, you should use the best connection type available. For more information, see "What connection should I use?" on page 15.

You can connect a game console using:

• HDMI (best)
- Component video (better)
• AV (composite video) (good)

HDMI (best)

1 Make sure that your TV's power adapter is unplugged and the game console is turned off.
2 Connect an HDMI cable (not provided) to an HDMI jack on the side of your TV and to the HDMI OUT jack on the game console.
3 Plug your TV's power adapter into a power outlet, then turn on your TV and the game console.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight HDMI1 or HDMI2, then press OK.

Note

An HDMI cable carries both audio and video. You do not need to use any audio cables.

Component video (better)

Note

Cables are often color-coded to match color-coded jacks.

1 Make sure that your TV's power adapter is unplugged and the game console is turned off.
2 Connect the game console's component video cable (not provided) to the VIDEO / Y, PB, and PR video jacks and L and R AUDIO jacks on the back of your TV and to the component jack(s) on the game console.

Important

• Your game console may require a special component video cable. See the documentation that came with your game console or check the manufacturer's website.
• The VIDEO / Y, PB, and PR video jacks (used to connect a component device) share the L and R AUDIO jacks with the VIDEO / Y jack (used to connect an AV device). You can only connect one component video or AV device at a time. We suggest upgrading to HDMI if your game console supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

3 Plug your TV's power adapter into a power outlet, then turn on your TV and the game console.

4 Press INPUT to open the INPUT SOURCE list.

5 Press ▲ or ▼ to select Component/AV, then press OK.

AV (composite video) (good)

Notes

• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green VIDEO / Y jack.

1 Make sure that your TV's power adapter is unplugged and the game console is turned off.
2 Connect the game console's AV cable (not provided) to the green VIDEO / Y jack and L and R AUDIO jacks on the back of your TV and to the composite jack(s) on the game console.

Important

• Most game consoles come with a special AV cable. See the documentation that came with your game console or check the manufacturer's Web site.
• The VIDEO / Y, PB, and PR video jacks (used to connect a component device) share the L and R AUDIO jacks with the VIDEO / Y jack (used to connect an AV device). You can only connect one component video or AV device at a time. We suggest upgrading to HDMI if your game console supports it.
• When you connect the audio using the L and R AUDIO jacks, the audio output is analog.

3 Plug your TV's power adapter into a power outlet, then turn on your TV and the game console.

4 Press INPUT to open the INPUT SOURCE list.

5 Press ▲ or ▼ to select Component/AV, then press OK.

Connecting a computer

1 Make sure that your TV's power adapter is unplugged and the computer is turned off.
2 Connect an HDMI cable (not provided) to an HDMI jack on the side of your TV and to the HDMI OUT jack on the computer.
3 Plug your TV's power adapter into a power outlet, then turn on your TV and the computer.
4 Press INPUT to open the INPUT SOURCE list.
5 Press ▲ or ▼ to highlight HDMI1 or HDMI2, then press OK.
6 Adjust the display properties on the computer, if necessary.

Connecting a USB flash drive

You can use the USB jack on your TV to view photos on a USB flash drive.

1 Plug a USB flash drive into the USB port on the side of your TV.

Caution

Do not remove the USB flash drive or turn off the TV while using the USB flash drive. You may lose data or damage the USB flash drive.

2 Press ▲ or ▼ to select Yes in the message that appears. The PHOTOS menu opens.

OR

If you switch to a different video input source after you connect the USB flash drive and want to switch back to the drive, press INPUT to open the INPUT SOURCE list, press ▲ or ▼ to select USB(Photos), then press OK. The PHOTOS menu opens.

Note

The Photos viewer only supports JPEG format images (with "jpg" file extensions) and not all JPEG files are compatible with your TV. For more information, see "Using a USB flash drive" on page 49.

Connecting headphones

When you connect headphones, the TV speakers are muted.

Warning

Loud noise can damage your hearing. When using headphones, use the lowest volume setting on your headphones that still lets you hear the sound.

1 Connect the headphones to the 📊 / AUDIO OUT jack on the side of your TV.
2 Press ◀ or ▶ to highlight Headphones/Audio Out Variable, then press OK. For more information, see "Selecting the audio out mode" on page 55.

Notes

• If you connect headphones when your TV is turned off, then you turn on your TV, the TV speakers are muted and the audio plays through the headphones.
• You can also connect a home theater system, sound bar, or external speaker system to the AUDIOOUT jack.

Connecting external speakers or a sound bar

You can connect external speakers using:

• Digital audio (24-inch and 28-inch)
• Digital audio (32-inch)
- Analog audio

Digital audio (24-inch and 28-inch)

1 Make sure that your TV's power adapter is unplugged and the digital speaker system or sound bar is turned off.
2 Connect a digital coaxial audio cable (not provided) to the DIGITAL OUTPUT (Coaxial) jack on the side of your TV and to the coaxial AUDIO IN jack on the digital speaker system or sound bar.
3 Plug your TV's power adapter into a power outlet, then turn on your TV.
4 Turn on the digital speaker system or sound bar, then set it to the correct source. For more information, see the documentation that came with the digital speaker system or sound bar.
5 On your TV's Audio menu, highlight Digital Audio Format/Audio Delay, then press OK or ▶. Set the Audio Format option to PCM. See the Digital Audio Format/Audio Delay option in "Adjusting sound settings" on page 54.

Digital audio (32-inch)

1 Make sure that your TV's power adapter is unplugged and the digital speaker system or sound bar is turned off.

2 Connect a digital optical audio cable (not provided) to the DIGITAL OUTPUT (OPTICAL) jack on the side of your TV and to the coaxial AUDIO IN jack on the digital speaker system or sound bar.

3 Plug your TV's power adapter into a power outlet, then turn on your TV.

4 Turn on the digital speaker system or sound bar, then set it to the correct source. For more information, see the documentation that came with the digital speaker system or sound bar.

5 On your TV's Audio menu, highlight Digital Audio Format/Audio Delay, then press OK or ▶. Set the Audio Format option to PCM. See the Digital Audio Format/Audio Delay option in "Adjusting sound settings" on page 54.

Analog audio

When you connect an analog system or sound bar to the 📞 / AUDIO OUT jack, the TV speakers are muted.

1 Make sure that your TV's power adapter is unplugged and the analog speaker system or sound bar is turned off.
2 Connect an audio cable (not provided) to the 📄 / AUDIO OUT jack on the side of your TV and to the AUDIO IN jacks on the analog speaker system or sound bar.
3 Plug your TV's power adapter into a power outlet, then turn on your TV.
4 Turn on the analog speaker system or sound bar, then set it to the correct source. For more information, see the documentation that came with the analog speaker system or sound bar.
5 On your TV, set the Headphones/Audio Out option on the Audio menu to Headphones/Audio Out Variable or Audio Out Fixed. See the Headphone / Audio Out option in "Adjusting sound settings" on page 54.

Connecting a home theater system with multiple devices

You can connect an AV receiver and your devices to create a home theater.

The connections you make depend on the video and audio jacks available on your devices. Refer to the documentation that came with your devices for connection information.

Just remember to use the best connection types available for the best picture and sound. For information about connection types, see "What connection should I use?" on page 15.

Connecting power

You should connect devices before your connect the power adapter. When you are adding devices, make sure that the power adapter is unplugged from the power outlet.

1 Connect the power adapter to the power connector on the back of your TV.
2 Connect the other end of the adapter to a power outlet.

Caution

• Your TV should only be operated from the power source indicated on the label.
  • Always unplug the power adapter from the power outlet when you will not be using your TV for an extended period of time.

Using the remote control

This section covers:

• Installing remote control batteries
- Aiming the remote control
- Programming universal remote controls
• Viewing universal remote control codes

Installing remote control batteries

1 While pressing the release latch on the back of the remote control, lift the battery compartment cover off of the remote control.

Simple line drawing of a remote control panel with arrows indicating rotation and movement (no text or symbols)

2 Insert two AAA batteries into the battery compartment. Make sure that you match the + and - symbols on the batteries with the + and - symbols in the battery compartment.

3 Replace the battery compartment cover.

Cautions

• Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.
• Make sure that batteries are disposed of correctly. Do not burn or incinerate.

Notes

• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• If the remote control is not going to be used for an extended period of time, remove the batteries.

Aiming the remote control

- Point the remote control towards the remote sensor on the front of your TV.

Remote control sensor

Programming universal remote controls

You can operate your Insignia TV with a new or existing universal remote control.

1 See the table in "Viewing universal remote control codes" on page 36 for common codes. If you have problems programming your remote or need a different remote control code:

- Contact the universal remote control or cable/satellite company of the remote control you are trying to program

- Visit www.insigniaproducts.com/remotecodes for the latest remote control code information.

• Call the Insignia Customer Care Center at 1-877-467-4289.

2 Follow your universal remote control's instructions to enter the TV code you found in Step 1.

Tips

- If your universal remote control has a code search feature, run a code search to identify a code that matches your TV. See your universal remote control's instructions for details.

- If your universal remote control has a "Learn" feature, you can manually program it using the Insignia TV remote to "teach" the commands one at a time. See your universal remote control's instructions for details.

Viewing universal remote control codes

You can view a list of universal remote control codes in the on-screen menu.

Tips

• The brand name is often visible on the front of the universal remote control, and the model number is often visible on the back.
- If your universal remote control is not listed, refer to your universal remote control's instructions and try codes for the brands Orion, Emerson, Memorex, Sansui, Sylvania, or Zenith. You may need to try several codes before finding a match.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Learn More, then press OK.
4 Press ▲ or ▼ to highlight Remote control codes, then press OK. Your TV displays information about the universal remote codes.
5 Press OK. Your TV displays a list of remote control codes for various brands of universal remote controls.
6 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Note:

You can also find codes for other remote controls at: http://www.insigniaproducts.com/remotecodes Or, check with your cable or satellite TV provider for the remote control code.

Turning on your TV for the first time

The first time you turn on your TV, the Easy Setup wizard opens. The wizard guides you through setting up basic settings including the menu language, time setting, picture mode, TV signal source, and the channel list.

1 Make sure that you have:

• Installed the remote control batteries. (See page 35.)
- Connected an antenna, cable TV, or satellite TV. (See page 16 through page 20.)
• Connected the power adapter. (See page 34.)

2 Press ⏻ (power) to turn on your TV. The Easy Setup wizard opens.

3 Press ▲ or ▼ to highlight a language, then press OK.

4 Press ◀ or ▶ to highlight Home Use Mode or Store Display Mode, then press OK.

If you selected Store Display Mode, a message asks if you are sure you want this mode. Select OK to continue using Store Display Mode, or select Cancel to automatically change to Home Use Mode. Store Display Mode is not an energy savings mode and will display a retail banner.

5 Press ◀ or ▶ to highlight an option, then press OK. You can select:

• Watch TV to skip the customizing options. You can press TV-MENU later to customize settings. Go to "Finish the wizard" on page 38.
• Customize my TV to set options to maximize your experience. Go to "Customize my TV" on page 37.

Customize my TV

6 Press ▲ or ▼ to highlight a time zone, then press OK.

7 Press ▲ or ▼ to select On to turn on Daylight Saving or Off to turn off Daylight Saving, then press OK.

8 Press ◀ or ▶ to highlight Month, Day, or Year, press ▲ or ▼ adjust the setting, press OK or ▶ to highlight Next, then press OK.

9 Press ◀ or ▶ to highlight Hour, Minute, or the AM/PM field, press ▲ or ▼ adjust the option, press OK or ▶ to highlight Next, then press OK.

10 Press ▲ or ▼ to highlight a video input source, then press ▶ to move to the label area.

11 Press ▲ or ▼ to highlight a preset label or Custom.

12 If you select a preset label, press ▶ to select Next, then OK. OR

If you select Custom, press OK, then press ▲ or ▼ to enter the first character in your custom label. Press ◀ or ▶ to move to the previous or next character position. Use the arrow buttons to enter additional characters. You can enter 12 characters (letters or numbers). When you have finished creating your label, press ▶ twice to highlight Next, then press OK. Your custom label appears on the INPUT SOURCE list when you press INPUT.

Finish the wizard

13 Press ▲ or ▼ to highlight Cable/Satellite Box, Cable from the wall, or Antenna, then press OK.

- If you select Cable/Satellite Box, the screen that opens shows you the ways you can connect the box.

Press OK.

- If you select Cable from the wall or Antenna your TV starts scanning for channels and displays a progress screen.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

14 Press OK to close the wizard. If you selected:

• Cable from the wall, or Antenna, your TV tunes to the first channel it found in the scan.
• Cable/Satellite box, press INPUT to open the INPUT SOURCE list, press ▲ or ▼ to select the video input (HDMI, Component, or AV) you connected the box to, then press OK. Your TV switches to the input you selected.

Understanding the basics

This section covers basic information for:

• Turning your TV on or off
- Selecting the video input source
• On-screen menu overview
• Navigating the menus
- Selecting a channel
- Adjusting the volume
• Viewing channel information

Turning your TV on or off

1 Make sure that the power adapter is connected to a power outlet.
2 Press (power) to turn on your TV. The power indicator turns off.
3 Press (power) again to turn off your TV. Your TV enters standby mode, and the power indicator turns red.

Warning

When your TV is in standby mode, it is still receiving power. To completely disconnect power, unplug the power adapter.

Note

If your TV does not receive an input signal for several minutes, it automatically goes into standby mode.

Selecting the video input source

Note

Your TV automatically detects and displays which video jacks have devices connected to them when the devices are turned on. You can turn this feature off to always display all inputs. For more information, see "Turning Input Sensor on or off" on page 69.

1 Turn on your TV.
2 If you want to use a device connected to a video input (such as a DVD or Blu-ray player), turn on the device.

3 Press INPUT.

4 Press ▲ or ▼ to select a video input source, then press OK.

On-screen menu overview

Notes

• Depending on the signal source selected, you may see different options on your screen.
• Menu items that are not selectable are grayed out.

Picture menu (TV mode)

Audio menu (TV mode)

Channels menu (TV mode)

Settings menu (TV mode)

Help menu

PHOTOS menu (USB mode)

Navigating the menus Selecting a channel

Press TV-MENU to open the on-screen menu.

Press the right or left arrow to move the cursor on the screen or to adjust a selected item.

Press the up or down arrow to select menu options.

Press OK to confirm a selection or enter a sub-menu.

Press EXIT to close the menu.

Press TV-MENU to return to the previous menu.

• Press CH ∧ or CH ∨ to go to the next or previous channel on the memorized channel list.
• Press the number buttons to enter the channel number you want, then wait for the channel to change or press OK to immediately change the channel.
• To select a digital sub-channel, press the number buttons to select the main digital channel, press (sub-channel), then press the number button for the sub-channel. Wait for the channel to change, or press OK to immediately change the channel. For example, to tune to channel 5.1, press 5, (sub-channel), then 1.

Note

Button presses must be within three seconds of each other.

• Press CH-LIST to open the list of memorized channels, press ▲ or ▼ to highlight a channel, then press OK.
• Press (return) to go to the last viewed channel.
• Press FAVORITE to open the favorite channel list, press ▲ or ▼ to highlight a channel, then press OK. For information about setting up a favorite channel list, see "Setting up a favorite channel list" on page 58.

Note

If a list has more than one page, press ▲ or ▼ to scroll through the pages.

Adjusting the volume

• Press VOL+ or VOL− to increase or decrease the volume.
• Press MUTE to turn off the sound. Press MUTE again to turn the sound back on.

Viewing channel information

- Press INFO* to view an information banner. The information banner shows the current program information such as channel number, video input source, and resolution.

• Digital channel information—Displays the channel number, station name, channel label, broadcast program name, TV rating, signal type, audio information, resolution, current time, signal strength, day of the week, date and current program start and end times, if provided by the broadcaster.
• Analog channel information—Displays channel number, channel label (if present), signal type, audio information, day of the week, date, and resolution, if provided by the broadcaster.

Using the DVD player

Most DVDs and your DVD player have region codes that help control illegal distribution of DVDs. The region code for your DVD player is 1. You can only play DVDs with a region code of 1 or ALL. The region code for a DVD is printed on the DVD or the DVD packaging. See "DVD player" on page 83 for a list of compatible disc formats.

Warning

Keep your fingers clear of the disc slot when loading or unloading a disc. Neglecting to do so may cause serious personal injury.

This section covers:

• Playing a disc
• Controlling disc playback
• Adjusting DVD player settings
  • DVD on-screen menus

Playing a disc

Note

When you insert a disc into the slot, the DVD player automatically pulls the disc into the slot. You do not need to force the disc into the slot.

1 Press (power) to turn on your TV.

2 Insert a disc into the disc slot with the label facing the back of your TV. The picture next to the disc slot shows how to insert a disc.

Playback begins automatically.

Notes

• If your TV is off when you insert a disc or you switch to another video mode, press DVD to switch back to the DVD player.
• If a disc is not in the disc slot when you switch to DVD mode, NO DISC appears on the screen.

Controlling disc playback

• Press VOL+ or VOL- to adjust the volume.
• Press (pause) to pause playback. Press again or ▶ (play) to resume playback.
• Press (kip back) to go to the previous chapter or track. Press (kip forward) to go to the next chapter or track.
• Press (fast reverse) to quickly move backward on a disc. Press (fast forward) to quickly move forward on a disc. Each time you press one of these buttons, the speed changes. The speeds are 2 x, 4x, 8x, 16x, 32x. Press (play/pause) to resume normal playback.
• Press (stop) once to stop playback. If you press (play), playback resumes where the disc stopped. Press (stop) twice. When you press (play), playback begins at the beginning.

Adjusting DVD player settings

1 While in DVD mode and with playback stopped or no disc in the disc slot, press SETUP. The General Setup Page menu opens.

2 Press ▲ or ▼ to highlight an option or press ◀ or ▶ to select another menu, then press OK.
3 When an option is highlighted, press ▶ to access the option, press ▲ or ▼ to adjust the option setting, then press OK.
4 Press ◀ to return to the top of the settings list if you want to adjust more settings, or press SETUP to close the menu.

DVD on-screen menus

General Setup Page

- TV Display—Displays the screen aspect ratio. The default setting is Wide (16:9). You cannot change this setting.

- OSD Lang—Selects the language for the on-screen menus. You can select English, French, or Spanish.

- Screen Saver—When this setting is turned on and the DVD player is stopped or paused for three minutes, a screen saver appears. To close the screen saver, press any DVD control button. You can select On or Off.

- Last Memory—If you turn off your TV with a disc in the disc slot or eject a disc when Last Memory is turned on, then turn on your TV or insert the same disc, playback resumes where it stopped. You can select On or Off.

Audio Setup Page

Press OK or ▼ to highlight Speaker Setup, then press OK or ▶ to access the menu.

Downmix—You can select:

• LT/RT—Outputs the audio from a disc recorded with multi-channel audio to the left and right channels.
• Stereo—Outputs the audio from a disc recorded with multi-channel audio in stereo.

Dolby Digital Setup

- Dynamic—Sets the compression ratio to control the sound (volume) contrast. The sound contrast is the difference in volume between the loud and soft sounds on a disc's audio track.

Press ▲ or ▼ to select a compression ratio.

Preference Page

Note

This menu is only available when your TV is in DVD mode and playback is completely stopped (you pressed ■stop) twice) or no disc is inserted.

TV Type—You can select:

- NTSC—Displays the TV type. This information is for display only. You cannot change this option.

Audio—Selects the audio language for the DVD, if the DVD was recorded in multiple languages.

Subtitle—Turns subtitles on or off and selects the DVD subtitle language, if the DVD was recorded with subtitles.

Disc Menu—Selects the language for the DVD menu if the DVD was recorded with multiple menu languages.

Parental—Sets the parental control rating level. When you select a level, DVDs recorded with a higher rating level cannot be viewed. You can select:

Password—Lets you set or change the parental control password. You must enter the password to set the parental rating level and to view DVDs with a locked rating level.

1 Select Password, press ▶ to highlight Change, then press OK. The password screen opens.

2 Use the number buttons on the remote control to enter the old password in the Old Password box. The default password is (0000). If you forget your password, enter 9999.
3 Press ▼ to move to the New Password box, then enter a new password.
4 In the Confirm PWD box, then enter the new password again.

Default—Resets all DVD settings, except the parental control setting and password, to the defaults.

Note

When you select Default, the Setup menu closes. To open the menu again, press SETUP.

Using INlink

INlink lets you control HDMI CEC-compatible devices connected to the HDMI jacks on your TV using the remote control that came with your TV. To use INlink, you must set the INlink Control setting on the INlink menu to On.

Notes

• HDMI cables must be used to connect HDMI CEC-compatible devices to your TV.
• The connected device's HDMI CEC feature must be turned on.
• If you connect an HDMI device that is not HDMI CEC-compatible, none of the INlink Control features work.
• Depending on the connected HDMI device, some INlink Control features may not work.

This section covers:

• Turning INlink on or off
  • Turning Device Auto Power Off on or off
  • Turning TV Auto Power On on or off
  • Turning Audio Receiver on or off
• Displaying a list of INlink-compatible devices
• Selecting an INlink-compatible device
• Opening an INlink-compatible device's root menu

Turning INlink on or off

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight INlink, then press OK or ▶.

4 Press ▲ or ▼ to highlight INlink Control, then press OK or ▶.
5 Press ▲ or ▼ to highlight On or Off, then press OK.
6 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Turning Device Auto Power Off on or off

When INlink is set to On, Device Auto Power Off automatically turns off HDMI CEC devices when you turn off your TV.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight INlink, then press OK or ▶.

4 Press ▲ or ▼ to highlight Device Auto Power Off, then press OK or ▶.
5 Press ▲ or ▼ to highlight On (turns off the connected devices when you turn off your TV) or Off (does not turn off the connected devices when you turn off your TV), then press OK.
6 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Turning TV Auto Power On on or off

TV Auto Power On automatically turns on your TV when an HDMI CEC device is turned on, if the device has this feature.

1 Press TV-MENU.
2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight INlink, then press OK or ▶.

4 Press ▲ or ▼ to highlight TV Auto Power On, then press OK or ▶.
5 Press ▲ or ▼ to highlight On (turns on your TV when you turn on the connected device) or Off (does not turn on your TV when you turn on the connected device), then press OK.
6 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Turning Audio Receiver on or off

When INlink is turned on and you have connected an HDMI CEC-compatible audio receiver to your TV, turning on Audio Receiver lets you use your TV's remote control to control the volume on the audio receiver.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight INlink, then press OK or ▶.

4 Press ▲ or ▼ to highlight Audio Receiver, then press OK or ▶.

5 Press ▲ or ▼ to highlight On (your TV's remote control controls the connected audio receiver's volume) or Off (your TV's remote control does not control the connected audio receiver's volume), then press OK.

6 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Displaying a list of INlink-compatible devices

You can display a list of HDMI CEC devices that are connected to your TV.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight INlink, then press OK or ▶.

4 Press ▲ or ▼ to highlight INlink Device Lists, then press OK or ▶. A list of the HDMI CEC-compatible devices you have connected appears.

5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Selecting an INlink-compatible device

When you have more than one INlink-compatible device connected, you can select the device you want to use.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight INlink, then press OK or ▶.

4 Press ▲ or ▼ to highlight Connect, then press OK or ▶.

5 Press ▲ or ▼ to highlight the device you want to connect to, then press OK.

6 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Opening an INlink-compatible device's root menu

You can open an INlink-compatible device's root menu, then use your TV's remote control to control the device, if the device has this feature.

1 Press INPUT, press ▲ or ▼ to highlight the INlink-compatible device you want, then press OK.

2 Press TV-MENU.

3 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

4 Press ▲ or ▼ to highlight INlink, then press OK or ▶.

5 Press ▲ or ▼ to highlight Root Menu, then press OK. The device's root menu opens, and you can use your TV's remote control to control the device.

6 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Using a USB flash drive

You can connect a USB flash drive to your TV to view compatible JPEG pictures.

Notes

• Never remove the USB flash drive or turn off your TV while viewing JPEG pictures.
• The JPEG picture viewer only supports JPEG format images (with ".jpg" file extensions) and not all JPEG files are compatible with your TV.

This section cover:

• Switching to USB mode
• Browsing photos
  • Viewing favorite photos
  • Viewing photos in a slideshow

Switching to USB mode

1 Make sure that you have connected the USB flash drive to the USB port on your TV.
2 Press ▲ or ▼ to highlight Yes in the message that appears, then press OK. The PHOTOS menu opens. OR

If you connected the USB flash drive, then changed to a different video input source, press INPUT to open the INPUT SOURCE list, press ▲ or ▼ to highlight USB(Photos), then press OK. The PHOTOS menu opens.

Note

To exit USB mode, press INPUT to open the INPUT SOURCE list, then select another input source.

Browsing photos

1 Switch to USB mode. See "Switching to USB mode" on page 49.

2 Press ▲ or ▼ to highlight Browse Photos, then press OK or ▶. The screen displays folder names and photo files stored on the USB flash drive in a thumbnail index with the first folder or file highlighted. A control bar appears at the bottom of the screen.

Note

Photos are shown in the order they appear on the USB flash drive. They may not be listed in file name order.

3 To navigate the thumbnail index screen, press:

• ▲▼◀ or ▶ to browse through the files and folders.
• OK to view a highlighted photo full-screen or open a highlighted folder.
  • TV-MENU or EXIT to open the PHOTOS menu.
• FAVORITE to add or remove a photo from the favorite photo list. A heart appears on a photo that has been added to the favorite photo list.

When a photo is displayed full-screen, a control bar appears at the bottom of the photo. The file name, picture resolution, size, and date are displayed on the bottom of the control bar. If you do not press a button within 10 seconds, the control bar closes. Press INFO to open the control bar again.

4 To navigate on the photo screen, press:

• ◀ to go to the previous photo.
• ▶ to go to the next photo.
- OK to rotate the photo clockwise.
- ASPECT one or more times to enlarge the image by 2×, or 4× or to select Fill (to fill the screen).
You can press ▲ ▼ ◀ or ▶ to pan the photo.
- EXIT to return to the thumbnail index.
• TV-MENU to return to the PHOTOS menu.

Viewing favorite photos

After you create your favorite photo list, you can browse among your favorite photos quickly.

1 Switch to USB mode. See "Switching to USB mode" on page 49.

2 Press ▲ or ▼ to highlight Favorite Photos, then press OK or ▶. A thumbnail index of your favorite photos opens with a control bar at the bottom of the screen. A heart appears on a favorite photo.

Note

Photos are shown in the order they appear on the USB flash drive. They may not be listed in file name order.

You select photos and navigate on the photo screen in the same way you do when you are browsing through photos. For more information, see "Browsing photos" on page 49.

Viewing photos in a slideshow

You can view your photos in a slideshow.

1 Switch to USB mode. See "Switching to USB mode" on page 49.
2 If the photos you want to view are in a folder on the USB flash drive, select the folder. For information about selecting a folder, see "Browsing photos" on page 49 or "Viewing favorite photos" on page 50.

3 Press TV-MENU.

4 Press ▲ or ▼ to highlight Start Slideshow, then press OK or ▶. A slideshow starts with the first photo in the current folder.

5 To control the slideshow:

Press... To..
TV-MENU Press to open the PHOTOS menu.
◀ (previous) Return to the previous photo.
▶ (next) Go to the next photo.
OK	Pause the slideshow. Press again to resume the slideshow.
II (pause) Pause the slideshow.
▶ (play)	When paused, press to resume the slideshow.
■ (stop) OR EXIT	Press to stop the slideshow and return to the thumbnail index.

Adjusting the picture

This section covers:

• Adjusting the TV picture
  • Automatically adjusting the aspect ratio
• Setting the power on picture mode

Adjusting the TV picture

You can adjust various settings to improve the quality of the TV picture. Also, you can reset all picture settings to the factory default.

1 Press TV-MENU.

2 Press ▼ or OK to access the Picture menu.

3 Press ▲ or ▼ to highlight an option, then press OK or ▶ to access the option. You can select:

• Picture Mode—Selects the picture mode. You can select:

• Vivid—(a bright and vivid picture). Significantly increases the contrast, brightness, and sharpness. This selection is good for video games, animation, and in bright light environments.
- Standard—(a standard picture). Moderately increases the contrast, brightness, and sharpness. This selection is good for standard TV broadcasts.
- Energy Savings—(the backlight brightness is decreased). Your TV has a backlight that provides light for displaying a picture. By reducing the amount of light, your TV uses less energy.
- Movie—(a finely detailed picture). Adjusts the brightness and contrast and lowers the sharpness for a more realistic picture. This selection is good for watching the highest quality video such as Blu-ray Discs, DVDs, and HDTV.
• Game—Adjusts the picture for the ultimate gaming experience.

Note

Game mode is only available when the video input is set to HDMI or Component/AV.

- Custom—(customized picture). Lets you manually adjust picture settings such as brightness, contrast, and sharpness.

Note

You can also press PICTURE to select the picture mode.

- Advanced Settings—Opens the Picture · Advanced Settings menu where you can adjust additional video options.

- Aspect Ratio—Adjusts how the picture fills the screen. You can select:

Aspect ratio options

Normal:

Displays the image in the original aspect ratio. You may see black bars if the original content is not widescreen (16:9).

Zoom:

Expands the image to fill the screen. The top and bottom of the image may be cropped.

Wide:

Use this option to view content recorded in a widescreen (16:9) aspect ratio.

Cinema:

Stretches the image at the edges, but keeps a clear image in the center.

Auto:

Automatically adjusts the image based on the screen size and the TV program. Select this option if you do not know which aspect ratio to choose.

Note: Auto is only available when Auto

Aspect Ratio in the Channels menu is set to On.

Example

Note

You can also press ASPECT to select the aspect ratio.

• Overscan—Extends text and images past the screen edges to hide edge artifacts. You can select On or Off.
• Dynamic Backlight (DCR)—Enhances the contrast ratio between light and dark areas of the picture. You can select Off, Low, or High.
• Color Temperature—Selects the color temperature. You can select Cool (to enhance the blues), Normal, or Warm (to enhance the reds).
• Noise Reduction—Selects the noise reduction mode to reduce picture noise (snow). You can select Off, Low, Middle, or High.

• Adaptive Contrast—Automatically adjusts picture detail and brightness. You can select On or Off.

• Backlight—Sets the overall brilliance of the screen.

• Brightness—Adjusts the brightness of the dark areas of the picture.
• Contrast—Adjusts the brightness of the light areas of the picture.
  • Color—Adjusts the color intensity of the picture. A low setting may make the color look faded. A high setting may make the color look artificial.
• Tint—Adjusts the color balance of the picture. Use this control to make skin tones look more natural.
• Sharpness—Adjusts the color detail of images. If you set this control too high, dark images may appear with light or white edges.
• Reset Picture Settings—Resets all picture settings to factory mode.

4 Press ◀ or ▶ to adjust the option, or press ▲ or ▼ to select a setting.

5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Automatically adjusting the aspect ratio

Auto Aspect Ratio automatically changes how the picture looks on the screen (aspect ratio) based on the TV program you are viewing.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Auto Aspect Ratio, then press OK or ▶.
4 Press ▲ or ▼ to select On (automatically adjust the aspect ratio) or Off (does not automatically adjust the aspect ratio), then press OK.
5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Setting the power on picture mode

You can set the picture mode your TV uses when you turn it on.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Power on in Vivid Mode, then press OK or ▶.

4 Press ▲ or ▼ to highlight On (when you turn on your TV, it will be in Vivid picture mode) or Off (when you turn on your TV, it will be in the picture mode it was in before you turned it off), then press OK.

5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting the sound

This section covers:

- Adjusting sound settings

- Selecting the audio out mode

- Playing TV audio only

Adjusting sound settings

You can adjust sound settings to improve the sound quality. You also can reset all sound settings to the factory default.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight AUDIO, then press ▼ or OK.

3 Press ▲ or ▼ to highlight an option, then press OK or ▶ to access the option. You can select:

• Audio Mode—Selects the sound mode. You can select:

• Standard—Balances treble and bass. This setting is good for watching standard TV broadcasts.
• Theater—Enhances treble and bass for a rich sound experience. This setting is good for watching DVDs, Blu-ray discs, and HDTV.
• Music—Preserves the original sound. This setting is good for listening to music.
• News—Enhances vocals for TV audio. This setting is good for watching news broadcasts.
• Custom—Lets you manually adjust sound settings.
  • Balance—Adjusts the balance between the left and right audio channels.
  • Bass—Adjusts the low sounds.
• Treble—Adjusts the high sounds.

• TV Speakers—Selects where to play TV audio. When you connect headphones to your TV, audio plays through both the headphones and the TV speakers. You can select:

- Auto (default setting)—Automatically turns off the TV speakers when you connect a device to the AUDIO OUT jack. When you disconnect the device, the TV speakers turn on automatically.

- On—Always plays the audio through the TV speakers. If a device is connected to the /AUDIOOUT jack, the audio is played through both the TV speakers and the device.

- Off—Turns off the TV speakers and plays the audio only through the device connected to the TAUDIO OUT jack. If you disconnect the device, the TV speakers remain turned off.

- Digital Audio Format/Audio Delay—Adjusts the digital audio sent to an external audio system. You can select:

- Audio Format—Selects the digital audio format sent to an external audio system. You can select:

• Pass Thru (to pass through the original digital audio sound).

- PCM (to output audio in 2-channel stereo).

- Audio Delay—Fine tunes the audio when it is not in sync with the video.

- MTS/SAP—(Analog channels only) Selects the audio mode. You can select:

- Mono—Select this option if there is noise or static on weak stereo broadcasts.

- Stereo—Select this option for programs broadcast in stereo.

- SAP—Select this option to listen to a secondary audio program, if available.

Note

You can also press MTS/SAP to select the audio mode.

• Audio Language—(Digital channels only) Selects an alternate audio language, if available.

- Headphones/Audio Out—You can use the 📄/AUDIO OUT jack on the side of your TV to connect headphones, a home theater system, sound bar, or external speaker system. When a device is connected to the 📄AUDIO OUT jack, the TV speakers are muted. You can select:

- Headphones/Audio Out Variable—Select this option to use the remote control that came with your TV to control the audio from headphones, a home theater system, a sound bar, or an external speaker system you connected to the AUDIO OUT jack.

- Audio Out Fixed—Select this option to use the remote control that came with the home theater system, sound bar, or external speaker system you connected to the 📞/ AUDIO OUT jack to control the audio.

- Reset Audio Settings—Reset all audio settings to factory defaults.

4 Press ◀ or ▶ to adjust the option, or press ▲ or ▼ to select a setting.

5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Selecting the audio out mode

If your TV is on when you connect a device to the 📄/AUDIOOUT jack on the side of your TV, a screen opens where you select which audio out mode you want to use.

1 Connect headphones, a home theater system, sound bar, or external speaker system to the 📄/AUDIOOUT jack on the side of your TV.

2 Press ◀ or ▶ to highlight the audio out mode you want to use, then press OK. You can select:

- Headphones/Audio Out Variable—Select this option to use the remote control that came with your TV to control the audio from headphones, a home theater system, or a sound bar you connected to the AUDIO OUT jack.

- Audio Out Fixed—Select this option to use the remote control that came with the home theater system, sound bar, or external speaker system you connected to the AUDIO OUT jack to control the audio.

Playing TV audio only

You can turn off the picture on your TV and listen to the program audio only.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Audio Only, then press OK or ▶.

4 Press ▲ or ▼ to select On.

5 Press TV-MENU, OK, or ◀ to return to the previous menu, or press EXIT to close the menu.

Notes

• The picture turns off in about five seconds.
• Audio Only works only when the input source is TV, and your TV is receiving a broadcast signal.
• To exit audio only mode, press any button. When you exit audio only mode, the Audio Only option is automatically reset to Off.

Changing channel settings

This section covers:

• Automatically scanning for channels
• Hiding channels
- Setting up a favorite channel list
• Viewing a favorite channel
- Adding or changing a channel label
- Checking the digital signal strength

Automatically scanning for channels

When you scan for channels, your TV searches for channels with signals and stores the channel information in the channel list. When you press CH or CH, your TV goes to the next or previous channel in the channel list.

If the TV signal source changes, for example you change from an outdoor antenna to cable TV (no box), you need to scan for channels.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Auto Channel Search, then press OK or ▶.

4 Press ▲ or ▼ to highlight Cable/Satellite Box, Cable from the wall, or Antenna, then press OK.

A If you select Cable/Satellite Box, the screen that opens shows you all the ways you can connect a box to your TV.

Press OK. When a message appears telling you setup is complete, press EXIT to close the menu.

Press INPUT to open the INPUT SOURCE list, then press ▲ or ▼ to select the video input source you connected your TV to and press OK. Your TV switches to the input source you selected.

B If you select Cable from the wall, your TV scans for available channels. The scan may take several minutes.

When the scan is complete, the on-screen menu closes and your TV tunes to the first channel it found when scanning.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

C If you select Antenna, your TV scans for available channels. The scan may take several minutes.

When the scan is complete, the on-screen menu closes and your TV tunes to the first channel it found when scanning.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

Hiding channels

You can hide channels in the channel list. When you press CH ∧ or CH ∨, your TV skips the hidden channels. You can still tune to a hidden channel by pressing the number buttons for the channel.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Add/Skip Channels, then press OK or ▶.

4 Press ▲▼◀ or ▶ to highlight the channel you want to hide, then press OK. Each channel has a circle to the left. When you hide a channel the circle is empty.

Notes

• If you highlight a channel in the list for two to four seconds, your TV displays the channel in the background.
• A channel with a filled circle to the left is not hidden. A channel with an empty circle to the left is hidden.
• If the list has more than one page, press ▲ or ▼ to scroll through the pages.

5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Setting up a favorite channel list

You can create a favorite channel list so you can quickly browse through your favorite channels by pressing FAVORITE, then selecting a channel from the favorite channel list.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Favorites, then press OK or ▶.

4 Press ▲▼◀ or ▶ to highlight the channel you want to add to the favorites list, then press OK. Each channel has a circle to the left. When you add a channel to the Favorite List, the circle is filled.

Notes

• If you highlight a channel in the list for two to four seconds, your TV displays the channel in the background.
  • To remove a channel from the favorites list, highlight the channel, then press OK. The filled circle is replaced with an empty circle and the channel is removed from the list.
• If the list has more than one page, press ▲ or ▼ to scroll through the pages.

5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Viewing a favorite channel

1 Press FAVORITE. The Favorite List opens.
2 Press ▲ or ▼ to highlight a channel, then press OK.

Adding or changing a channel label

If a channel is not already labeled, you can label the channel to make it easier to identify. You can also relabel a channel that is already labeled.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Channel Labels, then press OK or ▶.

4 Press ▲ or ▼ to select the channel you want to label, then press ▶ to move to the channel label field.

5 Press ▲ or ▼ to select a character, then press ◀ or ▶ to move to the previous or next character position. Repeat this step to enter additional characters. You can enter as many as 11 characters (letters, numbers, or symbols).

6 When you have completed the label, press OK or TV-MENU to save your label and return to the Channels menu.

7 Press EXIT to close the menu.

Checking the digital signal strength

You can check the digital signal strength to determine if you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Channel Strength, then press OK or ▶.

4 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Setting TV parental controls

Parental controls let you prevent your children from watching inappropriate material on TV. When set, parental controls read the rating of the program (with some exceptions, such as news and sports) and deny access to programs that exceed the ratings level you select. To watch programs that exceed the selected rating, you must enter a password.

Parental controls include:

• Setting or changing the password
  • Blocking unrated TV
• Setting parental control levels
• Downloading rating information
• Locking control buttons

Setting or changing the password

1 Press TV-MENU.
2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Parental Controls, then press OK or ▶.

4 Press the number buttons to enter the four-digit password. The default password is 0000. You should change the password to a number you can remember.

5 Press ▲ or ▼ to highlight Change Password, then press OK or ▶.

6 Press the number buttons to enter a password, then enter the password again. A message tells you that the password has been changed.

Note If you forget your password, enter 9999.

7 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Blocking unrated TV

Some TV programs, such as news and sports shows are not rated. When Block Unrated TV is turned on, TV programs that do not have ratings are blocked. When you try to watch a blocked program, you are prompted to enter the parental controls password.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Parental Controls, then press OK or ▶.

4 Press the number buttons to enter the four-digit password.

5 Press ▲ or ▼ to highlight Block Unrated TV, then press OK or ▶.

6 Press ▲ or ▼ to select On (to block unrated TV) or Off (to unblock unrated TV).

7 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Setting parental control levels

You can set parental controls for the U.S. and Canada.

U.S. rating levels

U.S. TV ratings

NONE Not rated

TV-Y All children

TV-Y7 Suitable for children 7 and older

TV-G General audiences

TV-PG Parental guidance suggested

TV-14 Parental guidance strongly suggested

TV-MA Mature audiences only

Some of the age-based TV Parental Guidelines ratings also have content-based ratings.

U.S. TV content ratings

All All ratings are blocked
FV Fantasy violence
L Strong language
S Sexual situations
V	V	i	o	I
D	Suggestive dialog

U.S. movie (MPAA) ratings

None	Movie not rated
G	General audiences
PG Parental guidance suggested
PG-13 Suitable for children 13 and older
R	Parental guidance suggested forchildren under 17
NC-17 Not suitable for children under 17
X	A	du	It

Canadian rating levels

Canadian English ratings

E	Exempt programming
C	Suitable for all children
C8+	Suitable for children 8 and older
G	General audiences
PG Parental guidance suggested
14+	Suitable for children 14 and older
18+	Adult only

Canadian French ratings

E	E	x	e	m
G General audiences
8 ans+ Suitable for children 8 and older
13 ans+ Suitable for children 13 and older
16 ans+ Suitable for children 16 and older
18 ans+ Adult only

1 Press TV-MENU.
2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Parental Controls, then press OK or ▶.

4 Press the number buttons to enter the four-digit password.

5 Press ▲ or ▼ to highlight USA Parental Locks, then press OK. (To set Canadian ratings, select pCanadian Parental Locks)

USA Parental Locks

Canadian Parental Locks

6 Press ◀ or ▶ to highlight:

• Movie Ratings or TV Ratings for USA ratings.
• Canadian English or Canadian French for Canadian ratings.

7 Press ▲ or ▼ to select the rating. If a rating has sub-ratings, press ◀ or ▶ to highlight a sub-rating.

Note

When you block a rating, that rating and all higher ratings are blocked.

8 Press OK to confirm. A lock symbol appears next to a blocked rating.
9 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Downloading rating information

If the program you are viewing has downloadable rating information, you can download the information to use when setting parental controls.

Note

If the program you are viewing does not have RRT5 rating information, RRT5 is grayed on the Settings · Parental Controls menu and cannot be selected.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Parental Controls, then press OK or ▶.

4 Press the number buttons to enter the four-digit password.

5 Press ▲ or ▼ to highlight RRT5, then press OK. The screen that opens may vary depending on the broadcaster.

6 Press ▲▼◀ or ▶ to select the program and content types you want to block, then press OK.

7 To reset the RRT5 information to the factory default, press ▲ or ▼ to highlight Reset RRT5.

8 Press OK.

9 Press ▲ or ▼ to highlight OK or Cancel, then press OK. If you select OK, the ratings are reset and all menus close.

10 If you select Cancel, press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu. Ratings are not reset.

Locking control buttons

When the button lock is turned On, the buttons on the side of your TV are locked, and you can only operate your TV using the remote control.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Button Lock, then press OK or ▶.

4 Press ▲ or ▼ to select On (locks the buttons) or Off (unlocks the buttons).

5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Using closed captioning

Closed captioning displays a text version of the TV program audio or displays information provided by the broadcaster.

Closed caption controls include:

• Turning closed captioning on or off
• Selecting the analog closed captioning mode
• Selecting the digital closed captioning mode
• Customizing digital closed captioning settings

Turning closed captioning on or off

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Closed Caption, then press OK or ▶.

4 Press ▲ or ▼ to highlight Caption Control, then press OK or ▶.
5 Press ▲ or ▼ to select CC Off (turns off closed captioning), CC On (turns on closed captioning), or CC on when mute (turns on closed captioning when the sound is muted).
6 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Note

You can also press CCD to turn closed captioning on or off.

Selecting the analog closed captioning mode

Analog channels usually have one or more closed captioning modes. The CC1 mode usually displays a text version of the TV program audio in a small banner. The other CC modes display information provided by the broadcaster. The Text modes display information in a box that covers half of the screen.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Closed Caption, then press OK or ▶.

4 Press ▲ or ▼ to highlight Analog Caption, then press OK or ▶.

5 Press ▲ or ▼ to select an analog caption setting. You can select:

• CC1 through CC4—Closed captioning appears in a small banner across the bottom of the screen. CC1 is usually the "printed" version of the audio. CC2 through CC4 display content provided by the broadcaster.
• Text1 through Text4—Closed captioning covers half or all of the screen. Text1 through Text4 display content provided by the broadcaster.

6 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Selecting the digital closed captioning mode

Digital channels usually have one or more closed captioning modes. The CC1 mode usually displays a text version of the TV program audio in a small banner. The other CC modes display information provided by the broadcaster. CS1 mode displays a text version of the audio in the same language as the audio.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Closed Caption, then press OK or ▶.

4 Press ▲ or ▼ to highlight Digital Caption, then press OK or ▶.

5 Press ▲ or ▼ to select a digital caption setting. You can select:

- CS1 through CS6—CS1 is usually the "printed" version of the audio. CS2 through CS6 display content provided by the broadcaster. You can change the way digital closed captioning is displayed on the screen. For more information, see "Customizing digital closed captioning settings" on page 66.

- CC1 through CC4—Closed captioning appears in a small banner across the bottom of the screen. CC1 is usually the "printed" version of the audio. CC2 through CC4 display content provided by the broadcaster.

6 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Customizing digital closed captioning settings

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Closed Caption, then press OK or ▶.

4 Press ▲ or ▼ to highlight Digital CC Settings, then press OK or ▶.

5 Press OK, then press ▲ or ▼ to select Custom.

6 Press ▲ or ▼ to highlight an option, then press OK, TV-MENU, or ◀. You can select:

• Size—Selects the font size.
• Font—Selects the font style.
• Text Color—Selects the color for the words.
• Text Opacity—Selects the opacity level for the words.
• Background Color—Selects the color for the background.
• Background Opacity—Selects the opacity level for the background.
• Edge Effect—Selects the style of the letter edge.
• Edge Color—Selects the color of the letter edge.

7 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Adjusting time settings

This section includes:

• Setting the clock
• Setting the sleep timer

Setting the clock

If you skipped the steps in the Easy Setup wizard for setting the date and time or if you move your TV to a different time zone, you can reset the clock to the correct time.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Time, then press OK or ▶.

4 Press ▲ or ▼ to highlight Date/Time, then press OK.

5 Press ▲ or ▼ to highlight Mode, then press OK or ▶.
6 Press ▲ or ▼ to highlight Manual (to set the options manually) or Auto (the options are automatically set by the TV signal source), then press OK.
7 Press ▲ or ▼ to highlight Time Zone, then press OK or ▶.
8 Press ▲ or ▼ to select your time zone, then press OK. You can select Eastern, Central, Mountain, Pacific, Alaska, Hawaii, Atlantic, or Newfoundland.
9 If your viewing area observes Daylight Saving Time, press ▲ or ▼ to highlight Daylight Saving, then press OK.
10 Press ▲ or ▼ to select On or Off, then press OK to close the menu.
11 If you selected Manual for Mode:

- Press ▲ or ▼ to highlight Date, then press ▶ to access the option. Press ◀ or ▶ to highlight Month, Day, or Year, then press ▲ or ▼ to adjust the setting. When you are finished, press TV-MENU.

- Press ▲ or ▼ to highlight Time, then press ▶ to access the setting. Press ◀ or ▶ to highlight the hour, minute, or AM/PM field, then press ▲ or ▼ to adjust the setting.

12 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Setting the sleep timer

You can specify the amount of time before your TV automatically turns off.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Time, then press OK or ▶.

4 Press ▲ or ▼ to highlight Sleep Timer, then press OK or ▶.

5 Press ▲ or ▼ to select the amount of time before your TV turns off automatically. You can select Off, 5, 10, 15, 30, 60, 90, 120, 180, or 240 minutes. To turn off the sleep timer, select Off.

6 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Note

You can also press SLEEP to set the sleep timer.

Adjusting menu settings

You can adjust how the TV menus look by:

• Selecting the menu language
  • Turning Input Sensor on or off
• Labeling an input source

Selecting the menu language

Your TV can display the on-screen menu in English, French, or Spanish. When you set up your TV for the first time, you selected the language. You can change the menu language to a different language.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Menu Language, then press OK or ▶.

4 Press ▲ or ▼ to select a language. You can select English, Français, or Español.

5 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Turning Input Sensor on or off

When the Input Sensor feature is turned on, your TV automatically detects which video jacks have devices connected to them and turned on. Your TV uses this information to determine what options you can select on the INPUT SOURCE list when you press INPUT.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Auto Input Sensing, then press OK or ▶.

4 Press ▲ or ▼ to select On (turns on the input sensor) or Off (turns off the input sensor).

5 Press OK, TV-MENU, or ◀ to return to the previous menu, or press EXIT to close the menu.

Labeling an input source

You can add a label to an input source to make it easier to identify.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Input Labels, then press OK or ▶.

4 Press ▲ or ▼ to select the input source you want to label, then press ▶ to move to the label field.

5 Press ▲ or ▼ to select a preset label or select Custom to create your own label.

6 If you select Custom, press OK, then ▲ or ▼ to select characters (letters or numbers) and ◀ or ▶ to move character to character.

7 When you have completed the label, press OK to save your label. The next time you press INPUT, your label will appear in the INPUT SOURCE list.

8 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Maintaining

• Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.
• Storage temperatures are 32^ to 122^ (0° to 50°C).
• Working temperatures are 41^ to 104^ (5° to 40°C).
• Do not place your TV in direct sunlight or near a heat source.

Cleaning the TV cabinet

Clean the cabinet with a soft, lint-free cloth. If the cabinet is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the cabinet with the cloth. Use a clean cloth to dry the cabinet.

Cleaning the TV screen

Clean the screen with a soft, lint-free cloth.

Care and handling of discs

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Troubleshooting

Use the following troubleshooting information to solve common problems.

Warning

Do not try to repair your TV yourself. Contact authorized service personnel.

Troubleshooting topics include:

• Viewing system information
- Learning more
- Updating the TV firmware
- Customizing TV settings
- Restoring settings to the defaults
• Video and audio problems
- Remote control problems
- General problems
• Disc playback problems
• INlink (CEC-compatible) device problems

Viewing system information

You may need to view system information during troubleshooting.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or OK.

3 Press ▲ or ▼ to highlight System Info, then press OK or ▶.
4 If your TV uses open source code, press OK to display the open source code information.
5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Learning more

You can learn more about remote control codes and connecting a sound bar.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Learn More, then press OK or ▶.

4 Press ▲ or ▼ to highlight a topic, then press OK. Your TV displays information about the topic you selected.

5 Press TV-MENU to return to the previous menu, or press EXIT to close the menu.

Updating the TV firmware

If your TV is behaving oddly and you have tried all the solutions in the troubleshooting pages, you may need to update the TV firmware.

Cautions

• Make sure that you have tried all other solutions before you upgrade the firmware.
- While the firmware is updating, do not turn off your TV.

Note

To update the TV firmware, you need a:

• Computer with an available USB port
• High-speed Internet connection
• USB flash drive

1 On the Help menu, select System Info, then write down your model, revision, and firmware information. See "Viewing system information" on page 70.
2 On a computer, go to www.insigniaproducts.com, then click Support & Service. Enter NS-24DD220NA16, NS-28DD220NA16, or NS-32DD220NA16 in the box under Manual, Firmware, Drivers & Product Information, then click ▶.
3 Follow the instructions in the Firmware Installation Guide on the Insignia website to download the firmware update and copy it to a USB flash drive.
4 Plug the USB flash drive into the USB port on the side of your TV.
5 Press TV-MENU.
6 Press ◀ or ▶ to highlight HELP, then press ▼ or OK.

7 Press ▲ or ▼ to highlight Update Firmware, then press OK or ▶. A message asks if you want to update the TV firmware.
8 Highlight OK, then press OK. While your TV installs the firmware update, your TV displays a status screen. Do not turn off your TV until the update is complete.

9 When the update is complete, unplug the USB flash drive, then press OK. Your TV turns off then on to complete the update.

10 If the channel list has been deleted, you need to scan for channels. For more information, see "Automatically scanning for channels" on page 56.

Note

• If you see a message that says the firmware file is incorrect, make sure that you have downloaded the correct file for your model.
  • If you see a message that says the update failed or the TV screen is blank and the power LED is blinking red then blue, turn off your TV, turn it back on, then run the upgrade again.

Customizing TV settings

If you did not complete the customizing part of the Easy Setup wizard the first time you turned on your TV, you can run the wizard again to customize settings. When you run the Easy Setup wizard, your TV will not reset any changes you made on the Picture, Audio, Channels, or Settings menu. The wizard scans for channels and replaces the channel information stored on your TV.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Customize my TV, then press OK or ▶. A message asks if you want to run the Easy Setup wizard.

4 Press ▲ or ▼ to select OK (to reset) or Cancel (to not reset), then press OK.

If you select OK, your TV turns off, then turns on again. The Easy Setup wizard opens. Go through the Easy Setup wizard. For more information, see "Turning on your TV for the first time" on page 37. OR

If you select Cancel or press TV-MENU, your TV returns to the Help menu without making any changes. If you press EXIT, the on-screen menu closes without making any changes.

Restoring settings to the defaults

When you restore default settings, all the settings you have customized (except parental controls) are reset.

1 Press TV-MENU.

2 Press ◀ or ▶ to highlight HELP, then press ▼ or OK.

3 Press ▲ or ▼ to highlight Reset to Default, then press OK or ▶.

4 Press ▲ or ▼ to select OK (to reset) or Cancel (to not reset), then press OK.

If you select OK, your TV turns off, then turns on again. Go through the Easy Setup wizard. For more information, see "Turning on your TV for the first time" on page 37.

OR

If you select Cancel or press TV-MENU, your TV returns to the Help menu without making any changes.

OR

If you press EXIT, the on-screen menu closes without making any changes.

Video and audio

Problem Solution
Picture does not fill the screen. There are black bars around the picture.	PressASPECTto change the aspect ratio. See the “Aspect Ratio” option in “Adjusting the TV picture” on page 52.
No picture (screen is not lit) and no sound.	Pressonthe TV or the remote control.Make sure that theAudio Onlyoption is set toOff.See “Playing TV audio only” on page 56.Make sure that the video cables are connected correctly and securely to your TV.Adjust the contrast and brightness. See “Adjusting the TV picture” on page 52.Make sure that the power adapter is plugged into a working outlet.PressINPUTand make sure that the correct video input source is selected. See “Selecting the video input source” on page 39.Try another channel. The station may be experiencing problems.Make sure that the incoming signal is compatible.Make sure that the antenna or cable TV is connected correctly and securely. See “Connecting a cable or satellite box” on page 16 or “Connecting an antenna or cable TV (no box)” on page 20.Check the closed caption settings. Some TEXT modes can block the screen. See “Using closed captioning” on page 64.

Problem Solution
Dark, poor, or no picture (screen is lit), but sound is good.	Try another channel. The station may be experiencing problems.Make sure that the antenna or cable TV is connected correctly and securely. See “Connecting a cable or satellite box” on page 16 or “Connecting an antenna or cable TV (no box)” on page 20.Adjust the brightness. See “Adjusting the TV picture” on page 52.PressPICTUREto change to a different picture mode. See “Adjusting the TV picture” on page 52.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see “Checking the digital signal strength” on page 59.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.Make sure that the video cables are connected correctly and securely to your TV.The video cable(s) you are using may be bad. Try a new set.
No color, dark picture, or color is not correct.	Try another channel. The station may be experiencing problems.Adjust the color settings. See “Adjusting the TV picture” on page 52.Make sure that the video cables are connected correctly and securely to your TV.Make sure that the antenna or cable TV is connected correctly and securely. See “Connecting a cable or satellite box” on page 16 or “Connecting an antenna or cable TV (no box)” on page 20.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see “Checking the digital signal strength” on page 59.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.

Problem Solution

Only snow (noise) appears on the screen.

Try another channel. The station may be experiencing problems.Make sure that the antenna or cable TV is connected correctly and securely. See “Connecting a cable or satellite box” on page 16 or “Connecting an antenna or cable TV (no box)” on page 20.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see “Checking the digital signal strength” on page 59.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.

Picture quality is good on some channels and poor on others. Sound is good.

The problem may be caused by a poor or weak signal from the broadcaster or cable TV provider.If you connect to cable without a set-top box and experience poor picture quality, you may need to install a set-top box to improve signal reception and picture quality. Contact your cable TV provider about upgrading to a set-top box.

Problem Solution

Dotted lines or stripes appear on the screen.	Make sure that the antenna or cable TV is connected correctly and securely. See “Connecting a cable or satellite box” on page 16 or “Connecting an antenna or cable TV (no box)” on page 20.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see “Checking the digital signal strength” on page 59.If you are using an antenna and the signal strength is low, adjust the antenna or use a highly directional outdoor antenna or set-top antenna with a built-in amplifier.Make sure that the video cables are connected correctly and securely to your TV.The video cable(s) you are using may be bad. Try a new set.Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
Double images.	Use a highly directional outdoor antenna, cable TV, or satellite TV.
The picture has a few bright or dark spots.	A few bright or dark spots on an LCD screen is normal. It does not affect the operation of your TV.

Problem Solution

Good picture, but no sound.

· Increase theMake sure that the sound is not muted.· Make sure that you do not have headphones connected. When headphones are connected, no sound comes from the TV speakers.· PressAUDIOto change to a different audio mode.· If you are using a home theater system, sound bar, or external speaker system, make sure it is turned on and is not muted.· If you are using a home theater system, sound bar, or external speaker system, make sure that you have selected the correct output mode.· If you are using a home theater system, sound bar, or external speaker system and have connected it with a digital cable, go to theAudio menu, highlightDigital Audio Format/Audio Delay, then pressOK. Set theAudio Format option toPCM. See theDigital Audio Format/Audio Delay option in“Adjusting sound settings” on page 54.· Make sure that the audio cables are connected correctly and securely to your TV.· Make sure that the antenna or cable TV is connected correctly and securely. See “Connecting a cable or satellite box” on page 16 or “Connecting an antenna or cable TV (no box)” on page 20.· If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see “Checking the digital signal strength” on page 59.· The audio cables you are using may be bad. Try a new set.

Poor picture.

· Make sure that the room is not too bright. Light reflecting off the screen can make the picture difficult to see.· If an S-VHS camera or a camcorder is connected while another connected device is turned on, the picture may be poor. Turn off one or more devices.

v

Problem Solution

Good sound, but poor color.	Adjust the contrast, color, and brightness settings. See "Adjusting the TV picture" on page 52.
Audio noise.	Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
No output from one of the speakers.	Adjust the audio balance. See "Adjusting sound settings" on page 54.Make sure that the audio cables are connected correctly and securely to your TV.
After images appear.	Do not display a still image, such as a logo, game, or computer image, for an extended period of time. This can cause a permanent after-image to be burned into the screen. This type of damage is not covered by your warranty.

Remote control

Problem Solution

Remote control does not work.

Make sure that the power adapter is plugged into a working outlet.Make sure that there are no obstructions between the remote control and the remote control sensor on the front of the TV.Point the remote control directly at the remote control sensor on your TV. For the location of the remote control sensor, see“Aiming the remote control” on page 35.The supplied batteries are wrapped tightly in clear plastic. Make sure that you have removed this plastic from the batteries.Make sure that the batteries are installed correctly. See “Installing remote control batteries” on page 35.Replace dead batteries with new batteries. See “Installing remote control batteries” on page 35.

Problem Solution

Trouble programming your existing universal remote control.

• See instructions in “Programming universal remote controls” on page 36.• Codes are subject to change. For up-to-date codes, go to “Viewing universal remote control codes” on page 36, or visit www.insigniaproducts.com/remotecodes• Replace dead batteries with new batteries.• Refer to the User Guide that accompanied your universal remote control and contact the manufacturer if problems persist.

General

Problem Solution
No power.	Make sure that the power adapter is plugged into a working outlet.Unplug the power adapter, wait 60 seconds, then plug the adapter back in and turn on your TV.Other devices (for example, a surround sound receiver, external speakers, fans, or hair dryers) may be interfering with your TV. Try turning off one device at a time to determine which device is causing interference. After you have determined which device is causing interference, move it further from the TV to eliminate the interference.
“No signal” error message is displayed.	Press INPUT and make sure that you have selected the correct input for the device or service you are trying to use.If you are using a cable or satellite box, use the remote that came with that box to change channels.
After Auto Channel Search, there are no channels.	Reception can vary by channel depending on the broadcast power level of a given station. Contact your cable or satellite TV provider.Make sure that the antenna or cable/satellite TV is connected securely to your TV.Try replacing the cable between the antenna/cable or cable/satellite box and your TV.

Problem Solution

When I press INPUT, I cannot select my device (it is grayed out).	Turn on the device. Your TV automatically detects and displays which video jacks have devices connected to them when the devices are turned on.Turn off Auto Input Sensing. See "Turning Input Sensor on or off" on page 69.
One or more channels do not display.	Make sure that the channels are not blocked. See "Blocking unrated TV" on page 61.Make sure that the channels are not hidden. The channel may have been deleted from the channel list. You can tune to the channel by pressing the number buttons or you can add the channel back to the channel list. See "Hiding channels" on page 58.If you are using a cable or satellite box, use the remote that came with that box to change channels.Press INPUT and make sure that you have selected the correct input for the device or service you are trying to use.If you are using an antenna, the digital channel signal may be low. To check the digital channel signal strength, see "Checking the digital signal strength" on page 59.
Password is lost.	Enter 9999 to access parental controls, then set a new password. See "Setting or changing the password" on page 60.
Some settings cannot be accessed.	If a setting is grayed, the setting is not available in the current video input mode (for example TV mode). Change to a different video input source. See "Selecting the video input source" on page 39.
TV cabinet creaks.	When the TV is in use, the temperature rises naturally and may cause the cabinet to expand or contract which can cause a creaking noise. This is not a malfunction.

Problem Solution

Control buttons do not work.	Make sure that the Button Lock option is set to Off. See “Locking control buttons” on page 64.Unplug the power adapter, wait a few seconds, then plug the adapter back in and turn on your TV.
TV keeps turning off.	Make sure that the sleep timer is not turned on. See “Setting the sleep timer” on page 68.
A retail banner is displayed.	You selected Store Display Mode when you ran the Easy Setup wizard. Run the Easy Setup wizard and select Home User Mode on the Viewing Environment screen. See “Customizing TV settings” on page 72.

Disc playback

Problem Solution
Playback does not start.	Make sure that a disc is inserted in the disc slot with the label facing the back of the TV.The disc may be dirty. Clean the disc. See “Cleaning discs” on page 70.The disc format may not be supported. For more information, see “DVD player” on page 83. Blu-ray and 3D discs will not play.
No picture.	Press INPUT and make sure that DVD is selected. For more information, see “Selecting the video input source” on page 39.
No sound.	Make sure that headphones are not connected to your TV. When headphones are connected the internal speakers are muted.If your TV is connected to a sound system, make sure that the volume on the sound system is turned up.
Picture is distorted during fast forwarding or reversing.	This is not a malfunction. When you resume normal playback the distortion should disappear.
Some playback features do not work.	Depending on the disc, some playback features such as stopping, skipping, or repeat playback may not work.

Problem Solution

The audio language or subtitle language cannot be changed.	• Not all discs have multiple languages. Check the disc menu or disc packaging.
No subtitles.	• Press SUBTITLE and make sure that subtitles are set to on.

INlink (CEC-compatible) device

Problem Solution

My TV is not displaying the video from the connected CEC device.

Make sure that the HDMI cable is connected securely to your TV and the device.Make sure that the device is connected to your TV with an HDMI cable.Make sure that the device is a CEC device. See the documentation that came with the device for more information.Press INPUT and make sure that the correct video input source is selected. See “Selecting the video input source” on page 39.Make sure that the INlink feature is turned on. See “Turning INlink on or off” on page 45.Try adjusting the TV picture. See “Adjusting the TV picture” on page 52.If the device is not an Insignia device, it may not be compatible with your TV.

Problem Solution

My TV is not playing the audio from the connected CEC device.	Make sure that the HDMI cable is connected securely to your TV and the device.Make sure that the device is connected to your TV with an HDMI cable.Make sure that the device is a CEC device. See the documentation that came with the device.Make sure that the TV sound. See "Adjusting sound settings" on page 54.Make sure that the TV speakers are turned on and not muted.See "Adjusting sound settings" on page 54.Make sure that the INlink feature is turned on. See "Turning INlink on or off" on page 45.If you have connected an HDMI CEC audio receiver, adjust the volume on the receiver. When your TV detects an audio receiver, the TV speakers turn off and sound plays through receiver speakers only.If the device is not an Insignia device, it may not be compatible with your TV.If you are using a home theater system, sound bar, or external speaker system, make sure that it is turned on and is not muted.If you are using a home theater system, sound bar, or external speaker system, make sure that you have selected the correct output mode.If you are using a home theater system, sound bar, or external speaker system and have connected with a digital cable, go to the Audio menu, highlight Digital Audio Format/Audio Delay, then press OK. Set the Audio Format option to PCM.See the Digital Audio Format/Audio Delay option in "Adjusting sound settings" on page 54.	My TV's remote control does not control the device.	Make sure that there are no obstructions between the remote control and the remote control sensors on your TV and the device.Depending on the device, all the buttons may not work.Make sure that the INlink feature is turned on. See "Turning INlink on or off" on page 45. isIf you are trying to control the volume on an HDMI CEC audio receiver using your TV remote control, make sure that the TV Speakers option on the Audio menu is set to On. See "Adjusting sound settings" on page 54.If you are trying to control the volume on an HDMI CEC audio receiver using your TV remote control, make sure that the Audio Receiver option on the INlink menu is set to On. See "Turning Audio Receiver on or off" on page 47.The device may not support this feature. See the documentation that came with the device for more information.
		The device does not show up in the INlink Device list.	Make sure that the device is turned on.Make sure that the HDMI cable is connected securely to your TV and the device.Make sure that the device is connected to your TV with an HDMI cable.Make sure that the INlink feature is turned on. See "Turning INlink on or off" on page 45.Make sure that the device is a CEC device. See the documentation that came with the device.If the device is not an Insignia device, it may not be compatible with your TV.

Problem Solution

Problem Solution
My device does not turn off when I turn off my TV.	Make sure that the INlink feature is turned on. See “Turning INlink on or off” on page 45.Make sure th a Power Off is set to On on the INlink menu. See “Turning Device Auto Power Off on or off” on page 46.The device may not support this feature. See the documentation that came with the device for more information.
My TV does not turn on when I turn on my device.	Make sure that the INlink feature is turned on. See “Turning INlink on or off” on page 45.Make sure th a On is set to On on the INlink menu. See “Turning TV Auto Power On on or off” on page 46.The device may not support this feature. See the documentation that came with the device for more information.
The Audio Receiver setting on the INlink menu keeps turning back on after it is turned off.	When Audio Receiver is set to Off and INlink Control is set to On and you make an adjustment to the audio receiver (for example, turn the volume knob or press a button),Audio Receiver is automatically set to On. To prevent this from happening, turn off the INlink feature. See “Turning INlink on or off” on page 45.

Problem Solution
Two volume bars appear when adjusting the volume.vice Auto	·When you adjust the volume on the audio receiver or with the TV remote control, a double volume bar appears, one for the TV volume and one for the audio receiver volume.
I cannot select theRoot Menuoption on theINlink menu.ORThe device's root menu does not open when I selectRoot Menuon theINlink menu.Auto Power	·The device may not support this feature. See the documentation that came with the device for more information.

Note

If the problem is not solved by using these troubleshooting instructions, turn off your TV, then turn it on again.

Specifications

Specifications are subject to change without notice.

24-inch (NS-24DD220NA16)

Dimensions and weight

Without stand	13.2 x 21.9 x 3 in. (33.5 x 55.7 x 7.6 cm)6.4 lbs (2.9 kg)
With stand	14.6 x 21.9 x 6.5 in. (37 x 55.7 x 16.5 cm)6.8 lbs (3.1 kg)

Screen

Screen size measured diagonally	23.6 in.
Display type LED
Screen refresh rate 60Hz
Display resolution 720p
Panel resolution 1366 (H) × 768 (V)
Aspect ratio 16:9
Contrast ratio (typical)-panel	3,000:1
Dynamic contrast ratio-list value	200,000:1
TV Brightness (minimum) cd/m2	160 nits
Comb filter 3d y/c digital
Response time 8.5 ms
Horizontal viewing angle 176°
Vertical viewing angle 176°

Display resolutions

HDMI suggested resolutions 720p, 480p, 480i
Component video suggested resolutions	720p, 480p, 480i

Tuner

Analog NTSC
Digital ATSC, 8-VSB, Clear-QAM

Inputs

HDMI	2 (side)E-EDID compliantHDCP compliant
Component video 1 (back)
Composite video	1 (back)Shared with component Y
Shared audio (component and composite)	Yes
USB	1 (side)Supports JPEG and firmware upgrade
Antenna/Cable 1 (back)

Outputs

Video	No
Analog audio/Headphone	1 (side)
Digital audio 1 (coaxial) (side)
WiFi	No
Ethernet	No

Audio

Speakers

Number: 2Watts per channel: 2.8W

Power

Power consumption	On: 40WStandby: <0.5W
Power input	DC 12V 3.3A

Miscellaneous

OSD languages	English, French, Spanish
INlink	Yes
Game Mode	Yes
ENERGY STAR qualified	Yes
Internet connectable	No
TV base screws	Base to stand column:B4 type (22 mm length) 4pcs
V-Chip (version 2.0)	Yes
Sleep timer	Yes
Channel labeling Yes
VESA mount (mm)(horizontal × vertical)	100 × 100
VESA mount screws	M4 type

Note

The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.

28-inch (NS-28DD220NA16)

Dimensions and weight

Without stand	15.4 x 25.3 x 3.3 in. (39.1 x 64.2 x 8.3 cm)8.9 lbs (4 kg)
With stand	17.3 x 25.3 x 7.1 in. (43.9 x 64.2 x 18 cm)9 lbs (4.1 kg)

Screen

Screen size measured diagonally	27.5 in.
Display type LED
Screen refresh rate 60Hz
Display resolution 720p
Panel resolution 1366 (H) × 768 (V)
Aspect ratio 16:9
Contrast ratio (typical)-panel	2,400:1
Dynamic contrast ratio-list value	200,000:1
TV Brightness (minimum) cd/m2	160 nits
Comb filter 3d y/c digital
Response time 6.5 ms
Horizontal viewing angle 178°
Vertical viewing angle 178°

Display resolutions

HDMI suggested resolutions 720p, 480p, 480i
Component video suggested resolutions	720p, 480p, 480i

Tuner

Analog NTSC
Digital ATSC, 8-VSB, Clear-QAM

Inputs

HDMI	2 (side)E-EDID compliantHDCP compliant
Component video 1 (back)
Composite video	1 (back)Shared with component Y
Shared audio (component and composite)	Yes
USB	1 (side)Supports JPEG and firmware upgrade
Antenna/Cable 1 (back)

Outputs

Video No
Analog audio/Headphone	1 (side)
Digital audio	1 (coaxial) (side)
WiFi	No
Ethernet	No

Audio

Speakers

Number: 2Watts per channel: 5W

Power

Power consumption	On: 48WStandby: <0.5W
Power input	DC 12V 4A

Miscellaneous

OSD languages	English, French, Spanish
INlink	Yes
Game Mode	Yes
ENERGY STAR qualified	Yes
Internet connectable	No
TV base screws	Base to stand column:M4 type (14 mm length) (4 pcs)
V-Chip (version 2.0)	Yes
Sleep timer	Yes
Channel labeling Yes
VESA mount (mm)(horizontal × vertical)	200 × 100
VESA mount screws	M4 type

Note

The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.

32-inch (NS-32DD220NA16)

Dimensions and weight

Without stand	17.4 × 29.1 × 3.4 in. (44.3 × 73.9 × 8.7 cm)10.5 lbs (4.8 kg)
With stand	19.3 × 29.1 × 7.1 in. (49.1 × 73.9 × 18 cm)10.7 lbs (4.8 kg)

Screen

Screen size measured diagonally	31.5 in.
Display type LED
Screen refresh rate 60Hz
Display resolution 720p
Panel resolution 1366 (H) × 768 (V)
Aspect ratio 16:9
Contrast ratio (typical)-panel	3,000:1
Dynamic contrast ratio-list value	500,000:1
TV Brightness (minimum) cd/m2	160 nits
Comb filter 3d y/c digital
Response time 6.5 ms
Horizontal viewing angle 178°
Vertical viewing angle 178°

Display resolutions

HDMI suggested resolutions 720p, 480p, 480i
Component video suggested resolutions	720p, 480p, 480i

Tuner

Analog NTSC
Digital ATSC, 8-VSB, Clear-QAM

Inputs

HDMI	2 (side)E-EDID compliantHDCP compliant
Component video 1 (back)
Composite video	1 (back)Shared with component Y
Shared audio (component and composite)	Yes
USB	1 (side)Supports JPEG and firmware upgrade
Antenna/Cable 1 (back)

Outputs

Video	No
Analog audio/Headphone	1 (side)
Digital audio	1 (optical) (side)
WiFi	No
Ethernet	No

Audio

Speakers

Number: 2Watts per channel: 5W

Power

Power consumption	On: 60WStandby: <0.5W
Power input	AC 120 V, 60Hz

Miscellaneous

OSD languages	English, French, Spanish
INlink	Yes
Game Mode	Yes
ENERGY STAR qualified	No
Internet connectable	No
TV base screws	Base to stand column:M4 type (14 mm length) (4 pcs)
V-Chip (version 2.0)	Yes
Sleep timer	Yes
Channel labeling Yes
VESA mount (mm)(horizontal × vertical)	200 × 100
VESA mount screws	M6 type

Note

The length of the wall-mount screws vary depending on the wall-mount bracket you purchased. See the instructions that came with the wall-mount bracket for screw lengths.

DVD player

Tray vs. slot load Slot load
Disc capacity 1
Progressive scan Yes
Skip protection	No audio skipping during CD playback under typical usage conditions
Optical disc support	Supports:CD Digital Audio 12 cm, CD-R, CD-RW, DVD-Video 12 cm, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-R DL Dual Layer, DVD+R Dual LayerDoes not support:CD Digital Audio 8 cm, DVD-Video 8 cm, DVD-RW Dual Layer, DVD+RW Dual Layer, Blu-ray, 3D
Audio decoder	Supports:CD Digital Audio, Dolby DigitalDoes not support:Simulated Surround (e.g. SRS), MP3, WMA, WMA Lossless
Digital audio output formats supported via HDMI output	No
Digital audio decode capability (HDMI Output)	No
Digital audio decode capability (digital coaxial output)	Supports:Dolby Digital to 2-channel downmix PCMDoes not support:DTS to 2-channel downmix PCM
Video decoder	Supports:DVD VideoDoes not support:JPEG, WMV (Window Media Video) 9.1, VCD 1.1, VCD 2.0, SVCD, DivX, or XviD

Legal notices

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian Notice

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence—exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

Dolby License Notice and Trademark Acknowledgement

DOLBY DIGITAL

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Energy Star

24-inch (NS-24DD220NA16)/28-inch (NS-28DD220NA16)

Your Insignia TV is ENERGY STAR ^® qualified in the "Energy Savings" mode. It meets strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and Department of Energy. ENERGY STAR is a joint program of these government agencies, designed to promote energy efficient products and practices. Changes to certain features, settings, and functionalities of this TV (i.e. Picture, Sound) can increase or change the power consumption. Depending upon such changed settings, the power consumption may exceed the limits required for the ENERGY STAR qualification in the "Energy Savings" mode.

Open Source

Font name: Arimo

Version 1.23

Copyright 2013 Steve Matteson

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

If you require additional information please call the Insignia support line at 1-877-467-4289.

One-year limited warranty - Insignia Televisions

Definitions:

Insignia Products ("Insignia") warrants to you, the original purchaser of this new Insignia-branded television ("Product"), that the Product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period"). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy or Future Shop authorized dealer of Insignia brand products only that are packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy or Future Shop retail store location and your television Product has a screen size of less than 42 inches, please take your original receipt and the Product to any Best Buy or Future Shop store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from a Best Buy or Future Shop online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain in-home warranty service for a television with a screen 42 inches or larger, in the United States call 1-888-BESTBUY, Canada call 1-866-BESTBUY for Future Shop call 1-800-663-2275. Call agents will diagnose and correct the issue over the phone or will have an Insignia-approved repair technician dispatched to your home.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy or Future Shop branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education
• Installation
• Setup adjustments
• Cosmetic damage

• Damage due to acts of God, such as power surges

· A c c i d e n t ( s )

- Misuse, unintentional or intentional

• Abuse, unintentional or intentional

- Negligence

- Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

- Modification of any part of the Product, including the antenna

- Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

• Damage due to incorrect operation or maintenance

- Connection to an incorrect voltage or power supply

- Outages, static or other problems with over-the-air reception of television broadcast signals.

- Attempted repair by any person not authorized by Insignia to service the Product

- Products sold "as is" or "with all faults"

- Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)

- Products where the factory applied serial number has been altered or removed

- Loss or Theft of this product or any part of the product

- Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.

- Up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)

- Problems with delay in motion or action of video images while playing first-person style video games.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. Contact Insignia:

For customer service please call 1-877-467-4289

www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its affiliated companies.

Registered in some countries.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2015 Best Buy. All rights reserved.

Made in China

INSIGNIA™

Energy Star

24-inch (NS-24DD220NA16)/

28-inch (NS-28DD220NA16)

www.insigniaproducts.com [phone]

INSIGNIA is a trademark of Best Buy and its affiliated companies.

Registered in some countries.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2015 Best Buy. All rights reserved.

Made in China

V2 FY16 ENGLISH

15-0314
