USER MANUAL NS-19E450WA11 INSIGNIA

Important safety instructions ....2

Warnings 2

Cautions 3

Introduction 4

Install the stand or wall-mount bracket 5

Installing the stand 5

Adjusting the viewing angle 5

Installing a wall-mount bracket 5

TV components 5

Accessories 5

Front 5

Back 6

Remote control 7

Using the remote control 7

Installing remote control batteries 7

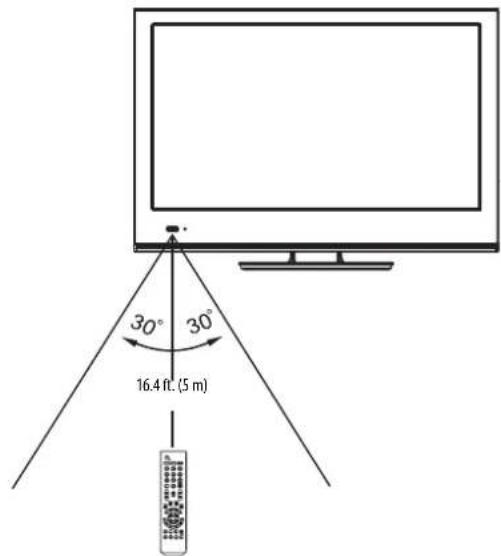

Aiming the remote control 8

Using the remote control holder 8

Programming your existing universal remote control to work with your TV ..... 8

Making connections 9

Connecting power 9

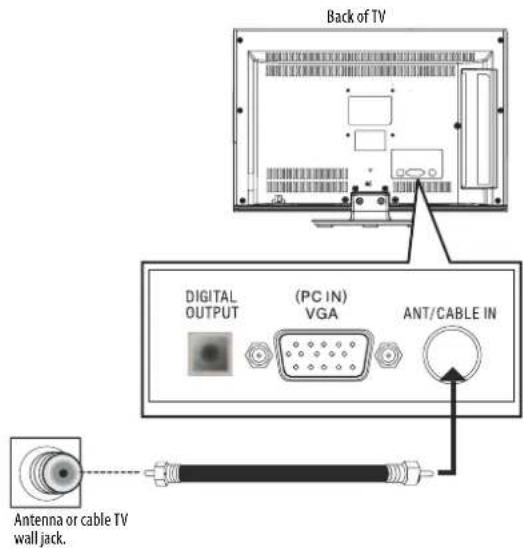

Connecting an antenna or cable TV without a cable box 9

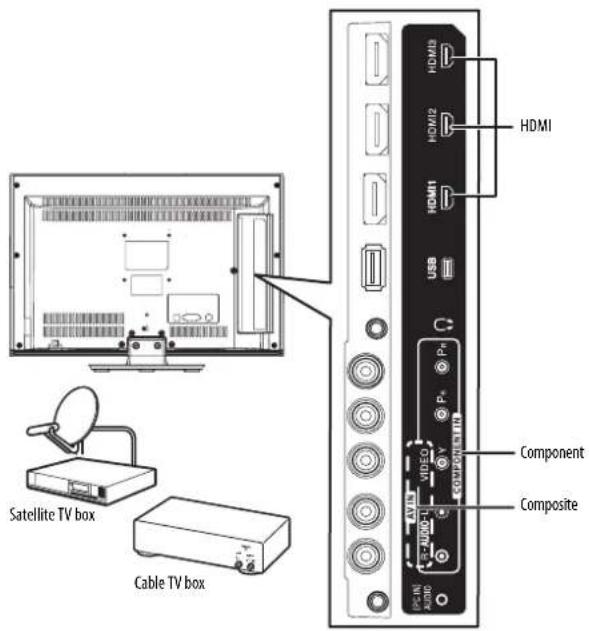

Connecting a cable or satellite box 10

Connecting an HDMI device 10

Connecting a component video device 11

Connecting a VCR 11

Connecting a computer 12

Connecting a USB device 12

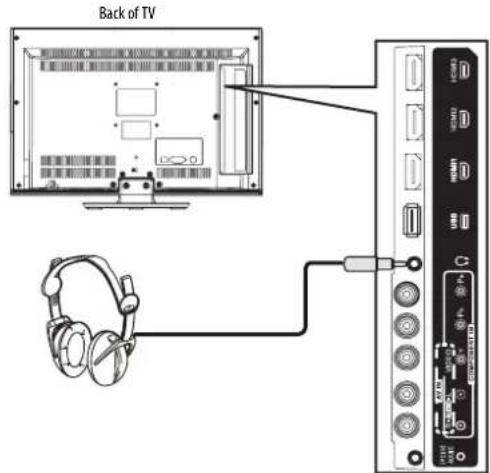

Connecting headphones 13

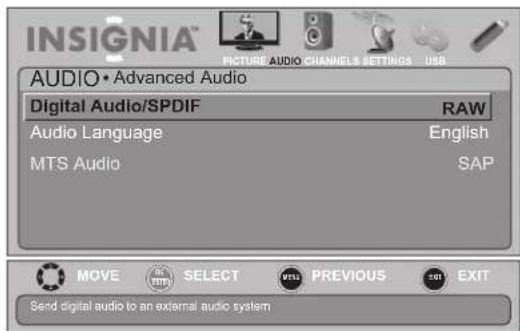

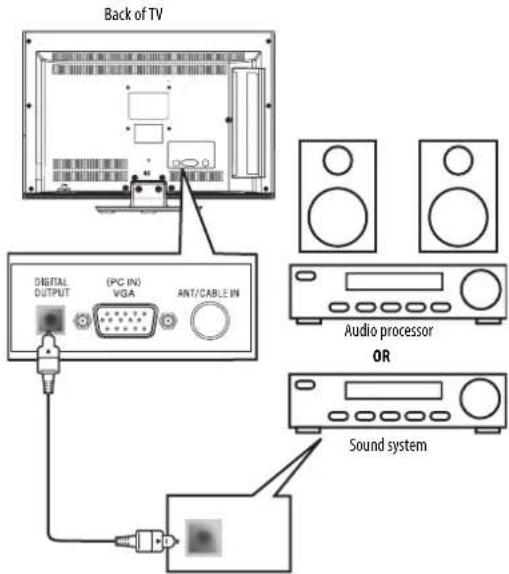

Connecting a digital sound system 13

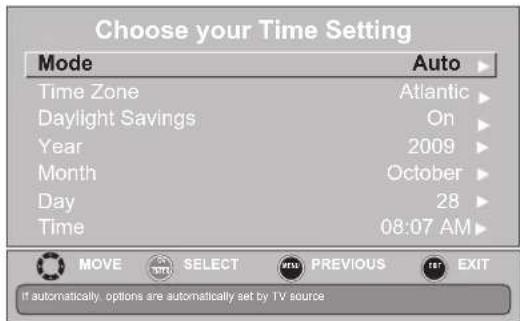

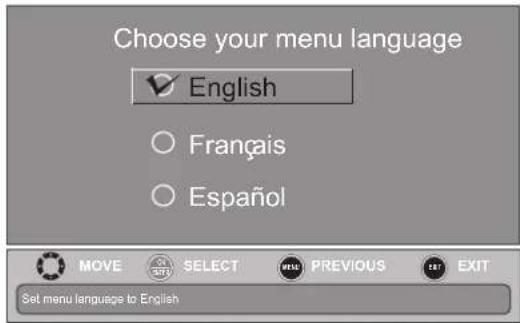

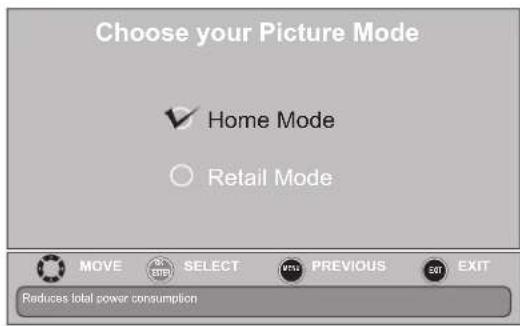

Turning on your TV for the first time 13

Understanding the basics 14

Turning your TV on or off 14

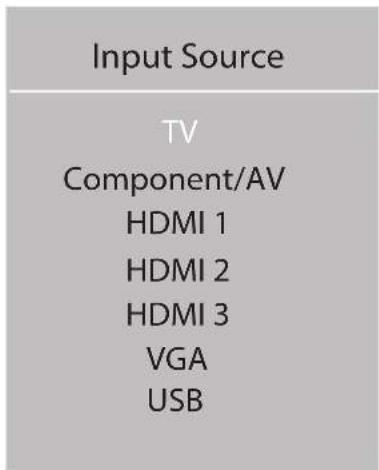

Selecting the video input source 15

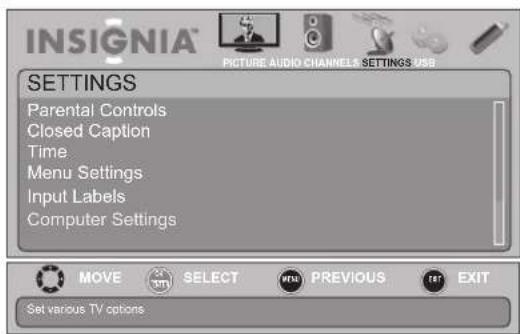

On-screen menu overview 15

Navigating the menus 16

Selecting a channel 16

Adjusting the volume 16

Viewing channel information 16

Adjusting the picture 17

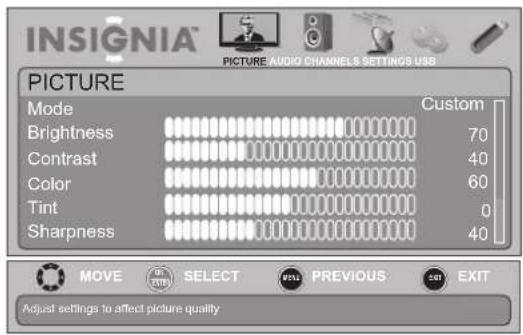

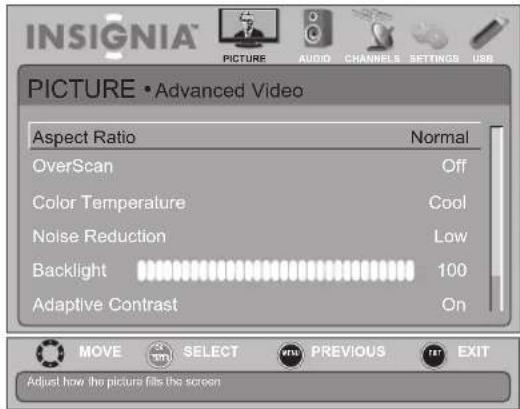

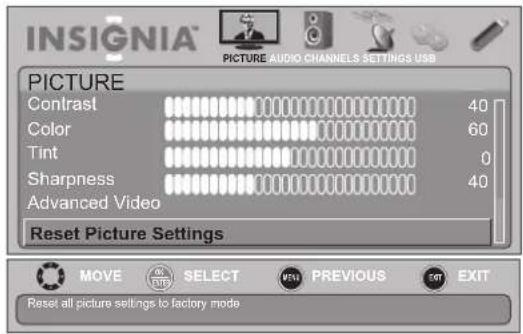

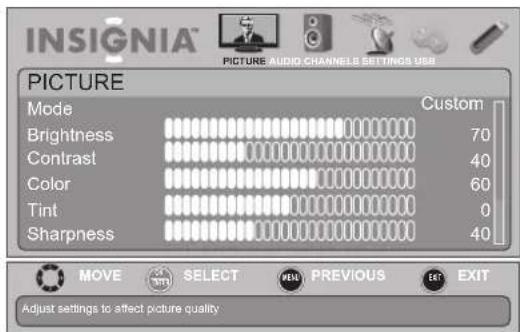

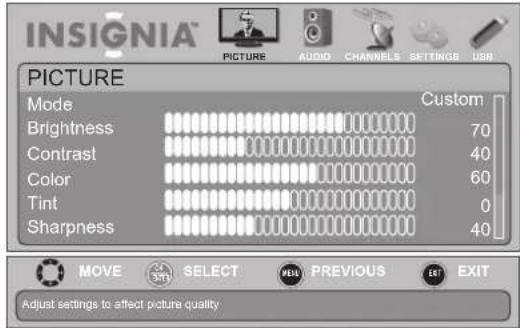

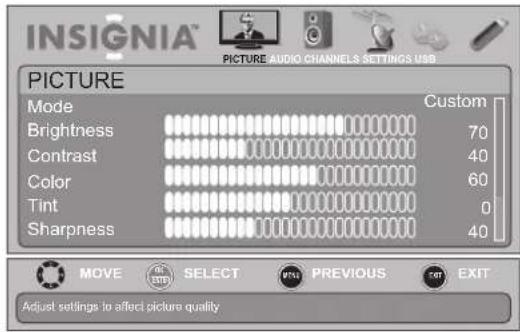

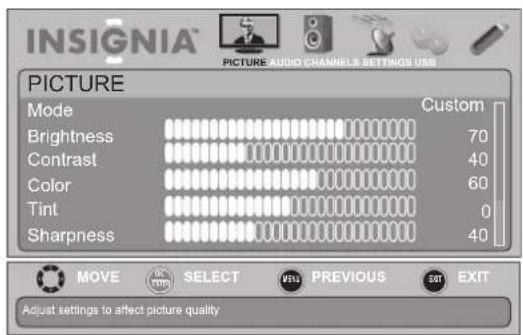

Adjusting the TV picture 17

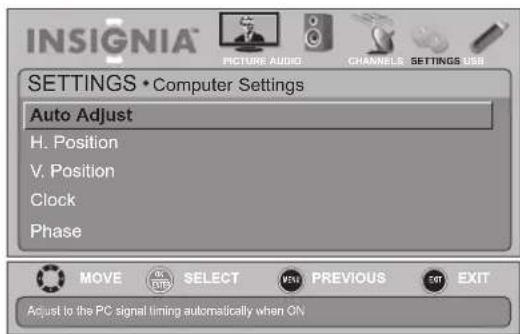

Adjusting the computer image 18

Adjusting the sound 18

Adjusting sound settings 18

Selecting the audio mode 19

Playing TV audio only 19

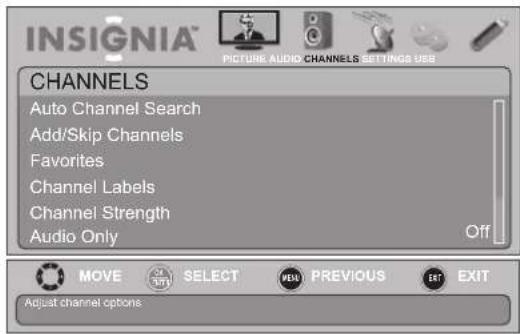

Changing channel settings ....20

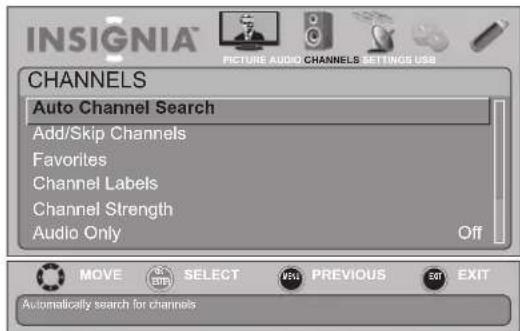

Automatically scanning for channels 20

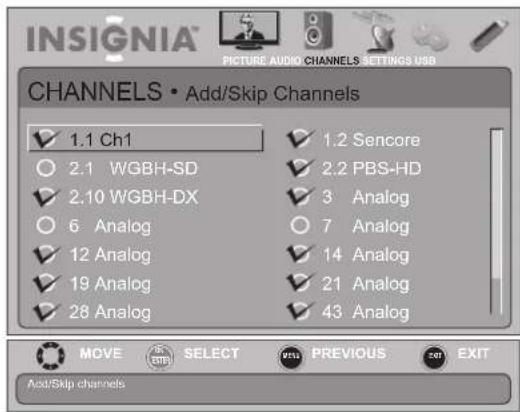

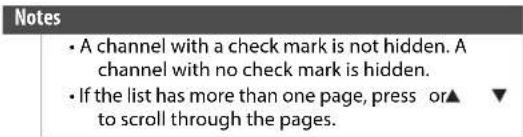

Hiding channels 20

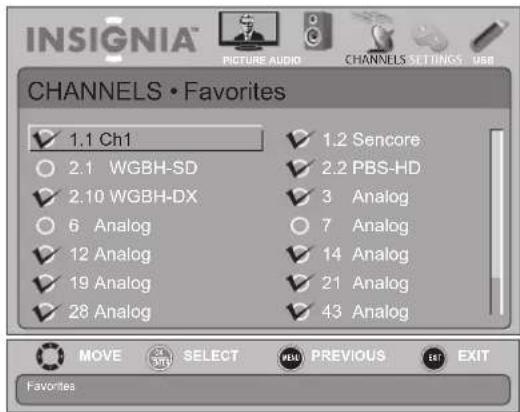

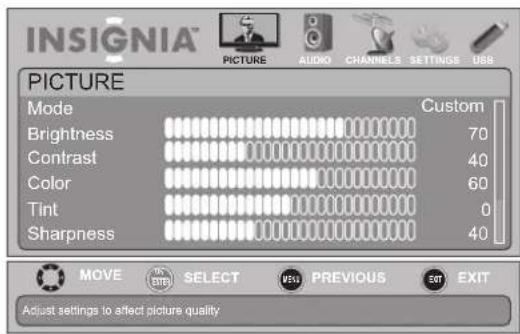

Setting up a favorite channel list 21

Viewing a favorite channel 21

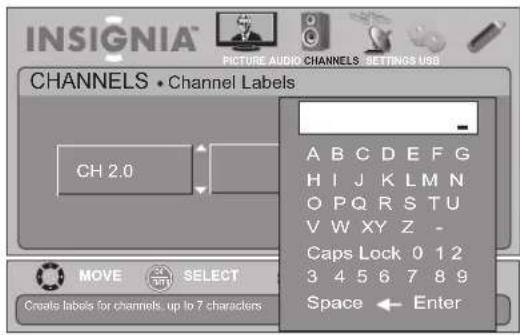

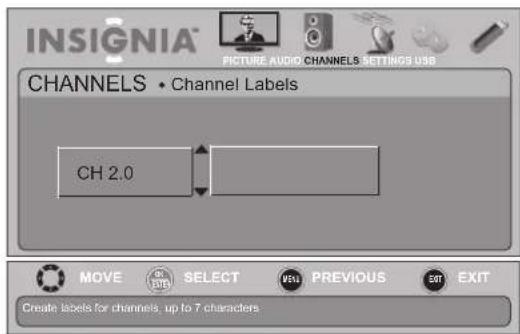

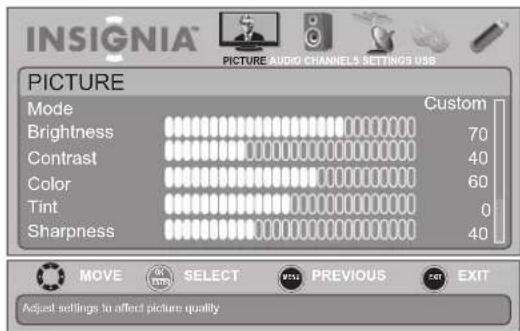

Adding or changing a channel label 22

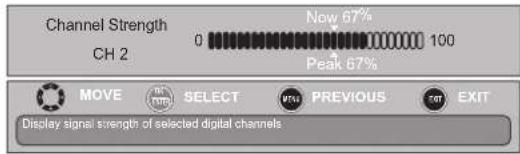

Checking the digital signal strength 22

Setting parental controls ....23

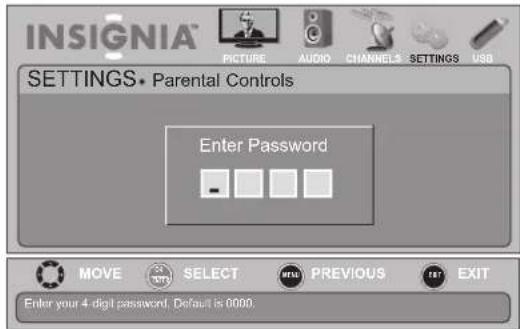

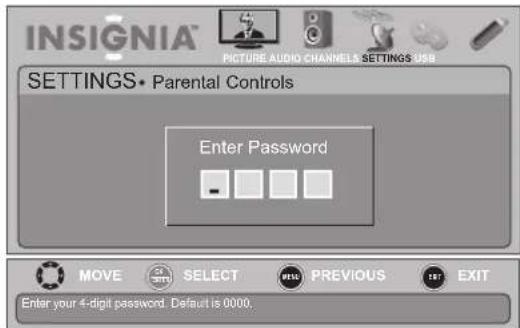

Setting or changing the password 23

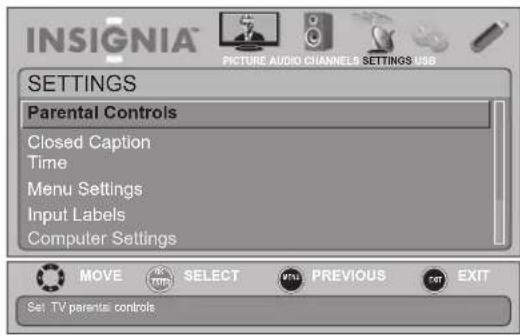

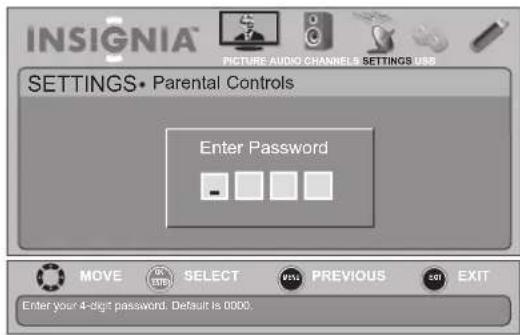

Locking control buttons 23

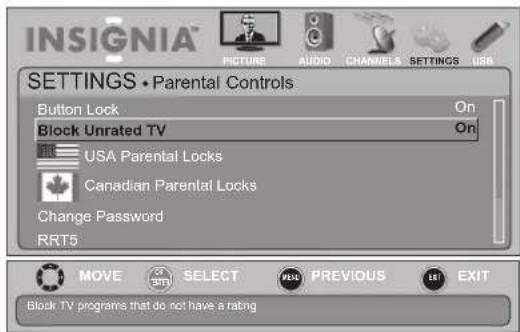

Blocking unrated TV 24

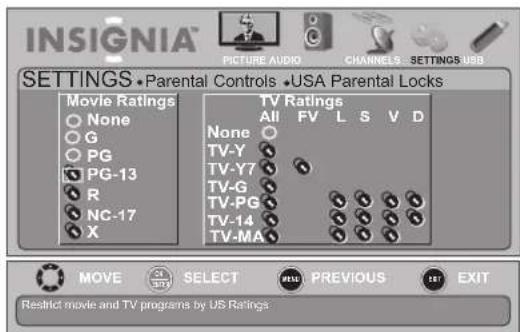

Setting parental control levels 25

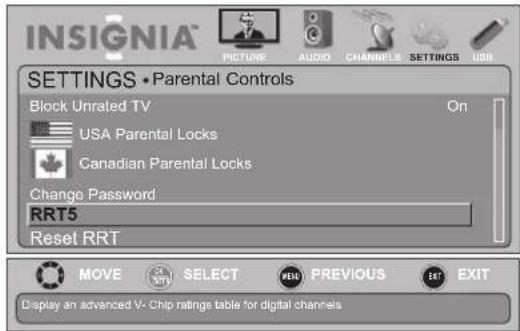

Downloading rating information 26

Using closed captioning .....27

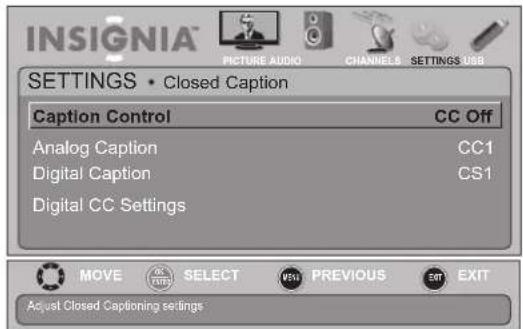

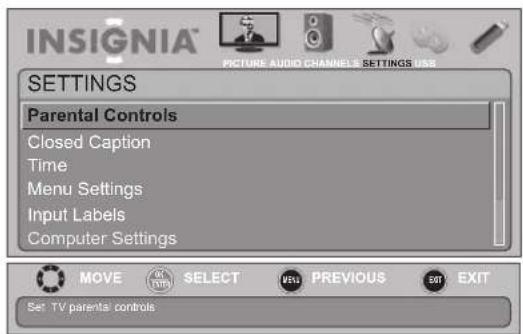

Turning closed captioning on or off 27

Selecting the analog closed captioning mode 27

Customizing digital closed captioning styles 28

Adjusting time settings .....28

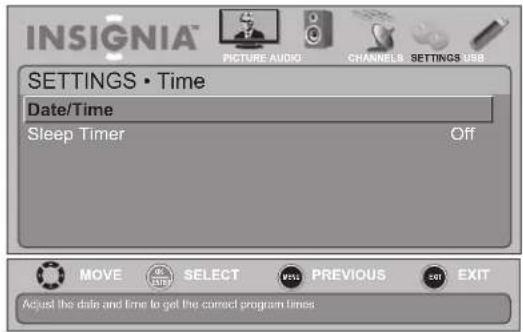

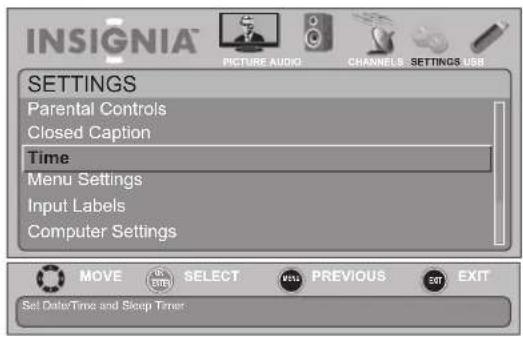

Setting the clock 28

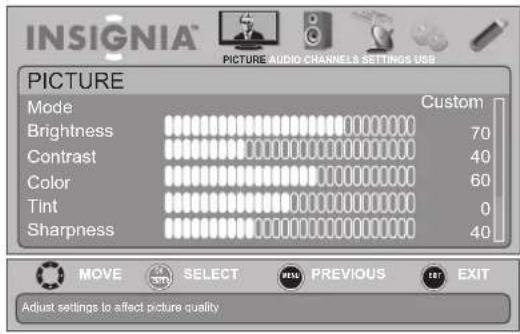

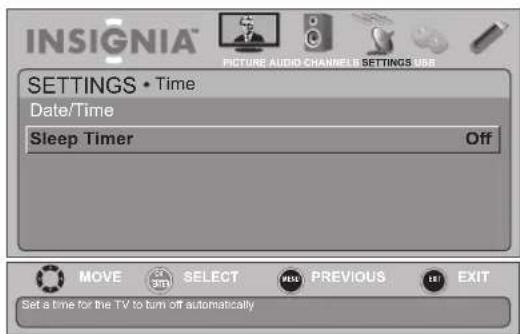

Setting the sleep timer 29

Adjusting menu settings 30

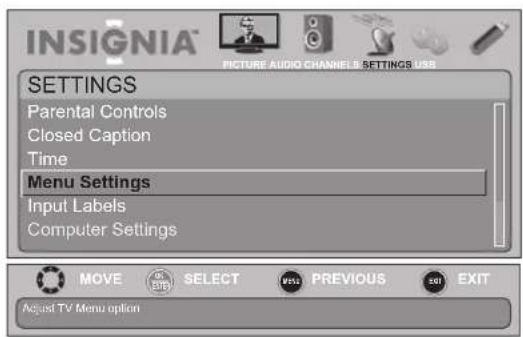

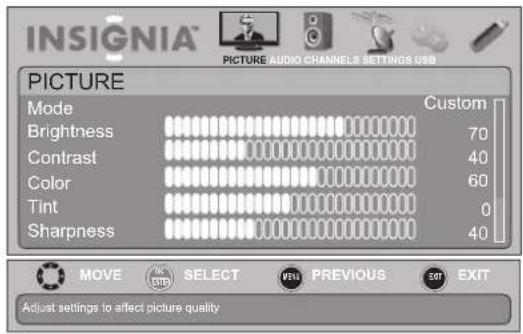

Selecting the menu language and transparency 30

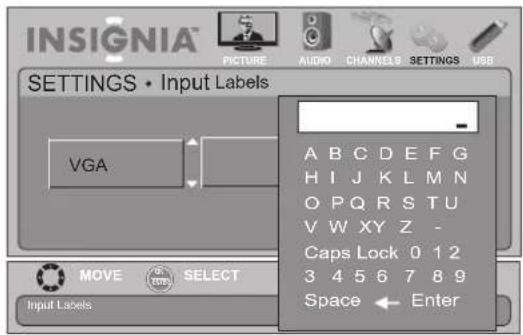

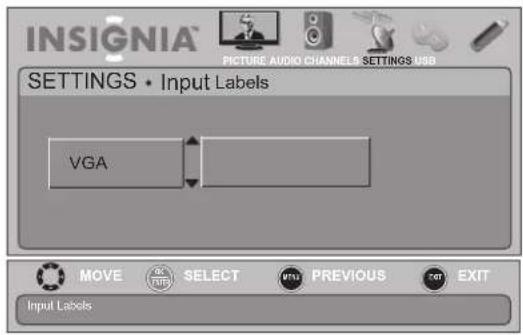

Labeling an input source 30

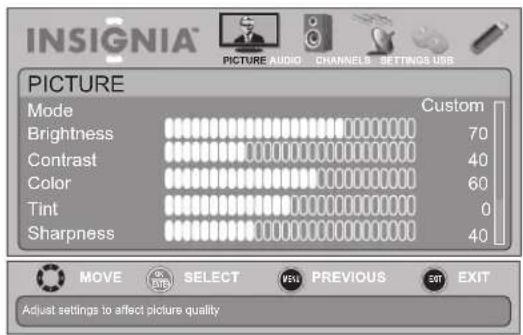

Turning Input Sensor on or off 31

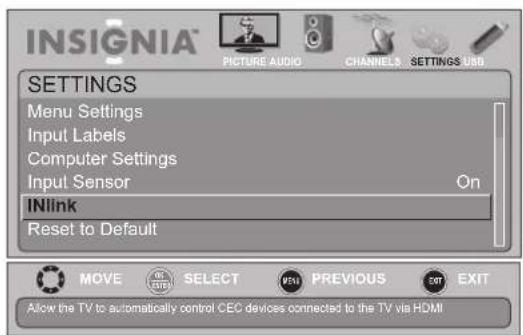

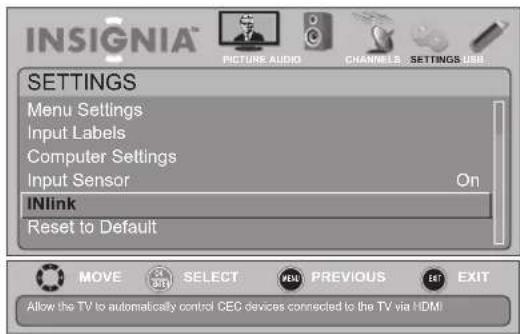

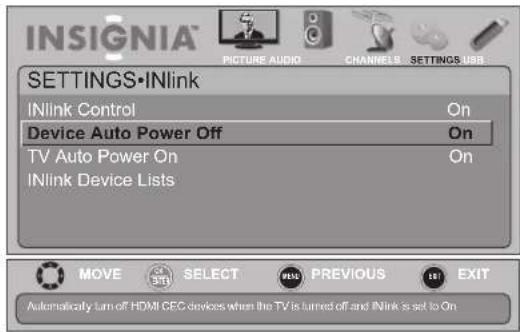

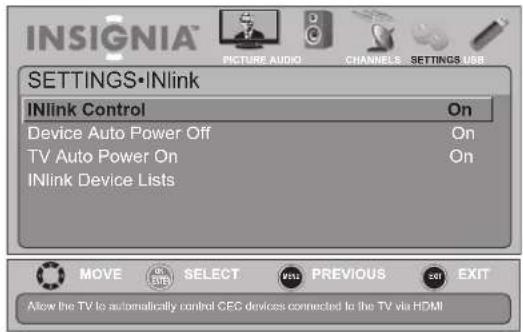

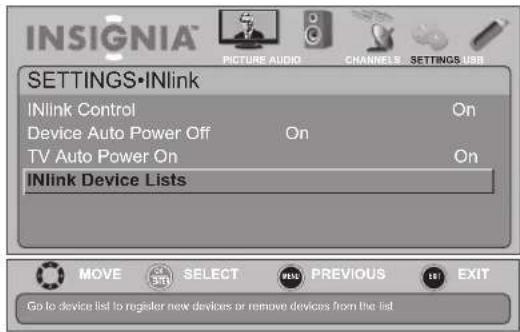

Using INlink 31

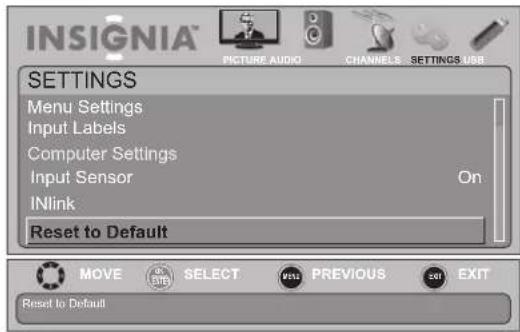

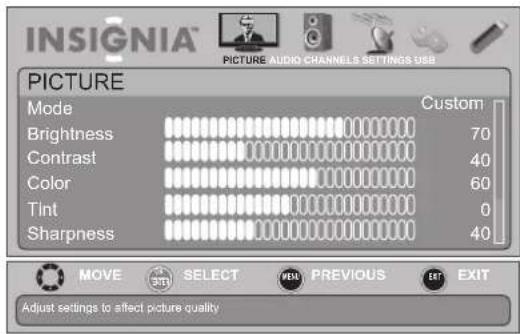

Restoring settings to the defaults 33

Using USB 34

Switching to USB mode 34

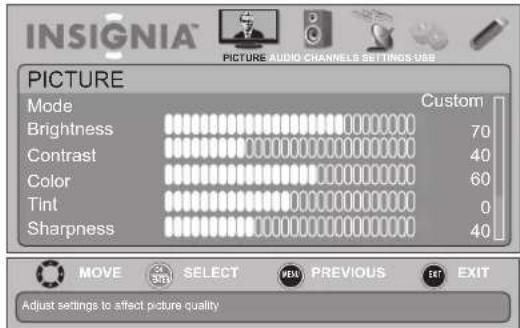

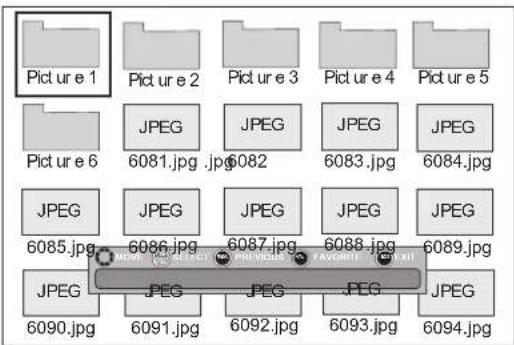

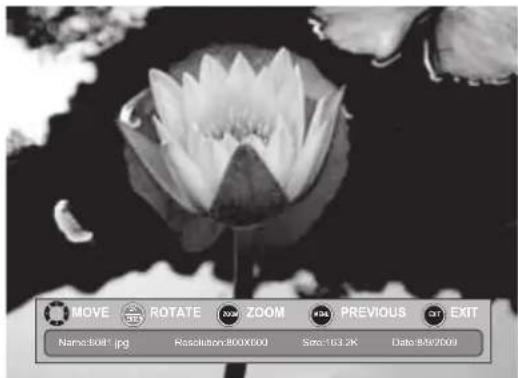

Browsing photos 34

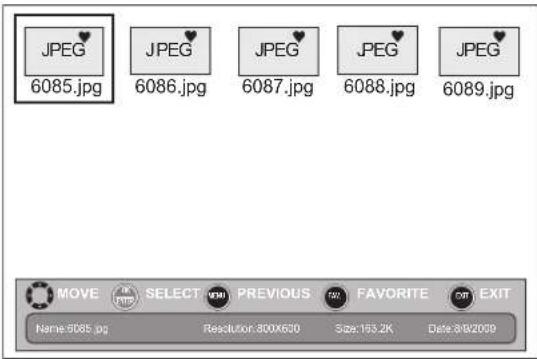

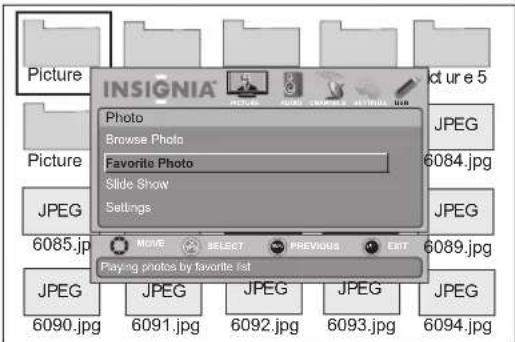

Viewing favorite photos 35

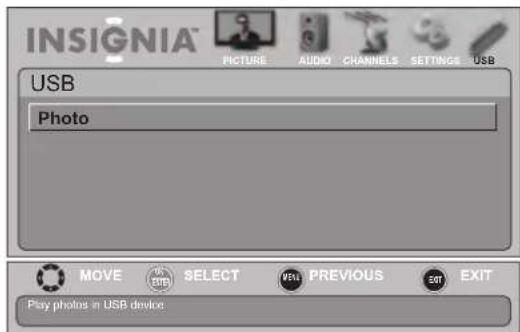

Viewing photos in a slide show 36

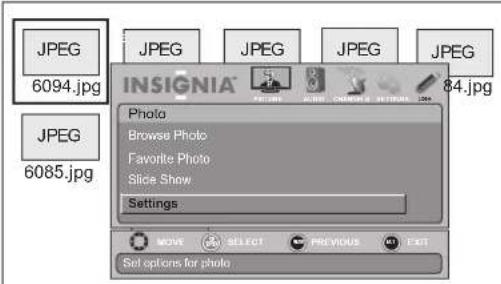

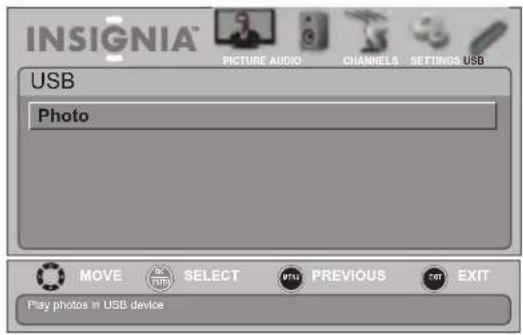

Customizing slide show settings 36

Maintaining ....37

Troubleshooting ....37

Video and audio 37

Remote control 38

General 38

Specifications 38

Legal notices ....39

Two-year limited warranty 43

US and Canada Markets 43

Mexico Market 43

CHILD SAFETY

It makes a difference how and where you use your flat panel display

As you enjoy your new product, keep these safety tips in mind

The issue

The home theater entertainment experience is a growing trend, and larger TVs are popular purchases. However, TVs are not always supported on the proper stands or installed according to the manufacturer's recommendations. We and the consumer electronics industry are committed to making home entertainment enjoyable and safe.

TVs that are inappropriately placed on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause injury.

Tune into safety

• One size of TV stand does not fit all. Use only a TV stand rated for the weight of your TV.

- Carefully read and understand all enclosed instructions for proper use of this product.

- Don't let children climb on or play with entertainment system furniture and TVs.

- Don't place TVs on furniture that can easily be used as steps, such as a crate or chest of drawers.

- Remember that children can become excited while watching a program, especially on a "larger-than-life" TV. Make sure that you place or install the TV where it cannot be pushed, pulled over, or knocked down.

•Make sure that you route all cords and cables so that they cannot be pulled or grabbed by curious children.

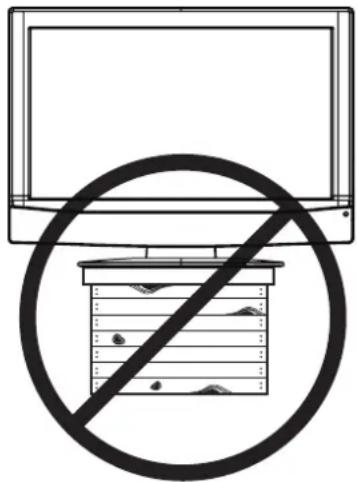

Diagram showing a prohibition symbol with a crossed-out box and a monitor, indicating no prohibition or prohibition in the device.

Wall mounting

If you decide to wall mount your TV, always remember:

- One size of wall mount does not fit all. Use only a wall mount rated for the weight of your TV and that has been recommended by this TV manufacturer, listed in this manual, or otherwise listed by an independent laboratory as suitable for your TV.

- Follow all instructions supplied by the TV and wall mount manufacturers.

- If you have any doubts about your ability to safely wall mount your TV, get help from a professional installer.

- Make sure that the wall where you are mounting the TV is appropriate. Some wall mounts are not designed to be mounted to walls backed with steel studs or cinder blocks. If you are unsure, ask a professional installer.

• TVs can be heavy. At least two people are required for safe wall mount installation.

Consumer Electronics Association

Important safety instructions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your TV. This label is located on the back of your TV.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your TV.

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15 The wall plug is the disconnecting device. The plug must remain readily operable.
16 An apparatus with three-prong, grounding-type plug is a Class I apparatus. Class I apparatus which needs to be grounded to prevent possible electric shock. Make sure that you connect the Class I apparatus to a grounding-type, three-prong outlet.
17 Remote control batteries should not be exposed to excessive heat such as sunshine, fire, or the like.
18 The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, should be placed on the apparatus.

Warnings

Electric shock hazard

To reduce the risk of fire or electric shock, do not remove any cover or expose the device to rain or moisture. No user-serviceable parts are inside. Refer servicing to qualified service technicians.

Lightning

For added protection for your device receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the power outlet and disconnect any antenna or cable system. This helps prevent property damage and personal injury from lightning and power line surges.

Power lines

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Handling the LCD panel

• Your TV's screen is made of glass. Do not drop your TV or hit, jolt, or press hard against the LCD panel. If the screen breaks, be careful of broken glass.
• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation.
• If the liquid gets in your mouth, immediately gargle, rinse, and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Replacement parts

When replacement parts are required, make sure that the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, personal injury, or other hazards.

Safety check

After completing any service or repair to this device, ask the service technician to perform routine safety checks to determine that your TV is in correct operating condition.

Power source

Operate your TV only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult an electrician or your local power company.

Cautions

Damage requiring service

Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.
• If liquid has been spilled or objects have fallen into your TV.
• If your TV has been exposed to rain or water.
• If your TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions because incorrect adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore your TV to its normal operation.
• If your TV has been dropped or damaged in any way.
• When your TV exhibits a distinct change in performance.

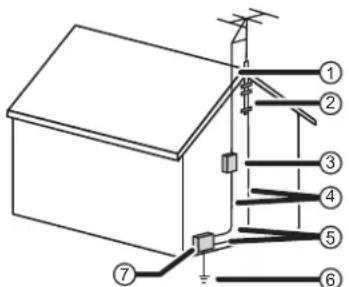

Outdoor antenna grounding

If an outside antenna or cable system is connected to your TV, make sure that the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to correct grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of the antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Technical diagram of a roof structure with numbered components and wiring connections

① Antenna lead-in wire
② Grounding clamp
③ Antenna discharge unit
④ Grounding conductors
⑤ Ground clamps
⑥ Power service grounding electrode system
⑦ Electric service equipment

Note to CATV system installer

Article 820 of the National Electrical Code, ANSI/NFPA No. 40 provides guidance for correct grounding. Specifically, it states that the cable ground must be connected to the grounding system of the building as close to the point of cable entry as practical.

Condensation

Moisture will form on the TV if the TV is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, the TV's performance may be impaired. To prevent this, let the TV stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.

Condensation may also form during the summer if the TV is exposed to the breeze from an air conditioner. In such cases, change the location of the TV.

Mobile telephone warning

To avoid interference with your TV picture and sound, operating problems, or even damage, keep your cordless and cellular telephones away from the TV.

End of life directives

Your TV contains tin-lead solder and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated for environmental reasons. Your TV also contains material that can be recycled and reused. For disposal or recycling information, contact your local authorities or the Electronic Industries Alliance at www.eia.org to find a recycler in your area.

Non-active pixels

The LCD panel contains almost 3 million thin film transistors, which provide exceptionally sharp video quality. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green, or red point. These non-active pixels do not adversely affect the performance of your TV, and are not considered defects.

Insignia 19"/22" LED-LCD HD TV

Introduction

Congratulations on your purchase of a high-quality Insignia product. Your NS-19E450A11, NS-19E450WA11, NS-22E450A11, or NS-22E455C11 represents the state of the art in LED-LCD TV design and is designed for reliable and trouble-free performance.

AUDYSSEY Dynamic Volume plus Dynamic EQ:

Have you ever caught yourself wishing that you didn't constantly need to adjust the volume: wishing that the commercials wouldn't blare and that you could better hear whispering during a movie scene? Audyssey Dynamic Volume is a feature that lets you put the remote control down and enjoy your show while Audyssey adjusts the sound levels for you automatically. Audyssey Dynamic EQ is a feature that automatically finds the richest sound settings-including enhanced bass-for each scene, even when the volume level is held steady, making the sound coming from your TV speakers sound more lifelike. See page 18 for instructions on how to adjust the audio settings to take advantage of Audyssey.

SRS TruSurround HD:

At Insignia, providing you with superior audio quality is just as important as exceptional picture quality. That's why we added SRS TruSurround HD, which provides you with a theater-like surround-sound experience, with the clearer dialog and the enhanced bass sounds that movie viewers and gamers crave.

INlink:

Enjoy the benefit of having HDMI CEC compatible products plug and play! No setup is needed! CEC technology lets different components discover and communicate with each other. (See page 31 for instructions on how to use INlink)

Install the stand or wall-mount bracket

Installing the stand

1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches.
2 Secure the stand to the screen with the three provided screws.

Technical line drawing of a device showing internal components and an external socket (no text or symbols)

Adjusting the viewing angle

Caution

When adjusting the viewing angle, be careful not to tip over your TV.

To adjust the viewing angle:

- Tilt the screen forward 5^ or backward 10^ .

10° -5

Installing a wall-mount bracket

Note

To avoid interference between the jacks, wall-mount bracket, and wall, the wall-mount bracket must be more than 40 mm thick, and the RF or VGA cable must have a 90-degree plug.

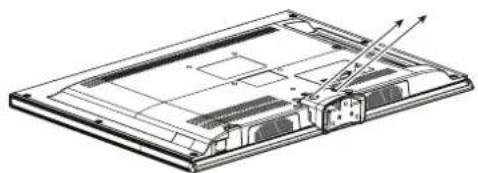

To attach your TV to a wall-mount bracket:

1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches.

2 Remove the two screws holding the TV to its stand column.

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

3 Remove the stand column.
4 Secure the wall-mount bracket to the back of your TV using the four M4 screws provided with bracket.

TV components

Accessories

• Remote control
• Remote control holder
• Batteries (2 AAA)
• Componentcable
  • Audiocable
• Cleaning cloth
  • TV stand and screws
• Quick Setup Guide

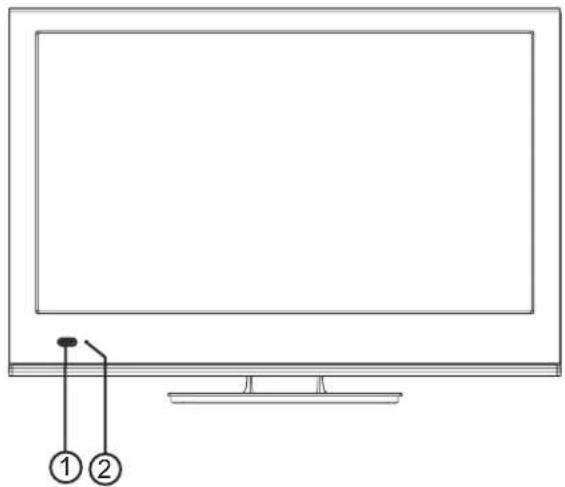

Front

Line drawing of a flat-screen monitor with two labeled connectors (① and ②) at the bottom, no text or symbols on the screen itself.

# Item Description

① Remote control sensor Receives signals from the remote control. Do not block.

② Power indicator Lights red when your TV is in standby mode. Turns off when the power cord is unplugged.

INPUT MENU CHVOL - + ① ② ③ ④ ⑤

Note

To turn on your TV using the (power) button on your TV, press (Your TV turns on and the button labels (INPUT, MENU, CH ∧/CH ∨, and VOL+/VOL-) light on the front of your TV. A "Please Wait" message appears for a few seconds, then your TV displays the normal TV broadcast.

If your TV is turned on and the button labels on the front of your TV are not lit, press any button except ⏻ to light the button labels. Then press the button you want. Button presses must be within 10 seconds of each other.

Item Description

1	(power)	Press to turn on your TV. Press again to put your TV in standby mode.When your TV is in standby mode, power still flows through it. To completely disconnect power, unplug the power cord.
2	INPUT Press to select the video input source.
3	MENU Press to open the on-screen menu.
4	CH/CH^	Press to go to the next or previous channel in the channel list.
5	VOL-/VOL + Press to decrease or increase the volume.

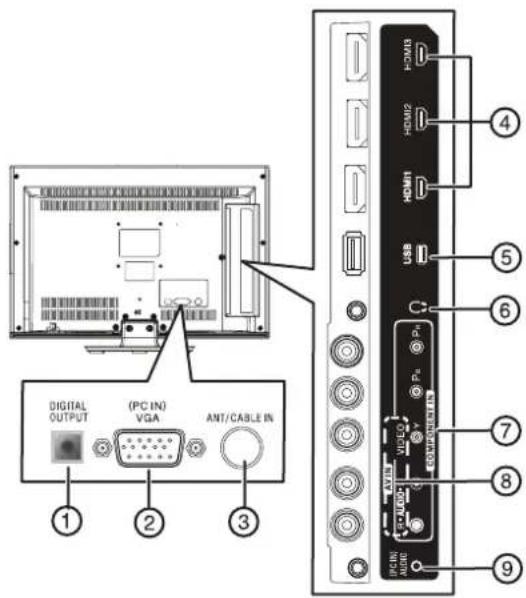

Back

DIGITAL OUTPUT (PC IN) VGA ANT/CABLE IN 1 2 3 4 HDMI HDMI2 HDMI1 USB C 6 7 8 9 VIDEO Pd HOLDEN/VEGETS Pc Pd Pd Pd

Item Description

1	DIGITAL OUTPUT	Connect a digital optical sound system to this jack to send the TV audio through the sound system. For more information, see “Connecting a digital sound system” on page 13.
2	PC IN VGA	Connect the video for a computer to this jack. For more information, see “Connecting a computer” on page 12.
3	ANT/CABLE IN	Connect an antenna, cable TV, or satellite TV box to this jack. For more information, see “Connecting an antenna or cable TV without a cable box” on page 9.
4	HDMI1/HDMI2/HDMI3	Connect an HDMI devices to this jacks. An HDMI cable carries both video and sound. You do not need to make an audio connection for an HDMI device.For more information, see “Connecting an HDMI device” on page 10.
5	USB	Connect a USB device, such as USB flash drive, to this jack. For more information, see “Connecting a USB device” on page 12.
6	○ (headphone)	Connect headphones to this jack. For more information, see “Connecting headphones” on page 13.
7	COMPONENT IN	Connect the video for a component video device to these jacks. For more information, see “Connecting a component video device” on page 11.
8	AV IN VIDEO and L/R AUDIO	Connect a composite video device, such as a VCR, to these jacks. For more information, see “Connecting a VCR” on page 11.
9	PC IN AUDIO	Connect the audio for a computer or DVI device to this jack. For more information, see “Connecting a computer” on page 12.

Remote control

COMP/AV HDMI TV 1 2 3 4 5 6 7 8 9 0 RECALL + VOL MUTE - CH-LIST FAVORITE INPUT GUIDE MENU INFO EXIT ENTER MESTR AUDIO PICTURE SPEED CCO II ZOOM ←← →← →← 15 16 17 18 19 20 21 22 23 24 25 26

# Button Description
	(power)	Press to turn on your TV. Press again to put your TV in standby mode.When your TV is in standby mode, power still flows through it. To completely disconnect power, unplug the power cord.
	COMP/AV	Press to select the device connected to the COMPONENT IN or AV IN VIDEO jacks as the video input source.
3	Numbers	Press to enter channel numbers or the parental control password.
		Press to select a digital sub-channel. For more information, see “Selecting a channel” on page 16.
5	MUTE	Press to turn off the sound. Press again to turn the sound back on.
	VOL+/VOL-Press to increase or decrease the volume.
7	CH-LIST Press to display the channel list.
	INPUT	Press to open the Input Source list. For more information, see “Selecting the video input source” on page 15.
9	MENU Press to open the on-screen menu.
	ENTER	Press to open a sub-menu or to confirm selections in the on-screen menus. For more information, see “Navigating the menus” on page 16.

Button Description

11	▲▼◄►	Press to navigate in on-screen menus. For more information, see “Navigating the menus” on page 16.
12	MTS/SAP	Press to select the audio mode for an analog channel. Press to select the audio track for a digital channel if more than one audio track is available. For more information, see “Selecting the audio mode” on page 19.
13	AUDIO	Press repeatedly to toggle between the bass and treble settings screens where you can adjust the settings.
14	PICTURE	Press to select the picture mode. For more information, see “Adjusting the TV picture” on page 17.
15	HDMI	Press once to select the device connected to the HDMI1 jack as the video input source. Press twice to select the device connected to the HDMI2 jack. Press three times to select the device connected to the HDMI3 jack.
16	TV Press to select the TV as the video input source.
17	○ RECALL	Press to go to the last viewed channel.
18	CH/CH ^	Press to go to the previous or next channel in the channel list. For more information, see “Selecting a channel” on page 16.
19	FAVORITE	Press to open the favorite channel list. For more information, see “Viewing a favorite channel” on page 21.
20	GUIDE	Press to open the program guide for digital channels (if available). For more information, see “Viewing channel information” on page 16.
21	INFO	Press to display the channel banner. For more information, see “Viewing channel information” on page 16.
22	EXIT Press to close the on-screen menu.
23	CCD	Press to turn closed captioning on or off. For more information, see “Turning closed captioning on or off” on page 27.
24	SLEEP	Press to set the sleep timer. For more information, see “Setting the sleep timer” on page 29.
25	ZOOM	Press to select the aspect ratio. For more information, see “Adjusting the TV picture” on page 17.
26	INlink control buttons	Press to control INlink devices. For more information, see “Using INlink” on page 31.

Using the remote control

Installing remote control batteries

To install the remote control batteries:

1 While pressing the release button on the battery compartment cover on the back of the remote, lift the cover off the remote.

Top-down line drawing of a vehicle chassis with no text or symbols

2 Insert two AAA batteries into the battery compartment. Make sure that the + and - symbols on the batteries align with the + and - symbols in the battery compartment.

3 Replace the cover.

Warnings

• Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.
• Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.
  • Make sure that batteries are disposed of correctly. Do not burn or incinerate.

Notes

• Do not mix batteries of different types.
• Do not mix old and new batteries.
• Remove batteries when the charge is depleted.
• If the remote control is not going to be used for an extended period of time, remove the batteries.

Aiming the remote control

To aim the remote control:

- Point the remote control toward the remote control sensor on the front of your TV.

30° 30° 16.4 ft. (5 m)

Notes

• Do not expose the remote control to shock.
• Do not expose the remote control to liquids and do not use the remote control in an area with high humidity.
• Do not place the remote control in areas of high heat or direct sunlight. The heat may warp the battery case.
• The remote control may not work correctly if sunlight or bright light is shining on the remote control sensor. To correct this problem, move your TV or use the remote control closer to the remote control sensor.

Using the remote control holder

Your TV comes with a remote control holder you can put the remote control in when you are not using it. You can put the holder on a table or mount it on a wall.

Note

Different types of walls may require different types of screws. If you want to wall mount the remote control holder, make sure that you use the correct screws for the type of wall. (Screws are not provided.)

Programming your existing universal remote control to work with your TV

You can operate your Insignia TV with a new or existing universal remote control.

To program a universal remote control:

1 See the table below for common codes. If you have problems programming your remote or need a different remote control code, visit www.insigniaproducts.com for the latest remote control code information.

Insignia TV codes for universal remote controls (for all Insignia TVs manufactured after Jan. 1, 2007)

Universal remote control makes and models
Philips PHDVD5,PH5DSS,PMDVR8, PDVR8	RCA	One for All	Sony
	RCU807	URC-6690	RM-VL600
115 135 0464			8043

Set-top box makes and models

Comcast	Dish Network	Motorola	TIVO	DirectTV
M1057	VIP508, VIP622	DRC800	Series 3, HD	RC23

0463 720 0463 0091 10463

Codes for other remote controls are available online at:

www.insigniaproducts.com

Tips

• The brand name is often visible on the front of the universal remote control, and the model number is often visible on the back.
• If your universal remote control isn't listed on the chart, refer to your universal remote control's instructions and try codes for the brands Orion, Emerson, Memorex, Sansui, Sylvania, or Zenith. You may need to try several codes before finding a match.

2 Follow your universal remote control's instructions to enter the TV code you found in Step 1.

Tips

• If your universal remote control has a code search feature, run a code search to identify a code that matches your TV. See your universal remote control's instructions for details.
• If your universal remote control has a "Learn" feature, you can manually program it using the Insignia TV remote to "teach" the commands one at a time. See your universal remote control's instructions for details.

3 If all else fails, you must use a different universal remote control that can operate both your set-top box and your TV. Four such remotes are listed on the chart, but many other compatible models are available in the market.

For more help, go to insigniaproducts.com or call technical support for your universal remote control or set-top box manufacturer, or call the Insignia Customer Care Center. For US and Canada markets, call 1-877-467-4289. For Mexico markets, call 01 800-926-3000.

Making connections

Cautions

• Check the jacks for position and type before making any connections.
• Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
  • The external audio/video equipment shown may be different from your equipment. If you have questions, refer to the documentation that came with your equipment.
  • Always unplug the power cord when connecting external equipment.

Connecting power

To connect the power:

- Plug the AC power cord into a power outlet.

Diagram showing cable connection to a computer monitor with an attached plug, labeled with '1' pointing to the plug.

Notes

• Your TV should only be operated from the power source indicated on the label.
  • Always unplug the AC power cord from the power outlet when you will not be using your TV for an extended period of time.

Connecting an antenna or cable TV without a cable box

To connect an antenna or cable TV without a cable box:

1 Connect a 75 ohm cable (not provided) to the ANT/CABLE IN jack on the back of your TV and to the antenna or cable TV wall jack.

Back of TV DIGITAL OUTPUT (PC IN) VGA ANT/CABLE IN Antenna or cable TV wall jack.

Notes

• Use a 75 ohm cable to eliminate interference and noise from radio waves.
• Do not bundle the 75 ohm cable with the power cord or other cables.
• If the antenna is not installed correctly, contact qualified service personnel to correct the problem.

Connecting a cable or satellite box

Many cable or satellite TV boxes have more than one connection type. To get the best video, you should use the best connection type available.

Connection type Video quality

HDMI Best

Component Better than composite or RF

Composite Better than RF

RF Good

To connect a cable or satellite box:

1 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable box.

Satellite TV box Cable TV box HDMI HDMI2 HDMI1 USB P+ P- P- VDD Y P+Y P+Y Component Composite

2 Depending on the jacks available on the cable or satellite TV box, connect a cable (not provided) from the outgoing jacks on the cable or satellite TV box to the corresponding jacks on the back of your TV. The connection can be to an HDMI jack, the COMPONENT IN jacks, or the AV IN VIDEO jack.
3 If you use the COMPONENT IN jacks or the AV IN VIDEO jack, connect an audio cable (provided) to the AV IN AUDIO L/R jacks.

Note

If the cable or satellite TV box does not have an HDMI, component, or composite jack, connect the cable or satellite TV box to the ANT/CABLE IN jack on the back of your TV. For more information, see "Connecting an antenna or cable TV without a cable box" on page 9.

Connecting an HDMI device

Note

If your device has an HDMI connection, we recommend that you use the HDMI connection to get the best quality possible.

To connect an HDMI device:

1 Make sure that your TV's power cord is unplugged and the HDMI device is turned off.
2 Connect an HDMI cable (not provided) to the HDMI1, HDMI2, or HDMI3 jack on the back of your TV and to the HDMI OUT jack on the HDMI device.

Back of TV HDMI device

To play from an HDMI device:

1 Turn on your TV, then press INPUT to open the Input Source list.
2 Press ▲ or ▼ to select HDMI 1, HDMI 2, or HDMI 3, then press ENTER.

Note

You can also press HDMI repeatedly to select the HDMI device.

3 Turn on the HDMI device, then set it to the output mode. See the documentation that came with the device for more information.

Note

If the device only has a DVI jack, use a DVI-to-HDMI adapter to connect the DVI jack to an HDMI jack on your TV, then connect the audio to the (PC IN) AUDIO jack.

Connecting a component video device

To connect a component video device:

1 Make sure that your TV's power cord is unplugged and the component video device is turned off.
2 Connect a component video cable (provided) to the COMPONENT IN jacks on the back of your TV and to the COMPONENT OUT jacks on the component video device.

Back of TV Cables are often color-coded to match color-coded jacks. Component video cable Audio cable Component video device

3 Connect an audio cable (provided) to the AV IN AUDIO L/R jacks on the back of your TV and to the L/R AUDIO OUT jacks on the component video device.

To play from the component video device:

1 Turn on your TV, then press INPUT to open the Input Source list.
2 Press ▲ or ▼ to select Component/AV, then press ENTER.

Note

You can also press COMP/AV to select the component video device.

3 Turn on the component video device, then set it to the output mode. See the documentation that came with the device for more information.

Note

The COMPONENT IN jacks share the audio jacks with the AV IN VIDEO jack.

Connecting a VCR

To connect a VCR:

1 Make sure that your TV's power cord is unplugged and the VCR is turned off.
2 Connect an AV cable (not provided) to the AV IN VIDEO and AV IN AUDIO L/R audio jacks and to the AV OUT jacks on the VCR.

Cables are often color-coded to match color-coded jacks. Connect yellow to yellow, red to red, and white to white.

Back of TV VCR led, and white to white.

To play from the VCR:

1 Turn on your TV, then press INPUT to open the Input Source list.
2 Press ▲ or ▼ to select Component/AV, then press ENTER.

Note

You can also press COMP/AV to select the VCR.

3 Turn on the VCR, insert a videotape, then press PLAY on the VCR.

Note

The AV IN VIDEO jack shares the audio jacks with the COMPONENT IN jacks.

Connecting a computer

Tip

Some computers have an HDMI jack. You can use an HDMI cable to connect the computer for a better picture.

To connect a computer:

1 Make sure that your TV's power cord is unplugged and the computer is turned off.
2 Connect a VGA cable (not provided) to the VGA jack on the back of your TV and to the VGA jack on the computer.

Note

The VGA cable should be a 15-pin D-Sub (analog RGB) cable.

Back of TV DIGITAL OUTPUT I2C-EN VGA ANT/CABLE IN VGA cable Audio cable with stereo mini plugs

3 Connect an audio cable with stereo mini plugs to the PC IN AUDIO jack on the back of your TV and to the LINE OUT or AUDIO OUT jack on the computer.

To play video from the computer:

1 Turn on your TV, then press INPUT to open the Input Source list.
2 Press ▲ or ▼ to select VGA, then press ENTER.
3 Turn on the computer and adjust the display properties if necessary.

Connecting a USB device

To connect a USB device:

- Plug a USB device, such as a flash drive, into the USB port on the back of your TV.

Back of TV USB device

Caution

Never remove the USB device or turn off the TV while using the USB device. You may lose data or damage the USB device.

To play from a USB device:

1 Turn on your TV, then press INPUT to open the Input Source list.
2 Press ▲ or ▼ to select USB, then press ENTER.

Note

For more information, see "Using USB" on page 34.

Connecting headphones

The TV speakers are muted when headphones are attached.

Warning

Loud noise can damage your hearing. When using headphones, use the lowest volume setting on your headphones that still lets you hear the sound.

To connect headphones:

- Connect headphones to the (headphone) jack on the back of your TV.

Back of TV

Connecting a digital sound system

To connect a digital sound system:

1 Make sure that your TV's power cord is unplugged and the sound system is turned off.
2 Connect a digital optical audio cable to DIGITAL OUTPUT jack on the back of your TV and to the digital optical audio jack on the digital sound system.

Back of TV DIGITAL OUTPUT (IPC IN) VGA ANT/CABLE IN Audio processor OR Sound system

Turning on your TV for the first time

The first time you turn on your TV, the Setup Wizard opens. The Setup Wizard guides you through setting up basic settings including the menu language, time setting, picture mode, TV signal source, and the channel list.

To set up your TV:

1 Make sure that you have:

• Installed the remote control batteries. (See page 7 for details).
• Connected an antenna, cable TV, or satellite TV. (See page 9 for details.)
• Connected the power cord. (See page 9 for details.)

2 Press (power) on the remote control to turn on your TV. The Choose your menu language screen opens.

Choose your menu language English Français Español MOVE SELECT PREVIOUS EXIT Set menu language to English

3 Press or to highlight the language you want, then press ENTER. The Choose your Time Setting screen opens.

Choose your Time Setting Mode Auto Time Zone Atlantic Daylight Savings On Year 2009 Month October Day 28 Time 08:07 AM MOVE SELECT PREVIOUS EXIT If automatically. options are automatically set by TV source

4 Press ▲ or ▼ to highlight Mode, then press ◀ or ▶ to select Manual (to set the date and time manually) or Auto (to set the date and time automatically from a TV signal source based on the time zone your select).
5 If you selected Auto for Mode, press ▲ or ▼ to highlight Time Zone, then press ▶ or ▶ to select your time zone. You can select Eastern, Central, Mountain, Pacific, Alaska, Hawaii, Atlantic, or Newfoundland.

6 If you selected Auto for Mode, press ▲ or ▼ to highlight Daylight Savings, then press◀or ▶ to select On (if your viewing area observes Daylight Savings Time) or Off (if your viewing area does not observe Daylight Savings Time).
7 If you selected Manual for Mode, set the date by pressing ▲ or ▼ to highlight Year, Month, or Day, then press ◀ or ▶ to adjust the setting.
8 If you selected Manual for Mode, set the time by pressing ▼or to highlight Time, then pressing ▶or to select the hour, minute, or AM/PM field. Press ▶or to adjust the setting.
9 Press ENTER. The Choose your Picture Mode screen opens.

Choose your Picture Mode ✓ Home Mode ○ Retail Mode MOVE INT. SELECT PREVIOUS EXIT EXIT Reduces total power consumption

10 Press ▲ or ▼ to highlight Home Mode or Retail Mode, then press ENTER.

If you selected Retail Mode, a message appears "If you select Retail Mode, then Energy saving is not realized." Select Yes to continue, or select No to change your selection.

The Choose your TV source screen opens.

Choose your TV source Antenna Cable Cable/Satellite Box 0 Analog Channels 0 Digital Channels Scan for Digital Channels... MOVE SELECT PREVIOUS EXIT Select Antenna if using an antenna for standard or HD TV

11 Press ▲ or ▼ to highlight Antenna, Cable, or Cable/Satellite Box (if your cable TV uses a box, select Cable/Satellite Box), then press ENTER. If you chose Antenna or Cable, your TV automatically starts scanning for channels available in your viewing area. If you chose Cable/Satellite box, your TV does not need to scan for channels.

During auto channel search, your TV searches for digital channels first. When the digital channel search is complete, a message appears asking if you want to search for analog channels. Select Yes to continue searching for analog channels, or select No to stop searching for channels.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

12 To watch TV, press INPUT, press ▲ or to highlight TV in the Input Source list, then press ENTER.

Note

You can select a different video input source.

Understanding the basics

Note

Unless otherwise noted, all tasks in this section are based on using the remote control.

Turning your TV on or off

To turn your TV on or off:

1 Make sure that the power cord is connected to a power outlet.
2 Press (power) to turn on your TV. The power indicator LED turns blue.
3 Press (power) again to turn off your TV. Your TV enters Standby mode and the power indicator LED turns red.

Warning

When your TV is in standby mode, it is still receiving power. To completely disconnect power, unplug the power cord.

Note

If your TV does not receive an input signal for several minutes, it automatically goes into standby mode.

Selecting the video input source

To select the video input source:

1 Turn on your TV, then press INPUT. The Input Source list opens.

Input Source TV Component/AV HDMI 1 HDMI 2 HDMI 3 VGA USB

2 Press or to highlight a video input source, then press ENTER.

You can also press a direct input button to select the video input source.

• Press TV to select TV.
• Press COMP/AV to select AV IN VIDEO or COMPONENT IN.
• Press HDMI once to select HDMI 1. Press twice to select HDMI 2. Press three times to select HDMI 3.

On-screen menu overview

Notes
	·Depending on the signal source selected, you may see different options on your screen. The following menus are shown in TV mode (except the USB menu). ·Menu items that are not selectable are grayed out. ·Menus in this manual are described in TV mode, unless otherwise indicated. ·The screens shown in this manual are for explanation purposes and may vary from the actual screens on your TV.

PICTURE menu (TV mode)

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE OK SELECT PULL PREVIOUS SET EXIT Adjust settings to affect picture quality

AUDIO menu (TV mode)

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB AUDIO Audyssey Dynamic Volume™ Light SRS TruSurround HD™ Off Treble 50 Bass 40 Balance 0 Advanced Audio MOVE SELECT PREVIOUS EXIT Adjust settings to affect sound quality

CHANNELS menu (TV mode)

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS WEB CHANNELS Auto Channel Search Add/Skip Channels Favorites Channel Labels Channel Strength Audio Only Off MOVE SELECT PREVIOUS EXIT Adjust channel options

SETTINGS menu (TV mode)

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT Set various TV options

USB menu (USB mode)

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB USB Photo MOVE SELECT PREVIOUS EXIT Adjust USB options

Navigating the menus Selecting a channel

Press MENU to open the on-screen menu

Press the right or left arrow to move the cursor on the screen or to adjust a selected item.

Press the up or down arrow to select menu options.

Press ENTER to confirm selection or enter a sub-menu.

Press MENU to return to the previous menu.
Press EXIT to close the menu

To select a channel:

• Press CH ∧ or CH ∨ to go to the next or previous channel on the memorized channel list.
• Press the number buttons to enter the channel number you want, then wait for the channel to change or press ENTER to immediately change the channel.
• To select a digital sub-channel, press the number buttons to select the main digital channel, press (dot), then press the number button for the sub-channel. Wait for the channel to change, or press ENTER to immediately change the channel. For example, to tune to channel 5.1, press 5, (dot), then 1.
• Press RECALL to go to the last viewed channel.
• Press CH-LIST to open the channel list, press ▲ or ▼ to highlight a channel, then press ENTER.
• Press FAVORITE to open the favorite channel list, press or to highlight a channel, then press ENTER.

Note

If a list has more than one page, press or to scroll through the pages.

Adjusting the volume

To adjust the volume:

• Press VOL + or VOL - to increase or decrease the volume.
• Press MUTE to turn off the sound. Press MUTE again to turn the sound back on.

Viewing channel information

To view channel information:

• Press INFO to view an information banner. The information banner shows the current program information such as channel number, video input source, and resolution.
• Digital channel information—Displays the channel number, station name, channel label, broadcast program name, TV rating, signal type, audio information, resolution, CC mode, current time, and current program start and end times.
• Analog channel information—Displays channel number, channel label (if preset), signal type, audio information, and resolution.
• Press GUIDE to show the digital program guide, which may view a list of available programs, program times, and program summaries, depending on the information provided by the broadcaster.

Adjusting the picture

Note

Unless otherwise noted, all tasks in this section are based on using the remote control.

Adjusting the TV picture

To adjust the TV picture:

1 Press MENU. The on-screen menu opens with the PICTURE menu displayed.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS SAT EXIT Adjust settings to affect picture quality

2 Press ▼ or ENTER to access the menu.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT EXIT Adjust picture mode to change picture appearance

Press ▼ to view additional options.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Contrast 40 Color 60 Tint 0 Sharpness 40 Advanced Video Reset Picture Settings MOVE SELECT PREVIOUS SET EXIT Reset all picture settings to factory mode

3 Press or to highlight an option, then press ENTER to access the option. You can select:

- Mode—Selects the picture mode. You can select:

• Vivid (a bright and vivid picture)
• Standard (a standard picture)
• Energy Savings (the backlight brightness is decreased)
• Theater (a finely detailed picture)

• Sports (a dynamic picture)
- Custom (customized picture).

Note

You can also press PICTURE to select the picture mode.

• Brightness—Adjusts the brightness.
- Contrast—Adjusts the contrast.
• Color—Adjusts the color saturation.
• Tint—Adjusts the image tint.
- Sharpness—Adjust the sharpness.
- Advanced Video—Opens the PICTURE-Advanced Video menu where you can adjust additional video options.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USS PICTURE • Advanced Video Aspect Ratio Normal OverScan Off Color Temperature Cool Noise Reduction Low Backlight 100 Adaptive Contrast On MOVE SELECT PREVIOUS EXIT Adjust how the picture fills this screen

- Aspect Ratio—Selects the aspect ratio of the picture. You can select Normal (selects the correct aspect ratio to match the source image), Wide (shows a full-screen picture), Zoom (enlarges the picture but may crop the top and bottom), Cinema (stretches the picture at the edges, but maintains a good aspect ratio at the center of the screen), or Auto (select the correct aspect ratio automatically) if Auto Zoom in the CHANNELS menu is set to On. When Auto Zoom in the CHANNELS menu is set to Off, only Normal, Wide, Zoom, or Cinema can be selected.

Note

You can also press ZOOM to select the aspect ratio.

• Overscan—Adjusts the picture's reproduction rate. You can select On or Off.
  • Color Temperature—Selects the color temperature. You can select Cool (to enhance the blues), Normal, or Warm (to enhance the reds).
• Noise Reduction—Selects the noise reduction mode to reduce picture noise (snow). You can select Low, Middle, High, or Off.
• Backlight—Sets the overall brilliance of the screen.
• Adaptive Contrast—Automatically adjusts picture detail and brightness. You can select On or Off.

- Dynamic Contrast Ratio—Enhances the contrast ratio between light and dark areas of the picture. You can select On or Off.

- Reset Picture Settings—Reset all picture settings to factory mode.

4 Press or to adjust the option, or press or ▲▼ to select a setting.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting the computer image

To adjust the computer image:

1 Make sure that your TV is in VGA mode. For more information, see "Selecting the video input source" on page 15.

2 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNEL & SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PRI PREVIOUS EXIT EXIT Adjust settings to affect picture quality

3 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS & SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE OR SELECT PREVIOUS EXIT EXIT Set options for when a computer is connected to the TV

4 Press ▲ or ▼ to highlight Computer Settings, then press ENTER. The SETTINGS-Computer Settings menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS. SETTINGS USB SETTINGS • Computer Settings Auto Adjust H. Position V. Position Clock Phase MOVE SELECT PREVIOUS EXIT Adjust to the PC signal timing automatically when ON

5 Press or to highlight an option, then press ENTER to access the option. You can select:

• Auto Adjust—Automatically adjusts the image settings such as position and phase.
  • H. Position—Moves the image right or left.
  • V. Position—Moves the image up or down.
• Clock—Adjusts the sample frequency.
• Phase—Adjusts the focus of stable images.

6 Press or to adjust the option, or press or ▲▼ to select a setting.

7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting the sound

Note

Unless otherwise noted, all tasks in this section are based on using the remote control.

Adjusting sound settings

To adjust sound settings:

1 Press MENU. The on-screen menu opens.

INSIGNIA™ PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SE SELECT PREV PREVIOUS EST EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight AUDIO, then press ▼ or ENTER. The AUDIO menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB AUDIO Audyssey Dynamic Volume™ Light SRS TruSurround HD™ Off Treble 50 Bass 40 Balance 0 Advanced Audio MOVE SELECT PREVIOUS EXIT Adjust the audyssey mode to change audio effect

3 Press or to highlight an option, then press ENTER to access the option. You can select:

• Audyssey Dynamic Volume™—Adjusts the Audyssey mode to change the audio effect. You can select: Off, Light, Medium, or Heavy.

• SRS TruSurround HD™—Restores the spatial cues that are present in a live listening environment and processes them to provide a natural 3D sound field.

• Treble—Adjusts the high sounds.
  • Bass—Adjusts the low sounds.
  • Balance—Adjusts the balance between the left and right audio channels.

Note

You can quickly adjust Treble or Bass by using the AUDIO and buttons on the remote control. Press AUDIO repeatedly to toggle between the Treble and Bass screens, then press to adjust the level.

- Advanced Audio—Opens the AUDIO-Advanced Audio menu where you can adjust additional audio options.

INSIGNIA™ PICTURE AUDIO CHANNELS SETTINGS USB AUDIO • Advanced Audio Digital Audio/SPDIF RAW Audio Language English MTS Audio SAP MOVE SELECT PREVIOUS EXIT Send digital audio to an external audio system

• Digital Audio/SPDIF—Sends digital audio to an external audio system. You can select PCM (to select to output audio in 2-channel stereo), or RAW (to pass through the original digital audio sound).
• Audio Language—(Digital channels only) Selects an alternate audio language, if available.
• MTS Audio—(Analog channels only) Selects the audio mode. You can select:
  • MONO—Select this option if there is noise or static on weak stereo broadcasts.
  • STEREO—Select this option for programs broadcast in stereo.
• SAP—Select this option to listen to a secondary audio program, if available.

Note

You can also press MTS/SAP one or more times to select the audio mode.

- Reset Audio Settings—Reset all audio settings to factory defaults.

4 Press or to adjust the option, or press or ▲▼ to select a setting.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Selecting the audio mode

To select the audio mode for an analog channel:

- See "Adjusting sound settings" on page 18 to select the audio mode using the on-screen menu Or,

Press MTS/SAP one or more times. You can select:

• MONO—Select this option if there is noise or static on weak stereo broadcasts.
• STEREO—Select this option for programs broadcast in stereo.

- SAP—Select this option to listen to a secondary audio program, if available.

Note

Mono is automatically selected if the program is broadcast in mono.

To select the audio mode for a digital channel:

- Press MTS/SAP. If an audio track is available, it plays.

Playing TV audio only

You can turn off the picture on your TV and listen to the program audio only.

To play TV audio only:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USE PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER. The CHANNELS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS Auto Channel Search Add/Skip Channels Favorites Channel Labels Channel Strength Audio Only On MOVE SELECT PREVIOUS EXIT Play the audio with the picture turned off

3 Press ▲ or ▼ to highlight Audio Only, then press ENTER.
4 Press ▲ or ▼ to select On.
5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Notes

• Audio Only works only when the input source is TV and your TV is receiving a broadcast signal.
- To exit audio only mode, press any button. When you exit audio only mode, the Audio Only option is automatically reset to Off.

Changing channel settings

Note

Unless otherwise noted, all tasks in this section are based on using the remote control.

Automatically scanning for channels

When you scan for channels, your TV searches for channels with signals and stores the channel information in the channel list. When you press

CH or CH, your TV goes to the next of previous channel in the channel list.

If the TV signal source changes, for example you change from an outdoor antenna to cable TV (no box), you need to scan for channels.

To automatically scan for channels:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT VBLI PREVIOUS SOT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER. The CHANNELS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS Auto Channel Search Add/Skip Channels Favorites Channel Labels Channel Strength Audio Only Off MOVE SELECT PREVIOUS SET EXIT Automatically search for channels

3 Press ▲ or ▼ to highlight Auto Channel Search, then press ENTER. The CHANNELS-Auto Channel Search screen opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS • Auto Channel Search Choose your TV source Antenna Cable Cable/Satellite Box Scan for Digital Channels Analog Channels Digital Channels MOVE SELECT PREVIOUS EXIT Select Antenna if using an antenna for standard or HD TV

4 Press ▲ or ▼ to highlight Antenna, Cable, or Cable/Satellite Box, then press ENTER.

• If you are using an antenna for a standard or HD TV signal, select Antenna.
• If your cable is connected directly to the TV (using no tuner box), select Cable.
• If your cable is connected to your TV through a tuner box, select Cable/Satellite Box.

If you selected Antenna or Cable, your TV searches automatically for available channels in your area and stores the channel information in the channel list. This may take several minutes. While searching, the TV displays a progress report.

Or,

If you selected Cable/Satellite Box, the channel search is not necessary.

Note

You can press EXIT to stop the auto channel search, but you will need to run the auto channel search again to create a channel list.

Hiding channels

You can hide channels in the channel list. When you press CH ∧ or CH ∨, your TV will skip the hidden channels. You can still tune to a hidden channel by pressing the number buttons for the channel.

To hide channels:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER. The CHANNELS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS Auto Channel Search Add/Skip Channels Favorites Channel Labels Channel Strength Audio Only Off MOVE SELECT PREVIOUS LET EXIT Manually add and skip channels in your program list

3 Press ▲ or ▼ to highlight Add/Skip Channels, then press ENTER. The CHANNELS-Add/Skip Channels screen opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS • Add/Skip Channels ✓ 1.1 Ch1 ○ 2.1 WGBH-SD ✓ 2.10 WGBH-DX ○ 6 Analog ✓ 12 Analog ✓ 19 Analog ✓ 28 Analog ✓ 1.2 Sencore ✓ 2.2 PBS-HD ✓ 3 Analog ○ 7 Analog ✓ 14 Analog ✓ 21 Analog ✓ 43 Analog MOVE SELECT PREVIOUS EXIT Add/Skip channels

4 Press ▲ or ◀ to highlight the channel you want to hide, then press ENTER. The check mark disappears.

Notes • A channel with a check mark is not hidden. A channel with no check mark is hidden. • If the list has more than one page, press or▲▼ to scroll through the pages.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting up a favorite channel list

You can create a favorite channel list so you can quickly browse through your favorite channels by pressing FAVORITE, then selecting a channel from the favorite channel list.

To set up a favorite channel list:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE EXIT SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER. The CHANNELS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS Auto Channel Search Add/Skip Channels Favorites Channel Labels Channel Strength Audio Only Off MOVE SELECT PREVIOUS EXIT Add channels to create a favorite list

3 Press ▲ or ▼ to highlight Favorites, then press ENTER. The CHANNELS-Favorites screen opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS • Favorites ✓ 1.1 Ch1 ○ 2.1 WGBH-SD ✓ 2.10 WGBH-DX ○ 6 Analog ✓ 12 Analog ✓ 19 Analog ✓ 28 Analog ✓ 1.2 Sencore ✓ 2.2 PBS-HD ✓ 3 Analog ○ 7 Analog ✓ 14 Analog ✓ 21 Analog ✓ 43 Analog MOVE SELECT PREVIOUS EXIT Favorites

4 Press ▲ or ◀ to highlight the channel you want to add to the favorites list, then press ENTER. A check mark appears next to the channel.

Notes • To remove a channel from the favorites list, highlight the channel, then press ENTER. The check mark disappears and the channel if removed from the list. • If the list has more than one page, press or ▲▼ to scroll through the pages.

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Viewing a favorite channel

To view a favorite channel:

1 Press FAVORITE. The favorite channel list opens.
2 Press or to highlight a channel, then press ENTER.

Adding or changing a channel label

If a channel is not already labeled, you can label the channel to make it easier to identify. You can also relabel a channel that is already labeled.

To add or change a channel label:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjusted settings to affect picture quality

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER. The CHANNELS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS Auto Channel Search Add/Skip Channels Favorites Channel Labels Channel Strength Audio Only Off MOVE SELECT PREVIOUS EXIT Create labels for channels, up to / characters

3 Press ▲ or ▼ to highlight Channel Labels, then press ENTER. The CHANNELS-Channel Labels screen opens with the channel number field highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS • Channel Labels CH 2.0 MOVE SELECT PREVIOUS EXIT Create labels for channels, up to 7 characters

4 Press or to select the channel you want to label, then press to move to the channel label field.

INSIGNIA® PICTURE AUDIO CHANNELS - SETTINGS USB CHANNELS • Channel Labels CH 2.0 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - Caps Lock 0 1 2 3 4 5 6 7 8 9 Space ← Enter MOVE SELECT Create labels for channels, up to 7 characters

5 Press ▲▼◀ or▶ to highlight a character, then press ENTER. Repeat this step to enter additional characters. You can enter as many as seven characters. If you need to delete a character, highlight ,then press ENTER.

6 When you have completed the label, press MENU.

7 Press EXIT to close the menu.

Checking the digital signal strength

You can check the digital signal strength to determine if you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.

To check the digital signal strength:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREV.PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight CHANNELS, then press ▼ or ENTER. The CHANNELS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB CHANNELS Auto Channel Search Add/Skip Channels Favorites Channel Labels Channel Strength Audio Only Off MOVE SELECT PREVIOUS EXIT Display signal strength of selected digital channels

3 Press ▲ or ▼ to highlight Channel Strength, then press ENTER. The Channel Strength screen opens showing the signal strength meter.

Channel Strength CH 2 0 Now 67% 100 Peak 67% MOVE SELECT PREVIOUS EXIT Display signal strength of selected digital channels

4 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting parental controls

Note
	Unless otherwise noted, all tasks in this section are based on using the remote control.

Setting or changing the password

Parental controls let you prevent your children from watching inappropriate material on TV. When set, parental controls read the rating of the program (with some exceptions, such as news and sports) and deny access to programs that exceed the ratings level you select. To watch programs that exceed the selected rating, you must enter a password.

To set or change the password:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USD PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens with Parental Controls highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT EXIT Set TV parental controls

3 Press ENTER. The Enter Password screen opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS· Parental Controls Enter Password MOVE SELECT PREVIOUS EXIT Enter your 4-digit password. Default is 0000.

4 Press the number buttons to enter the four-digit password. The default password is 0000. You should change the password to a number you can remember. The Parental Controls menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Parental Controls Button Lock On Block Unrated TV On USA Parental Locks Canadian Parental Locks Change Password RRT5 MOVE SELECT PREVIOUS EXIT Enter a new 4-digit password then re-enter it to confirm

5 Press ▲ or ▼ to highlight Change Password, then press ENTER. The password entry screen opens.

6 Press the number buttons to enter a password, then enter the password again. The Parental Controls menu opens again.

7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Locking control buttons

When the button lock is turned On, the buttons on the front of your TV are locked and you can only operate your TV using the remote control.

To lock control buttons:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens with Parental Controls highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE 3K SELECT 9761 PREVIOUS 701 EXIT Set TV parental controls

3 Press ENTER. The Enter Password screen opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS· Parental Controls Enter Password MOVE SELECT PREVIOUS EXIT Enter your 4-digit password. Default is 0000.

4 Press the number buttons to enter the four-digit password. The SETTINGS-Parental Controls menu opens with Button Lock highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Parental Controls Button Lock On Block Unrated TV On USA Parental Locks Canadian Parental Locks Change Password RRT5 MOVE SELECT PREVIOUS EXIT EXIT Lock or unlock the buttons on the TV

5 Press ENTER.

6 Press ▲ or ▼ to select On (locks the buttons) or Off (unlocks the buttons).
7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Blocking unrated TV

To block unrated TV:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens with Parental Controls highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT Set TV parental controls

3 Press ENTER. The Enter Password screen opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS• Parental Controls Enter Password MOVE SELECT PREVIOUS EXIT Enter your 4-digit password. Default is 0000.

4 Press the number buttons to enter the four-digit password. The SETTINGS-Parental Controls menu opens.

INSIGNIA® FIGURE AUDIO CHANNELS SETTINGS USB SETTINGS • Parental Controls Button Lock On Block Unrated TV On USA Parental Locks Canadian Parental Locks Change Password RRT5 MOVE SELECT PREVIOUS EXIT Block TV programs that do not have a rating

5 Press ▲ or ▼ to highlight Block Unrated TV, then press ENTER.
6 Press ▲ or ▼ to select On (to block unrated TV) or Off (to unblock unrated TV).
7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting parental control levels

You can set parental controls for the U.S. and Canada.

The following task shows how to set controls for U.S. TV ratings. You use similar steps for setting U.S. movie and Canadian TV ratings.

To set parental control levels:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNEL & SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELENT PRII PREVIOUS SOI EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens with Parental Controls highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT EXIT Set TV parents controls

3 Press ENTER. The Enter Password screen opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USD SETTINGS• Parental Controls Enter Password MOVE OR EXIT SELECT ⬆ PREVIOUS SET EXIT Enter your 4-digit password. Default is 0000.

4 Press the number buttons to enter the four-digit password. The SETTINGS-Parental Controls menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Parental Controls Button Lock On Block Unrated TV On USA Parental Locks Canadian Parental Locks Change Password RRT5 MOVE SELECT PREVIOUS EXIT Restrict movie and TV programs by US Ratings

5 Press ▲ or ▼ to highlight USA Parental Locks, then press ENTER. (To set Canadian ratings, select Canadian Parental Locks.)

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Parental Controls • USA Parental Locks Movie Ratings None G PG PG-13 R NC-17 X TV Ratings All FV L S V D None TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA MOVE SELECT PREVIOUS EXIT Restrict movie and TV programs by US Ratings

6 Press ▶ or ▶ to highlight Movie Ratings (or Canadian English), then press ▲ or ▼ to select a rating.

Or,

Press ◀ or to highlight TV Ratings (or Canadian French), then press ▲ ▼ ◀ or ▶ to select the rating.

Note
	When you block a rating, that rating and all higher ratings are blocked.

7 Press ENTER to confirm. A lock symbol appears when a rating is blocked.
8 Press MENU to return to the previous menu, or press EXIT to close the menu.

U.S. TV ratings

NONE Not rated
TV-Y	All children
TV-Y7	Children over seven years of age
TV-G	General audiences
TV-PG	Parental guidance suggested
TV-14	Parents strongly cautioned
TV-MA	Mature audiences only

Some of the age-based TV Parental Guidelines ratings also have content-based ratings.

U.S. TV content ratings

All All ratings are blocked
FV Fantasy violence
L Adult language
S Sexual situations
V	V	i
D Sexually suggestive dialog

0

U.S. movie (MPAA) ratings

None Movie not rated
G General audiences
PG Parental guidance suggested
PG-13	Suitable for children 13 and older
R	Parental guidance suggested for children under 17
NC-17	Not suitable for children under 17
X	A d

ult

Canadian English ratings

E	Exempt programming
C	Children
C8+	Children over 8 years old
G General audiences
PG Parental guidance
14+	Over 14 years old
18+	Adult programming

Canadian French ratings

E	Exempt programming
G General audiences
8ans+	Over 8 years old
13ans+	Over 13 years old
16ans+	Over 16 years old
18ans+	Adult programming

Downloading rating information

You can download rating information to use when setting parental controls.

To download rating information:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USD PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens with Parental Controls highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time e n Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT Set TV parental controls

3 Press ENTER. The Enter Password screen opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS• Parental Controls $ 0 nl Enter Password MOVE SELECT PREVIOUS EXIT Enter your 4-digit password Default is 0000.

4 Press the number buttons to enter the four-digit password. The SETTINGS-Parental Controls menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USA SETTINGS • Parental Controls Block Unrated TV On USA Parental Locks Canadian Parental Locks Change Password RRT5 Reset RRT MOVE SELECT PREVIOUS EXIT Display an advanced V- Chip ratings table for digital channels

5 Press ▲ or ▼ to highlight RRT5, then press ENTER.

If the program is broadcast with RRT5 rating information, the information is downloaded automatically and can be used for parental controls.

6 To reset RRT information to factory mode, press ▲ or ▼ to highlight Reset RRT, then press ENTER. A box opens. Follow the on-screen instructions.

7 Press MENU to return to the previous menu, or press EXIT to close the menu.

Using closed captioning

Note
	Unless otherwise noted, all tasks in this section are based on using the remote control.

Turning closed captioning on or off

To turn closed captioning on or off:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS TRT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT Set TV parental controls

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER. The SETTINGS-Closed Caption menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Closed Caption Caption Control CC Off Analog Caption CC1 Digital Caption CS1 Digital CC Settings MOVE OK SELECT VSLI PREVIOUS SRT EXIT Adjust Closed Captioning settings

4 Press ▲ or ▼ to highlight Caption Control, then press ENTER. A menu opens.
5 Press ▲ or ▼ to select CC Off (turns off closed captioning), CC On (turns on closed captioning), or CC on Mute (turns on closed captioning when the sound is muted).

6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Note You can also press CCD to turn closed captioning on or off.

Selecting the analog closed captioning mode

To select the analog closed captioning mode: 1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS UBB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PEN PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT Set TV parental controls

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER. The SETTINGS-Closed Caption menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS IBM SETTINGS • Closed Caption Caption Control CC Off Analog Caption CC1 Digital Caption CS1 Digital CC Settings MOVE SELECT PREVIOUS EXIT Set Closed Caption for standard (analog) programs

4 Press ▲ or ▼ to highlight Analog Caption, then press ENTER. A menu opens.

5 Press or to select an analog caption setting. You can select:

• CC1 through CC4—Closed captioning appears in a small banner across the bottom of the screen. CC1 is usually the "printed" version of the audio. CC2 through CC4 display content provided by the broadcaster.
• Text1 through Text4—Closed captioning that covers half or all of the screen. Text1 through Text4 display content provided by the broadcaster.

6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Customizing digital closed captioning styles

To customize digital closed captioning styles:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELENT PREVIOUS TRT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE OK SELECT ⬤️/☐ PREVIOUS ☑/☐ EXIT Set TV parental controls

3 Press ▲ or ▼ to highlight Closed Caption, then press ENTER. The SETTINGS-Closed Caption menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS VBB SETTINGS • Closed Caption Caption Control CC Off Analog Caption CC1 Digital Caption CS1 Digital CC Settings MOVE SELENT PREVIOUS EXIT Set Closed Caption for digital programs

4 Press ▲ or ▼ to highlight Digital Caption, then press ENTER. A menu opens.

5 Press or to highlight a digital caption setting, then press ENTER. You can select CS1 through CS6.
6 Press MENU to return to the previous menu, press ▲ to highlight Digital CC Settings, then press ENTER. The Digital CC Settings menu opens with Style highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Closed Caption • Digital CC Settings Style Custom Size Normal Font Default Text Color Black Text Opacity Solid Background Color Green MOVE SELECT PREV PREVIOUS EXIT Set the look of digital CC. Automatic uses broadcaster's style

7 Press ENTER, then press ◀ or ▶ to select Custom.
8 Press or to highlight an option, then press ENTER. You can select:

• Size—Selects the font size.
• Font—Selects the font style.
• Text Color—Selects the color for the words.
• Text Opacity—Selects the opacity level for the words.
• Background Color—Selects the color for the background.
• Background Opacity—Selects the opacity level for the background.
• Edge Effect—Selects the edge style.
• Edge Color—Selects the edge color.

9 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting time settings

Note

Unless otherwise noted, all tasks in this section are based on using the remote control.

Setting the clock

To set the clock:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE S選CT PREV PREVIOUS TRT EXIT Adjust settings to affect picture quality.

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS IBB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT Set Date/Time and Sleep Timer

3 Press ▲ or ▼ to highlight Time, then press ENTER. The SETTINGS-Time menu opens.

INSIGNIA™ PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Time Date/Time Sleep Timer Off MOVE SELECT PREVIOUS EXIT EXIT Adjusted the date and time to get the correct program times

4 Press ▲ or ▼ to highlight Date/Time, then press ENTER. The SETTINGS-Time-Date/Time menu opens.

INSIGNIA® PICTURE AUDIO CHANNEL SETTINGS USB SETTINGS • Time • Date/Time Mode Auto Time Zone Atlantic Daylight Savings Off Year 2009 ▶ Month October ▶ Day 28 ▶ MOVE SO SELECT WNU PREVIOUS EXIT EXIT If automatic. options are automatically set by TV source

5 Press ▲ or ▼ to highlight Mode, then press ENTER. A menu opens.

6 Press ▲ or ▼ to highlight Manual (to set the options manually) or Auto (the options are automatically set by the TV signal source).

7 Press ENTER to close the menu.

8 If you selected Auto for Mode, press ▲ or ▼ to highlight Time Zone, then press ENTER. The Time-Time Zone menu opens.

9 Press or to select your time zone. You can select Eastern, Central, Mountain, Pacific, Alaska, Hawaii, Atlantic, or Newfoundland.

10 Press ENTER to close the menu.

11 If your viewing area observes daylight savings time and you selected Auto for Mode, press ▲ or ▼ to highlight Daylight Savings, then press ENTER.

12 Press ▲ or ▼ to select On, then press ENTER to close the menu.

13 If you selected Manual for Mode:

• Press ▲ or ▼ to highlight Year, Month, or Date, then press ◄ or ▶ to adjust the setting.
• Press ▲ to highlight Time, press or to ▶ the hour, minute, or AM/PM field, then press ▲ or ▽ to adjust the setting.

14 Press MENU to return to the previous menu, or press EXIT to close the menu.

Setting the sleep timer

You can specify the amount of time before your TV automatically turns off.

To set the sleep timer:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PRESLPREVIOUS TRT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS LET EXIT Set Date-Time and Sleep Timer

3 Press ▲ or ▼ to highlight Time, then press ENTER. The SETTINGS-Time menu opens.

INSIGNIA™ PICTURE AUDIO CHANNELB SETTINGS USB SETTINGS • Time Date/Time Sleep Timer Off MOVE SELECT PREVIOUS EXIT Set a time for the TV to turn off automatically

4 Press ▲ or ▼ to highlight Sleep Timer, then press ENTER. A menu opens.
5 Press or to select the amount of time before your TV turns off automatically. To turn off the sleep timer, select Off.
6 Press MENU to return to the previous menu, or press EXIT to close the menu.

Adjusting menu settings

Note
	Unless otherwise noted, all tasks in this section are based on using the remote control.

Selecting the menu language and transparency

To select the menu language and transparency:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE NEXT SELECT PENT PREVIOUS SAT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT PREVIOUS EXIT EXIT Adjusted TV Menu option

3 Press ▲ or ▼ to highlight Menu Settings, then press ENTER. The SETTINGS-Menu Settings menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Menu Settings Language English Transparency 0 6 MOVE SAT SELECT MENU PREVIOUS TERT EXIT Set menu language to English, Français or Español

4 Press ▲ or ▼ to highlight Language, then press ENTER. A language menu opens.
5 Press ▲ or ▼ to highlight English, French, or Spanish, then press ENTER to close the menu.
6 Press ▲ or ▼ to highlight Transparency, then press ENTER.
7 Press or to adjust the menu transparency.
8 Press MENU to return to the previous menu, or press EXIT to close the menu.

Labeling an input source

To label an input source:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS TBT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA™ PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Parental Controls Closed Caption Time Menu Settings Input Labels Computer Settings MOVE SELECT MANUAL PREVIOUS EXIT EXIT Create labels for the devices connected to your TV

3 Press ▲ or ▼ to highlight Input Labels, then press ENTER. The SETTINGS-Input Labels screen opens with the input source field highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Input Labels VGA MOVE OK SELECT PREVIOUS TNT EXIT Input Labels

4 Press or to select the input source you want to label, then press to move to the custom label field.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS • Input Labels VGA A B C D E F G H I J K L M N O P Q R S T U V W X Y Z - Caps Lock 0 1 2 3 4 5 6 7 8 9 Space ← Enter MOVE SELECT Input Labels

5 Press ▲ or ▲ to highlight a character, then press ENTER. Repeat this step to enter additional characters. You can enter as many as 11 characters. If you need to delete a character, highlight ←, then press ENTER.

6 When you have completed the label, press MENU. The next time you press INPUT, your label will appear in the Input Source list.

7 Press EXIT to close the menu.

Turning Input Sensor on or off

When the Input Sensor feature is turned on, your TV automatically detects which video jacks have devices connected to them. Your TV uses this information to determine what options you can select on the Input Source list when you press INPUT.

To turn Input Sensor on or off:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNEL 9 SETTINGS USE SETTINGS Menu Settings Input Labels Computer Settings Input Sensor On INlink Reset to Default MOVE SELECT PREVIOUS EXIT Detects devices connected to the parts on the back or side of the TV

3 Press ▲ or ▼ to highlight Input Sensor, then press ENTER. A menu opens.

4 Press ◀ or ▶ to select On (to activate the input sensor) or Off (to deactivate the input sensor).

5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Using INlink

INlink lets you control HDMI CEC-compatible devices connected to the HDMI jacks on your TV using the remote control that came with your TV. To use INlink, you must set the INlink Control option on the SETTINGS-INlink menu to On.

To turn INlink on or off:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS LET EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USA SETTINGS Menu Settings Input Labels Computer Settings Input Sensor On INlink Reset to Default MOVE SELECT PREVIOUS EXIT Allow the TV to automatically control CEO devices connected to the TV via HDMI

3 Press ▲ or ▼ to highlight INlink, then press ENTER. The SETTINGS-INlink menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS I/BR SETTINGS•INlink INlink Control On Device Auto Power Off On TV Auto Power On On INlink Device Lists MOVE ON SELECT MOSL PREVIOUS EXIT EXIT Allow the TV to automatically control CEC devices connected to the TV via HDMI

4 Press or to highlight INlink Control, then press ENTER. A menu opens.
5 Press ▲ or ▼ to highlight On (to turn on the INlink Control option) or Off (to turn off the INlink Control option).
6 Press MENU to return to the previous menu, or press EXIT to close the menu.

To turn Device Auto Power Off on or off:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELENT SELECT PREVIOUS SAT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Menu Settings Input Labels Computer Settings Input Sensor On INlink Reset to Default MOVE ON SELECT MENU PREVIOUS EXIT EXIT Allow the TV to automatically control CEC devices connected to the TV via HDMI

3 Press ▲ or ▼ to highlight INlink, then press ENTER. The SETTINGS-INlink menu opens.

INSIGNIA® PICTURE AUDIO CHANNEL B SETTINGS IRR SETTINGS•INlink INlink Control On Device Auto Power Off On TV Auto Power On On INlink Device Lists MOVE SELECT PREVIOUS EXIT Automatically Turn off HDMI CEG devices when the TV is turned off and INlink is set to On

4 Press ▲ or▼ to highlight Device Auto Power Off, then press ENTER. A menu opens.

5 Press ▲ or ▼ to select On (turns off the connected device when you turn off your TV) or Off (does not turn off the connected device when you turn off your TV).
6 Press MENU to return to the previous menu, or press EXIT to close the menu.

To turn TV Auto Power On on or off:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Menu Settings Input Labels Computer Settings Input Sensor On INlink Reset to Default MOVE SELECT PREVIOUS EXIT Allow the TV to automatically control CEC devices connected to the TV via HDMI!

3 Press ▲ or ▼ to highlight INlink, then press ENTER. The SETTINGS-INlink menu opens.

INSIGNIA™ PICTURE AUDIO CHANNELS SETTINGS I/BR SETTINGS•INlink INlink Control On Device Auto Power Off On TV Auto Power On On INlink Device Lists MOVE ON SELECT MOSL PREVIOUS EXIT EXIT Automatically turn on the TV when an HDMI CEC device is used

4 Press ▲ or ▼ to highlight TV Auto Power On, then press ENTER. A menu opens.
5 Press ▲ or ▼ to select On (turns on your TV when you turn on the connected device) or Off (does not turn on your TV when you turn on the connected device).
6 Press MENU to return to the previous menu, or press EXIT to close the menu.

To display a list of INlink-compatible devices:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SONSE SELECT VOUT PREVIOUS EXIT EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Menu Settings Input Labels Computer Settings Input Sensor On INlink Reset to Default MOVE SELECT PREVIOUS EXIT EXIT Allow the TV to automatically control CEC devices connected to the TV via HDMI

3 Press ▲ or ▼ to highlight INlink, then press ENTER. The SETTINGS-INlink menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS IRR SETTINGS•INlink INlink Control Device Auto Power Off On TV Auto Power On On INlink Device Lists MOVE SELECT PREVIOUS EXIT Go to device list to register new devices or remove devices from the list

4 Press ▲ or ▼ to highlight INlink Device Lists, then press ENTER. A list of the HDMI CEC-compatible devices you have connected appears.
5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Notes

HDMI cables must be used to connect HDMI CEC-compatible devices to your TV.

The connected device's HDMI CEC feature must be turned on.

If you connect an HDMI device that is not HDMI CEC-compatible, the INlink Control option does not work.

Depending on the connected HDMI device, the INlink Control option may not work.

Restoring settings to the defaults

When you restore default settings, all the settings you have customized (except the password and parental rating) are reset.

To restore settings to the defaults:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SIZE SELECT WELL PREVIOUS LET EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight SETTINGS, then press ▼ or ENTER. The SETTINGS menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB SETTINGS Menu Settings Input Labels Computer Settings Input Sensor On INlink Reset to Default MOVE SELECT PREVIOUS EXIT Reset to Default

3 Press ▲ or ▼ to highlight Reset to Default, then press ENTER. A confirmation box opens.
4 Press ◀ or ▶ to select Yes (to reset) or No (to not reset), then press ENTER.
5 Press MENU to return to the previous menu, or press EXIT to close the menu.

Using USB

Note

Unless otherwise noted, all tasks in this section are based on using the remote control.

You can connect a USB device to your TV to view compatible JPEG pictures.

Notes

• Never remove the USB device or turn off your TV while viewing JPEG pictures.
  • We recommend that you back up the data on your USB device.
• The JPEG picture viewer only supports JPEG format images (with ".jpg" file extensions) and not all JPEG files are compatible with the TV.

Switching to USB mode

To switch to USB mode:

1 Make sure that you have connected the USB device to the USB port on the back of your TV.
2 Press INPUT. The Input Source list opens.
3 Press ▲ or ▼ to highlight USB, then press ENTER.

Note

When you connect a USB device to your TV, your TV automatically detects the device and displays the message "Do you want to show photos in USB?" Select Yes to switch to USB mode or select No to stay in the current mode.

Browsing photos

To browse photos:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight USB, then press ▼ or ENTER. The USB menu opens with Photo highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTING USB USB Photo MOVE SELECT PREVIOUS EXIT Play photos in USB device

3 Press ENTER, then press ▲ or ▼ to highlight Browse Photo.

INSIGNIA® Photo Browse Photo Favorite Photo Slide Show Settings MOVE SELECT PREVIOUS EAT Browse all photos in the USB device 6084.jpg 6085.jpg 6089.jpg 6090.jpg 6091.jpg 6092.jpg 6093.jpg 6094.jpg

4 Press ENTER. The screen displays folder names and photo files stored on the USB device in a thumbnail index with the first photo or folder highlighted. A control bar appears at the bottom of the screen.

Pict ur e 1 Pict ur e 2 Pict ur e 3 Pict ur e 4 Pict ur e 5 Pict ur e 6 JPEG JPEG JPEG JPEG JPEG 6081.jpg .jpg 6082 6083.jpg 6084.jpg JPEG JPEG JPEG JPEG JPEG 6085.jpg 6086.jpg 6087.jpg 6088.jpg 6089.jpg JPEG JPEG JPEG JPEG 6090.jpg 6091.jpg 6092.jpg 6093.jpg 6094.jpg

5 To navigate the thumbnail index screen, press:

• ▲ or ◀ to browse through the files and folders.
• ENTER to view a highlighted photo full-screen or open a highlighted folder.
• MENU to open the USB menu.
• FAVORITE to add or remove a photo from the favorite photo list. A heart appears on a photo that has been added to the favorite photo list.
• EXIT to clear the the control bar.

When a photo is displayed full-screen, a control bar appears at the bottom of the photo. The control bar appears when any button is pressed, and disappears automatically if no button is used within 10 seconds. The file name, picture resolution, size, and date are displayed on the bottom of the control bar.

MOVE ROTATE XOM ZOOM PREVIOUS EXIT Name:608* jpg Resolution:800X000 Sens:163.2K Date:9/0/09

To navigate on the photo screen, press:

• or to go to the previous photo.
• or to go to the next photo.
- ENTER to rotate the photo clockwise.
- ZOOM one or more times to enlarge the image by 1×, 2×, 4×, or to fill the screen (Fill). If arrows appear in Zoom mode, you can press ▶ or ▶ to pan the photo.
- EXIT to return to the thumbnail index.
- MENU to go to the USB menu.

Viewing favorite photos

After you created your favorite photo list, you can browse among your favorite photos quickly.

To view favorite photos:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE MODE Brightness Contrastl Color Tint Sharpness Custom 70 40 60 0 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight USB, then press ▼ or ENTER. The USB menu opens with Photo highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB USB Photo MOVE SET SELECT PUBLIC PREVIOUS EXIT Play photos in USB device

3 Press ENTER. The Photo menu opens.

INSIGNIA Photo Browse Photo Favorite Photo Slide Show Settings MOVE SELECT PREVIOUS EXT Playing photos by favorite list 6084.jpg 6085.jpg 6089.jpg 6090.jpg 6091.jpg 6092.jpg 6093.jpg 6094.jpg

4 Press ▲ or ▼ to highlight Favorite Photo, then press ENTER. A thumbnail index of your favorite photos opens with a control bar at the bottom of the screen.

JPEG 6085.jpg JPEG 6086.jpg JPEG 6087.jpg JPEG 6088.jpg JPEG 6089.jpg MOVE SELECT PREVIOUS FAVORIVE EXIT Name: 5085.jpg Resolution: 300X650 Size: 153.2K Date: 8/9/2019

You select photos and navigate on the photo screen in the same way you do when you are browsing through photos. For more information, see "Browsing photos" on page 34.

Viewing photos in a slide show

You can view your photos in a slide show.

To view photos in a slide show:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USE PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect picture quality

2 Press ◀ or ▶ to highlight USB, then press ▼ or ENTER. The USB menu opens with Photo highlighted.

INSIGNIA™ PICTURE AUDIO CHANNELS SETTINGS USB USB Photo MOVE SELECT PREVIOUS EXIT Play photos in USB device

3 Press ENTER. The Photo menu opens.

JPEG 6094.jpg JPEG 6085.jpg INSIGNIA® Photo Browse Photo Favorite Photo Slide Show Settings MOVE SELECT PREVIOUS EXIT Play photos with the slideshow way

4 Press ▲ or ▼ to highlight Slide Show, then press ENTER. A slide show starts with the first photo in the current folder.

A control bar appears at the bottom of the photo. The control bar appears when any button is pressed, and disappears automatically if no button is used within 10 seconds. The file name, picture resolution, size, and date are displayed on the bottom of the control bar.

PAUSE POS PREVIOUS EXIT Nena 6081.jpg Resolution:803X603 Size:162.2K Date:8/2005

5 To control in the slide show, press:

• ENTER to pause or start the slide show.
• EXIT to exit the slide show and return to thumbnail index.
• MENU to go to the USB menu.

Customizing slide show settings

You can customize the slide show settings, including Repeat, Shuffle, Speed, and Transition.

To customize slide show settings:

1 Press MENU. The on-screen menu opens.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB PICTURE Mode Custom Brightness 70 Contrast 40 Color 60 Tint 0 Sharpness 40 MOVE SELECT PREVIOUS EXIT Adjust settings to affect pictum quality.

2 Press ◀ or ▶ to highlight USB, then press ▼ or ENTER. The USB menu opens with Photo highlighted.

INSIGNIA® PICTURE AUDIO CHANNELS SETTINGS USB USB Photo MOVE OK SELECT PTU PREVIOUS TNT EXIT Play photos in USB device

3 Press ENTER. The Photo menu opens.

JPEG 6094.jpg JPEG 6085.jpg INSIGNIA® Photo Browse Photo Favorite Photo Slice Show Settings 84.jpg MOVE SELECT PREVIOUS Text Set options for photo

4 Press ▲ or ▼ to highlight Settings, then press ENTER. The USB-Photo Settings menu opens.

INSIGNIA™ PICTURE AUDIO CHANNELS SETTINGS USB USB • Photo Settings Repeat Off Shuffle Off Speed 2 Sec Transition None MOVE SELECT PREVIOUS EXIT Play photos in a circular motion

5 Press or to highlight an option, then press ENTER. You can select:

• Repeat—Repeats the slide show when it reaches the end. You can select On or Off.
• Shuffle—Displays the slide show photo in random order. You can select On or Off.
• Speed—Sets the amount of time a photo is displayed before the slide show moves to the next photo. You can select 2 Sec, 4 Sec, 6 Sec, or 8 Sec.
• Transition—Selects a transition effect when moving to the next file in the slide show. You can select None, Fade to Black, Vertical Wipe, Horizontal Wipe, or Random.

6 Press EXIT to close the menu.

Maintaining

• Clean the TV cabinet with a soft, dry cloth. If surfaces are extremely dirty, slightly dampened the cloth with lukewarm water.
• Clean the TV screen with eyeglass cleaner. Never use alcohol, paint thinner, or benzine.
• Before using chemically treated cloth, read the instructions that came with the cloth.

Troubleshooting

Caution

Do not try to repair your TV yourself. Refer all servicing to qualified service personnel.

Note

If the problem is not solved by using these troubleshooting instructions, turn off your TV, then turn it on again.

Video and audio

Problem Solution
No picture or sound (the screen is not lit).	Make sure that the power cord is plugged into a working power outlet. The power indicator on the front of your TV will be lit.Press (power) to turn on your TV.Try another station. The problem may be with the current station.
Dark, poor, or no picture (the screen is lit). Sound is good.	Make sure that the correct picture mode is selected. For more information, see “Adjusting the TV picture” on page 17.Adjust the brightness. For more information, see “Adjusting the TV picture” on page 17.Make sure that the antenna, cable TV, or satellite TV is connected correctly. For more information, see “Connecting an antenna or cable TV without a cable box” on page 9.
No color, picture is dark, or color is not correct.	Adjust the color saturation. For more information, see “Adjusting the TV picture” on page 17.
Only noise (snow) appears on the screen.	Make sure that the antenna, cable TV, or satellite TV is connected correctly. For more information, see “Connecting an antenna or cable TV without a cable box” on page 9.The digital singal may be weak. Check the digital signal strength. For more information, see “Checking the digital signal strength” on page 22.Try another station. The problem may be with the current station.
Picture has dotted lines or stripes.	Make sure that the antenna, cable TV, or satellite TV is connected correctly. For more information, see “Connecting an antenna or cable TV without a cable box” on page 9.Move your TV away from noise sources, such as cars, neon light, or hair dryers.
Picture has double images.	Use a highly directional antenna or change to cable or satellite TV.
Picture has a few dark or bright spots.	A few dark or bright spots on an LED-LCD TV is normal. This does not affect the operation of your TV.

Problem Solution

Good picture, but no sound.	· Increase the volume.· Press MUTE to make sure that the sound is not turned off.· Make sure that the audio mode is set to STEREO or MONO. For more information, see “Selecting the audio mode” on page 19.· Make sure that headphones are not connected to your TV. When headphones are connected, sound from the TV speakers is muted.
Audio noise or static.	· Move radio frequency equipment, such as cell phones, away from your TV.

Remote control

Problem Solution
Remote control does not work.	Make sure that the remote control batteries are installed correctly. For more information, see “Installing remote control batteries” on page 7.Replace the remote control batteries. For more information, see “Installing remote control batteries” on page 7.Make sure that the power cord is plugged into a working power outlet.
Remote control does not control connected HDMI devices.	Make sure that the INlink Control option is set to On. See “Using INlink” on page 31.Make sure that the HDMI CEC control is turned on for the connected device.Make sure that the connected HDMI device is CEC-compatible.

General

Problem Solution
Cannot turn to one or more channels.	The program may be blocked by parental controls. For more information, see “Blocking unrated TV” on page 24 or “Setting parental control levels” on page 25.The control buttons on the front of your TV may be locked. For more information, see “Locking control buttons” on page 23.The channel may have been deleted from the channel list. You can still tune to the channel using the number buttons. For more information, see “Selecting a channel” on page 16. You can also add the channel to the channel list. For more information, see “Hiding channels” on page 20.
Password is lost.	On the Parental Controls menu, enter 9999 as the password, then set a new password. For more information, see “Setting or changing the password” on page 23.
Cannot access some settings or options.	If a setting or option is grayed out, it is not available in the current mode.
TV cabinet creaks.	When you are using your TV, the temperature inside the cabinet increases. This causes the cabinet to creak. This is not a malfunction.
Buttons do not work.	Unplug the power cord, wait a few seconds, then plug the power cord back in and turn on your TV.
Button labels are not lit on the front of the TV.	If your TV is turned on and the button labels on the front of your TV are not lit, press any button except to light the button labels. Then press the button you want. Button presses must be within 10 seconds of each other.

Specifications

Design specifications are subject to change without notice. Dimensions and weight specifications are approximate.

TV type LCD
TV panel 19-inch TFT LCD	22-inch TFT LCD
Channels VFH: 2 - 13	UHF: 14 - 69CATV: 1 - 125CADTV: 1 - 135DTV: 2 - 69
Audio multiplex BTSC system
Audio output 3W × 2
Power requirement AC 120 V, 60 Hz
Power consumption	25 W (19")30 W (22")
Dimensions 19-inch	18.1 × 13.1 × 5.51 inches (460 × 333 × 140 mm)22-inch20.83 × 14.65 × 5.51 inches (529 × 372 × 140 mm)
Weight	19-inch7.1lbs. (3.2kg)22-inch8.38 lbs. (3.8 kg)
Input terminals	HDMI (3)Component video with L/R audio (1)Composite video with L/R audio (1)VGA with audio (1)Antenna (1)USB (1)
Output terminals	Headphone jack (1)Digital audio (1)

Legal notices

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC warning

Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user's authority to operate this equipment.

Cables

Connections to this device must be made with shielded cables with metallic RF/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canada ICES-003 statement

This Class B digital apparatus complies with Canadian ICES-003. Standard Television Receiving Apparatus — Appareil de réception télévision ordinaire, Canada BETS-7 / NTMR-7

HDMI

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Audyssey

Audyssey Dynamic Volume™

Energy Star

To meet Energy Star requirements, keep TV settings at the factory default settings.

SRS TruSurround HD

is a trademark of SRS Labs, Inc. TruSurround HD technology is incorporated under license from SRS Labs, Inc. SRS TruSurround HD ^™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialog.

PUBLIC LICENSE

The software included in this product contains copyrighted software that is licensed under the GNU Public License (GPL). A copy of that license can be found below. If you require additional information or you wish to receive the complete Corresponding Source Code, please call the Insignia support line at 1-877-467-4289.

GNU PUBLIC LICENSE

This product contains software that is subject to the GNU Public License Version 2 (GPL2). You can obtain a copy of the GPL License from

http://www.gnu.org/licenses/old-licenses/gpl-2.0.html. If you require additional information or you wish to receive source code, please call the Insignia support line at 1-877-467-4289. The source code is available for a period of three (3) years from the date of the distribution of this product by Insignia.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights.

These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

3. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

3. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

Two-year limited warranty

US and Canada Markets

Definitions:

Insignia Products ("Insignia") warrants to you, the original purchaser of this new Insignia-branded television ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of two (2) years from the date of your purchase of the Product ("Warranty Period"). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy or Future Shop authorized dealer of Insignia brand products only that are packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 2 years (730 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy or Future Shop retail store location and your television Product has a screen size of less than 37 inches, please take your original receipt and the Product to any Best Buy or Future Shop store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from a Best Buy or Future Shop online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain in-home warranty service for a television with a screen 37 inches or larger, in the United States call 1-888-BESTBUY, Canada call 1-866-BESTBUY for Future Shop call 1-800-663-2275. Call agents will diagnose and correct the issue over the phone or will have an Insignia-approved repair technician dispatched to your home.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the product in the United States and Canada at Best Buy or Future Shop branded retail stores or websites.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education
  • Installation
• Setup adjustments
  • Cosmetic damage

• Damage due to acts of God, such as power surges

- A c c i d e n t (s)

- M i s u s e

- A b u s e

- Negligence

- Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

- Modification of any part of the Product, including the antenna

- Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

- Damage due to incorrect operation or maintenance - Connection to an incorrect voltage or power supply

- Attempted repair by any person not authorized by Insignia to service the Product

• Products sold "as is" or "with all faults"
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia:

For customer service please call 1-877-467-4289

www.insigniaproducts.com

Distributed by Best Buy Purchasing, LLC

7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645

© 2010 BBY Solutions, Inc.

All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

Mexico Market

PLACE STICKER OF PRODUCT MAKE & MODEL HERE

DATE OF PURCHASE:

Definitions:

Insignia Products ("Insignia") warrants to you, the original purchaser of this new Insignia-branded television ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of two (2) years from the date of your purchase of the Product ("Warranty Period"). For this warranty to apply, your Product must be purchased in Mexico from a Best Buy authorized dealer of Insignia brand products only that are packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 2 years (730 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy retail store location and your television Product has a screen size of less than 37 inches, please take your original receipt and the Product to any Best store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging. If you purchased the Product from a Best Buy a online web site, mail your original receipt and the Product to the address listed on the web site. Make sure that you put the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain in-home warranty service for a television with a screen 37 inches or larger, in Mexico call 01 800-433-5778. Call agents will diagnose and correct the issue over the phone or will have an Insignia-approved repair technician dispatched to your home.

Where is the warranty valid?

This warranty is valid only to the original purchaser of the product in Mexico at a Best Buy branded retail store or website.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education
• Installation
• Setup padjustments
• Cosmetic damage
• Damage due to acts of God, such as power surges

• A c c i d e n t ( s )

- Misuse

• A b u s e

- Negligence

- Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

- Modification of any part of the Product, including the antenna

- Plasma display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

- Damage due to incorrect operation or maintenance

- Connection to an incorrect voltage or power supply

- Attempted repair by any person not authorized by Insignia to service the Product

- Products sold "as is" or "with all faults"

• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia:

For customer service please call 1-800-926-3000

www.insigniaproducts.com

Distributed by Best Buy Purchasing, LLC

7601 Penn Avenue South, Richfield, Minnesota, U.S.A. 55423-3645

© 2010 BBY Solutions, Inc.

All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners.

Mexico Retailer Address:

Best Buy Mundo E

Boulevard Manuel Avila Camacho 1007

Periferico Norte Santa Monica

If the power cord has been damaged, it should be replaced by the manufacturer, your service

provider or qualified personnel to avoid risks.

Distributed by Best Buy Purchasing, LLC

7601 Penn Avenue South, Richfield, MN USA 55423-3645

© 2010 BBY Solutions, Inc.

All rights reserved. INSIGNIA is a trademark of BBY Solutions, Inc. Registered in some countries.

All other products and brand names are trademarks of their respective owners.
