Magnetic Upright Bike 20145 - Exercise bike Life Gear - Free user manual and instructions

Product Type	Magnetic Upright Exercise Bike
Model Number	20145
Brand	Life Gear
Resistance System	Magnetic, 8 levels
Display	LCD with time, distance, speed, calories, pulse
Seat Adjustment	Vertical and horizontal adjustment
Pedals	Adjustable foot straps
Max User Weight	250 lbs / 113 kg
Product Dimensions	38 x 20 x 45 inches (96 x 51 x 114 cm)
Product Weight	55 lbs / 25 kg
Power Source	Battery (2x AAA, not included) or self-powered via dynamo
Heart Rate Monitor	Hand pulse sensors on handlebars
Water Bottle Holder	Included
Mobility Wheels	Front transport wheels
Floor Stabilizers	Adjustable leveling feet
Frame Material	Steel
Warranty	2 years on frame, 90 days on parts
Assembly Required	Yes, tools included
Maintenance	Clean with damp cloth, check bolts periodically
Safety Features	Emergency brake, stable base
Intended Use	Home use

Frequently Asked Questions - Magnetic Upright Bike 20145 Life Gear

How do I adjust the seat on the Life Gear Magnetic Upright Bike 20145?

To adjust the seat, loosen the knob under the seat slide the seat forward or backward to your preferred position, then tighten the knob securely. For vertical adjustment, pull the pin on the seat post and raise or lower the seat to the desired height, then release the pin to lock it in place.

What type of batteries does the display use?

The LCD display requires 2 AAA batteries (not included). They are inserted into the battery compartment located on the back of the console. Some models also feature a self-powered dynamo, so batteries may only be needed for initial setup.

How do I change the resistance level?

The resistance is adjusted using a tension knob located on the main frame near the handlebars. Turn the knob clockwise to increase resistance and counterclockwise to decrease. There are typically 8 magnetic resistance levels.

What is the maximum user weight for this bike?

The maximum user weight is 250 lbs (113 kg). Do not exceed this limit to ensure safe operation and prevent damage.

How do I use the pulse sensors?

Place your hands on the metal grip pulse sensors located on the handlebars. The display will show your heart rate after a few seconds. For accurate readings, keep your hands steady and avoid gripping too tightly.

Does the bike have a warranty?

Yes, Life Gear offers a 2-year warranty on the frame and 90 days on parts and labor. Contact customer support for warranty claims. Proof of purchase is required.

How do I move the bike?

The bike is equipped with front transport wheels. Tilt the bike forward by grasping the handlebars and lifting the rear until the wheels touch the ground, then roll it to the desired location. Ensure the power cord (if any) is unplugged.

What should I do if the display is not working?

First, check that the batteries are installed correctly and have sufficient charge. If the bike has a dynamo, ensure it is generating power by pedaling. If the issue persists, inspect the wiring connections and contact customer support.

How do I clean and maintain the bike?

Wipe down the frame, seat, and handlebars with a soft, damp cloth after each use. Do not use abrasive cleaners. Periodically check and tighten all bolts and screws. Lubricate the pedal cranks and seat post if needed with silicone spray.

Can I use this bike on carpet?

Yes, but it is recommended to place a mat under the bike to protect the carpet and provide stability. Adjust the leveling feet to ensure the bike is balanced and does not wobble.

USER MANUAL Magnetic Upright Bike 20145 Life Gear

Line drawing of a stationary exercise bike with adjustable arms and legs (no text or symbols)

The specifications of this product may vary from this photo and are subject to change without notice. 2009, Nov.

TABLE OF CONTENTS

W

A

R

R

A

N

T

Y

1

S

A

F

E

T

Y

I

N

S

T

R

U

C

T

I

O

N

S

OPERATING

INSTRUCTIONS

3

C

O

M

P

U

T

E

R

O

P

E

R

A

T

I

O

N

P

A

R

T

S

L

I

S

T

T

O

O

L

S

5

O

V

E

R

V

I

E

W

D

R

A

W

I

N

G

ASSEMBLY

INSTRUCTIONS

7

TROUBLE

SHOOTING

GUIDE

9

WARM UP AND COOL DOWN ROUTINE

10

ONE YEAR LIMITED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use. This warranty does not include any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year. This warranty is extended only to the original owner and is not transferable.

When ordering replacement parts please have the following information ready:

1. Owner's Manual
2. Model Number
3. Description of Parts
4. Part Number
5. Date of Purchase

SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following safety instructions when using this equipment: Read all instructions before using this equipment.

1. Read all the instructions in this manual and do warm up exercises before using this equipment.
2. Before exercise, in order to avoid injuring the muscle, warm-up exercise of every position of the body is necessary. Refer to Warm Up and Cool Down Routine page. After exercise, relaxation of the body is suggested for cool-down.
3. Please make sure all parts are not damaged and fixed well before use. This equipment should be placed on a flat surface when using. Using a mat or other covering material on the ground is recommended.
4. Please wear proper clothes and shoes when using this equipment; do not wear clothes that might catch any part of the equipment; remember to tighten the pedaling straps.
5. Do not attempt any maintenance or adjustments other than those described in this manual. Should any problems arise, discontinue use and consult an Authorized Service Representative.
6. Do not use the equipment outdoors.
7. This equipment is for household use only.
8. Only one person should be on the equipment while in use.
9. Keep children and pets away from the equipment while in use. This machine is designed for adults only. The minimum free space required for safe operation is not less than two meters.
10. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop exercising immediately and consult your physician before continuing.
11. The maximum weight capacity for this product is 250LBS/110KGS.

WARNING: Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have pre-existing health problems. Read all instructions before using any fitness equipment.

CAUTION: Read all instructions carefully before operating this product.

Retain this Owner's Manual for future reference.

OPERATING INSTRUCTIONS

1. Operate according to your own condition.
2. Adjusting the tension control knob:

To increase the load, turn the tension control knob in a clockwise direction.

To decrease the load, turn the tension control knob in a counterclockwise direction.

1. Adjusting the rear stabilizer end cap:

Turn the rear stabilizer end cap on the rear stabilizer as needed to level the bike.

1. Adjusting the seat post:

Turn the round knob in a counterclockwise direction and then slide the seat post up or down slightly to the desired hole for the suitable position. Lock the seat post in place by tightening the round knob in a clockwise direction.

NOTE: When adjusting the height of seat post, the maximum insert depth mark line cannot higher than the edge of bushing.

1. Sitting pose: sit on the seat cushion when exercising, please tighten the pedaling straps and hold the handlebar with hands, adjust your posture according to your exercise speed and intensity.

1. Remove the battery cover at the rear of computer.
2. Place two "SIZE-AA" batteries into the battery housing.
3. Insure batteries are correctly positioned and battery springs are proper contact with batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial segment appear, remove batteries and wait 15 seconds before reinstalling.
6. Removing batteries will erase the memory of computer.

FUNCTIONS AND OPERATIONS:

AUTO ON /OFF: When you start pedaling or press the MODE button on the computer, the computer will turn on. If you leave the equipment for 4 minutes, the power will turn off automatically.

SCAN: Press the MODE button until the arrow points to SCAN; the monitor will automatically scan each function of TIME, SPD (SPEED), DST (DISTANCE), and CAL (CALORIES) in sequence with change every 6 seconds.

TIME: Press the MODE button until the arrow points to TIME; the monitor will display your elapsed workout time in minutes and seconds.

SPD (SPEED): Press the MODE button until the arrow points to SPD; the monitor will display the current training speed.

DST (DISTANCE): Press the MODE button until the arrow points to DST; the monitor will display the accumulative distance traveled during workout.

CAL (CALORIES): Press the MODE button until the arrow points to CAL; the monitor will display the total accumulated calories burned during workout.

RESET: Press the MODE button over 4 seconds, all functional values will reset to zero.

PARTS LIST

No.	Description	Qty		No.	Description
001	Main Frame 1 027 Handlebar Post ∅50x1.5	1
002	Front Stabilizer End Cap 2 028	Tension Control Knob L=320 1
003	Rear Stabilizer End Cap 2 029	Hex Nut M10 1
004	Front Stabilizer ∅50x1.5 1 030 Pressing Belt Wheel 1
005	Left Foot Pedal YH-4X 1 031 Bearing	6000-2Z 2
006	Right Foot Pedal YH-4X	1	032	Washer ∅10.2x∅14x1.0		2
007	Flywheel	1	033	Washer ∅6		1
008	Screw ST4.2x15	1	034	Bolt M6x10		1
009	Belt Pulley with Crank 200J6	1 035 Nut M10x1.0x10 2
010	Sensor Wire	1	036	Washer ∅30x∅10.5x2		2
011	Axle Bush	2	037	Bolt M8x18		1
012	Tension Cable L=500	1	038	Ball Bearing		2
013	Middle Section Sensor Wire L=750	1 039 Axle Sleeve 7/8”				1
014	Bolt M10x60	1	040	Screw ST4.8x15		1
015	Belt PJ300/J4	1	041	Bolt M8x15		14
016	Rear Stabilizer ∅50x1.5	1	042	Washer ∅34.5x∅23x2.5		1
017	Left Cover	1	043	Nut 7/8"		2
018	Right Cover	1	044	Post Cover		2
019	Round Knob M10	1 045 Locknut M8 4
020	Seat Cushion DD-28T	1 046 Big Curve Washer ∅20x∅8 12
021	Seat Post	1	047	Washer ∅40x∅24x3.0		1
022	Bushing	1	048	Washer ∅8		4
023	Handlebar Foam Grip ∅20x∅30x450	2	049	Screw ST4.2x25		8
024	Handlebar End Cap	2 050 Axle Sleeve 15/16” 1
025	Handlebar ∅22x1.5	1 051 Curve Washer ∅8 2
026	Computer XLG-707	1

TOOLS

Simple L-shaped metal angle bracket diagram (no text or symbols)

Allen Wrench (S6) 1 PC

Simple line drawing of a hammer with a circular head and hexagonal base (no text or symbols)

Multi Hex Tool with Phillips Screwdriver 13-14-15 1 PC

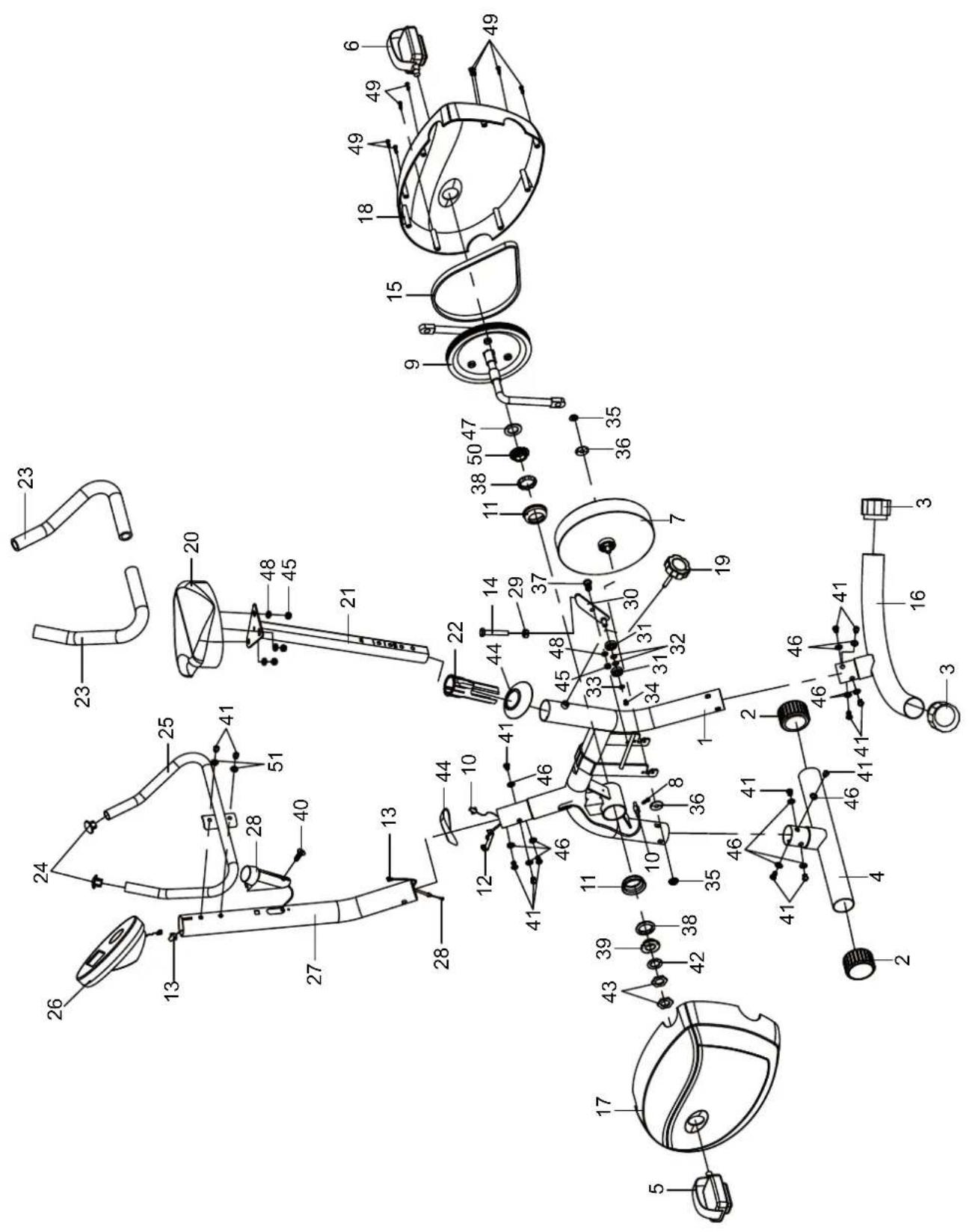

OVERVIEW DRAWING

ASSEMBLY INSTRUCTIONS

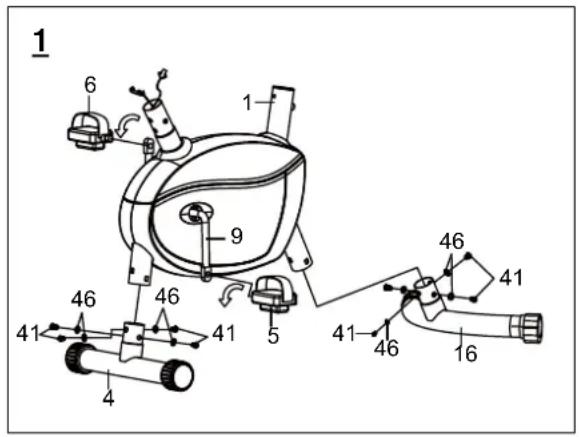

1. Install the Front/Rear Stabilizers and Left/Right Foot Pedals.

Remove four M8x15 Bolts (41) and ∅20x∅8 Big Curve Washers (46) from the Front Stabilizer (4). Attach the Front Stabilizer (4) into the tube of the Main Frame (1) with four M8x15 Bolts (41) and ∅20x∅8 Big Curve Washers (46) that were removed.

Remove four M8x15 Bolts (41) and ∅20x∅8 Big Curve Washers (46) from the Rear Stabilizer (16).

Attach the Rear Stabilizer (16) into the tube of the Main Frame (1) with four M8x15 Bolts (41) and ∅20x∅8 Big Curve Washers (46) that were removed.

Connect the Left Foot Pedal (5) to the left Crank (9). Thread it into the crank assembly in the counterclockwise direction by the tool provided. Connect the Right Foot Pedal (6) to the right Crank (9) by threading it in the clockwise direction.

NOTE: The Left and Right Foot Pedals (5, 6) and Crank (9) are marked with "L" & "R" (left and right).

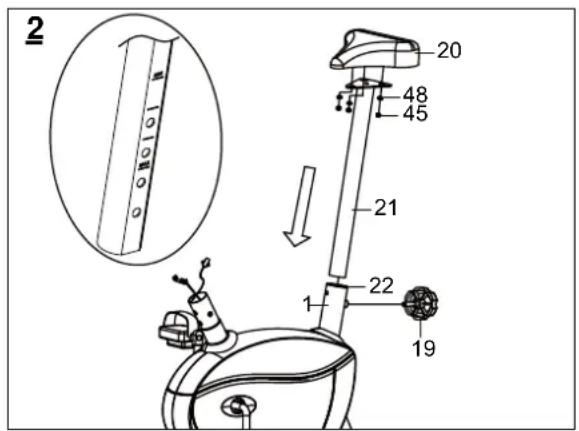

2. Install the Seat Cushion, Seat Post, and Round Knob.

Remove three M8 Locknuts (45) and ∅8 Washers (48) from underneath of the Seat Cushion (20) and then attach the Seat Cushion (20) onto the triangle plate of the Seat Post (21) with three M8 Locknuts (45) and ∅8 Washers (48) that were removed.

Insert the Seat Post (21) into the Bushing (22) of the Main Frame (1). Slide the Seat Post (21) up or down slightly to the desired hole for the suitable position. Lock the Seat Post (21) in place by tightening the Round Knob (19) in a clockwise direction.

NOTE: When adjusting the height of seat post, the maximum insert depth mark line cannot higher than the edge of bushing.

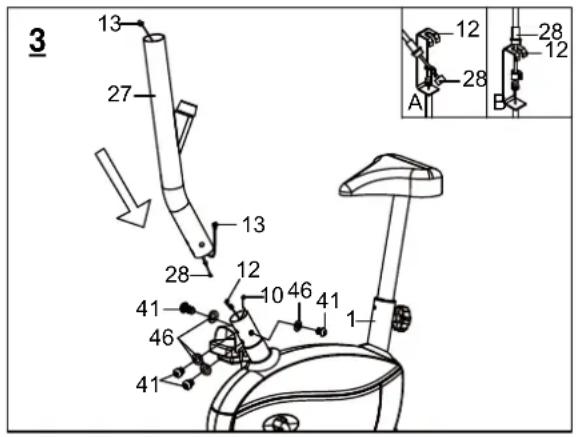

3. Install the Handlebar Post.

Remove four M8x15 Bolts (41) and ∅20x∅8 Big Curve Washers (46) from the tube of the Main Frame (1).

Connect the Sensor Wire (10) from the Main Frame (1) to the Middle Section Sensor Wire (13) from the Handlebar Post (27).

Put the cable end of resistance cable of Tension Control Knob (28) into the spring hook of Tension Control Wire (12) as shown in drawing A of figure 3. Pull the resistance cable of Tension Control Knob (28) up and force it into the gap of metal bracket of Tension Control Wire (12) as shown in drawing B of figure 3.

Attach the Handlebar Post (27) onto the tube of the Main Frame (1) with four M8x15 Bolts (41) and ∅20x∅8 Big Curve Washers (46) that were removed.

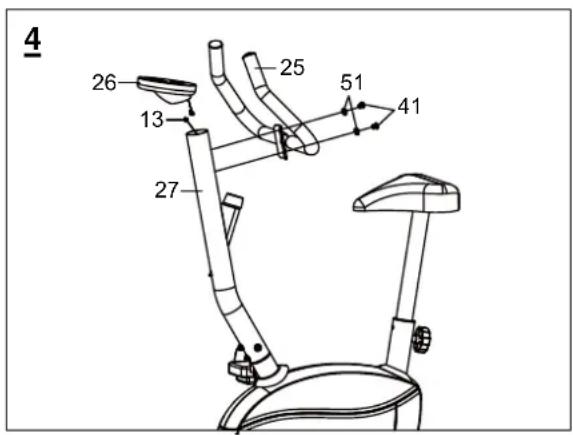

4. Install the Handlebar and Computer.

Remove two M8x15 Bolts (41) and ∅8 Curve Washers (51) from the Handlebar Post (27). Attach the Handlebar (25) onto the Handlebar Post (27) with two M8x15 Bolts (41) and ∅8 Curve Washers (51) that were removed. Connect the Middle Section Sensor Wire (13) to the wire that comes from the Computer (26). Install the Computer (26) onto the top end of the Handlebar Post (27).

TROUBLE SHOOTING GUIDE

1. Verify that all the bolts and nuts are locked properly and the turning parts should be turned freely without damaged parts.
2. Clean the equipment with soap and slightly damp cloth only. Please do not use any solvent to clean the equipment.

Problem	Potential	Cause	Corrections
Base is unstable.	1. Floor is not flat or there is small object under the front or rear stabilizer.2. The rear stabilizer end caps on the rear stabilizer have not been leveled when adjusting.	1. Remove the object.2. Adjust the rear stabilizer end caps.
Handlebar or seat post is shaking.	The bolt or round knob is loose.	Tighten the bolt or round knob.
Loud noise from the moving parts.	The interval of the parts is improper tighten.	Open the covers to adjust.
No resistance when riding the upright bike.	1. The interval of the magnetic resistance increases.2. Tension control knob is damaged.3. Belt slips.4. The bearing set is damaged.	1. Open the covers to adjust.2. Change the tension control knob.3. Open the covers to adjust.4. Change the bearing set.

WARM UP AND COOL DOWN ROUTINE

A good exercise program consists of a warm-up, aerobic exercise, and a cool down. Do the entire program at least two to three times a week, resting for a day between workouts. After several months you can increase your workouts to four or five times per week.

AEROBIC EXERCISE is any sustained activity that sends oxygen to your muscles via your heart and lungs. Aerobic exercise improves the fitness of your lungs and heart. Aerobic fitness is promoted by any activity that uses your large muscles eg: legs, arms and buttocks. Your heart beats quickly and you breathe deeply. An aerobic exercise should be part of your entire exercise routine.

The WARM-UP is an important part of any workout. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.

COOL DOWN at the end of your workout, repeat these exercises to reduce soreness in tired muscles.

HEAD ROLLS

Rotate your head to the right for one count, feeling the stretch up the left side of your neck, then rotate your head back for one count, stretching your chin to the ceiling and letting your mouth open. Rotate your head to the left for one count, then drop your head to your chest for one count.

Line drawing of a person's neck and shoulder (no text or symbols)

Line drawing of a person wearing a leotard (no text or symbols)

SHOULDER LIFTS

Lift your right shoulder toward your ear for one count. Then lift your left shoulder up for one count as you lower your right shoulder.

SIDE STRETCHES

Open your arms to the side and lift them until they are over your head. Reach your right arm as far toward the ceiling as you can for one count. Repeat this action with your left arm.

Line drawing of a person performing a stretching exercise with arms raised (no text or symbols)

Line drawing of a person in a stretching pose (no text or symbols)

QUADRICEPS STRETCH

With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot.

INNER THIGH STRETCH

Sit with the soles of your feet together and your knees pointing outward. Pull your feet as close to your groin as possible. Gently push your knees toward the floor. Hold for 15 counts.

Line drawing of a seated person with hand on chin, no text or symbols present

Line drawing of a person bending forward with hands on hips (no text or symbols)

TOE TOUCHES

Slowly bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes. Reach as far as you can and hold for 15 counts.

HAMSTRING STRETCHES

Extend your right leg. Rest the sole of your left foot against your right inner thigh. Stretch toward your toe as far as possible. Hold for 15 counts. Relax and then repeat with left leg.

Line drawing of a person kneeling and stretching their back (no text or symbols)

Line drawing of a person in motion, possibly dancing or gesturing, with no text or symbols present.

CALF/ACHILLES STRETCH

Lean against a wall with your left leg in front of the right and your arms forward. Keep your right leg straight and the left foot on the floor; then bend the left leg and lean forward by moving your hips toward the wall. Hold, then repeat on the other side for 15 counts.
