Product Type	LED Television
Brand	Funai
Model	40FDI7514
Screen Size	40 inches (measured diagonally)
Display Resolution	1920 × 1080 pixels (Full HD)
Panel Type	LED-backlit LCD
Refresh Rate	60 Hz
Dimensions (with stand)	Approx. 90 × 60 × 20 cm
Weight (with stand)	Approx. 10 kg
Power Supply	AC 100–240 V, 50/60 Hz
Power Consumption (typical)	80 W
Standby Power Consumption	< 0.5 W
Connectivity	2× HDMI, 1× USB, 1× VGA, 1× AV input, 1× Antenna (RF), 1× Headphone jack, 1× SPDIF output
Tuner	ATSC (digital terrestrial)
Speakers	2 × 10 W
Smart TV	No (basic TV)
Remote Control	Included
Wall Mount VESA	200 × 200 mm (compatible)
Maintenance	Clean with a soft, dry cloth; avoid harsh chemicals
Safety	Use only specified power source; do not expose to moisture
Spare Parts & Repairability	Contact authorized service center; no user-serviceable parts inside

Frequently Asked Questions - 40FDI7514 FUNAI

How do I connect external devices like a DVD player or game console?

Use the HDMI ports on the back panel. Connect an HDMI cable from the device to any HDMI input on the TV. Then press the Source button on the remote to select the corresponding HDMI input.

How do I perform a channel scan?

Press the Menu button, go to Channel or Setup, select Auto Scan or Auto Tuning, and follow the on-screen instructions. The TV will search for available channels.

Can I mount this TV on a wall?

Yes, the TV supports VESA wall mounts with a pattern of 200 × 200 mm. Use a compatible mount and follow the installation instructions carefully.

How do I adjust picture settings like brightness and contrast?

Press the Menu button, navigate to Picture or Settings, then adjust Brightness, Contrast, Color, and other options using the arrow keys and OK button.

What should I do if the TV has no signal?

Check that the correct input source is selected (e.g., HDMI, Antenna). Ensure cables are firmly connected. If using an antenna, try a channel scan. Alternatively, reboot the TV by unplugging it for 30 seconds.

How do I play media from a USB drive?

Insert the USB drive into the USB port. Press the Source button, select USB, then use the remote to browse and play files. Supported formats include MP4, AVI, and MP3.

How do I enable subtitles?

While watching a channel or video, press the Subtitle or CC button on the remote (if available). Alternatively, go to Menu → Channel → Subtitle and set to On.

How do I reset the TV to factory settings?

Press Menu, go to Setup or System, select Factory Reset or Reset All, confirm. Note that this erases all personal settings.

Is the TV firmware updatable?

This model does not support over-the-air updates. Firmware updates are not typically provided. For any issues, refer to the user manual or contact support.

How do I clean the screen safely?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen in a circular motion. Do not apply liquid directly; if needed, slightly dampen the cloth with water.

USER MANUAL 40FDI7514 FUNAI

Notifications & Features & Accessories 3

Remote Control 6

Connections....7

First Time Installation - USB Connections 8

TV Menu Features and Functions 10

General TV Operation 13

Software Upgrade.... 14

Troubleshooting & Tips 14

PC Input Typical Display Modes 15

AV and HDMI Signal Compatibility 15

Supported File Formats for USB Mode 16

Supported DVI Resolutions 17

Connectivity 18

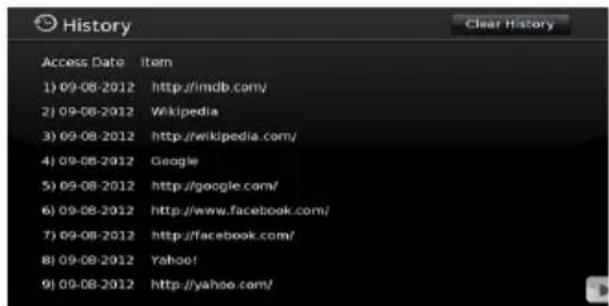

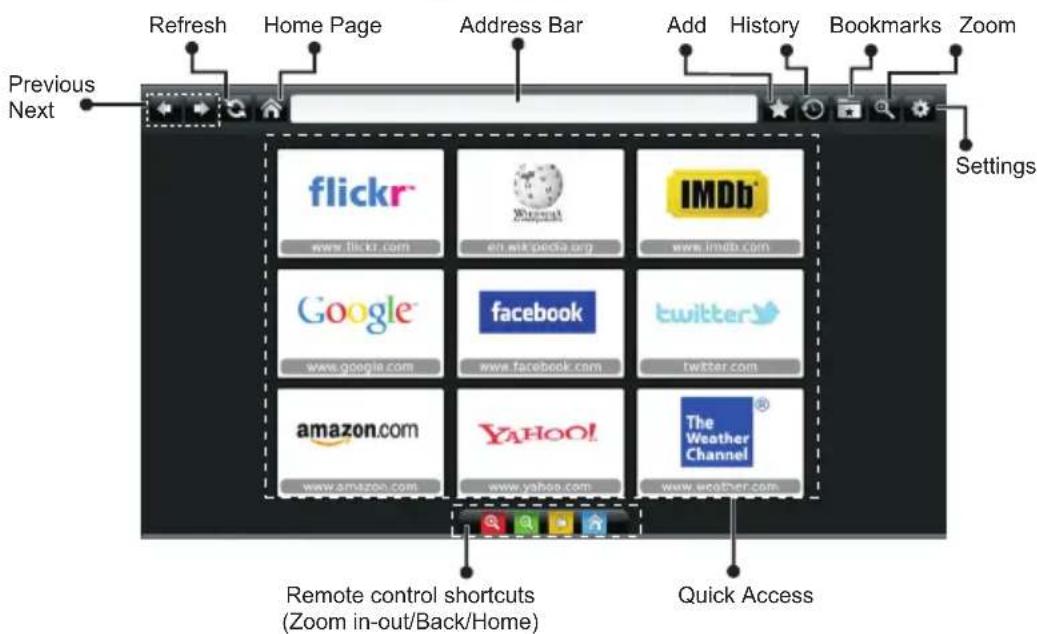

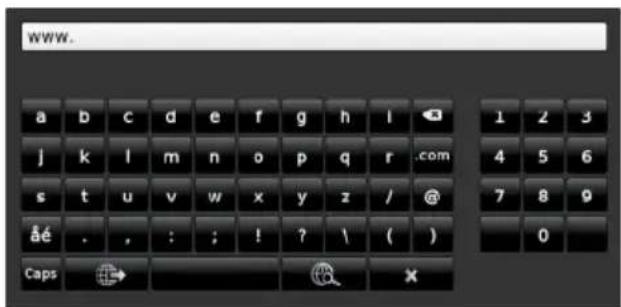

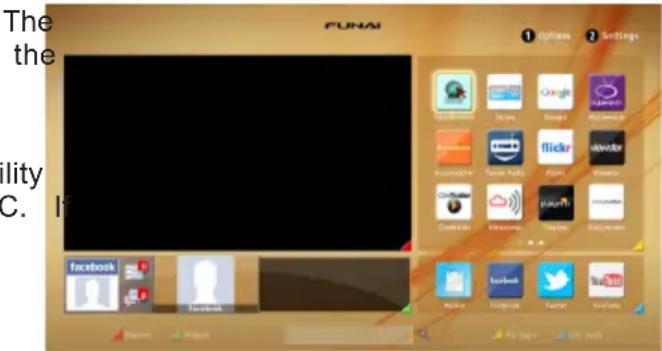

Internet Browser 22

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To operate your TV in extreme ambient conditions may cause damage of the device.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the FTV Fset Ffrom Fthe Fmains. FThe Fmains Fplug is used to disconnect TV set from the mains and therefore it must remain readily operable.

This Fsign Fis Fpresent Fwherever Fthere Fis Every important Finformation Fon Foperation Fand maintenance of the appliance in the literature accompanying it.

Note : Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

- For ventilation purposes, leave a free Fspace of at least 10 cm all around the set.

- Do not block ventilation holes.

- Do not place the TV on sloping or unstable surfaces, the TV may tip over.

- Use this device in moderate climates.

- The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never Ftouch Fthe Fpower Fcord/plug Fwith Fwet F as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it Fmust Fbe Freplaced this should only be done by qualified personnel.

- Do not use this TV in a humid or damp environment. Do not expose the TV to liquids. In case the cabinet contacts Fany Fliquids Funplug Fthe FTV Fimmediately and have it checked by qualified personnel before operating it any further.

- Do not expose the TV to direct sunlight, open flames or place it near intense heat sources such as electric heaters.

- Listening Fin Fexcessive Fvolumes Ffrom earphones Fand Fheadphones Fmay Fcause Fhearing loss.

- Ensure that no open flame sources, such as lit candles, are placed on top of the TV.

- To Fprevent Finjuries, Fthis FTV Fmust Fbe securely attached to a wall by carefully following the instructions (if the option is available).

• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with fingernails or other hard objects.
• Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning.

Warning	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Caution	Injury or property damage risk
Important	Operating the system correctly
[GHKS] Notice	Additional notes marked

ands

Getting Started

Notifications & Features & Accessories

Environmental Information

This television is designed to consume less energy to Fhelp Fsave Fthe Fenvironment. FTo Reduce Fe consumption, you should take the following steps:

You can use the Power Save Mode setting, located in the Picture menu. If you set the Power Save Mode as FEco, Fthe FTV Fwill Fswitch Fto Fenergy-saving and the luminance level of TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

If pressed FRight Fbutton, F"Screen will be off in seconds." message will be displayed on the screen. Select PROCEED and press OK to turn the screen off immediately. If Fyou Fdon't Fpress Fany Fbutton screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again. If you disable Power Save Mode, picture mode will be automatically set to Dynamic.

When Fthe FTV Fis Fnot Fin Fuse, Fplease Fswitch disconnect the TV from the mains plug. This will also reduce energy consumption.

Standby Notifications

1) If Fthe TV Fdoes not receive any Finput signal (e.g. from an aerial or HDMI source) for 5 minutes, the TV will Fgo Finto Fstandby. When Fyou Fnext Fswitch-on following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time". Press OK to continue.
2) If the TV has been left on and not been operated for a while, the TV will go into standby. When you next switch-on, the following message will be Fdisplayed.

"TV switched to stand-by mode automatically because no operation was made for a long time" Press OK to continue.

Features

• Remote controlled colour TV
• Fully integrated digital terrestrial/cable/satellite TV (DVB-T/C)
• HDMI Finputs Fto Fconnect Fother Fdevices Fwith sockets
• USB input
• OSD menu system
• Scart Fsocket Ffor Fexternal Fdevices F(such Fas Players, video games, etc.)
• Stereo sound system
• Teletext
  • Headphone connection

• Automatic programming system
- Manual tuning
• Automatic power down after up to six hours

- Sleep timer

- Child lock

• Automatic sound mute when no transmission.

• NTSC playback

• AVL (Automatic Volume Limiting)

- PLL (Frequency Search)

• PC input

- AVL (Automatic Volume Limiting) - PLL (Frequency Search) - PC input

15 Plug&Play Ffor FWindows F98, FME, F2000, FXP, FVis Windows 7

Game Mode (Optional)

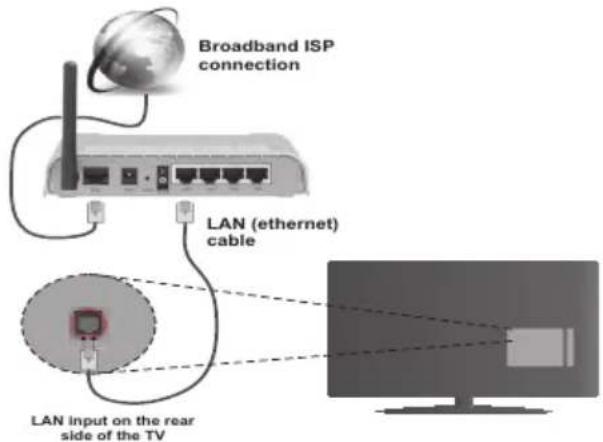

- Ethernet (LAN) for Internet connectivity and service

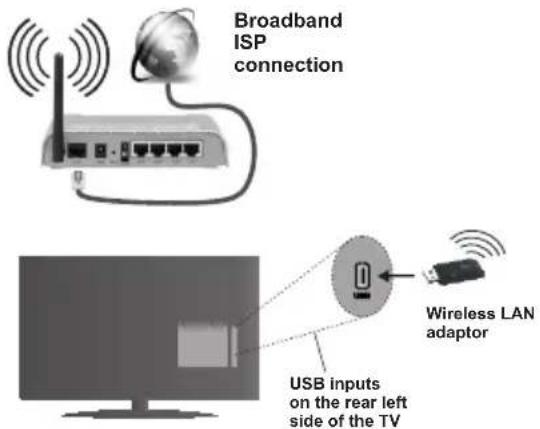

- 802.11n FWireless FConnectivity FSupport Fvia FUSB dongle

Accessories Included

• Remote Control
• Batteries: 2 x AAA
• Instruction Book
• Quick Start Guide
• Side AV Connection Cable Fthe

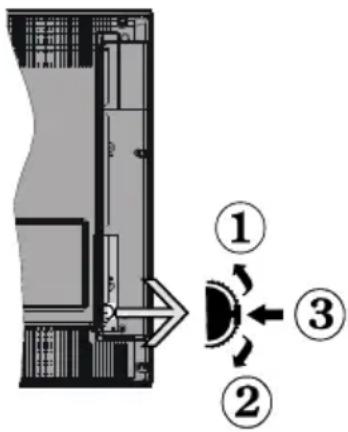

TV Control Switch & Operation

HDMI

1. Up direction

2. Down direction

3. Volume / Programme / Sources List selection and Standby-On switch

DVD

The Control button allows you to control the Volume / Programme / Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button, the Finformation Fbanner Fwill Fappear Fon Fthe Fsc Scroll Fthrough Fthe Fstored Fchannels Fby Fpushing button up or down.

To change source: Press the middle of the button twice (for the second time in total), the source list will appear Fon Fthe Fscreen. FScroll Fthrough Fthe Fava sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

Notes:

• If Fyou Fturn Fthe FTV Foff, Fthis Fcircle Fstarts Fagain beginning with the volume setting.
• Main Fmenu FOSD Fcannot Fbe Fdisplayed Fvia Fcontrol buttons.

Operation with the Remote Control

Press Fthe FMenu Fbutton Fon Fyour Fremote Fcont display the main menu screen. Use the Left or Right button to select a menu tab and press the OK to enter. Use Left / Right / Up / Down buttons to select or set an item. Press Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different inputs.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

Inserting the Batteries into the Remote

Lift Fthe Fcover Fon Fthe Fback Fof Fthe Fremote Insert two AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Place the cover back on.

Two cylindrical batteries with positive and negative charge indicators, placed on a dark surface (no text or symbols visible)

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature seen. Before you connect the set to the mains. Plug the power cable to the mains socket outlet.

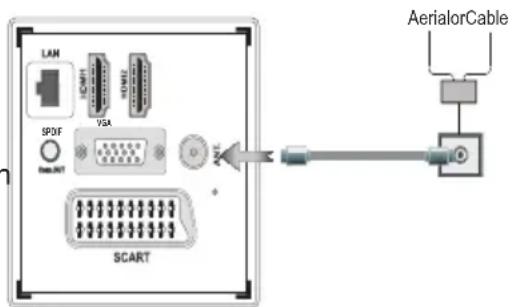

Antenna/Cable Connection

Connect the aerial or Fcable TV plug to the AERIAL INPUT (ANT) socket located on the rear bottom side of the TV.

Notification

TRADEMARK ACKNOWLEDGMENT

Manufactured under license from Dolby Laboratories. Dolby Fand Fthe Fdouble-D Fsymbol Fare Ftrademarks Fc Dolby Laboratories.

DOLBY. DIGITAL PLUS

The Fterms FHDMI Fand FHigh-Definition FMultimedia Interface, Fand Fthe FHDMI FLogo Fare Ftrademarks For registered trademarks of HDMI Licensing LLC in the United States and other countries.

Fgently.

Dear Customer,

By Fconnecting Fan FHDMI Fcable Fto Fyour FFunai FLC TV, you have to use only a certified HDMI Fcable to guarantee Fa Fsufficient Fimmunity Fagainst Fparasitic frequency radiation.

A certified HDMI cable can be identified by the HDMI logo on the cable or the cable package.

YouTube Fand Fthe FYouTube Flogo Fare Ftrademark Google Inc.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols Fshould Fnot Fbe Fdisposed Fof Fas Fger household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Specification

TV Broadcasting PAL SE	CAM BG/I/DK/LL'
Receiving Channels VHF	F(BAND FI/III) F- FUHF (BAND U) - HYPERBAND
Digital Reception Fully in	egrated digital terrestrial-cable TV(DVB-T-C)
Number of Preset Channels	1000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
LNB Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2 x 8
Power Consumption 75 W
Weight 10,00 kg
TV Dimensions DxLxH (with foot)	220 x 930 x 609 mm
TV Dimensions DxLxH (without foot)	93 x 930 x 569 mm
Display	40 inch
Operation temperature and operation humidity	0°C up to 40°C, 85% humidity max

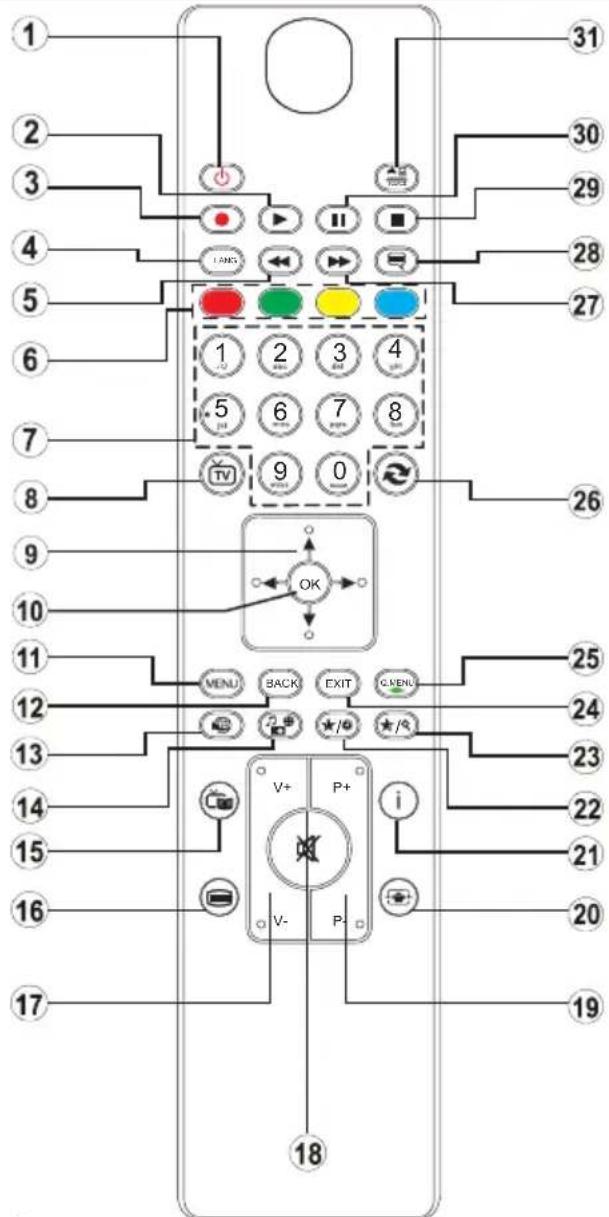

Remote Control

NOTE: The Remote Control range is approximately 7m

/23ft.

Using My button 1 (\*)

This button's main function is to run Youtube link. However if Fyou Fwant Fto Fchange Fthis Ffunction, Fyou Fcan Fp BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function. Note that if you perform first time installation, MY BUTTON 1 will return to its default function.

Using My Button 2 (\*\*)

This Fbutton's Fmain Ffunction Fis Fto Fswitch Far broadcasts. FHowever, Fif Fyou Fpress FMY FBUTTON for five seconds when on a desired source, channel or Flink, Funtil Fthe F F"MY FBUTTON IS SET" messa is Fdisplayed Fon Fthe Fscreen. FThis Fconfirms Fthe selected FMY FBUTTON Fis Fnow Fassociated Fwith selected function.

1. Standby / On
2. Play (in media browser mode)
3. No function
4. Mono-Stereo Dual I-II / Current language
5. Fast rewind (in media browser mode)
6. Colored buttons
7. Numeric buttons
8. Channel list
9. Navigational buttons
10. Ok / Confirm
11. Menu on / off
12. Return / back
13. Internet
14. Media browser
15. Electronic programme guide (EPG)
16. Teletext - Mix
17. Volume up / down
18. Mute
19. Programme up / down
20. Image size
21. Info / Reveal (in TXT mode)
22. My button 1 / YouTube (*)
23. My button 2: Switches between digital/cable broadcasts (**)
24. Exit
25. Quick menu
26. Previous programme / Now (in EPG mode)
27. Fast forward (in media browser mode)
28. Subtitle on-off / Subtitle (in media browser mode)
29. Stop (in media browser mode)
    30 Pause (in media browser mode)
30. AV / Source

Teletext

Press "Button" button to enter. Press again to activate mix Fmode. FPress Fonce Fmore Fto Fexit. FFollow th instructions displayed on digital teletext screen.

Digital Teletext

Bress F" Fbutton Fto Fview Fdigital Fteletext information. FOperate Fit Fwith Fthe Fcoloured Fbuttons, cursor Fbuttons Fand Fthe FOK Fbutton. FThe Foperation method may differ depending on the contents of the digital teletext. FFollow the instructions displayed For the digital teletext screen. When the "■" button is pressed again, the TV returns to television broadcast.

Getting Started

Connections

Connector Type Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	Side Audio/Video Connection Cable (Supplied) PC Audio Cable (Not supplied)
	HDMI Connection (back)
SPDIF	SPDIFF (Coaxial Out) Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)	Side AV Connection Cable (supplied)
HEADPHONE	Headphone Connection (side)
PC to YPbPr	YPbPr Video Connection (side)	PC to YPbPr Connection Cable (Not supplied)
[KSHT]	USB Connection (side)
	CI Connection (side)

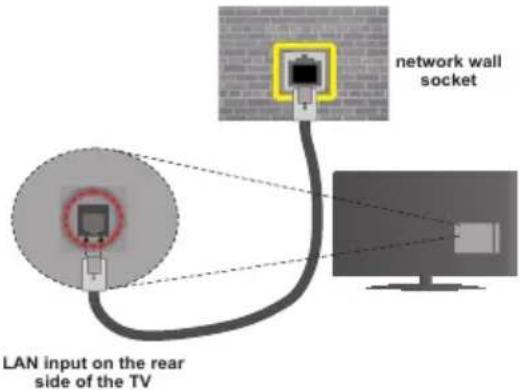

LAN	Ethernet Connection (back)	LAN / Ethernet Cable

NOTE: When connecting a device via the YPbPr or Side AV input, you must use connection cables to enable connection. See the illustrations on the left side. | To enable PC audio, you will need to use SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. | Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV.

If you want to connect a device to the TV, make sure that both the TV and

the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

Getting Started

First Time Installation - USB Connections

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

Press the Standby button, Programme +/- or a numeric button on the remote control.

Press the side function switch on the TV until the TV comes on from standby.

To Switch the TV Off

Press the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mo standby LED can blink to indicate that features Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When Fturned Fon Ffor Fthe Ffirst Ftime, Fthe Flan selection Fscreen Fis Fdisplayed. FSelect Fthe Fde language and press OK.

On the next screen, set your preferences using the navigation buttons and when Ffinished, press OK to continue.

Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

You Fcan Factivate FStore Mode Foption Fat Fthis I This Foption Fis Fintended Fonly Ffor Fstore Fuse recommended to select Home Mode for home use. If Store Mode is selected, a confirmation screen will be Fdisplayed. FSelect FYES Fto Fproceed. This Fo will be available in Other Settings menu and can be turned off/on later.

If Home Mode is selected, Store Mode will not be available after the First Time Installation. Press OK button to continue.

Aerial Installation

If you select Aerial option from the search type selection screen, the television will search Ffor Fdigital terrestrial TV broadcasts. After all the available stations are stored, the Channel List will be displayed on the screen.

While the search continues a message will appear, asking whether you want to sort channels according to the LCN(^*) . Select Yes and press OK to confirm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available).

Press Menu button to quit channel list and watch TV.

Cable Installation

If you select Cable option and press OK button on the Fremote Fcontrol, Fa Fconfirmation Fscreen Fwill Fb displayed. FSelect FYES Fand Fpress FOK Fto Fproceed To cancel operation, select NO and press FOK. You can select frequency ranges from next screen. Enter the frequency range manually by using the numeric buttons. FWhen Ffinished, Fpress FOK button Fto Fstart automatic search.

Note: Searching duration will change depending on the selected search step.

Media Playback via USB Input

You Fcan Fconnect Fa F2.5" Fand F3.5" Finch F(hdd Fv de, the external power supply) external Fhard disk drives or USB Fmemory Fstick Fto Fyour FTV Fby Fusing Fthe FU inputs of the TV.

IMPORTANT! FBack Fup Fthe Ffiles Fon Fyour Fstorage devices Fbefore Fconnecting Fthem Fto Fthe FTV. Manufacturer Fwill Fnot Fbe Fresponsible Ffor Fany Ffil damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV.

While Fformatting FUSB Fhard Fdrives Fwhich Fhave more than 1TB (Tera Byte) storage space you may experience some problems in the formatting process.

Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so Fmay Fcause Fphysical damage Fto Fthe USB Fplayer and the USB device itself. Do not pull out your drive point while playing a file.

Elt Fis You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.

It Fis Frecommended Fto Fuse Fthe TV's FUSB Finput(s) directly, if you are going to connect a USB hard disk.

Note: When nviewing nimage files the nmedia nbrowser nmenu can only display 1000 image files stored on the connected USB device.

Media Browser Menu

You can play photo, music and movie files on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings menu.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	TV plays next file and loop the list.
Start playback with OK and activate	The same file will be played in a loop (repeat).
Start playback with OK/Play button and activate	The file will be played in a shuffle.

Quick Menu

The Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites, Sleep Timer options. Press Quick Menu button on the remote control to view the quick menu. See the following chapters for details of the listed features.

stored

TV Menu Features and Functions

Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game, Sports, Dynamic and Natural.
Contrast	Adjusts the light and dark values on the screen.
Brightness	Adjusts the brightness values on the screen.
Sharpness	Sets the sharpness value for the objects displayed on the screen.
Colour	Sets the colour value, adjusting the colors.
Power Save Mode	For setting the Power Save Mode to Eco, Picture Off or Disabled.(When the Mode is Dynamic, Power Save mode is automatically set as disabled.)
Backlight(Optional)	This setting controls the backlight level. The backlight function will be inactive if the Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Advanced Settings
Dynamic Contrast	You can change the Dynamic Contrast ratio to desired value.
Colour Temp	Sets the desired colour tone.
Picture Zoom	Sets the desired picture size from picture zoom menu.Note: Auto option is only available in Scart mode with SCART PIN8 high voltage/low voltage switching
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Skin tone can be changed between -5 and 5.
Colour Shift	Adjust the desired colour tone.
RGB Gain	You can configure the colour temperature values using the RGB Gain feature.
HDMI True Black	While watching from a HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
PC Position	Appears only when the input source is set to VGA/PC.
Autoposition	Automatically optimizes the display. Press OK to optimize.
Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Resets the picture settings to factory default settings (except Game Mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
Sound Menu Contents
Volume Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in user mode.
Balance Adjusts whether the sound comes from the left or right speaker.
Headphone Sets headphone volume.
Sound Mode You can select a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Function sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.
Dynamic Bass Enables or disables the Dynamic Bass.
Surround Sound (optional)	Surround sound mode can be changed as On or Off.
Digital Out	Sets digital out audio type.
Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language	You may set a different language depending on the broadcaster and the country.
Parental(*)	Enter correct password to change parental settings. You can easily adjust menu lock, maturity lock(may change depending on the country selected) and child lock in this menu. You can also set new pin number.Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time	Sets date and time.
Sources	Enables or disables selected source options.
Network Settings	Displays network settings.
Other Settings	Displays other setting options of the TV.
Menu Timeout	Changes timeout duration for menu screens.
Scan Encrypted Channels	When this setting is on, the search process will locate the encrypted channels as well.
Blue Background	Activates or deactivates the blue background system when the signal is weak or absent.
Software Upgrade	Ensures that your TV has the latest firmware.
Application Version	Displays application version.
Hard of Hearing	Enables any special feature sent from the broadcaster.
Audio Description	A norration track will be played for the blind or visually impaired audience. This feature is available only if the broadcaster supports it.
Auto TV Off	Sets the desired time for the TV to automatically go into standby mode when not being operated.
Standby Search (Optional)	Your TV will search for new or missing channels while in standby. Any broadcasts will be shown.
Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Media Renderer	Media renderer feature allows you to share files stored on your smartphone or tablet pc. If you have a Multimedia Server Access compatible smartphone or tablet pc and the appropriate software is installed, you can share/play photos on your TV. See instructions of your sharing software for more information. Media renderer mode will not be available with internal portal feature.
Power Up Mode	This setting configures the power up mode preference.
Virtual Remote	Enable or disable the virtual remote feature.
FollowMe TV	Enable or disable this features.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.
Clear Service List	Use this setting to clear channels stored.

new f

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You Fcan Fedit Fthis Fchannel Flist, Fset Ffavourites active stations to be listed by using the Channel List options.

Configuring Parental Settings

To prohibit viewing of certain programmes, channels and Fmenus Fcan Fbe Flocked Fby Fusing Fthe Fp control system.

To Fdisplay Fparental Flock Fmenu Foptions, Fthe number should be entered. After coding the correct PIN number, parental settings menu will be displayed.

Menu Lock: Menu lock setting enables or disables the menu access.

Maturity Lock: When set, this option gets the maturity information Ffrom Fthe Fbroadcast Fand Fif Fthis Fm level is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work.

Set PIN: Defines a new PIN number.

The Fopen Fbrowser Fapplication Fin Fthe Fportal, become Fdisabled Fdue Fto Fchanges Fmade Fin parental Fsettings. FThis Fcan Fbe Fdone Fin F3 Fdays according to the country selection made in the first time installation.

If the selected country is England; turning child lock on will disable open browser.

If the selected country is France; adjusting the maturity lock for users aged 15 and younger will disable open browser.

If another country is selected except the two above; turning any of the maturity lock settings on will disable open browser.

Note: Default PIN can be set to 0000 or 1234. If you have defined nthe nPIN(is nrequested ndepending non nthe ncountry selection) during the First Time Installation use the PIN that you have defined.

Some options may not be available depending on the country.

Electronic Programme Guide (EPG)

Some Fchannels Fsend Finformation Fabout Ftheir For Breakfast schedules. Press the Epg button to view the EPG menu.

Red button (Prev Day): Displays Fthe programmes of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Press the Yellow button to see events in a wider time interval.

BLUE button (Filter): Views filtering options.

SUBTTL: Press FSubtitles button Fto Fview FSelect Genre menu. Using this feature, you can search the programme guide database in accordance Fwith the genre. Info available in the programme guide will be searched Fand results matching Fyour Fcriteria Fwill Fbe highlighted.

Info button: FDisplays Fdetailed Finformation Fabout selected programmes.

Numeric Buttons (Jump): FJumps Fto the preferred channel directly via numeric buttons.

OK: Displays programme options.

Text button (Search): FDisplays F"Guide Search" Fmayu.

Swap button (Now): Displays current event of Fthe highlighted channel.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Software Upgrade

Your TV is capable of finding and updating automatically via the broadcast signal.

Software upgrade search via user interface

On the main menu select Settings and then Other Settings. Navigate to Software Upgrade and press OK button. In Upgrade Options menu select Scan for upgrade and press OK button to check for a new software upgrade.

If a new upgrade is found, it starts to download the upgrade. Press OK to continue with the reboot operation.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 o'clock if Automatic scanning in the Upgrade Options menu is Enabled and if the TV is connected to an aerial signal.

Note: If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.

Poor picture

• Check if you have selected the correct TV system.
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.
• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• This means your TV is not receiving any transmission. Make sure the correct source has been selected.
  • Is the antenna connected properly?
  • Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are in doubt, consult your dealer.

No sound

• Check if the TV is muted. Press the Mute button or increase the volume to check.
• Sound may be coming from only one speaker. Check the balance settings from sound menu.

Remote control - no operation

- The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected. If not;
• Check the AV cables and connections if you have tried to connect a device.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Index	Resolution	Frequency
1	640x350 85Hz
2	640x400 70Hz
3	640x400 85Hz
4	640x480 60Hz
5	640x480 66Hz
6	640x480 72Hz
7	640x480 75Hz
8	640x480 85Hz
9	800x600 56Hz
10	800x600 60Hz
11	800x600 70Hz
12	800x600 72Hz
13	800x600 75Hz
14	800x600 85Hz
15	832x624 75Hz
16	1024x768	60Hz
17	1024x768	66Hz
18	1024x768	70Hz
19	1024x768	72Hz
20	1024x768	75Hz
21	1024x768	85Hz
22	1152x864	60Hz
23	1152x864	70Hz
24	1152x864	75Hz
25	1152x864	85Hz
26	1152x870	75Hz
27	1280x768	60Hz
28	1360x768	60Hz
29	1280x768	75Hz
30	1280x768	85Hz
31	1280x960	60Hz
32	1280x960	75Hz
33	1280x960	85Hz
34	1280x1024	60Hz
35	1280x1024	75Hz
36	1280x1024	85Hz
37	1400x1050	60Hz
38	1400x1050	75Hz
39	1400x1050	85Hz
40	1440x900	60Hz
41	1440x900	75Hz
42	1600x1200	60Hz
43	1680x1050	60Hz
44	1920x1080	60Hz
45	1920x1200	60Hz

AV and HDMI Signal Compatibility

Source Supported Signals Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50/60 O
	SECAM O
Side AV	PAL 50/60 O
	NTSC 60 O
	SECAM
YPbPr	480i, 480p	60Hz O
	576i, 576p	50Hz O
	720p 50Hz,60Hz O
	1080i 50Hz,60Hz O
	1080p 50Hz,60Hz O
HDMI1HDMI2	480i 60Hz O
	480p 60Hz O
	576i, 576p	50Hz O
	720p 50Hz,60Hz O
	1080i 50Hz,60Hz O
	1080p	24Hz,25Hz,30Hz,50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Media Extension Format Notes
Video	.mpg,.mpeg	Mpeg1-2F1080P@30fps, 50Mbit/sec
	.ts, .trp,.tp, .m2ts	MPEG2 , H.264,VC1, AVS, MVC	H.264:1080Px2@25fps, 1080P@50fps MVC:1080P@ 24fps Other: 1080P@30fps -50Mbit/sec
	.vobFMPEG	2F1080P@30fps 50Mbit/sec
	.mkv FMPEG	G1-2-4,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps, 50Mbit/sec
	.mp4FMPEG	G4, XviD,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps, 50Mbit/sec
	.aviFMPEG	2-4, Xvid,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps, 50Mbit/sec
	.fla, .flvFH.2	64, SorensonH.263	H.264:1080Px2@25fps, 1080P@50fps, 1080P@30fps, 40Mbit/sec
	.3gpFMPEG	G4, H.264F1080P@30fps, 20Mbit/sec
	.asf, .wmvF	VC1	1080P@30fps, 50Mbit/sec
Audio	3FMPEG1/2	Layer1/2/3 (MP3)	Layer1: 32Kbps ~ 448Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)Layer2: 8Kbps ~ 384Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)Layer3: 8Kbps ~ 320Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)
	.wav	LPCM
	.wma/asf	WMA, WMA Pro	WMA: 128bps ~ 320Kbps (Bit rate) / 8KHz ~ 48KHz (Sampling rate)WMA Pro: < 768kbps (Bit rate) / ~ 96KHz (Sampling rate)
	.m4a/.aac	AAC, HEAAC	Free Format (Bit rate) / 8KHz ~ 48KHz (Sampling rate)
	.pcm	PCM	8Kbps ~ 320Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)
	(worksonly withvideofiles)	AC3	32Kbps ~ 640Kbps (Bit rate) / 32KHz, 44.1KHz, 48KHz (Sampling rate)
		EAC3	32Kbps ~ 6 Mbps (Bit rate) / 32KHz, 44.1KHz, 48KHz (Sampling rate)
		LPCM	64Kbps ~ 1.5Mbps (Bit rate) / 8KHz ~ 48KHz (Sampling rate)
		IMA-ADPCM/MS-ADPCM	384Kbps (Bit rate) / 8KHz ~ 48KHz (Sampling rate)
		G711 A/mu-law	64~128Kbps (Bit rate) / 8KHz (Sampling rate)
Picture	.jpeg	Baseline	Resolution(WxH): 15360x8640, 4147200 bytes
		ProgressiveFResolution(WxH): 1024x768, 6291456 bytes
	.png	non-interlace	Resolution(WxH): 9600x6400, 3840000 bytes
		interlace	Resolution(WxH): 1200x800, 3840000 bytes
	.bmp		Resolution(WxH): 9600x6400, 3840000 bytes
Subtitle	.subF-	Sub1,	Sub2, Sub3
	.srt	-

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz 60Hz 66Hz 70Hz 72Hz 75Hz
640x400					☑
640x480		☑ ☑	☑ ☑
800x600	☑ ☑	☑ ☑	☑
832x624							☑
1024x768		☑ ☑	☑ ☑	☑
1152x864		☑ ☑	☑
1152x870							☑
1280x768		☑					☑
1360x768		☑
1280x960		☑					☑
1280x1024		☑					☑
1400x1050		☑					☑
1440x900		☑					☑
1600x1200		☑
1680x1050		☑
1920x1080		☑
1920x1200		☑

Connectivity

Wired Connectivity

To Connect to a Wired Network

• You must have a modem/router connected to an active broadband connection.
• Ensure that Nero Media Home software is installed to your PC (for Multimedia Server Access function). See "Nero Media Home Installation" section.
• Connect your PC to your modem/router. This can be a wired or wireless connection.
• Connect your TV to your modem/router via an ethernet cable. There is a LAN port at the rear (back) of your TV.

• To access and play shared files, you must select the Media Browser. Press the Menu button and select Media Browser. Press OK to continue. Select the desired file type and press OK. You must always use the Media Browser screen to access and play shared network files.
• PC/HDD/Media Player or any other devices that are Multimedia Server Access 1.5 compatible should be used with a wired connection for higher playback quality.

To configure wired settings please refer to the Network Settings section in the Settings menu.

- You might be able to connect your TV to your LAN depending on your network's configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet.

Configuring Wired Device Settings

Network Type

The Network type can be selected as Wired or Wireless Device, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an ethernet.

Configuration Status

This section displays the status of the connection.

IP Address

If an active connection is available, the IP address will be displayed on this section. If you want to configure an IP address preferences, press the Green button and switch to the advanced mode.

Configuring Wired Network Settings in Advanced Mode

After pressing the Green button, the advanced mode will be available. While in advanced mode, press the Red button to edit settings. When finished, press OK to save, Press Return/Back to exit.

Wireless Connectivity

To Connect to a Wireless Network

IMPORTANT: "Veezy 200" USB dongle is required to use wireless network features.

The TV cannot connect to the networks with a hidden SSID. To make your modem's SSID visible, you should change your SSID settings via the modem's software.

To Connect to a wireless LAN, you should perform the following steps:

1. Ensure that Nero Media Home software is installed to your PC (for Multimedia Server Access function).
2. Then connect the wireless adaptor to one of the USB inputs of the TV.
3. To configure your wireless settings please refer to the Network settings section in this manual.

A FWireless-N Frouter F(IEEE F802.11a/b/g/n) F simtaneous F2.4 and F5 FGHz Fbands Fdesigne increase bandwidth. These are optimized for smoother and Ffaster FHD Fvideo Fstreaming, Ffile Ftransfers wireless gaming.

• Use a FLAN Fconnection Ffor Fquicker Ffile Fsha between other devices like computers.
• FThe frequency and channel differ depending on the area
• The transmission speed Fdiffers Fdepending Fon Ft distance and number of obstructions between the transmission Fproducts, Fthe Fconfiguration Fof Fthe products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on Fthe Fradio Fwave Fconditions, FDECT Fphone any Fother FWireless FConnectivity F11b Fapplianc The Fstandard Fvalues Fof Fthe Ftransmission Fsp are the theoretical maximum values for the wireless standards. FThey Fare Fnot Fthe Factual Fspeeds Fo transmission.

- The location where the transmission is most effective differs depending on the usage environment.

- The FWireless FLAN Fadaptor Fshould Fbe Fconnedirectly Fto Fthe FTV's FUSB Fport. FUSB Fhubs Fasupported. You can plug your Wireless Connectivity dongle Finto Fthe Fsupplied Fdock Fin Fcases Fv network quality is poor and the Wireless Connectivity dongle needs to be placed to a location with better signal quality.

- The FWireless LAN adaptor supports 802.11 a,b,g & n type Fmodems. Flt is Fhighly Frecommended that Fy should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.

- Use the other USB input, if you experience problems with audio/video performance.

- You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. FUse a wired connection if you experience problems with a wireless connection.

Configuring Wireless Device Settings

To enable FWireless FConnectivity Ffeatures, Fplug Fin Fth Wireless Connectivity dongle to one of the USB ports. Open the Network Settings menu and select Network Type as Wireless Device to start connection process.

Press the Yellow button to scan the wireless networks. A list of available networks will be displayed. Please select your desired network from the list.

Note: If the modem supports N mode, you should use mode settings.

If the Fselected Fnetwork Fis protected Fwith Fa Fpassword please Fenter Fthe Fcorrect Fkey Fby Fusing Fthe Fvir keyboard. You can use this keyboard via the navigation buttons and the OK button on the remote control.

Favad until the IP address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network, highlight Network Type and press OK.

You can navigate between menu tabs by pressing left/right buttons. The help bar on the bottom of the dialog shows Ffeatures Fthat Fyou Fmay Fuse. FPress Fthe FB button to check your internet connection speed. Press the Green button to switch to advanced mode and then press the OK button to edit settings.

Other Information

s For Configuration Status: Displays Wireless Connectivity es. status as Connected or Not Connected. eed

IP Address: Displays the current IP address.

Network Name: FConnected Fnetworks' Fname Fwill Fbe displayed.

Delete Saved Wireless Connectivity Profiles

Saved profiles will be deleted if you press the Red button. While the wireless device selection OSD is on the screen.

re Fnot Connecting to your mobile device via Wireless Connectivity here

- If Fyour Fmobile Fdevice Fhas FWireless FConnectivit feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your mobile device must have an appropriate sharing software.

- Connect to your router following the steps stated above in the Wireless Connectivity section.

- FAfterwards, engage your mobile device with the router and then activate the sharing software on your mobile device. FThen, Fselect Ffiles Fthat Fyou Fwant Fto Fshare I your TV.

- If the connection is established correctly, you will be able to access the shared files from your mobile device via the Media Browser of your TV.

- Enter Fthe FMedia FBrowser Fmenu Fand Fthe Fplayba device selection OSD will be displayed. Select Fyour mobile device and press the OK button to continue.

- If Favailable, Fyou Fcan Fdownload Fa Fvirtual Free controller application from the server of your mobile device application provider.

Not devices.

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any firewalls of your network allow the TV wireless connection.
• Ensure the "Veezy 200" USB Wireless Connectivity dongle is plugged in fully.
• Try searching for wireless networks again, using the Network Settings menu screen.

If the wireless network does not function properly, try using the wired network in your home. Refer to the "Wired Connectivity" section for more information on the process.

If the TV does not function using the wired connection, check Fthe Fmodem F(router). Flf Fthe Frouter Fdoe have Fa Fproblem, Fcheck Fthe Finternet Fconnectio your modem.

Connection is Slow

See Fthe Finstruction Fbook Fof Fyour Fwireless Fmod get information on the internal service area, connection speed, Fsignal quality Fand other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case:

Keep Fat Fleast Fthree Fmeters Fdistance from microw ovens, mobile telephones, bluetooth devices or any other Wireless Connectivity compatible devices. Try changing the active channel on the WLAN router.

Using Multimedia Server Access Network Service

Multimedia FServer Access F(Digital FLiving FNetwo Alliance) is a standard that eases the viewing process of digital electronics and makes them more convenient to use on a home network.

The Multimedia Server Access standard allows you to view and play photos, music and videos stored in the Multimedia Server Access media server connected to your home network.

1. Nero Media Home Installation

The FMultimedia FServer Access Function Fcannot used Fif Fthe Fserver Fprogramme Fis Fnot Finstalled your PC. Please prepare your PC with the provided Nero Media Home programme. For more information about the installation, please refer to the “Nero Media Home Installation” section.

2. Connect to a Wired or Wireless Network

See Fthe Fchapter FNetwork Settings for detailed configuration information.

3. Play Shared Files via Media Browser

Select Media Browser by using the Left or Right buttons from the main menu and press OK. The Media browser will then be displayed.

Multimedia Server Access

Multimedia Server Access support is only available in the Media Browser folder mode. To enable folder mode, go to the Settings tab in the main media browser screen and press OK. In the settings options, highlight View Style and change to Folder using the Left or Right buttons. Select the desired media type and press OK. If Fsharing Fconfigurations Fare Fset Fproperly, FDevice Selection screen will be displayed after selecting the desired media type. Select the desired one and press OK to display the content of the selected network or USB memory. If you want to refresh the device list, press the Green button. You can press Menu to exit. If available networks are found, they will be listed on this screen. Select media server or network that you want to connect to using the Up or Down buttons and press OK.

If you select the media type as Videos and choose a device from the selection menu, a new menu screen will appear on the screen.

Select Videos F from this Fscreen Fagain to Flist all Fthe available video files from the selected network.

To play other media types from this screen, you must go back to main Media Browser screen and select the media type Fas desired Fand then perform the network selection Fagain. FRefer Fto Fthe FMedia Browser Menu section for further information on file playback.

Subtitle files do not work if you watch videos from your network through Multimedia Server Access.

You can connect only one television with Multimedia Server Access Fto Fthe Fsame Fnetwork. Flf Fa Fproblem occurs with the Multimedia Server Access network, please switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the Multimedia Server Access function.

Note: There may Fbe some PC's which may not be able to utilize the Multimedia Server Access function due to Fadministrator and Fsecurity settings (such as business PC's).

For best Fhome network Fstreaming with Fthis TV, the supplied Nero software should be installed.

be Fonto

Nero MediaHome Installation

To install Nero MediaHome, please proceed as follows:

Note: To use DLNA function, this software should be installed to your PC.

1. Enter the link below completely in the adress-bar of your web browser.
   http://www.nero.com/mediahome-tv
2. Click the Download button on the opening page. The installation file will be downloaded onto your PC.
3. After the download is completed, double click on the installation file to start the installation installation wizard will guide you through installation process.
4. The prerequisites screen will be displayed first. The installation wizard checks the availability of required third-party software on your PC. applications are missing they are listed and must be installed before continuing installation.
5. Click the Install button. The integrated serial will be displayed. Please do not change the displayed serial.
6. Click the Next button. The License Conditions (EULA) screen will be displayed. Please read the license agreement carefully and select appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement.
7. Click the Next button. On the next screen you can set your installation preferences.
8. Click the Install button. The installation begins and finishes automatically. A progress bar indicate the state of the installation process.
9. Click the Finish button. The installation is completed. You will be directed to the web site of the nero software.
10. A shortcut is now placed on your desktop.

Congratulations! You successfully installed Nero MediaHome on your PC.

Run Nero MediaHome by double clicking on the shortcut icon.

Internet Portal

HINT: A Broadband internet connection is required for high quality viewing. You must set the Country and Language data correctly in the First Time Installation for proper operation of the internet portal.

Ensure the TV is connected to a Wired/Wireless available) network. After the connection is established, you can view portal options.

Press Internet button on your remote control and the portal application options will be displayed in a manner similar to the template below.

Note on PIP Window

Current source content will be displayed on the PIP window, if you switch to portal mode while on source. If you switch to portal mode while watching the TV channels, current programme will be displayed on the PIP window. You can change channels using Programme +/- buttons.

Use the Left or Right, Up or Down buttons to navigate between the items on Portal screen. Press the OK button to confirm your selection. Press the Return/Back button to go to the previous screen.

will Press the Exit button to quit the Internet portal mode.

Note: Possible application dependent problems may be caused by the content service provider.

Some applications might become disabled due to changes made in the Parental Settings.

Internet Browser

To use the internet browser, please select the internet browser logo from the portal section.

• To navigate the web browser, use the arrow buttons on the remote control. Press OK to continue.
• After First time installation, predefined web sites and logos will be displayed on the browser's access page (see image above). To add a desired web page to the quick access Fpage, whilst on Fthe website you wish to add, select the "Add" menu and select "Quick Access" button.
• If you want to add bookmarks, select this item while the desired web page is on the screen.

- You can navigate the web browser in three ways. First, enter any URL in the address bar.

- You Fcan Fsearch Fkeywords Fby Fclicking Fthe Fse button Fin Fthe Faddress Fdialog Fbox For Fanother to navigate to pages is by clicking on links on web

pages Fand Fthese Fwill Ftake Fyou Fto Fthe Fappropria pages.

• When you scroll the pointer down to the middle of the screen, the remote control's shortcuts will be shown.
• Use the zoom shortcut buttons or the zoom menu to zoom in or zoom out.
• You can clear cookies or clear all browser data from the settings menu.
• Your TV is compatible with USB mice. Plug your mouse For Fwireless Fmouse Fadaptor Fto Fthe FUSI input of your TV.
• To Fview Fyour Fbrowsing Fhistory, Fclick Fthe Fhistor button. FYou Fcan Falso Fclear Fyour Fbrowsing Fhistor from here.

• The browser does not support multiple tabs.
• Some internet pages include flash content. These are not supported by the browser.

FYear TV does not support any download processes from the web browser.
