THERON Plus - Mouse THERMALTAKE - Free user manual and instructions

Product Type	Wired Gaming Mouse
Model	THERON Plus
Brand	Thermaltake (Tt eSPORTS)
Dimensions	Approximately 125 x 70 x 40 mm
Weight	Approximately 100 g
Connection	Wired USB
Cable Length	1.8 m
Sensor Type	Optical
DPI Range	Up to 5600 DPI (4 adjustable levels per profile)
Polling Rate	125 / 250 / 500 / 1000 Hz
Lift-Off Distance	Adjustable via software
Number of Buttons	7 programmable buttons
Profile Capacity	5 on-board profiles
Macro Support	Yes, with macro manager and record timeline
Lighting	RGB with 4 zones (scroll wheel, side panels, bottom panel, logo)
Lighting Modes	Normal (static/pulse) and Battle (APM-reactive)
Software	Tt eSPORTS GUI (Windows)
Power Source	USB bus-powered
Compatibility	Windows 7/8/10
Cleaning Instructions	Unplug before cleaning; use a soft, slightly damp cloth; avoid liquids entering the device
Safety Precautions	Do not disassemble; avoid extreme temperatures and humidity; keep away from water
Spare Parts & Repairability	Not user-serviceable; contact Thermaltake support for issues

Frequently Asked Questions - THERON Plus THERMALTAKE

How do I change the DPI settings on my THERON Plus?

Open the Tt eSPORTS GUI software. Go to the Performance tab. You can adjust the DPI by moving the slider or entering a value in the box. Each profile supports up to 4 DPI levels. Click Apply to save.

What is Battle Mode lighting?

Battle Mode changes the lighting color and flash frequency based on your Actions Per Minute (APM). Higher APM results in faster flashing, with colors shifting from blue (low) to purple (high). It reacts to your clicking speed in real-time.

How do I create a macro?

In the GUI software, go to the Macro Setting tab. Click NEW to create a macro, name it, then click Record to capture keystrokes or mouse actions. Use the timeline to adjust delays or delete events. Save the macro and assign it to a button in Key Assignment.

Can I adjust the polling rate?

Yes. In the Performance tab, you can select from 125 Hz (8ms), 250 Hz (4ms), 500 Hz (2ms), or 1000 Hz (1ms). Higher polling rates reduce lag but may slightly increase CPU usage.

How many profiles can I store?

The THERON Plus can store up to 5 on-board profiles. Each profile includes DPI settings, button assignments, lighting, and performance parameters. Switch between profiles using the GUI or a dedicated button (if assigned).

What does the 'Lift-Off Control' do?

Lift-Off Control adjusts the distance at which the sensor stops tracking when you lift the mouse. You can set it to a low, medium, or high level to suit your gaming style or mousepad surface. Avoid the lowest setting as it may cause tracking issues.

How do I update the firmware?

Visit the official Thermaltake eSPORTS website (www.ttesports.com). Go to the THERON Plus product page, scroll to the 'Download' section, and download the latest firmware update. Follow the instructions in the GUI software's Firmware Update tab.

Is the mouse compatible with Mac?

The Tt eSPORTS GUI software is only available for Windows. The mouse will function as a standard mouse on Mac, but advanced features like DPI adjustment and macro programming require the software on a Windows PC.

How do I clean my THERON Plus?

Unplug the mouse from the computer. Use a soft, lint-free cloth slightly dampened with water or mild soap. Gently wipe the surface. Do not use abrasive cleaners or allow moisture to enter the mouse. Let it dry completely before reconnecting.

What should I do if a button stops working?

First, check if the button is assigned properly in the GUI software under Key Assignment. Try resetting the profile to default. If the issue persists, update the firmware. If the problem is hardware-related, contact Thermaltake support for warranty or repair options.

USER MANUAL THERON Plus THERMALTAKE

Tt ^® esports By Thermaltake

THERON PLUS GUI SOFTWARE GUIDE

A CONTENTS

PAGE 01 Main Interface

• Main 01
• Profiles 02
  ● Normal Mode / Battle Mode 03
  ● Key Assignment 04

PAGE 09 Macro Setting

• Macro Setting Interface 09
• Macro Manager 10
• Macro Record Setting 11
• Macro Record Timeline 12
• Insert Command 14

PAGE 15 Performance Setting

• Performance Interface 15
  DPI 16
• Other Speed Performance 17
• Polling Rate 18
• Lift-off Control 19

PAGE 20 Light Setting

● Light Option Interface 20

PAGE 21 Firmware Update

- How to Update Firmware 21

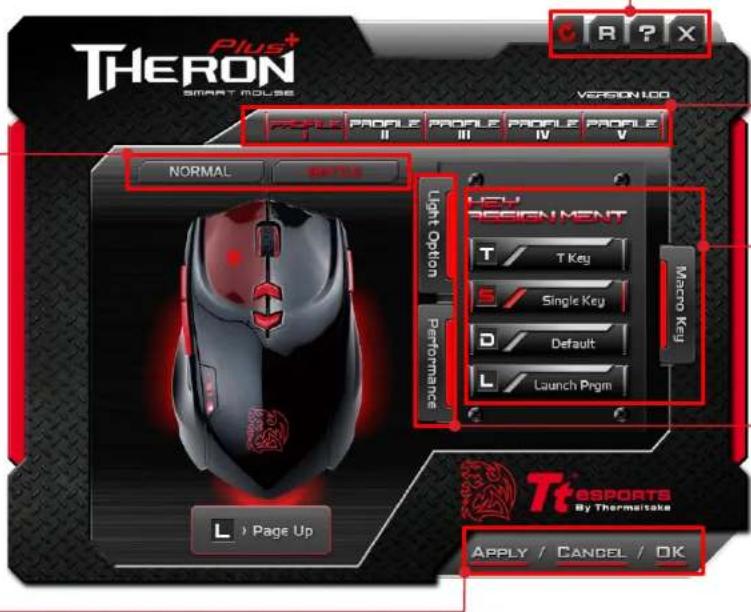

I CONTENT ONE Main Interface

GUI Software User Guide

Reset / Register / Guide / Close

Reset : Reset all setting

Register : Register as Tt eSPORTS's follower and receive updates from Tt eSPORTS via E-mail.

Guide : Configuration software manual

Close : Close Tt eSPORTS THERON Plus GUI Software

Page:03

Switch Normal/Battle Mode

The light frame indicates the Mode (Normal/Battle) you have selected

Page:02

Profile

THERON Plus has 5 profiles setting

Key Assignment / Macro Manager

Assign function to each button Page:04

Macro Manager: Page : 09

Performance / Light

DPI / Polling Rate / Lift-off

Apply: Click Apply after completing profile setting and it will import setting into THERON Plus

Cancel: Click Cancel if you wish to cancel the setting

OK: Click OK after setting has been completed

Tt eSPORTS GUI of Profile

Tt eSPORTS first version of Gaming User's Interface. We set GUI have Profiles can switch. Make Gamers convinced and customized to use a real design and make for gamer.

Switch to Profile

Choose the Profile you wanted to change to.

Normal / Battle Mode | Main Interface

Challenger is the Game

Tl eSPORTS | THERON Plus GUI Software User Guide

Light Effect into Game

Tt eSPORTS develop a fancy light effect. Just switch the mode and you can experience a different sensation in your place. When you are in Battle Mode, higher A.P.M (Action Per Minute) will have a higher frequency flashes, while in lower A.P.M, the flash frequency decreases. This make THERON Plus a gaming weapon that will enhance your gaming experience!

NORMAL

BATTLE

Normal Mode

In Normal Mode

Scroll Wheel lights up.

Tt Dragon light with Pulse-break lighting effect.

Two lights can turn on or off independently.

Bottom Panels will light up.

Battle Mode

In Battle Mode, colors will change accordingly to the frequency of current A.P.M

Low A.P.M BLUE-GREEN-YELLOW-RED-PUPPLE High A.P.M

Scroll Wheel with Pulse-break lighting effect.

Tt Dragon light with Pulse-break lighting effect.

Bottom Panels with Pulse-break lighting effect.

Once mode switched to Battle Mode, reminder as below will pop up:

WARNING

When the mode is switched to battle detection, the illumination effects will change according to the clicking frequency.

YES

Key Assignment | Main Interface

Challenger is the Game

Tl eSPORTS | THERON Plus GUI Software User Guide

04

Customization for each of THERON Plus's button

Each THERON Plus's button can be customized as your preferred, even the Scroll Wheel's function can be changed!

Customize it and make the THERON Plus your very own ultimate weapon to conquer!

THERON Plus Can Do More than You Expect!

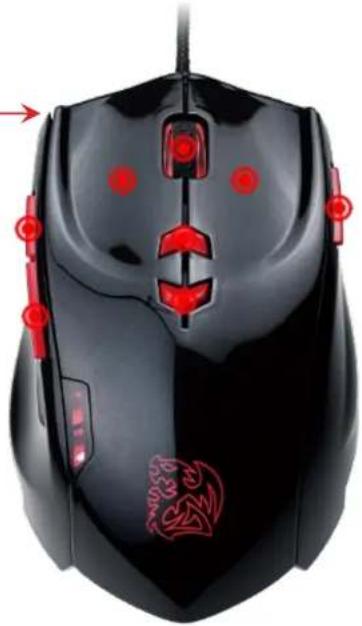

Buttons Configuration

Click on each button to change its function (See right picture)

Click each button to assign functions.

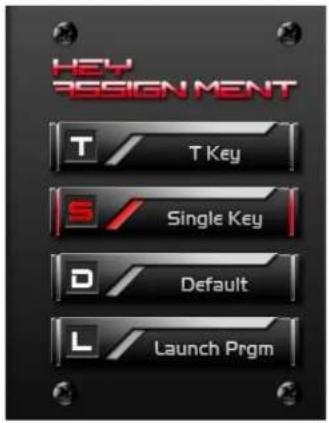

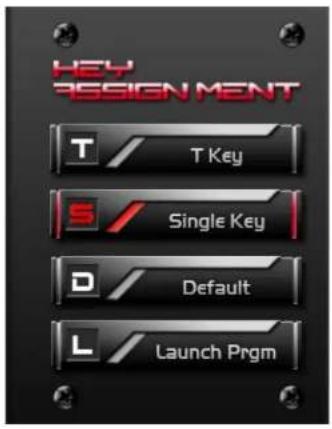

Key Assignment

Choose the key to manage function

Close-up of a black computer mouse with red laser indicators and a logo on the front (no visible text or symbols)

4 Key Functions to be Assigned!

Each of button can be assigned by four function (Macro(T Key) / Single Key / Default / Launch Program).

Default : All buttons function will be set as default setting. ( i.g : Left button as the Click action)

Macro(T Key) : Assign macro that has been recorded from Macro Manager.

Single Key : Set be mouse click function signal.

Launch Program : Launch the pre-set program directly

Key Assignment | Main Interface

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

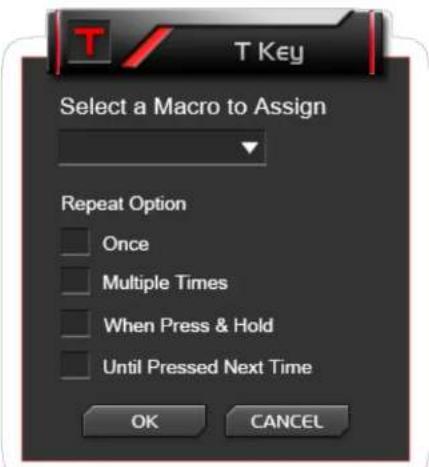

Macro (T Key)

T Key is the Macro key that you programmed.

Assign macro

Select a programmed macro that already recorded from Macro Manager (Macro record detail, see Page 17)

Repeat

Customize the times that you want to have the macro repeats..

Once :

Macro will repeat once.

Multiple Times :

Macro will repeat depends on the repeat count set.

When press & hold :

Macro will keep repeating while pressing and holding.

Until press next time :

Macro will start repeating when you click and stop unless you click again

Key Assignment | Main Interface

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

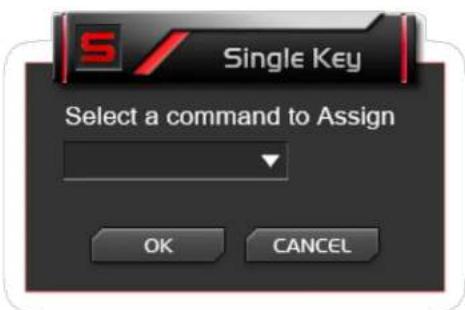

Single Key

Assign a function to a key

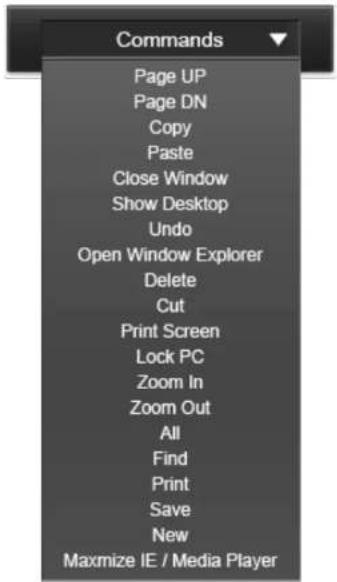

Commands

Commands that are available to be assigned

Key Assignment | Main Interface

Challenger is the Game

Tl eSPORTS | THERON Plus GUI Software User Guide

Default

THERON Plus has its own pre-configured functions, which is the default. If you wanted to change back to the default setting, you can just choose Default and it will be changed back to the pre-configured functions.

Launch Program

Pre-set a program and the program will show up whenever you click on the button that has been programmed.

Launch Program button

Click the Launch Program button and system will pop out file manager for you to choose the program that you want to launch.

I CONTENT TWO Macro Setting

GUI Software User Guide

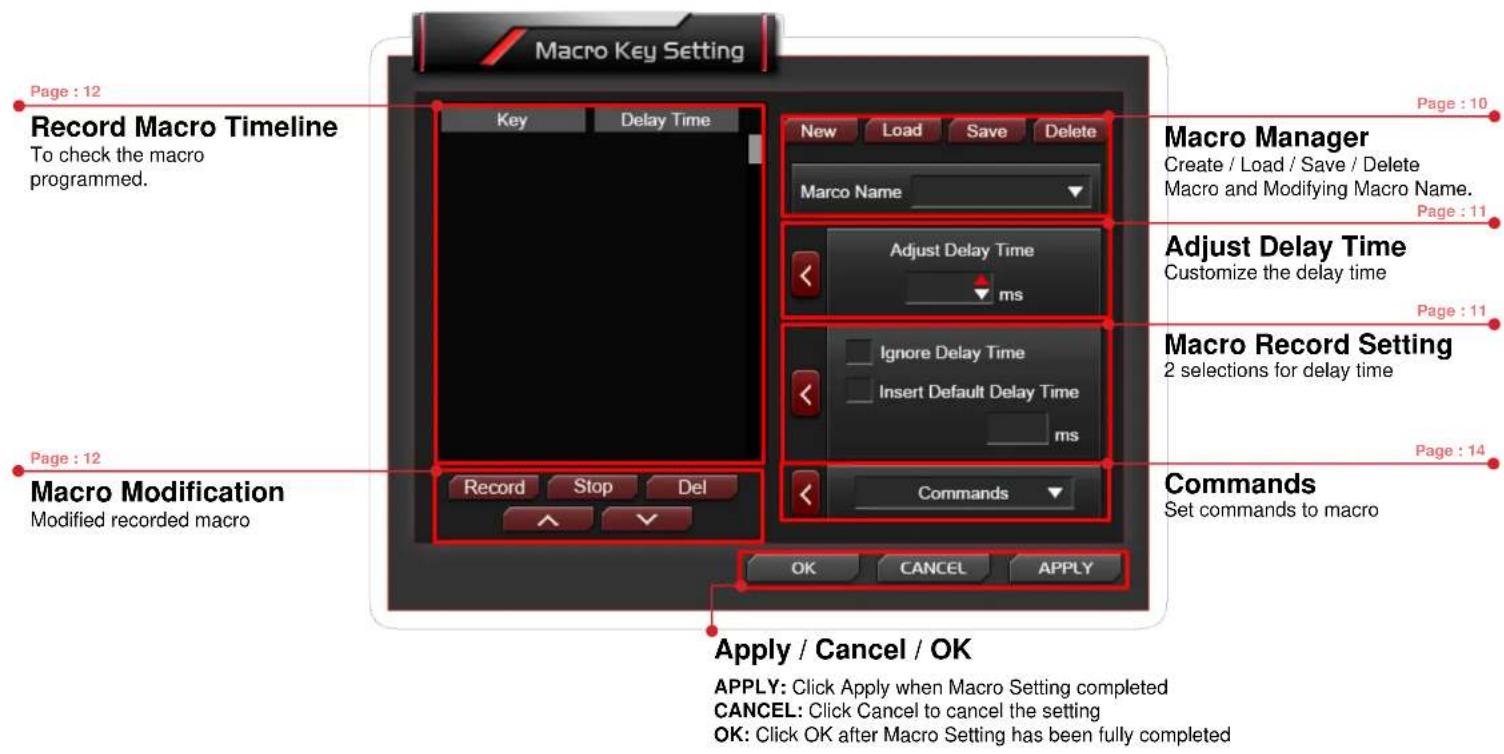

Macro setting Interface | Macro Setting

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

Macro Manager | Macro Setting

Challenger is the Game

Tl eSPORTS | THERON Plus GUI Software User Guide

Macro Manager

Macro manager allows you to create, delete, save and load a macro.

Manage Macro

NEW / DELETE / SAVE / LOAD macro

NEW - Create a new Macro

DELETE - Delete existing Macro

SAVE - Save a Macro

LOAD - Load a Macro that had been saved.

Macro Name

Select a Macro.

Macro record setting

Macro Setting

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

Macro Record Setting

3 selections provided for you to choose for setting the Delay Time.

Adjust Delay Time

You can adjust Delay Time that already record

Macro Delay Time Setting

Ignore Delay Time

Insert Default Delay Time ____ ms

: No delay time between key signal.
: Delay time depend on the preferred time set.

Macro record timeline | Macro Setting

Challenger is the Game

Tl eSPORTS | THERON Plus GUI Software User Guide

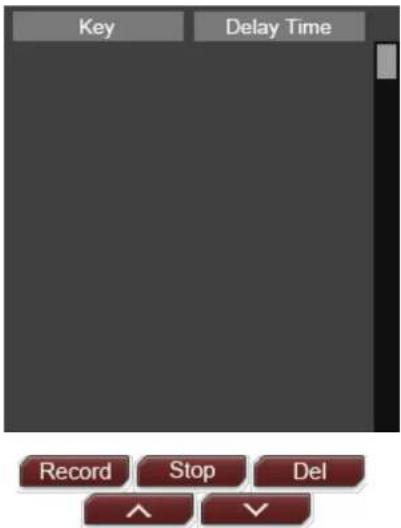

Macro Record Timeline

Allow you to program your macro as preferred.

RECORD

Record program : Click Record to start recording via your keyboard or mouse and all signal will be recorded on this timeline.

DELETE

Delete signal : Choose the recorded signal that you wish to delete (Once signal has been chosen, the background will turn RED as below picture)

Click Delete and the selected signal will be removed.

STOP

Stop program : Click Stop whenever recording has been completed.

Macro record timeline

1 Macro Setting

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

Macro Record Timeline

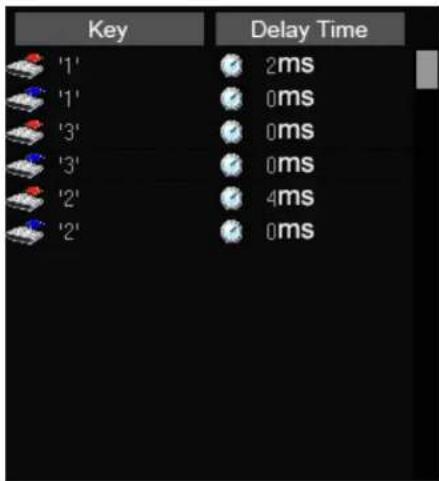

Once Macro Name and Recording have been completed, you can proceed to programming your macro now.

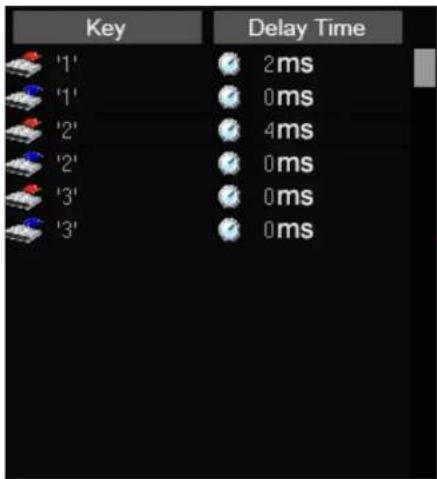

Switch signal up or down

Select the signal and click Up/ Down to rearrange the recorded signals

Note : Please be careful while arranging the "Press" & "Release" signal

Choose "3" and press "UP" or "DOWN" to arrange

Insert Command

1 Macro Setting

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

Insert Command

If you want to modify or insert Command to the programmed macro, please click the Command button and select a command into macro from the drop down selection.

Insert Command

Select a command as below picture

I CONTENT THREE Performance Setting

GUI Software User Guide

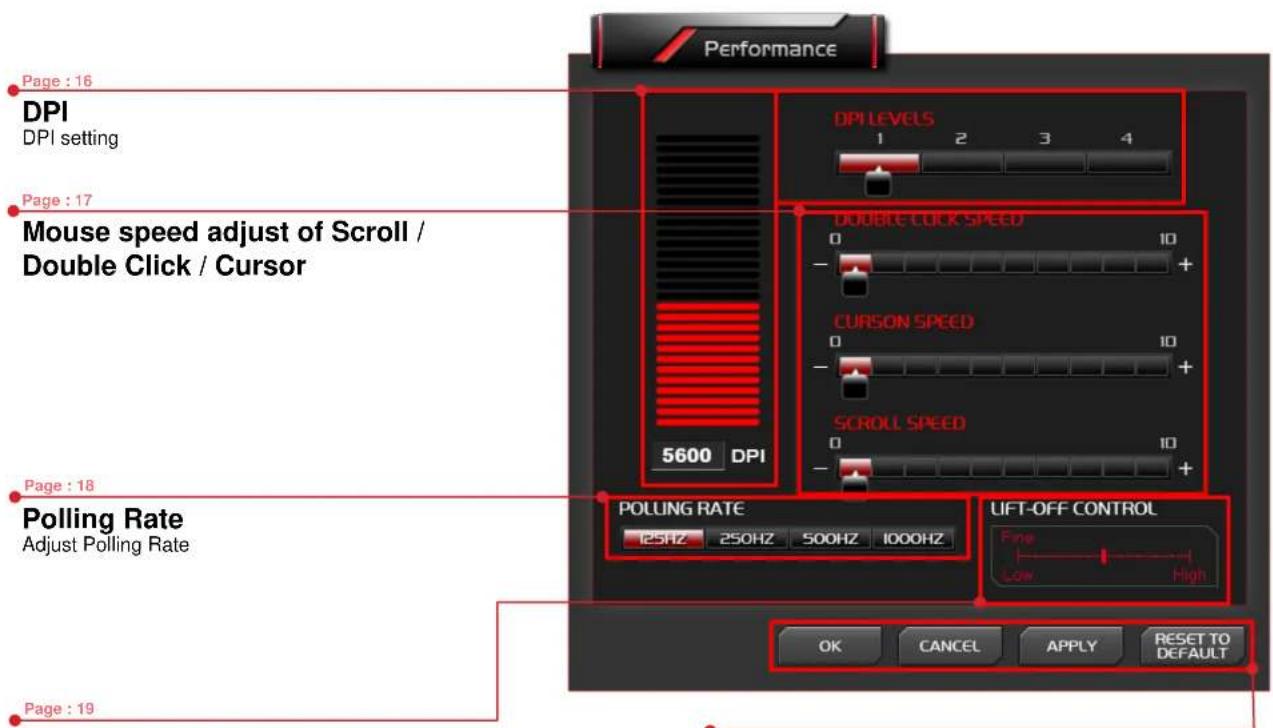

Performance Interface

Performance Setting

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

Lift-Off Control

Adjust the sensor distance

Apply / Cancel / OK

APPLY: Click Apply you completed the setting

CANCEL: Click Cancel to cancel the setting

OK: Click OK after DPI Setting has been fully completed

DPI

Performance Setting

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

16

Dot Per Inch – The Mouse DPI

Do you know what DPI means?

DPI stands for Dot Per Inch, is a measurement of how sensitive a mouse is. The higher a mouse's DPI, the farther the cursor on your screen will move when you move the mouse. A mouse with a higher DPI setting detects and reacts to smaller movements.

DPI LEVELS

DPI levels for each Profile

You can choose your preferred DPI level (Each profile can have up to 4 DPI levels).

Abstract pattern of alternating black and red horizontal stripes (no text or symbols)

5600

DP[

Configure a DPI

Choose the DPI level by adjusting the RED bar to your preferred DPI level or fill in the DPI number at the [5600] box.

Other Speed Performance

Performance Setting Tt eSPORTS | THERON Plus GUI Software User Guide

17

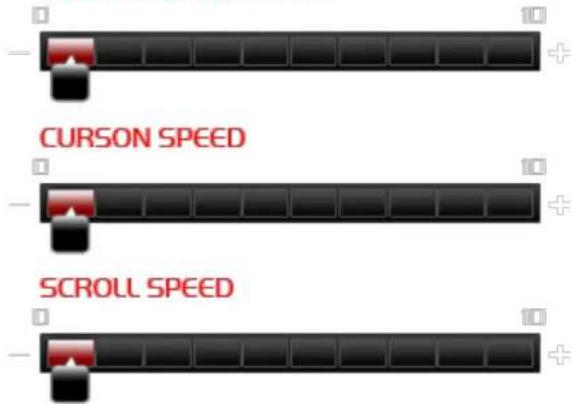

Mouse speed adjust of Scroll / Double Click / Cursor

The other Mouse function speed can be adjusted.

DOUBLE CLICK SPEED

Double Click Speed

: To adjust the speed of double click to detonate signal.

Cursor Speed

: To increase or decrease the mouse's moving speed.

Scroll Speed : To adjust the scrolling speed.

Polling Rate

A higher polling rate could decrease the lag that occurs between when you move your mouse and when the movement shows up on your screen. Higher Polling Rate does not mean that you can move fast, that will depends on what DPI level.

POLLING RATE

250HZ

500HZ

1000HZ

Adjust your THERON Plus Polling Rate

There are 4 levels for Polling Rate to choose from:

125 Hz polling rate, it's reporting THERON Plus's position to the computer 125 times every second (Also known as 8ms)
250 Hz polling rate, it's reporting THERON Plus's position to the computer 250 times every second (Also known as 4ms)
500 Hz polling rate, it's reporting THERON Plus's position to the computer 500 times every second (Also known as 2ms)
1000 Hz polling rate, it's reporting THERON Plus's position to the computer 1000 times every second (Also known as 1ms)

Lift-Off Control

Performance Setting

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

Lift-Off Control

Lift-off trace sometimes required for particular games and some mouse-pads that will influence the trace distance and affected gameplay. Now with THERON Plus, this allows gamers to adjust the distance to the best distance they want while gaming!

LIFT-OFF CONTROL

Adjust your THERON Plus Lift-Off

Adjust the sensitivity by adjusting the level. CAUTION : Lowest is not recommended as THERON Plus might not be able to sense the mouse pad.

I CONTENT FOUR Light Setting

GUI Software User Guide

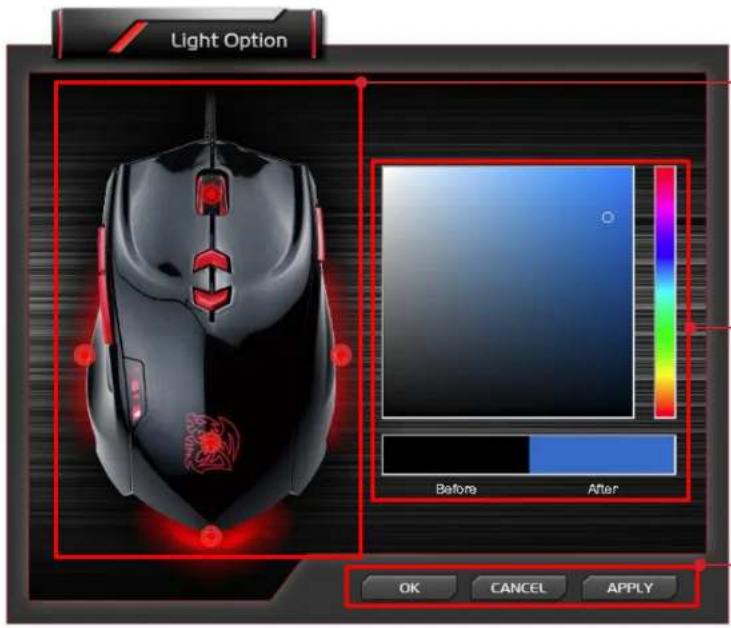

Click and Choose THERON Plus Light Part

THERON Plus have four part can select and customize light color. Scroll / Left and Right bottom panel / Down bottom panel / Tt

DRAGON LOGO

Note: Tt DRAGON LOGO will have a pulse-break light effect.

Select a Light color

You can select a color on left picture spectrum.

OK / CANCEL/ APPLY

OK: Click OK to save the setting

CANCEL: Click CANCEL to cancel the setting

APPLY: Click APPLY to save the setting

I CONTENT FIVE Firmware Update

GUI Software User Guide

How to update Firmware | Firmware Update

Challenger is the Game

Tt eSPORTS | THERON Plus GUI Software User Guide

Update Your THERON Plus Firmware

Please follow our official Website on : www.ttesports.com

Go to the Product web page, scroll down to the "Download" section for firmware updates information.
