DPC3300R - Shower head Conair - Free user manual and instructions

Product Type	Handheld Shower Head
Brand	Conair
Model	DPC3300R
Material	Chrome-plated ABS plastic
Dimensions (approx.)	10 x 3.5 x 3.5 inches (25.4 x 8.9 x 8.9 cm)
Weight (approx.)	0.6 lbs (270 g)
Connection Size	Standard 1/2-inch NPT
Water Pressure Range	20-80 PSI (1.4-5.5 bar)
Spray Settings	Multiple modes including massage, mist, and combination
Flow Rate	1.5 GPM (5.7 L/min) at 80 PSI
Water Saving Feature	Yes, aerated flow to reduce water usage
Easy-Clean Nozzles	Yes, rubber nozzles for easy limescale removal
Handle Grip	Textured, non-slip surface
Hose Included	Yes, 60-inch stainless steel hose
Installation Type	Handheld with bracket, wall-mountable
Maintenance	Rinse nozzles periodically; clean with mild soap
Warranty	1-year limited

Frequently Asked Questions - DPC3300R Conair

How do I install the Conair DPC3300R shower head?

Unscrew your old shower head, wrap plumber's tape on the threads, then screw on the included hose and attach the shower head. Hand-tighten only.

What is the flow rate of this shower head?

The maximum flow rate is 1.5 GPM at 80 PSI, which is water-efficient while still providing a satisfying shower.

How do I switch between spray modes?

Rotate the face plate or press the mode button (depending on design) to cycle through settings like massage, mist, and combination.

Can I use the shower head with low water pressure?

Yes, it works with pressures as low as 20 PSI, though performance may vary. The aerated feature helps maintain pressure.

How do I clean the nozzles if they get clogged?

Rub the rubber nozzles with your fingers to loosen mineral deposits. For stubborn buildup, soak in white vinegar for 30 minutes.

Is the hose included with the DPC3300R?

Yes, a 60-inch stainless steel hose is included for flexible handheld use.

Will this fit my existing shower arm?

Yes, it connects to a standard 1/2-inch NPT shower arm. Most homes have this size.

Is the shower head designed to save water?

Yes, it has an aerated flow feature that mixes air with water, reducing water consumption without compromising performance.

What should I do if the shower head leaks?

Check that all connections are hand-tight and the rubber washers are properly seated. If leaking persists, replace the washer.

Can I mount the shower head on the wall permanently?

Yes, it comes with a bracket that allows you to mount it on the wall at a desired height, or use it handheld.

USER MANUAL DPC3300R Conair

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THIS PRODUCT.

OPERATION INSTRUCTIONS

Congratulations on your purchase of the Pollenex Showerhead Set. Your showerheads are manufactured from quality materials and will give you years of convenient use in your bathroom.

CAUTION! SILICONE GLUE MAY CAUSE EYE IRRITATION. MAY CAUSE SKIN IRRITATION. MAY CAUSE RESPIRATORY TRACT IRRITATION.

Avoid contact with eyes. Do not handle contact lenses with product on hands. Avoid contact with skin and clothing. Wash thoroughly after handling. Avoid breathing vapor. Use with adequate ventilation.

FIRST AID

IN CASE OF EYE CONTACT, immediately flush eyes with plenty of water for 15 minutes. Get medical attention. IN CASE OF SKIN CONTACT, immediately flush/wash skin with soap and plenty of water. Get medical attention. IN CASE OF INHALATION DISCOMFORT, move to fresh air. KEEP OUT OF REACH OF CHILDREN. Dispose of unused portion immediately.

INSTALLING THE SHOWERHEAD SET

Step 1: Remove the old showerhead by turning it counterclockwise (Fig. 1). Wipe off any debris from the threaded pipe. Wrap the teflon tape clockwise around the threaded pipe (Fig. 2).

Step 2: Install the diverter valve on the pipe. Turn clockwise with your hand to tighten. Note: Do not over-tighten. (Fig. 3). Then, install the new wall-mount showerhead to the forward-facing diverer opening by turning it clockwise and tightening by hand. If additional tightening is required, place protective cloth on the swivel nut and tighten with a wrench (Fig. 4).

Step 3: Attach the ridged nut end of the hose to the downward-facing diverter valve opening (Fig. 5). Attach the other end of the hose to the hand-held showerhead (Fig. 6) and turn clockwise to tighten by hand.

Note: The ridged nut end of the shower hose contains a permanently installed device to protect from the backflow of water which is standard for all showerheads. To function properly the ridged nut end of the hose must be connected to the diverter.

Step 4: You can affix the holder to the surface of tiles, marble, fiberglass, plastic, glass or acrylic with the enclosed silicone glue (keep out of reach of children). Before fastening the holder, clean off any debris from the wall using alcohol and make sure surface is clean and dry. Apply the silicone glue to the back of the holder. If desired, use screw holes provided in holder for added support. (Screws are not included).

Step 5: Press the holder firmly against the wall for at least 2 minutes (Fig. 7). Allow the glue to dry for 24 hours before resting the hand-held showerhead in the holder.

EASY TO OPERATE

Turn the diverter control valve to adjust the spray from the wall-mount only to hand-held only or a combination of both showerheads. (Fig 8).

CLEANING AND MAINTENANCE

Clean with gentle non-abrasive cleanser and soft cloth.

LIMITED FIVE YEAR WARRANTY

Conair will (at our option) repair or replace your appliance free of charge for 60 months from the date of purchase if the appliance is defective in workmanship or materials.

To obtain service under this warranty, return the defective product to the service center listed below nearest you, together with your sales slip and \$3.00 for postage and handling. California residents need only provide proof of purchase and should call 1-800-326-6247 for shipping instructions. In the absence of a purchase receipt, the warranty period will be 60 months from the date of manufacture.

ANY IMPLIED WARRANTIES, OBLIGATIONS OR LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE 60 MONTH DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

IN NO EVENT SHALL CONAIR BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. Some states do not allow the exclusion or limitation of special, incidental or consequential damages, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. For service, please bring or send defective unit with sales slip to the nearest service center listed below or call 1-800-326-6247.

Service Centers

Pollenex

Service Department

150 Milford Road

East Windsor, NJ 08520

Pollenex

Service Department

7475 N. Glen Harbor Blvd.

Glendale, AZ 85307

©2009 Conair Corporation

Model DPC3300R / DPC3303R

08PX11677

Pollenex:

5 Piece Showerhead Set

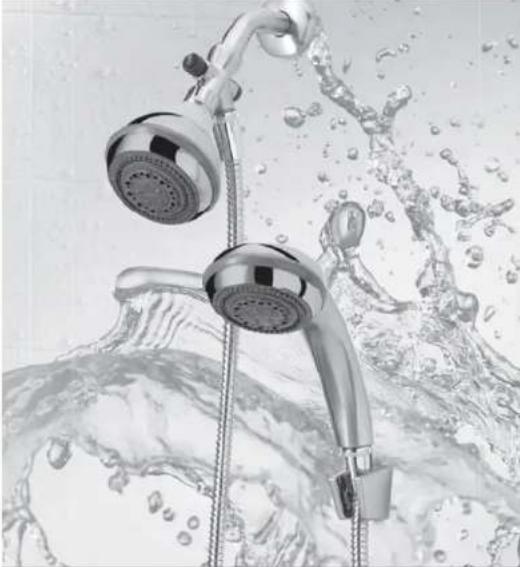

Close-up of a showerhead with two chrome showerheads spraying water, no text or symbols visible

INSTRUCTION BOOKLET FOR MODEL DPC3300R / DPC3303R

For your safety and continued enjoyment of this product.

always read the instruction booklet carefully before using.

IB-9001
